Lavorwash S.p.A.

Lavor Parts for Petrol Engine Pressure Cleaner Independent 1900

SKU: Independent 1900 8.601.0103C
€13.96
VAT included

Lavor Parts for Petrol Engine Pressure Cleaner Independent 1900

Lavor original spare parts for to replace broken parts for to fix Petrol Engine Cold Water Pressure Cleaner Independent 1900 8.601.0103C.

Fix Your Pressure Cleaner. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Lavor Parts for Petrol Engine Pressure Cleaner Independent 1900
  • Lavor Parts for Petrol Engine Pressure Cleaner Independent 1900
  • Lavor Parts for Petrol Engine Pressure Cleaner Independent 1900
  • Lavor Parts for Petrol Engine Pressure Cleaner Independent 1900
Lavorwash S.p.A.

Lavor Parts for Petrol Engine Pressure Cleaner Independent 1900

SKU: Independent 1900 8.601.0103C Condition: New
€13.96
VAT included

Lavor Parts for Petrol Engine Pressure Cleaner Independent 1900

Lavor original spare parts for to replace broken parts for to fix Petrol Engine Cold Water Pressure Cleaner Independent 1900 8.601.0103C.

Fix Your Pressure Cleaner. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 29 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
29 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

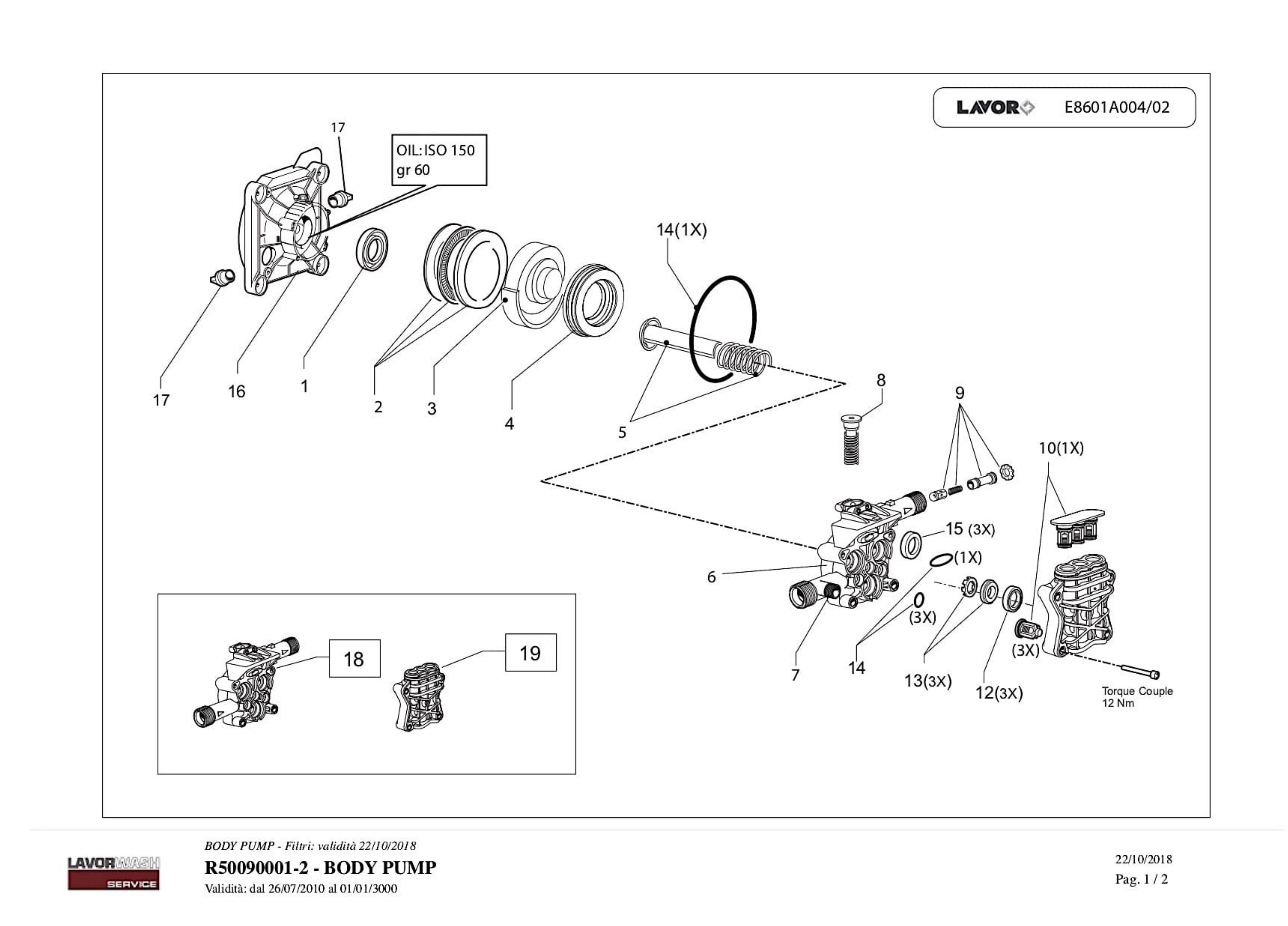

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 3.650.0001 OIL SEAL 17X30X6 154F-2.5HP (r.13180) €2.74
002
 photo_cameraImage coming soon 6.005.0021 24 LAVOR €26.25
003
 photo_cameraImage coming soon 4.005.0265 WOBBLE PLATE 9DEG30'SLOPE-TH.PT'03 INT.FL.-MACHINED- €6.22
004
 photo_cameraImage coming soon 4.007.0328 THRUST BEARING 35X55X12 PT'03 €15.13
005
 Lavor Independent 1900 Piston Kit 6.005.0225 Lavor Independent 1900 Piston Kit €39.68
007
 photo_cameraImage coming soon 3.106.X024 THERMAL VALVE 1/8" 60°C €14.53
008
 Compensated Valve Assy for Pressure Washer Lavor Independent 1900 5.009.0647 Compensated Valve Assy for Pressure Washer Lavor Independent 1900 €11.26
009
 Kit 256 Check Valve for Washer Lavor Predator 160 6.005.0281 Kit 256 Check Valve for Washer Lavor Predator 160 €15.93
010
 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 6.005.0184 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 €15.19
012
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54
013
 Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24 6.005.0134 Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24 €15.18
014
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43
015
 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 €14.50
016
 photo_cameraImage coming soon 4.005.0248 HORIZONTAL THERMIC ENGINE FLANGE 2.5 HP €42.11
017
 photo_cameraImage coming soon 6.605.0093 DIPSTICK SUB ASSY €11.69
018
 Body Guide PT'03 D.12 for Pressure Washer Lavor Independent 1900 5.007.0223 Body Guide PT'03 D.12 for Pressure Washer Lavor Independent 1900 €84.76
019
 photo_cameraImage coming soon 5.008.0182 Substituted by 5.008.0182C HEAD PT'03 PARTNER D.12 €28.37
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

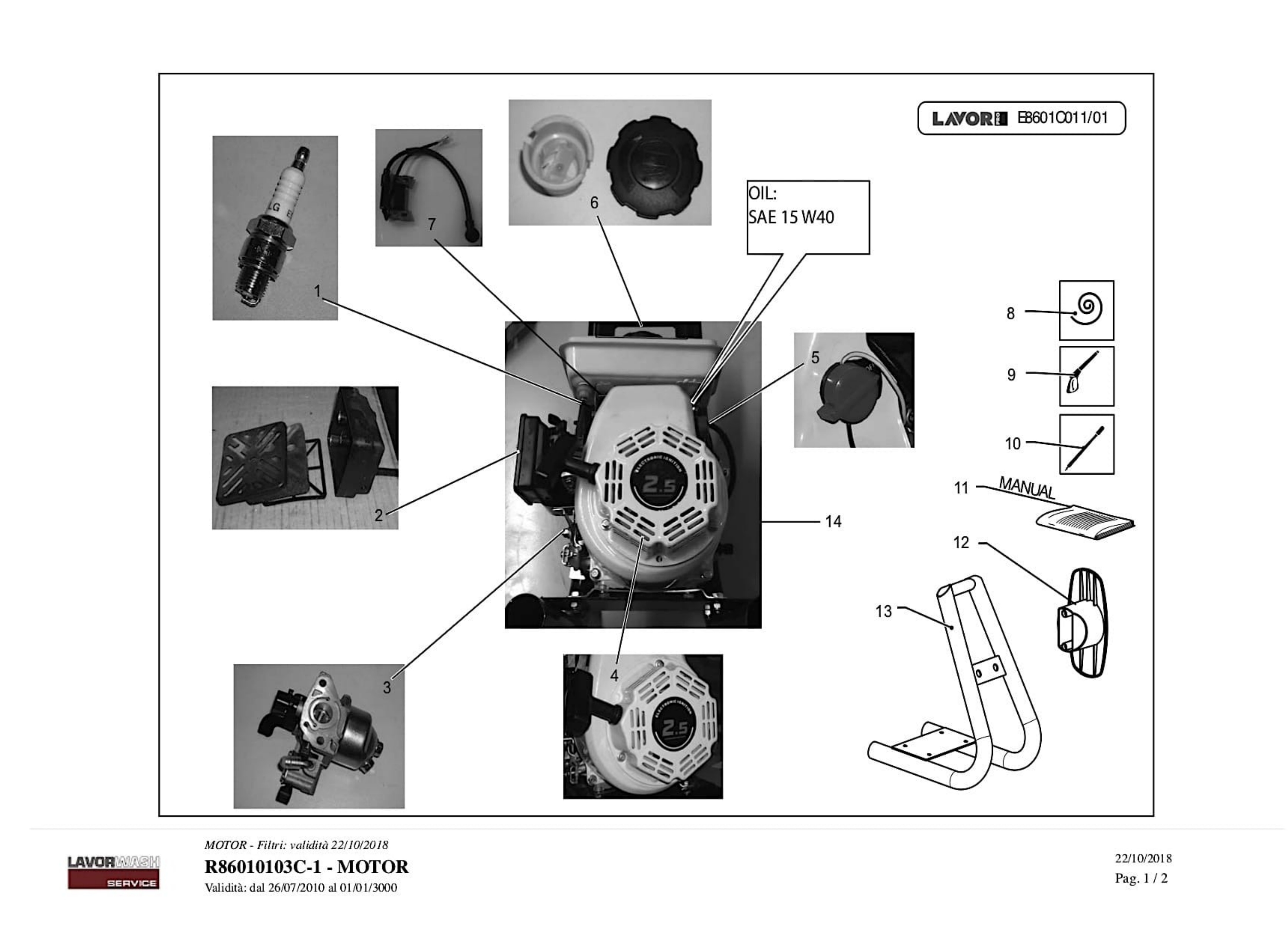

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 3.650.0019 SPARK PLUG 154F-2.5HP(r.34200) €12.67
002
 Air Cleaner Set for Pressure Washer Lavor Independent 1900 6.605.0095 Air Cleaner Set for Pressure Washer Lavor Independent 1900 €25.32
003
 Carburator 154F-2,5HP for Pressure Washer Lavor Independent 1900 3.650.0020 Carburator 154F-2,5HP for Pressure Washer Lavor Independent 1900 €37.86 Not available for order
004
 Recoil Starter for Pressure Washer Lavor Independent 1900 3.650.0024 Recoil Starter for Pressure Washer Lavor Independent 1900 €93.45
005
 Engine Switch for Pressure Washers Lavor Independent 1900-2800 3.650.0015 Engine Switch for Pressure Washers Lavor Independent 1900-2800 €11.26 Not available for order
006
 Tank Cap + Fuel Filter for Washers Lavor Independent 1900-2800 6.605.0094 Tank Cap + Fuel Filter for Washers Lavor Independent 1900-2800 €25.32
007
 Electronic Coil for Pressure Washer Lavor Independent 1900 3.650.0022 Electronic Coil for Pressure Washer Lavor Independent 1900 €32.67
009
 photo_cameraImage coming soon 6.001.0067 Substituted by 6.001.0083 GUN S'01-EU-INTERM.SECURITY PIN YELLOW PANT.108C €32.07
010
 photo_cameraImage coming soon 6.002.0213C S'99 FIXED LANCE D.1,25 (WHITE) L=46cm €12.16
012
 photo_cameraImage coming soon 4.008.0789 HOSE REEL TIGER €6.94
013
 photo_cameraImage coming soon 5.013.0055 COMPLETE FRAME THERMIC 2.5 €67.80
014
 photo_cameraImage coming soon 3.600.0026 LIFAN ENGINE 2,5HP PT'03 (HORIZ.FLANGE) TYPE154 KEY 65mm -YE €270.54

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Parts for Petrol Engine Pressure Cleaner Independent 1900

Fix Your Petrol Engine Cold Water Pressure Cleaner Independent 1900 8.601.0103C. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Independent 1900 8.601.0103C
Petrol Engine Cold Water Pressure Cleaner Independent 1900 8.601.0103C pag.1
# Part Num. Description
001 3.650.0001 OIL SEAL 17X30X6 154F-2.5HP (r.13180)
002 6.005.0021 24 LAVOR
003 4.005.0265 WOBBLE PLATE 9DEG30'SLOPE-TH.PT'03 INT.FL.-MACHINED-
004 4.007.0328 THRUST BEARING 35X55X12 PT'03
005 6.005.0225 PISTON KIT
007 3.106.X024 THERMAL VALVE 1/8" 60°C
008 5.009.0647 COMPENSATED VALVE ASSEMBLY WITHOUT TS - SPRING 13KG (PT'03)
009 6.005.0281 KIT 256 VALVE GUIDE RID. W/OSUCTION PT'03C
010 6.005.0184 KIT 170 LW HEAD VALVE KIT
012 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
013 6.005.0134 KIT 125 O-RING SEAL
014 6.005.0226 KIT 209 O-RING
015 6.005.0079 KIT 79 LW OIL SEALS
016 4.005.0248 HORIZONTAL THERMIC ENGINE FLANGE 2.5 HP
017 6.605.0093 DIPSTICK SUB ASSY
018 5.007.0223 BODY GUIDE
019 5.008.0182 Substituted by 5.008.0182C - HEAD PARTNER PT'03 D.12
Petrol Engine Cold Water Pressure Cleaner Independent 1900 8.601.0103C pag.2
001 3.650.0019 SPARK PLUG 154F-2.5HP(r.34200)
002 6.605.0095 AIR FILTER KIT
003 3.650.0020 CARBURETOR ASSY 154F-2.5HP (r.16100) - DISCONTINUED
004 3.650.0024 RECOIL STARTER ASSY BLACK 154F-2.5HP (r.27300)
005 3.650.0015 IGNITION SWITCH 154F-2.5HP 168F-5.5HP (r.35410)
006 6.605.0094 TANK CAP+FUEL FILTER KIT
007 3.650.0022 IGNITION COIL 154F-2.5HP (r.34500)
008 4.018.0051 1/4 HOSE 140 BAR L.5000 1/4F.+D.15
009 6.001.0067 Substituted by 6.001.0083 GUN S'01-EU-INTERM.SECURITY PIN YELLOW PANT.108C
010 6.002.0213C S'99 FIXED LANCE D.1,25 (WHITE) L=46cm
011 7.100.1408 INSTRUCTION MANUAL INDEPENDENT1900 LAVOR
012 4.008.0789 HOSE REEL TIGER
013 5.013.0055 COMPLETE FRAME THERMIC 2.5
014 3.600.0026 LIFAN ENGINE 2,5HP PT'03 (HORIZ.FLANGE) TYPE154 KEY 65mm -YE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Independent 1900 8.601.0103C
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Drawing Lavor Independent 1900

Drawing Lavor Independent 1900

Download (233.76KB)
