Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner Idro Ride 110

SKU: Lavor RIDE 110 8.101.0003
€1.63
VAT included

Lavor Original Parts for Pressure Cleaner Idro Ride 110

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner 8.101.0003 Idro Ride 110 220-240V 50/60 HZ.

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Lavor Original Parts for Pressure Cleaner Idro Ride 110
  • Lavor Original Parts for Pressure Cleaner Idro Ride 110
  • Lavor Original Parts for Pressure Cleaner Idro Ride 110
  • Lavor Original Parts for Pressure Cleaner Idro Ride 110
  • Lavor Original Parts for Pressure Cleaner Idro Ride 110
Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner Idro Ride 110

SKU: Lavor RIDE 110 8.101.0003 Condition: New
€1.63
VAT included

Lavor Original Parts for Pressure Cleaner Idro Ride 110

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner 8.101.0003 Idro Ride 110 220-240V 50/60 HZ.

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 31 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
26 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

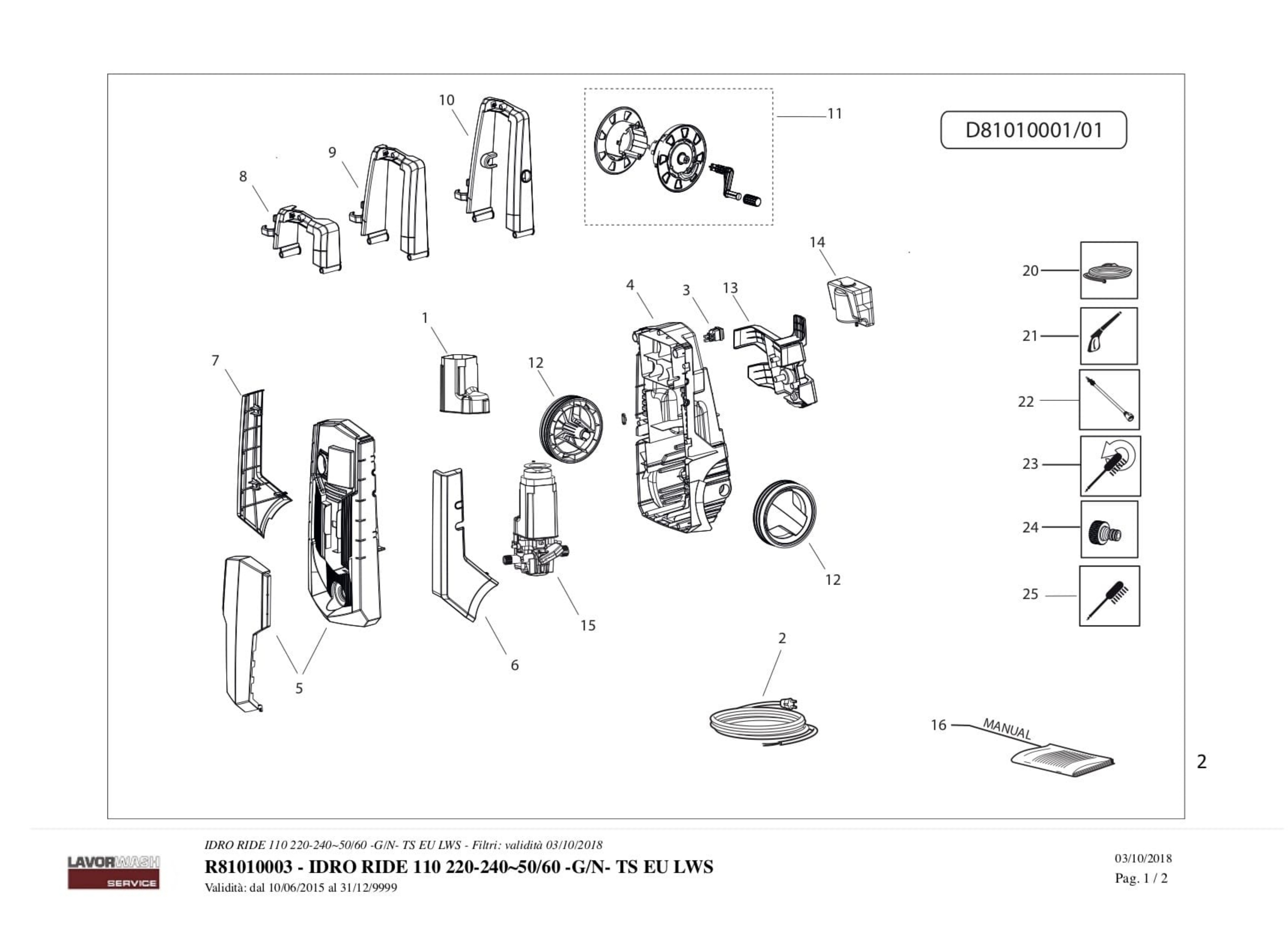

Esploso pagina 1
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.008.1172 AIR CONVEYOR FOR U76 €14.87
002
 photo_cameraImage coming soon 4.012.0174 CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG €22.92
003
 Switch 0/1 Black Button for Pressure Washers Lavor 3.401.0178 Switch 0/1 Black Button for Pressure Washers Lavor €6.91
004
 photo_cameraImage coming soon 4.013.0724 BACK SIDE CABINET PASCAL -BLACK- (BRUSH MOTOR) €29.28
005
 photo_cameraImage coming soon 5.011.0211 ASSEMBLY FRONT PLASTIC COVERSPASCAL -B/Y- (BRUSH MOTOR) W/T €29.28
006
 photo_cameraImage coming soon 4.008.1703 LATERAL RIGHT SHELL PASCAL -GREY RAL.7046- €6.94
007
 photo_cameraImage coming soon 4.008.1704 LATERAL LEFT SHELL PASCAL -GREY RAL.7046- €7.30
012
 Wheel for Pressure Washers Lavor RIDE 110 - RACE 125 4.008.1260 Wheel for Pressure Washers Lavor RIDE 110 - RACE 125 €8.19
013
 photo_cameraImage coming soon 4.008.1709 ACCESSORY HOLDER PASCAL -BLACK- €7.88
015
 photo_cameraImage coming soon 5.001.0841C MOTORPUMP PT'03EVO 230/50 TS W/THERMAL 5'30 (7645PF-KC) €140.53
020
 H.P. Hose 4.018.0094 4 m for Quick Coupling Trigger Gun Lavor S’09 4.018.0094 H.P. Hose 4.018.0094 4 m for Quick Coupling Trigger Gun Lavor S’09 €26.58
021
 Trigger Gun S'09C 6.001.0073 for Pressure Washers Cold Water Lavor 6.001.0073 Trigger Gun S'09C 6.001.0073 for Pressure Washers Cold Water Lavor €20.60
022
 Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor 6.002.0340 Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor €10.11
024
 Quick Coupling 3/4F for High Pressure Washers Lavor 3.100.0082 Quick Coupling 3/4F for High Pressure Washers Lavor €1.63
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

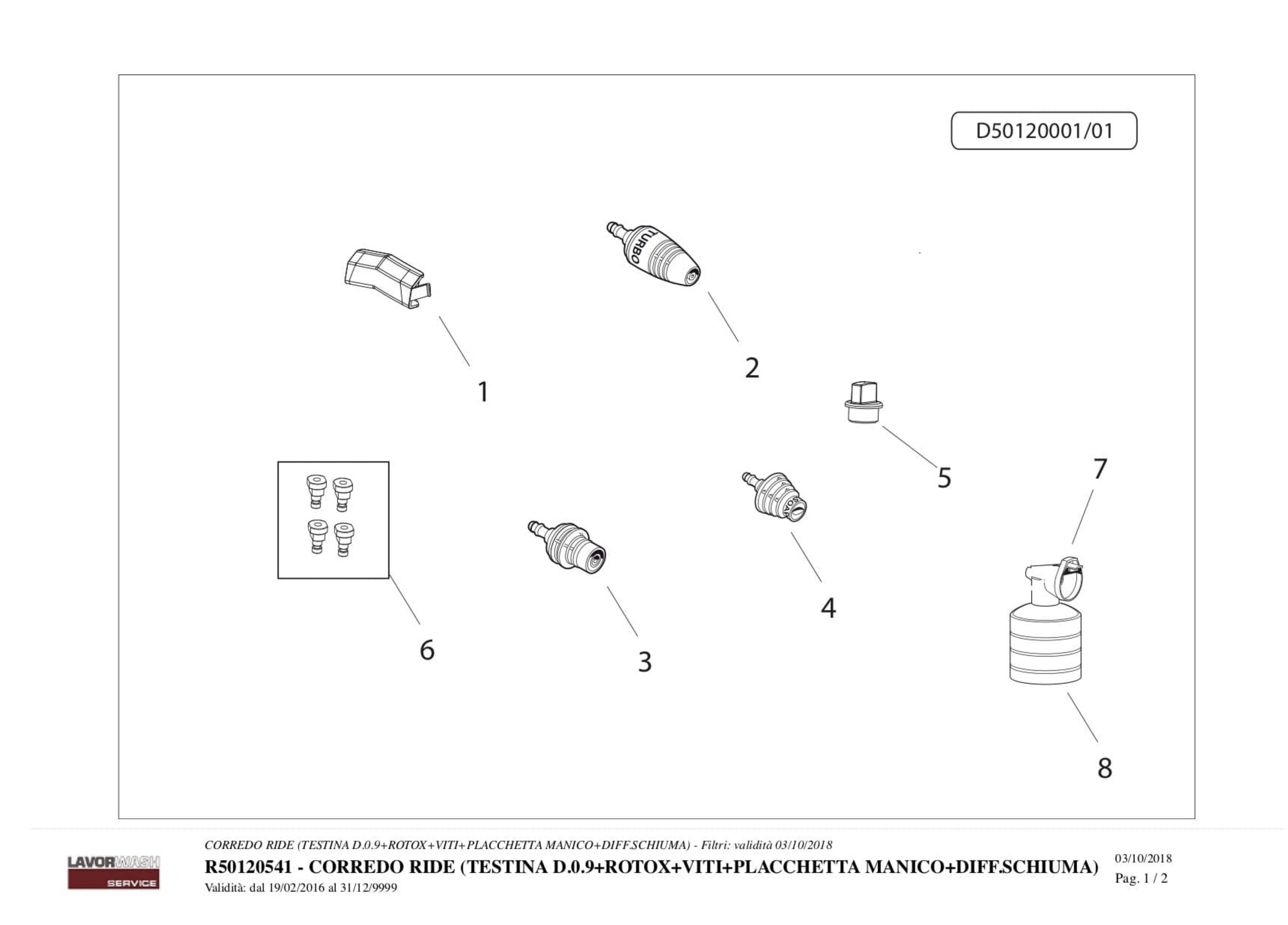

Esploso pagina 2
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.008.1708 INSERT FOR HANDLE PASCAL -YELLOW PANT.108C- €2.11
002
 Head Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0346 Head Turbo Nozzle Ø 1,025 for Lance Lavor €7.50
003
 Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0635 6.002.0635 Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0635 €8.50
007
 photo_cameraImage coming soon 5.X11.0070 DETERGENT DIFFUSER €4.62
008
 photo_cameraImage coming soon 4.008.0803 TANK FOR FOAM SPRAYER -WHITE TRANSPARENT- €5.78
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

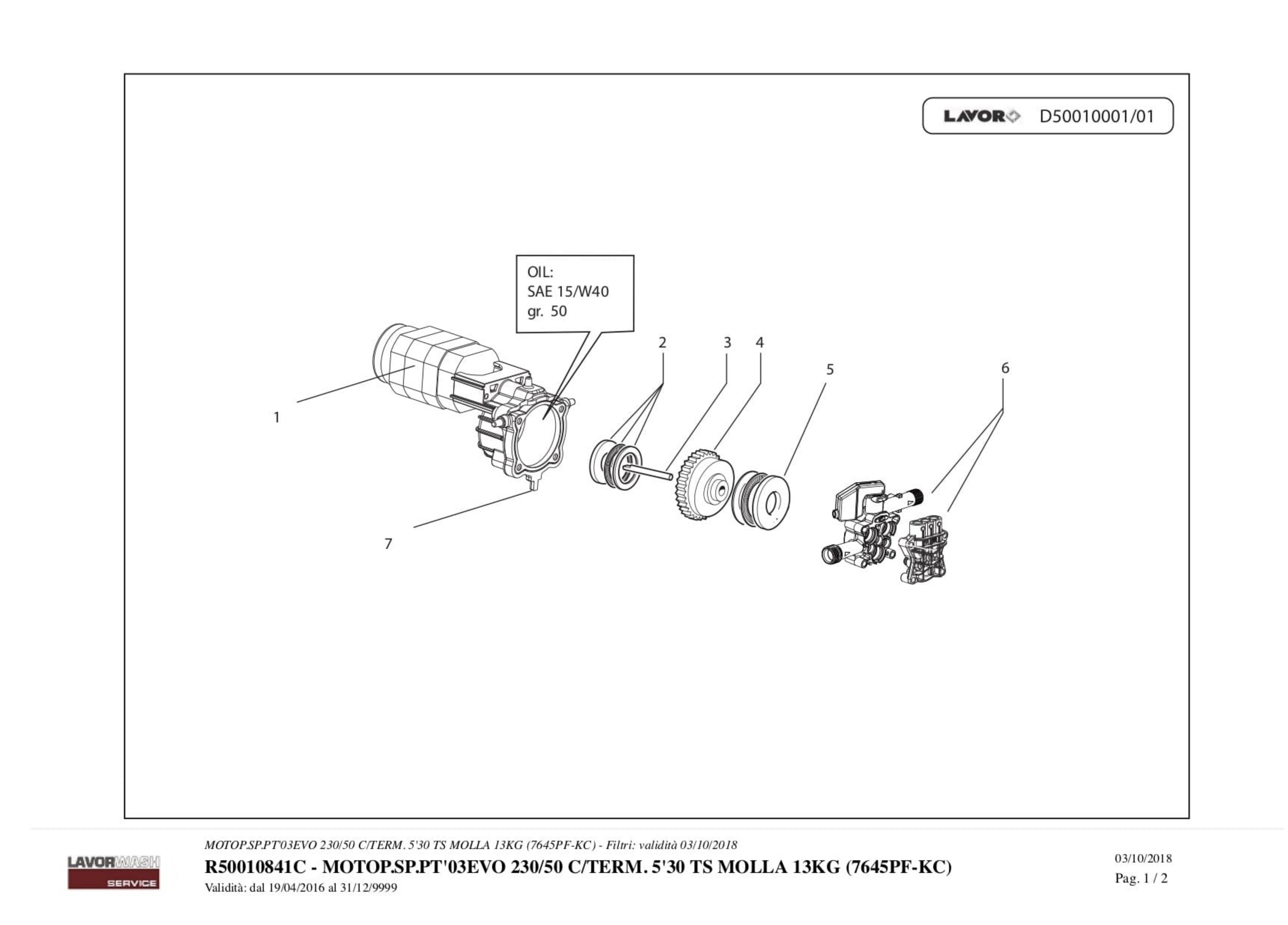

Esploso pagina 3
Pos. Item Price Buy
001
 Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140 5.009.0979 Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140 €87.31
002
 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 6.005.0311 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 €7.56
003
 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS 4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS €7.68
004
 Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145 5.009.0726 Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145 €7.46
005
 photo_cameraImage coming soon 4.007.0328 THRUST BEARING 35X55X12 PT'03 €15.13
006
 photo_cameraImage coming soon 5.009.0837C BODY GUIDE+HEAD ASSEMBLED TS WITHOUT SUCTION (SPRING 13KG) - €82.24
007
 Motor Flange Collar for Pressure Washers Lavor RIDE 110 - RACE 125 4.008.1164 Motor Flange Collar for Pressure Washers Lavor RIDE 110 - RACE 125 €8.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner Idro Ride 110

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner 8.101.0003 Idro Ride 110 220-240V 50/60 HZ.

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Lavor RIDE 110 8.101.0003

8.101.0003 IDRO RIDE 110 220-240V 50/60 HZ LAVOR pag.1
# Part Num. Description
0 R50010841C MOTOP.SP.PT'03EVO 230/50 C/TERM. 5'30 TS MOLLA 13KG (7645PF-KC)
0 R50120541 CORREDO RIDE (TESTINA D.0.9+ROTOX+VITI+PLACCHETTA MANICO +DIFF.SCHIUMA)
001 4.008.1172 AIR CONVEYOR FOR U76
002 4.012.0174 CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG
003 3.401.0178 SWITCH 0/1 BLACK BOTTON IP55 12/10
004 4.013.0724 BACK SIDE CABINET PASCAL -BLACK- (BRUSH MOTOR)
005 5.011.0211 ASSEMBLY FRONT PLASTIC COVERSPASCAL -B/Y- (BRUSH MOTOR) W/T
006 4.008.1703 LATERAL RIGHT SHELL PASCAL -GREY RAL.7046-
007 4.008.1704 LATERAL LEFT SHELL PASCAL -GREY RAL.7046-
008 4.008.1707 LOW HANDLE PASCAL
012 4.008.1260 BLACK WHEEL STM/I-CLEAN (P80.0502)
013 4.008.1709 ACCESSORY HOLDER PASCAL -BLACK-
015 5.001.0841C MOTORPUMP PT'03EVO 230/50 TS W/THERMAL 5'30 (7645PF-KC)
016 7.100.2026 INSTRUCTION MANUAL CROSS/RACE/RIDE/ENDURO LAVOR
020 4.018.0094 HOSE 1/4 180BAR L=4000 M22x1,5D.15-RAPID FIX W/SPIRAL SLEEV
021 6.001.0073 GUN S'09 WITH INTEGRAL QUICK JOINT LAVOR
022 6.002.0340 LANCE S'12 WITHOUT NOZZLE HEADWITH QUICK COUPLING/COGETIL
024 3.100.0082 QUICK COUPLING INLET CONNECTOR(THREAD=11.5)
8.101.0003 IDRO RIDE 110 220-240V 50/60 HZ LAVOR pag.2
001 4.008.1708 INSERT FOR HANDLE PASCAL -YELLOW PANT.108C-
002 6.002.0346 ROTOX NOZZLE HEAD LANCE S'12 D.1,025 WITH QUICK COUPLING
003 6.002.0635 NOZZLE HEAD LANCE S'12 D.0,9 (PINK) ADJUST.FAN JET W/QUICK C
007 5.X11.0070 DETERGENT DIFFUSER
008 4.008.0803 TANK FOR FOAM SPRAYER -WHITE TRANSPARENT-
8.101.0003 IDRO RIDE 110 220-240V 50/60 HZ LAVOR pag.3
0 R50090837C GRUPPO CORPO GUIDA C/TS S/ASP. VAL.COMP.-M.13KG +TESTATA (PT'03EVO)
001 5.009.0979 7645PF-AL KC MOTOR 230/50 W/CAPACITOR-THERMAL
002 6.005.0311 THRUST RING KIT (PT'03 U76)
003 4.007.0205 PIN 10X70
004 5.009.0726 5'30 WOBBLE PLATE ASSEMBLY W/CROWN Z 62 (PT'03)
005 4.007.0328 THRUST BEARING 35X55X12 PT'03
006 5.009.0837C BODY GUIDE+HEAD ASSEMBLED TS WITHOUT SUCTION (SPRING 13KG) -
007 4.008.1164 RING FOR FLANGE X MOTOR U96AF/U76 -C-

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Lavor RIDE 110 8.101.0003
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Drawing Lavor Idro Ride 110

Drawing Lavor Idro Ride 110

Download (249.56KB)
