Fasa Vacuum Cleaner WDX 22 Parts
€3.36
VAT included
Fasa Original Parts for Vacuum Cleaner WDX 22 WET&DRY
We have the original Fasa Original Parts for Vacuum Cleaner ASPIRATORE WDX 22 WET&DRY 230/ 50-60 FASA S/PRESA - 8.202.0016, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fasa Vacuum Cleaner WDX 22 Parts
€3.36
VAT included
Fasa Original Parts for Vacuum Cleaner WDX 22 WET&DRY
We have the original Fasa Original Parts for Vacuum Cleaner ASPIRATORE WDX 22 WET&DRY 230/ 50-60 FASA S/PRESA - 8.202.0016, the diagram, parts list and tool repair that help you need to get your tools running like new again.
settings
34 spare parts
description

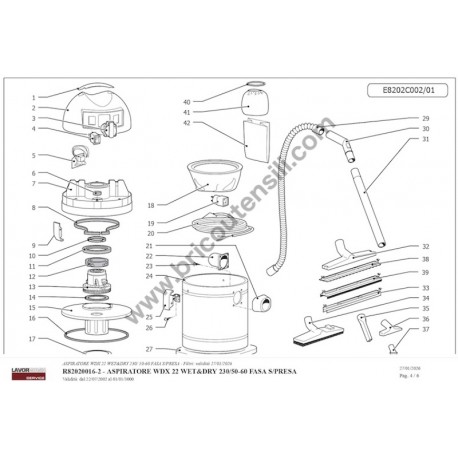

1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
34 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Fasa Original Parts for Vacuum Cleaner WDX 22 WET&DRY
We have the original Fasa Original Parts for Vacuum Cleaner ASPIRATORE WDX 22 WET&DRY 230/ 50-60 FASA S/PRESA - 8.202.0016, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Open PDF File in this Page to choose Spare Parts for Pressure Washer Fasa.
| VACUUM CLEANER WDX 22 WET&DRY 230/ 50-60 FASA S/PRESA - 8.202.0016 | ||
Pag.1 |
||
| # | Part Num | Description |
| 1 | 4.208.0038 | GB BLACK HEAD HANDLE |
| 2 | 4.208.0035 | GB HEAD 1 BLACK SWITCH |
| 4 | 5.009.0213 | EXT. SWITCH ASSEMBLY 0/1 BEEP. 12(10)A + TRANSPARENT PROTECTION |
| 6 | 4.215.0008 | PL/45 CAP D.51 THICKNESS 8 |
| 7 | 4.208.0055 | VACUUM CLEANER CONVEYOR, BLUE RAL. 5015 |
| 8 | 4.215.0006 | CONVEYOR SEAL 835x28x10 PPI 30 |
| 9 | 4.208.0012 | BLACK GN BIN HOOK |
| 10 | 4.215.0003 | FOAM RUBBER ADHESIVE FAN COVER SEAL 240X16X3 |
| 11 | 4.208.0028 | VACUUM MOTOR SEAL |
| 12 | 4.215.0007 | CIRCULAR MOTOR SEAL D.14 5x125 THICKNESS 32 PPI 30 |
| 13 | 3.755.0069 | EXT. BRUSH MOTOR 230V/50-60Hz 1100W TWO-STAGE |
| 14 | 4.215.0001 | LOWER SEAL MOTOR D. 105x130 THICKNESS 8 RUBBER FOAM 240 |
| 15 | 5.211.0003 | COMPLETE BLACK LOWER CAP FOR TWO-STAGE MOTORS |
| 16 | 4.215.0009 | BOTTOM CAP SEAL IN PARA 9x5 L=930 |
| 17 | 3.752.0032 | ORDER FOAM FILTER FOR CAP, GN EXPANDABLE T 45 PPI, BLUE THICKNESS 7mm |
| 18 | 5.209.0009 | ORDER FABRIC FILTER BAG + SEAL |
| 20 | 4.012.0221 | H05VV-F CABLE 2X0.75 7 METRES THICKNESS SC HUKO F/F |
| 21 | 3.752.0043 | BLACK EXTERNAL NOZZLE FOR STAINLESS STEEL DRUM |
| 22 | 3.752.0044 | BLACK INTERNAL NOZZLE FOR STAINLESS STEEL DRUM |
| 23 | 3.002.0133 | SELF-TAP SCREW TC-TC 3.5X19 UNI 6954 ZNT |
| 24 | 3.751.0030 | 22LT STAINLESS STEEL DRUM AISI 430BA FOR GNX |
| 25 | 3.752.0045 | COMPLETE HOOK (2 SCREWS) FOR STAINLESS STEEL DRUM |
| 26 | 3.002.0132 | SELF-TAP SCREW TC-TC 3.5X9.5 UNI 6954 ZNT |
| 27 | 3.752.0039 | ACCESSORY HOLDER BASE FOR GN 20 -N- |
| 28 | 3.754.0017 | OVERSIZED SWIVEL TWIN WHEELS D.50 WITH STEEL PIN |
| 29 | 6.205.014 | EXTENDED FLEXIBLE HOSE 2M D.35 COMPLETE |
| 30 | 3.753.0003 | CURVED HANDLE FOR STAINLESS STEEL EXTENSION D.37 |
| 31 | 6.205.0109 | CHROMED STEEL HOSE D.35 L=491 (CODE 001032) |
| 32 | 3.754.0001 | BODY FOR VACUUM ACCESSORIES D.35 (SP.) 0N050023 |
| 33 | 3.754.0003 | ACCESSORY FOR LIQUIDS (SP.) 00050024 |
| 34 | 3.754.0016 | RECTANGULAR BRUSH D.35 BLACK CHROME (SP.) 00050056 |
| 35 | 3.754.0005 | EXTENDED FLAT LANCE D.35 |
| 36 | 3.754.0004 | SMALL RECTANGULAR NOZZLE D.35 |
| 37 | 3.754.0015 | EXTENDED ROUND BRUSH D.35 BLACK (SP.) 00050001 |
| 40 | 5.212.0002 | ELASTIC KIT + 5 PAPER FILTERS + 1 CLOTH FILTER |
| 41 | 5.212.0002 | ELASTIC KIT + 5 PAPER FILTERS + 1 CLOTH FILTER |
| 42 | 5.212.0002 | ELASTIC KIT + 5 PAPER FILTERS + 1 CLOTH FILTER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fasa WDX 22 - 8.202.0016
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
