Lavorwash S.p.A.

FASA ARTIC 30 Pressure Cleaner Parts

SKU: FASA ARTIC-30 - 8.613.0012
€1.73
VAT included

FASA Original Parts for Pressure Cleaner ARTIC 30

Fix Your Hot Water High Pressure Cleaner ARTIC 30 230/50 BLU TS FASA - 8.613.0012. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

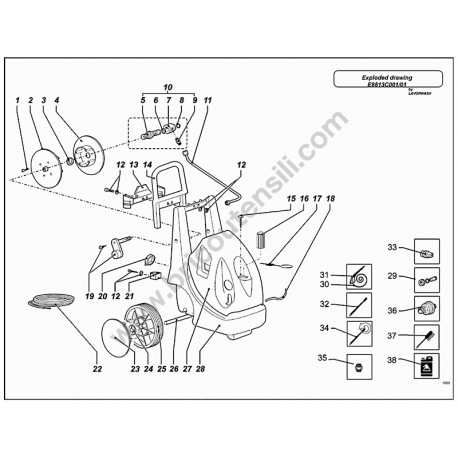

FASA Pressure Cleaner ARTIC 30 Parts Drawing
  • FASA Pressure Cleaner ARTIC 30 Parts Drawing
  • FASA Pressure Cleaner ARTIC 30 Parts Drawing - 1
Lavorwash S.p.A.

FASA ARTIC 30 Pressure Cleaner Parts

SKU: FASA ARTIC-30 - 8.613.0012 Condition: New
€1.73
VAT included

FASA Original Parts for Pressure Cleaner ARTIC 30

Fix Your Hot Water High Pressure Cleaner ARTIC 30 230/50 BLU TS FASA - 8.613.0012. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 102 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
102 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

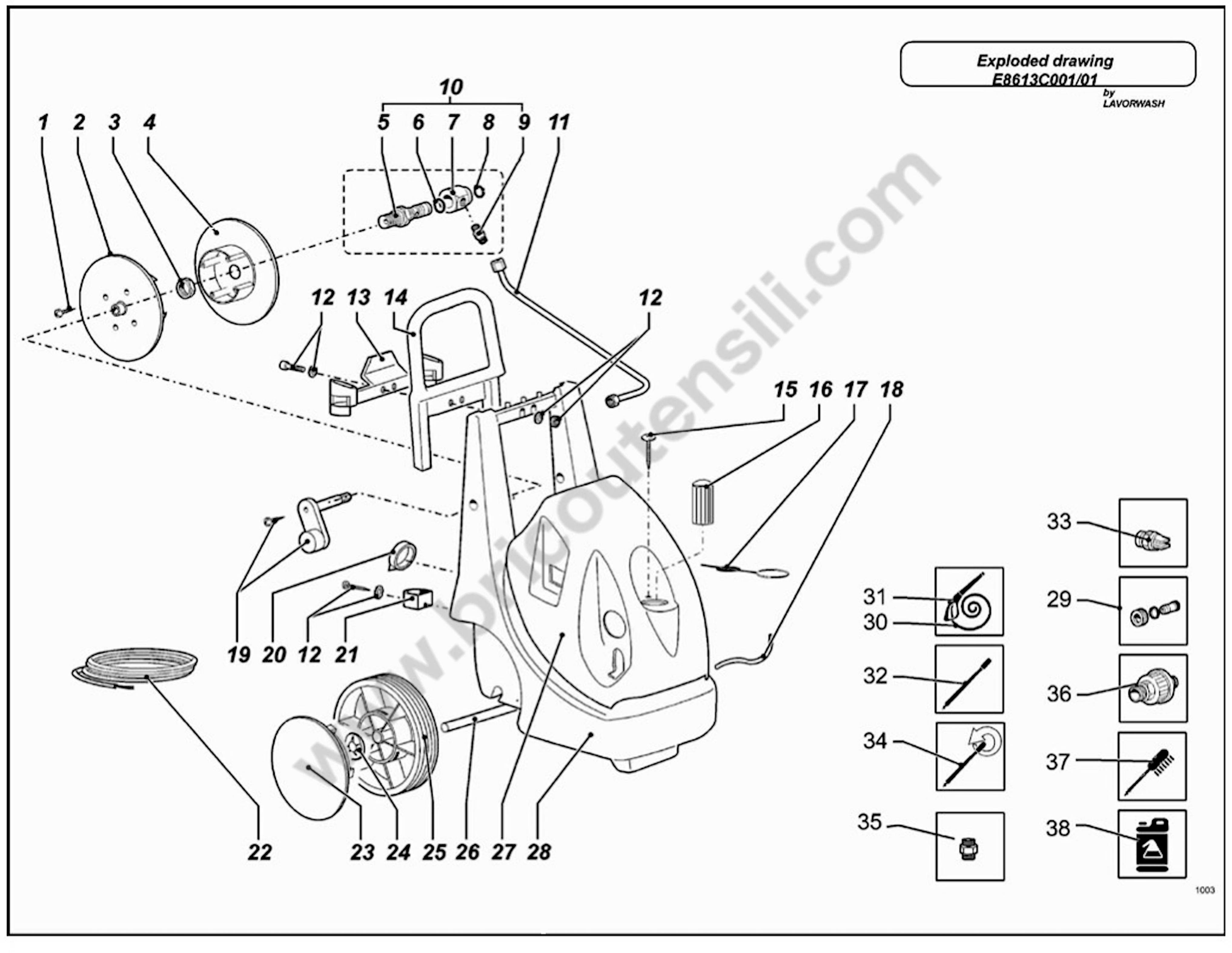

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.002.0112 CROSS HEAD -TORX SCREW 3,9x25HI-LO ZNT €1.72
2
 Winding Reel Handle Side for Pressure Washer Lavor EAGLE 24 4.008.0517 Winding Reel Handle Side for Pressure Washer Lavor EAGLE 24 €15.55
3
 photo_cameraImage coming soon 3.099.0158 3/8 BUSH €3.32
4
 Winding Reel Inlet Side for Pressure Washer Lavor EAGLE 24 4.008.0516 Winding Reel Inlet Side for Pressure Washer Lavor EAGLE 24 €14.34
5
 photo_cameraImage coming soon 4.606.0097 ROTATING COUPLUING BODY €12.31
6
 Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 3.200.0018 Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 €1.66
7
 photo_cameraImage coming soon 4.606.0098 ROTATING BOLT €11.76
8
 photo_cameraImage coming soon 3.099.0144 SEEGER RING FOR SHAFT €1.68
9
 photo_cameraImage coming soon 4.606.0096 COUPLING FOR HOSE WINDING €3.45
10
 photo_cameraImage coming soon 5.609.0073 BOLT ASSY FOR HOSE WINDING €48.98
11
 photo_cameraImage coming soon 4.618.0099 SHAPED RIGID HOSE WITH CONNECTOR 3/8 G €21.00
12
 photo_cameraImage coming soon 5.012.0052 SCREWS SET FOR EAGLE LANCE HOLDER HANDLE €9.49
13
 photo_cameraImage coming soon 4.008.0280 LANCE HOLDER FOR SPACE €5.05
14
 photo_cameraImage coming soon 4.008.0494 EAGLE BLOW HANDLE LMX €30.05
15
 photo_cameraImage coming soon 3.002.0161 TCTC SCREW 6X8 UNI 7687 €1.68
16
 photo_cameraImage coming soon 4.608.0094 LTX'96 ADJUSTMENT KNOB EXP.01 €6.61
17
 photo_cameraImage coming soon 4.007.0114 NOZZLE CLEANING PIN €1.65
18
 photo_cameraImage coming soon 4.008.0535 TRANSPARENT HOSE D.6X9 L.430 CUT 45' €1.72
19
 Hose Reel Handle + Screw for Pressure Washer Lavor EAGLE 24 5.012.0060 Hose Reel Handle + Screw for Pressure Washer Lavor EAGLE 24 €10.72
20
 photo_cameraImage coming soon 3.099.0122 TANK CAP LMX FOR EAGLE €14.80
21
 photo_cameraImage coming soon 4.008.0506 BLACK LANCE HOLDER GLASS FOR EAGLE €1.72
22
 photo_cameraImage coming soon 4.612.0037 CABLE H05PVC €25.74
23
 photo_cameraImage coming soon 3.099.0127 BLACK WHEEL COVER D.250-200 FOR EAGLE/SPARK €14.80
24
 photo_cameraImage coming soon 3.099.0019 BLOCK WHEEL D.250x55 D.20 €1.72
25
 photo_cameraImage coming soon 6.005.0242 KIT 225 LW WHEELS+WHEEL COVER+EAGLE €35.55
26
 photo_cameraImage coming soon 4.007.0224 EAGLE WHEEL AXLE D.20 €6.59
27
 photo_cameraImage coming soon 4.613.0170 LMX UPPER FAIRING, BLUE RAL.5015 (INJECTION) €72.74
28
 photo_cameraImage coming soon 5.611.0089 LOWER BLACK COVER EAGLE €113.30
29
 photo_cameraImage coming soon 5.012.0002 INTAKE HOSE KIT, 3/4" D.16 €14.13
30
 photo_cameraImage coming soon 4.618.0053 10M HOSE, SWIVEL CONNECTOR, 3/8" F, WITHOUT HOSES, TYPE R1, 1/4" MAX 210 BAR €91.50
31
 photo_cameraImage coming soon 6.001.0053 HP SPRAY GUN S'02 3/8' €40.24
32
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
33
 photo_cameraImage coming soon 3.103.0051 Hight Pressure Nozzle 0.50 €16.32
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

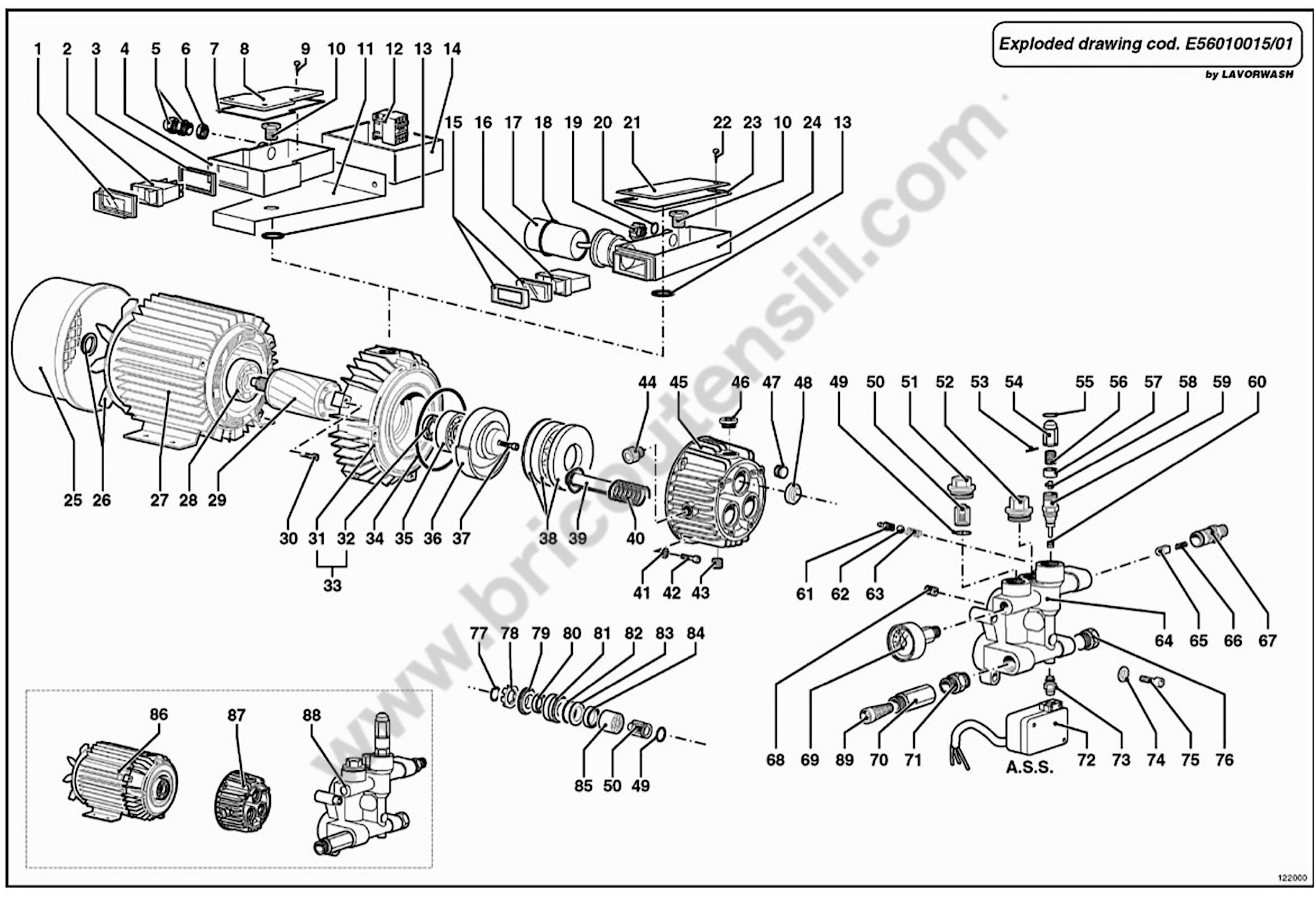

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
10
 photo_cameraImage coming soon 4.606.0008 CABLE GLAND FOR GMV D.150 ENGINE €12.20
13
 photo_cameraImage coming soon 3.200.0027 O-RING 2.62X20.24 FOR CAP 1210004800 €1.67
15
 photo_cameraImage coming soon 5.009.0165 FRAME FOR SEALING SWITCH AND HOBBY €9.55
16
 photo_cameraImage coming soon 3.401.0027 MICRO-SWITCH ABT WF 200 CO €34.26
17
 Capacitor 65mF for Pressure Washer Lavor NPX 1400 3.404.0007 Capacitor 65mF for Pressure Washer Lavor NPX 1400 €19.92
18
 photo_cameraImage coming soon 3.200.0033 OR SEAL 50.47X2.62 REF. 3200 €1.63
19
 photo_cameraImage coming soon 3.099.0055 RING NUT 1/2 F HOLE D. 12.5 (REF. 200.020) ITEM OUT OF STOCK €1.72
20
 photo_cameraImage coming soon 3.200.0034 OR SEAL 9.12X3.53 €1.67
21
 photo_cameraImage coming soon 4.008.0125 STARJET ELECTRIC BOX LID €1.55
22
 photo_cameraImage coming soon 3.002.0106 SELF-TAPPING SCREW TC-TC 3.9X16 UNI 6954 ZNT €1.72
23
 photo_cameraImage coming soon 4.008.0137 FOAM RUBBER SEAL 124X59X3.2 TH. 3 €5.78
25
 photo_cameraImage coming soon 4.608.0088 MOTOR FAN COVER D.135 €14.45
26
 photo_cameraImage coming soon 3.099.0108 LOWERED FAN D.150 90V3 WITH HOLE D.19 + CLAMP €14.61
27
 photo_cameraImage coming soon 5.606.0046 CASE LW.M 230/50 2P D.135H.125 THREADED HOLES €465.06
28
 photo_cameraImage coming soon 3.001.0001 BALL RADIAL BEARING 6204-2Z €14.95
29
 photo_cameraImage coming soon 5.605.0029 ROTOR SHAFT D.70 H.130 X 135 FIN GUIDE BODY EXP.01 €52.41
30
 photo_cameraImage coming soon 3.002.0015 AUTOTAPPING SCREW TCEI M6X25 ZNT €3.32
31
 photo_cameraImage coming soon 5.609.0072 MOTOR FRONT FLANGE FOR BODY GUIDE €62.27
32
 photo_cameraImage coming soon 3.201.0019 OIL SEAL RING D.25X40X7 DOUBLELIP €14.52
33
 photo_cameraImage coming soon 5.609.0072 MOTOR FRONT FLANGE FOR BODY GUIDE €62.27
34
 photo_cameraImage coming soon 3.200.0002 O-RING GASKET 90X2,5 €1.70
35
 photo_cameraImage coming soon 3.001.0029 BEARING €29.76
36
 photo_cameraImage coming soon 4.605.0036 PLATE 10GR. 37' FOR BALL BEARING EXP.02 €11.27
37
 photo_cameraImage coming soon 3.002.0003 HEXAGON SOCKET HEAD CAP SCREWM8X25 UNI 5931 ZNT €3.32
38
 photo_cameraImage coming soon 4.607.0208 AXIAL BEARING €25.19
39
 photo_cameraImage coming soon 5.009.0088 PISTON ASSY D.15 CERAMIC €36.40
40
 Piston Recall Spring for Pressure Washers Lavor NPX 1400 - NPX 1500 4.007.0011 Piston Recall Spring for Pressure Washers Lavor NPX 1400 - NPX 1500 €10.03
41
 Washer SNHOR for Pressure Cleaner Lavor NPX 1400 3.004.0022 Washer SNHOR for Pressure Cleaner Lavor NPX 1400 €1.71
42
 photo_cameraImage coming soon 3.002.0032 SCREW TCEI M8X30 UNI 5931 ZNT €1.68
43
 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 3.002.0004 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
44
 Lavor Oil Lever Indicator for NPX 1400 3.099.0003 Lavor Oil Lever Indicator for NPX 1400 €4.14
46
 photo_cameraImage coming soon 5.009.0159 OIL CAP WITH O-RING 3/8G €9.28
47
 photo_cameraImage coming soon 5.009.0207 CAP ASSY €14.27
48
 photo_cameraImage coming soon 3.201.0002 O-RINGBADSLSF 15X25,4X5 /7 €7.48
49
 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 3.200.0019 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 €1.70
50
 photo_cameraImage coming soon 5.009.0346 Substituted by 6.005.0117 SUCTION VALVE WITH PLATE AND SEAT €3.72
51
 photo_cameraImage coming soon 5.009.0101 CAP VALVE SUCTION DELIVERY-ORMOUNTED €6.91
52
 photo_cameraImage coming soon 5.009.0323 INTAKE/DELIVERY VALVE CAP WITH THREAD €9.32
53
 photo_cameraImage coming soon 3.099.0136 PIN 2X12 UNI 1708 €1.68
54
 photo_cameraImage coming soon 4.606.0093 Substituted by 4.606.0206 PRESSURE REGULATION KNOB €19.67
55
 photo_cameraImage coming soon 3.200.0046 O-RING 21,95X1,78 REF.2087 €1.63
56
 photo_cameraImage coming soon 4.607.0207 PRESSURE REGULATION €9.96
57
 photo_cameraImage coming soon 4.606.0105 SPACER FOR HEAD REGULATOR €3.65
58
 photo_cameraImage coming soon 4.607.0206 PLATE FOR SPRING €3.33
60
 photo_cameraImage coming soon 5.609.0080 SEAL SEAT ASSY + OR €14.80
61
 photo_cameraImage coming soon 5.009.0164 HOSE DETERGENT COMPLETE WITH OR €20.18
62
 photo_cameraImage coming soon 3.005.0001 BALL INOX 420 DIAM.5 (accuracy grade G 500) €1.72
63
 photo_cameraImage coming soon 4.007.0014 VALVE SPRING DETERGENT CHECK De4,5 / 6 L = 7 WIRE D.0,3 €2.50
64
 LAVOR Brass Pump Head for NPX 1400 Pressure Washers 4.606.0085 LAVOR Brass Pump Head for NPX 1400 Pressure Washers €147.90
65
 photo_cameraImage coming soon 5.609.0041 SET OF CHECK VALVE + OR €14.70
66
 photo_cameraImage coming soon 4.607.0105 VALVE SPRING CHECK D.4.8-6 L = 20 WIRE 0.6 STAINLESS STEEL €1.65
67
 Lavor NPX1400 Outlet Coupling 5.609.0079 Lavor NPX1400 Outlet Coupling €12.26
68
 photo_cameraImage coming soon 4.006.0109 TAPERED 1/8 CAP €7.67
69
 photo_cameraImage coming soon 3.107.0007 PRESSURE GAUGE D.50 0/315 BAR 1/4 REAR €32.22
70
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
71
 photo_cameraImage coming soon 3.100.0023 NIPPLE 3/8 CIL.SV. 3/8 CIL.SV €3.34
75
 photo_cameraImage coming soon 3.002.0078 HEXAGON SOCKET HEAD CAP SCREW M8X40 UNI 5931 ZNT €1.68
76
 photo_cameraImage coming soon 4.606.0001 1/4G CAP €3.36
77
 O-Ring 12.4x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 3.200.0004 O-Ring 12.4x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
78
 Oil Seal Spacer D.19 for Pressure Washers Lavor NPX 1400 - NPX 1500 4.008.0391 Oil Seal Spacer D.19 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
79
 photo_cameraImage coming soon 4.606.0041 SECOND SEALING HOLDER RING 130/8 ESP.1 €10.35
80
 Water Sealing Ring for Pressure Washers Lavor NPX 1400 - NPX 1500 3.201.0003 Water Sealing Ring for Pressure Washers Lavor NPX 1400 - NPX 1500 €5.27
81
 photo_cameraImage coming soon 4.606.0040 SECOND SEALING BUSHING 130/8 OT. ESP.4 €9.96
82
 O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 3.200.0003 O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
83
 photo_cameraImage coming soon 4.608.0106 ANTIEXTRUSION RING €3.94
84
 photo_cameraImage coming soon 3.201.0018 WATER SEAL RING €6.97
85
 photo_cameraImage coming soon 4.608.0105 BRASS HEAD VALVE SPACER €3.83
86
 photo_cameraImage coming soon 5.606.0046 CASE LW.M 230/50 2P D.135H.125 THREADED HOLES €465.06
87
 photo_cameraImage coming soon 5.009.0094 BEST FINNED GUIDE BODY ASSEMBLY WITH SEALS €87.38
88
 photo_cameraImage coming soon 5.008.0133 HEAD OCT. '99 INJECTION D. 2 TS €479.07
89
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FASA Original Parts for Pressure Cleaner ARTIC 30

Fix Your Hot Water High Pressure Cleaner ARTIC 30 230/50 BLU TS FASA - 8.613.0012. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
FASA ARTIC 30 - 8.613.0012

IDRO ARTIC 30 230/50 BLU TS FASA - 8.613.0012
Pag.1
# Part Num Description
1 3.002.0112 TC-TORX SCREW T15 3.9X25 HI-LOZNT
2 4.008.0517 HALF-WINDOW CRANK SIDE EXP. 03
3 3.099.0158 IDLE RING 3/8 CH20 REF. E4890003
4 4.008.0516 HALF-WINDOW INLET SIDE EXP. 01
5 4.606.0097 BODY FOR SWIVEL CONNECTOR FOR HOSE REEL EXP. 06
6 3.200.0018 OR SEAL 9.92X2.62 SHORE90
7 4.606.0098 SWIVEL PIN FOR HOSE REEL 3/8 G EXP. 03
8 3.099.0144 CIRCLIP FOR SHAFT D. 15 UNI 7435
9 4.606.0096 HOSE REEL CONNECTOR 1/4 G M14X1.5 EXP. 04
10 5.609.0073 HOSE REEL PIN ASSEMBLY WITH CONNECTOR M14x1.5
11 4.618.0099 SHAPED RIGID HOSE WITH CONNECTOR 3/8 G
12 5.012.0052 SCREW KIT EAGLE LANCE HANDLE
13 4.008.0280 LANCE HOLDER WITH FOOT FOR SPACE EXP.02
14 4.008.0494 LMX-EAGLE BLOWN HANDLE EXP.00
15 3.002.0161 TCTC SCREW 6X8 UNI 7687
16 4.608.0094 LTX'96 ADJUSTMENT KNOB EXP.01
17 4.007.0114 NOZZLE CLEANING NEEDLE D.0.8 EXP.04
18 4.008.0535 TRANSPARENT HOSE D.6x9 L.430 45' CUT EXP.00
19 5.012.0060 CRANK HANDLE KIT + SCREW FOR EAGLE HOSE REEL
20 3.099.0122 LMX-EAGLE TANK CAP
21 4.008.0506 NEROX EAGLE LANCE HOLDER CUP EXP.00
22 4.612.0037 POWER CABLE H05VV-F 3X1.5 L=6000F/F + EYES EXP.03
23 3.099.0127 BLACK WHEEL COVER CAP, D.250-200, FOR EAGLE/SPARK
24 3.099.0019 WHEEL COVER, DIAM.250 X 55, D.20
25 6.005.0242 BLACK WHEEL, D.250, HOLE 20, FOR EAGLE
26 4.007.0224 EAGLE WHEEL AXLE, D.20, L=358, EXP.00
27 4.613.0170 LMX UPPER FAIRING, BLUE RAL.5015 (INJECTION)
28 5.611.0089 LMX LOWER FAIRING ASSEMBLY, GREEN + RUBBER + CAP WITH HOLES
29 5.012.0002 INTAKE HOSE KIT, 3/4" D.16
30 4.618.0053 10M HOSE, SWIVEL CONNECTOR, 3/8" F, WITHOUT HOSES, TYPE R1, 1/4" MAX 210 BAR
31 6.001.0053 S'99C GUN, EXP.01
32 3.701.0015 LANCE, L.700, COATED, RED, QUICK COUPLING M22 41102850
33 3.103.0051 HIGH PRESSURE NOZZLE 1/8M 1505
MOTOPOMPA LWM 230/50 2P 135 H125 10.37' LMX 120M TS Pag.2
10 4.606.0008 GLAND FOR GMV MOTOR D.150 EXP.03
13 3.200.0027 OR SEAL 20.24 X 2.62 REF. 3081
15 5.009.0165 HOBBY SWITCH COVER ASSEMBLY
16 3.401.0027 MICRO CIRCUIT BREAKER 3120-F551-P7T1-W02F- 20A W/O PROTECTION
17 3.404.0007 CAPACTOR 65mF 450V D.50x120 W/CABLE W/REF COVER EXP.01
18 3.200.0033 OR SEAL 50.47X2.62 REF. 3200
19 3.099.0055 RING NUT 1/2 F HOLE D.12.5 (REF. 200.020) ITEM SOLD OUT
20 3.200.0034 OR SEAL 9.12X3.53
21 4.008.0125 ELECTRIC BOX LID STARJET EXP.04
22 3.002.0106 SELF-TAP SCREW TC-TC 3.9X16 UNI 6954 ZNT
23 4.008.0137 FOAM RUBBER SEAL 124X59X3.2 THICKNESS 3 EXP.01
24 4.008.0124 ELECTRIC MOTOR BOX L.I. HOLE DISG. EXP.12 (ITEM OUT OF STOCK)
25 4.608.0088 ENGINE FAN COVER D.135 EXP.01
26 3.099.0108 LOWERED FAN D.150 90V3 WITH HOLE D.19 + CLAMP
27 5.606.0046 CASE LW.M 230/50 2P D.135H.125 THREADED HOLES
28 3.001.0001 RADIAL BALL BEARING 6204-2Z (X EL.MOTOR 150'C)
29 5.605.0029 ROTOR SHAFT D.70 H.130 X 135 FIN GUIDE BODY EXP.01
30 3.002.0015 TCEI SCREW M6X25 TRILOBAL ZNT
31 5.609.0072 MOTOR FLANGE 135 FOR FINNED GUIDE BODY EXP.05
32 3.201.0019 OIL SEAL RING D. 25X40X7 DOUBLE LIP
33 5.609.0072 MOTOR FRONT FLANGE 135 FOR FINNED GUIDE BODY
34 3.200.0002 OR SEAL 90 X 2.5
35 3.001.0029 ANGLE BALL BEARING 7305-BE (25X62X17)
36 4.605.0036 PLATE 10GR. 37' FOR BALL BEARING EXP.02
37 3.002.0003 TCEI SCREW M8X25 UNI 5931 ZNT
38 4.607.0208 THrust BALL BEARING 30X73X18 FOR PLATE S0610
39 5.009.0088 LOCKING RING - PISTON - SPRING RETAINER ASSEMBLY D. 15
40 4.007.0011 RETURN SPRING PISTON D.15 d.3 L.45 EXP.01
41 3.004.0022 SNHOR WASHER D.8X13 Th.0.8
42 3.002.0032 TCEI SCREW M8X30 UNI 5931 ZNT
43 3.002.0004 STEI SCREW 3/8 G. DIN 906 (OIL DRAIN PLUG)
44 3.099.0003 OIL LEVEL SIGHT GAUGE SLNS-3/8 HOBBY
45 4.005.0029 BEST GUIDE BODY HOT HYDRO EXP.11
46 5.009.0159 OIL PLUG 3/8G COMPLETE WITH SEAL
47 5.009.0207 PLUG ASSEMBLY FOR BEST VERTICAL OIL CHAMBER + O-RING SH90
48 3.201.0002 BADSLSF SEAL RING 15X25.4X5/7
49 3.200.0019 OR SEAL 12.4X1.78 SHORE90
50 5.009.0346 INTAKE/DELIVERY VALVE WITH STEEL PLATE AND SEAT EXP.01
51 5.009.0101 INTAKE/DELIVERY VALVE PLUG WITH O-RING MOUNTED
52 5.009.0323 INTAKE/DELIVERY VALVE CAP WITH M6 FEMALE THREAD + O-RING
53 3.099.0136 CYLINDRICAL PIN 2X12 STAINLESS STEEL UNI 1707
54 4.606.0093 PRESSURE REGULATION KNOB EXP.03
55 3.200.0046 OR SEAL 21.95x1.78 REF. 2087
56 4.607.0207 PRESSURE REGULATOR SPRING L=37 WIRE D.3.6 STEEL EXP.00
57 4.606.0105 SPACER FOR REGULATOR HEAD. OPT. '99 LMX 120 ENGINE
58 4.607.0206 SPRING PLATE EXP.02
59 5.609.0078 SEAL ROD ASSEMBLY FOR HEAD. OPT. '99 W/TS EXP.03
60 5.609.0080 SEAL SEAT ASSEMBLY + O-RING
61 5.009.0164 DETERGENT SUCTION HOSE HOLDER COMPLETE WITH O-RING
62 3.005.0001 420 STAINLESS STEEL BALL DIAM. 5 (precision grade G 500)
63 4.007.0014 VALVE SPRING CHECK VALVE DETERGENT OD 4.5/6 L=7 THREAD D.0.3 STAINLESS STEEL EXP.03
64 4.606.0085 BRASS HEAD '99 EXP.10
65 5.609.0041 CHECK VALVE ASSEMBLY + O-RING
66 4.607.0105 CHECK VALVE SPRING D.4.8-6 L=20 THREAD 0.6 STAINLESS STEEL EXP.01
67 5.609.0079 OUTLET FITTING ASSEMBLY HEAD BRASS '99 D.2 + O-RING
68 4.006.0109 1/8 CONICAL CAP EXP.01
69 3.107.0007 PRESSURE GAUGE D.50 0/315 BAR 1/4 REAR
70 4.606.0019 SUCTION CONNECTOR M22 HYDRO COMPACT EXP.01
71 3.100.0023 NIPPLE 3/8 CYL. SV. 3/8 CYL. SV
72 5.609.0076 BOX ASSEMBLY + MICRO + CABLE 2X1.5 TEST. BRASS '99 TS
73 5.609.0075 FITTING ASSEMBLY 1/8 G FOR TS ROD TESTED BRASS '99
75 3.002.0078 TCEI SCREW M8X40 UNI 5931 ZNT
76 4.606.0001 TEE CAP 1/4 GAS EXP. 01
77 3.200.0004 OR SEAL 12.4X1.78 REF. 2050 SH 70
78 4.008.0391 OIL SEAL SPACER EXP.00
79 4.606.0041 SUPPORT RING FOR SECONDARY SEAL 130/8 EXP.04
80 3.201.0003 SEAL RING N. 15X22X4 WATER
81 4.606.0040 SECONDARY SEAL BUSHING 130/8 BRASS EXP.05
82 3.200.0003 OR SEAL 25.12 X 1.78 REF. 2100
83 4.608.0106 ANTI-EXTRACTION RING (FOR SEALS 15x24x5) FOR HEAD OTT'99 EXP.04
84 3.201.0018 WATER SEAL RING 15X24X5 W11515Q5023 (CLOTH SEALS)
85 4.608.0105 VALVE SPACER FOR BRASS HEAD '99 EXP.01
86 5.606.0046 ENGINE LW.M 230/50 D.135 2P H125 X LMX EXP.03
87 5.009.0094 ASSEMBLY BEST FINNED GUIDE BODY WITH SEALS
88 5.008.0133 HEAD OCT. '99 INJECTION D. 2 TS
89 4.008.0031 WATER INTAKE FILTER D. 16 CONICAL EXP. 00
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
FASA ARTIC-30 - 8.613.0012
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

FASA ARTIC 30 Parts Drawing

FASA ARTIC 30 Parts Drawing

Download (808.27KB)

You might also like

Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €2.07
Details
Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0134
Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24
Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24 Original spare part Lavor, Kit 125 LW Rings Holding Brass Seal + Spacers PT D.12 per Pressure Washers GIANT 24 - TEMPESTA 24 - BEST 24. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €15.18
Details
Piston Guide Body With Complete Valve Head for Lavor Missouri
Lavorwash S.p.A. SKU: 5.007.0231
Piston Guide Body With Complete Valve Head for Lavor Missouri
Piston Guide Body With Complete Valve Head for Lavor Missouri Genuine part Lavor, Piston Guide Body PT'03 - Ceramic Pistons Diameter 12 mm + Total-Stop, Turned With Complete Valve Head With Intake Springs 17K. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €52.53
Details
Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.200.0018
Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018
Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Gasket O-Ring 9.92X2.62 SHORE 90 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...
AVAILABLE €1.66
Details
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.200.0019
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Gasket O-Ring 12.4X1.78 SHORE 90 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...
AVAILABLE €1.70
Details
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.200.0003
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, O-Ring Gasket 25.12x1.78 REF.2100 for Pressure Washers  NPX 1400  8.605.0048 - NPX 1500 8.605.0049. Part for the following products: -...
AVAILABLE €1.70
Details
Diesel Filter Unit for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.611.0043
Diesel Filter Unit for Pressure Washer Lavor Missouri
Diesel Filter Unit for Pressure Washer Lavor Missouri Genuine part Lavor, Diesel Filter Unit JOLLY 4 '93 / MISSOURI / MEK for Pressure Washers Missouri - NPX 1400 - NPX 1500. Part for the following...
Usually Ships in: 10 Business Days Approx. €15.19
Details
Winding Reel Inlet Side for Pressure Washer Lavor EAGLE 24
Lavorwash S.p.A. SKU: 4.008.0516
Winding Reel Inlet Side for Pressure Washer Lavor EAGLE 24
Winding Reel Inlet Side for Pressure Washer Lavor EAGLE 24 Genuine replacement part Lavor, Winding Reel Inlet Side (VERSION 2010) for Pressure Washer EAGLE 24 - 8.030.0807  - 8.030.0901 - YUKON 1310 - 8.618.0001 Part for the following...
AVAILABLE €14.34
Details
Winding Reel Handle Side for Pressure Washer Lavor EAGLE 24
Lavorwash S.p.A. SKU: 4.008.0517
Winding Reel Handle Side for Pressure Washer Lavor EAGLE 24
Winding Reel Handle Side for Pressure Washer Lavor EAGLE 24 Genuine replacement part Lavor, Winding Reel Handle Side (VERSION 2010) for Pressure Washer EAGLE 24 - 8.030.0807  - 8.030.0901 - YUKON 1310 - 8.618.0001 Part for the...
AVAILABLE €15.55
Details
Handle + Screw for Pressure Washer Lavor EAGLE 24
Lavorwash S.p.A. SKU: 5.012.0060
Hose Reel Handle + Screw for Pressure Washer Lavor EAGLE 24
Hose Reel Handle + Screw for Pressure Washer Lavor EAGLE 24 Genuine replacement part Lavor, Hose Reel Handle + Screw for Pressure Washer EAGLE 24 - 8.030.0807  - 8.030.0901 - YUKON 1310 - C/AVV. LWS/8.618.0001...
Last items in stock €10.72
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Joint for Pump-Boiler for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.609.0328
Joint for Pump-Boiler for Pressure Washer Lavor Missouri
Joint for Pump-Boiler for Pressure Washer Lavor Missouri Genuine part Lavor, Joint for Pump-Boiler W/Safety Valve for Pressure Washers MISSOURI Part for the following products: -  Pressure washer MISSOURI 230/50...
on 10 Business Days Approx €62.48
Details
Inlet/Outlet Cover for Pressure Washer Lavor EAGLE 24
Lavorwash S.p.A. SKU: 4.008.0278
Inlet/Outlet Cover for Pressure Washer Lavor EAGLE 24
Inlet/Outlet Cover for Pressure Washer Lavor EAGLE 24 Genuine replacement part Lavor, Inlet/Outlet Cover for Spark Version PARTNER for Pressure Washers EAGLE 24. Part for the following products: -  Pressure Washer EAGLE 24 -...
on 7/10 Business Days Approx €4.26
Details
Motorpump PT'03 for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.001.0817
Motorpump PT'03 for Pressure Washer Lavor Missouri
Motorpump PT'03 for Pressure Washer Lavor Missouri Genuine part Lavor, Motorpump PT'03 125h110AL 230-240/50 12' TS IN.1,7 BRASS HEAD for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500...
Last items in stock €514.57
Details
Capacitor 65mF for Pressure Washer Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.404.0007
Capacitor 65mF for Pressure Washer Lavor NPX 1400
Capacitor 65mF for Pressure Washer Lavor NPX 1400 Genuine replacement part Lavor, Capacitor 65mF 450V D.50x120 with Wire anf Faton Male for Pressure Washers NPX 1400. Part for the following...
on 10 Business Days Approx €19.92
Details
Pump ULKA EK2/M for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.551.0055
Pump ULKA EK2/M for Pressure Washer Lavor Missouri
Pump ULKA EK2/M for Pressure Washer Lavor Missouri Genuine part Lavor, Pump ULKA EK2/M 59W 230/50 C/OR R4 VITON for Pressure Washers  MISSOURI. Part for the following products: -  Pressure...
on 10 Business Days Approx €68.85
Details
Lavor FKX 1018 Kit 291 LW
Lavorwash S.p.A. SKU: 6.005.0319
Lavor FKX 1018 Kit 291 LW
Lavor FKX 1018 Kit 291 LW Genuine replacement part Lavor, Kit 291 LW Boiler Pump Junction Fitting for Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 80520001. Part for the following products: - ...
on 10 Business Days Approx €28.92
Details
Lavor Missouri Thermostat Body Bulb + Quick Joint
Lavorwash S.p.A. SKU: 5.609.0327
Lavor Missouri Thermostat Body Bulb + Quick Joint
Lavor Missouri Thermostat Body Bulb + Quick Joint Genuine part Lavor, Thermostat Body Bulb + Quick Joint 3/8" M for Pressure Washers  MEK/MISSOURI/MISSISSIPPI/ PARANA'. Part for the following products: - Pressure...
Usually Ships in: 10/15 Business Days Approx. €69.87
Details
Lavor Oil Lever Indicator for NPX 1400
Lavorwash S.p.A. SKU: 3.099.0003
Lavor Oil Lever Indicator for NPX 1400
Lavor Oil Lever Indicator for Pressure Washer NPX 1500 Genuine replacement part Lavor, Oil Lever Indicator SLNS-3/8 HOBBY for Pressure Cleaner NPX 1400 - NPX 1500 - MCHPV 1515LP. Part for the following products: -  Pressure Cleaner...
Usually Ships in: 10/15 Business Days Approx. €4.14
Details
Lavor Disk As for KARJET PROFI130
Lavorwash S.p.A. SKU: 3.001.0003
Lavor Disk As for KARJET PROFI130
Lavor Disk As for Pressure Cleaner KARJET PROFI130 Original replacement part Lavorwash, Disk As for Pressure Cleaners KARJET PROFI130 - FKX 1018. Part for the following products: -  Pressure Cleaner Lavor KARJET PROFI130 -...
Usually Ships in: 10 Business Days Approx. €3.33
Details
Lavor Bearing Washer for LP 20 EHR
Lavorwash S.p.A. SKU: 4.007.0001
Lavor Thrust Shoe for LP 20 EHR
Lavor Thrust Shoe for Pressure Cleaner LP 20 EHR Original replacement part Lavorwash, Thrust Shoe D.65x30x6 (C10pb) Finished for Pressure Cleaners LP 20 EHR - FKX 1018. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €5.83
Details
Lavor Piston Recall Spring for FKX 1018
Lavorwash S.p.A. SKU: 4.007.0025
Lavor Piston Recall Spring for FKX 1018
Lavor Piston Recall Spring for Pressure Cleaner FKX 1018 Original replacement part Lavorwash, Piston Recall Spring D.14- 12 for Pressure Cleaners FKX 1018 - MACH 20. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €2.12
Details
Lavor Needle Roller Cage for EQ18
Lavorwash S.p.A. SKU: 3.001.0025
Lavor Needle Roller Cage for EQ18
Lavor Needle Roller Cage for Pressure Cleaner EQ18 Original replacement part Lavorwash, Needle Roller Cage Type Axk4565 -STEEL- for Pressure Cleaners EQ18 - MISSOURI. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €3.48
Details
LAVOR Brass Pump Head for NPX 1400 Pressure Washers
Lavorwash S.p.A. SKU: 4.606.0085
LAVOR Brass Pump Head for NPX 1400 Pressure Washers
LAVOR Brass Pump Head for NPX 1400 Pressure Washers Original Lavor Spare Part: Brass Pump Head '99 for LAVOR NPX 1400 Pressure Washers. Compatible with the following products: -  Lavor NPX 1400 - 86050048 -  Lavor NPX 1400...
Usually Ships in: 10/15 Business Days Approx €147.90
Details
Lavor Recall Spring for Pressure Cleaner FKX 1018
Lavorwash S.p.A. SKU: 00030-00517 ex 4.007.0014
Lavor Recall Spring for Pressure Cleaner FKX 1018
Lavor Recall Spring for Pressure Cleaner FKX 1018 Original replacement part Lavorwash, Detergent Stop Valve Spring De4, 5/6 L=7 FILO D.0,3 INOX for Pressure Cleaners FKX 1018 - NPX1400. Part for the following products:...
Usually Ships in: 10 Business Days Approx. €2.57
Details
Lavor NPX1400 Outlet Coupling
Lavorwash S.p.A. SKU: 5.609.0079
Lavor NPX1400 Outlet Coupling
Lavor Outlet Coupling for Pressure Washer NPX1400 Genuine replacement part Lavor, Outlet Coupling For Brass Head '99 D.1,9 +Or for Pressure Cleaner NPX1400 - LKX 55. Part for the following products: - ...
Last items in stock €12.26
Details
Comments (0)
