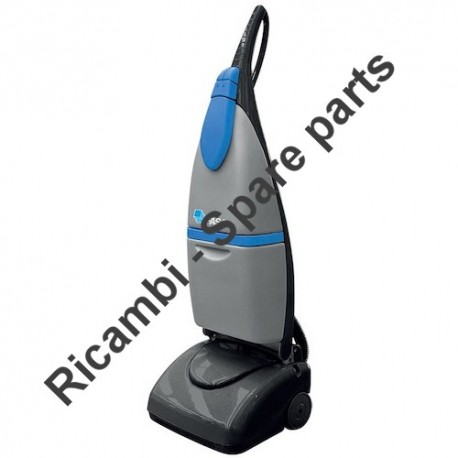

Lavorwash S.p.A.

FASA Original Parts for Floor Scrubber Drier A0 30 HOT

SKU: FASA A0 30 HOT - 8.501.0527
€6.40
VAT included

FASA Original Parts for Floor Scrubber Drier A0 30 HOT

Fix Your Floor Scrubber Drier A0 30 HOT 230/50 -GR/BLU- FASA - 8.501.0527. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
FASA Original Parts for Floor Scrubber Drier A0 30 HOT
  • FASA Original Parts for Floor Scrubber Drier A0 30 HOT
  • FASA Original Parts for Floor Scrubber Drier A0 30 HOT - Diagram
  • FASA Original Parts for Floor Scrubber Drier A0 30 HOT - Diagram 1
  • FASA Original Parts for Floor Scrubber Drier A0 30 HOT - Diagram 2
  • FASA Original Parts for Floor Scrubber Drier A0 30 HOT - Diagram 3
  • FASA Original Parts for Floor Scrubber Drier A0 30 HOT - Diagram 4
Lavorwash S.p.A.

FASA Original Parts for Floor Scrubber Drier A0 30 HOT

SKU: FASA A0 30 HOT - 8.501.0527 Condition: New
€6.40
VAT included

FASA Original Parts for Floor Scrubber Drier A0 30 HOT

Fix Your Floor Scrubber Drier A0 30 HOT 230/50 -GR/BLU- FASA - 8.501.0527. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
settings 51 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

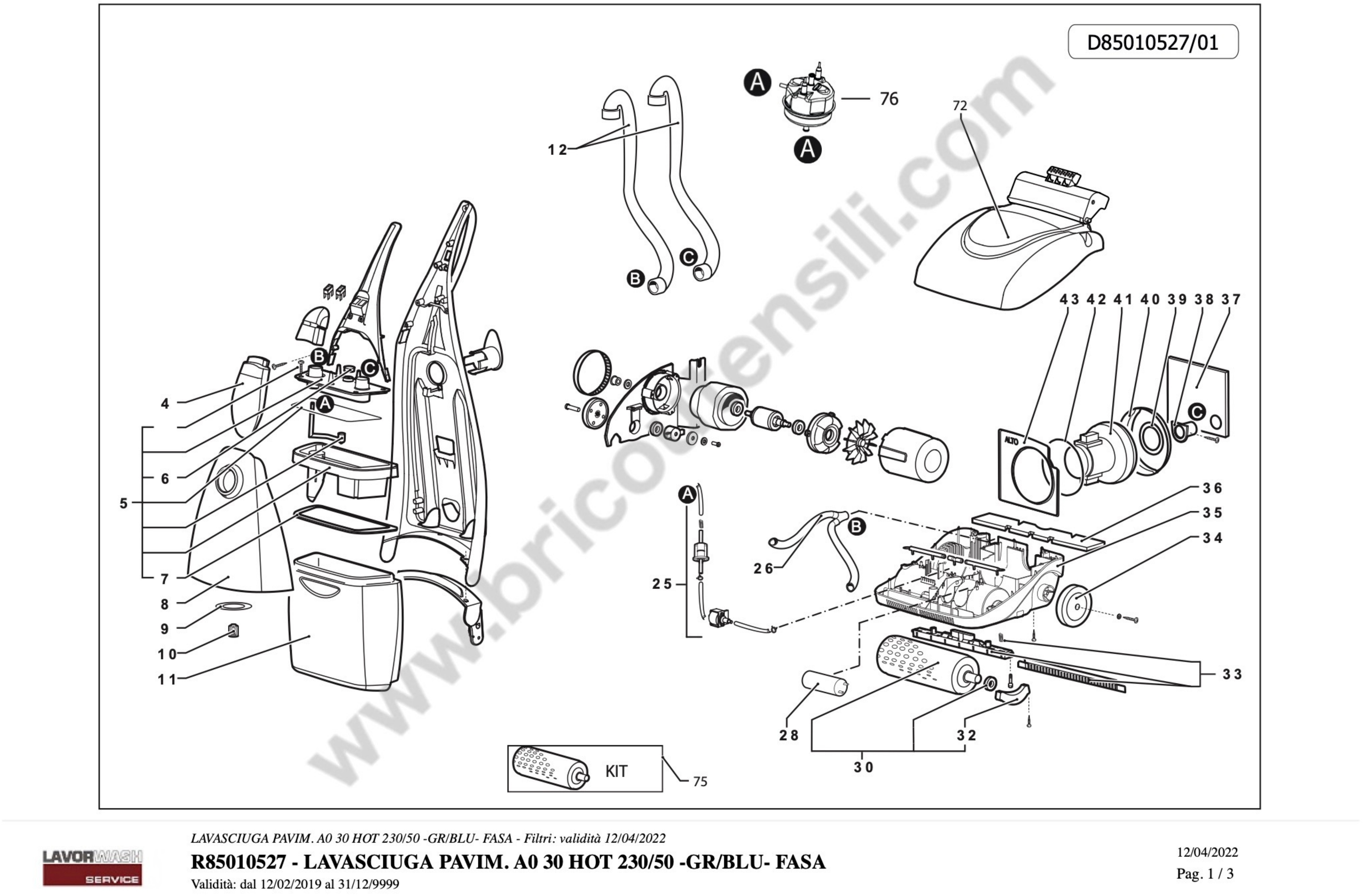

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
006
 Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter 6.505.0041 Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter €6.40
007
 Filter Gasket for Floor Scrubber Drier Lavor Pro Sprinter 4.508.0029 Filter Gasket for Floor Scrubber Drier Lavor Pro Sprinter €3.92
008
 Lavor Pro Sprinter Solution Tank Grey 5.509.0415 Lavor Pro Sprinter Solution Tank Grey €38.08
009
 Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter 6.505.0041 Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter €6.40
010
 Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter 6.505.0041 Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter €6.40
011
 photo_cameraImage coming soon 4.508.0459 BLACK WATER TANK (GREY) €51.84
012
 Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter 5.509.0008 Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter €29.49
026
 photo_cameraImage coming soon 5.509.0012 JOINT ASSY Y+FLEX HOSES MW. €27.51
030
 photo_cameraImage coming soon 6.505.0002 KIT MW BRUSH WITH BRISTLES LWS €40.01
032
 photo_cameraImage coming soon 4.508.0001 U BUSH LOCKING €5.92
033
 photo_cameraImage coming soon 6.505.0001 KIT FLOOR WRIPER LWS €40.01
034
 Lavor Sprinter Wheel D.100 MW Grey 4.508.0007 Lavor Sprinter Wheel D.100 MW Grey €15.00
035
 photo_cameraImage coming soon 5.509.1822 ASSIEME CAREN.INF.MW TERMORES. NERO C/ISOL.ACUST./SEDE CALDAIA €78.47
036
 photo_cameraImage coming soon 4.508.0027 ACOUSTIC PANEL €5.92
037
 photo_cameraImage coming soon 4.508.0030 EXHAUST AIR FILTER €4.24
038
 photo_cameraImage coming soon 4.508.0009 AIR INTAKE PORTION €3.00
039
 Lavor Sprinter Air Intake Seal 4.508.0032 Lavor Sprinter Air Intake Seal €5.90
040
 Lavor Sprinter Offset Ring 4.508.0031 Lavor Sprinter Offset Ring €3.50
041
 photo_cameraImage coming soon 3.755.0085 BRUSH MOTOR 220-240V 50/60Hz 800W €40.81
042
 photo_cameraImage coming soon 4.508.1430 GASKET FOR SUCTION MOTOR DOMEL €3.93
043
 photo_cameraImage coming soon 4.507.0002 SUCTION MOTOR SUPPORT €9.18
072
 photo_cameraImage coming soon 5.509.1820 ASSIEME CAREN.SUP.MW -GR- RAL.7016 C/ISOL.ACUST./PEDALE/SEDE CALDAIA €39.43
075
 photo_cameraImage coming soon 5.509.0394 CARPET BRUSH + BEARING ASSEMBLY €63.17
076
 Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean 6.505.0087 Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean €87.31
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

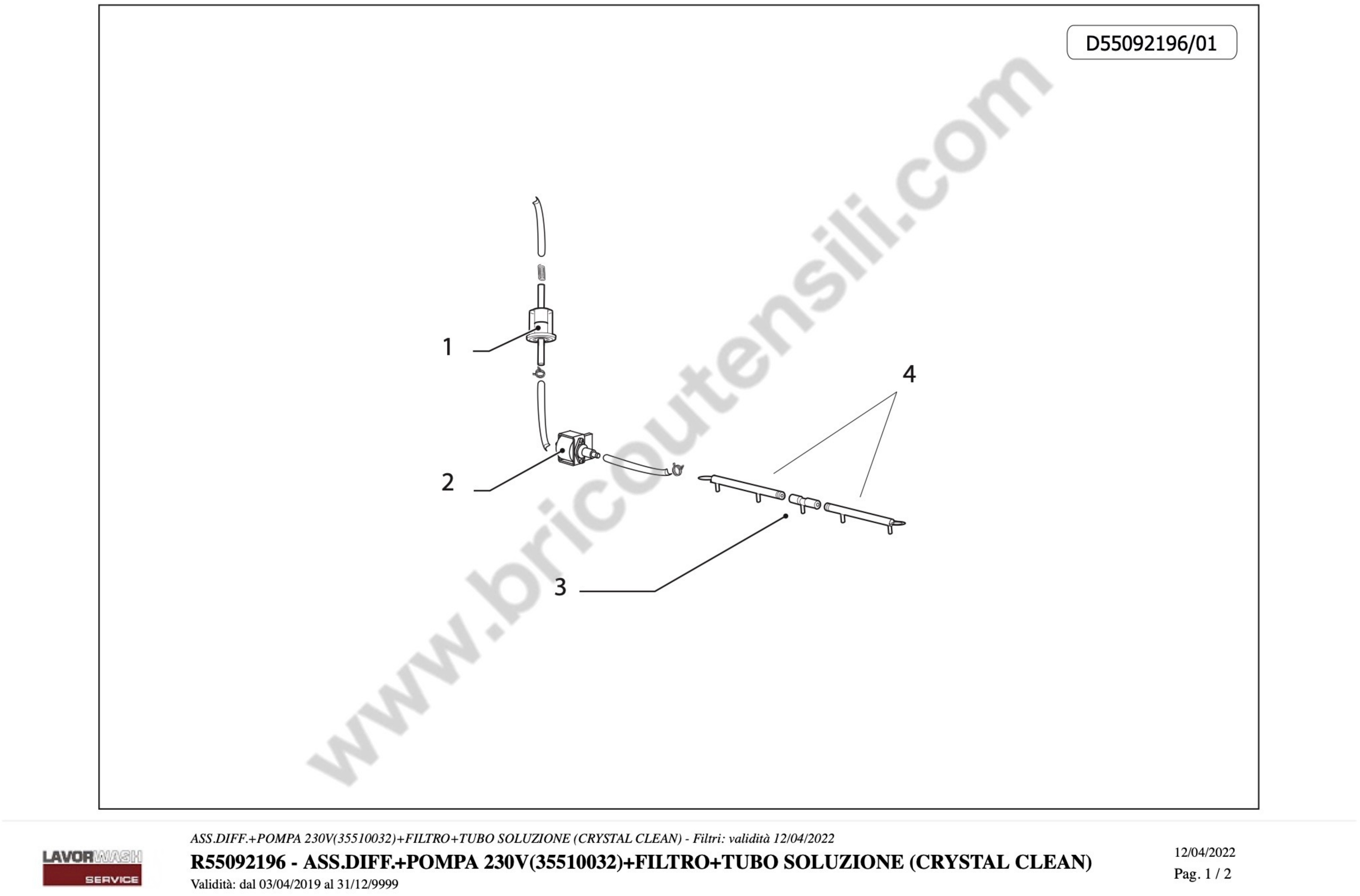

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 Diesel Filter TP3 for Floor Scrubber Drier Lavor Pro Sprinter 3.102.0003 Diesel Filter TP3 for Floor Scrubber Drier Lavor Pro Sprinter €6.55
002
 Detergent Pump for Floor Scrubber Drier Lavor Pro Sprinter 3.551.0032 Detergent Pump for Floor Scrubber Drier Lavor Pro Sprinter €45.78
003
 photo_cameraImage coming soon 4.508.0034 DISPENSER CONNECTION €5.11
004
 photo_cameraImage coming soon 4.508.0033 SOLUTION DISPENSER €5.11
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

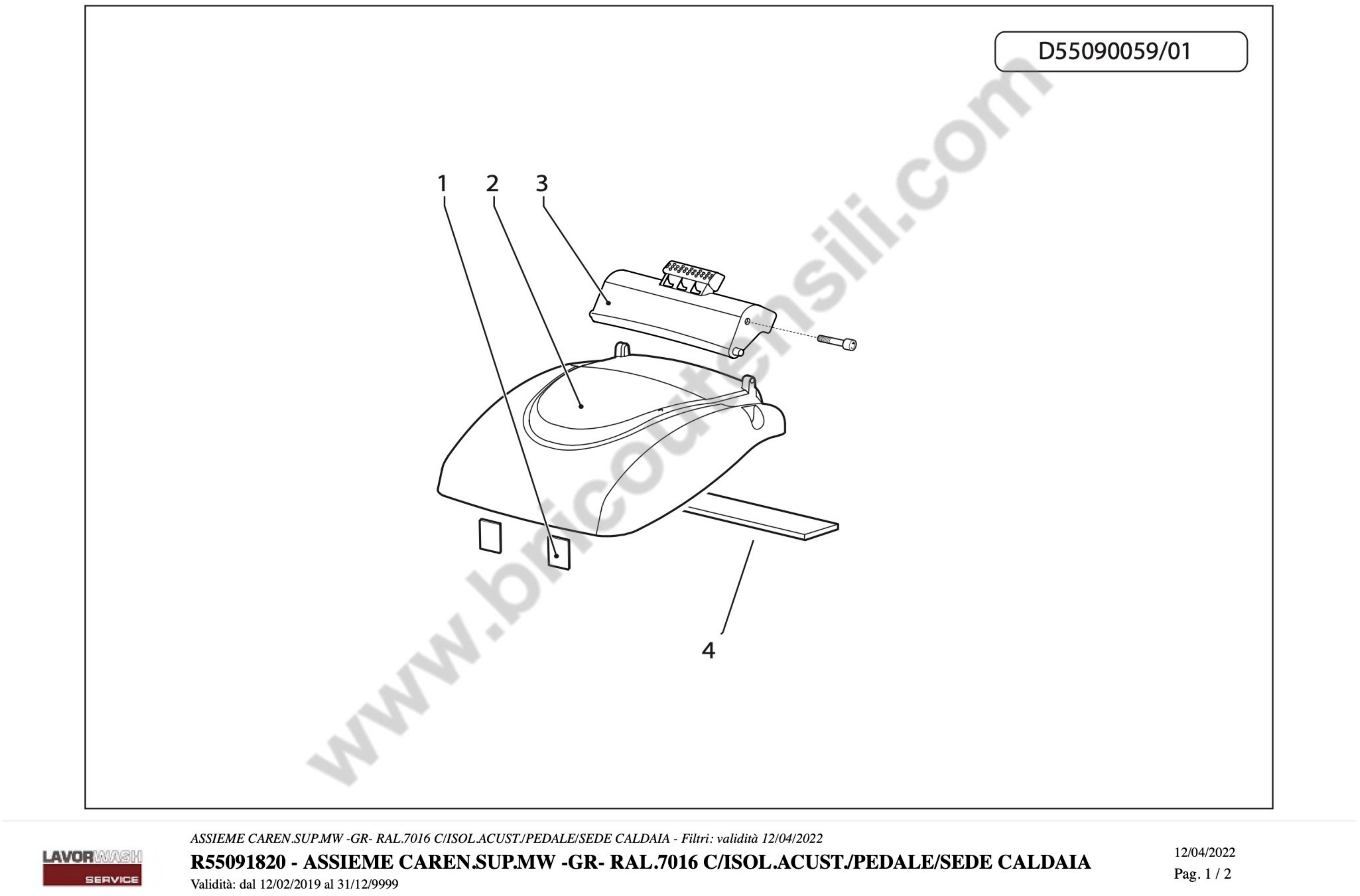

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.508.0036 ADHESIVE GASKET €4.60
002
 photo_cameraImage coming soon 4.513.0391 COFANO SUP.MW C/SEDE CALDAIA -GR- RAL.7016 €44.88
003
 Lavor Sprinter Pedal Grey RAL 7043B 4.508.0004 Lavor Sprinter Pedal Grey RAL 7043B €15.00
004
 photo_cameraImage coming soon 4.508.0028 UPPER ACOUSTIC PANEL €6.27
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

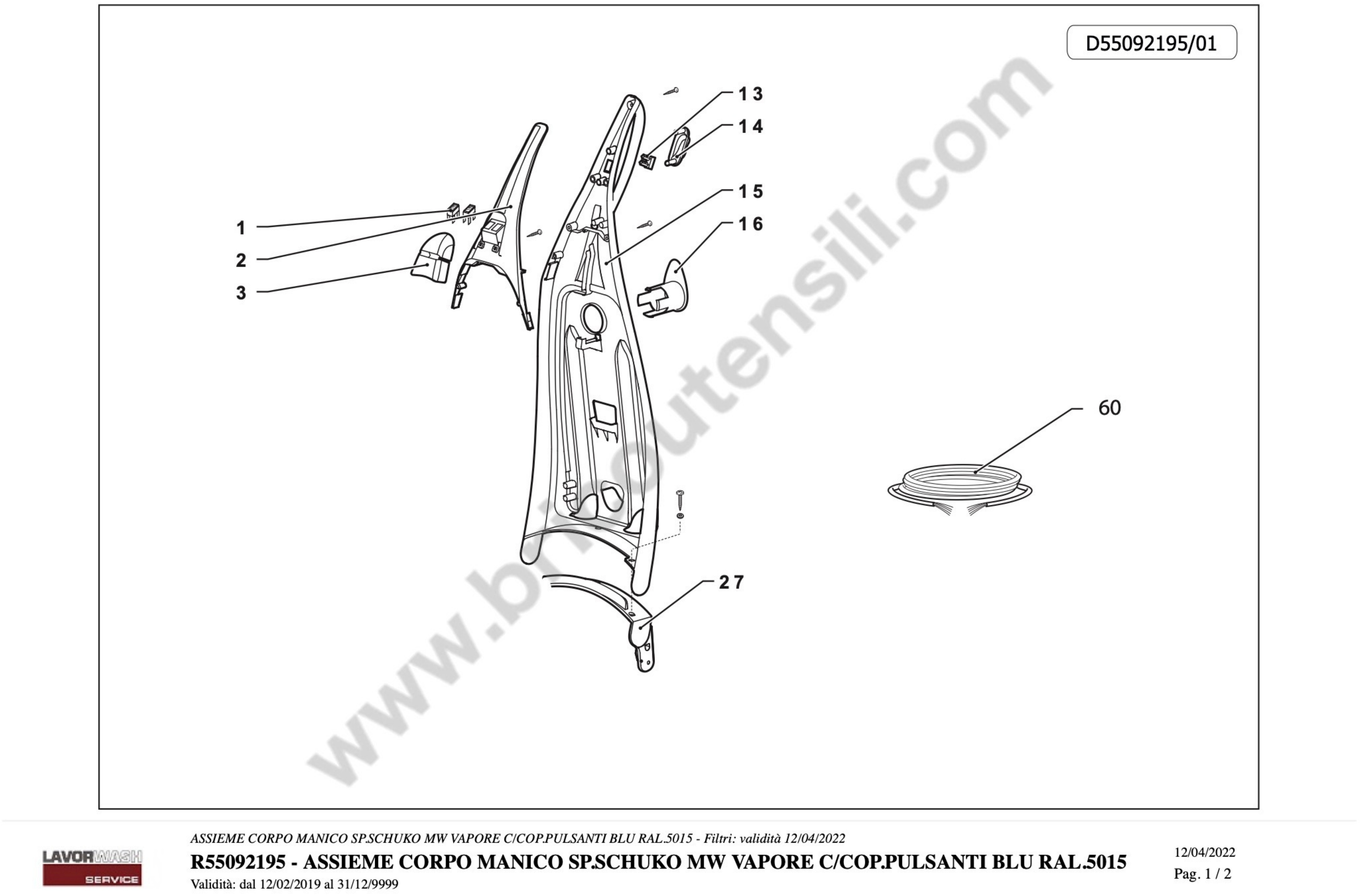

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 3.401.0065 BIP. SWITCH 13X19 FASTON 4,8 1 0(4)A €5.81
002
 photo_cameraImage coming soon 4.508.0012 UPPER COVER HANDLE GREY RAL 7043B €30.06
013
 photo_cameraImage coming soon 3.401.0181 SWITCH FOR CHEMICAL/WATER €4.89
014
 Lavor Solution Actuator for Sprint 4.508.0021 Lavor Solution Actuator for Sprint €3.50
015
 photo_cameraImage coming soon 4.508.1476 REAR HANDLE COVER (GREY) €69.90
016
 photo_cameraImage coming soon 4.508.0023 CABLE HOLDER MW GREY RAL 7043 B €3.54
027
 photo_cameraImage coming soon 4.505.0003 HANDLE SUPPORT €28.64
060
 photo_cameraImage coming soon 4.012.0268 MAIN POWER CABLE 3X1,5 MT.10 SCHUKO PLUG €68.68
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

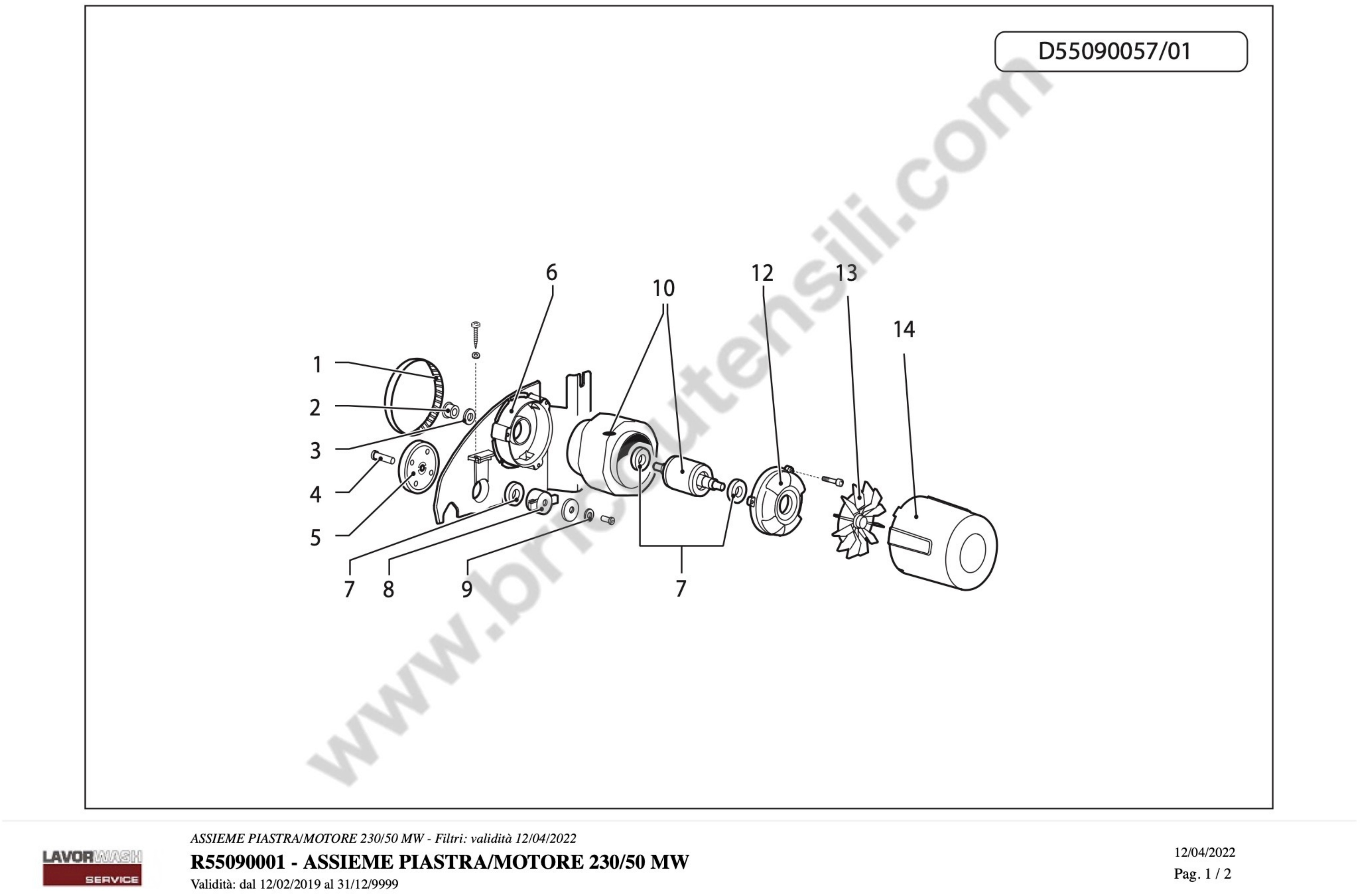

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter 3.099.0278 Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter €29.49
002
 photo_cameraImage coming soon 4.507.0001 PULLEY Z20 MW €6.66
003
 photo_cameraImage coming soon 4.506.0001 WASHER €3.23
004
 photo_cameraImage coming soon 4.506.0004 SUPPORT FOR PULLEY €5.99
005
 photo_cameraImage coming soon 4.508.0042 PULLEY FOR BRUSH €10.99
006
 photo_cameraImage coming soon 4.505.0001 MOTOR SUPPORT €28.64
007
 photo_cameraImage coming soon 3.001.0032 BEARING 6002 2RS1 €5.03
008
 photo_cameraImage coming soon 4.508.0041 BRUSH TRACTOR €1.69
009
 photo_cameraImage coming soon 3.004.0035 SPRING WASHER GROWER D.6 DI N 127 TYPE B ZNT WHITE €1.68
010
 photo_cameraImage coming soon 6.505.0003 KIT STATOR + ROTOR + SHAFT LWS €128.18
012
 photo_cameraImage coming soon 4.505.0002 FLANGE FOR MOTOR €12.20
013
 photo_cameraImage coming soon 3.099.0277 FAN FOR TRACTION MOTOR €1.68
014
 photo_cameraImage coming soon 4.508.0003 TRACTION MOTOR AIR CONVEYOR €6.61

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FASA Original Parts for Floor Scrubber Drier A0 30 HOT

Fix Your Floor Scrubber Drier A0 30 HOT 230/50 -GR/BLU- FASA - 8.501.0527. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following tables, look for the spare part and its respective code.
FASA A0 30 HOT - 8.501.0527

Floor Scrubber Drier A0 30 HOT 230/50 -GR/BLU- FASA - 8.501.0527 Pag.1
# Part Num. Description
. R55090001 ASSIEME PIASTRA/MOTORE 230/50 MW
. R55091820 ASSIEME CAREN.SUP.MW -GR- RAL.7016 C/ISOL.ACUST./PEDALE/SEDE CALDAIA
. R55092195 ASSIEME CORPO MANICO SP.SCHUKO MW VAPORE C/COP.PULSANTI BLU RAL.5015
. R55092196 ASS.DIFF.+POMPA 230V(35510032)+FILTRO+TUBO SOLUZIONE (CRYSTAL CLEAN)
004 4.508.1723 TANK CAP (BLUE RAL.5015)
005 5.509.2194 ASSEMBLY FOR FILTER (BLUE) BY-PASS D.10
006 6.505.0041 VALVE RUBBER GASKET NR-EPDM 55 SH MW
007 4.508.0029 FILTER GASKET 10X12 L=690
008 5.509.0415 GREY SOLUTION TANK WITH WASHER AND GASKET
009 6.505.0041 SOLUTION TANK GASKET DIAM. 46X18 SP.2 MW
010 6.505.0041 VALVE FOR TANK MW
011 4.508.0459 BLACK WATER TANK (GREY)
012 5.509.0008 ASSY FLEXIBLE HOSE L.800 MW
025 5.509.2196 DIFFUSER ASSY+230V PUMP+ FILTER+SOLUTION HOSE
026 5.509.0012 JOINT ASSY Y+FLEX HOSES MW.
030 6.505.0002 KIT MW BRUSH WITH BRISTLES LWS
032 4.508.0001 U BUSH LOCKING
033 6.505.0001 KIT FLOOR WRIPER LWS
034 4.508.0007 GREY WHEEL D.100 MW
035 5.509.1822 ASSIEME CAREN.INF.MW TERMORES. NERO C/ISOL.ACUST./SEDE CALDAIA
036 4.508.0027 ACOUSTIC PANEL
037 4.508.0030 EXHAUST AIR FILTER
038 4.508.0009 AIR INTAKE PORTION
039 4.508.0032 AIR INTAKE SEAL
040 4.508.0031 NON SIMMETRIC RING
041 3.755.0085 BRUSH MOTOR 220-240V 50/60Hz 800W
042 4.508.1430 GASKET FOR SUCTION MOTOR DOMEL
043 4.507.0002 SUCTION MOTOR SUPPORT
072 5.509.1820 ASSIEME CAREN.SUP.MW -GR- RAL.7016 C/ISOL.ACUST./PEDALE/SEDE CALDAIA
075 5.509.0394 CARPET BRUSH + BEARING ASSEMBLY
076 6.505.0087 KIT CALDAIA CRYSTAL CLEAN
55092196 - ASS.DIFF.+POMPA 230V(35510032)+FILTRO+TUBO SOLUZIONE (CRYSTAL CLEAN) Pag.2
001 3.102.0003 DIESEL FUEL FILTER TP3
002 3.551.0032 DETERGENT PUMP
003 4.508.0034 DISPENSER CONNECTION
004 4.508.0033 SOLUTION DISPENSER
55091820 - ASSIEME CAREN.SUP.MW -GR- RAL.7016 C/ISOL.ACUST./PEDALE/SEDE CALDAIA Pag.3
001 4.508.0036 ADHESIVE GASKET
002 4.513.0391 COFANO SUP.MW C/SEDE CALDAIA -GR- RAL.7016
003 4.508.0004 PEDAL GREY RAL 7043B
004 4.508.0028 UPPER ACOUSTIC PANEL
55092195 - ASSIEME CORPO MANICO SP.SCHUKO MW VAPORE C/COP.PULSANTI BLU RAL.5015 Pag.4
001 3.401.0065 BIP. SWITCH 13X19 FASTON 4,8 1 0(4)A
002 4.508.0012 UPPER COVER HANDLE GREY RAL 7043B
003 4.508.1719 SWITCH ON/OFF COVER W/TAMP. (BLUE RAL.5015)
013 3.401.0181 SWITCH FOR CHEMICAL/WATER
014 4.508.0021 SOLUTION ACTUATOR GREY RAL 7043B
015 4.508.1476 REAR HANDLE COVER (GREY)
016 4.508.0023 CABLE HOLDER MW GREY RAL 7043 B
027 4.505.0003 HANDLE SUPPORT
060 4.012.0268 MAIN POWER CABLE 3X1,5 MT.10 SCHUKO PLUG
55090001 - ASSIEME PIASTRA/MOTORE 230/50 MW Pag.5
001 3.099.0278 BELT 336 RPP3-12
002 4.507.0001 PULLEY Z20 MW
003 4.506.0001 WASHER
004 4.506.0004 SUPPORT FOR PULLEY
005 4.508.0042 PULLEY FOR BRUSH
006 4.505.0001 MOTOR SUPPORT
007 3.001.0032 BEARING 6002 2RS1
008 4.508.0041 BRUSH TRACTOR
009 3.004.0035 WASHER GROWER D.6 UNI1751 ZNT
010 6.505.0003 KIT STATOR + ROTOR + SHAFT LWS
012 4.505.0002 FLANGE FOR MOTOR
013 3.099.0277 FAN FOR TRACTION MOTOR
014 4.508.0003 TRACTION MOTOR AIR CONVEYOR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s FASA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to FASA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
FASA A0 30 HOT - 8.501.0527
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Drawing FASA A0 30 HOT

Drawing FASA A0 30 HOT

Download (972.73KB)

You might also like

Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 6.505.0041
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Brush + Bearing Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber...
Usually Ships in: 7/10 Business Days Approx. €6.40
Details
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0008
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Flexible Hose Ass'y L.800 MW for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products:...
Last items in stock €29.49
Details
Squeegee + Support for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0010
Squeegee + Support for Floor Scrubber Drier Lavor Pro Sprinter
Squeegee + Support Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Squeegee + Support Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor...
Usually Ships in: 7/10 Business Days Approx. €14.85
Details
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 3.099.0278
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Belt 336 RPP3-12 for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following...
Usually Shipped on: 10 Business Days Approx. €29.49
Details
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean
Lavorwash S.p.A. SKU: 6.505.0087
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Boiler Kit for Floor Scrubber Drier Crystal Clean. Part for the following products: -  Floor Scrubber Drier Lavor...
Last items in stock €87.31
Details
Lavor Pro Sprinter Solution Tank Grey
Lavorwash S.p.A. SKU: 5.509.0415
Lavor Pro Sprinter Solution Tank Grey
Lavor Pro Sprinter Solution Tank Grey Genuine replacement part Lavor, Solution Tank Grey with Washer & Gasket Ass'y for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: - ...
Last items in stock €38.08
Details
Lavor Solution Actuator for Sprint
Lavorwash S.p.A. SKU: 4.508.0021
Lavor Solution Actuator for Sprint
Lavor Solution Actuator for Sprint Original replacement part Lavorwash, Solution Actuator Grey Ral 7043b for Floor Scrubber Drier. Part for the following products: -  Floor Scrubber Drier Lavor Pro SPRINTER - 8.501.0501 - ...
Usually Ships in: 10 Business Days Approx. €3.50
Details
Lavor Sprinter Wheel D.100 MW Grey
Lavorwash S.p.A. SKU: 4.508.0007
Lavor Sprinter Wheel D.100 MW Grey
Lavor Sprinter Wheel D.100 MW Grey RAL.7016 Genuine replacement part Lavor, Wheel D.100 MW Grey RAL.7016 for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber...
Last items in stock €15.00
Details
Lavor Sprinter Pedal Grey RAL 7043B
Lavorwash S.p.A. SKU: 4.508.0004
Lavor Sprinter Pedal Grey RAL 7043B
Lavor Sprinter Pedal Grey RAL 7043B Genuine replacement part Lavor, Pedal Grey RAL 7043B for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber Drier Sprinter Lavor Pro -...
Last items in stock €15.00
Details
Lavor Joint and Flex Hoses for Sprinter
Lavorwash S.p.A. SKU: 10002-06600 ex 5.509.0012
Lavor Joint and Flex Hoses for Sprinter
Lavor Joint and Flex Hoses for Floor Scrubber Drier Sprinter Genuine replacement part Lavor, Joint Assy Y+Flex Hoses Mw. for Floor Scrubber Drier Sprinter - Crystal. Part for the following products: -  Floor Scrubber Drier...
Last items in stock €28.33
Details
Lavor Sprinter Offset Ring
Lavorwash S.p.A. SKU: 4.508.0031
Lavor Sprinter Offset Ring
Lavor Floor Scrubber Drier Sprinter Offset Ring Genuine replacement part Lavor, Non Simmetric Ring for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor...
Last items in stock €3.50
Details
Lavor Sprinter Air Intake Seal
Lavorwash S.p.A. SKU: 4.508.0032
Lavor Sprinter Air Intake Seal
Lavor Floor Scrubber Drier Sprinter Air Intake Seal Genuine replacement part Lavor, Air Intake Seal D.65X33X2Sp. Mw for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following...
Last items in stock €5.90
Details
Comments (0)
