Lavorwash S.p.A.

FASA Parts for Pressure Cleaner Indie 140

SKU: FASA Indie 140 - 8.107.0026C
€6.84
VAT included

FASA Parts for Pressure Cleaner Indie 140 - 8.107.0026C

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner Indie 140 - 8.107.0026C

Fix Your Pressure Cleaner Indie 140. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
FASA Parts for Pressure Cleaner Indie 140 Drawing
  • FASA Parts for Pressure Cleaner Indie 140 Drawing
  • FASA Parts for Pressure Cleaner Indie 140 Drawing
  • FASA Parts for Pressure Cleaner Indie 140 Drawing
  • FASA Parts for Pressure Cleaner Indie 140 Drawing
  • FASA Parts for Pressure Cleaner Indie 140 Drawing
  • FASA Parts for Pressure Cleaner Indie 140 Drawing
  • FASA Parts for Pressure Cleaner Indie 140 Drawing
Lavorwash S.p.A.

FASA Parts for Pressure Cleaner Indie 140

SKU: FASA Indie 140 - 8.107.0026C Condition: New
€6.84
VAT included

FASA Parts for Pressure Cleaner Indie 140 - 8.107.0026C

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner Indie 140 - 8.107.0026C

Fix Your Pressure Cleaner Indie 140. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 48 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

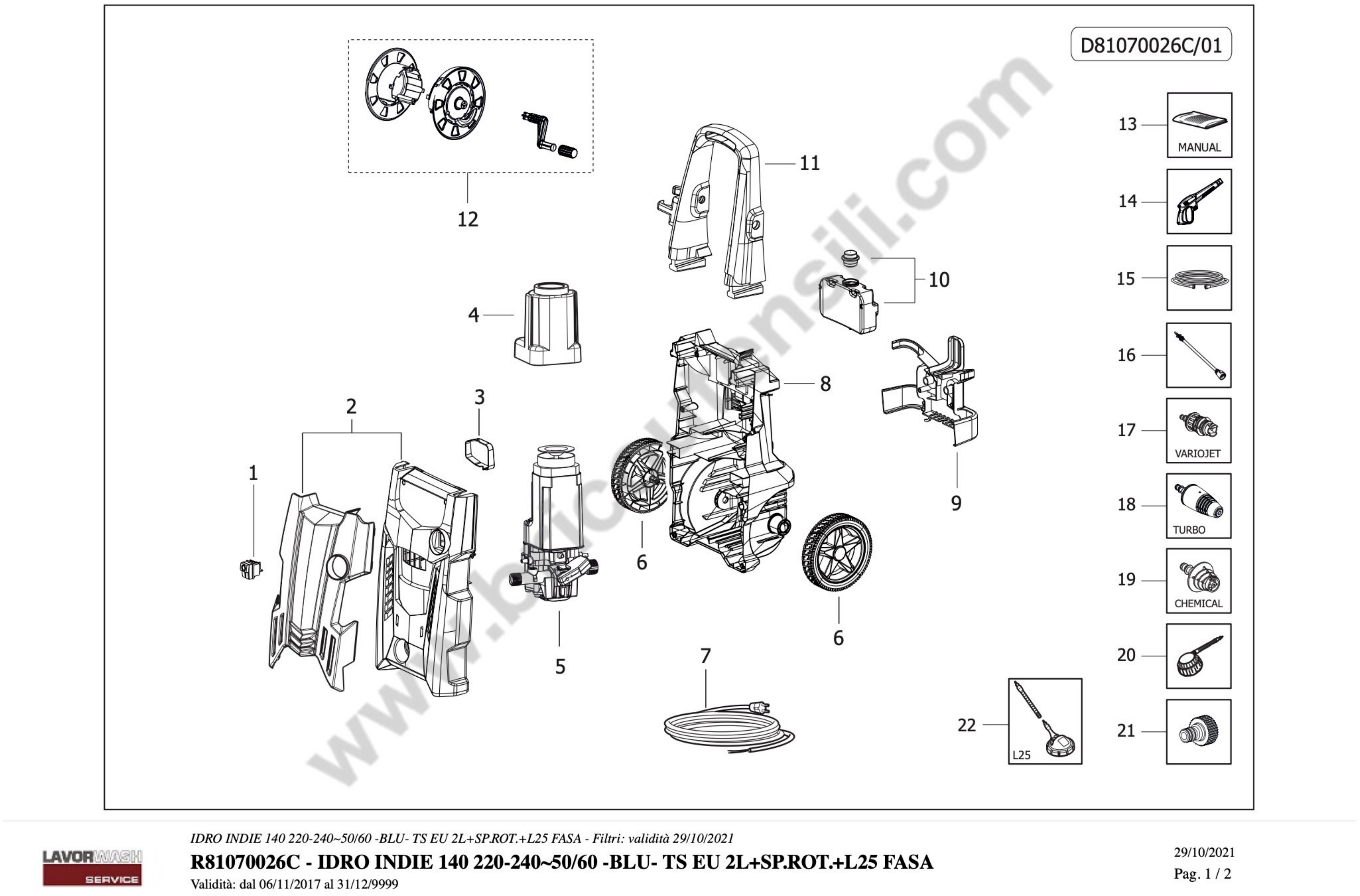

Esploso pagina 1
Pos. Item Price Buy
1
 Switch 0/1 Black Button for Pressure Washers Lavor 3.401.0178 Switch 0/1 Black Button for Pressure Washers Lavor €6.91
3
 photo_cameraImage coming soon 4.008.1149 BLACK CAP FOR ELECTRICAL BOX STORM II (P80.0425) €3.22
4
 photo_cameraImage coming soon 4.008.1172 AIR CONVEYOR FOR U76 €14.87
5
 photo_cameraImage coming soon 5.001.0834C EXT MOTORPUMP PT'03EVO 230/50 W/THERMAL-SUCTION TS 5'30 (7645PF- €132.51
6
 Lavor PLANET 140 Grey Wheel 4.008.1773 Lavor PLANET 140 Grey Wheel €12.42
7
 photo_cameraImage coming soon 4.012.0174C CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG W/FASTON COVER €21.99
8
 photo_cameraImage coming soon 4.013.0755 BLACK BACK CABINET FOR SPACE €24.25
9
 photo_cameraImage coming soon 4.008.1774 BLACK BACK ACCESSORY HOLDER SPACE €6.61
10
 photo_cameraImage coming soon 5.011.0274 TANK + CAP (SPACE) €23.08
11
 photo_cameraImage coming soon 4.008.1775 BLACK HANDLE SPACE FOR HOSE REEL €14.53
12
 Lavor SPACE180 Hose Reel Kit 6.005.0574 Lavor SPACE180 Hose Reel Kit €23.75
13
 photo_cameraImage coming soon 7.100.2074 MANUAL SPACE + CE LAVOR 27L A516F €2.52
14
 photo_cameraImage coming soon 6.001.0084 GUN S'09 WITH INTEGRAL QUICK JOINT (BLACK TRIGGER) €31.72
15
 H.P. Hose 4.018.0096 8 m for Quick Coupling Trigger Gun Lavor S’09 4.018.0096 H.P. Hose 4.018.0096 8 m for Quick Coupling Trigger Gun Lavor S’09 €29.90
16
 Lance S'12 6.002.0361 Nozzle Head Holder for Trigger Guns Lavor 6.002.0361 Lance S'12 6.002.0361 Nozzle Head Holder for Trigger Guns Lavor €11.82
17
 Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636 6.002.0636 Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636 €9.83
18
 Head Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0346 Head Turbo Nozzle Ø 1,025 for Lance Lavor €7.50
19
 Head Soap Nozzle 6.002.0634 6.002.0634 Head Soap Nozzle 6.002.0634 €6.20
20
 photo_cameraImage coming soon 3.601.0066 Substituted by 3.601.0074 1 ROTATING BRUSH WITH FIXED HAND €24.33
21
 photo_cameraImage coming soon 3.100.0082C BLACK QUICK COUPLING INLET CONNECTOR (THREAD=9.5) €1.60
22
 photo_cameraImage coming soon 3.601.0115 BLUE(PANT.300C) FLOOR BRUSH L25 D.1,1 W/EXTENSION €59.28
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

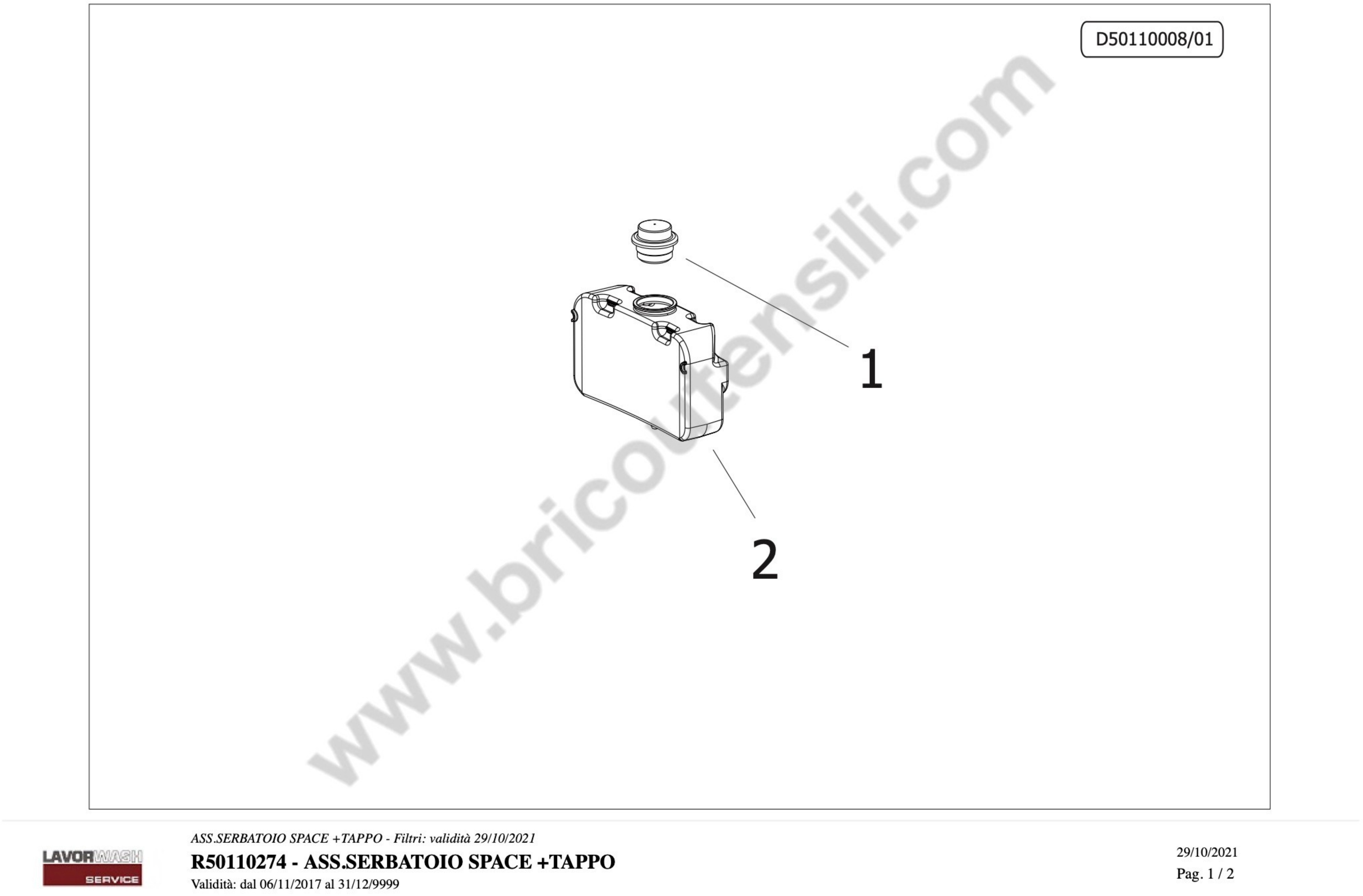

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.008.1521 BLACK PLUG FOR TANK -RAL.9011-(80007138) €3.25
2
 photo_cameraImage coming soon 4.008.1776 NEUTRAL TANK SPACE €13.88
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

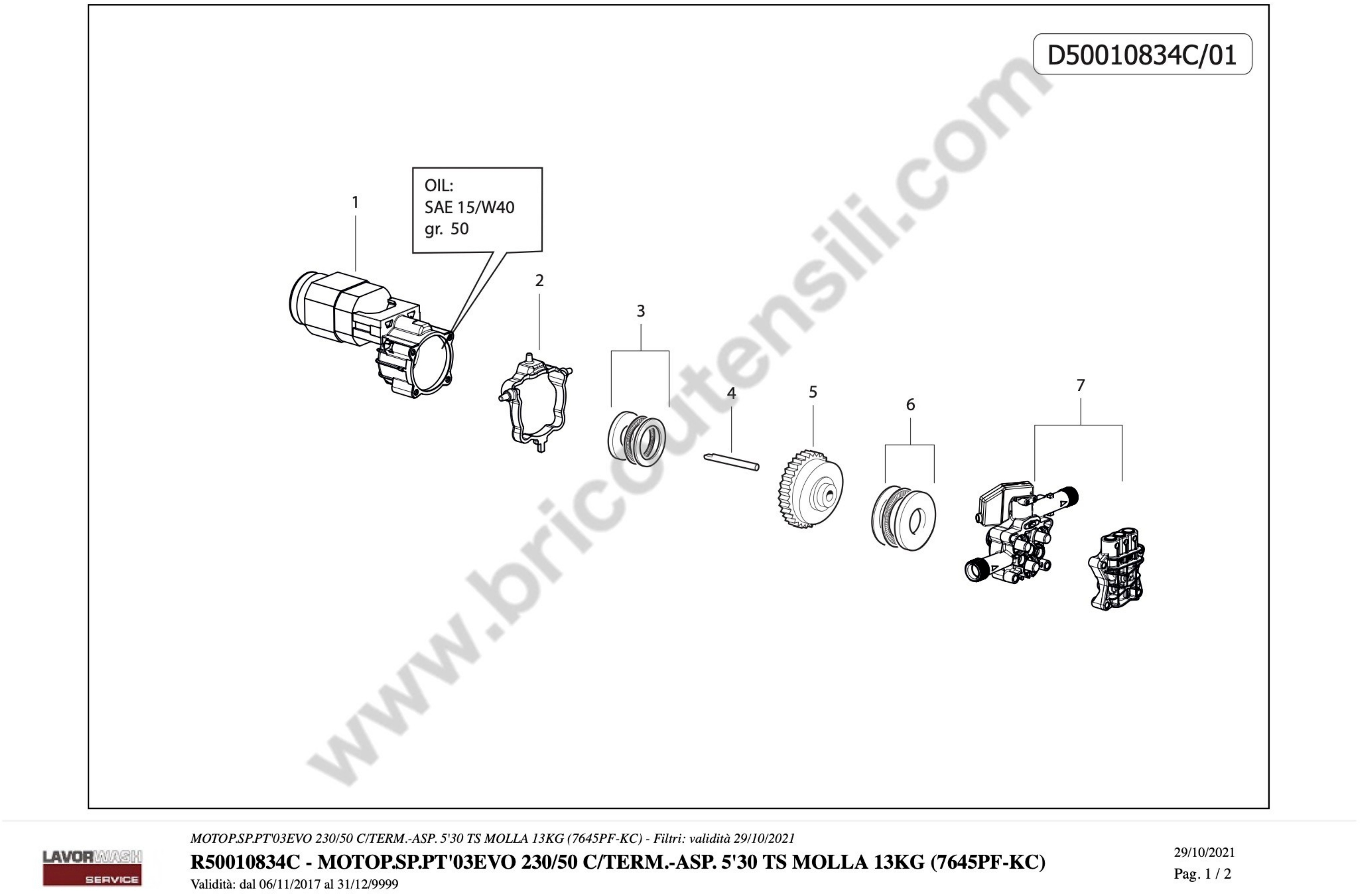

Esploso pagina 3
Pos. Item Price Buy
1
 Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140 5.009.0979 Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140 €87.31
2
 Motor Flange Collar for Pressure Washers Lavor RIDE 110 - RACE 125 4.008.1164 Motor Flange Collar for Pressure Washers Lavor RIDE 110 - RACE 125 €8.73
3
 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 6.005.0311 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 €7.56
4
 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS 4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS €7.68
5
 Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145 5.009.0726 Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145 €7.46
6
 photo_cameraImage coming soon 4.007.0328 THRUST BEARING 35X55X12 PT'03 €15.13
7
 Body Guide + Head Assy for Pressure Cleaner PLANET 140 5.009.0839C Body Guide + Head Assy for Pressure Cleaner PLANET 140 €83.81
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

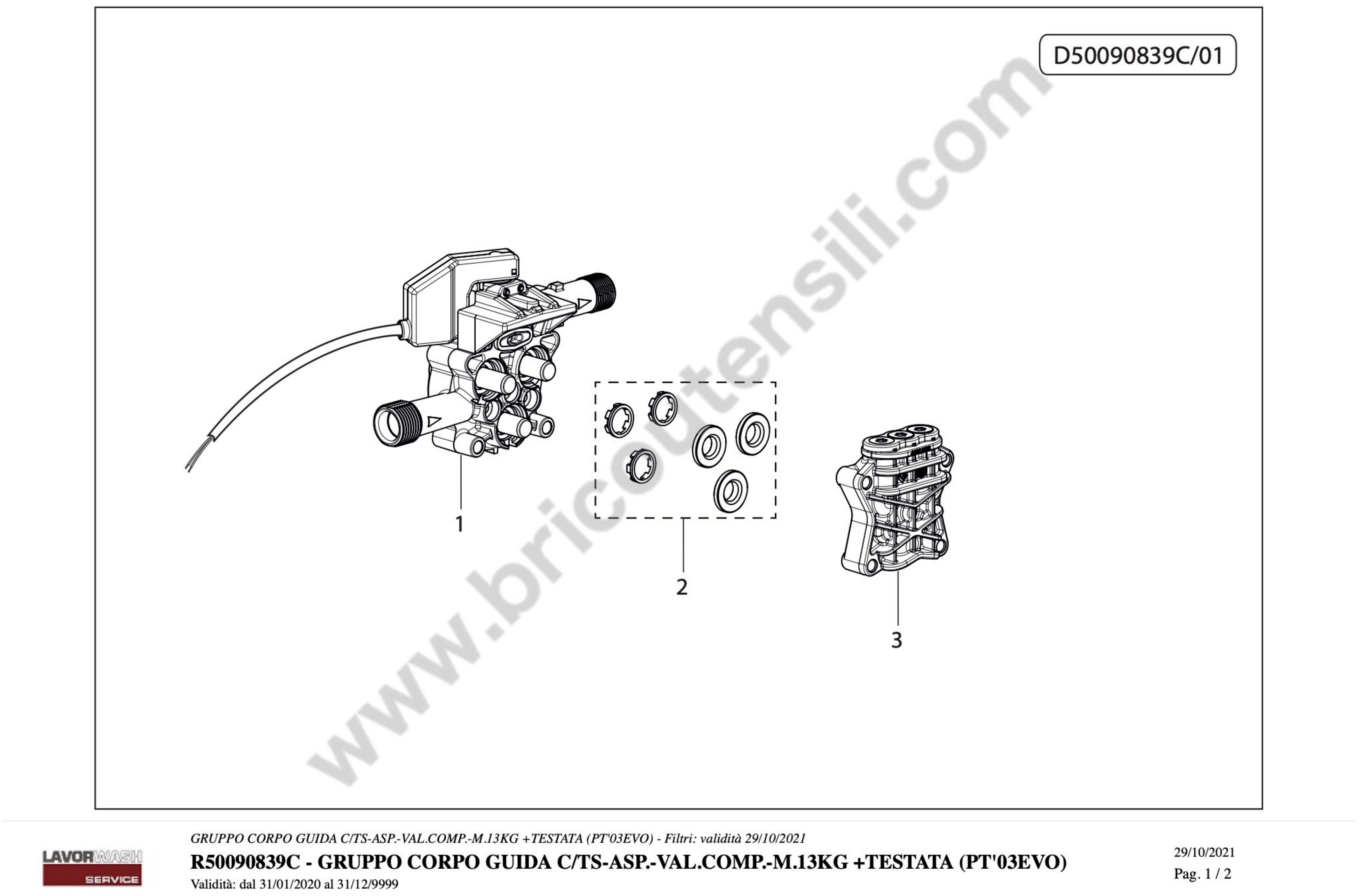

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.007.0249 BODY GUIDE ASSEMBLED PT'03EVOWITH TS/COMP.VALVE/SUCTION S.1 €53.33
2
 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 6.005.0282 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 €14.54
3
 Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 5.008.0261 Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 €28.99
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

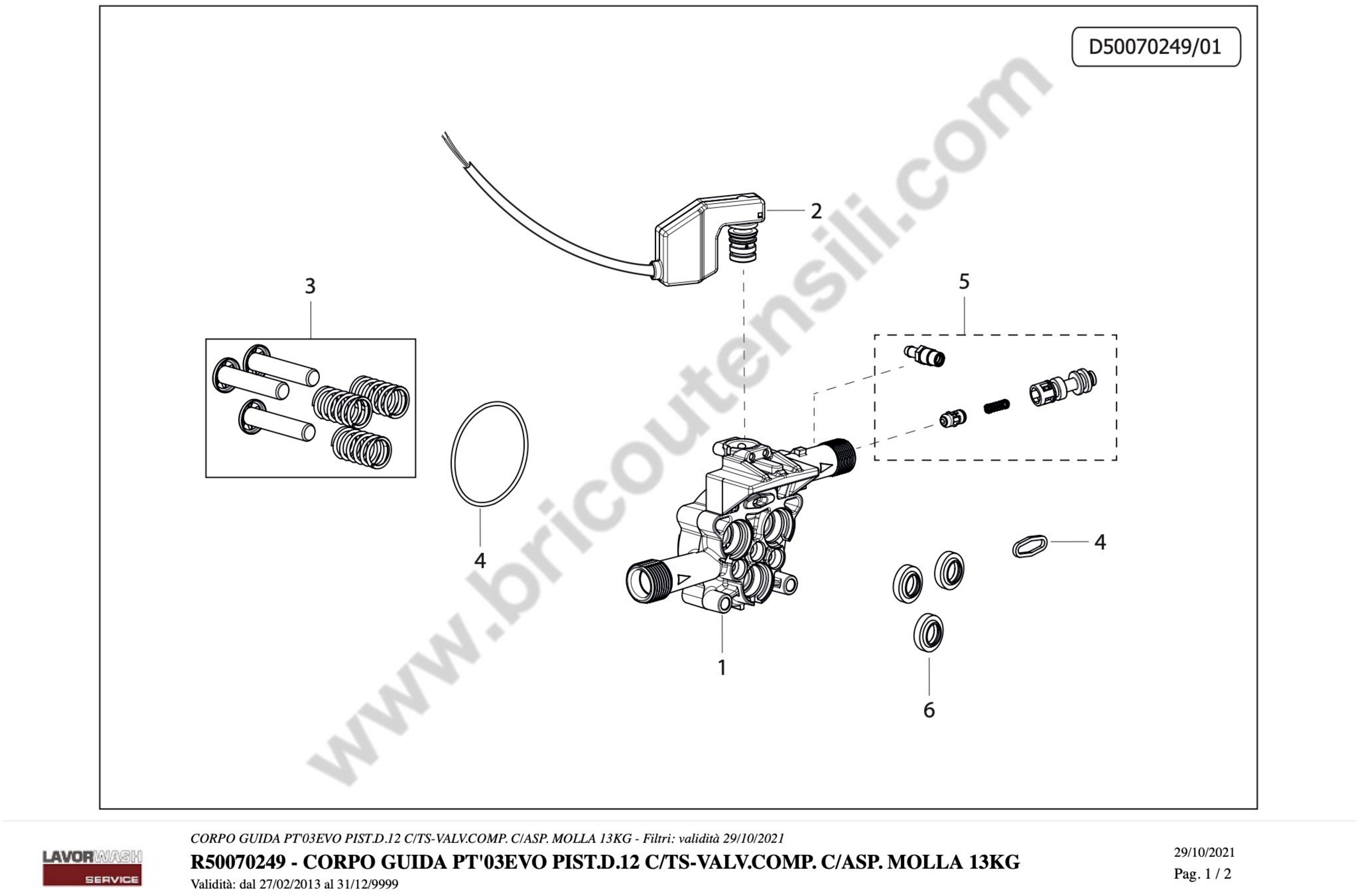

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.005.0300 PISTON BODY GUIDE PT'03EVO WITH SUCTION €27.54
2
 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 5.009.0716 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 €27.86
3
 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 €25.98
4
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43
5
 Kit 252 LW for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 6.005.0277 Kit 252 LW for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 €4.50
6
 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 €14.50
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

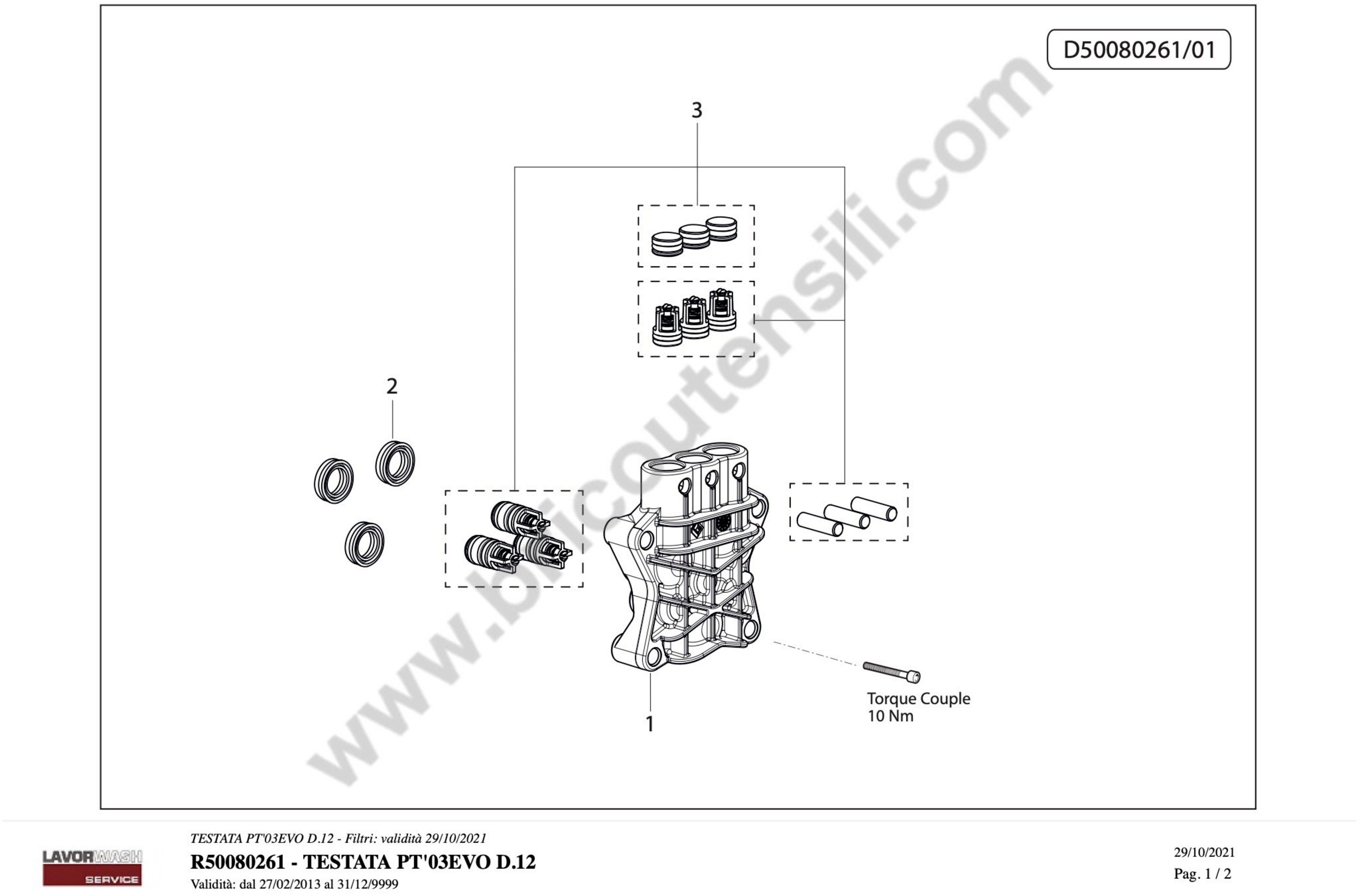

Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.005.0298 PT''03EVO PARTNER HEAD €28.92
2
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54
3
 Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 6.005.0588 Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 €27.72

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FASA Parts for Pressure Cleaner Indie 140 - 8.107.0026C

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner Indie 140 - 8.107.0026C

Fix Your Pressure Cleaner Indie 140. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
FASA TANGO KW24 80210603-1

Idropulitrice ad Acqua Fredda FASA Indie 140 - 8.107.0026C Pag.1
Pos. Part Num. Description
. 50010834C MOTOP.SP.PT'03EVO 230/50 C/TERM.-ASP. 5'30 TS MOLLA 13KG (7645PF-KC)
. 50110274 ASS.SERBATOIO SPACE +TAPPO
1 3.401.0178 SWITCH 0/1 BLACK BOTTON IP55 12/10
2 5.011.0335 ASSEMBLY FRONTAL COVER SPACE (BLUE)
3 4.008.1149 BLACK CAP FOR ELECTRICAL BOX STORM II (P80.0425)
4 4.008.1172 AIR CONVEYOR FOR U76
5 5.001.0834C MOTORPUMP PT'03EVO 230/50 W/THERMAL-SUCTION TS 5'30 (7645PF-KC)
6 4.008.1773 GREY WHEEL WITH BLACK COAT SPACE
7 4.012.0174C CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG W/FASTON COVER
8 4.013.0755 BLACK BACK CABINET FOR SPACE
9 4.008.1774 BLACK BACK ACCESSORY HOLDER SPACE
10 5.011.0274 TANK + CAP (SPACE)
11 4.008.1775 BLACK HANDLE SPACE FOR HOSE REEL
12 6.005.0574 KIT HOSE REEL SPACE
13 7.100.2074 MANUAL SPACE + CE LAVOR 27L A5 16F
14 6.001.0084 GUN S'09 WITH INTEGRAL QUICK JOINT (BLUE TRIGGER PANT.287C)
15 4.018.0096 HOSE 1/4 180BAR L=8000 M22x1,5 D.15-RAPID FIX
16 6.002.0361 LANCE S'12 WITHOUT NOZZLE HEAD + NOZZLE CLEANING PIN
17 6.002.0636 NOZZLE HEAD LANCE S'12 D.0,95 (ORANGE) ADJUST.FAN JET W/QUICK COUPLING
18 6.002.0346 ROTOX NOZZLE HEAD LANCE S'12 D.1,025 WITH QUICK COUPLING
19 6.002.0634 SOAP HEAD LANCE S'12 W/QUICK COUPLING
20 3.601.0066 ROTATING HYDRO BRUSH W/HANDLE
21 3.100.0082C BLACK QUICK COUPLING INLET CONNECTOR (THREAD=9.5)
22 3.601.0115 BLUE(PANT.300C) FLOOR BRUSH L25 D.1,1 W/EXTENSION
50110274 - ASS.SERBATOIO SPACE +TAPPO Pag.2
1 4.008.1521 BLACK PLUG FOR TANK -RAL.9011- (80007138)
2 4.008.1776 NEUTRAL TANK SPACE
50010834C - MOTOP.SP.PT'03EVO 230/50 C/TERM.-ASP. 5'30 TS MOLLA 13KG Pag.3
.. 50090839C GRUPPO CORPO GUIDA C/TS-ASP.-VAL.COMP.-M.13KG +TESTATA (PT'03EVO)
1 5.009.0979 7645PF-AL KC MOTOR 230/50 W/CAPACITOR-THERMAL
2 4.008.1164 RING FOR FLANGE X MOTOR U96AF/ U76 -C-
3 6.005.0311 THRUST RING KIT (PT'03 U76)
4 4.007.0205 PIN 10X70
5 5.009.0726 5'30 WOBBLE PLATE ASSEMBLY W/CROWN Z 62 (PT'03)
6 4.007.0328 THRUST BEARING 35X55X12 PT'03
7 5.009.0839C BODY GUIDE+HEAD ASSEMBLED TS WITH SUCTION (SPRING 13KG) - PT'03EVO-
50090839C - GRUPPO CORPO GUIDA C/TS-ASP.-VAL.COMP.-M.13KG +TESTATA (PT'03EVO) Pag.4
. 50070249 CORPO GUIDA PT'03EVO PIST.D.12 C/TS-VALV.COMP. C/ASP. MOLLA 13KG
. 50080261 TESTATA PT'03EVO D.12
1 5.007.0249 BODY GUIDE ASSEMBLED PT'03EVO WITH TS/COMP.VALVE/SUCTION S.13KG
2 6.005.0282 KIT 257 O-RING SEAL
3 5.008.0261 PT'03EVO HEAD D.12
50070249 - CORPO GUIDA PT'03EVO PIST.D.12 C/TS-VALV.COMP. C/ASP. MOLLA 13KG Pag.5
1 4.005.0300 PISTON BODY GUIDE PT'03EVO WITH SUCTION
2 5.009.0716 VALVE ASSY TS PT'03 CABLE L=530 SPRING 13KG (WHITE FASTON COVER)
3 6.005.0181 KIT 167 LW PISTON
4 6.005.0226 KIT 209 O-RING
5 6.005.0277 KIT 252
6 6.005.0079 KIT 79 LW OIL SEALS
50080261 - TESTATA PT'03EVO D.12 Pag.6
1 4.005.0298 PT''03EVO PARTNER HEAD
2 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
3 6.005.0588 KIT LW VALV.ASP./MAND.+TAPPI PT' 03EVO
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
FASA Indie 140 - 8.107.0026C
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Drawing FASA Indie 140

Drawing FASA Indie 140

Download (1.05MB)

You might also like

Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636
Lavorwash S.p.A. SKU: 6.002.0636
Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636
Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636 Genuine Replacement part Lavor, Head Nozzle Jet Adjustable Needle-Fan Ø 0.95 6.002.0636 for Lance Lavor 6.002.0343. Part suitable for the following high...
Last items in stock €9.83
Details
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Lavorwash S.p.A. SKU: 6.002.0346
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Head Turbo Nozzle Ø 1,025 for Lance Lavor Genuine Replacement part Lavor, Head cod. 6.002.0346 Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0340. Part suitable for the following high pressure...
Last items in stock €7.50
Details
Foam Lance + Bottle for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.002.0358
Foam Lance + Bottle for High Pressure Washers Lavor
Foam Lance + Bottle for High Pressure Washers Lavor Genuine Replacement part Lavor, Foam Lance + Bottle 6.002.0358 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
Last items in stock €13.09
Details
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €2.07
Details
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0079
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 79 LW Oil Seal for Partner D.12/Fibra per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140...
Usually Shipped on: 7/10 Business Days Approx. €14.50
Details
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 5.008.0261
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Head PT'03 EVO D.12 for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II 18 - STORM II PLUS 21. Part for the following...
Last items in stock €28.99
Details
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 6.005.0311
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Kit 283 LW Needle Bearing for Motorpump PT'03 (U76) for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II. Part for the...
Last items in stock €7.56
Details
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Lavorwash S.p.A. SKU: 6.005.0588
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 Original replacement part Lavor, Kit LW Intake Delivery Valves for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140. Part for the following products: - R80880029C -...
AVAILABLE €27.72
Details
Kit 256 Check Valve for Washer Lavor Predator 160
Lavorwash S.p.A. SKU: 6.005.0281
Kit 256 Check Valve for Washer Lavor Predator 160
Kit 256 Check Valve for Washer Lavor Predator 160 Genuine replacement part Lavor, Kit 256 LW Check Valve Without Intake Assy PT'03C for Pressure Washers Predator 160 - RAPTOR 21 - Independent 1900. Part for the following products: -...
on 7/10 Business Days Approx €15.93
Details
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS
Lavorwash S.p.A. SKU: 4.007.0205
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS Genuine replacement part Lavor, Pin 10x70 for Drive Wooble Plate Assembly with Crown for Pressure Washer Predator 160 WPS 220-240~50/60 -V/N- TS EU C/AVV. LWS 8.101.0012. Part for...
AVAILABLE €7.68
Details
Switch 0/1 Black Button for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.401.0178
Switch 0/1 Black Button for Pressure Washers Lavor
Switch 0/1 Black Button for Pressure Washers Lavor Genuine replacement part Lavor, Switch 0/1 Black Button IP55 12/10 for Pressure Washers Lavor Part for the following products: -  Pressure washer Ride 110...
Last items in stock €6.91
Details
Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140
Lavorwash S.p.A. SKU: 5.009.0979
Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140
Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140 Genuine replacement part Lavor, Motor Assembly 03 230/50 Flangia Interna + Pignone F.L=600 Con/ANTID(U7645PF-ALL) for Pressure Cleaner PLUS 21...
Last items in stock €87.31
Details
Lavor PLANET 140 Grey Wheel
Lavorwash S.p.A. SKU: 4.008.1773
Lavor PLANET 140 Grey Wheel
Lavor PLANET 140 Grey Wheel With Black Coat Genuine replacement part Lavor, Grey Wheel With Black Coat for SPACE for PLANET 140 - PLANET 160 - FASA INDIE 140. Part for the following products: -  LAVOR PLANET 140 81100005C...
Last items in stock €12.42
Details
Comments (0)
