Lavorwash S.p.A.

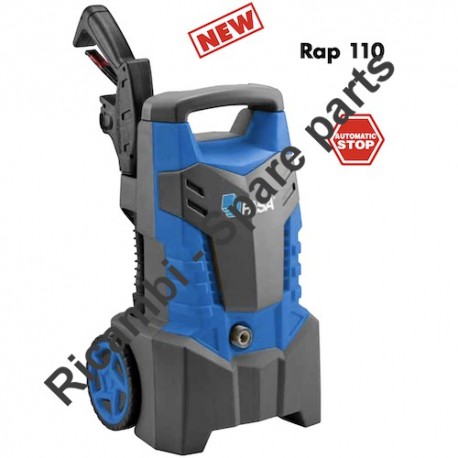

FASA Parts for Pressure Cleaner Rap 110

SKU: FASA Rap 110 - 8.109.0030C
€147.06
VAT included

FASA Parts for Pressure Cleaner Rap 110

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner Rap 110 - 8.109.0030C

Fix Your Pressure Cleaner Rap 110. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
FASA Parts for Pressure Cleaner Rap 110
  • FASA Parts for Pressure Cleaner Rap 110
  • FASA Parts for Pressure Cleaner Rap 110
  • FASA Parts for Pressure Cleaner Rap 110
  • FASA Parts for Pressure Cleaner Rap 110
  • FASA Parts for Pressure Cleaner Rap 110
  • FASA Parts for Pressure Cleaner Rap 110
Lavorwash S.p.A.

FASA Parts for Pressure Cleaner Rap 110

SKU: FASA Rap 110 - 8.109.0030C Condition: New
€147.06
VAT included

FASA Parts for Pressure Cleaner Rap 110

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner Rap 110 - 8.109.0030C

Fix Your Pressure Cleaner Rap 110. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 38 spare parts
description 5 exploded views
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
29 spare parts
Pos. Item Price Buy
002
 photo_cameraImage coming soon 4.008.1186 AIR CONVEYOR FOR U76 (LIGHT) €134.59 Available
003
 photo_cameraImage coming soon 4.008.1860 GREY LOW HANDLE ONE RAL.7016 (PANT.432C) €9.53 Available
007
 photo_cameraImage coming soon 5.001.0801C MTP PT'03EVO 230/50 TSC-THERMAL 4'45 (7630PF-KC) SCHUKO PLUG €129.39 Available
010
 Trigger Gun S'09 6.001.0076 for Pressure Washers Cold Water Lavor 6.001.0076 Trigger Gun S'09 6.001.0076 for Pressure Washers Cold Water Lavor €20.60 Available
011
 H.P. Hose 4.018.0106 3 m for Quick Coupling Trigger Gun Lavor S’09 4.018.0106 H.P. Hose 4.018.0106 3 m for Quick Coupling Trigger Gun Lavor S’09 €19.90 Available
014
 Lance S'02 V fan Jet Ø 0,9 for Pressure Washers Lavor 6.002.0326 Lance S'02 V fan Jet Ø 0,9 for Pressure Washers Lavor €7.53 Available
021
 Foam Lance + Bottle for High Pressure Washers Lavor 6.002.0358 Foam Lance + Bottle for High Pressure Washers Lavor €13.09 Available
022
 photo_cameraImage coming soon 3.100.0082C BLACK QUICK COUPLING INLET CONNECTOR (THREAD=9.5) €1.60 Available
024
 photo_cameraImage coming soon 4.008.1862 GREY BACK BASE FOR TROLLEY ONE/SMART RAL.7016 (PANT.432C) €21.56 Available
025
 photo_cameraImage coming soon 4.008.1863 GREY FRONT BASE FOR TROLLEY ONE/SMART RAL.7016 (PANT.432C) €21.56 Available
001
 photo_cameraImage coming soon 5.009.0978 7630PF-KC MOTOR PT'03 230/50 W/CAPACITOR-THERMAL 17AM-D 140G €82.08 Available
002
 Motor Flange Collar for Pressure Washers Lavor RIDE 110 - RACE 125 4.008.1164 Motor Flange Collar for Pressure Washers Lavor RIDE 110 - RACE 125 €8.73 Available
003
 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 6.005.0311 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 €7.56 Available
004
 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS 4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS €7.68 Available
005
 Lavor Wobble Plate for Pressure Washer Tomcat 5.009.0728 Lavor Wobble Plate for Pressure Washer Tomcat €13.39 Available
006
 photo_cameraImage coming soon 4.007.0328 THRUST BEARING 35X55X12 PT'03 €15.13 Available
007
 photo_cameraImage coming soon 5.009.0972C BODY GUIDE W/TSC-SCHUKO PLUG NO SUCTION +HEAD PT'03EVO €55.71 Available
002
 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 6.005.0282 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 €14.54 Available
003
 Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 5.008.0261 Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 €28.99 Available
001
 photo_cameraImage coming soon 6.005.0590 KIT COMPLETE TS PT'03 (AH) €24.00 Available
002
 Kit 256 Check Valve for Washer Lavor Predator 160 6.005.0281 Kit 256 Check Valve for Washer Lavor Predator 160 €15.93 Available
003
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43 Available
004
 photo_cameraImage coming soon 4.005.0299 PISTON BODY GUIDE PT'03EVO €22.92 Available
005
 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 €25.98 Available
006
 photo_cameraImage coming soon 4.007.0314 PIN 3,5x30 ZNT €1.68 Available
007
 photo_cameraImage coming soon 4.012.0174C CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG W/FASTON COVER €21.99 Available
001
 photo_cameraImage coming soon 4.005.0298 PT''03EVO PARTNER HEAD €28.92 Available
002
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54 Available
003
 Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 6.005.0588 Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 €27.72 Available

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FASA Parts for Pressure Cleaner Rap 110

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner Rap 110 - 8.109.0030C

Fix Your Pressure Cleaner Rap 110. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
FASA TANGO KW24 80210603-1

Cold Water Pressure Cleaner FASA Rap 110 - 8.109.0030C Pag.1
Pos. Part Num. Description
* 50010801C MOTOP.SP.PT'03EVO 230/50 C/TERM.-TSC-SP.SCHUKO 4'45 (7630PF-KC)
001 5.011.0338 ASSEMBLY BLUE COVER/GREY FRONT COVER(RAL.7016)ONE-R
002 4.008.1186 AIR CONVEYOR FOR U76 (LIGHT)
003 4.008.1860 GREY LOW HANDLE ONE RAL.7016 (PANT.432C)
004 4.008.1861 GREY ACCESSORY HOLDER ONE RAL.7016 (PANT.432C)
005 4.013.0778 GREY BACK COVER ONE RAL.7016 (PANT.432C)
006 7.100.2035 MANUAL ONE/SMART/FAST/DIVE + CE LAVOR
007 5.001.0801C MTP PT'03EVO 230/50 TSC-THERMAL 4'45 (7630PF-KC) SCHUKO PLUG
010 6.001.0076 GUN S'16 WITH INTEGRAL QUICK JOINT
011 4.018.0106 HOSE 1/4 18MPa L=3000 M22x1,5 D.15-RAPID FIX W/SPIRAL SLEEVE
014 6.002.0326 LANCE S'02V D.0,9 PINK RAL.3015 (PANT.706C)
021 6.002.0358 FOAM SPRAYER (D.4) W/TRANSPARENT TANK
022 3.100.0082C BLACK QUICK COUPLING INLET CONNECTOR (THREAD=9.5)
023 5.011.0293 ASSEMBLY BLACK WHEEL/BLUE WHEEL COVER FAST/ONE (RAL.5015)
024 4.008.1862 GREY BACK BASE FOR TROLLEY ONE/SMART RAL.7016 (PANT.432C)
025 4.008.1863 GREY FRONT BASE FOR TROLLEY ONE/SMART RAL.7016 (PANT.432C)
50010801C - MOTOP.SP.PT'03EVO 230/50 C/TERM.-TSC-SP.SCHUKO 4'45 (7630PF-KC) Pag.2
.. 50090972C GRUPPO CORPO GUIDA C/TSC-SP.SCHUKO M.13KG S/ASP. +TESTATA (PT'03EVO)
001 5.009.0978 7630PF-KC MOTOR PT'03 230/50 W/CAPACITOR-THERMAL 17AM-D 140G
002 4.008.1164 RING FOR FLANGE X MOTOR U96AF/ U76 -C-
003 6.005.0311 THRUST RING KIT (PT'03 U76)
004 4.007.0205 PIN 10X70
005 5.009.0728 4'45 WOBBLE PLATE ASSEMBLY W/CROWN Z 62 (PT'03)
006 4.007.0328 THRUST BEARING 35X55X12 PT'03
007 5.009.0972C BODY GUIDE W/TSC-SCHUKO PLUG NO SUCTION +HEAD PT'03EVO
50090972C - GRUPPO CORPO GUIDA C/TSC-SP.SCHUKO M.13KG S/ASP. +TESTATA Pag.3
. 50070264C CORPO GUIDA PT'03EVO C/TSC S/ASP. MOLLA 13KG C/CAVO SP.SCHUKO
.. 50080261 TESTATA PT'03EVO D.12
001 5.009.0972C BODY GUIDE PT'03EVO W/TSC-SCHUKO PLUG WITHOUT SUCTION
002 6.005.0282 KIT 348 SPACER FOR WATER SEAL
003 5.008.0261 PT'03EVO HEAD D.12
50070264C - CORPO GUIDA PT'03EVO C/TSC S/ASP. MOLLA 13KG C/CAVO SP.SCHUKO Pag.4
001 6.005.0590 KIT COMPLETE TS PT'03 (AH)
002 6.005.0281 KIT 256 VALVE GUIDE RID. W/O SUCTION PT'03C
003 6.005.0226 KIT 209 O-RING
004 4.005.0299 PISTON BODY GUIDE PT'03EVO
005 6.005.0181 KIT 167 LW PISTON
006 4.007.0314 PIN 3,5x30 ZNT
007 4.012.0174C CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG W/FASTON COVER
50080261 - TESTATA PT'03EVO D.12 Pag.5
001 4.005.0298 PT''03EVO PARTNER HEAD
002 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
003 6.005.0588 KIT LW VALV.ASP./MAND.+TAPPI PT' 03EVO
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
