FASA Original Parts for Floor Scrubber Drier A9 45T

SKU: FASA A9 45T - 8.516.0010
€0.11
VAT included

FASA Original Parts for Floor Scrubber Drier A9 45T - 8.516.0010

Fix Your Floor Scrubber Drier A9 45T 230/50 - Light Grey/Light Grey- FASA - 8.516.0010. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

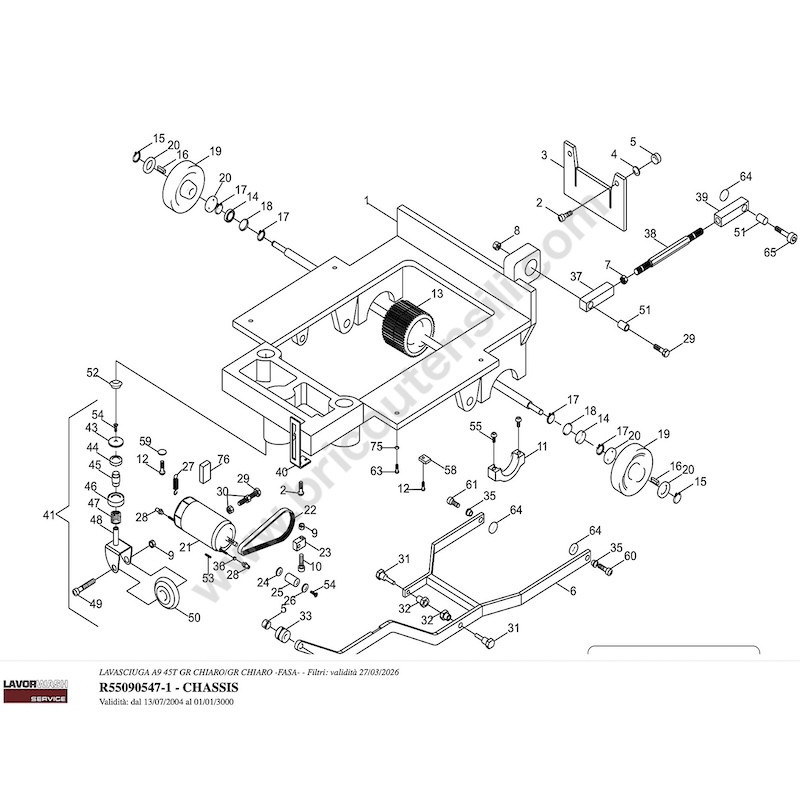

FASA Floor Scrubber Drier A9 45T Drawing
  • FASA Floor Scrubber Drier A9 45T Drawing
  • FASA Floor Scrubber Drier A9 45T Drawing - 1
  • FASA Floor Scrubber Drier A9 45T Drawing - 2
  • FASA Floor Scrubber Drier A9 45T Drawing - 3
  • FASA Floor Scrubber Drier A9 45T Drawing - 4
  • FASA Floor Scrubber Drier A9 45T Drawing - 5
  • FASA Floor Scrubber Drier A9 45T Drawing - 6

FASA Original Parts for Floor Scrubber Drier A9 45T

SKU: FASA A9 45T - 8.516.0010 Condition: New
€0.11
VAT included

FASA Original Parts for Floor Scrubber Drier A9 45T - 8.516.0010

Fix Your Floor Scrubber Drier A9 45T 230/50 - Light Grey/Light Grey- FASA - 8.516.0010. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

settings 219 Spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR: LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type: Floor Scrubber Dryer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

219 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Image coming soon 4.505.0008 EASY-R/SIGMA FRAME €76.19
2
Image coming soon 3.002.0271 TCEI SCREW M6x20 UNI 5931 STAINLESS STEEL -BRNY006020- €1.59
3
Image coming soon 4.508.0154 Splash guard, L 350mm, thk. 3.5mm €30.24
4
Image coming soon 3.004.0060 FLAT WASHER D.6X18 Th.1.6 UNI 6593 STAINLESS STEEL-RONY061800- €1.59
5
Image coming soon 3.003.0028 HIGH SELF-LOCKING NUT M6 STAINLESS STEEL DIN 982 -DAAY006000- €1.59
6
Image coming soon 5.513.0160 Painted Brush Lift Lever (Grey) €68.91
7
Image coming soon 3.003.0016 M12 Standard Nut (UNI 5588) - Zinc-plated €1.59
8
Image coming soon 3.003.0033 SELF-LOCKING NUT M10 STAINLESS STEEL DIN 985 -DAAY010000- €1.59
9
Image coming soon 3.003.0034 SELF-LOCKING NUT M8 STAINLESS STEEL DIN 982 -D AAY008000- €1.59
10
Image coming soon 3.002.0344 TCEI SCREW M8X30 UNI 5931 STAINLESS STEEL €3.15
11
Image coming soon 4.505.0009 Chassis Bearing Locking Collar €3.15
12
Image coming soon 3.002.0383 TRILOBULAR TORX SCREW TC M5X12 STAINLESS STEEL DIN 7500C €1.59
13
Image coming soon 5.511.0968 Sigma '03 Differential Assembly €350.69
14
Image coming soon 3.001.0053 6006 2RS Radial Ball Bearing (30x55x13) €7.10
15
Image coming soon 3.099.0308 CIRCLIP D.20 UNI 7435 DIN 471 €1.59
16
Image coming soon 3.099.0323 6x6x30 Key (UNI 6604A) €1.59
17
Image coming soon 3.099.0515 30mm External Circlip (UNI 7435 / DIN 471) €1.59
18
Image coming soon 3.200.0087 O-Ring 21.89x2.62 (70 Shore, Black) €1.54
19
Image coming soon 3.006.0110 Grey Superlast Wheel 160x40 (20mm Bore + Keyway) €56.18
20
Image coming soon 4.508.0152 Differential Thrust Washer €1.60
21
Image coming soon 5.501.0033 200W 24V 750rpm Traction Motor with Terminals €489.27
22
Image coming soon 3.099.0356 HTD 500-5M Belt (25mm Width) €57.93
23
Image coming soon 4.507.0072 Traction Motor Mount €28.82
24
Image coming soon 4.507.0074 Inner Washer for HTD Z13 Pulley €9.78
25
Image coming soon 4.507.0069 HTD 5M Z14 Pulley €28.82
26
Image coming soon 4.507.0075 Outer Washer for HTD Z13 Pulley €9.78
27
Image coming soon 4.507.0092 Extension Spring (2.2mm Wire Diameter) €7.66
28
Image coming soon 4.506.0029 Traction Motor Mount Bushing €6.30
29
Image coming soon 3.002.0244 M10x50 Stainless Steel Hex Head Screw (UNI 5739) €1.59
30
Image coming soon 3.003.0036 M10 Stainless Steel Nut (UNI 5588) €1.59
31
Image coming soon 4.506.0064 Lift Lever Pivot Screw €28.82
32
Image coming soon 4.506.0065 Pivot Nut for Screw 4.50 6.0064 €5.00
33
Image coming soon 4.507.0039 ZNT Brush Lift Pedal/Lever €3.15
35
Image coming soon 4.506.0012 Eccentric bushing with Tenifer treatment €4.55
36
Image coming soon 4.507.0042 Stainless steel drive bushing (WBC1106) €14.41
37
Image coming soon 4.507.0393 Right-hand stop €10.58
38
Image coming soon 4.507.0392 Adjustment post €28.82
39
Image coming soon 4.507.0394 Left-hand stop €10.58
40
Image coming soon 4.507.0499 Stop for Sigma/Easy-R traction lift lever €28.82
41
Image coming soon 5.509.0280 Swivel wheel (battery version) €82.76
43
Image coming soon 3.004.0050 FLAT WASHER D.6X24 Th. 2 UNI 6593 STAINLESS STEEL -RONY062400- €1.59
44
Image coming soon 3.001.0057 Radial ball bearing 619 03 2RS ​​(17x30x7) €3.87
45
Image coming soon 4.508.0210 Delrin swivel wheel sliding bushing (H32.7) €3.17
46
Image coming soon 3.001.0033 BALL BEARING 6003 2RS (17x35x10) €3.26
47
Image coming soon 4.507.0068 G1-F1 suspension spring (inner diameter) 15.2 WIRE 4 €4.55
48
Image coming soon 5.513.0028 SWIVEL CASTER BRACKET, DIE-CAST, COMPLETE_A €28.82
49
Image coming soon 3.002.0498 M8x50 Hex Socket Head Cap Screw (Stainless Steel) UNI 5931 €3.15
50
Image coming soon 3.006.0054 80x25 Wheel w/ Bearings & Side Caps, 8mm Bore, Blue Desmopan -P01581- €28.82
51
Image coming soon 4.507.0396 Adjustment Bushing €6.11
52
Image coming soon 3.099.0946 Rubber Hole Plug (Dia. 14) €5.11
53
Image coming soon 3.099.0322 KEY 3X3X15 UNI 6604A €1.59
54
Image coming soon 3.002.0241 SCREW TSPEI M5X16 STAINLESS STEEL DIN 7991 -BSVY005016- €1.59
55
Image coming soon 3.002.0384 M6x30 Trilobular Pan Head Screw (Stainless Steel) €1.59
58
Image coming soon 4.507.0129 Sheath Locking Plate €4.55
59
Image coming soon 3.004.0071 Flat Washer (Dia. 5.3x20, Stainless Steel) UNI 6592 €1.59
60
Image coming soon 3.002.0213 TCEI SCREW M10X30 STAINLESS STEEL UNI 5931 €1.59
61
Image coming soon 3.002.0269 M10x35 Hex Socket Head Cap Screw (Stainless Steel) UNI 5931 €3.15
63
Image coming soon 3.002.0215 TCEI SCREW M8X20 UNI 5931 STAINLESS STEEL €1.59
64
Image coming soon 3.004.0048 Flat Washer (Dia. 10x30, Thk. 2.5, Stainless Steel) UNI 6593 €1.59
65
Image coming soon 3.002.0246 M10x40 Hex Socket Head Cap Screw (Stainless Steel) UNI 5931 -BRNY010040- €3.15
75
Image coming soon 3.004.0049 FLAT WASHER D.8X24X2 UNI 6593 STAINLESS STEEL €1.59
76
Image coming soon 3.499.0067 CHARCOAL BRUSH 7X14X19 EC40TERM 4.4 €27.46
Page 2 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Image coming soon 4.508.0563 EASY-R Front Hood (RAL 7021) €189.33
9
Image coming soon 3.099.0343 PIPE STOP CLIP DIAM.40 €3.09
15
Image coming soon 4.513.0105 F45/F50 Motor housing (black) €77.58
Page 3 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Image coming soon 3.099.0318 483J-8 PU Poly-V belt €28.82
2
Image coming soon 4.505.0011 Brush driven pulley €28.82
3
Image coming soon 5.509.0016 Worm gear reducer €231.23
5
Image coming soon 3.002.0204 TCEI SCREW M6X12 STAINLESS STEEL DIN 912 €1.59
6
Image coming soon 3.004.0051 5x15x1.2 mm stainless steel flat washer (UNI 6593) €1.59
7
Image coming soon 3.002.0220 M8x35 stainless steel countersunk hex socket screw (DIN 7991) €1.59
8
Image coming soon 4.508.0161 Brush motor mount €3.98
9
Image coming soon 4.507.0076 Extension spring (wire Ø 2.2 mm, length 81 mm, outer Ø 16 mm) €4.70
11
Image coming soon 4.505.0041 Brush drive pulley (Ø 30 mm) €28.82
13
Image coming soon 3.099.0054 FEATHER KEY 5X5X20 UNI 6604 €1.59
14
Image coming soon 5.501.0035 24V-600W brush motor (cables Ø 6 mm, L=1700 mm; sheath L=1620 mm) €403.48
17
Image coming soon 4.506.0028 Motor support bushing €3.15
19
Image coming soon 4.508.0573 Bumper (length) 1025mm €61.81
21
Image coming soon 4.508.0155 Bumper, length 1025mm (Sigma GR AF 45-50-55-21-AGM3211) €64.89
22
Image coming soon 4.507.0077 Brush mounting plate €275.27
23
Image coming soon 4.508.0224 BUMPER PROTECTION WHEEL €15.13
38
Image coming soon 3.099.0013 5X5X15 UNI 6604 TAB €1.59
40
Image coming soon 4.507.0302 Brush coupling flange for gearbox, length 69 €28.82
42
Image coming soon 3.099.0329 Cable clamp, dia. 19-20, zinc-plated €14.41
45
Image coming soon 4.507.0308 BUMPER WHEEL SUPPORT 1 €8.04
49
Image coming soon 4.506.0034 SPRING COUPLING PIN €3.15
55
Image coming soon 4.507.0083 Third hexagonal bar for Mod. 45-50 (short) €5.44
56
Image coming soon 4.507.0084 Third hexagonal bar for Mod. 45-50 (long) €12.47
59
Image coming soon 4.508.0290 HEMISPHOLE CENTERING CONNECTOR BRUSH €8.89
60
Image coming soon 4.507.1613 BRUSH CONNECTOR FOR FIXING WITH PRESSURES 1 €25.74
64
Image coming soon 3.200.0127 OR CORD D=5.34 L=130 FOR VYTON BRUSH CONNECTOR €1.40
65
Image coming soon 4.508.0314 SPLIT RING €10.24
69
Image coming soon 4.507.0239 Small third bar for '03 frame, length 40, white zinc-plated €12.83
96
PPL brush dia. 431/17 (Mod. 45-M87) -SPZ0430001- 5.511.1093 PPL brush dia. 431/17 (Mod. 45-M87) -SPZ0430001- €67.05
97
Image coming soon 4.508.1746 Left brush coupling plate €7.82
100
PPL brush dia. 431/17 (Mod. 45-M87) -SPZ0430001- 5.511.1093 PPL brush dia. 431/17 (Mod. 45-M87) -SPZ0430001- €67.05
Page 4 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Image coming soon 4.508.0089 Rear blade L.860 thk.4 30Sh €11.13
2
Image coming soon 4.508.0090 Front blade L.860 thk.3 40Sh €8.37
5
Image coming soon 4.507.0051 Nickel-plated stud -WVT0203 - €4.55
6
Image coming soon 3.004.0050 FLAT WASHER D.6X24 Th. 2 UNI 6593 STAINLESS STEEL -RONY062400- €1.59
7
Image coming soon 3.099.0467 M8 THROUGH FLYWHEEL 177/30 €3.79
9
Image coming soon 3.004.0049 FLAT WASHER D.8X24X2 UNI 6593 STAINLESS STEEL €1.59
10
Image coming soon 3.002.0610 M8x60 round head screw with square neck, stainless steel UNI 5732 €3.15
11
Image coming soon 4.507.0062 SQG SUSPENSION SPRING €3.26
13
Image coming soon 4.506.0125 Oscillating hemisphere €28.82
14
Image coming soon 4.507.0052 Nickel-plated adjustment stud -WVT0201- €14.41
15
Image coming soon 4.508.0224 BUMPER PROTECTION WHEEL €15.13
16
Image coming soon 3.006.0076 Squeegee support castor wheel D.50, through-hole D.8 €14.41
17
Image coming soon 3.099.0330 SLEEVE FOR INTAKE HOSE 32/38 €5.44
18
Image coming soon 3.002.0611 M8x70 round head screw with square neck, stainless steel UNI 5732 €3.15
19
Image coming soon 4.506.0069 Spacer for bumper wheel €1.59
20
Image coming soon 4.507.0053 Squeegee pressure plate m789 €28.82
25
Image coming soon 4.505.0012 Machined squeegee blade L.789mm €192.10
26
Image coming soon 4.505.0063 Squeegee support frame €71.94
27
Image coming soon 3.752.0059 Reinforced spiral suction hose, 1.10m, OD 37, ID 32 €29.82
30
Image coming soon 3.003.0028 HIGH SELF-LOCKING NUT M6 STAINLESS STEEL DIN 982 -DAAY006000- €1.59
31
Image coming soon 4.507.0811 Threaded support €9.72
32
Image coming soon 4.506.0036 Caster adjustment ring nut - WA R0902 - €45.79
38
Image coming soon 3.099.0314 SPRING COTTAGE PIN DIAM. 2, LENGTH 50, WITH DOUBLE EYELET €3.82
40
Image coming soon 4.507.0085 Nickel-plated adjustment screw €28.82
42
Image coming soon 3.003.0036 M10 Stainless Steel Nut (UNI 5588) €1.59
43
Image coming soon 3.099.0557 13-link chain 11x1.6 mm, L170 mm)- Zinc-plated €14.41
45
Image coming soon 3.004.0047 FLAT WASHER D.6x12 Th.2 UNI 6592 STAINLESS STEEL -RONY061200- €1.59
46
Image coming soon 3.002.0210 SCREW TCEI M6X25 STAINLESS STEEL UNI 5931 -BRNY006025 €1.59
47
Image coming soon 3.002.0214 M6X16 STAINLESS STEEL UNI 5931 SCREW €1.59
48
Image coming soon 4.508.0208 SQUEEGEE COUPLING BALL €1.60
49
Image coming soon 4.508.0209 Ball retaining flange €3.17
50
Image coming soon 4.507.0328 Pin for squeegee support ball €6.17
51
Image coming soon 5.511.0674 Squeegee wheel assembly (includes tube, spring, and screw - new type) €79.12
52
Suction hose assembly (L1300) 5.511.0535 Suction hose assembly (L1300) €31.98
54
Image coming soon 3.003.0054 NUT M8 UNI 5588 STAINLESS STEEL €1.59
Page 5 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
3
Image coming soon 3.499.0144 FEMALE CONNECTOR FOR MALE TERMINAL 50A 6-WAY 428180612 €11.58
5
Image coming soon 3.401.0075 THERMAL CIRCUIT BREAKER 35A SM7350 -DSG0350001 €15.43
6
Image coming soon 3.401.0073 THERMAL CIRCUIT BREAKER 12A SM7120 -DSG0120001 €21.13
7
Image coming soon 3.401.0113 MICROSWITCH SXG02-88-J23 €14.13
8
Image coming soon 3.402.0017 AUTOMOTIVE RELAY CB1AH-24V-70A €27.46
11
Image coming soon 4.507.0522 SPRING €3.32
12
Image coming soon 4.507.0654 Traction lever €28.82
13
Image coming soon 4.507.0659 Traction lever bracket €6.75
14
Image coming soon 4.508.0396 ELECTRIC BOX COVER WASHER DRYER U.A.T. €30.24
15
Image coming soon 4.508.0397 ELECTRICAL BOX BASE WASHER DRYER U.A.T. €30.24
16
Image coming soon 3.499.0029 RED SR50 CONNECTOR -CNP0AND 001- €14.13
17
Image coming soon 3.099.0808 Socket for red connector, complete with two screws €12.58
22
Image coming soon 3.410.0022 RELAY HOLDER BASE €28.82
26
Image coming soon 3.405.0045 MEC TERMINAL BLOCK 58470-45 -CNTO MOR001- €8.28
30
Image coming soon 4.515.0001 24V FUNCTION AND TRACTION CONTROL BOARD WITH BATTERY INDICATOR €271.50
31
Image coming soon 5.511.1566 Wired ignition key for scrubber-dryer control board €41.33
33
Image coming soon 5.509.0556 Electrical box control lever stop-pin assembly €52.36
40
Image coming soon 5.511.1228 Recovery tank level indicator assembly (with Faston terminals and connector) €41.99
41
Image coming soon 3.002.0046 M3x20 pan-head screw (UNI 7687 ZNT) €3.15
42
Image coming soon 3.003.0032 M3 self-locking nut Zinc-plated DIN 985 €1.59
43
Image coming soon 3.004.0060 FLAT WASHER D.6X18 Th.1.6 UNI 6593 STAINLESS STEEL-RONY061800- €1.59
44
Image coming soon 3.002.0214 M6X16 STAINLESS STEEL UNI 5931 SCREW €1.59
51
Image coming soon 3.405.0046 Negative battery terminal €28.82
52
Image coming soon 3.405.0047 Positive battery terminal €28.82
54
Image coming soon 3.002.0212 Stainless steel socket head cap screw M6x55 (UNI 5931) €3.15
55
Image coming soon 3.004.0047 FLAT WASHER D.6x12 Th.2 UNI 6592 STAINLESS STEEL -RONY061200- €1.59
60
Image coming soon 4.007.0135 SPRING FOR VALVE PIST.D.8 L.24 THREAD D1.3 STEP 3.5 STAINLESS STEEL EXP.01 €3.15
61
Image coming soon 3.099.0755 SEEGER RING DIAM.4 INTERNAL UNI 7435 €1.59
62
Image coming soon 4.507.0497 SUPPORT FOR PIN TH.1.5 WHITE ZINC. FOR SCL DRAWING LEVER Exp.01 €4.92
63
Image coming soon 4.507.0498 CONTRASTING PIN WHITE ZINC. FOR SCL DRAWING LEVER Exp.00 €1.59
64
Image coming soon 3.004.0002 FLAT WASHER 4.3X9sp.0,8 UNI6592 ZNT €1.59
Page 6 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Image coming soon 4.507.0086 BRAKE ACTUATION LEVER -WLV070 1- €28.82
2
Image coming soon 4.507.0087 BLACK PAINTED BRAKE RELEASE RATCHET €7.54
3
Image coming soon 3.003.0068 M6 LOW-PROFILE SELF-LOCKING NUT, STAINLESS STEEL (UNI7474/DIN985) €1.59
4
Image coming soon 5.511.1538 HANDBRAKE SPRING (WIRE DIA. 2) -MLT 1000602- €28.15
6
Image coming soon 3.004.0060 FLAT WASHER D.6X18 Th.1.6 UNI 6593 STAINLESS STEEL-RONY061800- €1.59
7
Image coming soon 3.003.0034 SELF-LOCKING NUT M8 STAINLESS STEEL DIN 982 -D AAY008000- €1.59
9
Image coming soon 3.099.0836 CLAMP WITH HEAD SCREW 10x15, HOLE DIA. 3.5 €1.59
10
Image coming soon 3.002.0138 SCREW TCEI M6X20 ZNT UNI 5931 €1.59
11
Image coming soon 4.507.0041 TENSION SPRING (WIRE DIA. 1.5) €8.48
12
Image coming soon 3.002.0210 SCREW TCEI M6X25 STAINLESS STEEL UNI 5931 -BRNY006025 €1.59
14
Image coming soon 4.506.0037 BRAKE CABLE PULLEY BUSHING - €1.59
15
Image coming soon 4.506.0038 BRAKE CABLE PULLEY €6.30
16
Image coming soon 3.099.0363 STAINLESS STEEL BRAKE CABLE (DIA. 2.5x133, LENGTH 1500) + 6.5mm BALL END €28.82
22
Image coming soon 4.507.0089 BRAKE ADJUSTER ANCHOR, ZINC-PLATED €4.06
23
Image coming soon 3.099.1647 M8x40 ADJUSTER (HEX 12, HOLE DIA. 9.5) + NUT, ZINC-PLATED €3.68
24
Image coming soon 3.099.0810 CABLE SHEATH + 8mm SHEET METAL TERMINAL WITH TUBE (LENGTH 1100) €28.82
25
Image coming soon 5.513.0024 WHEEL BRAKE BRACKET (FE37, WHITE ZINC-PLATED) €35.16
26
Image coming soon 3.099.0659 BRAKE TUBE SECTION (F1/G1/G2) €28.82
28
Image coming soon 4.507.0130 BRAKE CABLE PLATE (SCL - EXPLODED VIEW A) €6.11
30
Image coming soon 4.507.0496 BRAKE LEVER SUPPORT PLATE FOR U.A.T. DRYER €28.82
31
Image coming soon 3.002.0214 M6X16 STAINLESS STEEL UNI 5931 SCREW €1.59
Page 7 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Image coming soon 3.002.0204 TCEI SCREW M6X12 STAINLESS STEEL DIN 912 €1.59
2
Image coming soon 3.002.0221 STAINLESS STEEL DIN 7991 M6X16 TSPEI SCREW €1.59
3
Image coming soon 3.003.0029 Stainless steel nut M6 DIN 934 €1.59
4
Image coming soon 3.003.0068 M6 LOW-PROFILE SELF-LOCKING NUT, STAINLESS STEEL (UNI7474/DIN985) €1.59
5
Image coming soon 3.004.0051 5x15x1.2 mm stainless steel flat washer (UNI 6593) €1.59
7
Image coming soon 3.004.0124 CONVEX SPRING WASHER 10.5X18X0.8 DIN 137A €1.59
8
Image coming soon 3.099.0314 SPRING COTTAGE PIN DIAM. 2, LENGTH 50, WITH DOUBLE EYELET €3.82
9
Image coming soon 4.508.0944 FLAT PVC KNOB 15X4 MOD. 1009 NOTE!!! €6.30
10
Image coming soon 4.506.0094 TRAFLEXIBLE SOCKET D.18 FOR FIXING CONTROL LEVERS/SQUEEGEE €1.59
11
Image coming soon 4.507.1207 M8 WHITE ZNT WIRE HOLDER PIN FOR SCL EASY Ext. 03 €14.41
12
Image coming soon 4.508.0801 Upper recovery tank (Easy-R) - Light Grey RAL 7040 €650.48
13
Image coming soon 4.508.0099 Lower solution tank (Sigma 1/Easy-R) - Dark Grey RAL 7021 €295.07
14
Image coming soon 4.507.0493 Tie rod for tap (SCL Easy) €28.82
15
Image coming soon 4.507.0495 Tap lever €8.80
16
Image coming soon 4.507.0530 Suction deflector for upper tank filter compartment (scrubber-dryer) €12.58
17
Image coming soon 3.100.0110 1/2" Male fitting - hose barb €14.46
18
Image coming soon 3.099.0333 Ball valve 1/2" -VLS01020 01- €36.03
19
Image coming soon 3.100.0111 T-fitting 1/2" F/M/M €28.80
20
Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT 4.208.0274 Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT €3.15
21
Image coming soon 4.508.0471 Gasket for recovery tank suction compartment lid €12.58
22
Image coming soon 5.509.0021 Drain hose with connectors (Easy R) €43.16
23
Image coming soon 3.752.0061 Fresh water hose G1/F1, length 920mm €18.29
24
Image coming soon 4.508.0472 Lower gasket for suction compartment lid (X Naturally Aspirated Engine) €5.16
27
Image coming soon 3.002.0227 SCREW M5x10 3609.0088.00 €1.59
28
Image coming soon 4.507.0057 3/4" Stainless Steel Water Valve Actuation Lever (G1/G2/F1) -WLV0410- (Exploded View C) €12.21
29
Image coming soon 3.099.0337 M6 Water Control Fork + Clip €8.65
30
Image coming soon 3.099.0753 3/4" Male Water Drain Plug for Filter Housing/Basin (Ref. TFT3/4) €1.59
31
Image coming soon 3.099.0827 Zinc-plated pipe clamp (14/16 mm) €1.59
33
Image coming soon 4.507.1206 Wire support pin €14.41
34
Image coming soon 3.002.0272 Hex Socket Head Cap Screw M6x30 UNI 5931 Stainless Steel €1.59
34
Image coming soon 3.099.0860 Threaded recovery tank cap (125 mm) €4.61
35
Image coming soon 4.508.0473 Filter sponge for recovery tank intake €30.24
36
Image coming soon 4.508.0093 Lid gasket (137x110 mm, 8 mm thick) €3.17
37
Image coming soon 4.508.0115 Coupling tab €1.60
38
Image coming soon 4.508.0518 PROTECTION €3.17
39
Image coming soon 5.513.0144 Squeegee lift lever with pin €28.82
45
Image coming soon 3.200.0201 O-ring 4061 €1.54
46
Image coming soon 4.508.0936 1/2G NOX TANK DRAIN PLUG €10.44
50
Image coming soon 3.004.0060 FLAT WASHER D.6X18 Th.1.6 UNI 6593 STAINLESS STEEL-RONY061800- €1.59
51
Image coming soon 3.002.0395 Stainless steel hex bolt (M6x16, UNI 5739) €1.59
52
Image coming soon 3.100.0074 Zinc-plated elbow fitting (1/2" M - 1/2" F) €6.73
63
Image coming soon 4.506.0024 Washer for O-ring 4087 €6.30
64
Image coming soon 3.200.0111 O-ring 4087 €1.54
77
Image coming soon 4.508.0395 Battery compartment cap €9.05
78
Image coming soon 5.511.0203 RECOVERY TANK CAP ASSEMBLY €28.15
79
Image coming soon 5.511.0510 Wired Easy R vacuum motor kit €214.35
80
Image coming soon 5.511.0937 TANK DRAIN CAP ASSEMBLY W/OR FREE/SWIFT €28.15
83
Image coming soon 5.511.0395 Perforated cap kit with gasket for solution tank €28.15
84
Image coming soon 3.499.0071 Carbon brush for motor €20.51
89
Image coming soon 4.508.0534 Perforated solution tank cap (125 mm) €4.98
100
Image coming soon 3.002.0214 M6X16 STAINLESS STEEL UNI 5931 SCREW €1.59
103
Image coming soon 5.511.1489 Squeegee lifting cable with sheath €61.82
104
Image coming soon 5.511.1470 Motor/filter compartment cover (Easy-R, RAL 7021) €174.47
105
Image coming soon 3.003.0433 M8 SELF-LOCKING NUT, LOW, STAINLESS STEEL UNI 7474 €1.59
109
Image coming soon 3.004.0050 FLAT WASHER D.6X24 Th. 2 UNI 6593 STAINLESS STEEL -RONY062400- €1.59
111
Image coming soon 3.299.0014 Motor gasket (120x149 mm, 4 mm thick) €2.21

Shipping and delivery information will be available shortly.

FASA Original Parts for Floor Scrubber Drier A9 45T - 8.516.0010

Fix Your Floor Scrubber Drier A9 45T 230/50 - Light Grey/Light Grey- FASA - 8.516.0010. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following tables, look for the spare part and its respective code.
FASA A9 45T - 8.516.0010

FASA A9 45T Scrubber-Dryer Light Grey/Light Grey
Pag.1
Chassis - 1
# Part Num. Description
1 4.505.0008 EASY-R/SIGMA FRAME
2 3.002.0271 M6x20 Socket Head Cap Screw (UNI 5931) - Stainless Steel
3 4.508.0154 Splash guard, L 350mm, thk. 3.5mm
4 3.004.0060 Flat washer, D.6x18, thk. 1.6mm (UNI 6593) - Stainless Steel
5 3.003.0028 M6 High Self-locking Nut (DIN 982) - Stainless Steel
6 5.513.0160 Painted Brush Lift Lever (Grey)
7 3.003.0016 M12 Standard Nut (UNI 5588) - Zinc-plated
8 3.003.0033 M10 Self-locking Nut DIN 985 Stainless Steel Low-Profile Nut
9 3.003.0034 M8 Stainless Steel Self-Locking Nut (DIN 982)
10 3.002.0344 M8x30 Stainless Steel Hex Socket Head Cap Screw (UNI 5931)
11 4.505.0009 Chassis Bearing Locking Collar
12 3.002.0383 M5x12 Stainless Steel Trilobular Pan Head Screw
13 5.511.0968 Sigma '03 Differential Assembly
14 3.001.0053 6006 2RS Radial Ball Bearing (30x55x13)
15 3.099.0308 20mm External Circlip (UNI 7435 / DIN 471)
16 3.099.0323 6x6x30 Key (UNI 6604A)
17 3.099.0515 30mm External Circlip (UNI 7435 / DIN 471)
18 3.200.0087 O-Ring 21.89x2.62 (70 Shore, Black)
19 3.006.0110 Grey Superlast Wheel 160x40 (20mm Bore + Keyway)
20 4.508.0152 Differential Thrust Washer
21 5.501.0033 200W 24V 750rpm Traction Motor with Terminals
22 3.099.0356 HTD 500-5M Belt (25mm Width)
23 4.507.0072 Traction Motor Mount
24 4.507.0074 Inner Washer for HTD Z13 Pulley
25 4.507.0069 HTD 5M Z14 Pulley
26 4.507.0075 Outer Washer for HTD Z13 Pulley
27 4.507.0092 Extension Spring (2.2mm Wire Diameter)
28 4.506.0029 Traction Motor Mount Bushing
29 3.002.0244 M10x50 Stainless Steel Hex Head Screw (UNI 5739)
30 3.003.0036 M10 Stainless Steel Nut (UNI 5588)
31 4.506.0064 Lift Lever Pivot Screw
32 4.506.0065 Pivot Nut for Screw 4.50 6.0064
33 4.507.0039 ZNT Brush Lift Pedal/Lever
34 3.002.0272 Hex Socket Head Cap Screw M6x30 UNI 5931 Stainless Steel
35 4.506.0012 Eccentric bushing with Tenifer treatment
36 4.507.0042 Stainless steel drive bushing (WBC1106)
37 4.507.0393 Right-hand stop
38 4.507.0392 Adjustment post
39 4.507.0394 Left-hand stop
40 4.507.0499 Stop for Sigma/Easy-R traction lift lever
41 5.509.0280 Swivel wheel (battery version)
43 3.004.0050 Flat washer 6x24x2mm Stainless Steel UNI6593 (RONY062400)
44 3.001.0057 Radial ball bearing 619 03 2RS ​​(17x30x7)
45 4.508.0210 Delrin swivel wheel sliding bushing (H32.7)
46 3.001.0033 Radial ball bearing 6003 2RS ​​(17x35x10)
47 4.507.0068 G1-F1 suspension spring (inner diameter) 15.2 WIRE 4
48 5.513.0028 SWIVEL CASTER BRACKET, DIE-CAST, COMPLETE_A
49 3.002.0498 M8x50 Hex Socket Head Cap Screw (Stainless Steel) UNI 5931
50 3.006.0054 80x25 Wheel w/ Bearings & Side Caps, 8mm Bore, Blue Desmopan -P01581-
51 4.507.0396 Adjustment Bushing
52 3.099.0946 Rubber Hole Plug (Dia. 14)
53 3.099.0322 3x3x15 Key UNI 6604A
54 3.002.0241 M5x16 Hex Socket Countersunk Screw (Stainless Steel) DIN 7991
55 3.002.0384 M6x30 Trilobular Pan Head Screw (Stainless Steel)
58 4.507.0129 Sheath Locking Plate
59 3.004.0071 Flat Washer (Dia. 5.3x20, Stainless Steel) UNI 6592
60 3.002.0213 M10x30 Hex Socket Head Cap Screw (Stainless Steel) UNI 5931
61 3.002.0269 M10x35 Hex Socket Head Cap Screw (Stainless Steel) UNI 5931
63 3.002.0215 M8x20 Hex Socket Head Cap Screw (Stainless Steel) UNI 5931
64 3.004.0048 Flat Washer (Dia. 10x30, Thk. 2.5, Stainless Steel) UNI 6593
65 3.002.0246 M10x40 Hex Socket Head Cap Screw (Stainless Steel) UNI 5931 -BRNY010040-
75 3.004.0049 Flat Washer (Dia. 8x24, Thk. 2, Stainless Steel) UNI 6593
76 3.499.0067 Carbon Brush 7x14x19 EC40 Term. 4.4
Pag.2
Chassis - 2
# Part Num. Description
1 4.508.0563 EASY-R Front Hood (RAL 7021)
9 3.099.0343 Pipe-retaining clip (40 mm dia.)
15 4.513.0105 F45/F50 Motor housing (black)
Pag.3
Brush Plate
# Part Num. Description
1 3.099.0318 483J-8 PU Poly-V belt
2 4.505.0011 Brush driven pulley
3 5.509.0016 Worm gear reducer
5 3.002.0204 M6x12 stainless steel socket head cap screw (DIN 912)
6 3.004.0051 5x15x1.2 mm stainless steel flat washer (UNI 6593)
7 3.002.0220 M8x35 stainless steel countersunk hex socket screw (DIN 7991)
8 4.508.0161 Brush motor mount
9 4.507.0076 Extension spring (wire Ø 2.2 mm, length 81 mm, outer Ø 16 mm)
11 4.505.0041 Brush drive pulley (Ø 30 mm)
13 3.099.0054 5x5x20 key (UNI 6604A)
14 5.501.0035 24V-600W brush motor (cables Ø 6 mm, L=1700 mm; sheath L=1620 mm)
17 4.506.0028 Motor support bushing
19 4.508.0573 Bumper (length) 1025mm
21 4.508.0155 Bumper, length 1025mm (Sigma GR AF 45-50-55-21-AGM3211)
22 4.507.0077 Brush mounting plate
23 4.508.0224 Protective wheel, dia. 110 - Black
38 3.099.0013 Key 5x5x15 UNI 6604
40 4.507.0302 Brush coupling flange for gearbox, length 69
42 3.099.0329 Cable clamp, dia. 19-20, zinc-plated
45 4.507.0308 Bumper wheel support
49 4.506.0034 Spring attachment pin
55 4.507.0083 Third hexagonal bar for Mod. 45-50 (short)
56 4.507.0084 Third hexagonal bar for Mod. 45-50 (long)
59 4.508.0290 Brush coupling centering hemisphere
60 4.507.1613 Brush coupling
64 3.200.0127 O-ring (dia. 5.34) for brush coupling
65 4.508.0314 Split ring 49x40x5
69 4.507.0239 Small third bar for '03 frame, length 40, white zinc-plated
96 5.511.1093 PPL brush dia. 431/17 (Mod. 45-M87) -SPZ0430001-
97 4.508.1746 Left brush coupling plate
100 5.511.1093 PPL brush Mod. 45-M87 dia. 431/17 with plate (boxed) -SPZ0430001C-
Pag.4
Squeege
# Part Num. Description
1 4.508.0089 Rear blade L.860, thk. 4, 30 Sh
2 4.508.0090 Front blade L.860, thk. 3, 40 Sh
5 4.507.0051 Nickel-plated stud -WVT0203-
6 3.004.0050 Flat washer D.6x24, thk. 2, stainless steel UNI6593 -RONY062400-
7 3.099.0467 M8 through-hole handwheel 177/30
9 3.004.0049 Flat washer D.8x24, thk. 2, stainless steel UNI6593
10 3.002.0610 M8x60 round head screw with square neck, stainless steel UNI 5732
11 4.507.0062 Squeegee suspension spring
13 4.506.0125 Oscillating hemisphere
14 4.507.0052 Nickel-plated adjustment stud -WVT0201-
15 4.508.0224 Bumper wheel D.110 - Black
16 3.006.0076 Squeegee support castor wheel D.50, through-hole D.8
17 3.099.0330 Suction hose cuff 32/38
18 3.002.0611 M8x70 round head screw with square neck, stainless steel UNI 5732
19 4.506.0069 Spacer for bumper wheel
20 4.507.0053 Squeegee pressure plate m789
25 4.505.0012 Machined squeegee blade L.789mm
26 4.505.0063 Squeegee support frame
27 3.752.0059 Reinforced spiral suction hose, 1.10m, OD 37, ID 32
30 3.003.0028 M6 high self-locking nut, stainless steel DIN 982
31 4.507.0811 Threaded support
32 4.506.0036 Caster adjustment ring nut - WA R0902 -
38 3.099.0314 Double-loop spring cotter pin (dia. 2, length 50)
40 4.507.0085 Nickel-plated adjustment screw
42 3.003.0036 M10 stainless steel nut (UNI 5588)
43 3.099.0557 13-link chain (11x1.6 mm, L=170 mm) - Zinc-plated
45 3.004.0047 Stainless steel flat washer (6x12 mm, thk. 2 mm) (UNI 6592)
46 3.002.0210 M6x25 stainless steel socket head cap screw (UNI 5931)
47 3.002.0214 M6x16 stainless steel socket head cap screw (UNI 5931)
48 4.508.0208 Squeegee engagement ball
49 4.508.0209 Ball retaining flange
50 4.507.0328 Pin for squeegee support ball
51 5.511.0674 Squeegee wheel assembly (includes tube, spring, and screw - new type)
52 5.511.0535 Suction hose assembly (L=1300)
54 3.003.0054 M8 stainless steel nut (UNI 5588)
Pag.5
Controls
# Part Num. Description
3 3.499.0144 Female connector for 50A 6-way male terminals
5 3.401.0075 35A thermal circuit breaker SM7350
6 3.401.0073 12A thermal circuit breaker SM7120
7 3.401.0113 Microswitch SXG02-88-J23
8 3.402.0017 Automotive relay CB1AH-24V-20A
11 4.507.0522 Traction lever spring
12 4.507.0654 Traction lever
13 4.507.0659 Traction lever bracket
14 4.508.0396 U.A.T. scrubber-dryer electrical box cover
15 4.508.0397 U.A.T. scrubber-dryer electrical box base
16 3.499.0029 50A red connector – RB50 Red (A1002)
17 3.099.0808 Socket for red connector, complete with two screws
22 3.410.0022 Relay socket
26 3.405.0045 Terminal block
30 4.515.0001 24V control board (functions + traction)
31 5.511.1566 Wired ignition key for scrubber-dryer control board
33 5.509.0556 Electrical box control lever stop-pin assembly
40 5.511.1228 Recovery tank level indicator assembly (with Faston terminals and connector)
41 3.002.0046 M3x20 pan-head screw (UNI 7687 ZNT)
42 3.003.0032 M3 self-locking nut Zinc-plated DIN 985
43 3.004.0060 Stainless steel flat washer D.6x18, thk. 1.6 (UNI 6593)
44 3.002.0214 Stainless steel socket head cap screw M6x16 (UNI 5931)
51 3.405.0046 Negative battery terminal
52 3.405.0047 Positive battery terminal
53 5.511.2467 Wired electrical box B (EASY-R)
54 3.002.0212 Stainless steel socket head cap screw M6x55 (UNI 5931)
55 3.004.0047 Stainless steel flat washer D.6x12, thk. 2 (UNI 6592)
56 3.499.0135 60A strip fuse, 30mm pitch
60 4.007.0135 Stainless steel spring for piston valve (D.8.8, L.24, wire D.1.3, pitch 3.5)
61 3.099.0755 Internal retaining ring (Seeger) D.4 (UNI 7435)
62 4.507.0497 White zinc-plated pin support, thk. 1.5 (for pull lever)
63 4.507.0498 White zinc-plated stop pin (for pull lever)
64 3.004.0002 Zinc-plated flat washer 4.3x9, thk. 0.8 (UNI 6592)
Pag.6
Brake
# Part Num. Description
1 4.507.0086 BRAKE ACTUATION LEVER -WLV070 1-
2 4.507.0087 BLACK PAINTED BRAKE RELEASE RATCHET
3 3.003.0068 M6 LOW-PROFILE SELF-LOCKING NUT, STAINLESS STEEL (UNI7474/DIN985)
4 5.511.1538 HANDBRAKE SPRING (WIRE DIA. 2) -MLT 1000602-
6 3.004.0060 FLAT WASHER 6x18x1.6, STAINLESS STEEL (UNI6593)
7 3.003.0034 M8 SELF-LOCKING NUT, STAINLESS STEEL (DIN 982)
9 3.099.0836 CLAMP WITH HEAD SCREW 10x15, HOLE DIA. 3.5
10 3.002.0138 M6x20 SOCKET HEAD CAP SCREW, ZINC-PLATED (UNI 5931)
11 4.507.0041 TENSION SPRING (WIRE DIA. 1.5)
12 3.002.0210 M6x25 SOCKET HEAD CAP SCREW, STAINLESS STEEL (UNI 5931)
14 4.506.0037 BRAKE CABLE PULLEY BUSHING -
15 4.506.0038 BRAKE CABLE PULLEY
16 3.099.0363 STAINLESS STEEL BRAKE CABLE (DIA. 2.5x133, LENGTH 1500) + 6.5mm BALL END
22 4.507.0089 BRAKE ADJUSTER ANCHOR, ZINC-PLATED
23 3.099.1647 M8x40 ADJUSTER (HEX 12, HOLE DIA. 9.5) + NUT, ZINC-PLATED
24 3.099.0810 CABLE SHEATH + 8mm SHEET METAL TERMINAL WITH TUBE (LENGTH 1100)
25 5.513.0024 WHEEL BRAKE BRACKET (FE37, WHITE ZINC-PLATED)
26 3.099.0659 BRAKE TUBE SECTION (F1/G1/G2)
28 4.507.0130 BRAKE CABLE PLATE (SCL - EXPLODED VIEW A)
30 4.507.0496 BRAKE LEVER SUPPORT PLATE FOR U.A.T. DRYER
31 3.002.0214 M6x16 SOCKET HEAD CAP SCREW, STAINLESS STEEL (UNI 5931)
Pag.7
Tank - Battery
# Part Num. Description
1  3.002.0204 Stainless steel socket head cap screw M6x12 DIN 912
2  3.002.0221 Stainless steel countersunk hex socket screw M6x16 DIN 7991
3  3.003.0029 Stainless steel nut M6 DIN 934
4  3.003.0068 Stainless steel low-profile self-locking nut M6 UNI7474 DIN985
5  3.004.0051 Stainless steel flat washer 5x15x1.2 UNI6593 -RONY051500-
7  3.004.0124 Convex spring washer 10.5x18x0.8 DIN 137A
8  3.099.0314 Double-loop spring cotter pin (dia. 2, length 50)
9  4.508.0944 Flat PVC knob 15x4 Mod. 1009 *NOTE!!!*
10 4.506.0094 Drawn bushing (dia. 18) for mounting solution/squeegee control levers
11  4.507.1207 Wire-retaining pin M8 (white zinc-plated) for SCL Easy
12  4.508.0801 Upper recovery tank (Easy-R) - Light Grey RAL 7040
13  4.508.0099 Lower solution tank (Sigma 1/Easy-R) - Dark Grey RAL 7021
14  4.507.0493 Tie rod for tap (SCL Easy)
15  4.507.0495 Tap lever
16  4.507.0530 Suction deflector for upper tank filter compartment (scrubber-dryer)
17  3.100.0110 1/2" Male fitting - hose barb
18  3.099.0333 Ball valve 1/2" -VLS01020 01-
19  3.100.0111 T-fitting 1/2" F/M/M
20 4.208.0274 Drain hose plug (dia. 32mm) with retaining ring
21  4.508.0471 Gasket for recovery tank suction compartment lid
22  5.509.0021 Drain hose with connectors (Easy R)
23  3.752.0061 Fresh water hose G1/F1, length 920mm
24  4.508.0472 Lower gasket for suction compartment lid (X Naturally Aspirated Engine)
27  3.002.0227 Stainless Steel M5x12 TCEI Screw (UNI 5931)
28  4.507.0057 3/4" Stainless Steel Water Valve Actuation Lever (G1/G2/F1) -WLV0410- (Exploded View C)
29  3.099.0337 M6 Water Control Fork + Clip
30 3.099.0753 3/4" Male Water Drain Plug for Filter Housing/Basin (Ref. TFT3/4)
31  3.099.0827 Zinc-plated pipe clamp (14/16 mm)
33  4.507.1206 Wire support pin
34  3.099.0860 Threaded recovery tank cap (125 mm)
35 4.508.0473 Filter sponge for recovery tank intake
36 4.508.0093 Lid gasket (137x110 mm, 8 mm thick)
37 4.508.0115 Coupling tab
38 4.508.0518 Impeller guard (for 44 mm holes)
39 5.513.0144 Squeegee lift lever with pin
45 3.200.0201 O-ring 4061
46 4.508.0936 Solution tank drain cap
50 3.004.0060 Stainless steel flat washer (6x18 mm, 1.6 mm thick, UNI 6593)
51 3.002.0395 Stainless steel hex bolt (M6x16, UNI 5739)
52 3.100.0074 Zinc-plated elbow fitting (1/2" M - 1/2" F)
63 4.506.0024 Washer for O-ring 4087
64 3.200.0111 O-ring 4087
77 4.508.0395 Battery compartment cap
78 5.511.0203 Recovery tank cap kit with gasket
79 5.511.0510 Wired Easy R vacuum motor kit
80 5.511.0937 Tank drain cap assembly
83 5.511.0395 Perforated cap kit with gasket for solution tank
84 3.499.0071 Carbon brush for motor
89 4.508.0534 Perforated solution tank cap (125 mm)
100 3.002.0214 Stainless steel socket head cap screw (M6x16, UNI 5931)
103 5.511.1489 Squeegee lifting cable with sheath
104 5.511.1470 Motor/filter compartment cover (Easy-R, RAL 7021)
105 3.003.0433 Stainless steel low-profile self-locking nut (M8, UNI 7474)
109 3.004.0050 Stainless steel flat washer (6x24 mm, 2 mm thick, UNI 6593)
111 3.299.0014 Motor gasket (120x149 mm, 4 mm thick)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s FASA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to FASA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
FASA A9 45T - 8.516.0010
6 Items

Data sheet

Machine Type
Floor Scrubber Dryer
CHECK S/N LAVOR
LAVOR S/N START WITH (8. ) and have 8 DIGITS
SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

FASA A9 45T Drawing

FASA A9 45T Drawing

Download (3.62MB)

You might also like

Lavorwash S.p.A. SKU: 5.509.0002
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Brush + Bearing Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber...
Usually Ships in: 7/10 Business Days Approx. €35.95
Lavorwash S.p.A. SKU: 6.505.0041
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Brush + Bearing Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber...
Usually Ships in: 7/10 Business Days Approx. €6.40
Lavorwash S.p.A. SKU: 5.509.0008
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Flexible Hose Ass'y L.800 MW for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber Drier...
Usually Ships in: 7/10 Business Days Approx. €29.49
Lavorwash S.p.A. SKU: 5.509.0010
Squeegee + Support Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Squeegee + Support Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor...
Usually Ships in: 7/10 Business Days Approx. €14.85
Lavorwash S.p.A. SKU: 3.099.0278
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Belt 336 RPP3-12 for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following...
Usually Shipped on: 10 Business Days Approx. €29.49
Lavorwash S.p.A. SKU: 3.551.0032
Detergent Pump for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Detergent Pump CNS 05 220-240V 50Hz 16W for Floor Scrubber Drier Sprinter Lavor Pro - Crystal Clean - A0 30 HOT. Part for the following...
Usually Ships in: 10/15 Business Days Approx. €45.78
Lavorwash S.p.A. SKU: 6.505.0087
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Boiler Kit for Floor Scrubber Drier Crystal Clean. Part for the following products: -  Floor Scrubber Drier Lavor...
Usually Shipped in 10/15 Business Days Approx. €87.31
Lavorwash S.p.A. SKU: 5.509.0415
Lavor Pro Sprinter Solution Tank Grey Genuine replacement part Lavor, Solution Tank Grey with Washer & Gasket Ass'y for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber Drier...
on 7/10 Business Days Approx. €38.08
Lavorwash S.p.A. SKU: 4.508.0021
Lavor Solution Actuator for Sprint Original replacement part Lavorwash, Solution Actuator Grey Ral 7043b for Floor Scrubber Drier. Part for the following products: -  Floor Scrubber Drier Lavor Pro SPRINTER - 8.501.0501 -  Floor...
Usually Ships in: 10 Business Days Approx. €3.50
Lavorwash S.p.A. SKU: 4.508.0007
Lavor Sprinter Wheel D.100 MW Grey RAL.7016 Genuine replacement part Lavor, Wheel D.100 MW Grey RAL.7016 for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber Drier Sprinter Lavor...
Usually Ships in: 10/15 Business Days Approx. €15.00
Lavorwash S.p.A. SKU: 4.508.0004
Lavor Sprinter Pedal Grey RAL 7043B Genuine replacement part Lavor, Pedal Grey RAL 7043B for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber Drier Sprinter Lavor Pro -...
Usually Ships in: 7/10 Business Days Approx. €15.00
Lavorwash S.p.A. SKU: 10002-06600 ex 5.509.0012
Lavor Joint and Flex Hoses for Floor Scrubber Drier Sprinter Genuine replacement part Lavor, Joint Assy Y+Flex Hoses Mw. for Floor Scrubber Drier Sprinter - Crystal. Part for the following products: -  Floor Scrubber Drier...
Usually Ships in: 10/15 Business Days Approx. €28.33
Lavorwash S.p.A. SKU: 4.508.0031
Lavor Floor Scrubber Drier Sprinter Offset Ring Genuine replacement part Lavor, Non Simmetric Ring for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor...
Usually Ships in: 10 Business Days Approx. €3.50
Lavorwash S.p.A. SKU: 4.508.0032
Lavor Floor Scrubber Drier Sprinter Air Intake Seal Genuine replacement part Lavor, Air Intake Seal D.65X33X2Sp. Mw for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following...
Usually Ships in: 10 Business Days Approx. €5.90
Comments (0)
No customer reviews for the moment.
