Papillon Spare Parts for Brushcutter Power 43-43E-31B

SKU: Papillon Power 43-43E-31B
€6.84
VAT included

Papillon Spare Parts for Brushcutter Power 43-43E-31B

Papillon Genuine spare parts or replacement parts for to repair Brushcutters Power 43E - 94687 - Power 43 - 91569 - Power 31B 4 Stroke - 91570.
Papillon Spare Parts for Brushcutter Power 43-43E-31B
  • Papillon Spare Parts for Brushcutter Power 43-43E-31B
  • Papillon Spare Parts for Brushcutter Power 43-43E-31B
  • Papillon Spare Parts for Brushcutter Power 43-43E-31B
  • Papillon Spare Parts for Brushcutter Power 43-43E-31B

Papillon Spare Parts for Brushcutter Power 43-43E-31B

SKU: Papillon Power 43-43E-31B Condition: New
€6.84
VAT included

Papillon Spare Parts for Brushcutter Power 43-43E-31B

Papillon Genuine spare parts or replacement parts for to repair Brushcutters Power 43E - 94687 - Power 43 - 91569 - Power 31B 4 Stroke - 91570.
settings 29 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

29 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 70899 Throttle Lever €7.28
1 fi
photo_cameraImage coming soon 96052 Gear box €63.05
11 fi
Recoil Starter for Brushcutter Papillon Power 31B 96996 Recoil Starter for Brushcutter Papillon Power 31B €29.39
12 fi
photo_cameraImage coming soon 96977 Starter €31.73
13
photo_cameraImage coming soon TCCOP Blade cover €4.51
19
photo_cameraImage coming soon 96981 Conrod €45.42
22
photo_cameraImage coming soon 70410 Nut 10x1.25 €6.46
25 fi
photo_cameraImage coming soon 96053 Complete clutch €40.15
30 fi
Ignition Coil for Brushcutter Papillon Power 43E 96982 Ignition Coil for Brushcutter Papillon Power 43E €49.06
32-33-34 fi
Piston Assy for Brushcutter Valex TUCSON 31 4T 5951141 Piston Assy for Brushcutter Valex TUCSON 31 4T €33.03
34
photo_cameraImage coming soon 98957 Spring €3.30
41-42 fi
Carburator for Brushcutter Papillon Power 31B 97169 Carburator for Brushcutter Papillon Power 31B €36.02 Not available for order
42 fi
photo_cameraImage coming soon 96973 Trasmission Shaft €68.74
42-43-44 fi
Piston Kit for Brushcutter Papillon Power 43E 96984 Piston Kit for Brushcutter Papillon Power 43E €15.55
45 fi
Piston Rings for Brushcutter Papillon Power 43E 96985 Piston Rings for Brushcutter Papillon Power 43E €9.61
47 fi
Cylinder for Brushcutter Papillon Power 43E 96987 Cylinder for Brushcutter Papillon Power 43E €43.29
51 fi
photo_cameraImage coming soon 96974 Central handle €17.87
52 fi
Throttle Lever Ass’y for Brushcutters Papillon Power 31B-43-43E 96958 Throttle Lever Ass’y for Brushcutters Papillon Power 31B-43-43E €26.45
65 fi
Carburator for Brushcutter Papillon Power 43E 96988 Carburator for Brushcutter Papillon Power 43E €46.86
71 fi
Ignition Coil for Brushcutter Papillon Power 31B 97205 Ignition Coil for Brushcutter Papillon Power 31B €29.39
72 fi
photo_cameraImage coming soon 97966 Head €14.46
74-75 fi
photo_cameraImage coming soon 98518 CARTER €4.43
78-79-80 fi
photo_cameraImage coming soon 96989 Fuel filter kit €9.09
80-81-82-83 fi
Hose with Mixture Filter Set for Brushcutter Papillon Power 31B 97208 Hose with Mixture Filter Set for Brushcutter Papillon Power 31B €18.41
81 fi
Safety Guard Braket for Brushcutters Papillon Power 31B-43 96972 Safety Guard Braket for Brushcutters Papillon Power 31B-43 €5.90
83 fi
photo_cameraImage coming soon 96971 Stone guard €18.13
83
photo_cameraImage coming soon 97159 Tank €20.61
88 fi
photo_cameraImage coming soon 96959 Protection €7.84
90 fi
photo_cameraImage coming soon 96990 Tank cap €6.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Papillon Spare Parts for Brushcutter Power 43-43E-31B

Papillon Genuine spare parts or replacement parts for to repair Brushcutters Power 43E - 94687 - Power 43 - 91569 - Power 31B 4 Stroke - 91570.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
Papillon Spare Parts for Brushcutter Power 43-43E-31B
Brushcutters Power 43E - 94687 - Power 43 - 91569 - Power 31B 4 ST.- 91570
Position Code Description For Model
70899 Throttle Lever 94687-91569-70
1 fi 96052 Gear box 94687-91569-70
11 fi 96996 Starter cpl 91570
12 fi 96977 Starter 94687
13 TCCOP Blade cover 94687-91569-70
19 96981 Conrod 94687-91569-70
25 fi 96053 Complete clutch 94687-91569-70
30 fi 96982 Ignition Coil 94687
32-33-34 fi 5951141 Piston + Piston ring kit 91570
34 98957 Spring 94687
35 98958 Clutch shoes 94687
41-42 fi 97169 Carburetor 91570
42 fi 96973 Trasmission Shaft 94687-91569-70
42-43-44 fi 96984 Piston kit 94687
71 fi 97205 Ignition Coil 91570
80-81-82-83 fi 97208 Filter Kit 91570
45 fi 96985 Piston Ring 94687
47 fi 96987 Cylinder 94687
51 fi 96974 Central handle 94687-91569-70
52 fi 96958 Lever assembly 94687-91569-70
65 fi 96988 Carburetor 94687
74-75 fi 98518 Carter 94687
78-79-80 fi 96989 Fuel filter kit 94687
72 fi 97966 Head 94687
81 fi 96972 Protection support 94687-91569-70
83 fi 96971 Stone guard 94687-91569-70
83 97159 Tank 94687-91569-70
88 fi 96959 Protection 94687-91569-70
90 fi 96990 Tank cap 94687
22 70410 Nut 10x1.25 94687-91569-92699
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ferritalia websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ferritalia brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Papillon Power 43-43E-31B
9 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

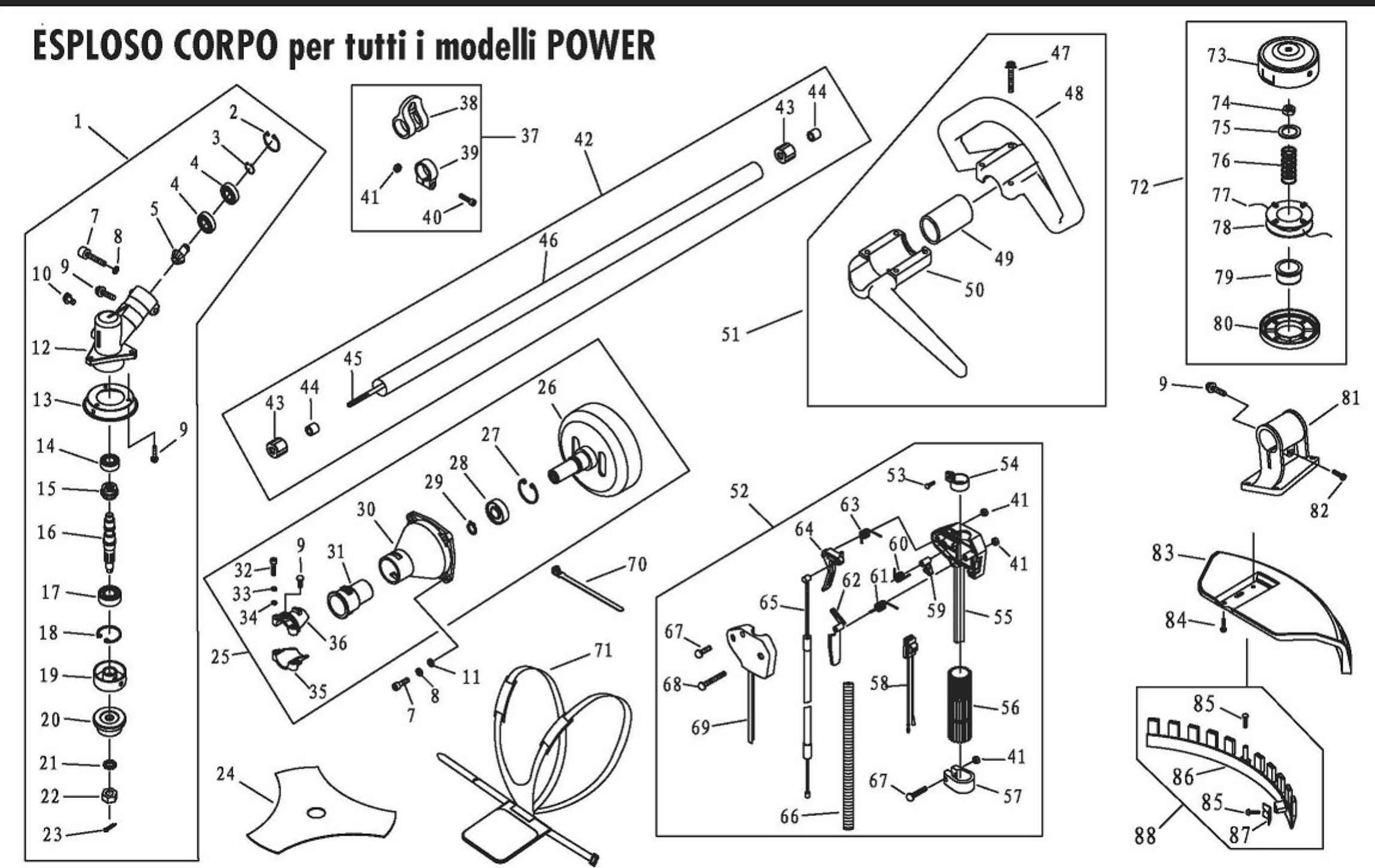

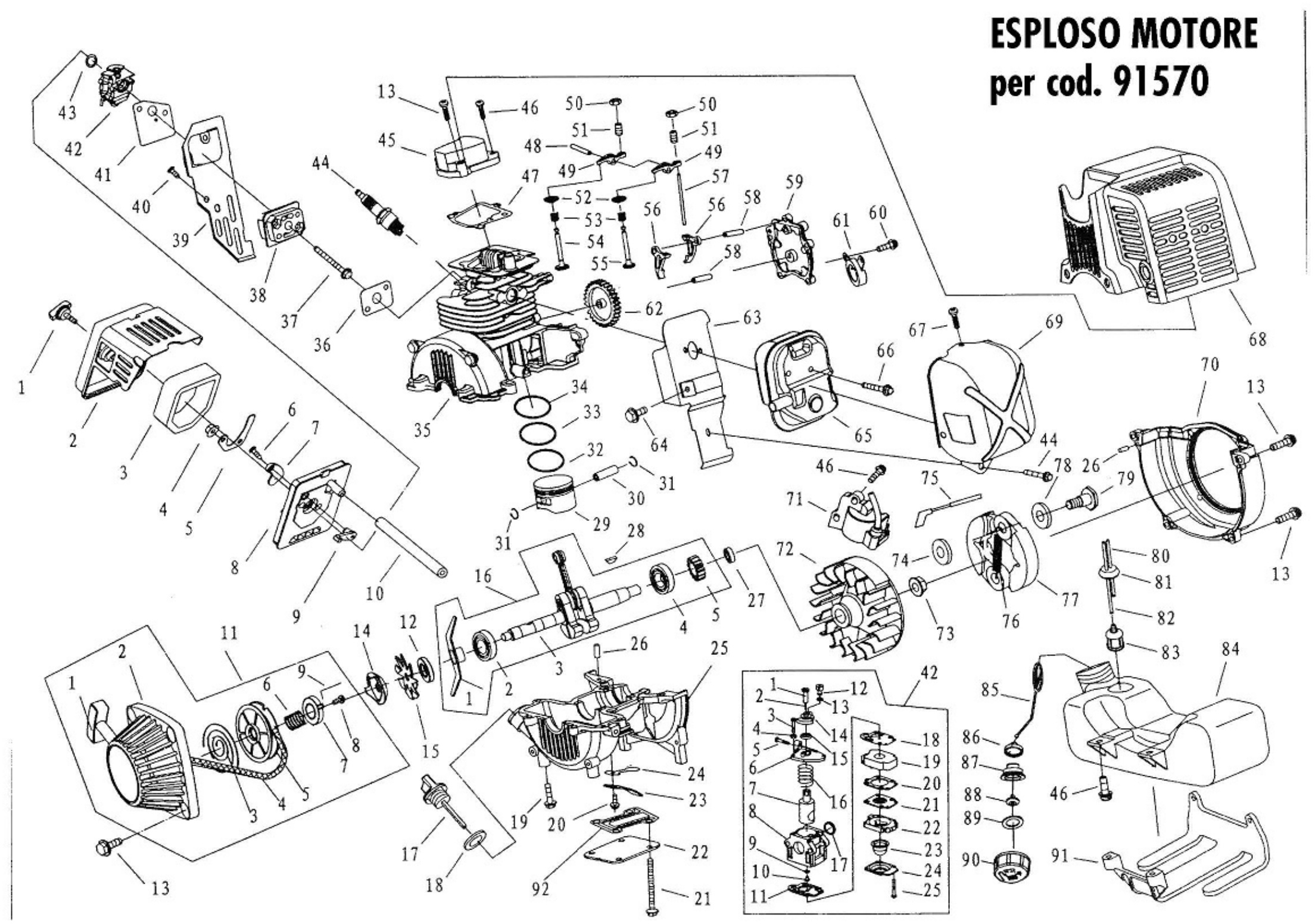

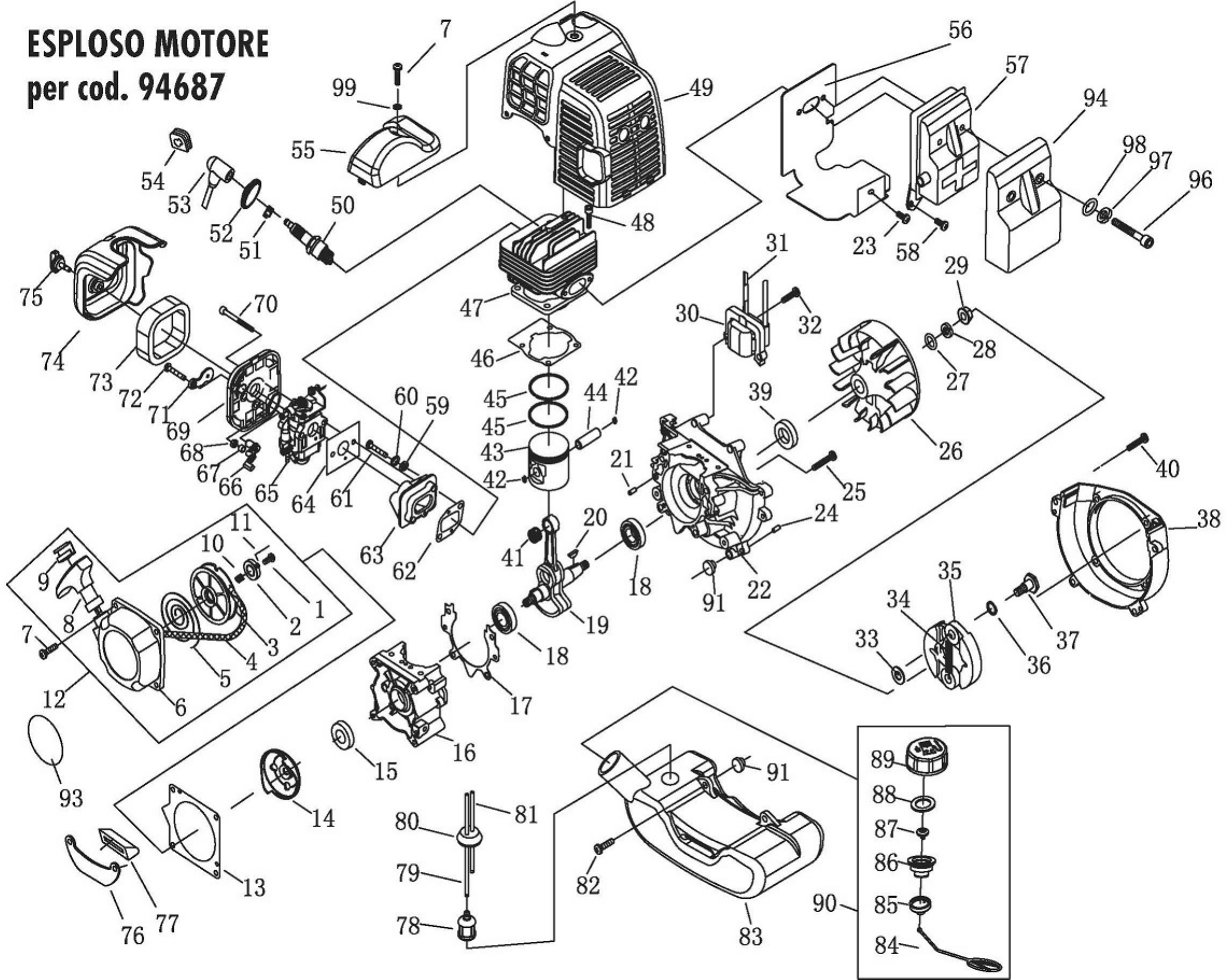

Diagram Papillon P. 43-43E-31B

Diagram Papillon P. 43-43E-31B

Download (894.16KB)
