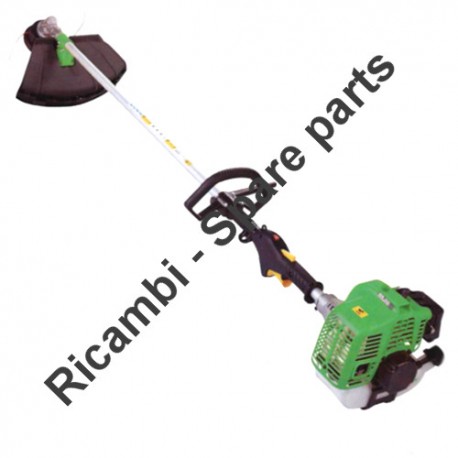

Papillon Spare Parts for Brushcutter DG 33N-43N-52-33-43

SKU: DG 33N-43N-52-33-43
€15.89
VAT included

Papillon Spare Parts for Brushcutter DG 33N-43N-52-33-43

Papillon genuine spare parts or replacement parts for to repair Brushcutter DG 33N - 97843 - DG 43N - 97844 - DG 52 - 97846 - DG 33 - 94533 - DG 43 - 94534.
Papillon Spare Parts for Brushcutter DG 33N-43N-52-33-43
  • Papillon Spare Parts for Brushcutter DG 33N-43N-52-33-43
  • Papillon Spare Parts for Brushcutter DG 33N-43N-52-33-43
  • Papillon Spare Parts for Brushcutter DG 33N-43N-52-33-43

Papillon Spare Parts for Brushcutter DG 33N-43N-52-33-43

SKU: DG 33N-43N-52-33-43 Condition: New
€15.89
VAT included

Papillon Spare Parts for Brushcutter DG 33N-43N-52-33-43

Papillon genuine spare parts or replacement parts for to repair Brushcutter DG 33N - 97843 - DG 43N - 97844 - DG 52 - 97846 - DG 33 - 94533 - DG 43 - 94534.
settings 15 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

15 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
Clutch Drum Complete for Brushcutter Papillon DG 33N 97140 Clutch Drum Complete for Brushcutter Papillon DG 33N €38.47
2,1-2.2.1-2.2.2
External Drive Shaft Cpl for Brushcutter Papillon DG 33N 98004 External Drive Shaft Cpl for Brushcutter Papillon DG 33N €26.11
3
Drive Shaft for Brushcutter Papillon DG 33N 98005 Drive Shaft for Brushcutter Papillon DG 33N €15.55
7-8
Throttle Lever Ass’y for Brushcutter Papillon DG 33 97101 Throttle Lever Ass’y for Brushcutter Papillon DG 33 €17.96
13
Ignition Coil for Brushcutter Papillon DG 43N 97896 Ignition Coil for Brushcutter Papillon DG 43N €25.02
15
photo_cameraImage coming soon TEC360302 Stone Gard Holder €6.51
16.1-16.2-16.3
photo_cameraImage coming soon TEC360939 Stone Gard Assy €15.01
17
photo_cameraImage coming soon 97100 Gear Case €45.36
18
Head Tap & Go MA10x1,25 Sx for Brushcutter Papillon DG 33N 98046 Head Tap & Go MA10x1,25 Sx for Brushcutter Papillon DG 33N €17.96
20
photo_cameraImage coming soon AMA88304 Cranck Shaft €39.68
26
photo_cameraImage coming soon 97897 Piston Rings €3.82
29
photo_cameraImage coming soon 97987 Cylinder Gasket €28.83
40
Carburator for Brushcutter Green Line Papillon DG 43N 97900 Carburator for Brushcutter Green Line Papillon DG 43N €33.16
47
photo_cameraImage coming soon 97989 Starter €16.94
50
photo_cameraImage coming soon 97985 Tank €22.62

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Papillon Spare Parts for Brushcutter DG 33N-43N-52-33-43

Papillon genuine spare parts or replacement parts for to repair Brushcutter DG 33N - 97843 - DG 43N - 97844 - DG 52 - 97846 - DG 33 - 94533 - DG 43 - 94534.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
DG 33N-43N-52-33-43
Brushcutters
DG 33N - 97843 - DG 43N - 97844 -

DG 52 - 97846 - DG 33 - 94533
DG 43 - 94534
FOR MODEL
# Part Num. Description
1 97140 Clutch Cpl 97843-4-6-94533-4
7-8 97101 Handle 97843-4-6-94533-4
17 97100 Gear Case 97843-4-6-94533-4
2,1-2.2.1-2.2.2 98004 External Rod 97843-4-6-94533-4
3 98005 Internal Rod 97843-4-6-94533-4
18 98046 Head 97843-4-6
20 AMA88304 Cranck Shaft 97843-94533
13 97896 Ignition Coil 97844
26 97897 Piston Rings 97844
29 97987 Cylinder Gasket 97844
40 97900 Carburetor 97844
47 97989 Starter 97844
50 97985 Tank 97844
16.1-16.2-16.3 TEC360939 Stone Gard Assy 97843-4-6-94533-4
15 TEC360302 Stone Gard Holder 97843-4-6-94533-4
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ferritalia websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ferritalia brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DG 33N-43N-52-33-43
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

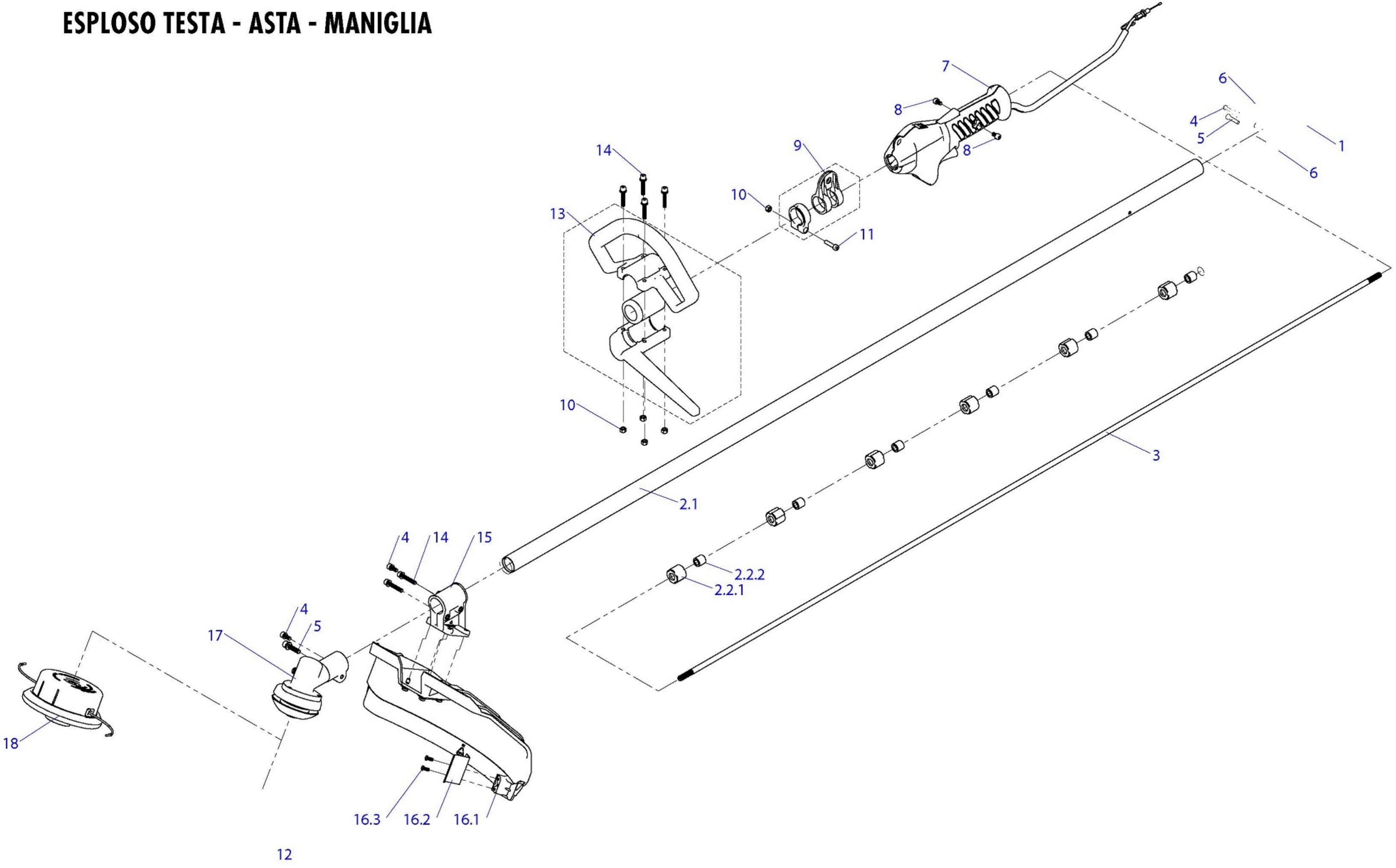

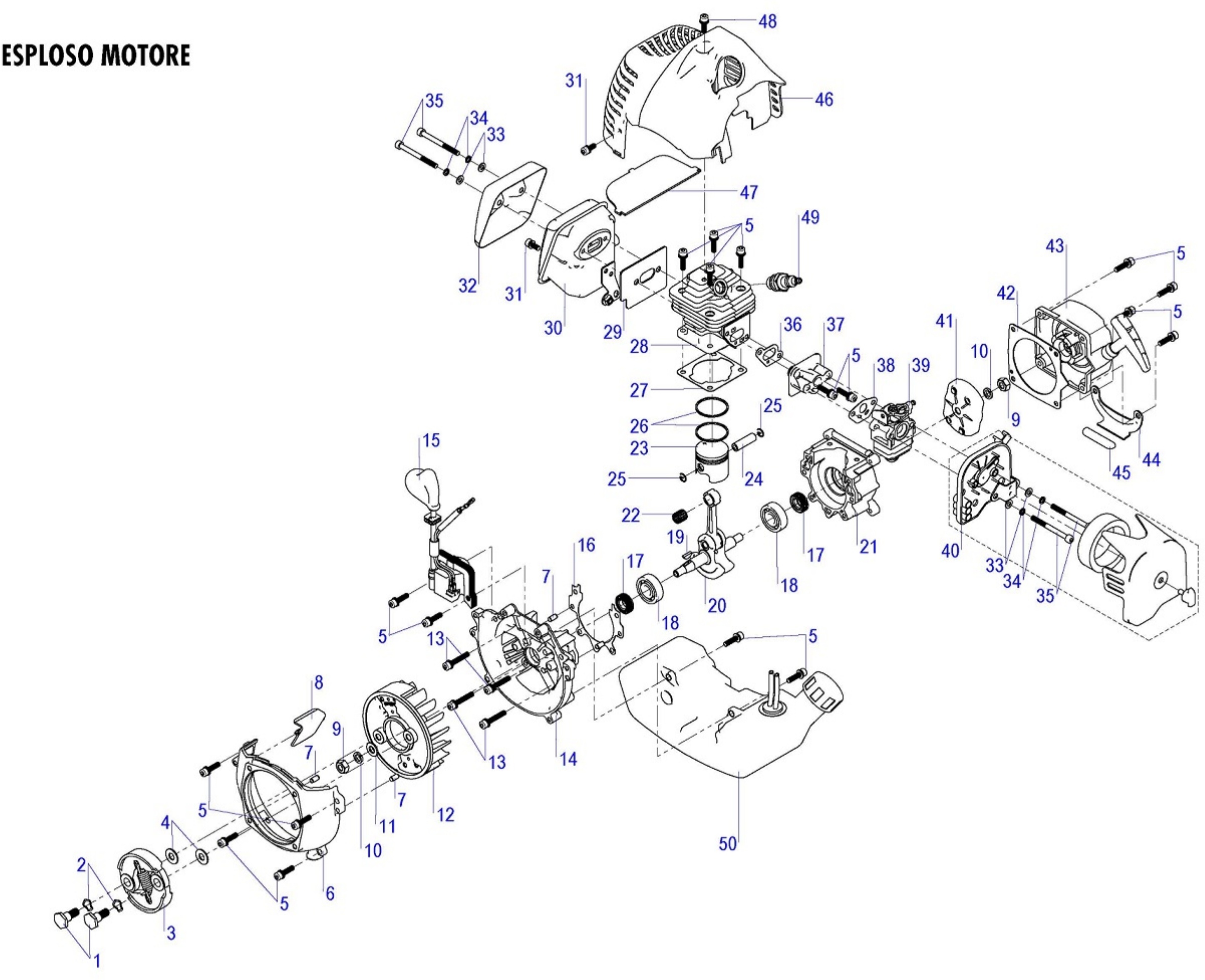

Diagram P. DG 33N-43N-52-33-43

Diagram P. DG 33N-43N-52-33-43

Download (474.39KB)
