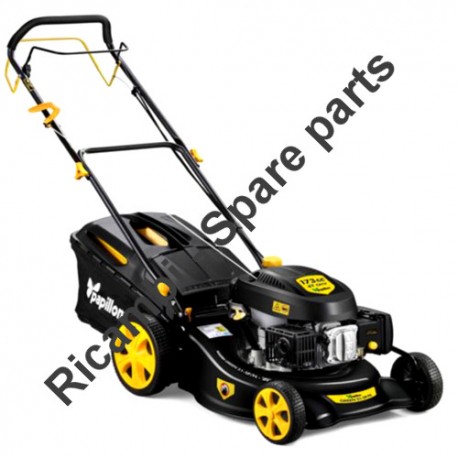

Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP

SKU: Papillon 95483 - 94528 - 94527
€10.51
VAT included

Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP

Papillon Genuine spare parts or replacement parts for to repair Lawnmower Green 53 SP/N - 95483 - Green 50AL-SP - 94528 - Green 51SP - 94527.
Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP
  • Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP
  • Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP
  • Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP
  • Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP
  • Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP
  • Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP
  • Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP
  • Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP

Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP

SKU: Papillon 95483 - 94528 - 94527 Condition: New
€10.51
VAT included

Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP

Papillon Genuine spare parts or replacement parts for to repair Lawnmower Green 53 SP/N - 95483 - Green 50AL-SP - 94528 - Green 51SP - 94527.
settings 10 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

9 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
da 85 a 90
Air Cleaner Set Complete for Lownmover Papillon GREEN 53 96765 Air Cleaner Set Complete for Lownmover Papillon GREEN 53 €26.41
1-3-4
Blade Holder Set for Lownmover Papillon Green 53 SP 96528 Blade Holder Set for Lownmover Papillon Green 53 SP €38.24
2
Blade for Lownmover Papillon Green 53 SP 97361 Blade for Lownmover Papillon Green 53 SP €30.59
3
Recoil Starter Assy for Lownmover Papillon Green 50AL-SP 96762 Recoil Starter Assy for Lownmover Papillon Green 50AL-SP €30.25
6
Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 RMGP65070200000 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 €11.35
14-15-16
Tank Cap (Big) for Engines AMA MVG RMG251700500140 Tank Cap (Big) for Engines AMA MVG €6.83
17
V-Belt for Lownmover Papillon GREEN 53 98088 V-Belt for Lownmover Papillon GREEN 53 €12.62
68
V-Belt for Self Propelled Lawnmover Papillon Green 51SP 96621 V-Belt for Self Propelled Lawnmover Papillon Green 51SP €14.34
82-83-84
Primer Pump Assemby for Lownmover Papillon GREEN 53 98574 Primer Pump Assemby for Lownmover Papillon GREEN 53 €7.11

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Papillon Spare Parts for Lawnmower GREEN 53 SP/N - GREEN 50AL-SP - GREEN 51SP

Papillon Genuine spare parts or replacement parts for to repair Lawnmower Green 53 SP/N - 95483 - Green 50AL-SP - 94528 - Green 51SP - 94527.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Papillon 95483 - 94528 - 94527
Lawnmower Green 53 SP/N - 95483
Green 50AL-SP - 94528 - Green 51SP - 94527
FOR MODELS
2 96517 Stop Lever 95483
3 96526 Self-Propelled Lever 95483
2-3-4-5 96761 Front Wheels Kit 95483
5-6-12-13-14-15 96760 Kit Rear Wheel 95483
1-3-4 96528 Holder Blade Kit 95483
17 98088 V-Belt - 36633 95483
2 97361 Blade 95483
4 98578 Blade Bolt 95483
8 97362 Belt Cover 95483
35 96763 Ignition Coil Complete 95483
2-7-8-9-10-11-17 97310 Drive Set Assembly 95483
3 96762 Starter Assy 95483-94528-7
82-83-84 98574 Primer Pump Assy 95483
6 RMGP65070200000 Recoil Starter Rotor 95483-94528-7
17 96764 Fuel Tank 95483-94528-7
35 97313 Coil 95483-94528-7
80-81 96766 Carburetor Gasketed 95483-94528-7
da 85 a 90 96765 Complete Filter Kits 95483-94528-7
71-72-74-76-77 96641 Transmission Kit 94528
51-52-53-54-56-57 fi 96622 Holder Blade Kit 94528
55 96623 Blade 94528
70 97338 Belt 94528
66-67-68-69-81 97390 Basket 94528
14-15-16 RMG251700500140 Tank Cap Kit 95483
24-25-26 96626 Pulley Kit 94527
35 97345 Coil 94527
68 96621 Belt 94527
80 97346 Carburetor 94527
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ferritalia websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ferritalia brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Papillon 95483 - 94528 - 94527
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

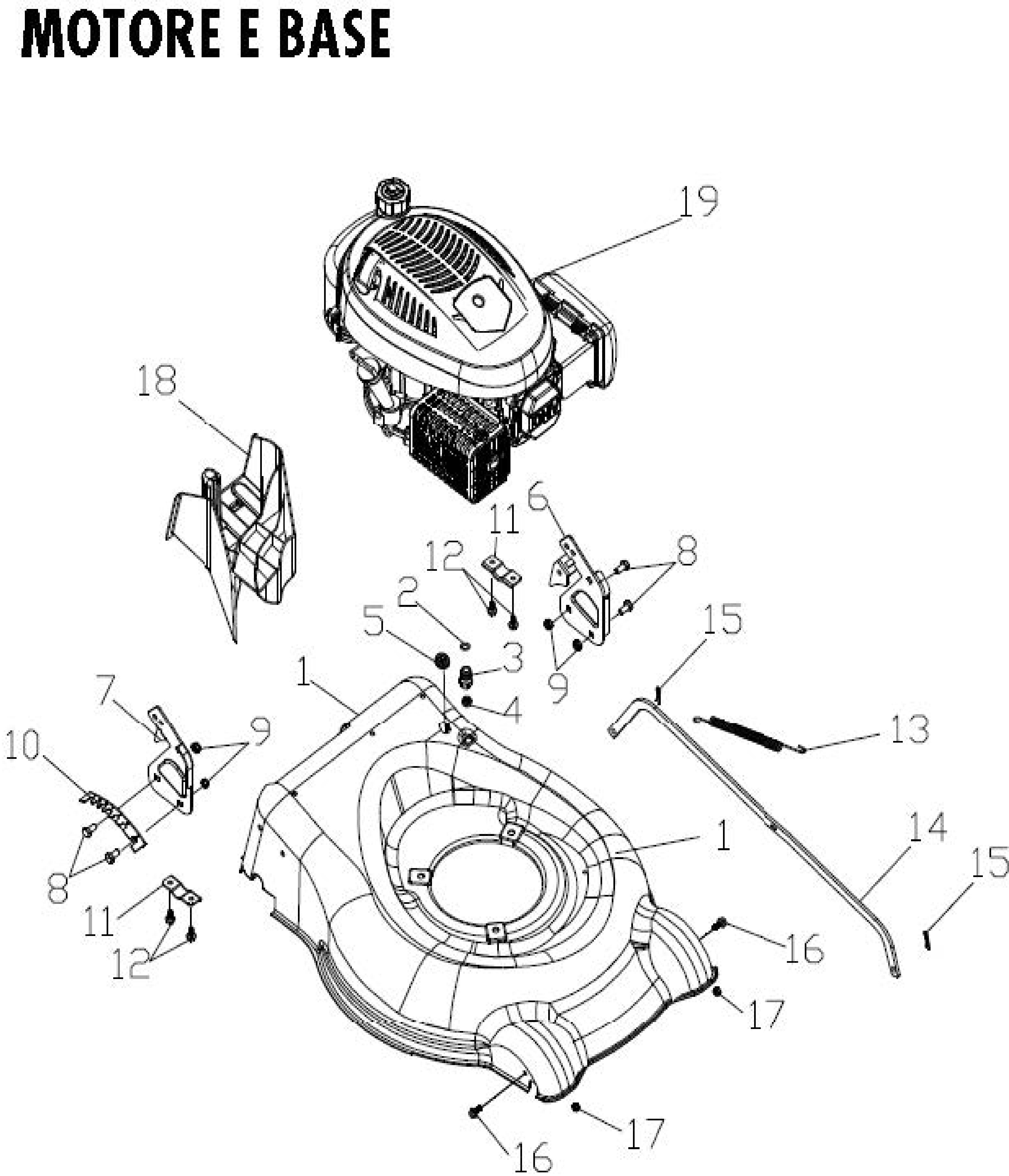

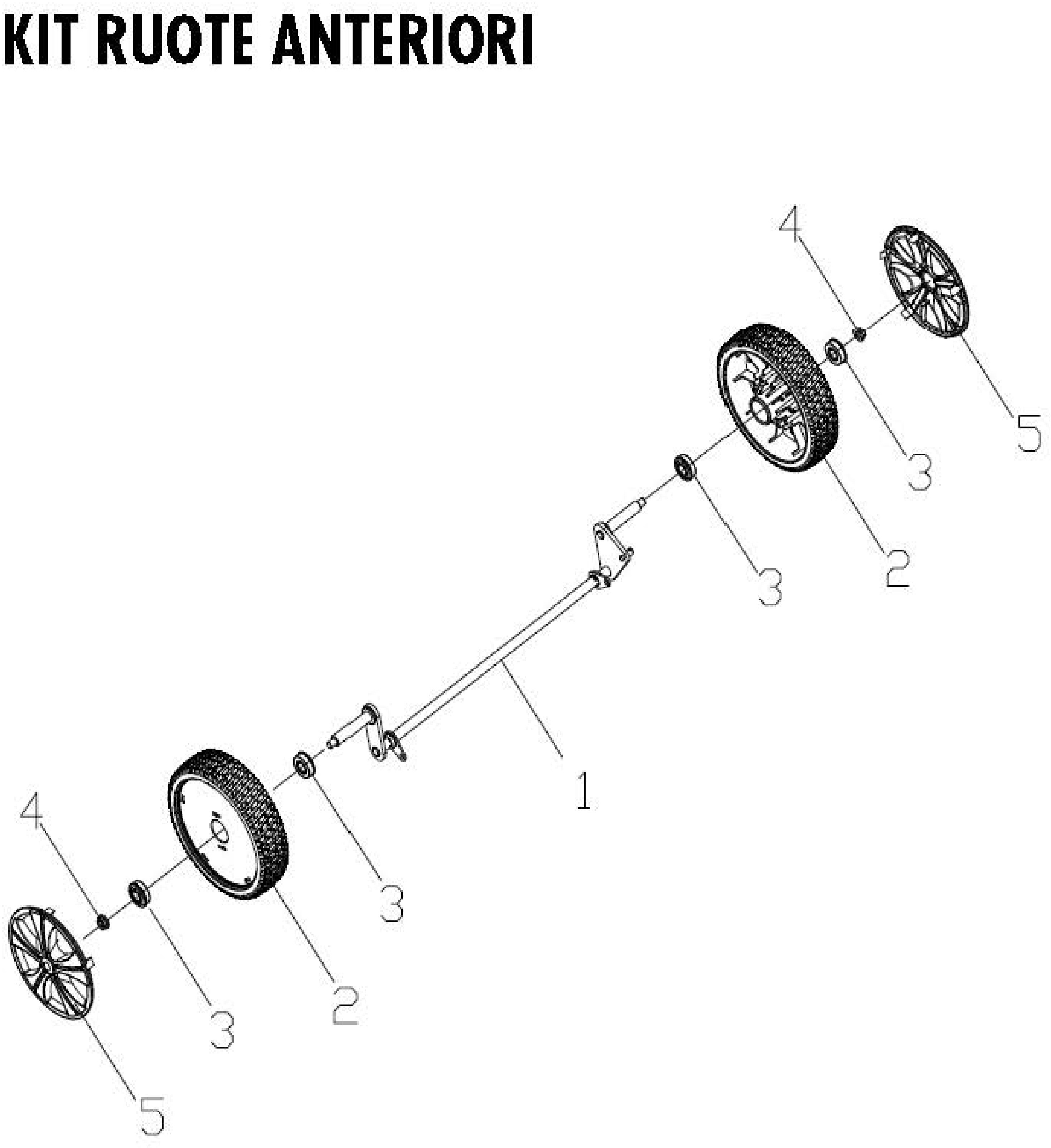

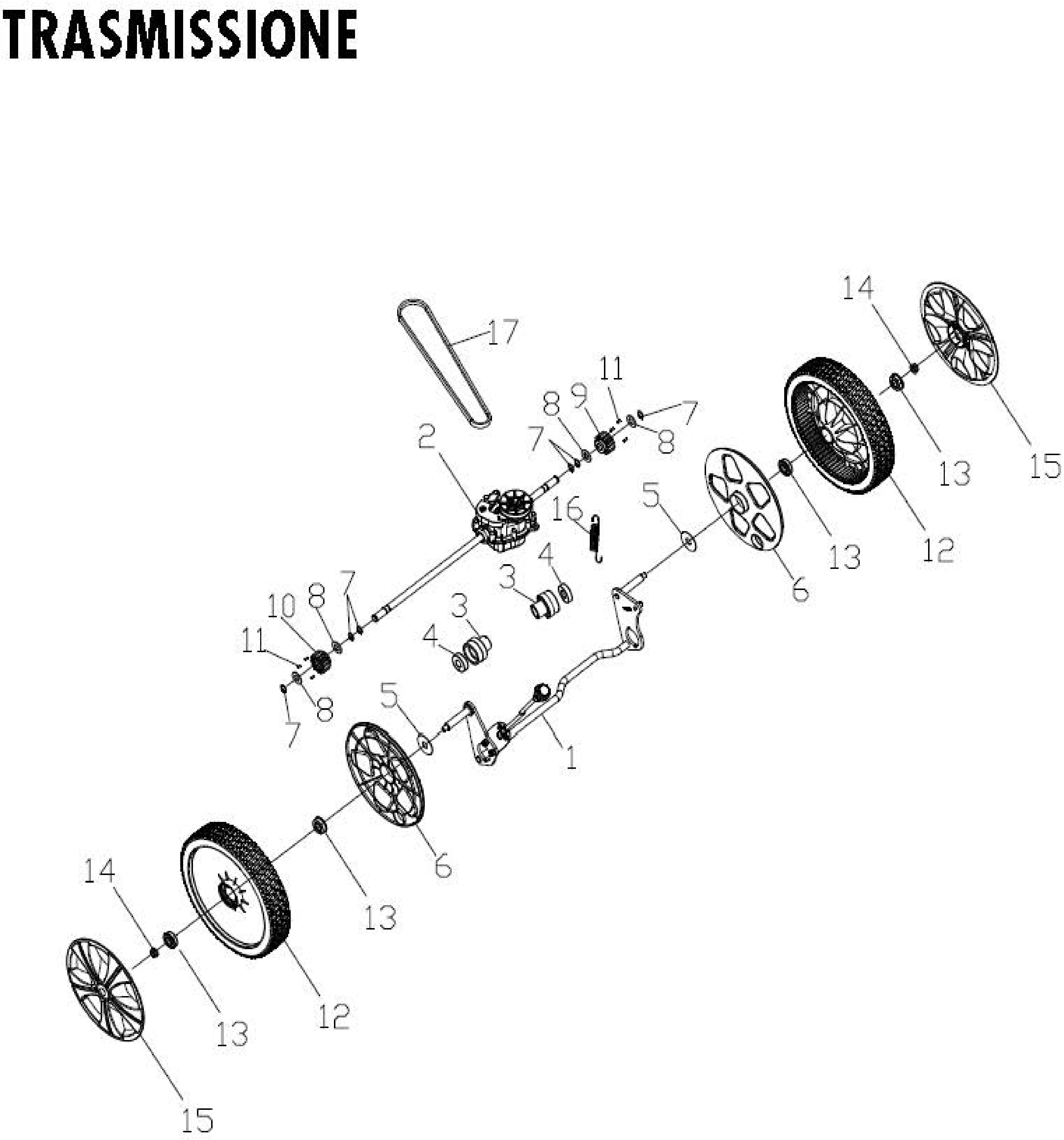

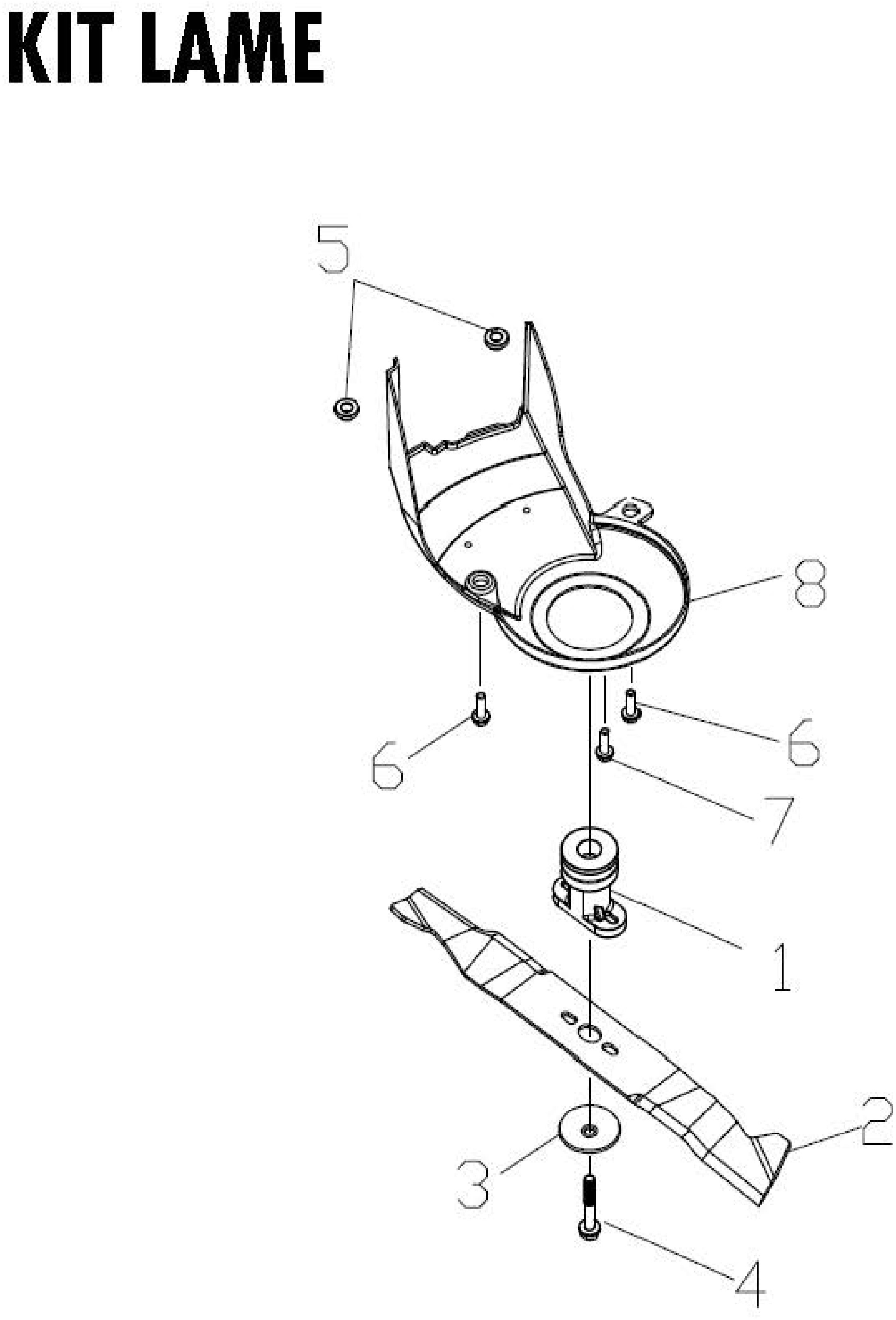

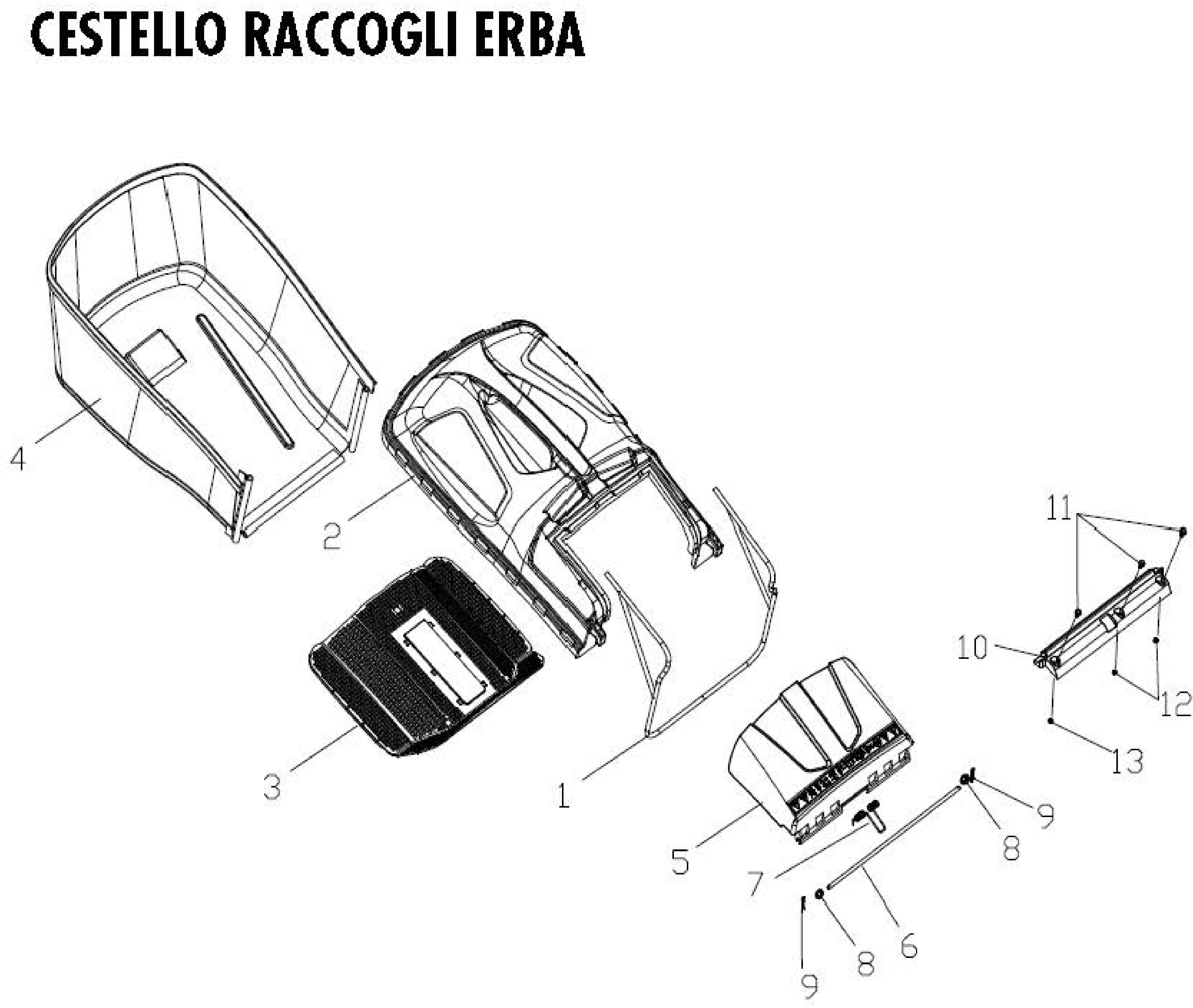

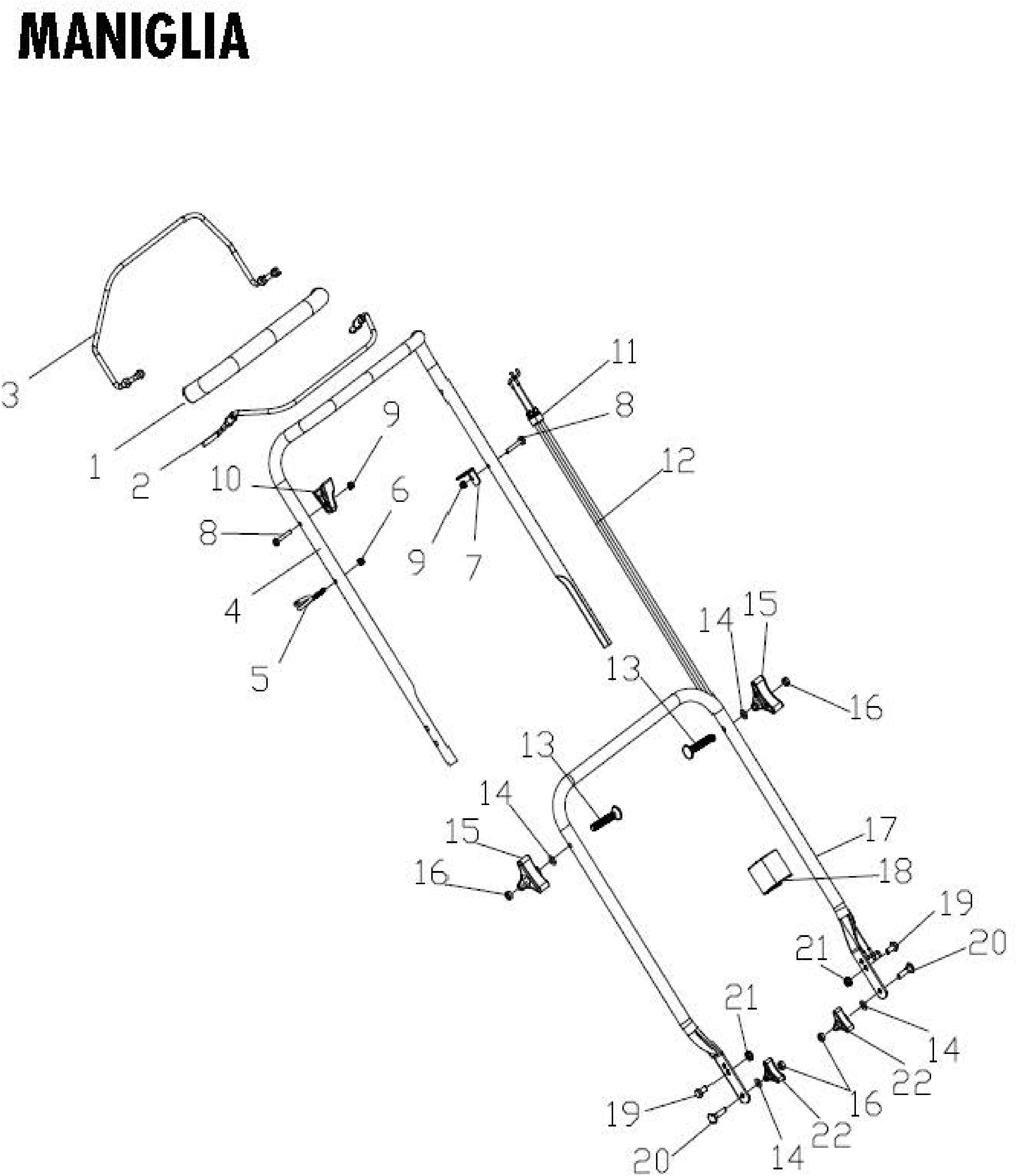

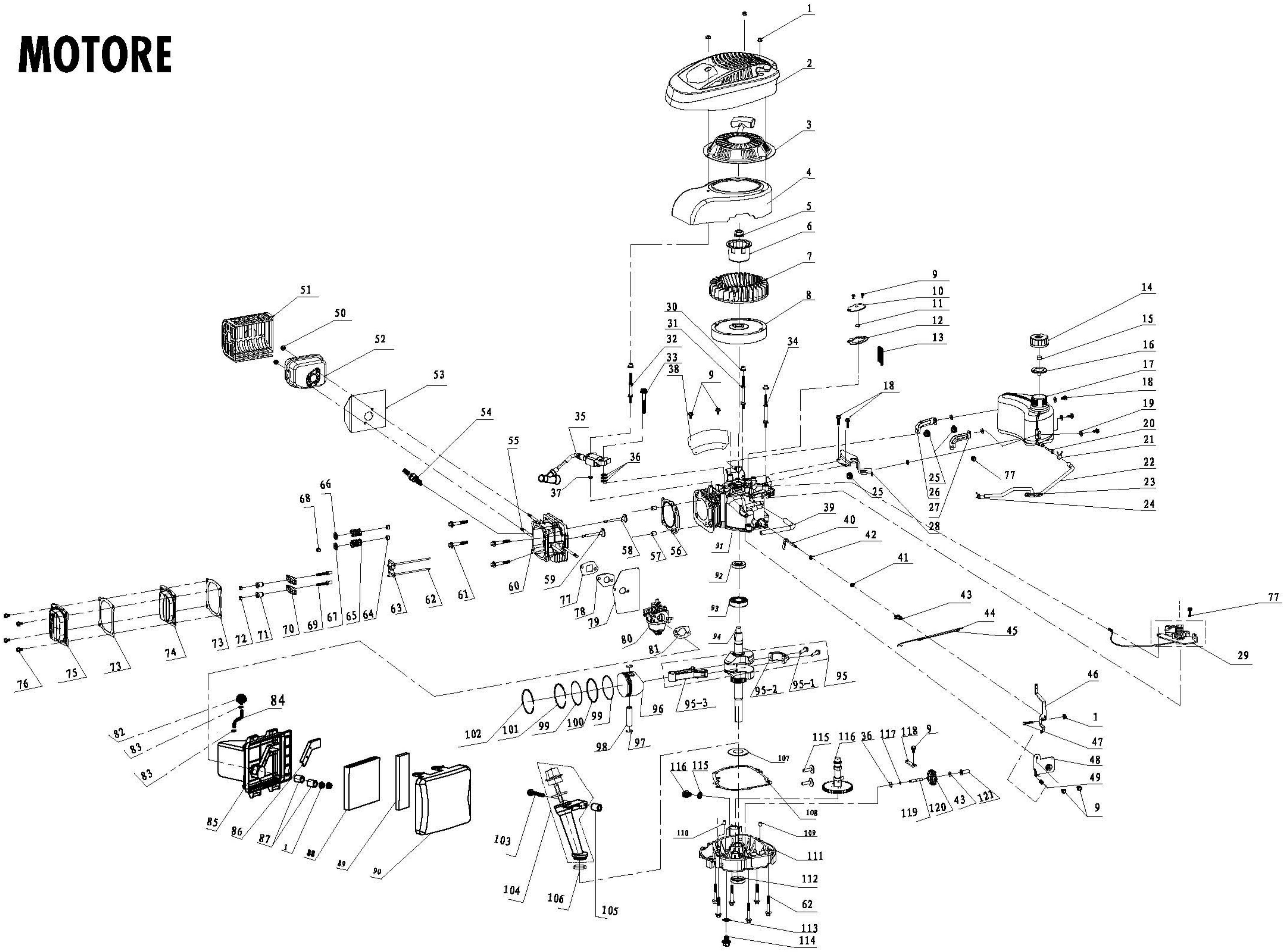

Diagram Papillon GREEN 50-51-53

Diagram Papillon GREEN 50-51-53

Download (516.21KB)
