Mountfield Spare Parts for Lawnmower SP 41 (2017)

SKU: SP 41 (2017) - 297412048/M17
€80.50
VAT included

Mountfield Spare Parts for Lawnmower SP 41 (2017)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower SP 41 (2017) 297412048/M17.

SP 41 (2017) - 297412048/M17
Mountfield Spare Parts for Lawnmower SP 41 (2017)
  • Mountfield Spare Parts for Lawnmower SP 41 (2017)
  • Mountfield Spare Parts for Lawnmower SP 41 (2017)
  • Mountfield Spare Parts for Lawnmower SP 41 (2017)
  • Mountfield Spare Parts for Lawnmower SP 41 (2017)
  • Mountfield Spare Parts for Lawnmower SP 41 (2017)
  • Mountfield Spare Parts for Lawnmower SP 41 (2017)
  • Mountfield Spare Parts for Lawnmower SP 41 (2017)
  • Mountfield Spare Parts for Lawnmower SP 41 (2017)
  • Mountfield Spare Parts for Lawnmower SP 41 (2017)

Mountfield Spare Parts for Lawnmower SP 41 (2017)

SKU: SP 41 (2017) - 297412048/M17 Condition: New
€80.50
VAT included

Mountfield Spare Parts for Lawnmower SP 41 (2017)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower SP 41 (2017) 297412048/M17.

SP 41 (2017) - 297412048/M17
settings 173 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

163 spare parts

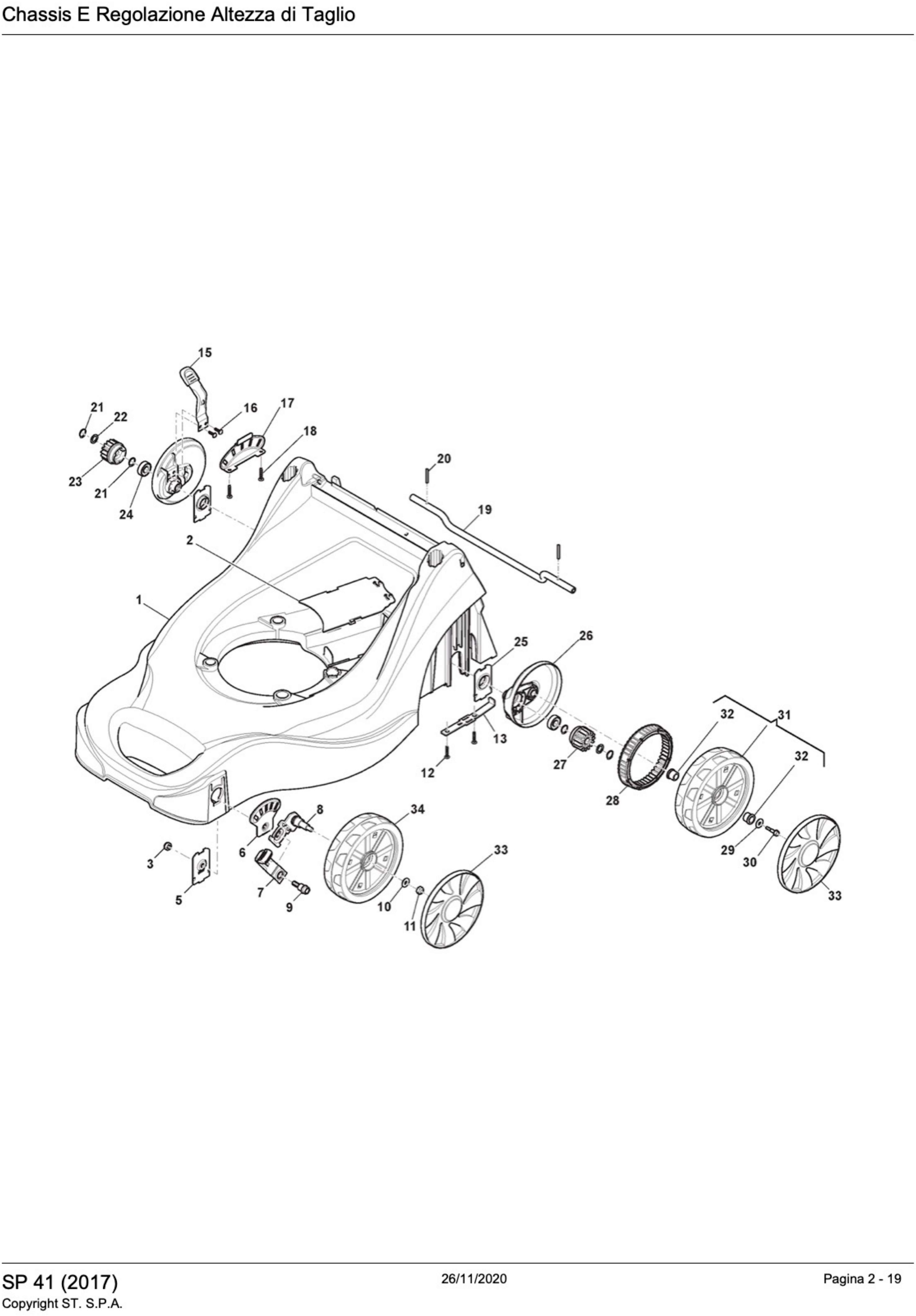

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322066750/0 Red plastic dek €66.79
2
photo_cameraImage coming soon 322060245/0 Deck cover €2.82
3
photo_cameraImage coming soon 112154210/0 Nut €1.78
5
photo_cameraImage coming soon 322785361/0 Wheel support €1.76
6
photo_cameraImage coming soon 322735599/0 Height Adjustment Sector €3.48
7
photo_cameraImage coming soon 381003352/0 Height Adjustment Lever €5.59
9
photo_cameraImage coming soon 122519811/0 Pin €1.65
10
photo_cameraImage coming soon 112521350/0 Washer €1.74
11
photo_cameraImage coming soon 112155000/0 Nut €1.66
12
photo_cameraImage coming soon 112728690/0 Screw €1.43
13
photo_cameraImage coming soon 322608563/0 Rear reinforcement €2.49
15
photo_cameraImage coming soon 381003353/0 Height Adjustment Lever €5.59
16
photo_cameraImage coming soon 112728689/0 Screw €1.43
17
photo_cameraImage coming soon 322735601/0 Height Adjustment Sector €2.55
18
photo_cameraImage coming soon 112728690/0 Screw €1.43
19
photo_cameraImage coming soon 122033417/0 Rear Wheel Axle €14.17
20
photo_cameraImage coming soon 122753001/0 Plug €1.43
21
Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ 112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ €1.58
22
photo_cameraImage coming soon 112521370/0 Washer €1.64
23
photo_cameraImage coming soon 322570135/0 Right pinion €3.41
24
photo_cameraImage coming soon 119216035/0 Bearing €4.51
25
photo_cameraImage coming soon 322785379/0 Support €1.76
26
photo_cameraImage coming soon 322600203/0 Wheel protection €4.67
27
photo_cameraImage coming soon 322570136/0 Left pinion €3.41
28
photo_cameraImage coming soon 322120118/0 Crown Drag €9.62
29
photo_cameraImage coming soon 112523040/0 Washer €1.63
30
photo_cameraImage coming soon 112735592/0 Screw €1.98
31
photo_cameraImage coming soon 322686101/0 Wheel €5.66
31
photo_cameraImage coming soon 381007475/0 Wheel €5.66
32
photo_cameraImage coming soon 322034516/0 Bushing €1.43
33
photo_cameraImage coming soon 322110642/0 Gray hubcap €2.02
34
photo_cameraImage coming soon 322686100/0 Wheel Ø 175 €5.85

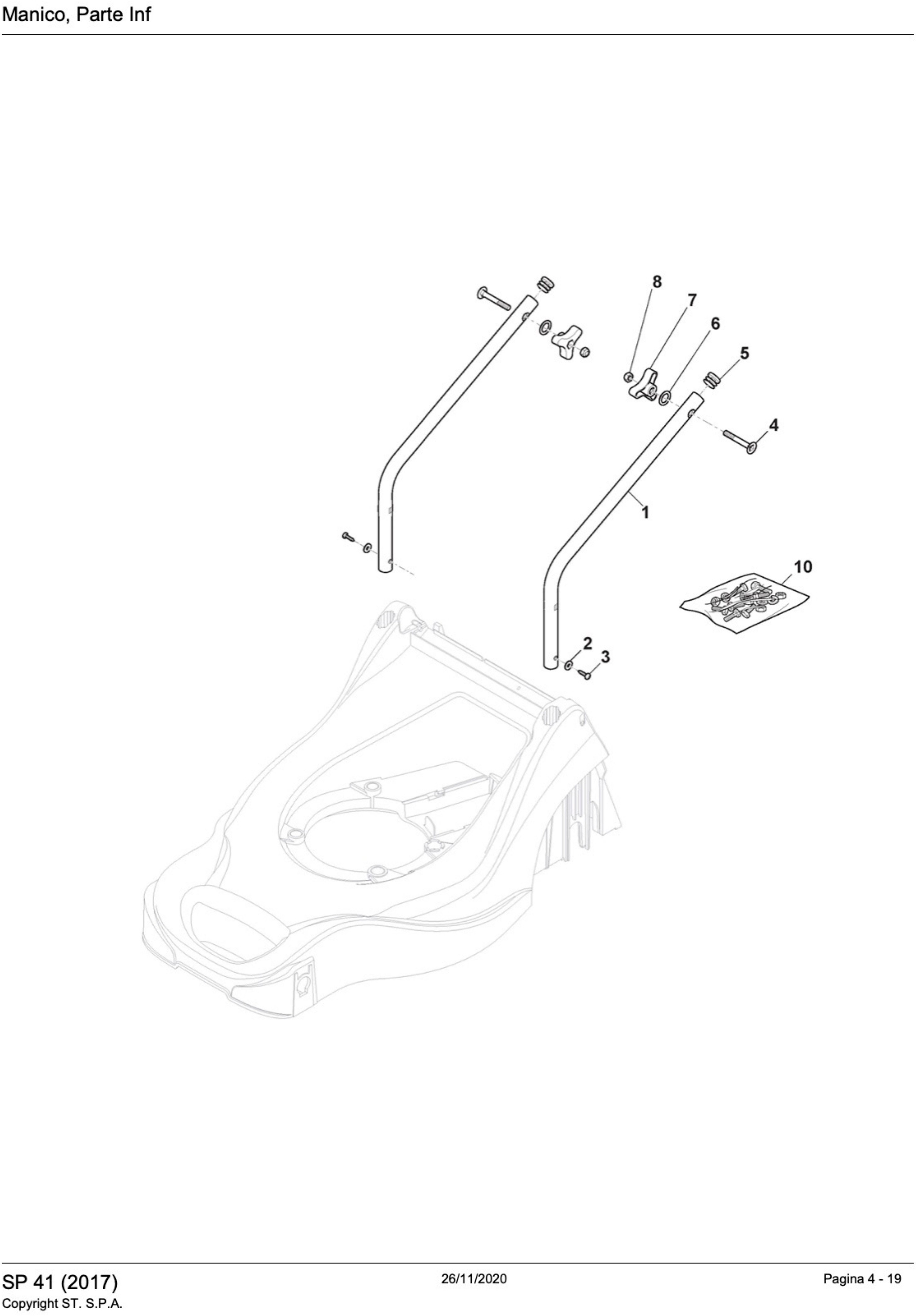

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381006769/0 Lower handle €6.91
2
photo_cameraImage coming soon 112523020/0 Washer €1.74
3
photo_cameraImage coming soon 112728450/0 Screw €1.72
4
photo_cameraImage coming soon 112819110/0 Screw €1.66
5
photo_cameraImage coming soon 118566110/0 ferrule €1.43
6
photo_cameraImage coming soon 122671651/0 Washer €2.11
7
3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
8
photo_cameraImage coming soon 112293200/0 Nut €1.74
10
photo_cameraImage coming soon 381008687/0 Screws €7.11

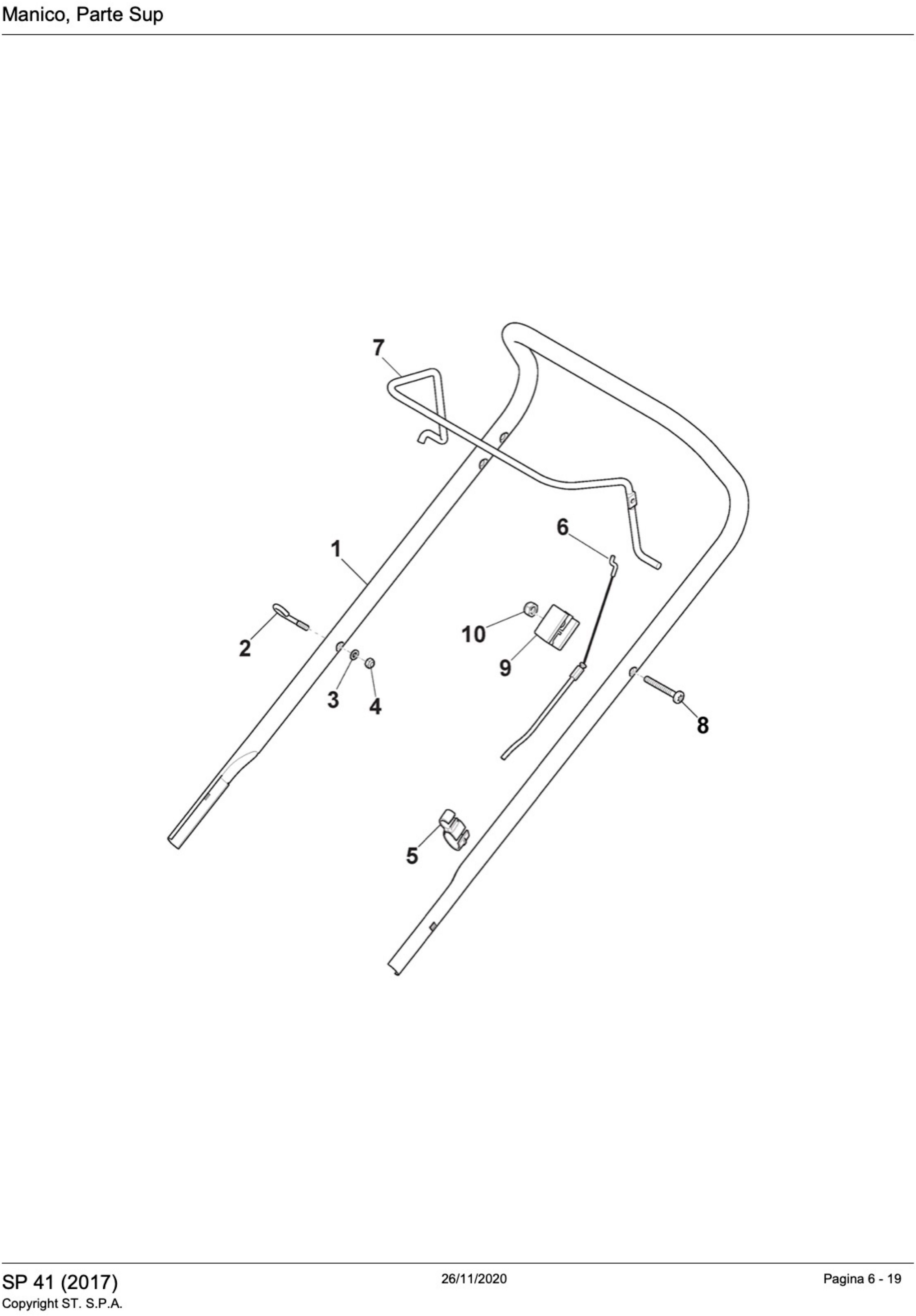

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

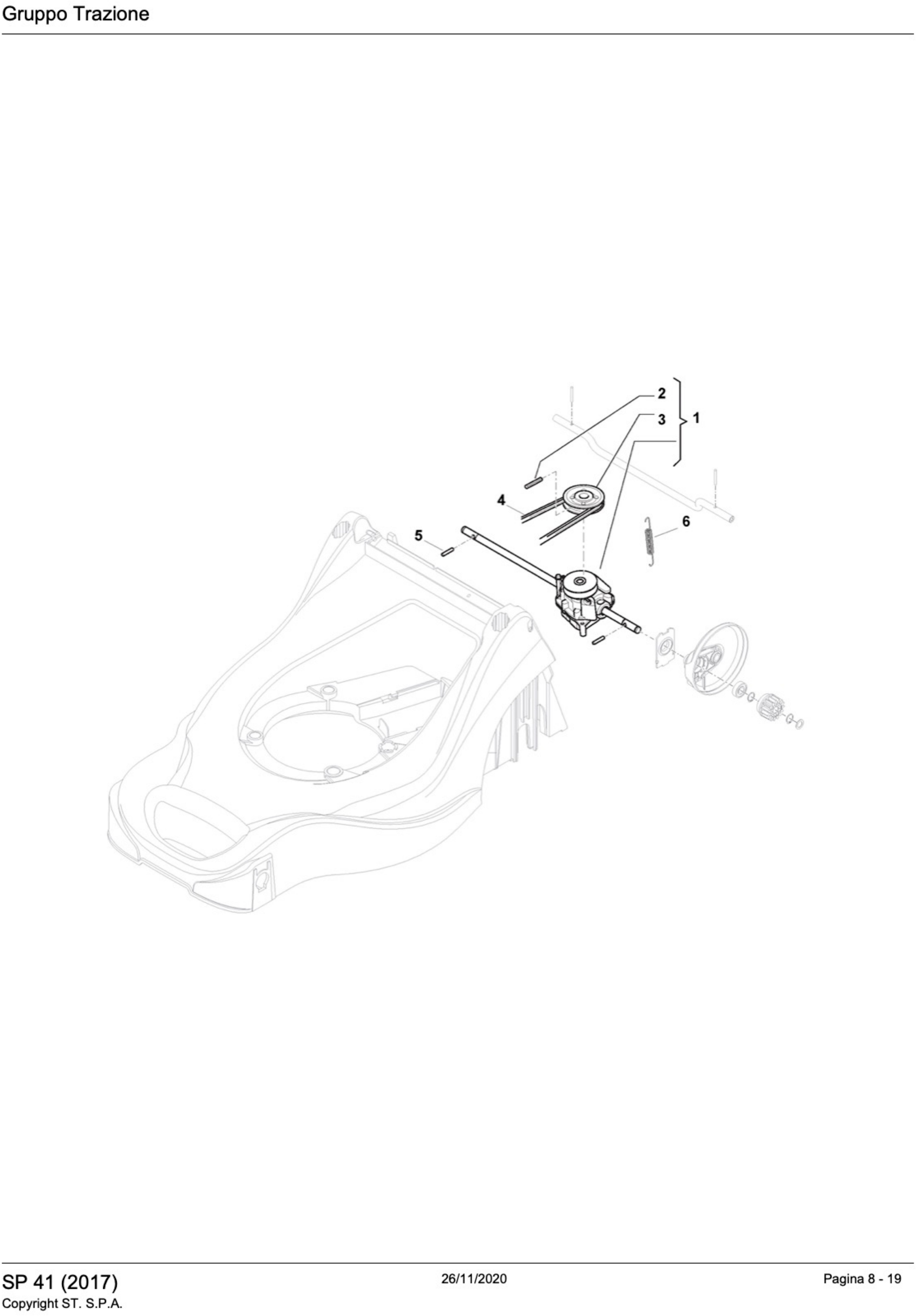

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 181003108/0 Traction group €69.43
2
photo_cameraImage coming soon 112645705/0 Elastic pin ø5X32 €1.61
3
photo_cameraImage coming soon 122601909/0 Pulley €7.00
4
photo_cameraImage coming soon 135063730/0 Belt €7.90
5
Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ 122753000/0 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ €1.72
6
photo_cameraImage coming soon 125430216/0 Spring €2.79

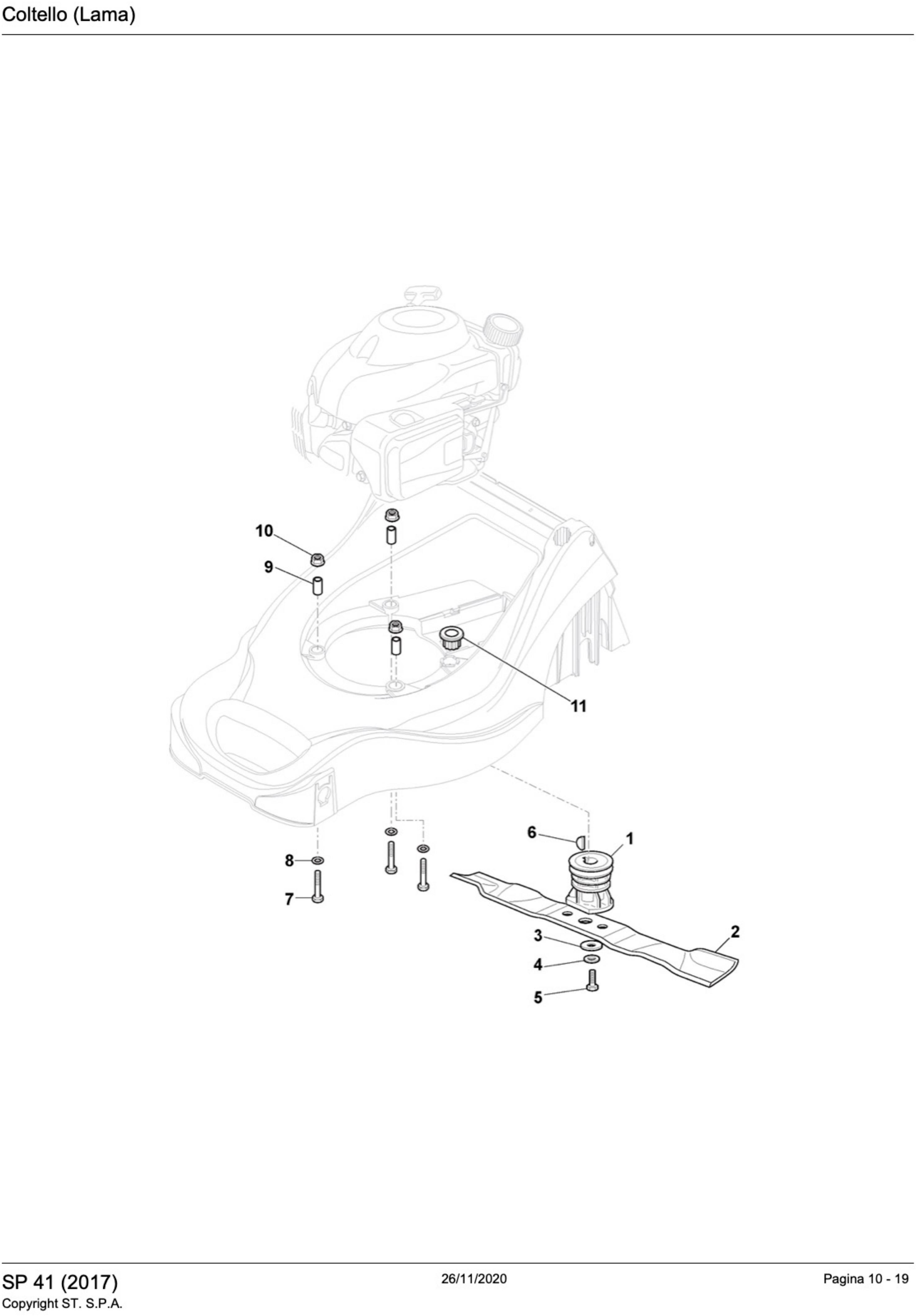

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1111-9120-01 BLADE BOSS Stiga Packed into 122465607/4 €21.56
1
photo_cameraImage coming soon 122465607/3 Hub With Pulley, Crankshaft Ø 22.2 €13.91
1
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ 122465607/4 Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ €9.20
2
photo_cameraImage coming soon 181004152/0 Knife €11.23
2
photo_cameraImage coming soon 181004360/3 Blade Mulching From 01-september-2007 €11.23
3
Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ 122160400/0 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ €3.71
4
Alpina Washer M 10 for BL 510 SHQ 112523080/0 Alpina Washer M 10 for BL 510 SHQ €1.59
5
Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
6
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
8
photo_cameraImage coming soon 112523060/0 WASHER FOR RM63.7 €1.64
9
photo_cameraImage coming soon 122167842/0 Spacer €1.96
10
photo_cameraImage coming soon 112154210/0 Nut €1.78
11
photo_cameraImage coming soon 122040265/0 Bushing €1.43
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322600212/0 Black stone guard €8.96
2
photo_cameraImage coming soon 122450467/0 Spring €1.69
3
photo_cameraImage coming soon 122517870/0 Pin €1.63
4
photo_cameraImage coming soon 181006420/0 Frame €24.40
4
photo_cameraImage coming soon 181006420/1 Frame €24.16
5
photo_cameraImage coming soon 181002320/0 Grass Bag €25.86

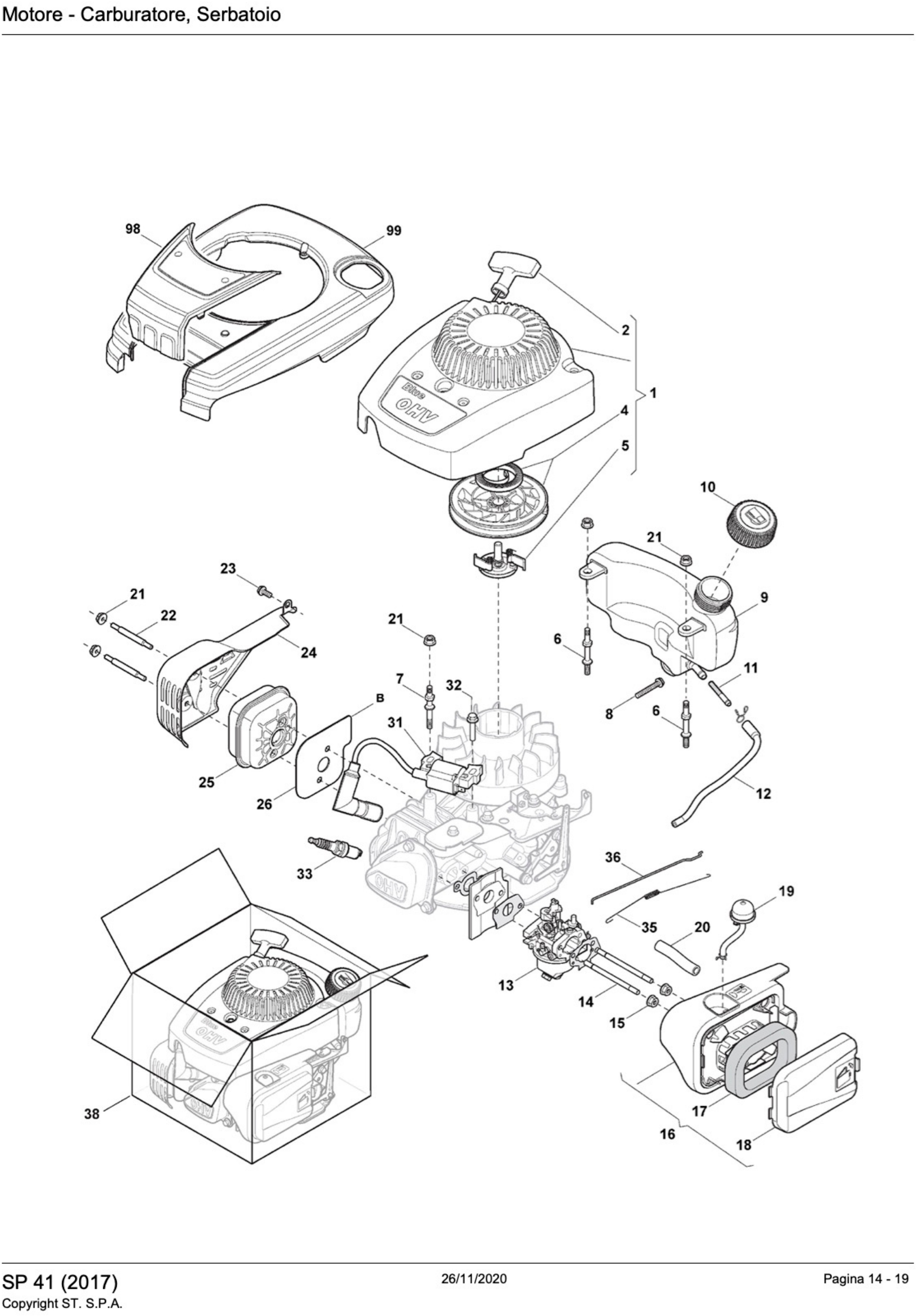

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Recoil Starter Ass'y for Petrol Engine Alpina RS100 BLUE OHV 118550693/0 Recoil Starter Ass'y for Petrol Engine Alpina RS100 BLUE OHV €44.18
2
photo_cameraImage coming soon 118550694/0 Starter Handle €3.58
4
Spring and Reel Recoil Starter Set for Petrol Engine Alpina RSC 100 OHV 118550695/0 Spring and Reel Recoil Starter Set for Petrol Engine Alpina RSC 100 OHV €13.50
5
Starter Pawl Set for Petrol Engine Alpina RSC 100 OHV 118550696/0 Starter Pawl Set for Petrol Engine Alpina RSC 100 OHV €7.46
6
photo_cameraImage coming soon 118550713/0 Screw €5.37
7
photo_cameraImage coming soon 118550714/0 Screw €2.96
8
photo_cameraImage coming soon 112689515/0 Screw €1.65
9
photo_cameraImage coming soon 118550712/0 Fuel Tank €16.88
10
photo_cameraImage coming soon 118550711/0 Fuel Cap €4.74
11
Fuel Filter for Petrol Lawnmower Alpina BL 410 - AL3 46 G 118550715/0 Fuel Filter for Petrol Lawnmower Alpina BL 410 - AL3 46 G €2.43
12
Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV 118550716/0 Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV €4.51
13
Carburator Ass'y for Petrol Engine Alpina RS100 BLUE OHV 118550697/0 Carburator Ass'y for Petrol Engine Alpina RS100 BLUE OHV €46.74
14
photo_cameraImage coming soon 118550706/0 Screw €3.58
15
photo_cameraImage coming soon 112292102/0 Nut €1.86
16
Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV 118550702/0 Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV €16.28 Not available for order
17
photo_cameraImage coming soon 118550704/0 Air Filter €3.66
18
photo_cameraImage coming soon 118550703/0 Air Cleaner Cover €7.45
19
photo_cameraImage coming soon 118550698/0 Air Purge Pump €13.02
20
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV 118550705/0 Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV €2.63
21
photo_cameraImage coming soon 112292102/0 Nut €1.86
22
photo_cameraImage coming soon 118550710/0 Screw €3.58
23
photo_cameraImage coming soon 112735699/0 Screw €1.65
24
photo_cameraImage coming soon 118550709/0 Muffler Guard €20.36
25
photo_cameraImage coming soon 118550708/0 Muffler €17.42
26
photo_cameraImage coming soon 118550707/0 Muffler Gasket €2.96
31
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G 118550719/0 Electronic Ignition Coil for Lawnmower Alpina AL3 46 G €31.54
32
photo_cameraImage coming soon 112792099/0 Screw €1.63
33
NGK Spark Plug K7RTC for Petrol Tiller Alpina TI 36 G 118550658/0 NGK Spark Plug K7RTC for Petrol Tiller Alpina TI 36 G €8.89
35
photo_cameraImage coming soon 118550720/0 Spring €1.65
36
photo_cameraImage coming soon 118550721/0 Governor Link €1.73
38
Four-Stroke Petrol Engine Alpina GGP RS100 118550732/0 Four-Stroke Petrol Engine Alpina GGP RS100 €215.27 €204.51 -5%
98
photo_cameraImage coming soon 322055521/0 Grey Cover €10.54
99
photo_cameraImage coming soon 322055518/0 Black Cover €15.99
99
photo_cameraImage coming soon 381002079/0 Hood Black Assy (Pos. 98 + 99) additional parts not for all models €10.57

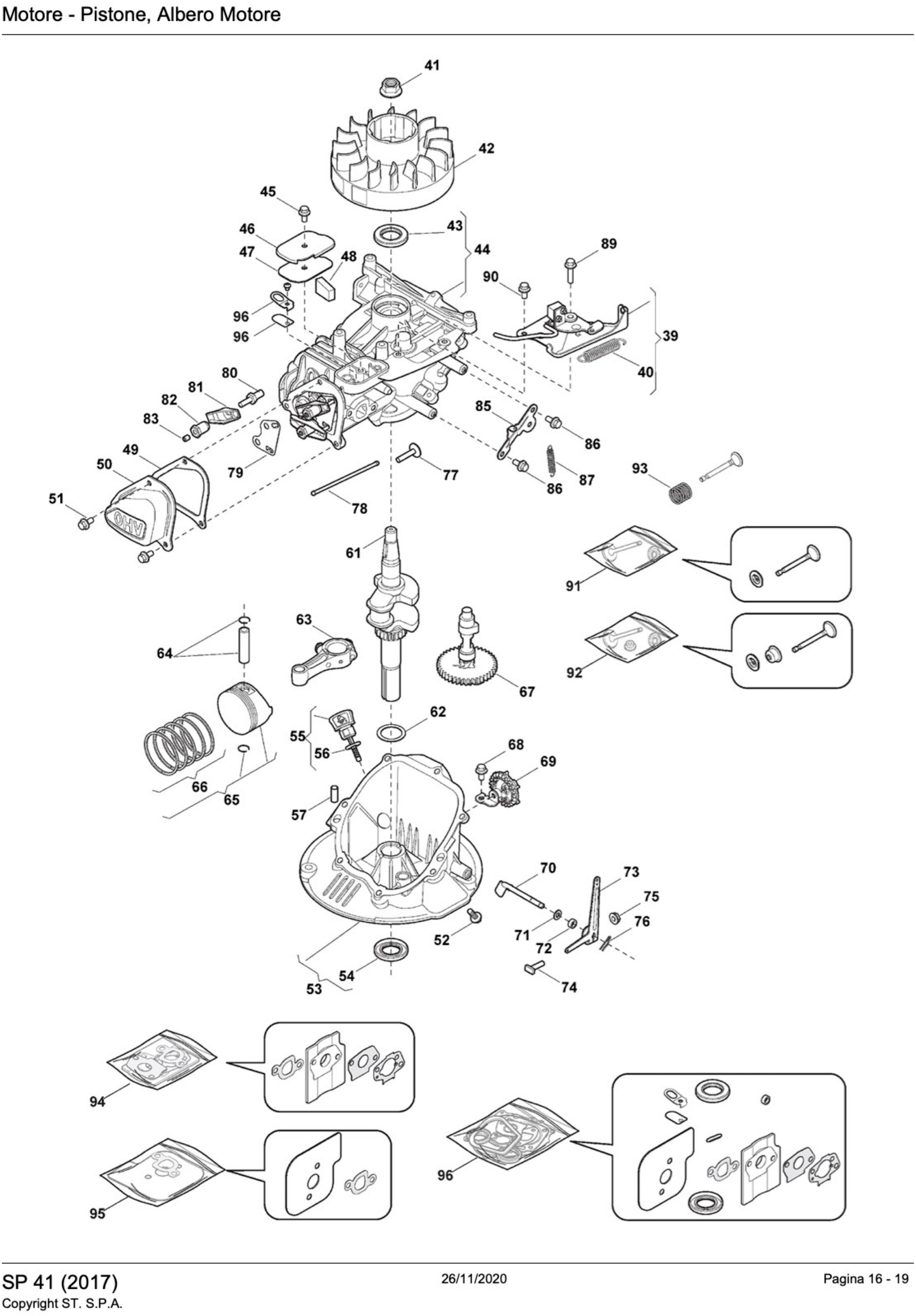

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
39
photo_cameraImage coming soon 118550728/0 Brake assy €21.36
40
photo_cameraImage coming soon 118550727/0 Spring €1.96
41
photo_cameraImage coming soon 118550717/0 Nut €1.65
42
photo_cameraImage coming soon 118550718/0 Flywheel Ass.Y €55.91
43
photo_cameraImage coming soon 118550661/0 Oil Seal €3.58
44
photo_cameraImage coming soon 118550729/0 Cylinder Head Assy €153.12
45
photo_cameraImage coming soon 112735699/0 Screw €1.65
46
photo_cameraImage coming soon 118550659/0 Cover €2.53
47
photo_cameraImage coming soon 118550733/0 Gasket, Breath Groove €16.11
48
Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G 118550660/0 Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G €3.35
49
photo_cameraImage coming soon 118550680/0 Gasket €2.34
50
photo_cameraImage coming soon 118550681/0 Cover Comp., Head €8.77
51
photo_cameraImage coming soon 112735699/0 Screw €1.65
52
photo_cameraImage coming soon 112791500/0 Screw €1.64
53
photo_cameraImage coming soon 118550672/0 Crankase Cover Assy €64.56
54
photo_cameraImage coming soon 118550668/0 Oil Seal €4.14
55
photo_cameraImage coming soon 118550669/0 Tank Cap €2.28
56
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV 118550670/0 Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV €1.84
57
photo_cameraImage coming soon 118550664/0 Pin €2.96
61
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV 118550674/0 Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV €75.58
62
photo_cameraImage coming soon 118550673/0 Washer €1.65
63
photo_cameraImage coming soon 118550675/0 Connecting Rod Assy €16.11
64
photo_cameraImage coming soon 118550678/0 Circlip + Piston Pin €4.21
65
photo_cameraImage coming soon 118550677/0 Piston Assy €37.67
66
photo_cameraImage coming soon 118550679/0 Piston, Ring Set €12.40
67
photo_cameraImage coming soon 118550682/0 Camshaft assy €18.50
68
photo_cameraImage coming soon 112735699/0 Screw €1.65
69
photo_cameraImage coming soon 118550662/0 Speed Governor Assy €7.83
70
photo_cameraImage coming soon 118550665/0 Shaft, Governor Arm €3.51
72
photo_cameraImage coming soon 118550671/0 Gasket €2.35
73
photo_cameraImage coming soon 118550723/0 Support Governor €2.95
76
photo_cameraImage coming soon 118550667/0 Cotter Pin €1.65
77
photo_cameraImage coming soon 118550683/0 Valve Lifter €5.13
78
photo_cameraImage coming soon 118550684/0 Push Rods €8.61
79
photo_cameraImage coming soon 118550685/0 Plate €1.85
80
photo_cameraImage coming soon 118550686/0 Screw €3.58
81
photo_cameraImage coming soon 118550687/0 Valve Arm €4.51
82
photo_cameraImage coming soon 118550688/0 Nut €4.05
83
photo_cameraImage coming soon 118550689/0 Nut €1.65
85
photo_cameraImage coming soon 118550724/0 Plate €2.26
86
photo_cameraImage coming soon 112735699/0 Screw €1.65
87
photo_cameraImage coming soon 118550725/0 Spring €1.73
89
photo_cameraImage coming soon 112791500/0 Screw €1.64
90
photo_cameraImage coming soon 112735699/0 Screw €1.65
91
photo_cameraImage coming soon 118550692/0 Exhaust Valve Assy €19.04
92
photo_cameraImage coming soon 118550691/0 Intake Valve Assy €21.01
93
photo_cameraImage coming soon 118550690/0 Spring €3.66
94
Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV 118550699/0 Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV €12.52
95
photo_cameraImage coming soon 118550731/0 Cylinder Head Gasket Set €5.83
96
photo_cameraImage coming soon 118550730/0 Engine Gasket Set €17.30

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Mountfield Spare Parts for Lawnmower SP 41 (2017)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower SP 41 (2017) 297412048/M17.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
SP 41 (2017) - 297412048/M17

PETROL LAWNMOWER MOUNTFIELD SP 41 (2017) 297412048/M17
Deck Pag.1
# Part Num. Description
1 322066750/0 PLASTIC DECK [RED] EP414
1 322066752/0 PLASTIC DECK [DARK RED] EP414
2 322060245/0 BELT PROTECTION GUARD EP41
3 112154210/0 SELF-LOCK WINGED NUT M8
5 322785361/0 SUPPORT PLATE
6 322735599/0 HEIGHT ADJUST QUADRANT
7 381003352/0 HEIGHT ADJUST LEVER
8 381005089/0 WHEEL STUB AXLE To 31-August-2016
8 381005163/0 WHEEL STUB AXLE From 01-September-2016
9 122519811/0 WHEEL BOLT
10 112521350/0 WASHER M8 8.4 x 16 x 1.6
11 112155000/0 LOW SELF-LOCKING NUT M8
12 112728690/0 SELF-TAP SCREW KA50 x 25
13 322608563/0 REAR BRACKET
15 381003353/0 HEIGHT ADJUST LEVER
16 112728689/0 CREW KA50 x 12
17 322735601/0 HEIGHT ADJUST QUADRANT
18 112728690/0 SELF-TAP SCREW KA50 x 25
19 122033417/0 REAR WHEELS AXLE
20 122753001/0 PIN D=4 x 32
21 112608600/0 CIRCLIP D=12
22 112521370/0 WASHER M12 13 24 X 2.5
23 322570135/0 RIGHT PINION GEAR
24 119216035/0 BEARING 6001 2RS (12 x 28 x 8)
25 322785379/0 AXLE SUPPORT PLATE
26 322600203/0 INNER WHEEL COVER D=175
27 322570136/0 LEFT PINION GEAR
28 322120118/0 PLASTIC DRIVE GEAR D=175
29 112523040/0 WASHER M6 6.6 x 18 x 1.6
30 112735592/0 SELF-TAP SCREW M6 x 20
31 322686101/0 WHEEL c/w BUSH D=175mm To 31-August-2018
31 381007475/0 WHEEL c/w BUSH D=175mm From 01-September-2018
32 322034516/0 WHEEL BUSH D=175
33 322110642/0 HUB CAP D=175 [GREY]
34 322686100/0 DELTA WHEEL D=175 Ø 175
Handle, Lower Part Pag.2
1 381006769/0 R/H-L/H LOWER HANDLE [BLACK]
2 112523020/0 WASHER M5 5.5 x 15 x 1.6
3 112728450/0 SELF-TAP SCREW 4.8 x 19
4 112819110/0 CARRIAGE BOLT M8 x 50
5 118566110/0 HANDLE CAP D=22 [BLACK]
6 122671651/0 WASHER 8.3 x 22 x 2
7 122399900/0 3 SPOKE HANDWHEEL [BLACK]
8 112293200/0 Nut
10 381008687/0 HANDLE SCREWS KIT
Handle, Upper Part Pag.3
1 381006739/0 UPPER HANDLE [BLACK] without Sponge To 31-August-2011
1 381006739/1 UPPER HANDLE [BLACK] without Sponge From 01-September-2011 To 31-August-2017
1 381006739/2 UPPER HANDLE [BLACK] without Sponge From 01-September-2017
2 122430313/0 PULL CORD GUIDE
3 112521330/0 WASHER M6 (6.4 x 12 x 1.6)
4 112154510/0 LOW SELF-LOCKING NUT (M6)
5 118390020/0 CABLE CLIP
6 181030079/0 ENGINE BRAKE CABLE L=995 Honda / B & S / GGP 100cc
7 181003363/0 ENGINE BRAKE LEVER Black To 31-August-2011
7 181003363/1 ENGINE BRAKE LEVER Black From 01-September-2011
8 112727783/0 CROSS-HEAD SCREW M6 x 40
9 322551640/0 CABLE HOLDER BLOCK To S/N 20AA2WBH066503
9 322551685/0 CABLE HOLDER BLOCK ø22 From S/N 20AA2WBH066504
10 112154510/0 LOW SELF-LOCKING NUT (M6)
Transmission Pag.4
1 181003108/0 GEARBOX [BLACK]
2 112645705/0 ROLL PIN D=5 x 32 ø5X32
3 122601909/0 Pulley
4 135063730/0 TRAPEZOIDAL BELT Z26
5 122753000/0 PIN D=5.2 x 25.65
6 125430216/0 TENSION SPRING From 01-September-2017
6 125430216/1 TENSION SPRING To 31-August-2010
6 125430217/0 TENSION SPRING From 01-September-2010 To 31-August-2017
Blade Pag.5
1 1111-9120-01 BLADE BOSS Stiga Packed into 122465607/4
1 122465607/3 BLADE BOSS D=22.2mm To 31-December-2018
1 122465607/4 BLADE BOSS D=22.2mm Ø 22.2 From 01-January-2019
2 181004152/0 WINGED BLADE D.390 To 31-August-2011
2 181004360/3 Mulching blade From 01-September-2011
3 122160400/0 SPRING WASHER 50 x 2 x 10.2
4 112523080/0 WASHER M10 11 x 30 x 2.5
5 112735698/0 HEX-HEAD SCREW 3/8" x 2"
6 112139100/0 WOODRUFF KEY 4 x 6.5 D=16
7 112691910/0 HEX-HEAD SCREW (M8 x 65)
8 112523060/0 WASHER M8 8.4 x 24 x 2
9 122167842/0 Spacer From 01-September-2010
10 112154210/0 SELF-LOCK WINGED NUT M8
11 122040265/0 MOTOR BUSH
Grass-Catcher Pag.6
1 322600212/0 DEFLECTOR [BLACK]
2 122450467/0 DEFLECTOR SPRING
3 122517870/0 DEFLECTOR ROD
4 181006420/0 GRASSCATCHER FRAME To 31-August-2019
4 181006420/1 GRASSCATCHER FRAME From 01-September-2019
5 181002320/0 GRASSBAG [BLACK]
Engine - Carburettor, Tank Pag.7
1 118550693/0 RECOIL ASSEMBLY 100cc
2 118550694/0 RECOIL HANDLE
4 118550695/0 RECOIL PULLEY AND SPRING
5 118550696/0 STARTER PAWL SET
6 118550713/0 LONG STUD BOLT
7 118550714/0 STUD BOLT
8 112689515/0 HEX-HEAD SCREW M6 x 45
9 118550712/0 FUEL TANK
10 118550711/0 FUEL TANK CAP
11 118550715/0 FUEL FILTER
12 118550716/0 FUEL TUBE
13 118550697/0 CARBURETTOR
14 118550706/0 STUD
15 112292102/0 HEXAGON NUT M6 WITH EXAGONAL FLANGE
16 118550702/0 AIR CLEANER ASSEMBLY
17 118550704/0 FOAM AIR FILTER
18 118550703/0 AIR FILTER COVER
19 118550698/0 PRIMER PUMP
20 118550705/0 BREATHER FUEL PIPE
21 112292102/0 HEXAGON NUT M6 WITH EXAGONAL FLANGE
21 112292102/0 HEXAGON NUT M6 WITH EXAGONAL FLANGE
22 118550710/0 STUD BOLT
23 112735699/0 SCREW M6 x 12
24 118550709/0 MUFFLER GUARD
25 118550708/0 MUFFLER
26 118550707/0 MUFFLER GASKET
31 118550719/0 IGNITION COIL
32 112792099/0 HEX HEAD SCREW M6 x 30
33 118550658/0 SPARK PLUG [K7RTC]
35 118550720/0 THROTTLE VALVE SPRING
36 118550721/0 GOVERNER ROD
38 118550732/0 ENGINE 100cc OHV [RS100]
98 322055521/0 ENGINE RING COVER RS100 [GREY]
99 322055518/0 ENGINE RING COVER RS100 [YELLOW]
99 381002079/0 ENGINE COVER RS100 [BLACK]
Engine - Piston, Crankshaft Pag.8
39 118550728/0 BRAKE/STOP SWITCH ASSEMBLY
40 118550727/0 Spring
41 118550717/0 FLYWHEEL NUT
42 118550718/0 FLYWHEEL ASSEMBLY
43 118550661/0 OIL SEAL
44 118550729/0 CYLINDER HEAD ASSEMBLY
45 112735699/0 SCREW M6 x 12
46 118550659/0 Cover
47 118550733/0 Gasket, breath groove
48 118550660/0 OIL FILTER
49 118550680/0 CYLINDER HEAD GASKET
50 118550681/0 CYLINDER HEAD COVER
51 112735699/0 SCREW M6 x 12
52 112791500/0 SCREW M6 x 25
53 118550672/0 CRANKCASE COVER
54 118550668/0 OIL SEAL
55 118550669/0 OIL DIPSTICK ASSEMBLY
56 118550670/0 O RING
57 118550664/0 Pin
61 118550674/0 CRANKSHAFT
62 118550673/0 WASHER
63 118550675/0 CONNECTING ROD
64 118550678/0 Circlip + Piston Pin
65 118550677/0 PISTON ASSEMBLY
66 118550679/0 PISTON RING SET
67 118550682/0 CAMSHAFT
68 112735699/0 SCREW M6 x 12
69 118550662/0 SPEED GOVERNOR ASSEMBLY
70 118550665/0 GOVERNOR ARM SHAFT
71 118550666/0 Washer
72 118550671/0 Gasket
73 118550723/0 SUPPORT GOVERNOR
74 118550726/0 Screw
75 118550722/0 Nut
76 118550667/0 Cotter pin
77 118550683/0 TAPPET VALVE
78 118550684/0 LIFTER VALVE
79 118550685/0 Plate
80 118550686/0 VALVE ADJUSTING BOLT
81 118550687/0 Rocker Valves
82 118550688/0 Nut
83 118550689/0 Nut
85 118550724/0 Plate
86 112735699/0 SCREW M6 x 12
87 118550725/0 GOVERNOR SPRING
89 112791500/0 SCREW M6 x 25
90 112735699/0 SCREW M6 x 12
91 118550692/0 EXHAUST VALVE
92 118550691/0 INTAKE VALVE
93 118550690/0 SPRING
94 118550699/0 CARBURETTOR GASKET KIT
95 118550731/0 CYLINDER HEAD GASKET KIT
96 118550730/0 ENGINE GASKET SET

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SP 41 (2017) - 297412048/M17
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Mountfield SP 41 (2017)

Diagram Mountfield SP 41 (2017)

Download (1.16MB)

You might also like

Four-Stroke Petrol Engine Alpina GGP RS 100 -5%
GGP Italy SKU: 118550732/0
Four-Stroke Petrol Engine Alpina GGP RS100 Original Alpina Petrol Engine, High Performance Four-stroke petrol engine Alpina GGP RS100. Ricanbio for the following products: - Lawnmower BL 410/295441044 / A12-2017 - Lawnmower...
AVAILABLE €204.51 €215.27
GGP Italy SKU: 181003363/1
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Engine Brake Lever Black From 01-september-2010 for Self Propelled Lawnmower AL3 46 B - AL3 46 G - AL3 46 SG. Part for the following...
AVAILABLE €16.33
GGP Italy SKU: 118550705/0
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV- Petrol Tiller TI 36 G - Stiga SRC 36 G. Part for the following products: - Engine RSC...
in stock €2.63
GGP Italy SKU: 118550719/0
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G Original part Alpina, Electronic Ignition for Lawnmower BL 410 - AL3 46 G - Rotary Tiller TI 36 G - Engine RS100 BLUE OHV. Part for the following products: - Lawnmower BL 410 -...
Last items in stock €31.54
GGP Italy SKU: 118550674/0
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV Genuine part Alpina, Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV - Petrol Lawnmower AL3 46 G - BL 410 - Stiga Collector 43. Part for the following products: -  Petrol Engine...
Last items in stock €75.58
GGP Italy SKU: 118550670/0
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV. Part for the following products: -  Engine RSC 100 OHV -  Engine RSCT 100 OHV -  Petrol...
on 7/10 Business Days Approx €1.84
GGP Italy SKU: 322551685/0
Cable Plate for Lawn Mower DINO 47 Original spare part Alpina, Cable Plate ø22 From S/N 20AA2WBH066504 for Lawn Mower DINO 47 - BL 450. Parts for the following products: -  LAWNMOWER CASTELGARDEN XC 48 GSW4 - L AWNMOWER ALPINA BL 460...
Last items in stock €7.97
GGP Italy SKU: 118550702/0
Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV Genuine part Alpina, Air Cleaner Ass'y with Support for Petrol Engine Alpina RS100 BLUE OHV - Petrol Lawnmower AL3 46 G - BL 410 - Stiga Collector 43. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €16.28
Comments (0)
