Mountfield Parts for Petrol Lawnmower HP46 (2013)

SKU: HP46 (2013) 299174643/M13
€122.23
VAT included

Mountfield Parts for Petrol Lawnmower HP46 (2013)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Lawnmower HP46 (2013) 299174643/M13.

HP46 (2013) 299174643/M13
Mountfield Parts for Petrol Lawnmower HP46 (2013)
  • Mountfield Parts for Petrol Lawnmower HP46 (2013)
  • Mountfield Parts for Petrol Lawnmower HP46 (2013)
  • Mountfield Parts for Petrol Lawnmower HP46 (2013)
  • Mountfield Parts for Petrol Lawnmower HP46 (2013)
  • Mountfield Parts for Petrol Lawnmower HP46 (2013)
  • Mountfield Parts for Petrol Lawnmower HP46 (2013)
  • Mountfield Parts for Petrol Lawnmower HP46 (2013)
  • Mountfield Parts for Petrol Lawnmower HP46 (2013)
  • Mountfield Parts for Petrol Lawnmower HP46 (2013)

Mountfield Parts for Petrol Lawnmower HP46 (2013)

SKU: HP46 (2013) 299174643/M13 Condition: New
€122.23
VAT included

Mountfield Parts for Petrol Lawnmower HP46 (2013)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Lawnmower HP46 (2013) 299174643/M13.

HP46 (2013) 299174643/M13
settings 149 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

141 spare parts

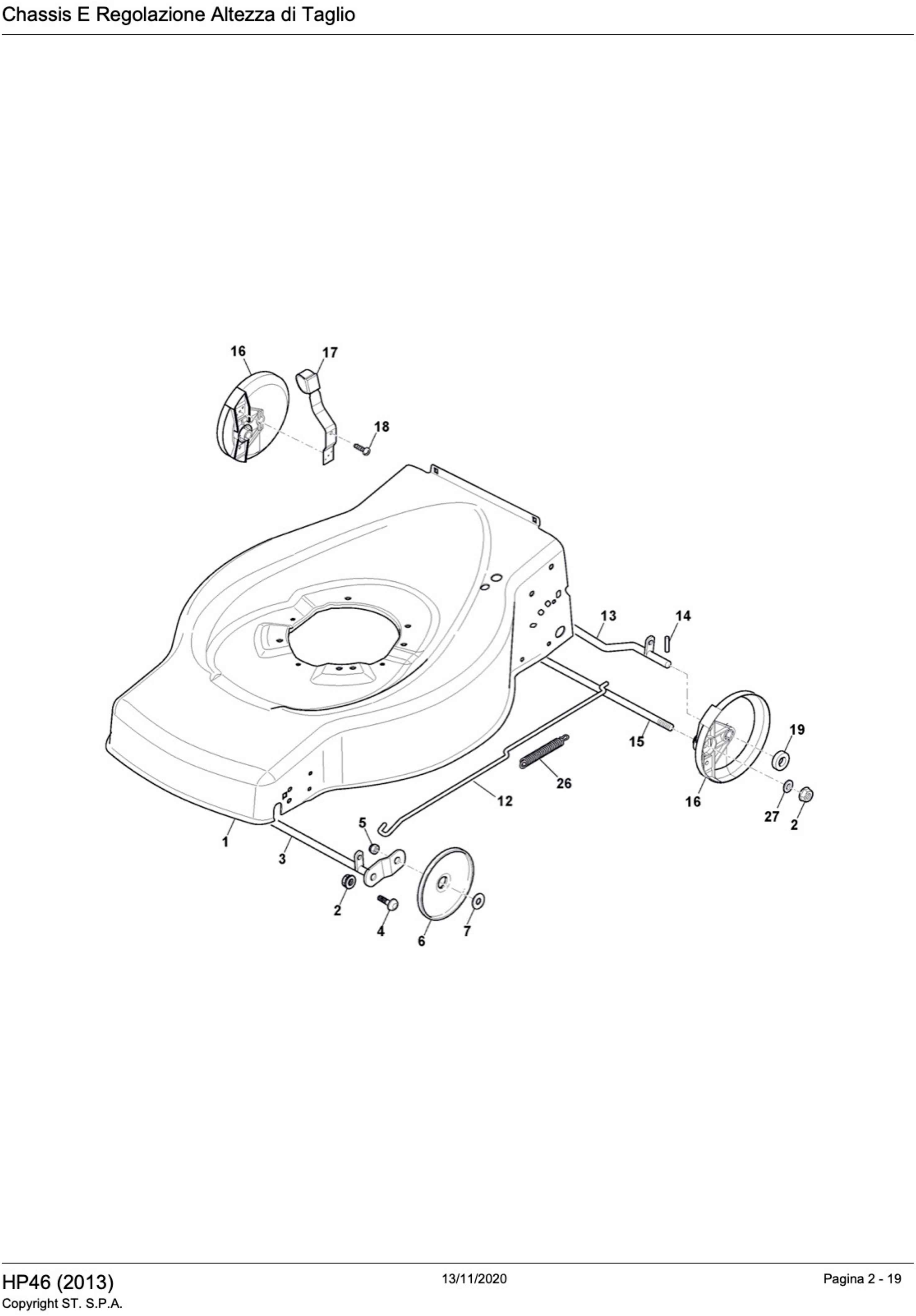

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381002538/0 Steel deck €100.38
2
photo_cameraImage coming soon 122131750/0 NUT M8 €2.01
3
photo_cameraImage coming soon 381000153/0 Front Wheel Axle €43.38
4
photo_cameraImage coming soon 112760600/0 Screw M8x16 To 31-August-2018 €1.95
4
photo_cameraImage coming soon 112760600/1 Screw M8x16 From 01-September-2018 €1.96
5
photo_cameraImage coming soon 112155000/0 Nut €1.66
6
photo_cameraImage coming soon 322600095/0 Inner Wheel Cover €1.55
7
photo_cameraImage coming soon 122671651/0 Washer €2.11
7
photo_cameraImage coming soon 325670011/0 Antifriction washer €1.62
12
photo_cameraImage coming soon 122033317/0 Adjustment Rod €12.54
13
photo_cameraImage coming soon 381000155/0 Rear Wheel Axle To 31-August-2006 €33.29
13
photo_cameraImage coming soon 381000159/0 Rear Wheel Axle From 01-September-2006 €21.12
14
photo_cameraImage coming soon 122753001/0 Plug €1.43
15
photo_cameraImage coming soon 122033369/0 Rear Axle Rod €6.08
16
photo_cameraImage coming soon 322600106/1 Wheel Protection From 01-September-2004 €4.93
17
photo_cameraImage coming soon 381003303/0 Rear Height Adjuster Lever €14.96
18
photo_cameraImage coming soon 112728689/0 Screw €1.43
19
photo_cameraImage coming soon 112521370/0 Washer €1.64
19
photo_cameraImage coming soon 322170622/0 Spacer From 01-September-2006 €1.38
26
photo_cameraImage coming soon 122446186/0 Spring Only for 534 Models €3.60
27
photo_cameraImage coming soon 122675100/0 Washer €1.62

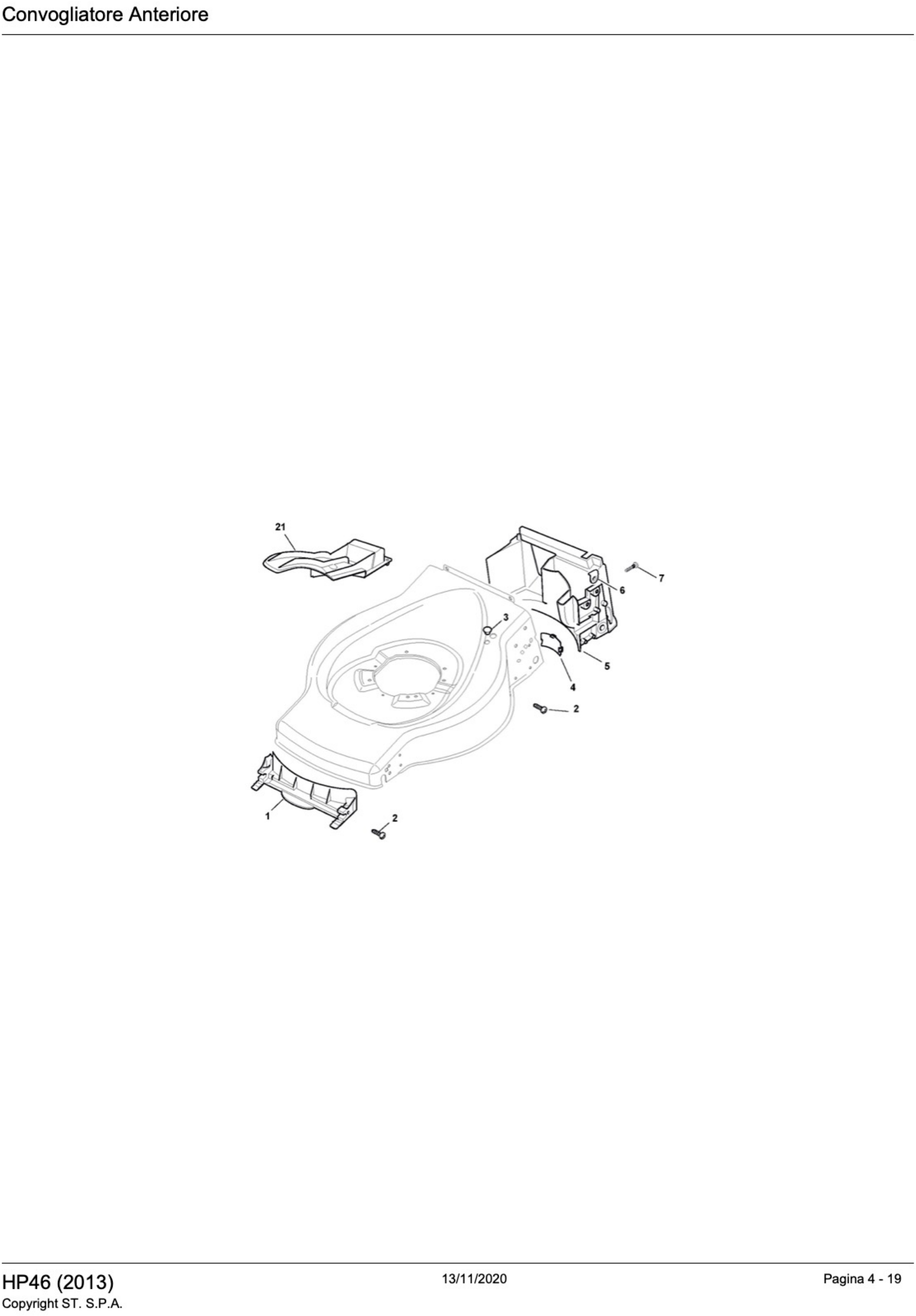

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322108271/0 Plastic front baffle €12.52
2
photo_cameraImage coming soon 112728686/0 Screw €1.62
3
photo_cameraImage coming soon 118737854/1 Cap €1.48
3
photo_cameraImage coming soon 322820077/1 Cap From 01-september-2016 €1.66
4
photo_cameraImage coming soon 322109532/0 Transmission cover €1.43
5
photo_cameraImage coming soon 322108272/2 Plastic rear baffle €16.55
6
photo_cameraImage coming soon 322545189/0 Plate €1.65
7
photo_cameraImage coming soon 112728686/0 Screw €1.62
21
photo_cameraImage coming soon 322140226/0 MUCLH PLUG-YELLOW €17.62

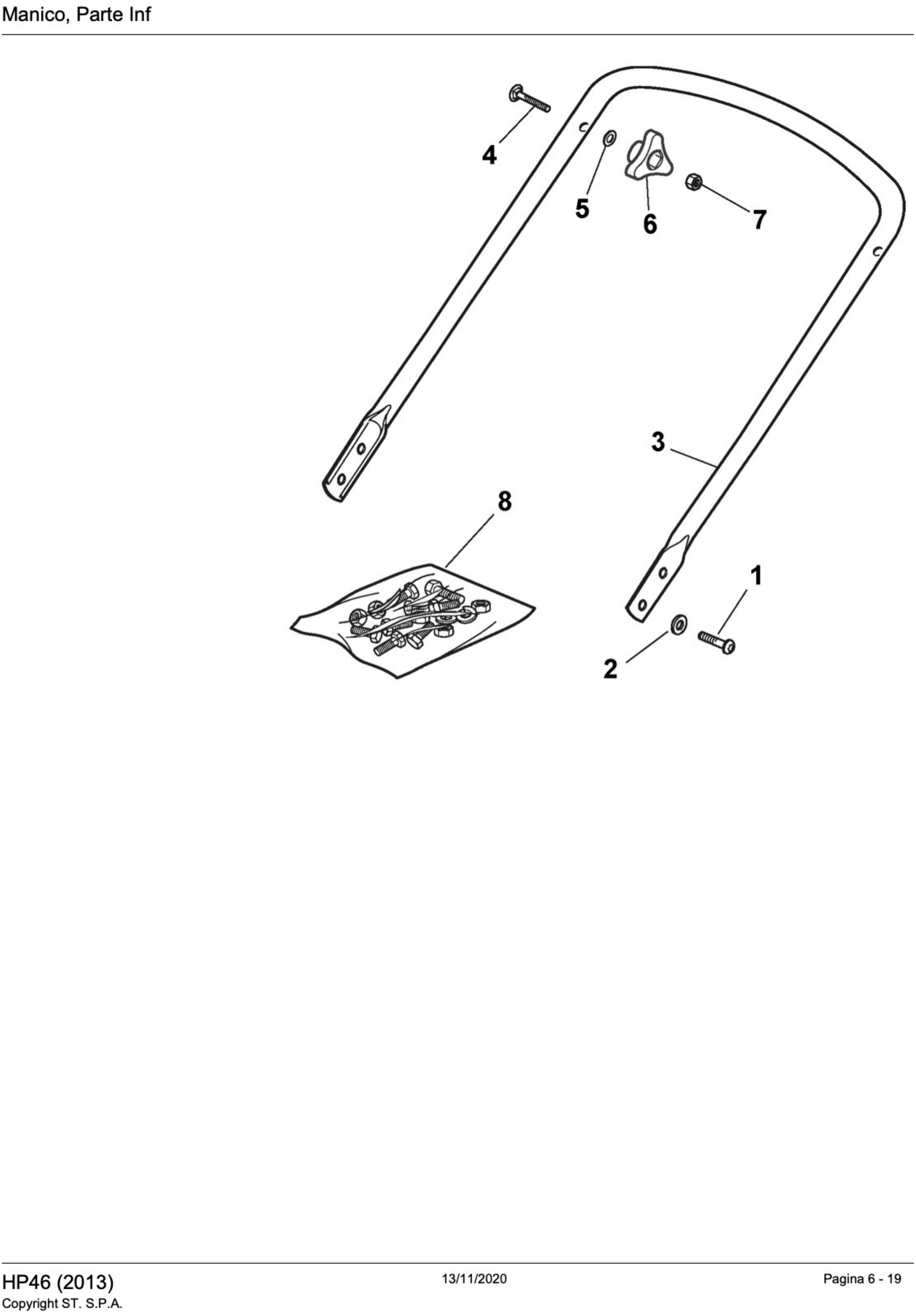

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112760605/0 Screw €3.52
2
photo_cameraImage coming soon 112521350/0 Washer €1.74
3
photo_cameraImage coming soon 381006570/0 Lower Handle €40.01
4
photo_cameraImage coming soon 112819120/0 Screw €1.47
4
photo_cameraImage coming soon 112819121/0 Screw €2.04
5
photo_cameraImage coming soon 122671651/0 Washer €2.11
6
3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
7
photo_cameraImage coming soon 112293200/0 Nut €1.74
8
photo_cameraImage coming soon 381008696/0 Screw assmbly kit €5.12

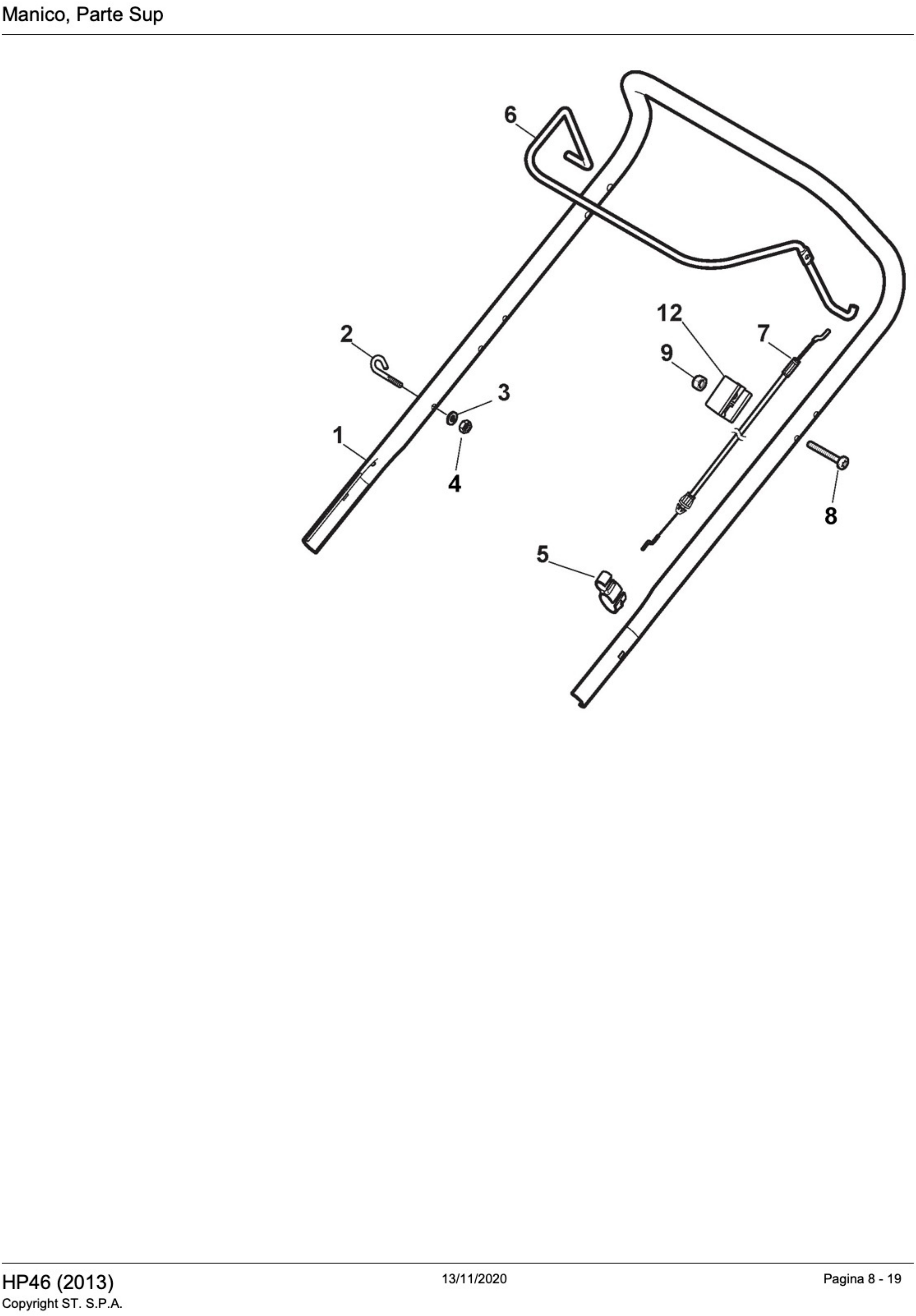

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381006739/0 Handle, Upper Part To 31-August-2011;Black without Sponge €19.67
1
photo_cameraImage coming soon 381006739/1 Handle, Upper Part €19.67
1
photo_cameraImage coming soon 381006739/2 Handle, Upper Part Black without Sponge;From 01-September-2011 To 31-August-2017 €24.91
1
photo_cameraImage coming soon 381006745/0 Handle, Upper Part with Sponge To 31-August-2011;Black with Sponge €27.20
1
photo_cameraImage coming soon 381006745/1 Handle, Upper Part with sponge handgrip €40.01
1
photo_cameraImage coming soon 381006745/2 Handle, Upper Part with Sponge Black with Sponge;From 01-September-2017 To 31-August-2018 €37.12
1
photo_cameraImage coming soon 381006745/3 Handle, Upper Part with Sponge Black with Sponge;From 01-september-2018 €41.74
2
photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
3
photo_cameraImage coming soon 112521330/0 Washer €1.70
4
photo_cameraImage coming soon 112154510/0 Nut €1.66
5
Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G 118390020/0 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G €1.85
6
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B 181003363/1 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B €16.33
7
photo_cameraImage coming soon 181030087/0 Motor Brake Cable €13.35
8
photo_cameraImage coming soon 112727783/0 Screw €1.83
9
photo_cameraImage coming soon 112154510/0 Nut €1.66
12
photo_cameraImage coming soon 322551640/0 Plate €7.99
12
Cable Plate for Lawn Mower DINO 47 322551685/0 Cable Plate for Lawn Mower DINO 47 €7.97
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

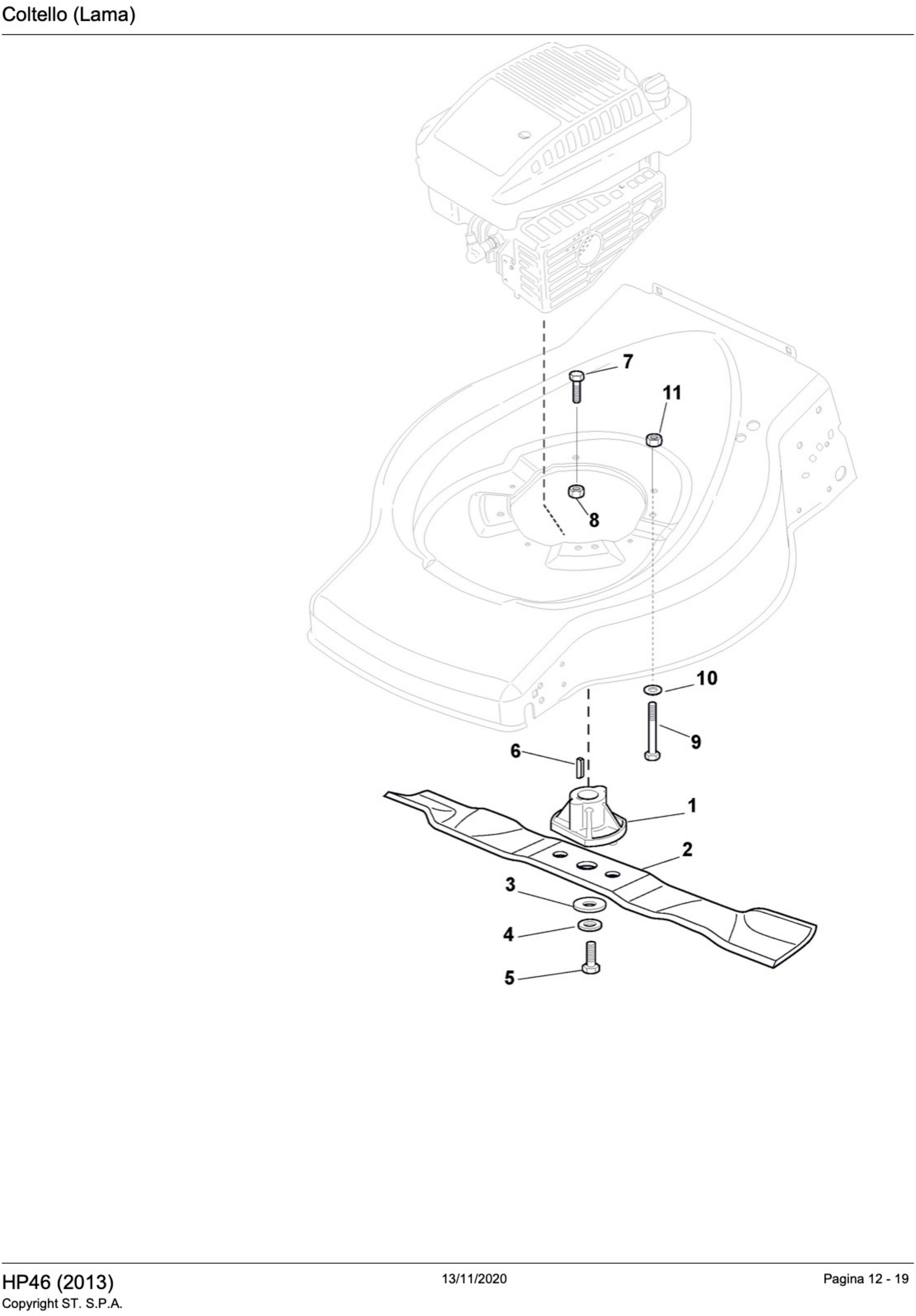

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 122463012/1 Hub To 31-august-2007 €7.57
1
Blade Boss for Self Propelled Lawnmower Alpina AL3 46 B 122463012/2 Blade Boss for Self Propelled Lawnmower Alpina AL3 46 B €8.74
2
photo_cameraImage coming soon 181004121/0 Mulching blade €12.38
2
Mulching Blade 44 cm for Lawnmower Alpina BL 440 B 181004365/3 Mulching Blade 44 cm for Lawnmower Alpina BL 440 B €15.64
3
photo_cameraImage coming soon 112369600/0 Elastic Disk To 31-august-2007 €3.80
3
Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ 122160400/0 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ €3.71
4
Alpina Washer M 10 for BL 510 SHQ 112523080/0 Alpina Washer M 10 for BL 510 SHQ €1.59
5
Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
6
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
7
photo_cameraImage coming soon 112793701/0 Screw €1.64
8
photo_cameraImage coming soon 112293201/0 Nut €2.46
9
photo_cameraImage coming soon 112691800/0 Screw €1.58
10
photo_cameraImage coming soon 112521350/0 Washer €1.74
11
photo_cameraImage coming soon 112155000/0 Nut €1.66

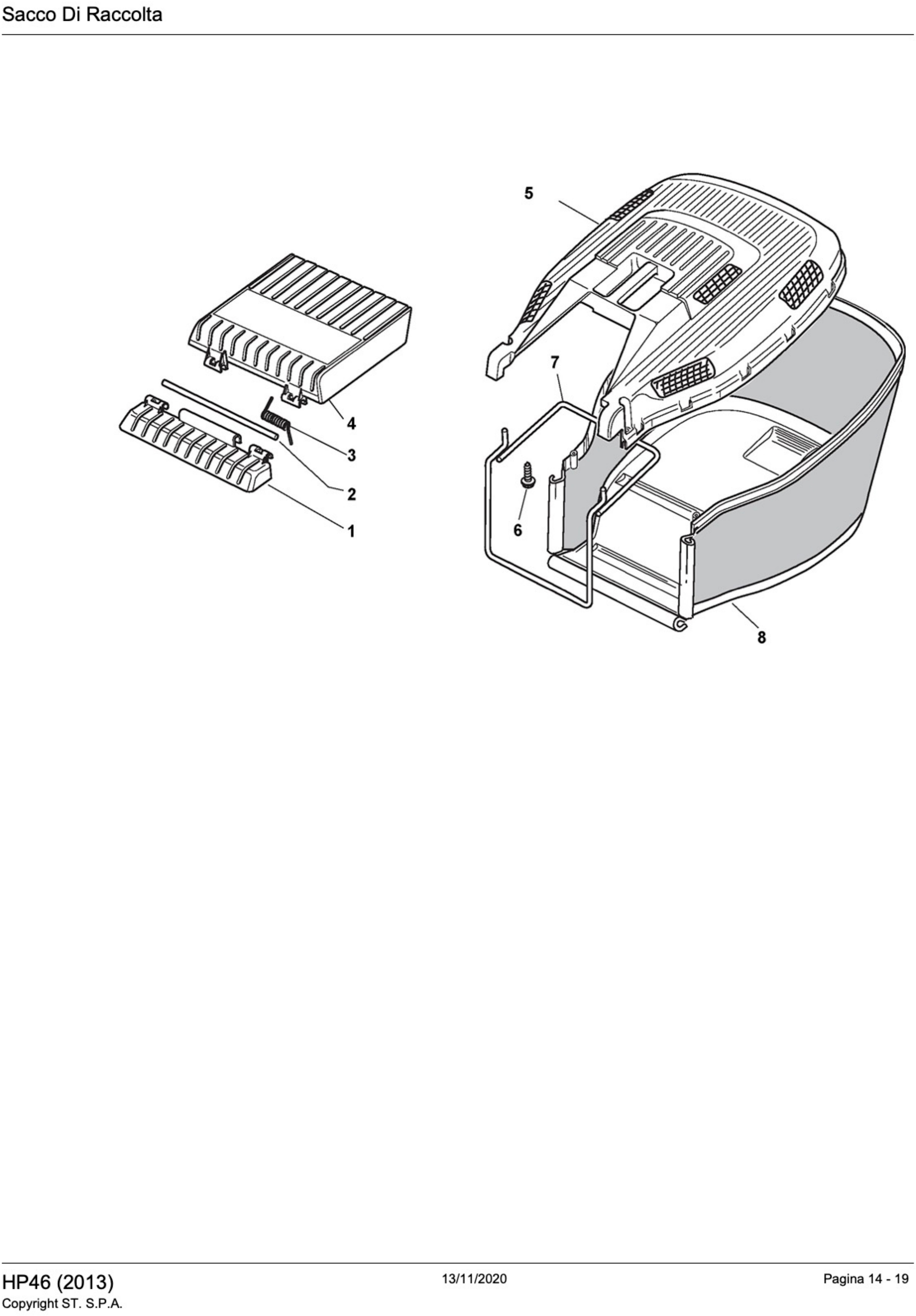

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322785136/1 Support Safety Cover Nero €3.02
2
photo_cameraImage coming soon 122517858/0 Pin €4.86
3
photo_cameraImage coming soon 122450431/0 Spring €6.71
4
photo_cameraImage coming soon 322600099/1 Safety Cover, Black, From 01-september-2008 To 31-august 2011 €4.20
4
photo_cameraImage coming soon 322600099/2 Safety Cover, Black, From 01-september-2011 €4.20
5
photo_cameraImage coming soon 322486122/0 Top Bag Black €25.01
6
photo_cameraImage coming soon 112728691/0 Screw €1.64
7
photo_cameraImage coming soon 181006419/0 Grasscatcher frame €16.09
8
photo_cameraImage coming soon 181002229/0 Grassbug €36.92
8
photo_cameraImage coming soon 181002229/1 Grassbug €34.25

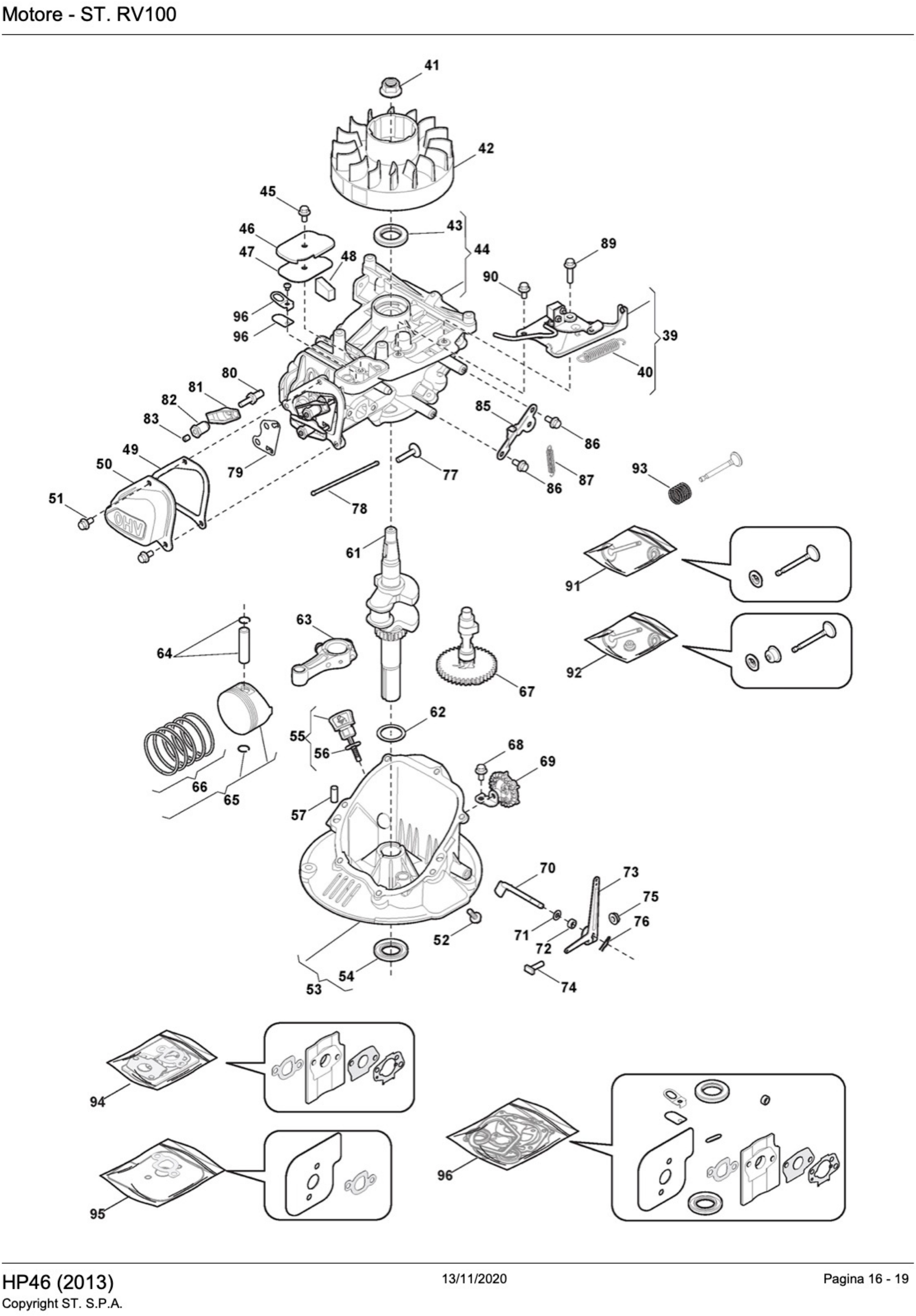

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
39
photo_cameraImage coming soon 118550728/0 Brake assy €21.36
40
photo_cameraImage coming soon 118550727/0 Spring €1.96
41
photo_cameraImage coming soon 118550717/0 Nut €1.65
42
photo_cameraImage coming soon 118550718/0 Flywheel Ass.Y €55.91
43
photo_cameraImage coming soon 118550661/0 Oil Seal €3.58
44
photo_cameraImage coming soon 118550729/0 Cylinder Head Assy €153.12
45
photo_cameraImage coming soon 112735699/0 Screw €1.65
46
photo_cameraImage coming soon 118550659/0 Cover €2.53
47
photo_cameraImage coming soon 118550733/0 Gasket, Breath Groove €16.11
48
Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G 118550660/0 Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G €3.35
49
photo_cameraImage coming soon 118550680/0 Gasket €2.34
50
photo_cameraImage coming soon 118550681/0 Cover Comp., Head €8.77
51
photo_cameraImage coming soon 112735699/0 Screw €1.65
52
photo_cameraImage coming soon 112791500/0 Screw €1.64
53
photo_cameraImage coming soon 118550672/0 Crankase Cover Assy €64.56
54
photo_cameraImage coming soon 118550668/0 Oil Seal €4.14
55
photo_cameraImage coming soon 118550669/0 Tank Cap €2.28
56
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV 118550670/0 Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV €1.84
57
photo_cameraImage coming soon 118550664/0 Pin €2.96
61
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV 118550674/0 Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV €75.58
62
photo_cameraImage coming soon 118550673/0 Washer €1.65
63
photo_cameraImage coming soon 118550675/0 Connecting Rod Assy €16.11
64
photo_cameraImage coming soon 118550678/0 Circlip + Piston Pin €4.21
65
photo_cameraImage coming soon 118550677/0 Piston Assy €37.67
66
photo_cameraImage coming soon 118550679/0 Piston, Ring Set €12.40
67
photo_cameraImage coming soon 118550682/0 Camshaft assy €18.50
68
photo_cameraImage coming soon 112735699/0 Screw €1.65
69
photo_cameraImage coming soon 118550662/0 Speed Governor Assy €7.83
70
photo_cameraImage coming soon 118550665/0 Shaft, Governor Arm €3.51
72
photo_cameraImage coming soon 118550671/0 Gasket €2.35
73
photo_cameraImage coming soon 118550723/0 Support Governor €2.95
76
photo_cameraImage coming soon 118550667/0 Cotter Pin €1.65
77
photo_cameraImage coming soon 118550683/0 Valve Lifter €5.13
78
photo_cameraImage coming soon 118550684/0 Push Rods €8.61
79
photo_cameraImage coming soon 118550685/0 Plate €1.85
80
photo_cameraImage coming soon 118550686/0 Screw €3.58
81
photo_cameraImage coming soon 118550687/0 Valve Arm €4.51
82
photo_cameraImage coming soon 118550688/0 Nut €4.05
83
photo_cameraImage coming soon 118550689/0 Nut €1.65
85
photo_cameraImage coming soon 118550724/0 Plate €2.26
86
photo_cameraImage coming soon 112735699/0 Screw €1.65
87
photo_cameraImage coming soon 118550725/0 Spring €1.73
89
photo_cameraImage coming soon 112791500/0 Screw €1.64
90
photo_cameraImage coming soon 112735699/0 Screw €1.65
91
photo_cameraImage coming soon 118550692/0 Exhaust Valve Assy €19.04
92
photo_cameraImage coming soon 118550691/0 Intake Valve Assy €21.01
93
photo_cameraImage coming soon 118550690/0 Spring €3.66
94
Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV 118550699/0 Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV €12.52
95
photo_cameraImage coming soon 118550731/0 Cylinder Head Gasket Set €5.83
96
photo_cameraImage coming soon 118550730/0 Engine Gasket Set €17.30

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Mountfield Parts for Petrol Lawnmower HP46 (2013)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Lawnmower HP46 (2013) 299174643/M13.

In the following table, look for the model of the Petrol Lawnmower and the respective parts of the code.
HP46 (2013) 299174643/M13

Petrol Lawnmower MOUNTFIELD HP46 (2013) 299174643/M13
Steel DecK Pag.1
# Part Num. Description
1 381002538/0 Steel DecK 45cm Red
2 122131750/0 Flanged Nut
3 381000153/0 Front Wheel Axle
4 112760600/0 Screw M8x16 To 31-August-2018
4 112760600/1 Screw M8x16 From 01-September-2018
5 112155000/0 Self Locking Nut M8
6 322600095/0 Inner Wheel Cover
7 122671651/0 Washer 8.3x22x2 To 31-August-2006
7 325670011/0 WASHER 8.2x19x0.8 From 01-September-2006
12 122033317/0 Adjustment Rod
13 381000155/0 Rear Wheel Axle To 31-August-2006
13 381000159/0 Rear Wheel Axle From 01-September-2006
14 122753001/0 Roll Pin
15 122033369/0 Rear Axle Rod
16 322600106/0 Wheel Protection To 31-August-2004
16 322600106/1 Wheel Protection From 01-September-2004
17 381003303/0 Rear Height Adjuster Lever
18 112728689/0 Screw
19 112521370/0 Washer To 31-August-2006
19 322170622/0 Spacer From 01-September-2006
26 122446186/0 Spring Only for 534 Models
27 122675100/0 Washer
Front Baffle Pag.2
1 322108271/0 Front Baffle
2 112728686/0 Screw
3 118737854/1 Cap To 31-August-2007
3 322820077/0 Cap From 01-September-2007 To 31-August-2016
3 322820077/1 Cap From 01-September-2016
4 322109532/0 Gear Box Cover
5 322108272/2 Rear Baffle
6 322545189/0 Handle Fixing Plate From 01-September-2007
7 112728686/0 Screw
21 322140226/0 MUCLH PLUG-YELLOW
Lower Handle Pag.3
1 112760605/0 Screw
2 112521350/0 Washer
3 381006570/0 Lower Handle, Black
4 112819120/0 Screw To 31-August-2017
4 112819121/0 Screw From 01-September-2017
5 122671651/0 Washer
6 122399900/0 HANDWHEEL w/o Nut Black
7 112293200/0 Nut
8 381008696/0 SCREW ASSEMBLY KIT
Upper Handle Pag.4
1 381006739/0 Handle, Upper without Sponge Black To 31-August-2011
1 381006739/1 Handle, Upper without Sponge Black From 01-September-2011 To 31-August-2017
1 381006739/2 Handle, Upper without Sponge Black From 01-September-2017
1 381006745/0 Handle, Upper With Sponge Handle Black with Sponge To 31-August-2013
1 381006745/1 Handle, Upper with sponge grip Black with Sponge From 01-September-2013 To 31-August-2017
1 381006745/2 Handle, Upper with sponge grip Black with Sponge From 01-September-2017 To 31-August-2018
1 381006745/3 Handle, Upper Prt Black with sponge grip
2 122430313/0 PULL CORD GUIDE From 01-September-2018
3 112521330/0 Washer
4 112154510/0 Nut
5 118390020/0 Cable clip
6 181003363/0 Lever, Engine Brake Black To 31-August-2011
6 181003363/1 Lever, Engine Brake Black From 01-September-2011
7 181030087/0 Brake Cable Fits
8 112727783/0 Screw
9 112154510/0 Nut
12 322551640/0 Cable Clamp Holder 20AA2WBH066503
12 322551685/0 Cable Holder ø22 From S / N 20AA2WBH066504
Wheel + hab cap Pag.5
1 122034508/0 PLASTIC BUSH-WHITE
2 322686091/1 Wheel Ø 165 From 01-September-2006
2 381007346/0 Wheel To 31-August-2006
3 122524322/0 Shoulder Bolt To 31-August-2006
3 122524341/0 Shoulder Bolt From 01-September-2006
4 322110491/0 Hub Cap Grey d 170
5 322686092/0 Wheel Ø 190 From 01-September-2006
5 381007347/0 Wheel To 31-August-2006
6 322110492/0 Hub Cap Grey d 210
7 112523050/0 Washer
8 122524341/0 Pin
Blade Pag.6
1 122463012/1 Blade Boss To 31-August-2007
1 122463012/2 Blade Boss D=22.2 From 01-September-2007
2 181004121/0 Mulching Blade 45Cm To 31-August-2007
2 181004365/3 Mulching Blade 44Cm From 01-September-2007
3 112369600/0 SPRING WASHER 10.5 x 23 x 2.5 To 31-August-2007
3 122160400/0 Spring Washer From 01-September-2007
4 112523080/0 Washer
5 112735698/0 Screw
6 112139100/0 Woodruff Key D = 22.2 mm
7 112793701/0 Screw
8 112293201/0 Nut
9 112691800/0 Screw
10 112521350/0 Washer
11 112155000/0 Nut
Grassbag Pag.7
1 322785136/0 Stone Guard Support, Black To 31-August-2007
1 322785136/1 Stone Guard Support, Black From 01-September-2007
2 122517858/0 Pin
3 122450431/0 Spring
4 322600099/0 Stone Guard Black To 31-August-2008
4 322600099/1 Stone Guard Black From 01-September-2008 To 31-August 2011
4 322600099/2 Stone Guard Black From 01-September-2011
5 322486122/0 Grassbag Top
6 112728691/0 Screw
7 181006419/0 GRASSCATCHER FRAME
8 181002229/0 GRASSBAG To 31-August-2014
8 181002229/1 GRASSBAG From 01-September-2014
Engine - ST. RV100 Pag.8
39 118550728/0 BRAKE/STOP SWITCH ASSEMBLY
40 118550727/0 Spring
41 118550717/0 Nut
42 118550718/0 Flywheel assy
43 118550661/0 OIL SEAL
44 118550729/0 Cylinder Head Assembly
45 112735699/0 Screw
46 118550659/0 Cover
47 118550733/0 Gasket
48 118550660/0 Oil filter
49 118550680/0 Gasket
50 118550681/0 COVER-CYLINDER HEAD
51 112735699/0 Screw
52 112791500/0 Screw
53 118550672/0 CRANKCASE COVER Assembly
54 118550668/0 OIL SEAL
55 118550669/0 OIL DIPSTICK
56 118550670/0 O-Ring
57 118550664/0 Pin
61 118550674/0 CRANKSHAFT
62 118550673/0 Washer
63 118550675/0 Connecting rod
64 118550678/0 PISTON PIN
65 118550677/0 Piston assembly
66 118550679/0 Piston Ring assembly
67 118550682/0 Camshaft
68 112735699/0 Screw
69 118550662/0 SPEED GOVERNOR assembly
70 118550665/0 GOVERNOR ARM SHAFT
71 118550666/0 Washer
72 118550671/0 Gasket
73 118550723/0 GOVERNOR ARM
74 118550726/0 Screw
75 118550722/0 Nut
76 118550667/0 Cotter pin
77 118550683/0 Valve lifter
78 118550684/0 Push Rod
79 118550685/0 Plate
80 118550686/0 Screw
81 118550687/0 Rocker Valves
82 118550688/0 Nut
83 118550689/0 Nut
85 118550724/0 Plate
86 112735699/0 Screw
87 118550725/0 Spring
89 112791500/0 Screw
90 112735699/0 Screw
91 118550692/0 Exhaust valve assembly
92 118550691/0 Intake Valve Assembly
93 118550690/0 Spring
94 118550699/0 Carburetor Gasket Kit
95 118550731/0 Cylinder Head Gasket Assembly
96 118550730/0 Engine Gaskets Assembly

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
HP46 (2013) 299174643/M13
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Mountfield HP46 (2013)

Diagram Mountfield HP46 (2013)

Download (1.06MB)

You might also like

A.M.A. S.p.A. SKU: 9400-0244-00
Spark Plug Champion RC12YC Original replacement part CHAMPION, Spark Plug RC12YC - T10 - Original Quality - Copper Plus - Spark Plug Copper Plus - Code : 9400-0244-00
AVAILABLE €6.06
GGP Italy SKU: 181003363/1
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Engine Brake Lever Black From 01-september-2010 for Self Propelled Lawnmower AL3 46 B - AL3 46 G - AL3 46 SG. Part for the following...
AVAILABLE €16.33
GGP Italy SKU: 122465607/4
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Blade Boss, Crankshaft Ø 22,2mm for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ. Part...
Last items in stock €9.20
GGP Italy SKU: 118550674/0
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV Genuine part Alpina, Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV - Petrol Lawnmower AL3 46 G - BL 410 - Stiga Collector 43. Part for the following products: -  Petrol Engine...
Last items in stock €75.58
GGP Italy SKU: 118550670/0
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV. Part for the following products: -  Engine RSC 100 OHV -  Engine RSCT 100 OHV -  Petrol...
on 7/10 Business Days Approx €1.84
GGP Italy SKU: 322551685/0
Cable Plate for Lawn Mower DINO 47 Original spare part Alpina, Cable Plate ø22 From S/N 20AA2WBH066504 for Lawn Mower DINO 47 - BL 450. Parts for the following products: -  LAWNMOWER CASTELGARDEN XC 48 GSW4 - L AWNMOWER ALPINA BL 460...
Last items in stock €7.97
GGP Italy SKU: 122034508/0
Plastic Bush for Lawnmower Alpina FL 46 LMG Original Part Alpina, Wheels Plastic Bush for Lawnmowers Alpina - Castor FL 46 LMG - FL 51 LSH - Mountfield HP46 - Castelgarden...
on 7/10 Business Days Approx €1.97
Comments (0)
