GGP Italy

Mountfield Spare Parts for Petrol Lawnmower M 462 HP

SKU: M 462 HP - 294484033/CAI - 2013
€1.72
VAT included

Mountfield Spare Parts for Petrol Lawnmower M 462 HP

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Lawnmower M 462 HP/294484033/CAI - 2013.

M 462 HP - 294484033/CAI - 2013
Mountfield Spare Parts for Petrol Lawnmower M 462 HP
  • Mountfield Spare Parts for Petrol Lawnmower M 462 HP
  • Mountfield Spare Parts for Petrol Lawnmower M 462 HP
  • Mountfield Spare Parts for Petrol Lawnmower M 462 HP
  • Mountfield Spare Parts for Petrol Lawnmower M 462 HP
  • Mountfield Spare Parts for Petrol Lawnmower M 462 HP
  • Mountfield Spare Parts for Petrol Lawnmower M 462 HP
  • Mountfield Spare Parts for Petrol Lawnmower M 462 HP
  • Mountfield Spare Parts for Petrol Lawnmower M 462 HP
GGP Italy

Mountfield Spare Parts for Petrol Lawnmower M 462 HP

SKU: M 462 HP - 294484033/CAI - 2013 Condition: New
€1.72
VAT included

Mountfield Spare Parts for Petrol Lawnmower M 462 HP

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Lawnmower M 462 HP/294484033/CAI - 2013.

M 462 HP - 294484033/CAI - 2013
settings 69 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
69 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

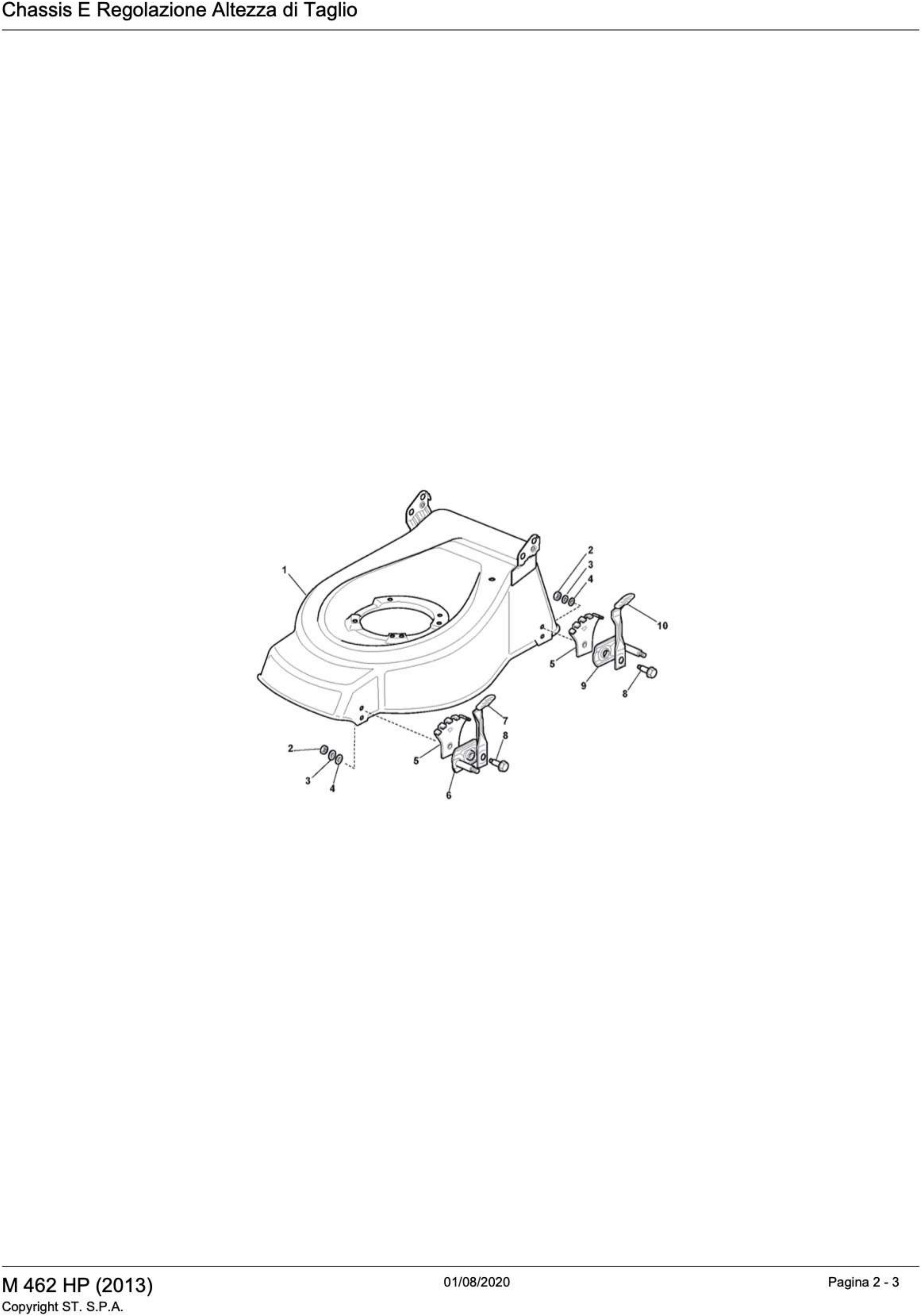

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 112293200/0 Nut €1.74
3
 photo_cameraImage coming soon 112583500/0 Grower €1.64
4
 photo_cameraImage coming soon 112523070/0 Washer €1.58
5
 photo_cameraImage coming soon 322735547/0 Height Adjustment Sector €1.91
6
 photo_cameraImage coming soon 381005082/0 Wheel Support €5.79
7
 photo_cameraImage coming soon 481003285/1 Lever €8.36
8
 photo_cameraImage coming soon 122519811/0 Pin €1.65
9
 photo_cameraImage coming soon 381005084/0 Wheel Support €4.23
10
 photo_cameraImage coming soon 481003286/0 Lifting Lever €3.98
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

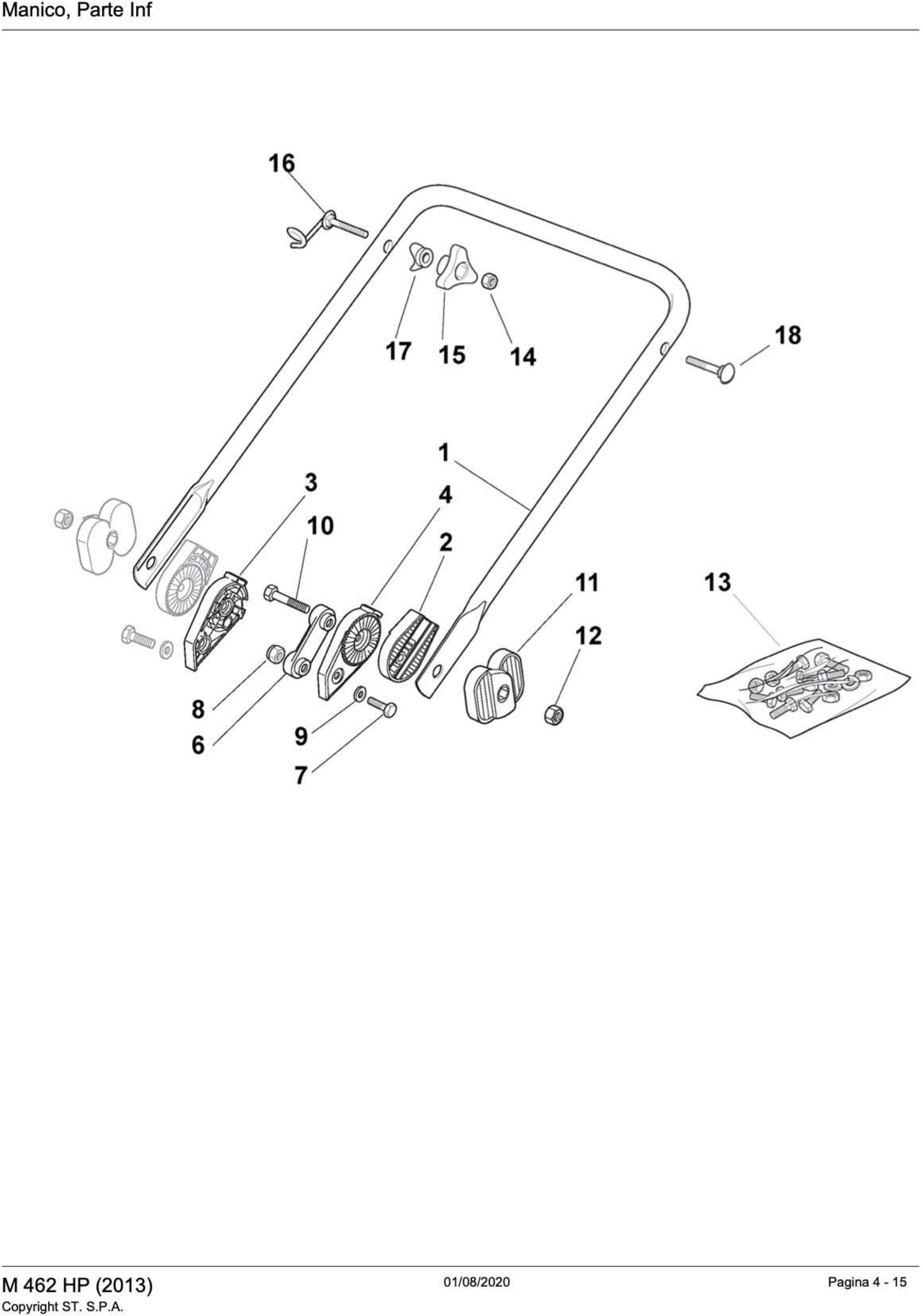

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006510/0 Handle, Lower side To 31-August-2005 €23.96
1
 photo_cameraImage coming soon 381006532/0 Handle, Lower side From 01-September-2005 €30.11
2
 photo_cameraImage coming soon 122785081/0 Outer Support To 31-August-2003 €3.85
2
 photo_cameraImage coming soon 322785081/1 Outer Support From 01-September-2003 €3.85
3
 photo_cameraImage coming soon 122785082/0 Inner Support Right €2.81
4
 photo_cameraImage coming soon 122785083/1 Inner support Left €2.67
6
 Inside Plate for Lawnmower Alpina FL 46 LMG 122551575/0 Inside Plate for Lawnmower Alpina FL 46 LMG €3.41
7
 photo_cameraImage coming soon 112793301/0 Screw €1.94
8
 photo_cameraImage coming soon 112155000/0 Nut €1.66
9
 photo_cameraImage coming soon 112521350/0 Washer €1.74
10
 photo_cameraImage coming soon 112691810/0 Screw €1.49
11
 photo_cameraImage coming soon 122399803/0 Knob €1.70
12
 photo_cameraImage coming soon 112293202/0 Nut €2.05
13
 photo_cameraImage coming soon 181008623/1 OUTFIT SCREW PM4850S €6.76
13
 Screws Outfit for Lawnmower Alpina FL 46 LMG 381008596/1 Screws Outfit for Lawnmower Alpina FL 46 LMG €15.25
13
 photo_cameraImage coming soon 381008622/0 Outfit Screws From 01-September-2002 To 31-August-2003 €5.04
14
 photo_cameraImage coming soon 112293200/0 Nut €1.74
15
 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
16
 photo_cameraImage coming soon 181003801/1 Guide spring €3.16
17
 photo_cameraImage coming soon 122680006/1 Washer €1.62
18
 photo_cameraImage coming soon 112819201/0 Screw €1.49
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

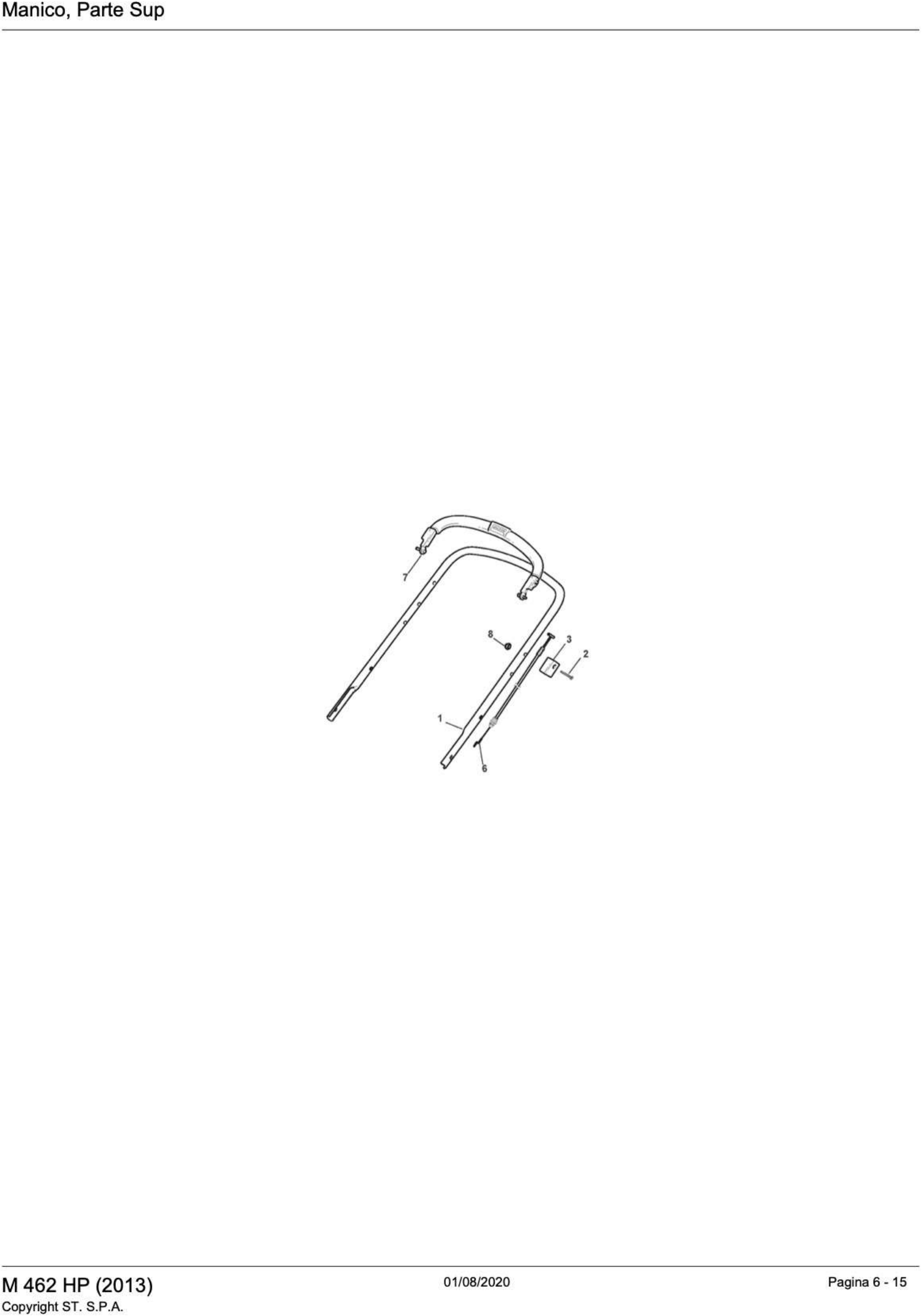

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006979/2 Handle, Upper Side €32.79
2
 photo_cameraImage coming soon 112689500/0 Screw €1.54
3
 photo_cameraImage coming soon 322551640/0 Plate €7.99
6
 photo_cameraImage coming soon 181000754/0 ENGINE BRAKE CABLE L=985 €11.47
7
 photo_cameraImage coming soon 381003298/1 Lever, Engine Brake From 01-September-2004 To 31-August-2010 €32.00
8
 photo_cameraImage coming soon 112154510/0 Nut €1.66
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

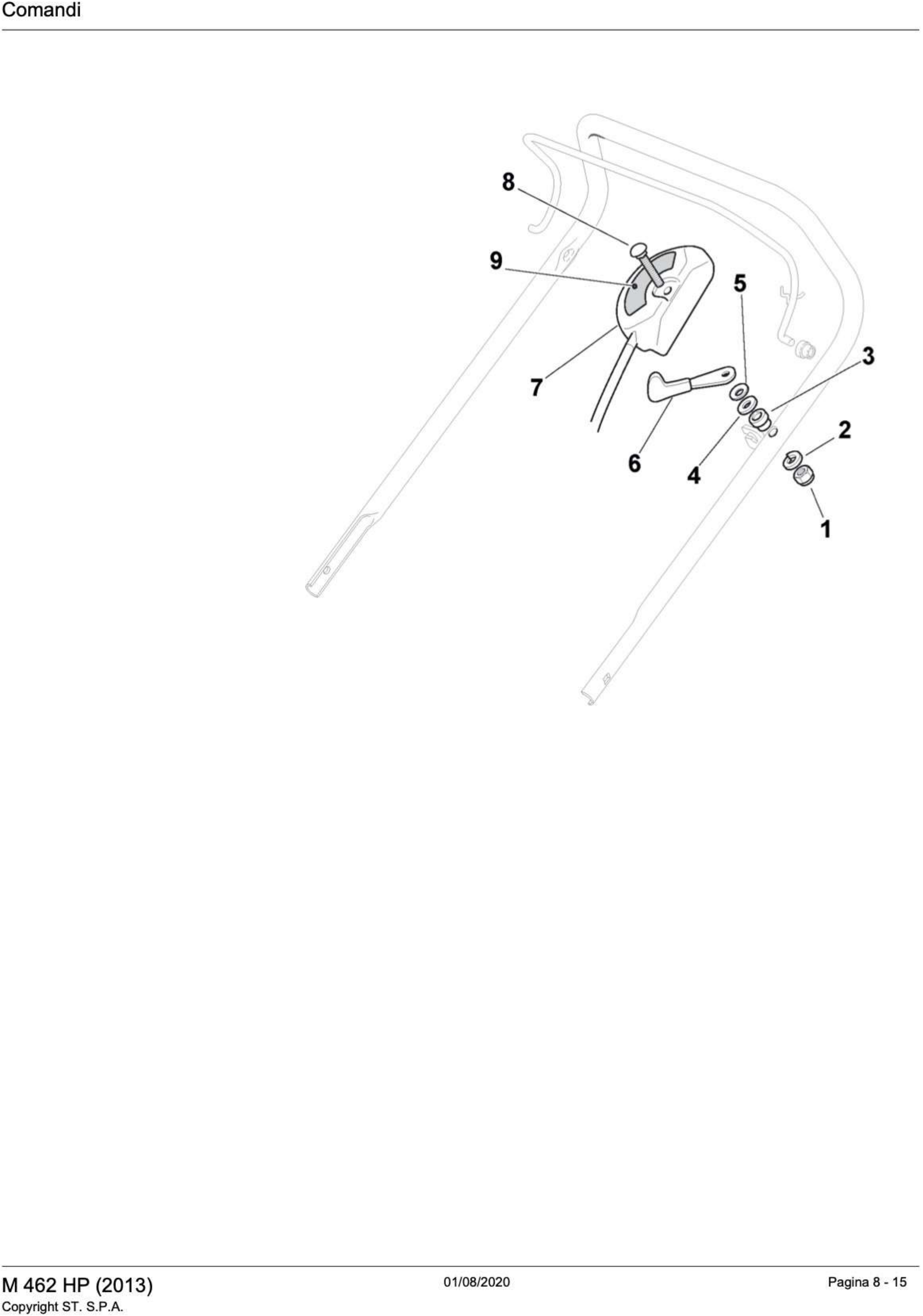

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112291000/0 Nut €1.63
2
 photo_cameraImage coming soon 112581500/0 Grower €1.74
4
 photo_cameraImage coming soon 112521360/0 Washer €1.62
5
 photo_cameraImage coming soon 112508100/0 Cup spring €1.49
6
 photo_cameraImage coming soon 381007279/1 Throttle lever €1.38
7
 photo_cameraImage coming soon 481007080/0 Throttle cable €22.51
8
 photo_cameraImage coming soon 112815000/0 Screw €1.49
9
 photo_cameraImage coming soon 114356702/0 Throttle Label (GGP) €1.49
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

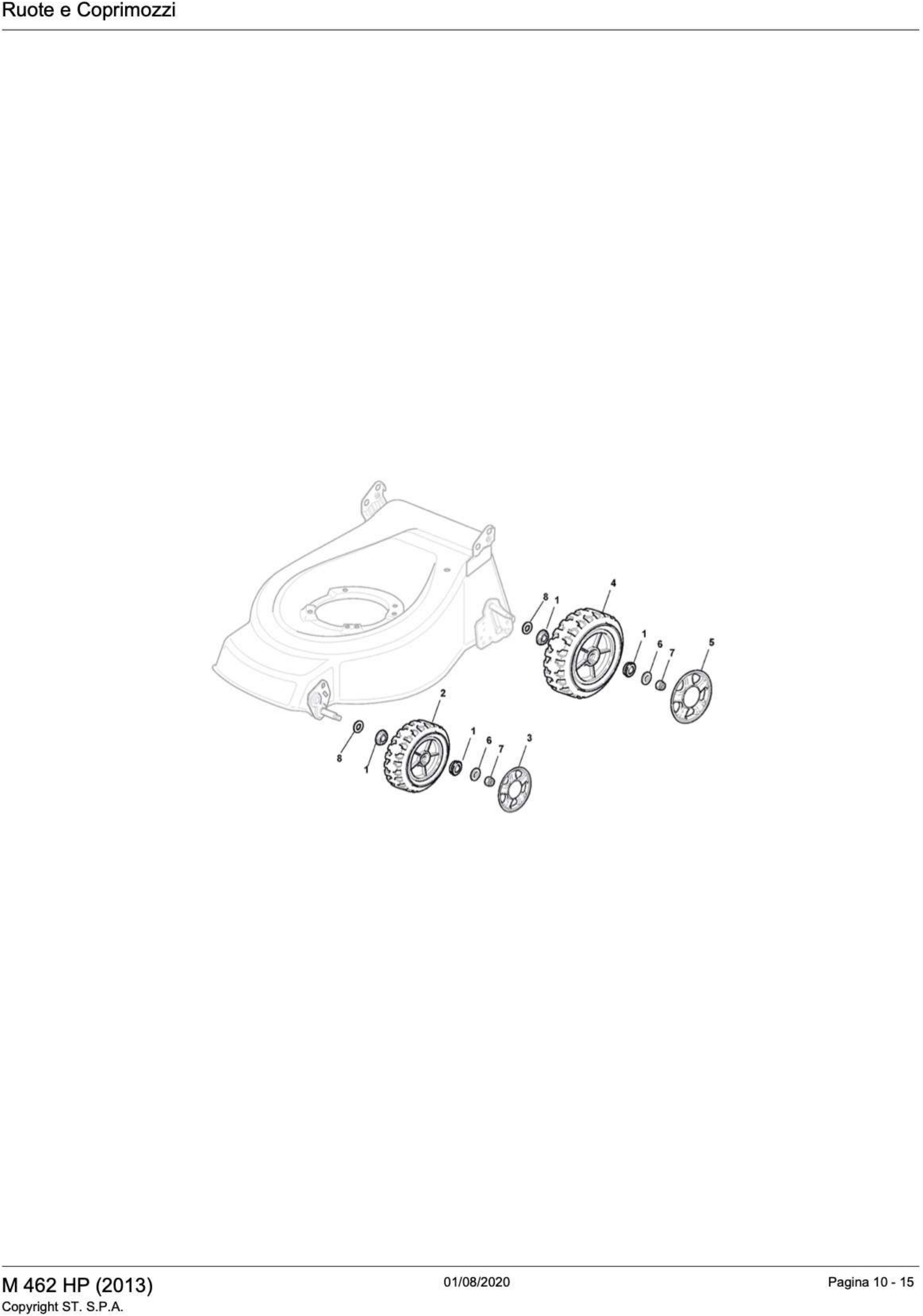

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 122122200/0 Bearing €2.21
2
 photo_cameraImage coming soon 381007351/0 Wheel Ø 170 €12.91
3
 photo_cameraImage coming soon 322110381/0 Gray hubcap €2.81
4
 photo_cameraImage coming soon 181007343/0 Wheel €15.91
5
 photo_cameraImage coming soon 322110382/0 Gray hubcap €3.23
6
 photo_cameraImage coming soon 112523060/0 WASHER FOR RM63.7 €1.64
7
 photo_cameraImage coming soon 112155000/0 Nut €1.66
8
 photo_cameraImage coming soon 112530150/0 ELASTIC WASHER X PM4850S €1.62
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

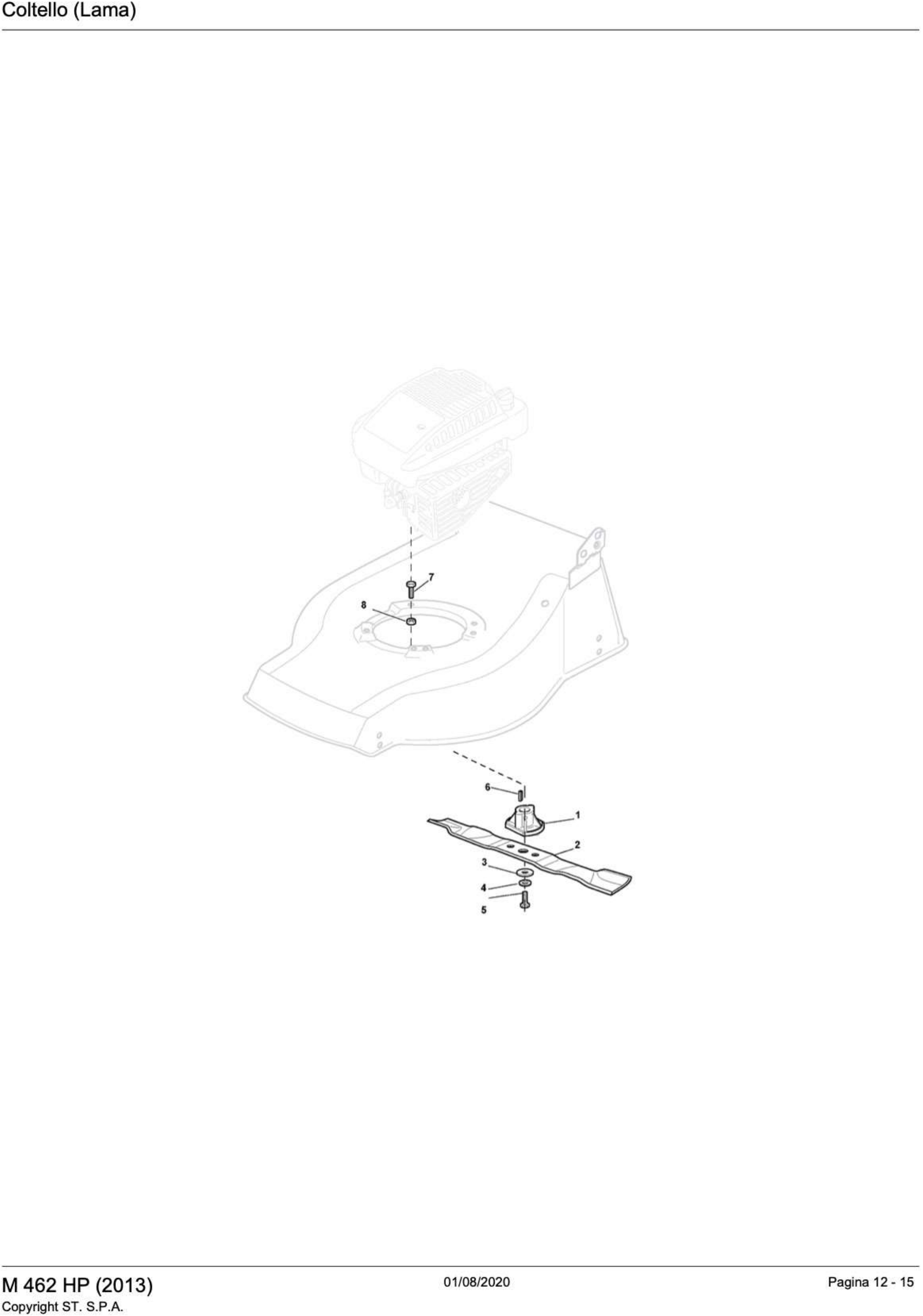

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 181004346/3 Blade €14.00
2
 photo_cameraImage coming soon 181004397/0 Finned knife €21.51
3
 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ 122160400/0 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ €3.71
4
 Alpina Washer M 10 for BL 510 SHQ 112523080/0 Alpina Washer M 10 for BL 510 SHQ €1.59
5
 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
7
 photo_cameraImage coming soon 112691115/0 Screw €1.64
8
 photo_cameraImage coming soon 112154210/0 Nut €1.78
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

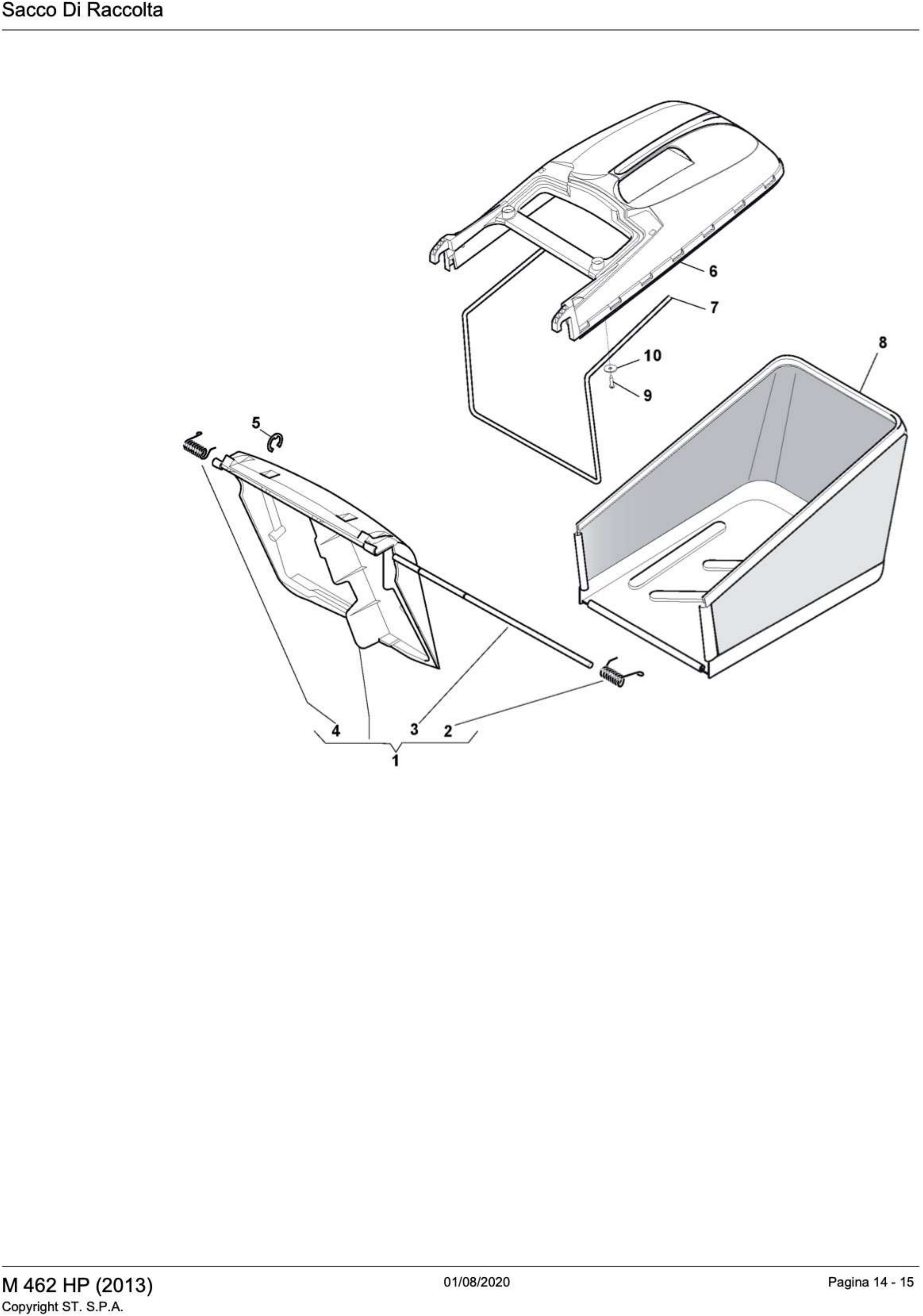

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381008021/1 stone guard Black to 31-August-2009 €18.90
1
 photo_cameraImage coming soon 381008021/2 stone guard Black 01-September-2009 €18.90
2
 photo_cameraImage coming soon 122450420/1 Left Spring €2.51
3
 photo_cameraImage coming soon 122517906/1 Pin €3.23
4
 photo_cameraImage coming soon 122450410/1 Right Spring €2.51
5
 photo_cameraImage coming soon 112000930/0 Benzing ring €1.62
6
 photo_cameraImage coming soon 322486101/0 Grass-Box, Upper Part €20.36
7
 photo_cameraImage coming soon 122608525/0 Stiffening Lower €15.01
7
 photo_cameraImage coming soon 122608525/1 Box, Fabric €13.02
8
 photo_cameraImage coming soon 181002211/0 Box €50.05
9
 photo_cameraImage coming soon 112728680/0 Screw €1.62
10
 photo_cameraImage coming soon 112523050/0 Washer €2.05

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Mountfield Spare Parts for Petrol Lawnmower M 462 HP

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Lawnmower M 462 HP/294484033/CAI - 2013.

In the following table, look for the model of the Petrol Lawnmower and the respective parts of the code.
M 462 HP - 294484033/CAI - 2013

Mountfield Lawnmower M 462 HP/294484033/CAI - 2013
Deck And Height Adjusting Pag.1
# Part Num. Description
1 381001339/0 STEEL DECK TD48 [RED] - DISCONTINUED
2 112293200/0 NUT
3 112583500/0 WASHER M8
4 112523070/0 WASHER M8 8.5 x 32 x 2.5
5 322735547/0 HEIGHT ADJUST QUADRANT
6 381005082/0 STUB AXLE
7 481003285/1 HEIGHT ADJUST LEVER
8 122519811/0 WHEEL BOLT
9 381005084/0 STUB AXLE
10 481003286/0 HEIGHT ADJUST LEVER
Handle Lower Part Pag.2
1 381006510/0 HANDLE LOWER PART
1 381006532/0 HANDLE LOWER PART
2 122785081/0 EXTERNAL SUPPORT
2 322785081/1 EXTERNAL SUPPORT
3 122785082/0 RIGHT INTERNAL SUPPORT
4 122785083/1 LEFT INTERNAL SUPPORT
6 122551575/0 INSIDE PLATE
7 112793301/0 HEX-HEAD SCREW M8 x 25
8 112155000/0 LOW SELF-LOCKING NUT M8
9 112521350/0 WASHER M8 8.4 x 16 x 1.6
10 112691810/0 SCREW TE M8 x 60
11 122399803/0 KNOB
12 112293202/0 HEXAGONAL NUT M8 UNI 5588
13 181008623/1 KIT COMPONENTS FOR LAWN MOWER PAN
13 381008596/1 OUTFIT SCREWS
13 381008622/0 KIT COMPONENTS FOR LAWN MOWER PAN
14 112293200/0 NUT
15 122399900/0 3 SPOKE HANDWHEEL [BLACK]
16 181003801/1 BOLT/PULL CORD GUIDE
17 122680006/1 PLASTIC WASHER
18 112819201/0 CARRIAGE BOLT M8 x 60
Handle Upper Part Pag.3
1 381006979/2 HANDLE UPPER PART
2 112689500/0 SELF-TAP SCREW 4.8 x 25
3 322551640/0 CABLE HOLDER BLOCK
6 181000754/0 ENGINE BRAKE CABLE L=985
7 381003298/0 BRAKE CONTROL LEVER
7 381003298/1 BRAKE CONTROL LEVER
8 112154510/0 LOW SELF-LOCKING NUT (M6)
Control Pag.4
1 112291000/0 Nut
2 112581500/0 Grower
3 122171005/0 Spacer
4 112521360/0 Washer
5 112508100/0 Cup Spring
6 381007279/1 Throttle lever
7 481007080/0 Throttle cable
8 112815000/0 SCREW
9 114356702/0 THROTTLE LABEL
Wheel and Hub Cap Pag.5
1 122122200/0 BEARING
2 381007351/0 WHEEL D=170
3 322110381/0 HUB CAP D=170 [GREY]
4 181007343/0 WHEEL D=210
5 322110382/0 HUB CAP D=210 [GREY]
6 112523060/0 WASHER M8 8.4 x 24 x 2
7 112155000/0 LOW SELF-LOCKING NUT M8
8 112530150/0 SPRING WASHER M12
Blade Pag.6
2 181004346/2 BLADE
2 181004346/3 BLADE MULCHING 46 CM
2 181004397/0 WINGED BLADE 46 CM
3 122160400/0 SPRING WASHER 50 x 2 x 10.2
4 112523080/0 WASHER M10 11 x 30 x 2.5
5 112735698/0 HEX-HEAD SCREW 3/8"X2"
7 112691115/0 HEX-HEAD SCREW 8X40
8 112154210/0 SELF-LOCK WINGED NUT M8
Grass-Catcher Pag.7
1 381008021/1 DEFLECTOR ASSEMBLY [BLACK]
1 381008021/2 DEFLECTOR ASSEMBLY [BLACK]
2 122450420/1 LH DEFLECTOR SPRING
3 122517906/1 DEFLECTOR ROD
4 122450410/1 RH DEFLECTOR SPRING
5 112000930/0 CIRCLIP D=6
6 322486101/0 GRASSCATCHER TOP-FULL INDICATOR [BLACK]
7 122608525/0 GRASSCATCHER FRAME
7 122608525/1 GRASSCATCHER FRAME
8 181002211/0 GRASSBAG [BLACK]
9 112728680/0 FLANGED SCREW D=5 x 25
10 112523050/0 WASHER M6 6.6 x 24 x 2
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
M 462 HP - 294484033/CAI - 2013
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Mountfield M 462 HP

Diagram Mountfield M 462 HP

Download (230.43KB)

You might also like

Spark Plug Champion RC12YC
A.M.A. S.p.A. SKU: 9400-0244-00
Spark Plug Champion RC12YC
Spark Plug Champion RC12YC Original replacement part CHAMPION, Spark Plug RC12YC - T10 - Original Quality - Copper Plus - Spark Plug Copper Plus - Code : 9400-0244-00
AVAILABLE €6.06
Details
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B
GGP Italy SKU: 181003363/1
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Engine Brake Lever Black From 01-september-2010 for Self Propelled Lawnmower AL3 46 B - AL3 46 G - AL3 46 SG. Part for the following...
AVAILABLE €16.33
Details
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ
GGP Italy SKU: 122465607/4
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Blade Boss, Crankshaft Ø 22,2mm for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ. Part...
Last items in stock €9.20
Details
Screws Outfit for Lawnmower Alpina FL 46 LMG
GGP Italy SKU: 381008596/1
Screws Outfit for Lawnmower Alpina FL 46 LMG
Screws Outfit for Lawnmower Alpina FL 46 LMG Original Part Alpina, Screws Outfit for Lawnmowers Alpina - Castor FL 46 LMG - Mountfield 511 PD - M 462 HP Part for the...
on 7/10 Business Days Approx €15.25
Details
3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG
GGP Italy SKU: 122399900/0
3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG
3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG Original Part Alpina, 3 Spoke Handwheel (Black) for Lawnmowers Alpina - Castor FL 46 LMG - Mountfield 511 PD - M 462 HP Part for...
on 7/10 Business Days Approx €2.82
Details
Inside Plate for Lawnmower Alpina FL 46 LMG
GGP Italy SKU: 122551575/0
Inside Plate for Lawnmower Alpina FL 46 LMG
Inside Plate for Lawnmower Alpina FL 46 LMG Original Part Alpina, Inside Plate for Lawnmowers Alpina - Castor FL 46 LMG - Mountfield 511 PD - M 462 HP Part for the following...
on 7/10 Business Days Approx €3.41
Details
Comments (0)
