Mountfield Spare Parts for Lawnmower S481 PD ES (2016)

SKU: S481 PD ES (2016) 294502543/M16
€31.78
VAT included

Mountfield Spare Parts for Lawnmower S481 PD ES (2016)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower S481 PD ES (2016) 294502543/M16.

S481 PD ES (2016) 294502543/M16
Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)
  • Mountfield Spare Parts for Lawnmower S481 PD ES (2016)

Mountfield Spare Parts for Lawnmower S481 PD ES (2016)

SKU: S481 PD ES (2016) 294502543/M16 Condition: New
€31.78
VAT included

Mountfield Spare Parts for Lawnmower S481 PD ES (2016)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower S481 PD ES (2016) 294502543/M16.

S481 PD ES (2016) 294502543/M16
settings 255 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

216 spare parts

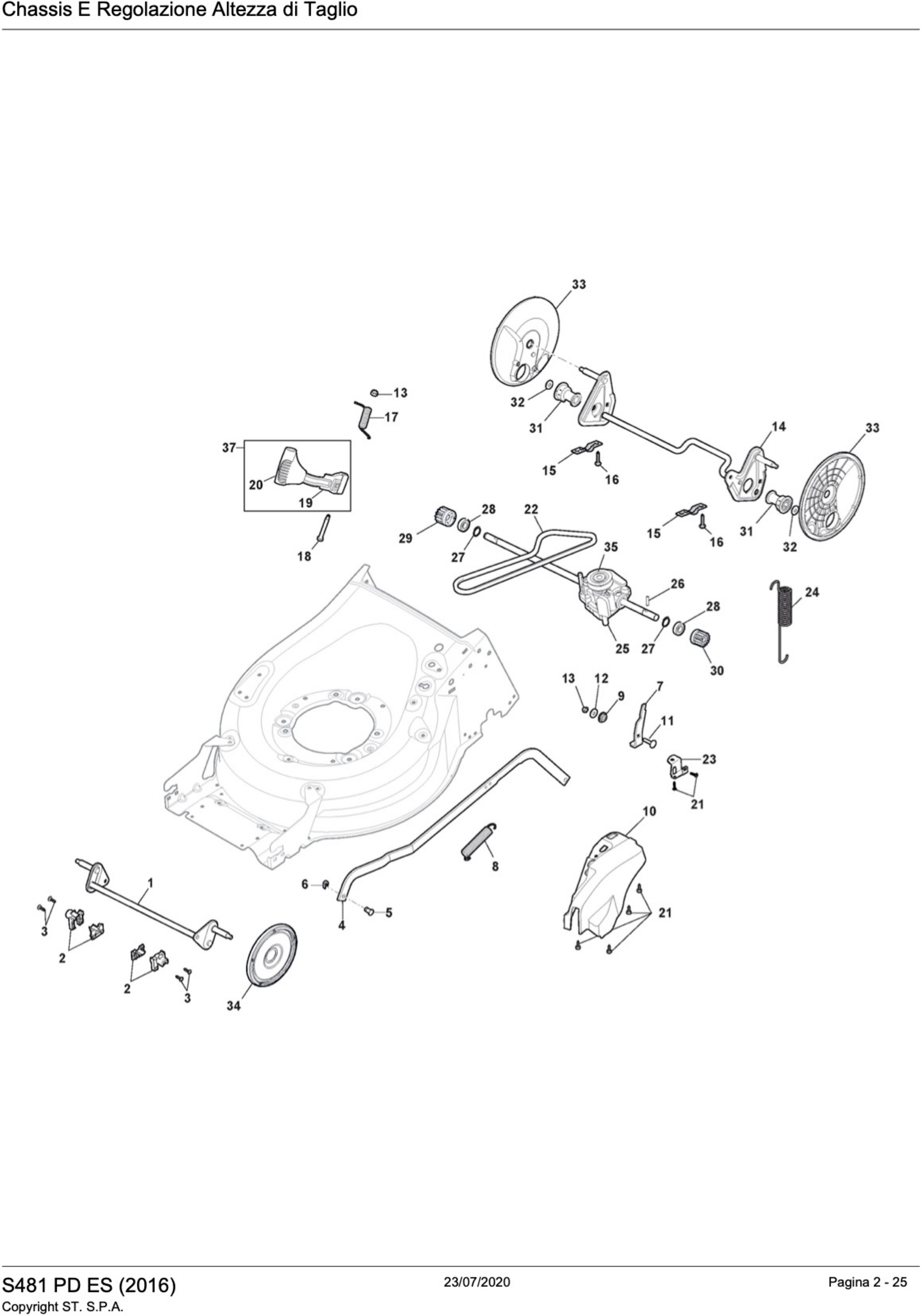

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381302881/0 Front Wheels Axle from 01.02.2016 front axle 381302913/0 will be unified for all models €29.10
1
photo_cameraImage coming soon 381302913/0 Front Wheel Axle To S / N 20BA2WBH080823 €29.46
2
photo_cameraImage coming soon 322785305/0 Support To 31-August-2015 €2.20
2
photo_cameraImage coming soon 322785305/1 Support From 01-September-2015 €2.74
3
photo_cameraImage coming soon 112728697/0 Screw €1.63
5
photo_cameraImage coming soon 122519820/0 Pin €2.17
6
photo_cameraImage coming soon 112436051/0 Plate €1.78
7
photo_cameraImage coming soon 322778475/0 HEIGHT ADJUST BRACKET €2.46
8
photo_cameraImage coming soon 122450480/0 Spring €1.95
9
photo_cameraImage coming soon 122517873/0 Busch €2.83
10
photo_cameraImage coming soon 322055329/0 HEIGHT ADJUST COVER [BLACK] €10.11
11
photo_cameraImage coming soon 112815270/0 Screw €1.58
12
photo_cameraImage coming soon 112523040/0 Washer €1.63
13
photo_cameraImage coming soon 112154510/0 Nut €1.66
14
photo_cameraImage coming soon 381302895/0 Rear Wheel Axle To S / N 20BA2WBH091142 €25.98
15
photo_cameraImage coming soon 322545152/0 Plate €1.66
17
photo_cameraImage coming soon 122446192/0 Spring €2.20
18
Alpina AL3 46 B Pin 122534131/0 Alpina AL3 46 B Pin €1.65
19
photo_cameraImage coming soon 322322855/0 HEIGHT ADJUST LEVER To S / N 20BA2WBH068104 €5.33
20
photo_cameraImage coming soon 322394506/0 HEIGHT ADJUST KNOB €1.72
21
photo_cameraImage coming soon 112728699/0 Screw €1.66
22
photo_cameraImage coming soon 135063900/0 Belt Z28 €9.53
23
photo_cameraImage coming soon 322778473/0 Bracket To 31-August-2018 €2.31
23
photo_cameraImage coming soon 322778473/1 Bracket From 01-September-2018 €2.20
24
photo_cameraImage coming soon 122450478/0 Spring €8.50
25
photo_cameraImage coming soon 181003115/0 GEARBOX [BLACK] €120.05
26
Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ 122753000/0 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ €1.72
27
Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ 112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ €1.58
28
photo_cameraImage coming soon 119216035/0 Bearing €4.51
29
Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S 122570110/1 Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
30
Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S 122570120/1 Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
31
Axle Bush for Self Propelled Lawnmower Alpina BL 460 SB 322042066/0 Axle Bush for Self Propelled Lawnmower Alpina BL 460 SB €3.66
32
photo_cameraImage coming soon 112521371/0 Washer €1.66
33
photo_cameraImage coming soon 322600205/1 Protection, Wheel €3.72
34
photo_cameraImage coming soon 322600247/0 Protection, Wheel €4.40
35
photo_cameraImage coming soon 122601909/0 Pulley €7.00
37
photo_cameraImage coming soon 381003357/0 Wheels Rear Adj. Lever €13.51

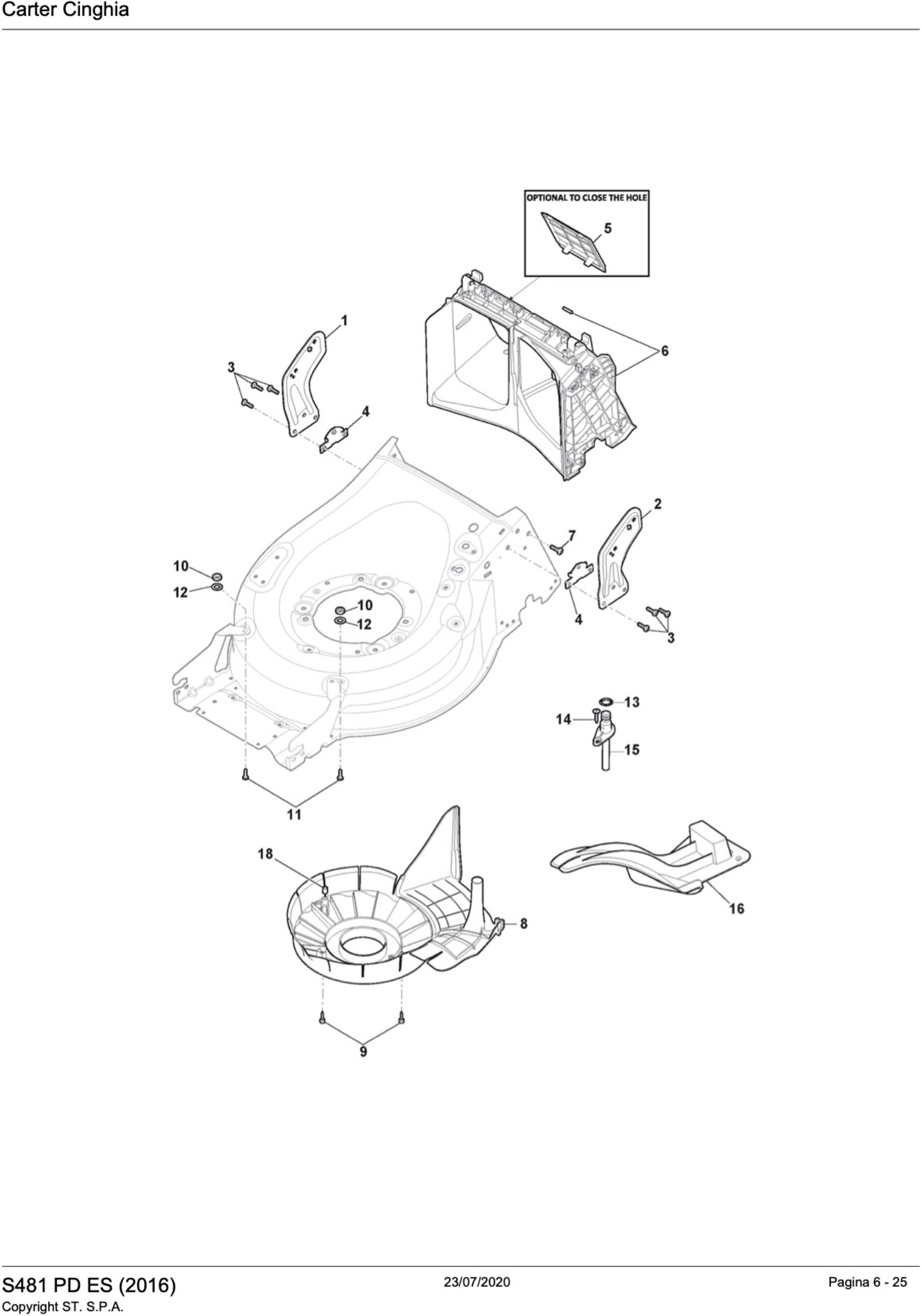

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381005195/0 RIGHT HANDLE BRACKET To 31-August-2017 €7.17
1
photo_cameraImage coming soon 381005195/2 RIGHT HANDLE BRACKET Black From 01-September-2018 €7.25
2
photo_cameraImage coming soon 381005197/0 LEFT HANDLE BRACKET Black To 31-August-2017 €7.17
2
photo_cameraImage coming soon 381005197/2 LEFT HANDLE BRACKET Black From 01-September-2018 €7.25
3
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
4
photo_cameraImage coming soon 322545213/0 Plate €2.04
5
photo_cameraImage coming soon 322600310/0 REAR DOOR (Not For Electric Start Models) €5.12
6
photo_cameraImage coming soon 381102204/0 Rear conveyor assembly To S / N 19JA2WBH017664 €26.45
6
photo_cameraImage coming soon 381102204/1 Rear conveyor ASSEMBLY From S / N 19JA2WBH017665 €26.30
8
photo_cameraImage coming soon 322060270/0 Belt Protection Guard Mulching To S / N SK6112205 €14.01
8
photo_cameraImage coming soon 322060270/1 Belt Protection Guard Mulching To S / N SK6112095 €14.10
8
photo_cameraImage coming soon 322060270/2 Belt Protection Guard Mulching From S / N SK8153833 To S / N 19JA2WBH023208 €14.10
8
photo_cameraImage coming soon 322060270/3 Belt Protection Guard Mulching From S / N 19JA2WBH023209 €14.10
9
photo_cameraImage coming soon 112728530/0 Screw €1.60
9
photo_cameraImage coming soon 112728531/0 Screw €1.54
9
photo_cameraImage coming soon 112735645/0 Screw €1.85
11
photo_cameraImage coming soon 112815205/0 SCREW €1.62
12
photo_cameraImage coming soon 112521330/0 Washer €1.70
13
photo_cameraImage coming soon 119035000/0 Ring Or €5.26
15
photo_cameraImage coming soon 322034002/0 Washing Connection €1.76
16
photo_cameraImage coming soon 322140245/0 MULCHING PLUG [MP1 504] €16.91
18
photo_cameraImage coming soon 122042073/0 BUSH From 01-September-2018 €1.58

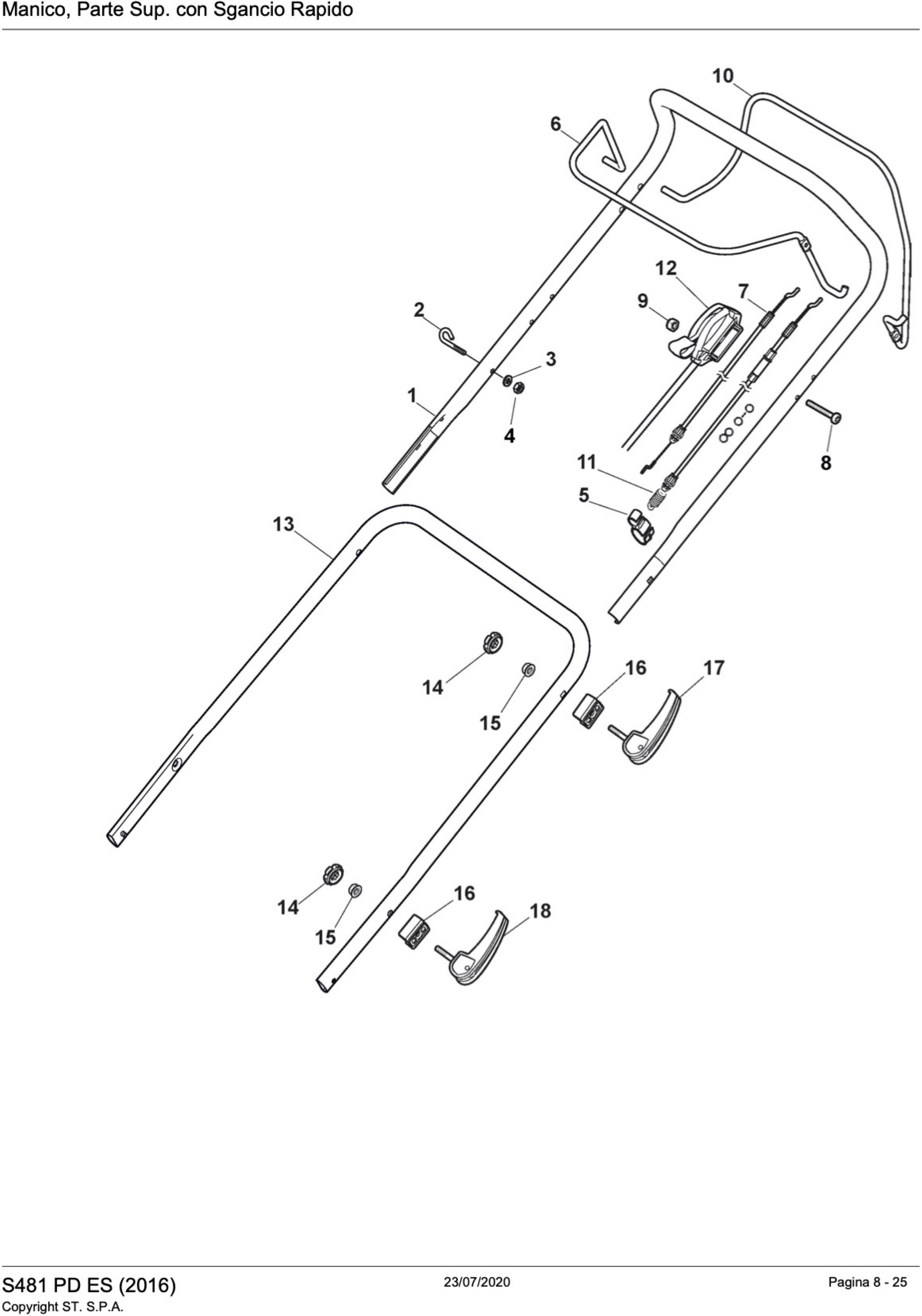

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381006739/1 Handle, Upper Part €19.67
1
photo_cameraImage coming soon 381006739/2 Handle, Upper Part Black without Sponge;From 01-September-2011 To 31-August-2017 €24.91
1
photo_cameraImage coming soon 381006745/1 Handle, Upper Part with sponge handgrip €40.01
1
photo_cameraImage coming soon 381006745/2 Handle, Upper Part with Sponge Black with Sponge;From 01-September-2017 To 31-August-2018 €37.12
1
photo_cameraImage coming soon 381006745/3 Handle, Upper Part with Sponge Black with Sponge;From 01-september-2018 €41.74
2
photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
5
Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G 118390020/0 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G €1.85
6
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B 181003363/1 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B €16.33
7
photo_cameraImage coming soon 181030057/0 ENGINE BRAKE CABLE L=1385 €13.51
7
photo_cameraImage coming soon 181030106/0 ENGINE BRAKE CABLE €13.58
8
photo_cameraImage coming soon 112727788/0 Screw €1.58
10
photo_cameraImage coming soon 181003364/0 Cable Rear Drive €15.08
11
Clutch Drive Cable for Lawnmower Stiga 55 SVEQ H 381030104/0 Clutch Drive Cable for Lawnmower Stiga 55 SVEQ H €21.90
12
photo_cameraImage coming soon 181005539/0 Throttle cable €22.91
13
photo_cameraImage coming soon 381007563/0 LOWER HANDLE Black To S / N SK8177202 €35.05
13
photo_cameraImage coming soon 381007563/1 Lower Handle Black From S / N SK8177203 €35.05
14
photo_cameraImage coming soon 322399835/0 HANDLE KNOB €2.11
15
photo_cameraImage coming soon 122131750/0 NUT M8 €2.01
16
photo_cameraImage coming soon 322680016/0 HANDLE FIXING WASHER €2.11
17
photo_cameraImage coming soon 381103350/0 UPPER LOCK HANDLE LEVER [BLACK] €5.55
18
photo_cameraImage coming soon 381003253/0 LOCKING HANDLE LEVER [BLACK] €5.85

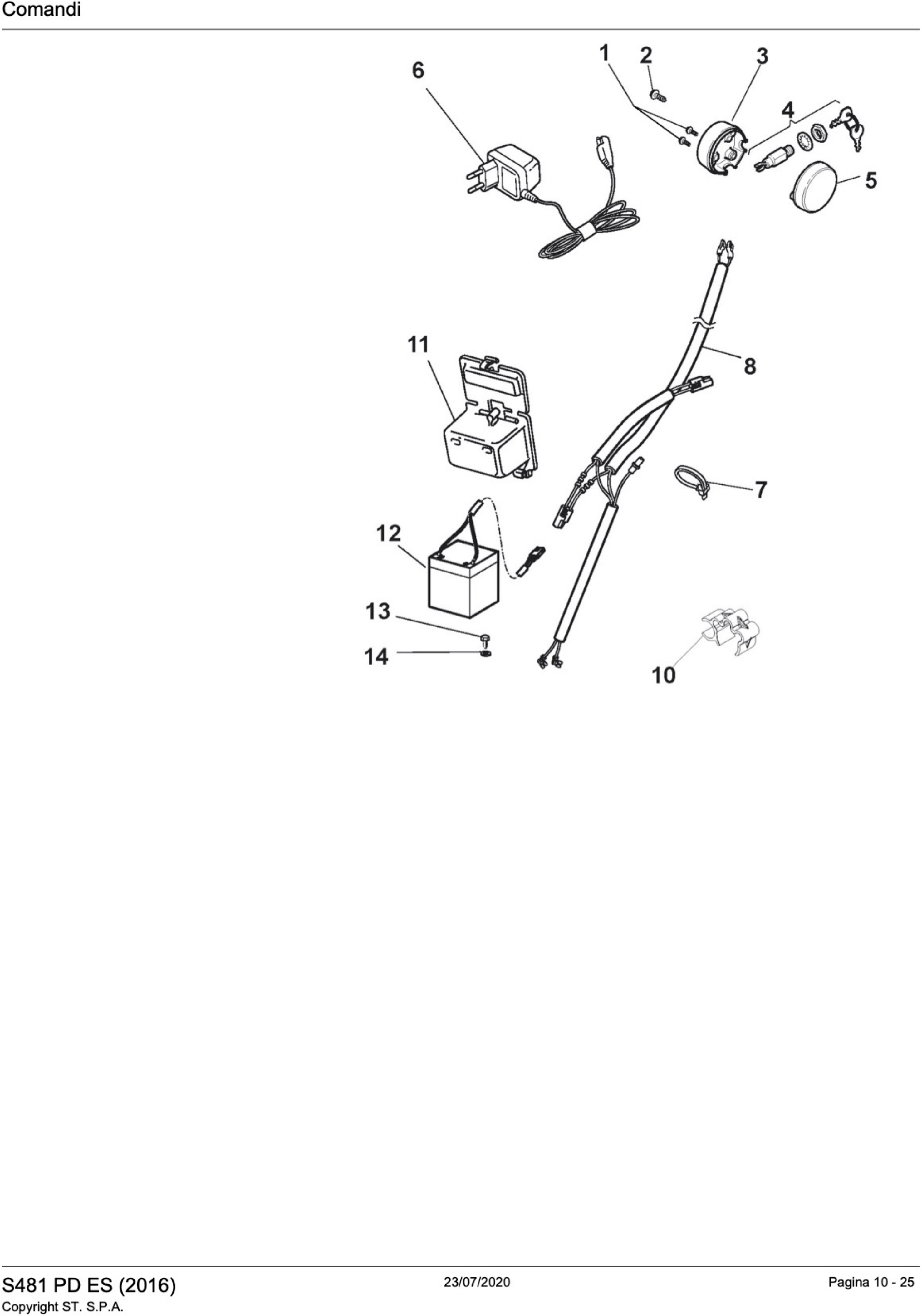

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112728702/0 Screw €1.58
2
photo_cameraImage coming soon 112728691/0 Screw €1.64
3
photo_cameraImage coming soon 322722801/0 LEFT IGNITION COVER €1.58
4
photo_cameraImage coming soon 118450051/0 IGNITION SWITCH ASSEMBLY €16.29
5
photo_cameraImage coming soon 322722800/0 RIGHT IGNITION COVER €10.27
6
photo_cameraImage coming soon 118204121/0 Battery charger BS plug To 31-August-2015 €53.61
7
photo_cameraImage coming soon 133320022/0 Cable Clamp from 01-September-2016 €1.58
8
photo_cameraImage coming soon 118204196/0 ELECTRIC START CABLE For B&S Engines €52.20
10
photo_cameraImage coming soon 118390021/0 Cable Clip Caproeurope (28-1496) €1.58
11
photo_cameraImage coming soon 322109533/0 Battery holder €13.65
12
photo_cameraImage coming soon 118120052/0 BATTERY c/w CABLE 12V 5AH €44.70
13
Alpina AL3 46 SG Screw 112728706/0 Alpina AL3 46 SG Screw €1.65
14
photo_cameraImage coming soon 325160039/0 Spacer €1.58

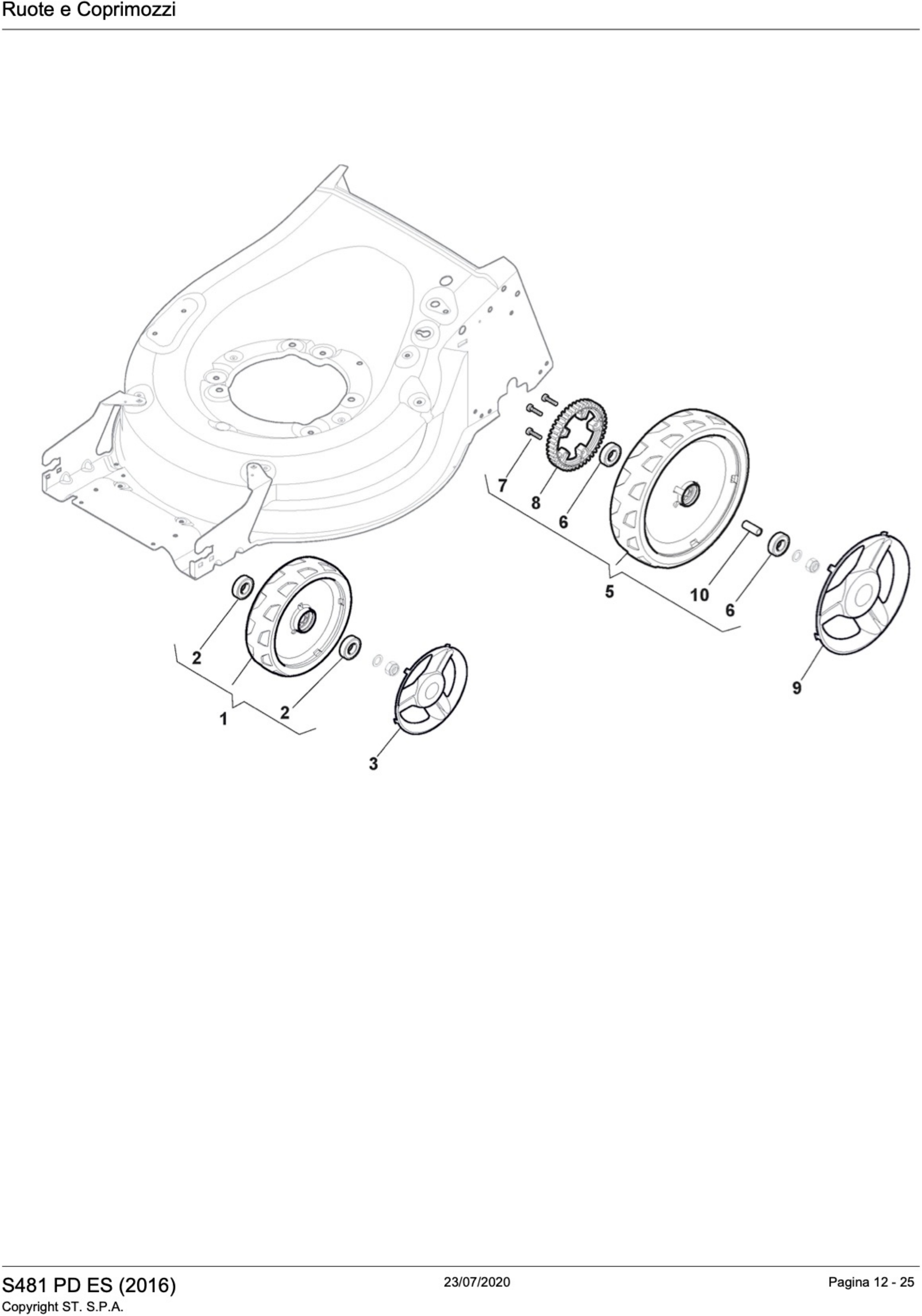

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381007448/1 Wheel - Short Hub €11.70
3
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B 322110687/0 Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B €3.26
5
Alpina FL 46 SQH Rear Wheel 381007463/1 Alpina FL 46 SQH Rear Wheel €24.20
8
Alpina BL 460 SB Wheel Crown 322120117/0 Alpina BL 460 SB Wheel Crown €5.04
9
photo_cameraImage coming soon 322110689/0 Hub Cap Grey €2.70

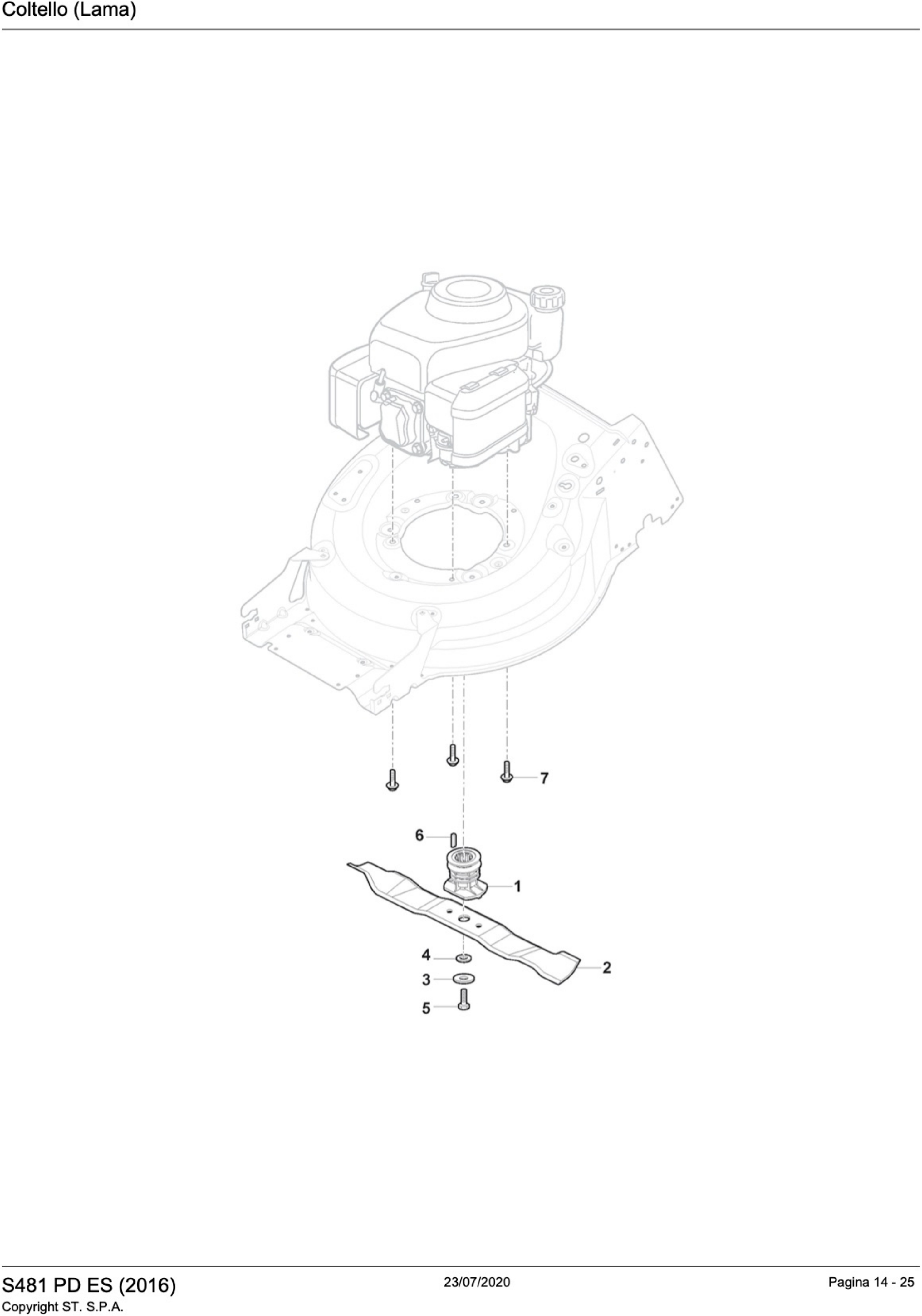

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 122465607/3 Hub With Pulley, Crankshaft Ø 22.2 €13.91
1
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ 122465607/4 Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ €9.20
2
photo_cameraImage coming soon 181004366/2 Blade €16.28
3
Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ 122160400/0 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ €3.71
4
Alpina Washer M 10 for BL 510 SHQ 112523080/0 Alpina Washer M 10 for BL 510 SHQ €1.59
4
photo_cameraImage coming soon 322680021/0 Washer €1.38
4
photo_cameraImage coming soon 322680021/1 Washer €1.34
5
Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
6
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
7
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ 112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ €2.19

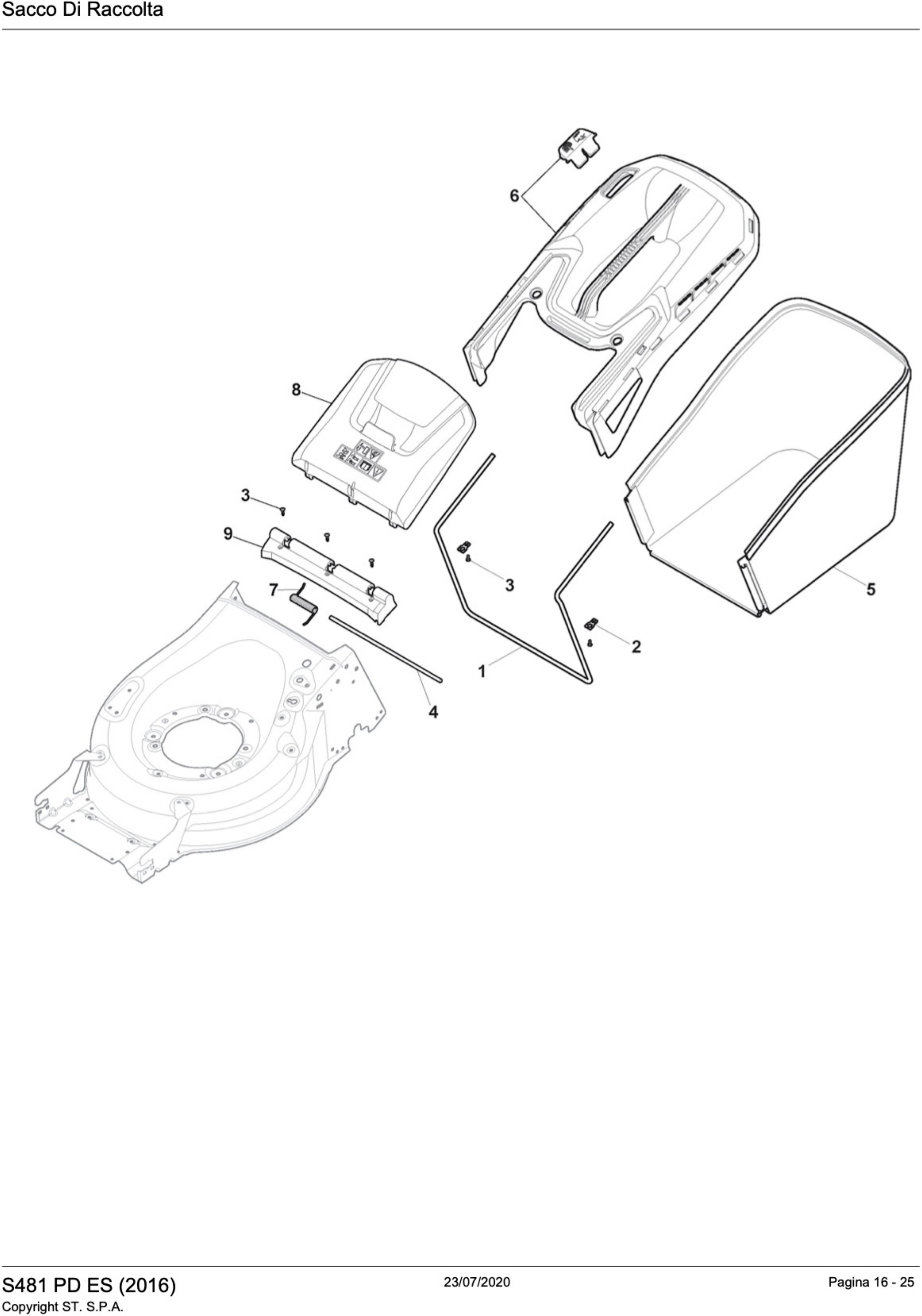

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

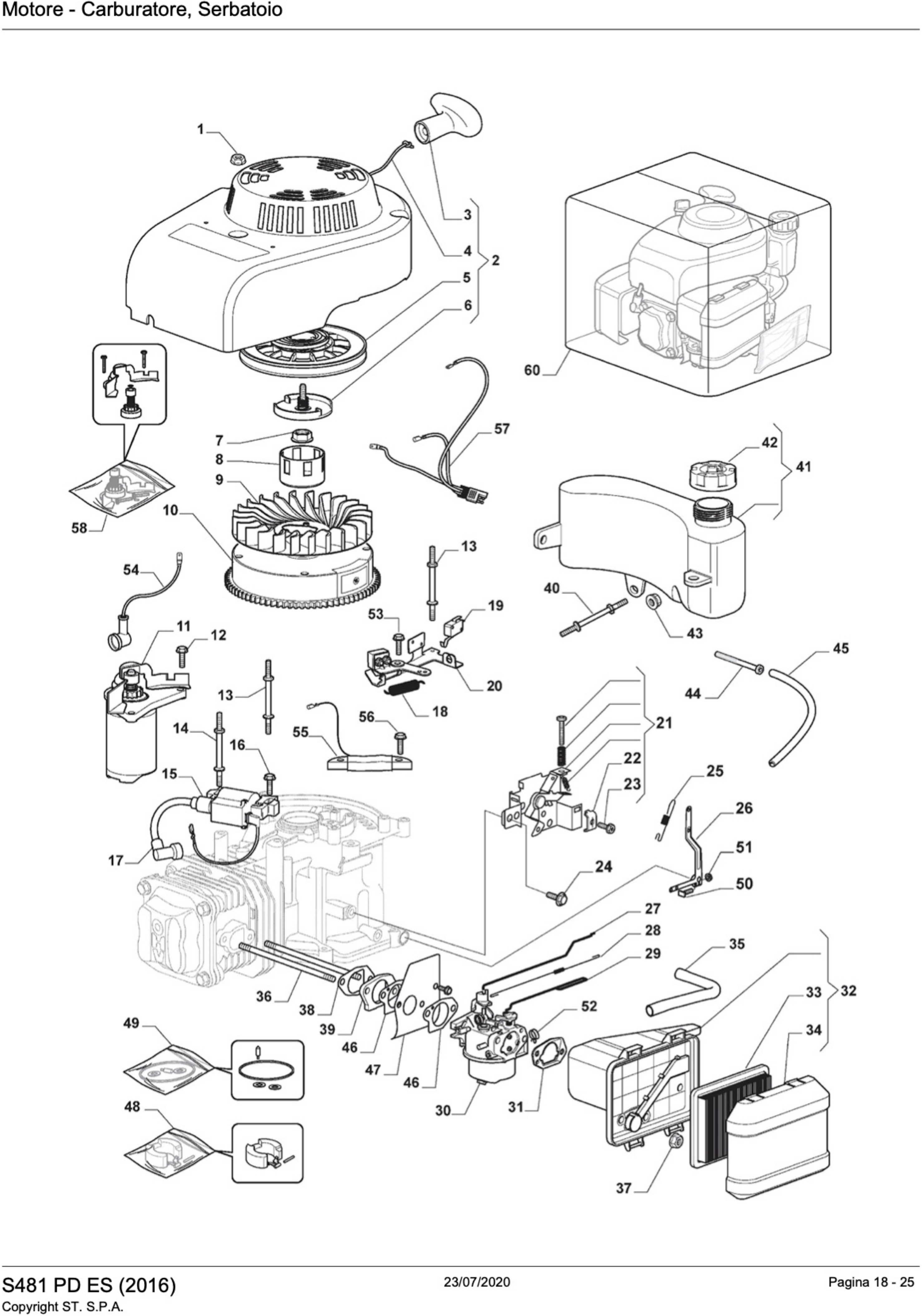

Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112292102/0 Nut €1.86
2
photo_cameraImage coming soon 118550276/1 Starter Assy €51.51
3
photo_cameraImage coming soon 118550274/0 Starter Handle €15.05
4
photo_cameraImage coming soon 118550779/0 Starting Rope €7.18
5
photo_cameraImage coming soon 118550778/0 Starter Pulley €27.11
6
photo_cameraImage coming soon 118550275/0 Starter Pawl Set €12.03
7
photo_cameraImage coming soon 118550336/0 Nut €6.07
8
photo_cameraImage coming soon 118550335/0 Starter Cup €19.67
9
photo_cameraImage coming soon 118550254/0 Flywheel Fan €20.20
11
photo_cameraImage coming soon 118550401/1 Starter Motor Assembly To 31-August-2016 €129.61
12
photo_cameraImage coming soon 112674550/0 Screw €1.58
13
photo_cameraImage coming soon 118550907/0 Pin €5.22
14
photo_cameraImage coming soon 118550301/0 Stud Bolt €6.43
15
photo_cameraImage coming soon 118550255/1 Electronic Coil €50.43
16
photo_cameraImage coming soon 112791500/0 Screw €1.64
19
photo_cameraImage coming soon 118550400/0 MICRO SWITCH [KEY START] €23.88
21
photo_cameraImage coming soon 118550259/0 Remote Control Assy €20.96
22
photo_cameraImage coming soon 118550337/0 Casing Clamp €10.63
23
photo_cameraImage coming soon 118550338/0 Screw €6.87
24
photo_cameraImage coming soon 112791213/1 Screw €1.62
25
photo_cameraImage coming soon 118550260/0 Spring €3.86
26
photo_cameraImage coming soon 118550266/0 Arm Governor Assy €12.77
27
photo_cameraImage coming soon 118550397/0 Governor Link €2.81
28
photo_cameraImage coming soon 118550263/0 Spring €2.82
29
photo_cameraImage coming soon 118550264/0 Choke Control Rod €3.35
30
Carburator for Engine Lawnmower Alpina AL5 51 G 118550390/0 Carburator for Engine Lawnmower Alpina AL5 51 G €82.22
31
photo_cameraImage coming soon 118550738/0 Air Filter Gasket €6.13
32
photo_cameraImage coming soon 118550737/0 Air Cleaner Assy €22.40
33
photo_cameraImage coming soon 118550257/0 Air Filter €11.58
34
photo_cameraImage coming soon 118550739/0 Air Cleaner Cover €7.39
35
photo_cameraImage coming soon 118550377/0 Breather Fule Pipe €4.30
36
photo_cameraImage coming soon 118550930/0 Stud Bolt €5.79
38
photo_cameraImage coming soon 118550929/0 Gasket €1.64
39
photo_cameraImage coming soon 118550928/0 Insulator, Carburettor €3.02
40
photo_cameraImage coming soon 118550315/0 Stud Bolt €7.53
41
photo_cameraImage coming soon 118550316/1 Fuel Tank €39.39
42
Tank Cap for Engine Lawnmower Alpina AL5 51 G 118550943/0 Tank Cap for Engine Lawnmower Alpina AL5 51 G €16.78
43
photo_cameraImage coming soon 118550806/0 Nut €1.63
44
photo_cameraImage coming soon 118550314/0 Fuel Filter €4.41
45
Fuel Pipe for Engine GGP WBE0701 118550340/0 Fuel Pipe for Engine GGP WBE0701 €8.23
48
photo_cameraImage coming soon 118550388/0 Kit Repair, Carburettor €12.84
49
photo_cameraImage coming soon 118550389/0 Kit Repair €9.37
50
photo_cameraImage coming soon 118550805/0 Screw €1.63
52
photo_cameraImage coming soon 118550918/0 Clamp €1.64
54
photo_cameraImage coming soon 118550395/0 Starter Motor Cables To 31-August-2016 €27.26
55
photo_cameraImage coming soon 118550420/0 CHARGE COIL ASSEMBLY To 31-August-2016 €42.12
57
photo_cameraImage coming soon 118550393/0 Switch Wires €26.38
58
photo_cameraImage coming soon 118550402/0 DRIVE STARTER KIT €32.66
60
photo_cameraImage coming soon 118550411/0 ENGINE ASSEMBLY 160cc WBE0701-ES €328.06

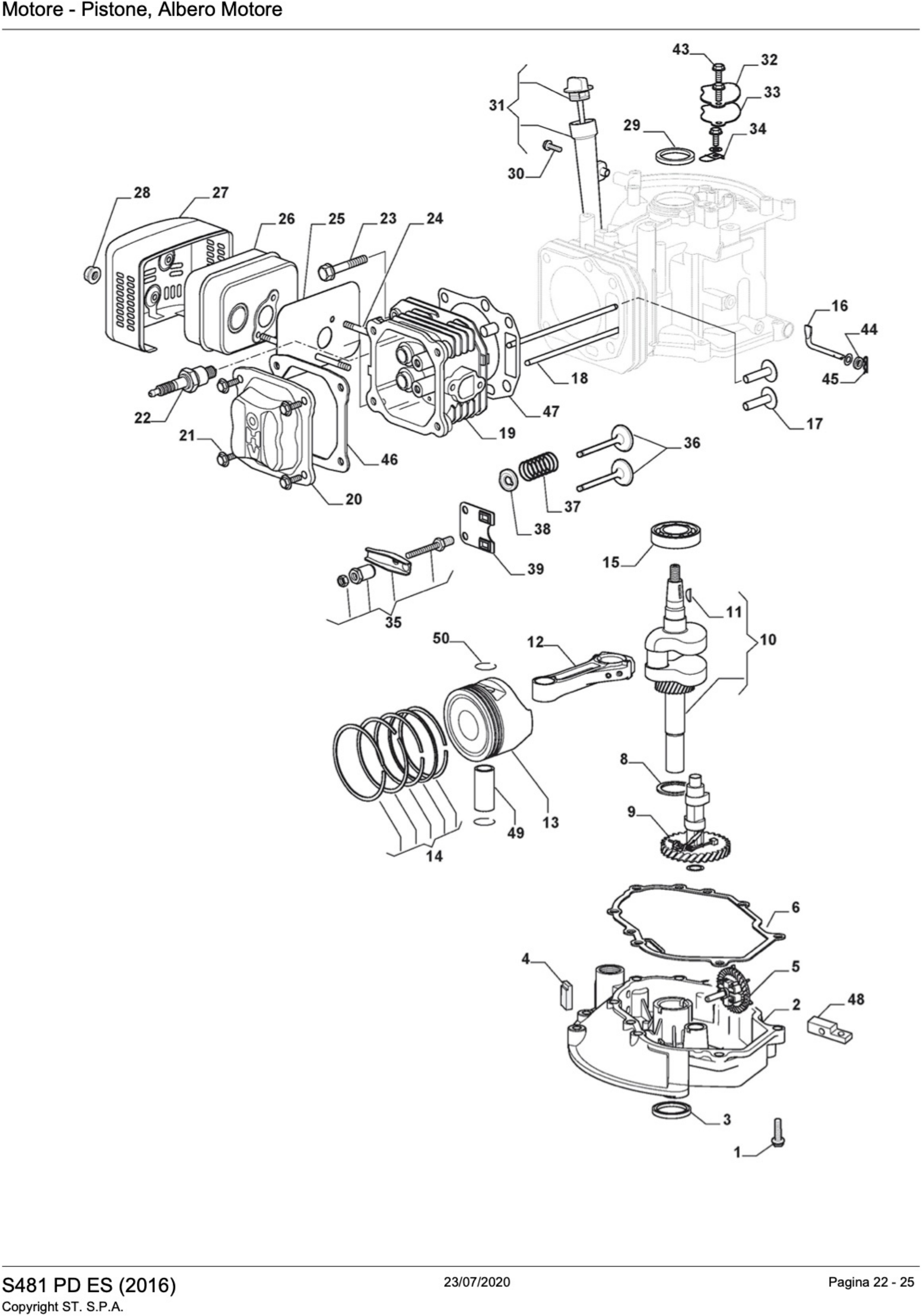

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 118551208/0 Crankcase Cover €78.84
3
photo_cameraImage coming soon 118550379/0 Oil Seal €6.76
4
photo_cameraImage coming soon 118550775/0 Grommet €2.09
6
photo_cameraImage coming soon 118550380/1 Crankcase Gasket €16.29
8
photo_cameraImage coming soon 118550283/0 Washer €3.44
9
photo_cameraImage coming soon 118550271/0 Camshaft assy €31.68
10
photo_cameraImage coming soon 118550385/0 Crankshaft €90.61
11
photo_cameraImage coming soon 118550288/0 Woodruff Key €6.20
12
photo_cameraImage coming soon 118550284/0 Connecting Rod Assy €39.11
13
photo_cameraImage coming soon 118551213/0 Piston €23.01
14
Piston Rings Ass'y for Engine Alpina TM 60 118550286/0 Piston Rings Ass'y for Engine Alpina TM 60 €28.71
15
photo_cameraImage coming soon 118550280/0 Ball Bearing €22.85
16
photo_cameraImage coming soon 118550936/0 Shaft, Governor Arm €6.49
17
photo_cameraImage coming soon 118550291/0 Valve Lifter Assy €9.73
18
photo_cameraImage coming soon 118551251/0 Push Rod €4.13
21
photo_cameraImage coming soon 118551277/0 Bolt €1.42
22
Spark Plug Champion RC12YC 9400-0244-00 Spark Plug Champion RC12YC €6.06
23
photo_cameraImage coming soon 118550297/0 Screw €6.13
24
photo_cameraImage coming soon 118550298/0 Stud Bolt €5.92
25
photo_cameraImage coming soon 118550270/0 Muffler Gasket €11.58
26
photo_cameraImage coming soon 118550269/0 Muffler €33.78
27
photo_cameraImage coming soon 118550268/1 Muffler Guard €30.72
29
photo_cameraImage coming soon 118550300/0 Oil Seal €7.25
34
photo_cameraImage coming soon 118550303/0 Plate €13.60
35
photo_cameraImage coming soon 118550273/0 Valve Arm Set €12.92
36
photo_cameraImage coming soon 118550910/0 Valve Assy, Intake + Exhaust €21.34
38
photo_cameraImage coming soon 118550895/0 Retainer €4.57
43
photo_cameraImage coming soon 112790500/0 Screw €1.58
44
photo_cameraImage coming soon 118550935/0 Oil Seal €4.57
45
photo_cameraImage coming soon 118550856/0 Cotter Pin €1.55
49
photo_cameraImage coming soon 118550915/0 Piston Pin €5.38
50
photo_cameraImage coming soon 118550914/0 Washer, Piston Pin €1.63

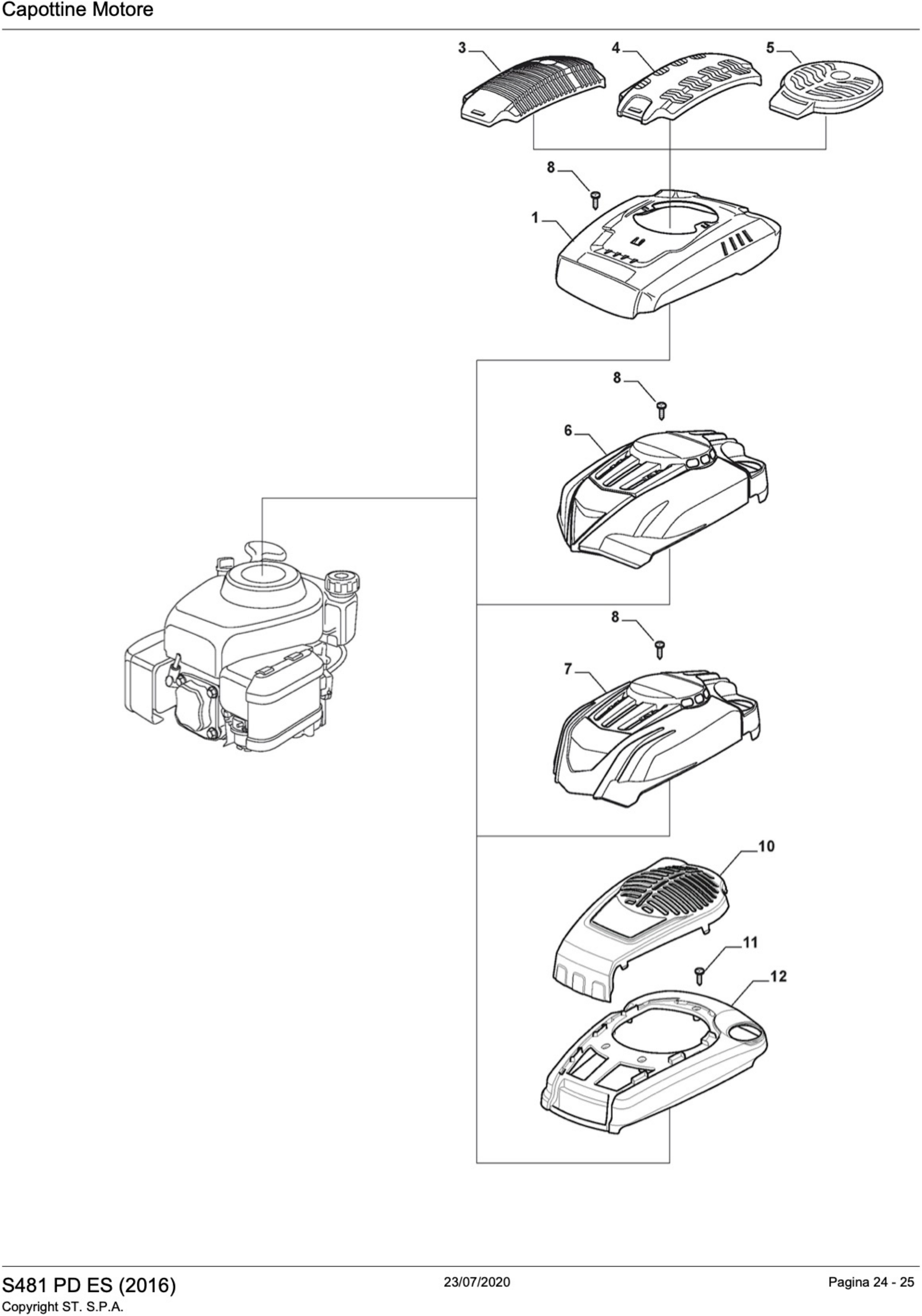

Page 11 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322055463/1 Cover €20.60
3
photo_cameraImage coming soon 322055452/0 Capottina Nera €15.52
4
photo_cameraImage coming soon 322055450/0 Cover, Black €17.52
5
photo_cameraImage coming soon 322055439/0 Capottina Nera €15.52
6
photo_cameraImage coming soon 381002068/0 Cover €24.98
7
photo_cameraImage coming soon 381002067/0 Cover €23.88
8
photo_cameraImage coming soon 112728680/0 Screw €1.62
10
photo_cameraImage coming soon 322055516/0 Cover €17.59
11
photo_cameraImage coming soon 112728099/1 Screw €1.65
12
photo_cameraImage coming soon 322055517/0 Base Cover Yellow €17.10
12
photo_cameraImage coming soon 322055552/0 Base Cover Black €6.86

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Mountfield Spare Parts for Lawnmower S481 PD ES (2016)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower S481 PD ES (2016) 294502543/M16.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
S481 PD ES (2016) 294502543/M16

LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.1
# Part Num. Description
1 381302881/0 Front Wheels Axle from 01.02.2016 front axle 381302913/0 will be unified for all models
1 381302913/0 Front Wheel Axle To S / N 20BA2WBH080823
1 381302913/1 Front Wheel Axle From S / N 20BA2WBH080824
2 322785305/0 Axle Support To 31-August-2015
2 322785305/1 Axle Support From 01-September-2015
3 112728697/0 Screw
4 322869695/0 HEIGHT ADJUST TIE BARTo S / N 20BA2WBH090896
4 322869695/1 HEIGHT ADJUST TIE BAR From S / N 20BA2WBH090897
5 122519820/0 Pin
6 112436051/0 pin plate
7 322778475/0 HEIGHT ADJUST BRACKET
8 122450480/0 Spring
9 122517873/0 BUSH
10 322055329/0 HEIGHT ADJUST COVER [BLACK]
11 112815270/0 Screw M6X25
12 112523040/0 WASHER M6 6.6 x 18 x 1.6
13 112154510/0 LOW SELF-LOCKING NUT M6
14 381302895/0 Rear Wheel Axle To S / N 20BA2WBH091142
14 381302895/1 Rear Wheel Axle From S / N 20BA2WBH091143
15 322545152/0 AXLE BRACKET
16 112728697/0 SELF-TAP SCREW PT TORX K50 x 16
17 122446192/0 Spring
18 122534131/0 Pin
19 322322855/0 HEIGHT ADJUST LEVER To S / N 20BA2WBH068104
19 322322915/0 HEIGHT ADJUST LEVER From S / N 20BA2WBH068105
20 322394506/0 HEIGHT ADJUST KNOB
21 112728699/0 SELF-TAPPING SCREW K60 x 22
22 135063900/0 Belt Z28
23 322778473/0 Stop Bracket To 31-August-2018
23 322778473/1 Stop Bracket From 01-September-2018
24 122450478/0 Spring
25 181003115/0 GEARBOX [BLACK]
26 122753000/0 PIN D=5.2 x 25.65
27 112608600/0 CIRCLIP D=12
28 119216035/0 BEARING 6001 2RS (12 x 28 x 8)
29 122570110/1 Right pinion Gear
30 122570120/1 Left pinion Gear
31 322042066/0 Axle Bush
32 112521371/0 WASHER M12 13 x 20 x 2
33 322600205/1 INNER WHEEL COVER D=240
34 322600247/0 INNER WHEEL COVER D=180
35 122601909/0 Pulley
37 381003357/0 Height Adjust Lever To S / N 20BA2WBH076280
37 381003357/1 Height Adjust Lever From S / N 20BA2WBH076281
37 381003457/1 Height AdjustLever From S / N 20BA2WBH073719

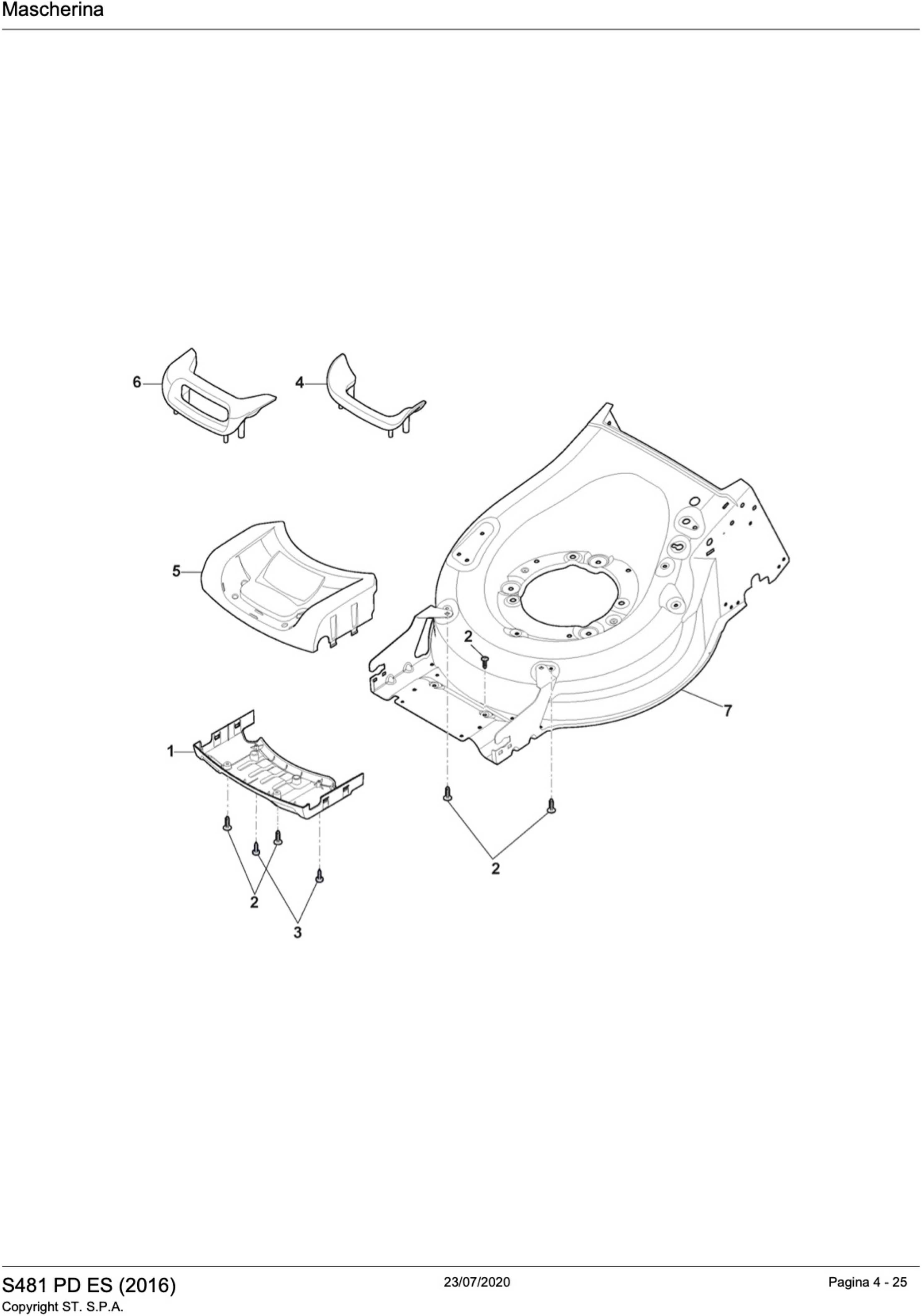

LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.2
1 322500111/0 FRONT DECK COVER [BLACK]
2 112728697/0 SELF-TAP SCREW PT TORX K50 x 16
3 112728699/0 SELF-TAPPING SCREW K60 x 22
4 322055524/0 FRONT PLASTIC INSERT [BLACK] To 31-December-2018
4 322055524/1 FRONT PLASTIC INSERT [BLACK] From 01-January-2019
5 322226215/0 FRONT TOP COVER [RED] Light Red
5 322226229/0 FRONT COVER BLACK
5 322226243/0 FRONT TOP COVER [DARK RED]
6 322393742/0 FRONT HANDLE [BLACK] To 31-December-2018
6 322393742/1 FRONT HANDLE [BLACK] From 01-January-2019
7 381004776/0 STEEL DECK MP1 504 [RED] To 31-August-2016
7 381004792/0 STEEL DECK MP1 504 [RED] From 01-September-2016 To 31-August-2018
7 381004853/0 STEEL DECK MP1 504 GREY From 01-September-2018
LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.3
1 381005195/0 RIGHT HANDLE BRACKET Black To 31-August-2017
1 381005195/1 RIGHT HANDLE BRACKET Black From 01-September-2017 To 31-August-2018
1 381005195/2 RIGHT HANDLE BRACKET Black From 01-September-2018
2 381005197/0 LEFT HANDLE BRACKET Black To 31-August-2017
2 381005197/1 LEFT HANDLE BRACKET Black From 01-September-2017 To 31-August-2018
2 381005197/2 LEFT HANDLE BRACKET Black From 01-September-2018
3 112727801/0 SCREW TCB TORX M6 x 20
4 322545213/0 FIXING PLATE
5 322600310/0 REAR DOOR (Not For Electric Start Models)
6 381102204/0 Rear conveyor assembly To S / N 19JA2WBH017664
6 381102204/1 Rear conveyor assembly From S / N 19JA2WBH017665
7 112728699/0 SELF-TAPPING SCREW K60 x 22
8 322060270/0 Belt Protection Guard Mulching To S / N SK6112205
8 322060270/1 Belt Protection Guard Mulching To S / N SK6112095
8 322060270/2 Belt Protection Guard Mulching From S / N SK8153833 To S / N 19JA2WBH023208
8 322060270/3 Belt Protection Guard Mulching From S / N 19JA2WBH023209
9 112728530/0 Screw To 31-August-2015
9 112728531/0 Screw From 01-September-2015 To 31-August-2016
9 112735645/0 Screw From 01-September-2016
10 112154510/0 LOW SELF-LOCKING NUT M6
11 112815205/0 Screw
12 112521330/0 Washer
13 119035000/0 O-Ring
14 112728697/0 Screw
15 322034002/0 Water washing connection
16 322140245/0 MULCHING PLUG [MP1 504]
18 122042073/0 BUSH From 01-September-2018
LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.4
1 381006739/1 Upper Handle [Black] without Sponge To 31-August-2017
1 381006739/2 Upper Handle [Black] without Sponge From 01-September-2017
1 381006745/1 Upper Handle [Black] with sponge grip Black with Sponge To 31-August-2017
1 381006745/2 Upper Handle [Black] with sponge grip Black with Sponge From 01-September-2017 To 31-August-2018
1 381006745/3 Upper Handle [Black] with sponge grip Black with Sponge From 01-September-2018
2 122430313/0 PULL CORD GUIDE
3 112521330/0 Washer
4 112154510/0 Nut
5 118390020/0 Cable clip
6 181003363/1 ENGINE BRAKE LEVER
7 181030057/0 ENGINE BRAKE CABLE L=1385
7 181030106/0 ENGINE BRAKE CABLE
8 112727788/0 Screw
9 112154510/0 Nut
10 181003364/0 CLUTCH DRIVE LEVER BLACK
11 381030104/0 CLUTCH DRIVE CABLE
12 181005539/0 THROTTLE DRIVE CABLE
13 381007563/0 Lower Handle Black To S / N SK8177202
13 381007563/1 Lower Handle Black From S / N SK8177203
14 322399835/0 HANDLE KNOB Black
15 122131750/0 Nut
16 322680016/0 HANDLE FIXING WASHER
17 381103350/0 UPPER LOCK HANDLE LEVER [BLACK]
18 381003253/0 UPPER LOCK HANDLE LEVER [BLACK]
LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.5
1 112728702/0 Screw
2 112728691/0 Screw
3 322722801/0 LEFT IGNITION COVER
4 118450051/0 IGNITION SWITCH ASSEMBLY
5 322722800/0 RIGHT IGNITION COVER
6 118204121/0 Battery charger BS plug To 31-August-2015
6 118204121/1LC Battery charger BS Plug
7 133320015/0 Cable Clamp To 31-August-2016
7 133320022/0 Cable Clamp from 01-September-2016
8 118204196/0 ELECTRIC START CABLE For B&S Engines
10 118390021/0 Cable Clip Caproeurope (28-1496)
11 322109533/0 Battery holder
12 118120052/0 BATTERY c/w CABLE 12V 5AH
13 112728706/0 SELF-TAP SCREW PT TORX K40
14 325160039/0 Spacer
LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.6
1 381007448/1 DELTA WHEEL ASSEMBLY D=180mm
2 119216035/0 BEARING 6001 2RS (12 x 28 x 8)
3 322110687/0 DELTA HUB CAP D=200 [GREY]
5 381007463/1 WHEEL ASSEMBLY D=240mm [DELTA]
6 119216035/0 BEARING 6001 2RS (12 x 28 x 8)
7 112728706/0 SELF-TAP SCREW PT TORX K40
8 322120117/0 PLASTIC DRIVE GEAR D=240
9 322110689/0 DELTA HUB CAP D=240 [GREY]
10 122170848/0 Spacer
LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.7
1 122465607/3 BLADE BOSS, Crankshaft Ø 22.2 To 31-December-2018
1 122465607/4 BLADE BOSS, Crankshaft Ø 22.2 From 01-January-2019
2 181004366/2 MULCHING BLADE 48cm
3 122160400/0 SPRING WASHER 50 x 2 x 10.2
4 112523080/0 WASHER M10 11 x 30 x 2.5 Only for 554 Models To 31-August-2016
4 322680021/0 Washer Only for 554 Models From 01-September-2016 To 31-August-2019
4 322680021/1 Washer Only for 554 Models From 01-September-2019
5 112735698/0 HEX-HEAD SCREW 3/8" x 2"
6 112139100/0 WOODRUFF KEY 4 x 6.5 D=16
7 112735108/1 TELF-FORM SCREW 3/8" x 1�" UNC
LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.8
1 181006411/0 RASSCATCHER FRAME To 31-August-2019
1 181006411/1 RASSCATCHER FRAME From 01-September-2019
2 322557177/0 Fixing plate
3 112728697/0 SELF-TAP SCREW PT TORX K50 x 16
4 122517884/0 DEFLECTOR ROD
5 181102349/0 GRASSBAG MP1 50-55 [BLACK] without Logo
6 381486039/0 GRASSCATCHER TOP-FULL INDICATOR [BLACK]
7 122450479/0 Spring
8 322600308/0 DEFLECTOR [BLACK]
9 322109569/0 DEFLECTOR SUPPORT [BLACK]
LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.9
1 112292102/0 HEXAGON NUT M6
2 118550276/1 Recoil Starter 140/160cc [WBE] assembly
3 118550274/0 Recoil Starter handle
4 118550779/0 Recoil Starter rope
5 118550778/0 RECOIL ASSEMBLY RECOIL PULLEY & SPRING
6 118550275/0 STARTER PAWL KIT
7 118550336/0 Nut
8 118550335/0 Starter cup
9 118550254/0 Flywheel Fan To 31-August-2016
10 118550392/1 Flywheel To 31-August-2016
10 118551363/0 Flywheel From 01-September-2016
11 118550401/1 Starter Motor Assembly To 31-August-2016
11 118551365/0 Starter Motor Assembly From 01-September-2016
12 112674550/0 SCREW TE M6 x 30
13 118550907/0 STUD BOLT
14 118550301/0 STUD BOLT
15 118550255/1 Electronic Ignition coil
16 112791500/0 Screw M6x25
17 118551274/0 SPARK PLUG CAP
18 118551288/0 Tension Spring To 31-August-2016
18 118551367/0 Tension Spring From 01-September-2016
19 118550400/0 MICRO SWITCH [KEY START]
20 118551206/0 FLYWHEEL BRAKE/STOP ASSEMBLY To 31-August-2016
20 118551366/0 FLYWHEEL BRAKE/STOP ASSEMBLY From 01-September-2016
21 118550259/0 THROTTLE CONTROL ASSEMBLY
22 118550337/0 CASING CLAMP
23 118550338/0 Screw
24 112791213/1 Screw
25 118550260/0 Spring
26 118550266/0 GOVERNOR ARM
27 118550397/0 GOVERNOR LINK
28 118550263/0 Spring
29 118550264/0 CHOKE CONTROL ROD
30 118550390/0 Carburetor
31 118550738/0 Carburetor gasket
32 118550737/0 Air filter assembly
33 118550257/0 Paper Air filter
34 118550739/0 Air filter cover
35 118550377/0 BREATHER FUEL PIPE
36 118550930/0 Stud Bolt
37 112292102/0 HEXAGON NUT M6
38 118550929/0 Gasket
39 118550928/0 CARBURETOR INSULATOR
40 118550315/0 Stud Bolt
41 118550316/1 Fuel Tank
42 118550943/0 Fuel Tank cap
43 118550806/0 Nut
44 118550314/0 Fuel filter
45 118550340/0 Fuel pipe
46 118551264/0 Carburetor gasket
47 118551266/0 Carburetor gasket
48 118550388/0 Carburettor Float Kit
49 118550389/0 Carburettor Repair kit
50 118550805/0 Screw
51 118550806/0 Nut
52 118550918/0 Pipe Clip
53 112791500/0 Screw M6x25
54 118550395/0 Starter Motor Cables To 31-August-2016
54 118551368/0 Starter Motor Cables From 01-September-2016
55 118550420/0 CHARGE COIL ASSEMBLY To 31-August-2016
55 118551364/0 CHARGE COIL ASSEMBLYFrom 01-September-2016
56 112791500/0 Screw M6x25
57 118550393/0 Switch Wires
58 118550402/0 DRIVE STARTER KIT
60 118550411/0 ENGINE ASSEMBLY 160cc WBE0701-ES
LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.10
1 112674550/0 SCREW TE M6 x 30
2 118551208/0 Crankcase Cover
3 118550379/0 Oil Seal
4 118550775/0 Rubber grommet
5 118550312/1 SPEED GOVERNOR
6 118550380/1 Crankcase Gasket
8 118550283/0 Washer
9 118550271/0 Camshaft
10 118550385/0 CRANKSHAFT
11 118550288/0 Woodruff key
12 118550284/0 Connecting Rod Assembly
13 118551213/0 Piston
14 118550286/0 Piston Ring Set
15 118550280/0 Ball bearing
16 118550936/0 GOVERNOR ARM SHAFT
17 118550291/0 Valve lifter assembly
18 118551251/0 Push Rod
19 118551212/0 Cylinder head
20 118550296/2 Cylinder head cover
21 118551277/0 Screw M6x14
22 9400-0244-00 SPARK PLUG [CHAMPION RC12YC]
23 118550297/0 Screw
24 118550298/0 Stud Bolt
25 118550270/0 Muffler Gasket
26 118550269/0 Muffler
27 118550268/1 Muffler Guard
28 118550806/0 Nut
29 118550300/0 Oiul Seal
30 112674550/0 Screw TE M6 x 30
31 118550311/1 Oil Level Plug Assembly
32 118551210/0 BREATHER CAP
33 118551211/0 BREATHER Chamber Gasket
34 118550303/0 plate
35 118550273/0 Valves Arm Set
36 118550910/0 Intake + Exhaust Valve Kit Assembly
37 118551300/0 Valve Spring
38 118550895/0 RETAINER VALVE SPRING
39 118551253/0 plate
43 112790500/0 HEX-HEAD SCREW M6 x 10
44 118550935/0 Oil Seal
45 118550856/0 Lock Pin
46 118551237/0 Cylinder Head Gasket
47 118551233/0 Cylinder Gasket
48 118551269/0 Plate, Governor Holder
49 118550915/0 Piston pin
50 118550914/0 Piston pin clip
LAWNMOWER MOUNTFIELD S481 PD ES (2016) 294502543/M16 Pag.11
1 322055463/1 ENGINE BASE COVER [BLACK]
3 322055452/0 TOP ENGINE COVER [BLACK-OBLONG]
4 322055450/0 TOP ENGINE COVER [BLACK-OBLONG]
5 322055439/0 TOP ENGINE COVER [BLACK-OBLONG]
6 381002068/0 ENGINE COVER [BLACK/RED]
7 381002067/0 ENGINE COVER [BLACK/YELLOW]
8 112728680/0 FLANGED SCREW D=5 x 25
10 322055516/0 TOP ENGINE COVER [GREY]
11 112728099/1 SELF-TAPPING SCREW 4.2 x 16
12 322055517/0 ENGINE BASE COVER [YELLOW]
12 322055552/0 ENGINE BASE COVER BLACK
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
S481 PD ES (2016) 294502543/M16
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing S481 PD ES (2016)

Drawing S481 PD ES (2016)

Download (1.83MB)

You might also like

GGP Italy SKU: 118550390/0
Carburator for Engine Lawnmower Alpina AL5 51 G Original replacement part Alpina, Carburator for Engine Lawnmower Alpina AL5 51 G. Part for the following products: - ...
Last items in stock €82.22
GGP Italy SKU: 118550340/0
Fuel Pipe for Engine GGP WBE0701 Original spare part Alpina, Fuel Pipe for Engine GGP WBE0701 - ST. S.P.A. OM55 (2008) Part for the following products: -  Engine GGP WBE0701 118550408/0_110004WBE0701 - Code : 118550340/0
on 7/10 Business Days Approx €8.23
GGP Italy SKU: 381030104/0
Clutch Drive Cable for Lawnmower Stiga 55 SVEQ H Original replacement part Stiga, Clutch Drive Cable for Lawnmower COMBI 55 SVEQ H - Mounfield S481 PD ES - HW531 PD Part for the...
Last items in stock €21.90
GGP Italy SKU: 112735108/1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ Original part Alpina, Telf-Form Screw 3/8"x 1"1/4 UNC I.F., for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €2.19
GGP Italy SKU: 322110687/0
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Delta Hub Cap D.200 Grey Self Propelled Lawnmower AL3 46 B - AL3 46 G -  AL3 46 E - AL5 51 SBQ. Part for the following products: -  LAWNMOWER...
AVAILABLE €3.26
GGP Italy SKU: 118550943/0
Tank Cap for Engine Lawnmower Alpina AL5 51 G Original replacement part Alpina, Tank Cap for Engine Lawnmower Alpina AL5 51 G - BL 460 - HW531 PD - S481 PD ES. Part for the following products: -  Lawnmower AL5 51 G -  Lawnmower BL...
Last items in stock €16.78
GGP Italy SKU: 112728706/0
Alpina Lawnower AL3 46 SG Screw Genuine replacement part Alpina, Screw Torx Wn1451 K40X16 for Lawnower AL3 46 SG - AL3 46 SBQ. Part for the following products: -  Lawnower Mountfield S481...
AVAILABLE €1.65
GGP Italy SKU: 122534131/0
Alpina Lawnower AL3 46 B Pin Genuine replacement part Alpina, Rear Rod lever Pin for Lawnower AL3 46 B - AL5 51 G. Part for the following products: -  Lawnmower Alpina AL3 46...
AVAILABLE €1.65
GGP Italy SKU: 381007463/1
Alpina Lawnower FL 46 SQH Rear Wheel Genuine replacement part Alpina, Rear Delta Whell Assembly D=240 for Lawnower FL 46 SQH - S481 PD ES. Part for the following products: -  Lawnmower Castor...
Last items in stock €24.20
GGP Italy SKU: 322120117/0
Alpina Lawnower BL 460 SB Wheel Crown Genuine replacement part Alpina, Wheel Crown for Lawnower BL 460 SB - AL3 46 SG. Part for the following products: -  Lawnower Alpina BL 460 SB - 295492124 - ...
Last items in stock €5.04
Comments (0)
