Mountfield Spare Parts for Lawnmower 511 PD (2007)

SKU: 511 PD (2007) - 294538043/MO7
€207.55
VAT included

Mountfield Spare Parts for Lawnmower 511 PD (2007)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower SP46 (2019) - 295492048/M19.

511 PD (2007) - 294538043/MO7
Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)
  • Mountfield Spare Parts for Lawnmower 511 PD (2007)

Mountfield Spare Parts for Lawnmower 511 PD (2007)

SKU: 511 PD (2007) - 294538043/MO7 Condition: New
€207.55
VAT included

Mountfield Spare Parts for Lawnmower 511 PD (2007)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower SP46 (2019) - 295492048/M19.

511 PD (2007) - 294538043/MO7
settings 165 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

156 spare parts

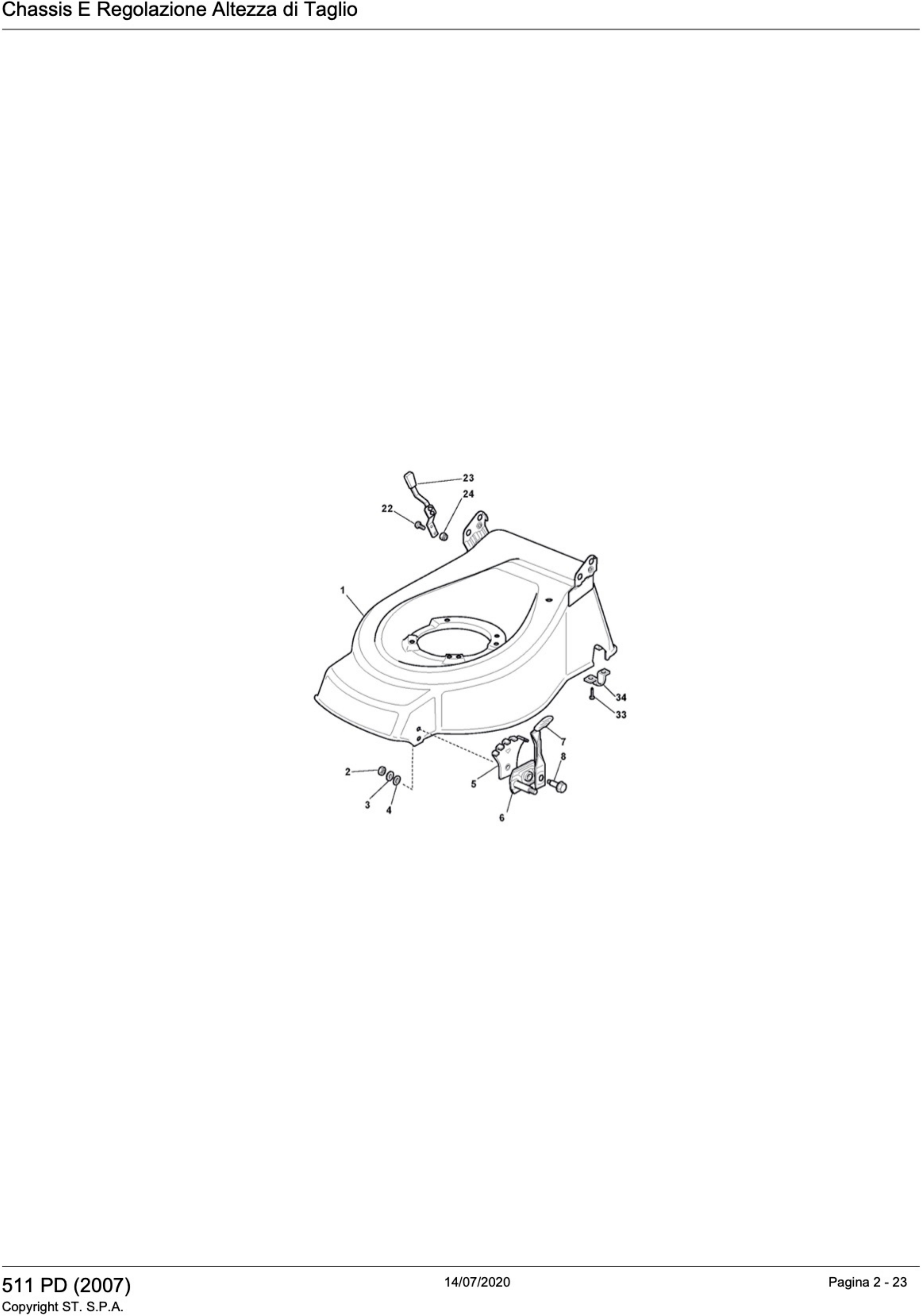

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381001979/1 Red chassis €179.05
2
photo_cameraImage coming soon 112293200/0 Nut €1.74
3
photo_cameraImage coming soon 112583500/0 Grower €1.64
4
photo_cameraImage coming soon 112523070/0 Washer €1.58
5
photo_cameraImage coming soon 322735547/0 Height Adjustment Sector €1.91
6
photo_cameraImage coming soon 381005082/0 Wheel Support €5.79
7
photo_cameraImage coming soon 481003285/1 Lever €8.36
8
photo_cameraImage coming soon 122519811/0 Pin €1.65
22
photo_cameraImage coming soon 112789000/0 Screw €1.77
23
photo_cameraImage coming soon 381003279/2 Adjust lever €7.67
24
photo_cameraImage coming soon 112154330/0 Nut €1.74
33
photo_cameraImage coming soon 112731350/0 Screw €1.62
34
photo_cameraImage coming soon 322545152/0 Plate €1.66

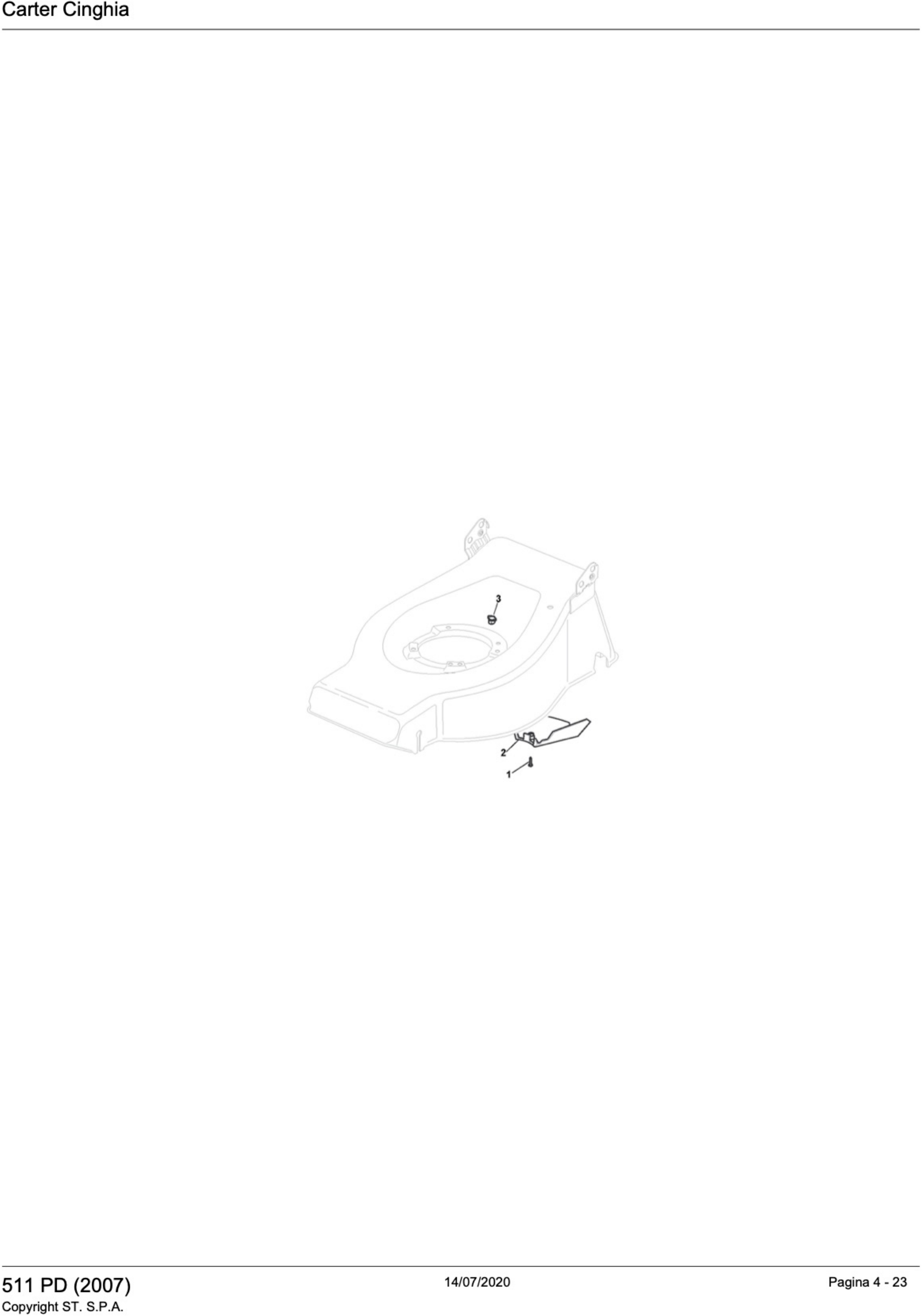

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112728530/0 Screw €1.60
2
photo_cameraImage coming soon 122060193/0 Belt Cover - Trend €5.51
2
photo_cameraImage coming soon 122060196/0 Belt Cover - Castel €5.51
3
photo_cameraImage coming soon 322291150/0 Rubber Insert €1.58

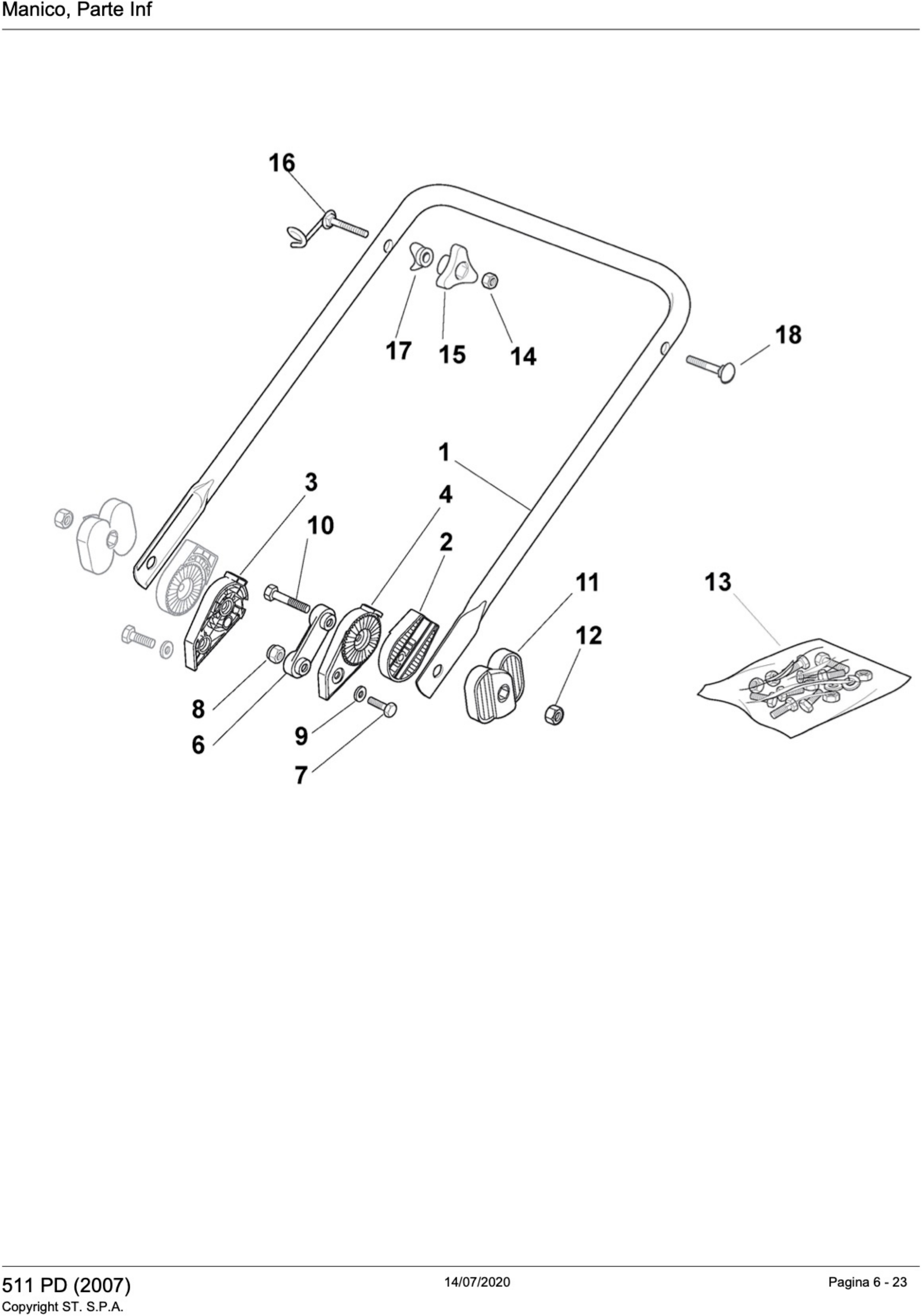

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381006510/0 Handle, Lower side To 31-August-2005 €23.96
1
photo_cameraImage coming soon 381006532/0 Handle, Lower side From 01-September-2005 €30.11
2
photo_cameraImage coming soon 122785081/0 Outer Support To 31-August-2003 €3.85
2
photo_cameraImage coming soon 322785081/1 Outer Support From 01-September-2003 €3.85
3
photo_cameraImage coming soon 122785082/0 Inner Support Right €2.81
4
photo_cameraImage coming soon 122785083/1 Inner support Left €2.67
6
Inside Plate for Lawnmower Alpina FL 46 LMG 122551575/0 Inside Plate for Lawnmower Alpina FL 46 LMG €3.41
7
photo_cameraImage coming soon 112793301/0 Screw €1.94
8
photo_cameraImage coming soon 112155000/0 Nut €1.66
9
photo_cameraImage coming soon 112521350/0 Washer €1.74
10
photo_cameraImage coming soon 112691810/0 Screw €1.49
11
photo_cameraImage coming soon 122399803/0 Knob €1.70
12
photo_cameraImage coming soon 112293202/0 Nut €2.05
13
photo_cameraImage coming soon 181008623/1 OUTFIT SCREW PM4850S €6.76
13
Screws Outfit for Lawnmower Alpina FL 46 LMG 381008596/1 Screws Outfit for Lawnmower Alpina FL 46 LMG €15.25
13
photo_cameraImage coming soon 381008622/0 Outfit Screws From 01-September-2002 To 31-August-2003 €5.04
14
photo_cameraImage coming soon 112293200/0 Nut €1.74
15
3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
16
photo_cameraImage coming soon 181003801/1 Guide spring €3.16
17
photo_cameraImage coming soon 122680006/1 Washer €1.62
18
photo_cameraImage coming soon 112819201/0 Screw €1.49

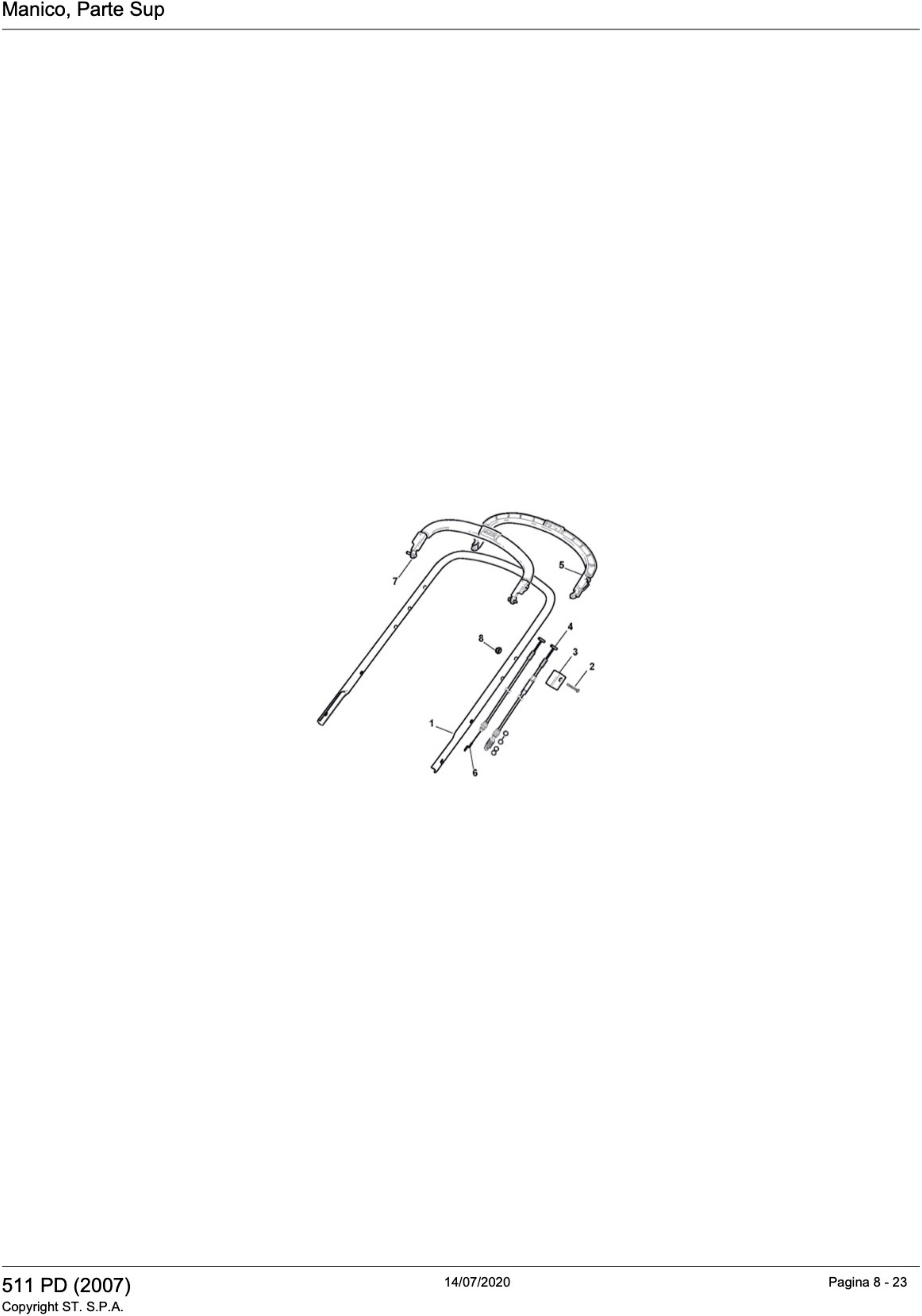

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

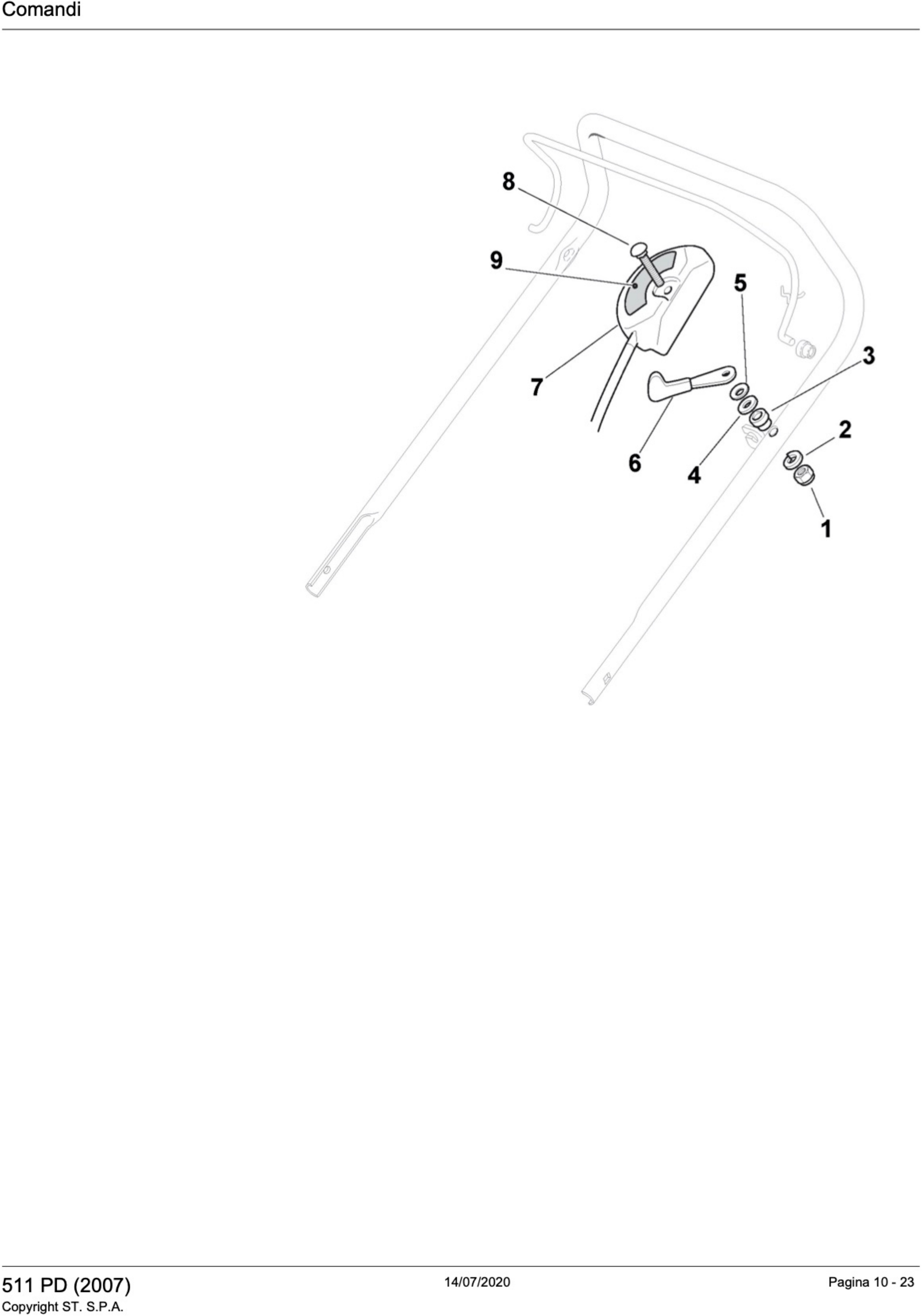

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112291000/0 Nut €1.63
2
photo_cameraImage coming soon 112581500/0 Grower €1.74
4
photo_cameraImage coming soon 112521360/0 Washer €1.62
5
photo_cameraImage coming soon 112508100/0 Cup spring €1.49
6
photo_cameraImage coming soon 381007220/0 Throttle Lever SV40-RV 40-V35 Engine / B & S 450-500 Series;From 01-september-2006 €16.01
7
photo_cameraImage coming soon 481007080/0 Throttle cable €22.51
8
photo_cameraImage coming soon 112815000/0 Screw €1.49
9
photo_cameraImage coming soon 114356702/0 Throttle Label (GGP) €1.49

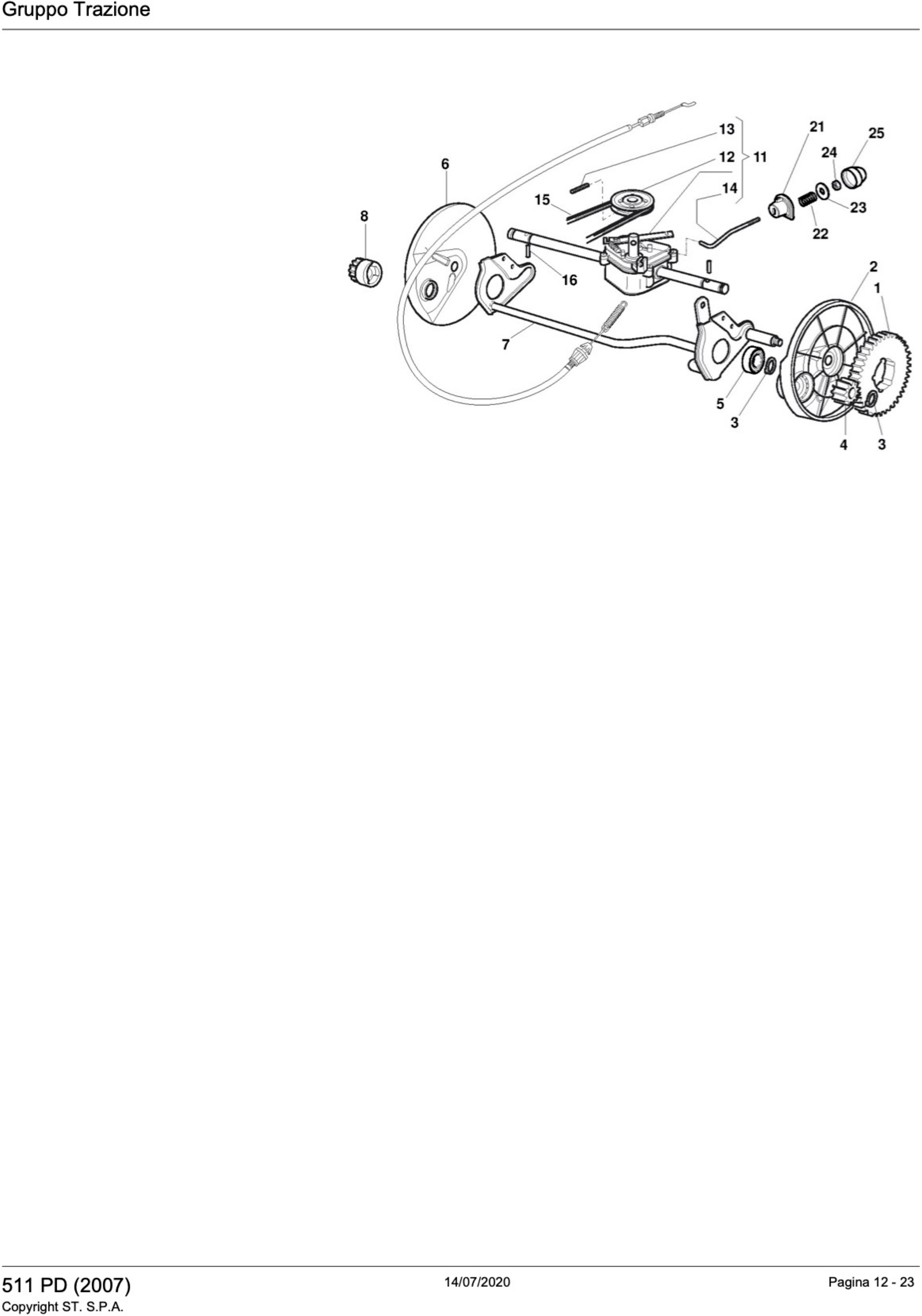

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 122120105/1 Crown €9.96
2
photo_cameraImage coming soon 122600093/0 Left Wheels Protection €2.88
3
Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ 112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ €1.58
4
Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S 122570120/1 Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
5
photo_cameraImage coming soon 119216035/0 Bearing €4.51
6
photo_cameraImage coming soon 122600092/0 Right Wheels Protection €2.88
7
photo_cameraImage coming soon 381000147/0 Axle Rear Wheel €22.03
8
Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S 122570110/1 Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
11
photo_cameraImage coming soon 181003059/2 Traction Gearbox (France Reducteurs); To 31-August-2003 €103.94
11
photo_cameraImage coming soon 181003072/1 Traction Gearbox (Bi. Ci. Di.); To 31-August-2003 €106.87
11
photo_cameraImage coming soon 181003076/0 Traction Gearbox G.T. (France Reducteurs); From 01-September-2003 To 31-August-2005 €101.29
11
photo_cameraImage coming soon 181003081/0 Traction Gearbox Bi.Ci.Di (Bi. Ci. Di.); From 01-September-2003 To 31-August-2005 €95.81
11
photo_cameraImage coming soon 181003081/1 Traction Gearbox Bi.Ci.Di (Bi. Ci. Di.); From 01-September-2005 To 31-August-2010 €95.81
11
Trasmission Gear Box for Self Propelled Lawnmower Alpina BL 460 SB 181003092/0 Trasmission Gear Box for Self Propelled Lawnmower Alpina BL 460 SB €114.62
12
photo_cameraImage coming soon 122601904/0 Pulley To 31-august-2013 €6.79
12
photo_cameraImage coming soon 122601909/0 Pulley €7.00
13
photo_cameraImage coming soon 112645705/0 Elastic pin ø5X32 €1.61
14
photo_cameraImage coming soon 122033280/0 Adjustment Rod (Bi. Ci. Di.) €4.27
14
photo_cameraImage coming soon 122033283/0 Adjustment Rod €4.77
15
photo_cameraImage coming soon 135063902/0 Belt €11.88
16
Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ 122753000/0 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ €1.72
21
photo_cameraImage coming soon 122041957/1 Bushing €1.66
22
photo_cameraImage coming soon 122450063/0 Spring €1.66
23
photo_cameraImage coming soon 322680009/0 Washer €1.81
24
photo_cameraImage coming soon 112154510/0 Nut €1.66
25
photo_cameraImage coming soon 122110230/0 Hub Cover €1.66

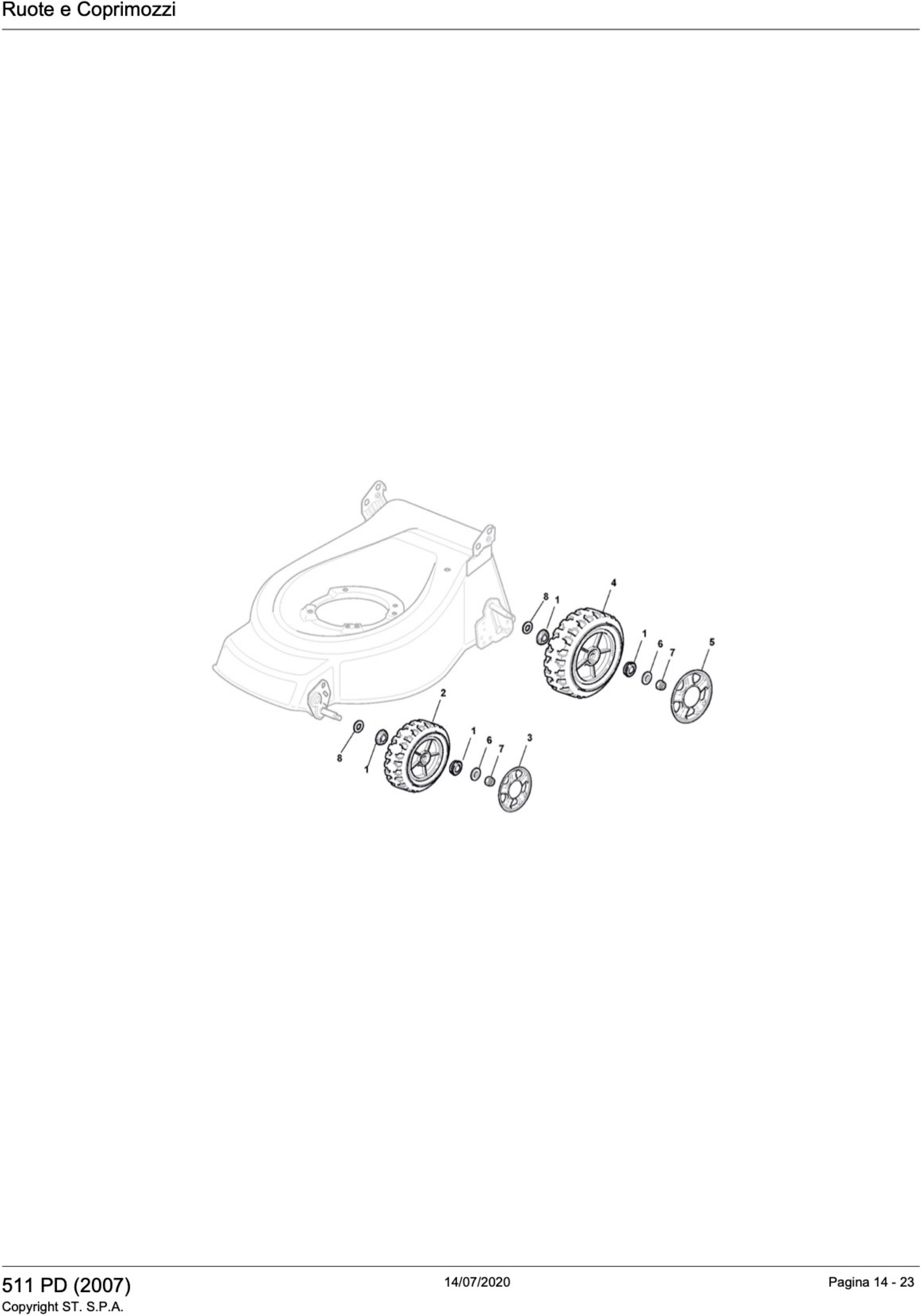

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 122122200/0 Bearing €2.21
2
photo_cameraImage coming soon 381007351/0 Wheel Ø 170 €12.91
3
photo_cameraImage coming soon 322110381/0 Gray hubcap €2.81
4
photo_cameraImage coming soon 181007343/0 Wheel €15.91
5
photo_cameraImage coming soon 322110382/0 Gray hubcap €3.23
6
photo_cameraImage coming soon 112523060/0 WASHER FOR RM63.7 €1.64
7
photo_cameraImage coming soon 112155000/0 Nut €1.66
8
photo_cameraImage coming soon 112530150/0 ELASTIC WASHER X PM4850S €1.62

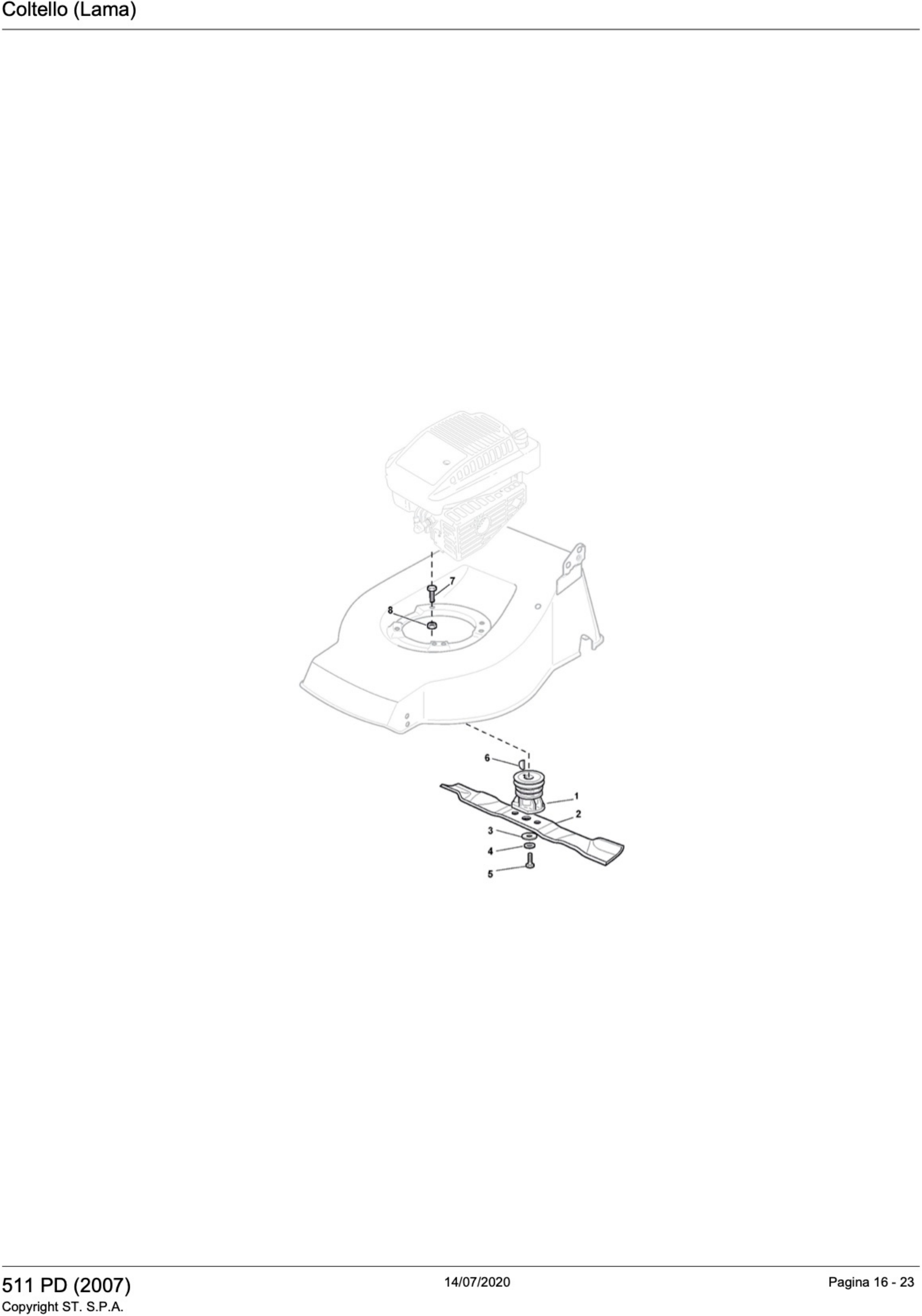

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381008021/1 stone guard Black to 31-August-2009 €18.90
1
photo_cameraImage coming soon 381008021/2 stone guard Black 01-September-2009 €18.90
2
photo_cameraImage coming soon 122450420/1 Left Spring €2.51
3
photo_cameraImage coming soon 122517906/1 Pin €3.23
4
photo_cameraImage coming soon 122450410/1 Right Spring €2.51
5
photo_cameraImage coming soon 112000930/0 Benzing ring €1.62
6
photo_cameraImage coming soon 322486101/0 Grass-Box, Upper Part €20.36
7
photo_cameraImage coming soon 122608525/0 Stiffening Lower €15.01
7
photo_cameraImage coming soon 122608525/1 Box, Fabric €13.02
8
photo_cameraImage coming soon 181002211/0 Box €50.05
9
photo_cameraImage coming soon 112728680/0 Screw €1.62
10
photo_cameraImage coming soon 112523050/0 Washer €2.05

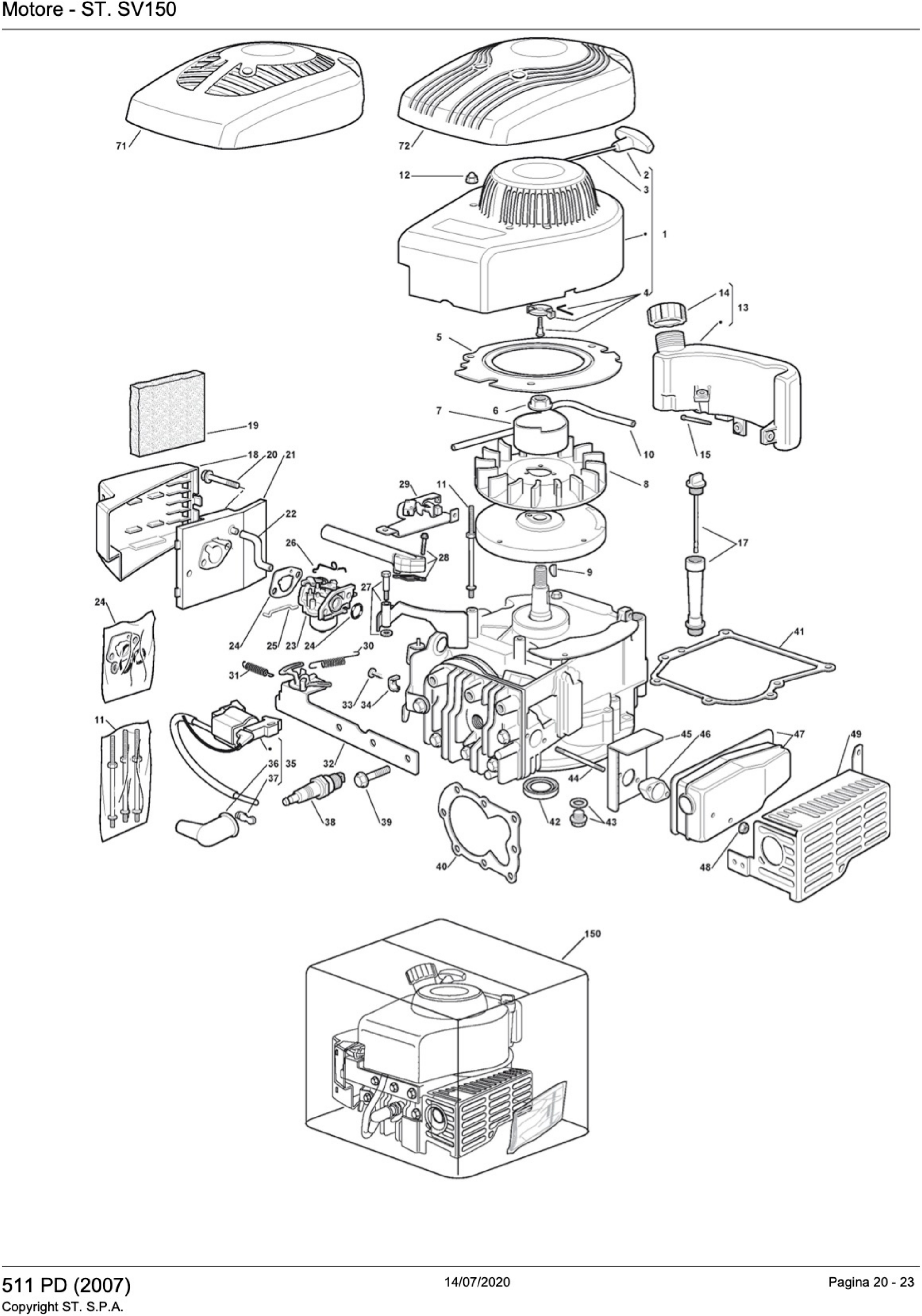

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 118550139/0 Starter Cover Assembly To 31-August-2007 €38.70
1
photo_cameraImage coming soon 118550139/1 Ass. Capottina Avviamento €57.91
2
photo_cameraImage coming soon 118550052/0 Starter Knob €1.67
3
photo_cameraImage coming soon 118550053/0 Starter Rope €1.96
4
photo_cameraImage coming soon 118550004/1 Kit Agganci Avviatore €4.32
5
photo_cameraImage coming soon 118550138/0 Deflector €3.51
6
photo_cameraImage coming soon 118550056/0 Nut €2.12
7
Recoil Starter Cup for Engines Alpina M150 - SV150 118550140/0 Recoil Starter Cup for Engines Alpina M150 - SV150 €5.53
9
photo_cameraImage coming soon 118550197/0 Linguetta Volano €1.84
10
photo_cameraImage coming soon 118550005/0 Tubo Carburante €6.93
11
photo_cameraImage coming soon 118550142/0 Dotazione Screwria €6.42
12
photo_cameraImage coming soon 118550007/0 Nut €1.89
13
Fuel Tank for Engine Alpina SV150 118550143/0 Fuel Tank for Engine Alpina SV150 €34.77
14
Fuel Cap Ass'y for Engine Alpina M150 118550001/0 Fuel Cap Ass'y for Engine Alpina M150 €6.01
15
photo_cameraImage coming soon 118550141/0 Filter Carburator €2.61
17
Oil Level Hose Assembly for Engines Alpina M150 - SV150 118550008/0 Oil Level Hose Assembly for Engines Alpina M150 - SV150 €5.90
18
photo_cameraImage coming soon 118550133/0 Air filter cover €15.27
19
Foam Air Filter for Engine Alpina SV150 118550011/0 Foam Air Filter for Engine Alpina SV150 €5.94
20
photo_cameraImage coming soon 118550010/0 Screw €2.47
23
photo_cameraImage coming soon 118550016/0 Carburetor €65.52
26
photo_cameraImage coming soon 118550018/0 Regulating tie rod €1.68
27
photo_cameraImage coming soon 118550020/0 Regulator plate Kit €1.68
28
photo_cameraImage coming soon 118550129/0 Collettore Aspirazione €7.68
29
photo_cameraImage coming soon 118550021/0 Freno €30.68
32
photo_cameraImage coming soon 118550014/1 Throttle cable fixing bracket €17.79
33
photo_cameraImage coming soon 118550023/0 Screw €1.54
34
photo_cameraImage coming soon 118550022/0 Fermaglio Cavo €9.19
35
Ignition Coil Ass'y for Engines Alpina M150 - SV150 118550126/0 Ignition Coil Ass'y for Engines Alpina M150 - SV150 €51.49
36
photo_cameraImage coming soon 118550127/0 Cappuccio Candela €10.71
37
photo_cameraImage coming soon 118550071/0 Terminal-Spark Plug 2006 €1.98
38
photo_cameraImage coming soon 118550134/0 Candela (Qj19Lm) €12.61
39
photo_cameraImage coming soon 118550128/0 Screw €6.18
40
photo_cameraImage coming soon 118550026/0 Cylinder Head Gaskets Assembly €4.96
41
Crankcase Gasket for Petrol Engine M150 - SV 150 118550130/0 Crankcase Gasket for Petrol Engine M150 - SV 150 €9.85
42
photo_cameraImage coming soon 118550131/0 Anello Di Tenuta €8.01
43
photo_cameraImage coming soon 118550155/0 Oil Cap Assembly €3.31
44
photo_cameraImage coming soon 118550027/0 Prigioniero €4.53
45
Muffler Gasket for Engines Alpina M150 - SV150 118550028/0 Muffler Gasket for Engines Alpina M150 - SV150 €5.12
46
photo_cameraImage coming soon 118550030/0 Distanziale €4.39
47
photo_cameraImage coming soon 118550031/0 MUFFLER €62.30
48
photo_cameraImage coming soon 118550032/0 Nut €1.54
49
photo_cameraImage coming soon 118550033/0 Protezione Silenziatore €20.53
71
photo_cameraImage coming soon 322055436/0 Recoil Starter Assembly Black €16.32
72
photo_cameraImage coming soon 322055437/0 Recoil Starter Assembly Black €16.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Mountfield Spare Parts for Lawnmower 511 PD (2007)

We supply original Mountfield spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance or repair issues for Mountfield Self-Propelled Lawnmower 511 PD (2007) - 294538043/MO7.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
511 PD (2007) - 294538043/MO7

Self-Propelled MOUNTFIELD 511 PD (2007) - 294538043/MO7
Chassis E Regolazione Altezza di Taglio Pag.1
# Part Num. Description
1 381001979/1 Red chassis
2 112293200/0 Nut
3 112583500/0 Grower
4 112523070/0 Washer
5 322735547/0 Height Adjust Sector
6 381005082/0 Wheel support
7 481003285/1 Lever
8 122519811/0 Pin
22 112789000/0 Screw
23 381003279/2 Adjust lever
24 112154330/0 Nut
33 112731350/0 Screw
34 322545152/0 plate
Carter Cinghia Pag.2
1 112728530/0 Screw
2 122060193/0 Belt guard
2 122060196/0 Belt guard Castel
3 322291150/0 Rubber insert
Handle, Lower Side Pag.3
1 381006510/0 Handle, Lower side To 31-August-2005
1 381006532/0 Handle, Lower side From 01-September-2005
2 122785081/0 Outer Support To 31-August-2003
2 322785081/1 Outer Support From 01-September-2003
3 122785082/0 Inner Support Right
4 122785083/1 Inner support Left
6 122551575/0 Inside Plaque
7 112793301/0 Screw
8 112155000/0 Nut
9 112521350/0 Washer
10 112691810/0 Screw
11 122399803/0 Knob
12 112293202/0 Nut
13 181008623/1 Outfit Screws from 01-September-2003
13 381008596/1 Outfit Screws To 31-August-2002
13 381008622/0 Outfit Screws From 01-September-2002 To 31-August-2003
14 112293200/0 Nut
15 122399900/0 3 SPOKE HANDWHEEL (BLACK)
16 181003801/1 Guide spring
17 122680006/1 Washer
18 112819201/0 Screw
Handle, Upper Side Pag.4
1 381006979/2 Handle, Upper Side
2 112689500/0 Screw
3 322551640/0 Cable Locking Plate
4 381000709/2 Traction Control Cable
5 381003297/1 Traction lever
6 381000743/0 Motor Brake Cable SV40 / RV 40 / V35 Engine
7 381003298/1 Motor Brake Lever
8 112154510/0 Nut
Comandi Pag.5
1 112291000/0 Nut
2 112581500/0 Grower
3 122171005/0 Spacer
4 112521360/0 Washer
5 112508100/0 Cup Spring
6 381007220/0 Throttle Lever SV40-RV 40-V35 Engine / B&S 450-500 Series From 01-September-2006
7 481007080/0 Throttle cable
8 112815000/0 Screw
9 114356702/0 Throttle Label (GGP)
Gruppo Trazione Pag.6
1 122120105/1 Crown
2 122600093/0 Left Wheel Guard
3 112608600/0 Seeger
4 122570120/1 Ratchet wheel Left
5 119216035/0 Ball Bearing
6 122600092/0 Right wheel guard
7 381000147/0 Rear Wheel Axle
8 122570110/1 Ratchet wheel Right
11 181003059/2 Traction Assy (France Reducteurs) To 31-August-2003
11 181003072/1 Traction Assy (Bi. Ci. Di.) To 31-August-2003
11 181003076/0 Traction Assy G.T. (France Reducteurs) From 01-September-2003 To 31-August-2005
11 181003081/0 Traction Assy Bi.Ci.Di (Bi. Ci. Di.) From 01-September-2003 To 31-August-2005
11 181003081/1 Traction Assy Bi.Ci.Di (Bi. Ci. Di.) From 01-September-2005 To 31-August-2010
11 181003092/0 Traction Assy (General Transmission) From 01-September-2005 From 01-September-2005
12 122601904/0 Pulley To 31-August-2010
12 122601909/0 Pulley From 01-September-2010
13 112645705/0 Elastic pin ø5X32
14 122033280/0 Adjust Rod (Bi. Ci. Di.)
14 122033283/0 General Transmission Rod From 01-September-2003
15 135063902/0 Belt
16 122753000/0 Plug
21 122041957/1 Bushing
22 122450063/0 Spring
23 322680009/0 Washer
24 112154510/0 Nut
25 122110230/0 Hubcap
Ruote e Coprimozzi Pag.7
1 122122200/0 Bearing
2 381007351/0 Wheel Ø 170
3 322110381/0 Gray hubcap
4 181007343/0 Wheel
5 322110382/0 Gray hubcap
6 112523060/0 Washer
7 112155000/0 Nut
8 112530150/0 Elastic washer
Coltello (Lama) Pag.8
1 122465607/1 Hub With Pulley, Crankshaft Ø 22.2 To 31-August-2007
1 122465607/2 Hub With Pulley, Crankshaft Ø 22.2 From 01-September-2007 To 31-August-2010
1 122465607/3 Hub With Pulley, Crankshaft Ø 22.2 From 01-September-2010
2 181004381/0 Blade To 31-August-2001
2 181004381/1 Standard Blade from 01-September-2001
2 181004398/0 Finned Blade
3 122160400/0 Elastic disc
4 112523080/0 Washer
5 112735698/0 Screw
6 112139100/0 Tab
7 112691100/0 Screw
8 112154210/0 Nut
Sacco Di Raccolta Pag.9
1 381008021/1 stone guard Black to 31-August-2009
1 381008021/2 stone guard Black 01-September-2009
2 122450420/1 Left spring
3 122517906/1 Fulcrum pin
4 122450410/1 Right spring
5 112000930/0 Benzing ring
6 322486101/0 Grasscatcher, Upper side
7 122608525/0 Lower Reinforcement To 31-August-2013
7 122608525/1 Lower Reinforcement From 01-September-2013
8 181002211/0 Grasscatcher, Canvas
9 112728680/0 Screw
10 112523050/0 Washer
Motore - ST. SV150 Pag.10
1 118550139/0 Starter Cover Assembly To 31-August-2007
1 118550139/1 Starter Cover Assembly From 01-September-2007
2 118550052/0 Starter handle
3 118550053/0 Starter rope
4 118550004/1 Starter Pawls Kit
5 118550138/0 Deflector
6 118550056/0 Nut
7 118550140/0 Starter cup
8 118550154/0 Flywheel fan
9 118550197/0 Flywheel Key
10 118550005/0 Fuel Hose
11 118550142/0 Screws
12 118550007/0 Nut
13 118550143/0 Gas tank
14 118550001/0 Tank cap
15 118550141/0 Fuel filter
17 118550008/0 Oil Level Pipe Assembly
18 118550133/0 Air filter cover
19 118550011/0 Foam Air Filter
20 118550010/0 Screw
21 118550125/1 Air filter base
22 118550013/0 Vent Pipe
23 118550016/0 Carburetor
24 118550019/0 Carburettor Gasket Kit
25 118550017/0 tension
26 118550018/0 Regulating tie rod
27 118550020/0 Regulator plate Kit
28 118550129/0 Intake manifold
29 118550021/0 Brake
30 118550015/0 Regulator spring
31 118550029/0 Spring
32 118550014/1 Throttle cable fixing bracket
33 118550023/0 Screw
34 118550022/0 Cable clip
35 118550126/0 Ignition coil
36 118550127/0 Cap Candle
37 118550071/0 Terminal-Spark Plug 2006
38 118550134/0 Candle (Qj19Lm)
39 118550128/0 Screw
40 118550026/0 Cylinder Head Gaskets Assembly
41 118550130/0 Crankcase Gasket
42 118550131/0 Sealing ring
43 118550155/0 Oil Cap Assembly
44 118550027/0 Stud
45 118550028/0 MUFFLER Gasket
46 118550030/0 Spacer
47 118550031/0 MUFFLER
48 118550032/0 Nut
49 118550033/0 MUFFLER Guard
71 322055436/0 Black Cover
72 322055437/0 Black Cover
150 118550157/0 Engine Assembly

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
511 PD (2007) - 294538043/MO7
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing Mountfield 511 PD

Drawing Mountfield 511 PD

Download (1.19MB)

You might also like

GGP Italy SKU: 118550011/0
Foam Air Filter for Engine Alpina SV150 Original replacement part Alpina, Foam Air Filter for Engines Alpina SV150 - Lawnmover Castelgarden 142 G - Castor FL 46 LMG/298436045/CST-2010. Part for the...
AVAILABLE €5.94
GGP Italy SKU: 381008596/1
Screws Outfit for Lawnmower Alpina FL 46 LMG Original Part Alpina, Screws Outfit for Lawnmowers Alpina - Castor FL 46 LMG - Mountfield 511 PD - M 462 HP Part for the...
on 7/10 Business Days Approx €15.25
GGP Italy SKU: 122399900/0
3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG Original Part Alpina, 3 Spoke Handwheel (Black) for Lawnmowers Alpina - Castor FL 46 LMG - Mountfield 511 PD - M 462 HP Part for...
on 7/10 Business Days Approx €2.82
GGP Italy SKU: 122551575/0
Inside Plate for Lawnmower Alpina FL 46 LMG Original Part Alpina, Inside Plate for Lawnmowers Alpina - Castor FL 46 LMG - Mountfield 511 PD - M 462 HP Part for the following...
on 7/10 Business Days Approx €3.41
GGP Italy SKU: 118550143/0
Fuel Tank for Engine Alpina SV150 Original replacement part Alpina, Fuel Tank for Engines Alpina SV150 - Lawnmover Castelgarden 142 G - Castor FL 46 LMG/298436045/CST-2010. Part for the following products:...
Usually Ships in: 7/10 Business Days Approx. €34.77
Comments (0)
