Mountfield Spare Parts for MC 2000 Chainsaws
€0.12
VAT included
Mountfield Spare Parts for MC 2000 Chainsaws
We are Distributors of genuine MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair problem for your MC 2000 Chainsaw/292616103/M15.
Mountfield Spare Parts for MC 2000 Chainsaws
€0.12
VAT included
Mountfield Spare Parts for MC 2000 Chainsaws
We are Distributors of genuine MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair problem for your MC 2000 Chainsaw/292616103/M15.
settings
54 Spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
54 spare parts
Page 1

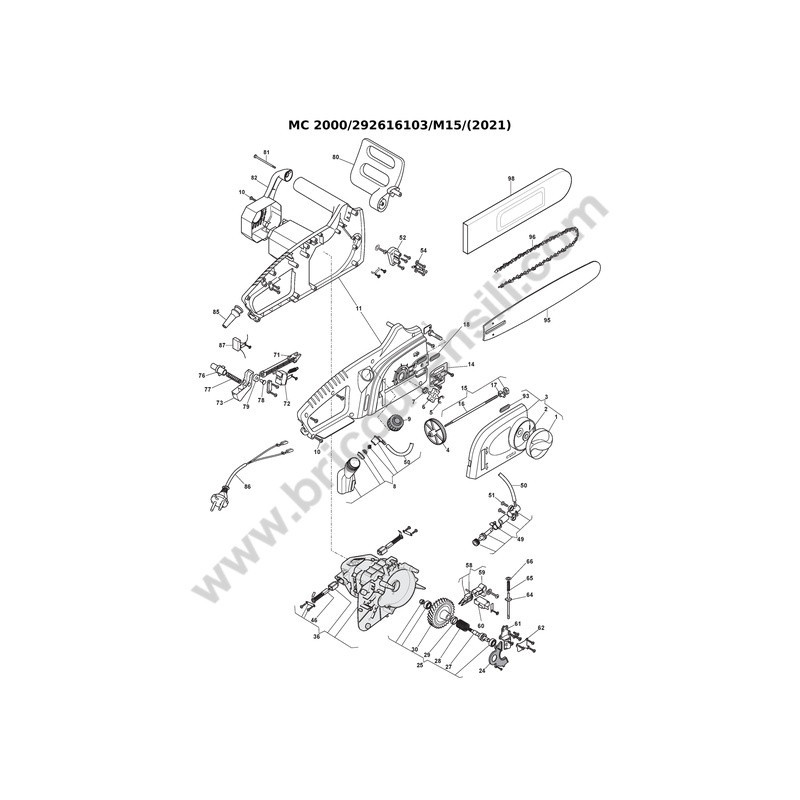

zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Shipping and delivery information will be available shortly.
Mountfield Spare Parts for MC 2000 Chainsaws
We are Distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for the MC 2000 Chainsaws/292616103/M15.
| MC 2000 Chainsaws/292616103/M15 | ||
|---|---|---|
| Electric Chainsaw Pag.1 | ||
| # | Part Num. | Description |
| 1 | 118800486/0 | Knob |
| 2 | 118800445/0 | Bushing |
| 3 | 118800487/1 | Chain Cover Assy |
| 4 | 118800489/0 | Ring Nut |
| 5 | 118800466/0 | Snap Ring |
| 6 | 118800413/0 | Chain Sprocket |
| 7 | 118800446/0 | Spring |
| 8 | 118800462/0 | Oil Tank Assy |
| 9 | 118800460/0 | Oil Cap Assy |
| 10 | 118800476/0 | Screw |
| 11 | 118800396/1 | Black Casing Assy |
| 14 | 118800426/0 | Bar Base Plate |
| 15 | 118800490/1 | Tie Rod Assy |
| 16 | 118800490/0 | Tie Rod |
| 17 | 118800433/0 | Nut |
| 18 | 118800435/0 | Seal Ring |
| 24 | 118800399/0 | Dust Cover |
| 25 | 118800463/0 | Gear Wheel Assy |
| 27 | 118800407/0 | Shaft |
| 28 | 118800447/0 | Spring |
| 29 | 118800406/0 | Shaft Coupling |
| 30 | 118800412/0 | Gear Wheel |
| 36 | 118805062/0 | 2000W Electric Motor |
| 46 | 118800453/0 | Brush |
| 49 | 118800461/0 | Oil Pump Assy |
| 50 | 118800405/0 | Oil Delivery Pipe |
| 51 | 118800477/0 | Screw |
| 52 | 118800438/0 | Bracket |
| 54 | 118800480/0 | Pipe Fitting |
| 58 | 118800464/0 | Rod |
| 59 | 118800403/0 | Lever |
| 60 | 118800400/0 | Microswitch |
| 61 | 118800423/0 | Plate |
| 62 | 118800425/0 | Plate |
| 64 | 118800414/0 | Rod |
| 65 | 118800448/0 | Spring |
| 66 | 118800481/0 | Plate |
| 71 | 118800404/0 | Rod |
| 72 | 118800401/0 | Switch |
| 73 | 118800439/0 | Switch Control Lever |
| 76 | 118800440/0 | Push Button |
| 77 | 118800449/0 | Spring |
| 78 | 118800408/0 | Pin |
| 79 | 118800410/0 | Pulley |
| 80 | 118800422/1 | Hand Guard |
| 81 | 118800430/0 | Screw |
| 82 | 118800394/0 | Motor Shroud |
| 83 | 118800476/0 | Screw |
| 85 | 118800443/0 | Power Cable Grommet |
| 86 | 118800459/0 | Power Cable Assy |
| 87 | 118800452/0 | Capacitor |
| 93 | 118800434/0 | Rubber Buffer |
| 95 | 118800128/0 | Guide Bar 16"-3/8"-0,050" |
| 96 | 118801745/0 | Chain 16"-3/8"-0,050"-57E |
| 98 | 4181307 | 16inch Bar Cover |
All technical product information in this catalog is based on information taken from official sources, including the Mountfield manufacturer's websites, which we consider reliable. Unfortunately, even official documents may contain errors or misprints - we are unable to confirm that all these data are accurate and truly represent the facts. Most manufacturers reserve the right to modify product features or complete descriptions without prior notice. It is strongly recommended to use the published information as basic information subject to review by the Mountfield brand. Please clarify important parameters with a sales assistant at the time of purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or reproduction (in whole or in part) without reference to the source page is prohibited.
292616103/M15-2021
