Mountfield Spare Parts for Trimmers/Brushcutters MB 35
We are Distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair problem for the Trimmer/Brushcutter MB 35/283320073/M21.
| Trimmer/Brushcutter MB 35/283320073/M21 | ||
|---|---|---|

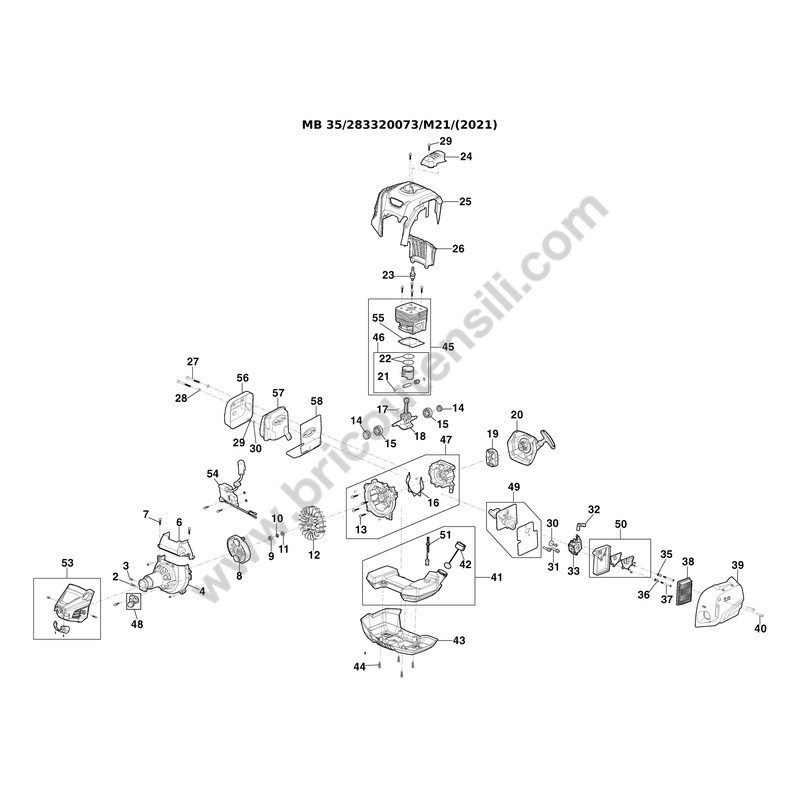

| Engine Pag.1 | ||
| # | Part Num. | Description |
| 2 | 112728721/0 | Screw |
| 3 | 6981117 | Screw |
| 4 | 118805131/0 | Transmission Support Assembly |
| 6 | 118805177/0 | Air duct cover |
| 8 | 118805132/0 | Clutch Shoe Assembly |
| 9 | 112155010/0 | Nut |
| 10 | 112583500/0 | Spring Washer - M8 |
| 11 | 122671653/0 | Washer |
| 12 | 118805178/0 | Magneto Flywheel |
| 13 | 2135050 | Screw |
| 14 | 118801188/0 | Oil Seal |
| 15 | 3112030 | Ball bearing |
| 16 | 118804076/0 | Crankcase Gasket |
| 17 | 3151050 | Flywheel Key |
| 18 | 118805179/0 | Crankshaft Assembly |
| 19 | 118805135/0 | Starter Cup |
| 20 | 118805136/0 | Starter Assembly |
| 21 | 118804059/0 | Piston pin clip |
| 22 | 118805180/0 | Piston ring |
| 23 | 118805138/0 | Spark Plug |
| 24 | 118805167/0 | Spark Plug Guard |
| 25 | 118805557/0 | Cylinder cover, GREY |
| 26 | 118805558/0 | Guard |
| 27 | 118801180/0 | Screw |
| 28 | 2312010 | Washer |
| 29 | 6981117 | Screw |
| 30 | 9699-0087-02 | Washer |
| 31 | 2132550 | Screw |
| 32 | 118805181/0 | Choke Lever |
| 33 | 118805559/0 | Carburetor |
| 35 | 9699-0087-02 | Washer |
| 36 | 112581500/0 | Spring Washer |
| 37 | 2135200 | Screw |
| 38 | 118805140/0 | Paper filter |
| 39 | 118805183/0 | Air Filter Cover |
| 41 | 118805184/0 | Tank Assembly |
| 42 | 118805142/0 | Tank Cap Assembly |
| 43 | 118805185/0 | Lower tank cover |
| 44 | 112728124/0 | Screw - Pan Head Torx Self-Tapping 4,2x16 |
| 45 | 118805195/0 | Cylinder-Piston Kit |
| 46 | 118805196/0 | Piston Kit |
| 47 | 118805197/0 | Crankcase Kit |
| 48 | 118805198/0 | Primer kit |
| 49 | 118805199/0 | Intake Manifold Kit |
| 50 | 118805200/0 | Air Filter Base Kit |
| 51 | 118805201/0 | Fuel Line Assembly |
| 53 | 118805203/0 | Transmission Support Cover Kit |
| 54 | 118805186/0 | Electronic Ignition Coil |
| 55 | 118805191/0 | Cylinder Gasket |
| 56 | 118805192/0 | Muffler Guard |
| 57 | 118805193/0 | Muffler |
| 58 | 118805194/0 | Muffler Gasket |
| Transmission Pag.2 | ||
| # | Part Num. | Description |
| 1 | 118805081/0 | Drive Tube |
| 2 | 118805086/0 | Drive Shaft |
| 3 | 1911-9259-01 | Double Harness |
| 4 | 112727796/0 | Screw |
| 5 | 2132180 | Screw |
| 6 | 112728721/0 | Screw |
| 7 | 118805087/0 | Rear Handle Kit |
| 9 | 118805562/0 | Upper Ring Nut |
| 10 | 118805561/0 | Lower Ring Nut |
| 11 | 118805560/0 | Lower Crankcase |
| 12 | 112727796/0 | Screw |
| 13 | 118805088/0 | Front Handle Kit |
| 14 | 118805080/0 | Debris Guard Assembly |
| 15 | 1911-9262-01 | 3-tooth blade |
| 16 | 1911-9229-01 | Line Trimmer Head |
| 17 | 118804890/0 | Line Retainer |
| 18 | 118805262/0 | Spring |
| 19 | 118805264/0 | Cover + Knob |
| 20 | 118806530/0 | Gear Head Assembly |
| 21 | 118805093/0 | Upper Ring Nut |
| 22 | 118805094/0 | Lower Ring Nut |
All technical product information in this catalog is based on information taken from official sources, including the manufacturer websites of Mountfield, which we believe to be reliable. Unfortunately, even official documents may contain errors or misprints - we cannot confirm that all of these data are accurate and truly represent the facts. Most manufacturers reserve the right to modify product features or complete descriptions without prior notice. We strongly recommend using the published information as basic information subject to revision by the Mountfield brand. Please clarify important parameters with a sales assistant at the time of purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or reproduction (total or partial) without a reference to the source page is strictly prohibited.
283320073/M21-2021
