Mountfield Spare Parts for Trimmers/Brushcutters MB 26 J
€0.12
VAT included
Mountfield Spare Parts for Trimmers/Brushcutters MB 26 J
We are Distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair issue for your Trimmers/Brushcutters MB 26 J/287120103/M20.
Mountfield Spare Parts for Trimmers/Brushcutters MB 26 J
€0.12
VAT included
Mountfield Spare Parts for Trimmers/Brushcutters MB 26 J
We are Distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair issue for your Trimmers/Brushcutters MB 26 J/287120103/M20.
settings
127 Spare parts
description
5 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
127 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 3
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 118802887/0 Transmission Tube Ass.y Mountfield | €13.44 | Not available for order |
|
2
|
photo_cameraImage coming soon | 118802884/0 Pruner Attachment Assy Mountfield | €81.31 | |
|
3
|
photo_cameraImage coming soon | 112789000/0 Screw Mountfield for lawn mower | €1.54 | Not available for order |
|
4
|
photo_cameraImage coming soon | 112789020/0 Screw Mountfield | €1.54 | Not available for order |
|
5
|
photo_cameraImage coming soon | 118803197/0 Drive Shaft Ass.y Mountfield | €5.33 | Not available for order |
|
6
|
photo_cameraImage coming soon | 118802886/0 Shaft Lock Mountfield | €1.40 | |
|
7
|
photo_cameraImage coming soon | 118801758/0 Guide Bar 10"-3/8"-0.050" Mountfield | €23.86 | |
|
8
|
photo_cameraImage coming soon | 1519-1001-40 Chain 10"-3/8"-0.050"-40E Mountfield | €16.08 | |
|
9
|
photo_cameraImage coming soon | 118805067/0 Chain Cover Mountfield | €4.49 | |
|
10
|
photo_cameraImage coming soon | 118805292/0 Oil Cap Assy Mountfield | €2.79 | |
|
11
|
photo_cameraImage coming soon | 118805768/0 Bar Cover 10" Mountfield | €5.31 | |
|
12
|
photo_cameraImage coming soon | 112604899/0 Crown Fastener Mountfield for lawn mower | €1.54 | Not available for order |
Page 4
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 118802887/0 Transmission Tube Ass.y Mountfield | €13.44 | Not available for order |
|
2
|
photo_cameraImage coming soon | 118802888/0 Hedge Trimmer Head Mountfield | €168.21 | Not available for order |
|
3
|
photo_cameraImage coming soon | 112789000/0 Screw Mountfield for lawn mower | €1.54 | Not available for order |
|
4
|
photo_cameraImage coming soon | 112789020/0 Screw Mountfield | €1.54 | Not available for order |
|
5
|
photo_cameraImage coming soon | 118803197/0 Drive Shaft Ass.y Mountfield | €5.33 | Not available for order |
|
6
|
photo_cameraImage coming soon | 118802886/0 Shaft Lock Mountfield | €1.40 | |
|
7
|
photo_cameraImage coming soon | 118805733/0 Blade Ass.y Mountfield | €30.57 | Not available for order |
|
8
|
photo_cameraImage coming soon | 118805734/0 Blade Guard Mountfield | €9.49 | Not available for order |
|
9
|
photo_cameraImage coming soon | 112604899/0 Crown Fastener Mountfield for lawn mower | €1.54 | Not available for order |
Page 5
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Shipping and delivery information will be available shortly.
Mountfield Spare Parts for Grass Strimmer/Brushcutter MB 26 J
We are Distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on the most suitable spare part to quickly solve any maintenance and repair problem for your Grass Strimmer/Brushcutter MB 26 J/287120103/M20.
| Grass Strimmer/Brushcutter MB 26 J/287120103/M20 | ||
|---|---|---|

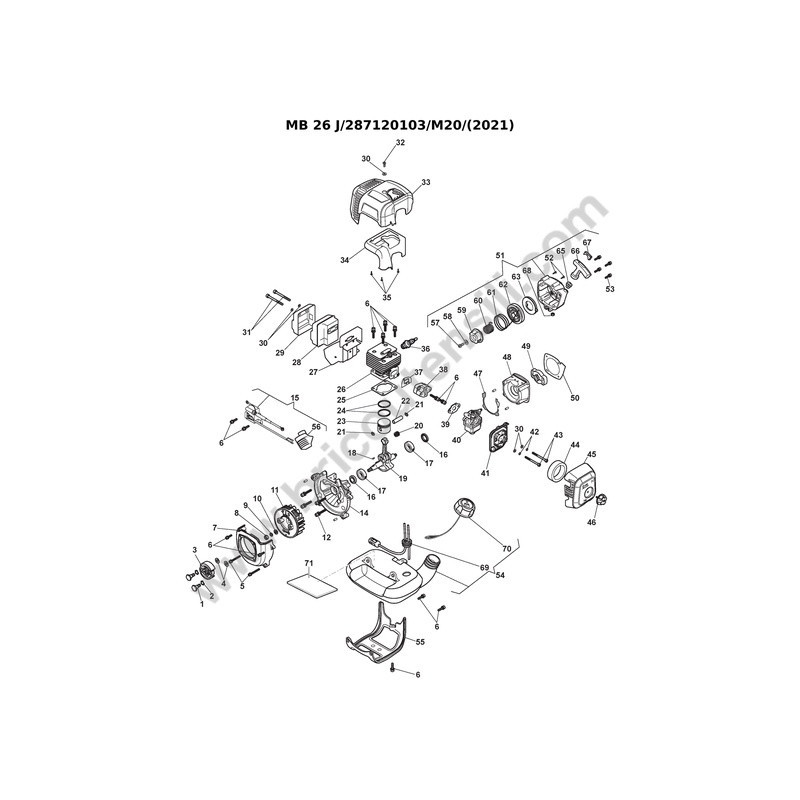

| Engine Pag.1 | ||
| # | Part Num. | Description |
| 1 | 118805051/0 | Screw |
| 2 | 118804045/0 | Washer |
| 3 | 118802113/0 | Clutch |
| 4 | 2312010 | Washer |
| 5 | 2135120 | Screw |
| 6 | 2135030 | Screw |
| 7 | 118803161/0 | Cover |
| 8 | 112293200/0 | Nut |
| 9 | 112583500/0 | Spring Washer - M8 |
| 10 | 6981128 | Washer |
| 11 | 118802073/0 | Magneto Flywheel |
| 12 | 2135050 | Screw |
| 14 | 118802078/0 | Crankcase, Clutch Side |
| 15 | 118803162/0 | Electronic Ignition Coil |
| 16 | 118801188/0 | Oil Seal |
| 17 | 119216035/0 | Bearing |
| 18 | 123072002/0 | Flywheel Key |
| 19 | 118802066/0 | Crankshaft |
| 20 | 118803164/0 | Needle roller cage |
| 21 | 118802084/0 | Piston pin clip |
| 22 | 118802081/0 | Piston Pin |
| 23 | 118802076/0 | Piston |
| 24 | 118802077/0 | Piston ring |
| 25 | 118803165/0 | Cylinder Gasket |
| 26 | 118802074/0 | Cylinder |
| 27 | 118803166/0 | Muffler Gasket |
| 28 | 118803167/0 | Muffler |
| 29 | 118803168/0 | Muffler Guard |
| 30 | 112521320/0 | Washer |
| 31 | 2122210 | Screw |
| 32 | 112727790/0 | Screw |
| 33 | 118805300/0 | Black cylinder shroud |
| 34 | 118803169/0 | Air Filter Cover |
| 35 | 1126-1049-01 | Screw |
| 36 | 3210024 | Spark Plug |
| 37 | 118803170/0 | Gasket |
| 38 | 118806449/0 | Intake Manifold |
| 39 | 118803171/0 | Carburetor Gasket |
| 40 | 118803172/0 | Carburetor |
| 41 | 118803173/0 | Cover |
| 42 | 112581500/0 | Spring Washer |
| 43 | 2135250 | Screw |
| 44 | 118801526/0 | Air filter |
| 45 | 118805301/0 | Black filter cover |
| 46 | 118803174/0 | Knob, Grey |
| 47 | 118803175/0 | Crankcase Gasket |
| 48 | 118802079/0 | Crankcase, Starter Side |
| 49 | 118802069/0 | Starter Cup |
| 50 | 118803176/0 | Gasket |
| 51 | 118803177/0 | Grey Starter Assembly |
| 52 | 112727810/0 | Screw |
| 53 | 6981149 | Screw |
| 54 | 118803189/0 | Tank Assembly |
| 55 | 118803191/0 | Support |
| 56 | 118803163/0 | Spark Plug Boot |
| 57 | 2135180 | Screw |
| 58 | 2312150 | Washer |
| 59 | 118803179/0 | Cap |
| 60 | 118803180/0 | Spring |
| 61 | 118803181/0 | Starter rope |
| 62 | 118803182/0 | Starter Pulley |
| 63 | 118803183/0 | Spring |
| 65 | 118803185/0 | Cable Guide |
| 66 | 118803186/0 | Starter Handle |
| 67 | 118803187/0 | Starter Plate, Yellow |
| 68 | 112291000/0 | Nut |
| 69 | 118803190/0 | Petrol Hose |
| 70 | 322735152/0 | Tank Cap |
| 71 | 118805308/0 | Thermal insulation label |
| Transmission Pag.2 | ||
| # | Part Num. | Description |
| 1 | 118804899/0 | Transmission Support Assembly |
| 2 | 118804900/0 | Drive Shaft Tube Assembly |
| 3 | 2135050 | Screw |
| 4 | 2135180 | Screw |
| 5 | 118803141/0 | Tube |
| 6 | 118803142/0 | Drive Shaft Coupling |
| 7 | 2135150 | Screw |
| 8 | 118802099/0 | Coupling Assembly |
| 9 | 2135180 | Screw |
| 10 | 118805297/0 | Grey Front Handle Assembly |
| 11 | 118801182/0 | Harness Support |
| 12 | 2135020 | Screw |
| 13 | 112154330/0 | Nut |
| 14 | 118805302/0 | Handle Kit, Grey |
| 15 | 118803195/1 | Drive Shaft Tube Assembly |
| 16 | 118803197/0 | Drive Shaft Assembly |
| 17 | 118803954/1 | Debris Guard Assembly |
| 18 | 118801184/0 | Gear Head Assembly |
| 19 | 118801125/0 | 3-tooth blade |
| 20 | 118801124/0 | 2-Line Trimmer Head |
| 21 | 118804016/0 | Shoulder Strap |
| 29 | 118803145/0 | Switch |
| 30 | 118803146/0 | Bracket |
| 31 | 6981269 | Screw |
| 32 | 118803147/0 | Switch |
| 33 | 118803148/0 | Spring |
| 34 | 118803149/0 | Switch |
| 35 | 118803150/0 | Throttle Lever, Yellow |
| 36 | 118803151/0 | Spring |
| 38 | 2123060 | Screw |
| 39 | 112727810/0 | Screw |
| 41 | 118803154/0 | Throttle Cable |
| 44 | 2123050 | Screw |
| 45 | 118803200/0 | Plate |
| 46 | 112727799/0 | Screw |
| 48 | 118803201/0 | Line Cutter Blade |
| 49 | 118803202/0 | Support |
| 50 | 118803203/0 | Spacer |
| 51 | 118803204/0 | Upper Ring Nut |
| 52 | 118803205/0 | Lower Ring Nut |
| 53 | 118803206/0 | Dust Cover |
| 54 | 2452090 | Nut |
| 55 | 112523080/0 | Washer |
| Pole Pruner Pag.3 | ||
| # | Part Num. | Description |
| 1 | 118802887/0 | Drive Shaft Tube Assembly |
| 2 | 118802884/0 | Pruner Attachment Assembly |
| 3 | 112789000/0 | Screw |
| 4 | 112789020/0 | Screw |
| 5 | 118803197/0 | Drive Shaft Assembly |
| 6 | 118802886/0 | Shaft Lock |
| 7 | 118801758/0 | Guide Bar 10"-3/8"-0,050" |
| 8 | 1519-1001-40 | Chain 10"-3/8"-0,050"-40E |
| 9 | 118805067/0 | Chain guard |
| 10 | 118805292/0 | Oil Cap Assembly |
| 11 | 118805768/0 | Bar Cover 10" |
| 12 | 112604899/0 | Push-on retainer |
| Hedge Trimmer Attachment Pag.4 | ||
| # | Part Num. | Description |
| 1 | 118802887/0 | Drive Shaft Tube Assembly |
| 2 | 118802888/0 | Hedge Trimmer Head |
| 3 | 112789000/0 | Screw |
| 4 | 112789020/0 | Screw |
| 5 | 118803197/0 | Drive Shaft Assembly |
| 6 | 118802886/0 | Shaft Lock |
| 7 | 118805733/0 | Blade Assembly |
| 8 | 118805734/0 | Blade Guard |
| 9 | 112604899/0 | Push-on retainer |
| Transmission Extension Pag.5 | ||
| # | Part Num. | Description |
| 1 | 118804893/0 | Extension Tube Assembly |
| 2 | 118804894/0 | Foam Sleeve |
| 3 | 118802099/0 | Coupling Assembly |
| 4 | 2135180 | Screw |
| 5 | 118804896/0 | Screw |
| 6 | 118804897/0 | Shaft Lock |
| 7 | 118802886/0 | Shaft Lock |
| 8 | 118804898/0 | Rigid Shaft |
| 9 | 118803142/0 | Drive Shaft Coupling |
All technical product information in this catalog is based on information taken from official sources, including the websites of the manufacturer Mountfield, which we consider reliable. Unfortunately, even official documents may contain errors or misprints - we are unable to confirm that all these data are accurate and truly represent the facts. Most manufacturers reserve the right to modify product features or complete descriptions without prior notice. It is strongly recommended to use the published information as basic information subject to review by the Mountfield brand. Please clarify important parameters with a sales assistant at the time of purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or reproduction (total or partial) without reference to the source page is prohibited.
287120103/M20-2021
