Mountfield Spare Parts for Grass Trimmers/Brushcutters MPS 24 Li
€0.12
VAT included
Mountfield Spare Parts for Grass Trimmers/Brushcutters MPS 24 Li
We are Distributors of Original MOUNTFIELD Spare Parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair problem for the Grass Trimmer/Brushcutter MPS 24 Li/277030023/M18.
Mountfield Spare Parts for Grass Trimmers/Brushcutters MPS 24 Li
€0.12
VAT included
Mountfield Spare Parts for Grass Trimmers/Brushcutters MPS 24 Li
We are Distributors of Original MOUNTFIELD Spare Parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair problem for the Grass Trimmer/Brushcutter MPS 24 Li/277030023/M18.
settings
88 Spare parts
description
4 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
88 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 3
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 4
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 270201020/17 Battery 24V - 4Ah Mountfield | €0.00 | Not available for order |
|
1
|
photo_cameraImage coming soon | 270401020/17 Battery 24V - 4Ah Mountfield | €0.00 | Not available for order |
|
2
|
photo_cameraImage coming soon | 270012020/17 Battery Charger 24V - EU+BS plug Mountfield | €0.00 | Not available for order |
Shipping and delivery information will be available shortly.
Mountfield Spare Parts for String Trimmer/Brushcutter MPS 24 Li
We are Distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service capable of advising you on purchasing the most suitable spare part to quickly resolve any maintenance and repair issue with your String Trimmer/Brushcutter MPS 24 Li/277030023/M18.
| String Trimmer/Brushcutter MPS 24 Li/277030023/M18 | ||
|---|---|---|

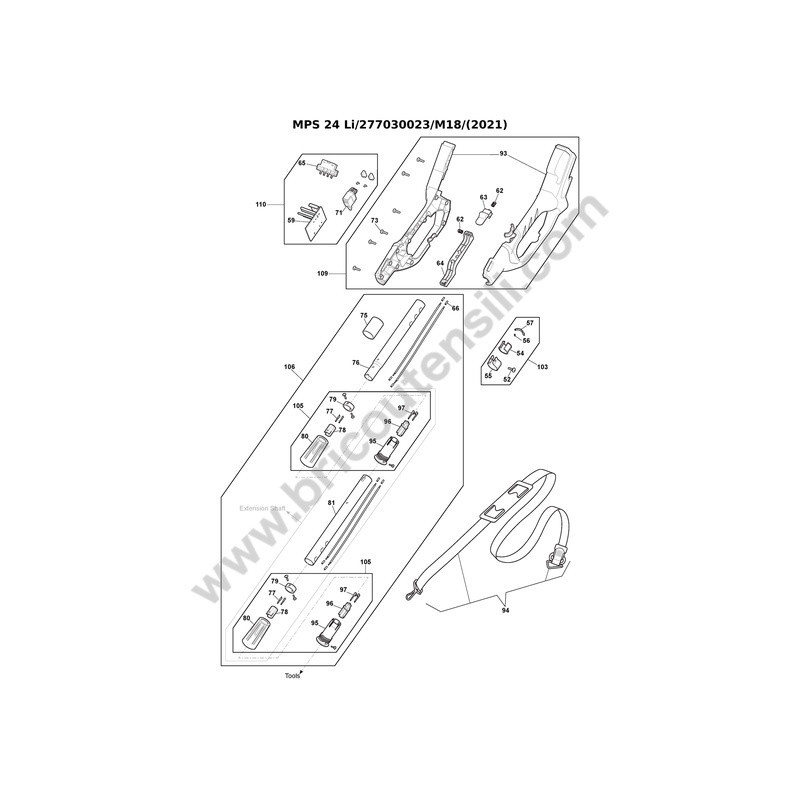

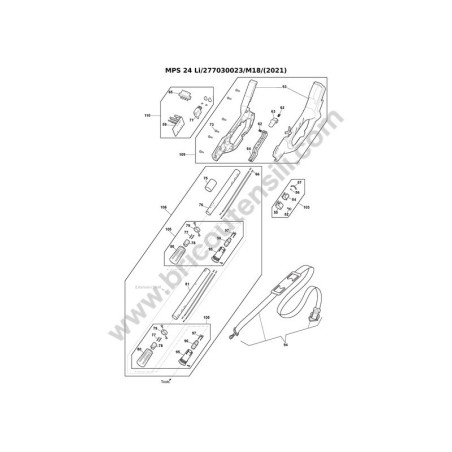

| 24V MT_Body Work Pag.1 | ||
| # | Part Num. | Description |
| 52 | 2135130 | Screw |
| 54 | 118804156/0 | Rubber mat |
| 55 | 118804149/0 | Shoulder strap tube locks |
| 56 | 118804892/0 | Clamping Insert |
| 59 | 118810565/0 | PCB |
| 62 | 118803228/0 | Spring |
| 63 | 118803442/0 | Yellow Button |
| 64 | 118803461/0 | Yellow Button |
| 64 | 118803820/0 | Grey Button |
| 65 | 118810517/0 | Connector |
| 66 | 118804114/0 | Heat Shrink Tubing |
| 71 | 118810568/0 | Switch |
| 73 | 112728099/1 | Screw |
| 75 | 118804175/0 | Sponge |
| 80 | 118810560/0 | Ring Nut |
| 81 | 118804148/0 | Tube |
| 93 | 118810699/0 | Yellow Handle Assy |
| 93 | 118810700/0 | White Handle Assy |
| 94 | 118810687/0 | Harness Assy |
| 95 | 118803431/0 | Clamp |
| 103 | 118805007/0 | Harness Attachment Kit |
| 105 | 118805009/0 | Handle Joint Kit |
| 106 | 118805010/0 | Handle Tube Assy |
| 109 | 118810857/0 | Handle Parts Kit |
| 110 | 118810855/0 | PCB and Electronics Assy |
| Chainsaw Attachment Pag.2 | ||
| # | Part Num. | Description |
| 1 | 118803816/0 | Grey Knob |
| 3 | 118804147/0 | Washer |
| 4 | 118804155/0 | Steel Block |
| 5 | 1519-9160-02 | Chain 8"-3/8"-0,050"-33E |
| 6 | 118804540/0 | Guide Bar 8"-3/8" |
| 7 | 323085000/0 | Bar Cover |
| 14 | 118803316/0 | Oil Tank Assy |
| 15 | 118804154/0 | Needle Roller Bearing |
| 17 | 112727810/0 | Screw |
| 18 | 118803375/0 | Oil Pump Assy |
| 21 | 112727790/0 | Screw |
| 23 | 118803357/0 | Electric Circuit |
| 24 | 118804152/0 | Anti-Vibration Rubber |
| 25 | 118810599/0 | Electric Motor |
| 26 | 112154510/0 | Self-Locking Nut M6 |
| 27 | 118803395/0 | Tube |
| 28 | 118804158/0 | circular |
| 29 | 118810557/0 | Joint |
| 32 | 118803246/0 | Bearing |
| 33 | 118804151/0 | Cam |
| 37 | 118804146/0 | Waveform mat |
| 38 | 112608600/0 | Seeger |
| 44 | 112728721/0 | Screw |
| 45 | 118803249/0 | Gear |
| 46 | 118810453/0 | Toothed Wheel |
| 47 | 112608500/0 | Seeger |
| 48 | 118804153/0 | Washer |
| 49 | 118803272/0 | Bar Base Plate |
| 51 | 118803398/0 | Screw |
| 53 | 118803394/0 | Screw |
| 90 | 118810694/0 | Yellow Chain Cover Assy |
| 90 | 118810696/0 | Grey Chain Cover Assy |
| 91 | 118810689/0 | Yellow Oil Cap Assy |
| 91 | 118810697/0 | Grey Oil Cap Assy |
| 92 | 118803377/0 | White Casing Assy |
| 92 | 118804603/0 | Yellow Casing Assy |
| 96 | 118810560/0 | Ring Nut |
| 100 | 118805004/0 | Oil Tank Assy |
| 101 | 118805005/0 | Motor Assy |
| 102 | 118805006/0 | Chain Tensioner Kit |
| 105 | 118805009/0 | Handle Joint Kit |
| 108 | 118810849/0 | Gear Assy |
| Hedge Trimmer Attachment Pag.3 | ||
| # | Part Num. | Description |
| 1 | 118810529/0 | Blade Assy |
| 3 | 118803281/0 | Clamp |
| 4 | 118810564/0 | Electric Motor |
| 6 | 118810533/0 | Eccentric |
| 8 | 118810503/0 | Pinion |
| 9 | 118810531/0 | Gear |
| 10 | 112154510/0 | Self-Locking Nut M6 |
| 13 | 112728721/0 | Screw |
| 16 | 118810532/0 | Spacer |
| 18 | 118803257/0 | Bush |
| 20 | 118810501/0 | Gear |
| 21 | 118803278/0 | Plate |
| 22 | 118810535/0 | Gasket |
| 23 | 118803363/0 | Yellow Rotation Lever |
| 23 | 118810554/0 | Grey Rotation Lever |
| 24 | 118803395/0 | Tube |
| 25 | 118810523/0 | Inductor |
| 26 | 118810557/0 | Joint |
| 43 | 118804597/0 | Blade Guard |
| 48 | 118810560/0 | Ring Nut |
| 95 | 118804164/0 | White Attachment Assy |
| 95 | 118810656/0 | Yellow Rotation Attachment Assy |
| 96 | 118810657/0 | White Casing Assy |
| 96 | 118810658/0 | Yellow Casing Assy |
| 105 | 118805009/0 | Handle Joint Kit |
| 107 | 118805151/0 | Motor and Blade Assy |
| Battery Pag.4 | ||
| # | Part Num. | Description |
| 1 | 270201020/17 | Battery 24V - 2Ah |
| 1 | 270401020/17 | Battery 24V - 4Ah |
| 2 | 270012020/17 | Battery Charger 24V - EU+BS Plug |
All technical product information in this catalog is based on information taken from official sources, including the Mountfield manufacturer websites, which we believe to be reliable. Unfortunately, even official documents may contain errors or misprints - we are unable to confirm that all of these data are accurate and truly represent the facts. Most manufacturers reserve the right to change product specifications or complete descriptions without prior notice. We strongly recommend using the published information as basic information subject to review by the Mountfield brand. Please clarify important parameters with a sales assistant at the time of purchase. All contents included in this catalog are the intellectual property of www.bricoutensili.com. Any publication or reproduction (total or partial) without a reference to the source page is prohibited.
