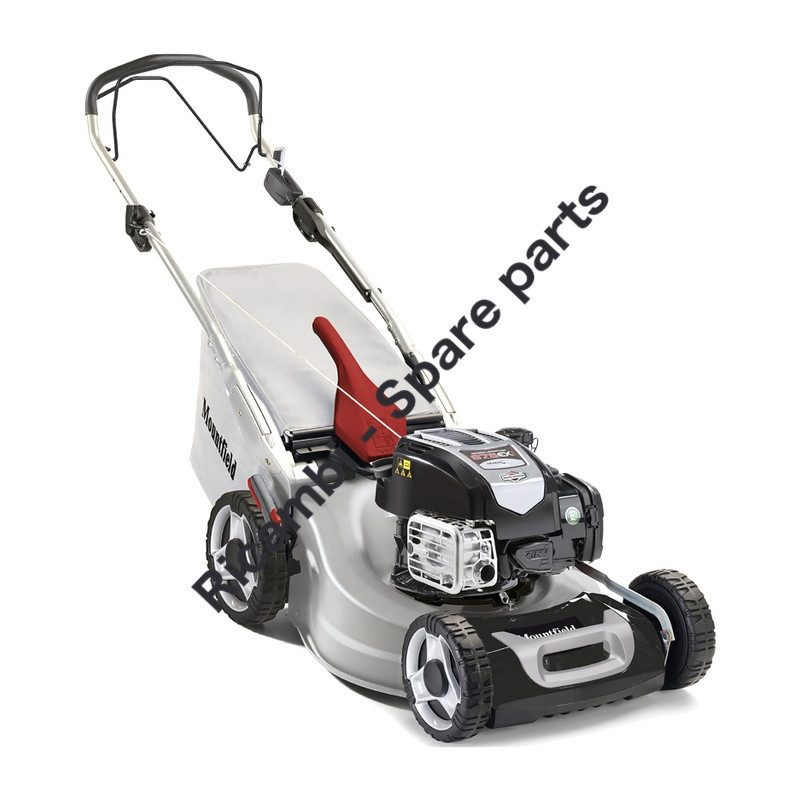

Mountfield Spare Parts for SP556 BV Lawnmower
€0.12
VAT included
Mountfield Spare Parts for Lawnmower SP556 BV
We are Distributors of Original MOUNTFIELD Spare Parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair issue for your Lawnmower SP556 BV/294563028/MC.
Mountfield Spare Parts for SP556 BV Lawnmower
€0.12
VAT included
Mountfield Spare Parts for Lawnmower SP556 BV
We are Distributors of Original MOUNTFIELD Spare Parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair issue for your Lawnmower SP556 BV/294563028/MC.
settings
168 Spare parts
description
8 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
168 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 3
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 4
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 5
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 6
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 7
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 8
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Shipping and delivery information will be available shortly.
Mountfield Spare Parts for Lawn Mower SP556 BV
We are Distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair problem for the Lawn Mower SP556 BV/294563028/MC.
| Lawn Mower SP556 BV/294563028/MC | ||
|---|---|---|
| Chassis And Cutting Height Adjustment Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381302903/1 | Front Wheel Axle |
| 2 | 322785305/1 | Support |
| 3 | 112728697/0 | Screw - Self-tapping Torx PT K50x16 |
| 4 | 322869693/1 | Wheel Adjustment Rod |
| 4 | 322869693/2 | Wheel Control Rod |
| 5 | 112436050/0 | Plate |
| 6 | 122519823/0 | Pin |
| 7 | 381004839/0 | Grey Deck |
| 7 | 381004855/1 | Grey Deck |
| 8 | 322394534/0 | Upper Handle |
| 9 | 322394556/0 | Lower Handle |
| 10 | 322869723/0 | Rod |
| 11 | 112728697/0 | Screw - Self-tapping Torx PT K50x16 |
| 12 | 322109580/0 | Slider |
| 13 | 122450484/0 | Spring |
| 14 | 322735592/0 | Height Adjustment Sector |
| 15 | 112735654/0 | Screw |
| 16 | 322602031/0 | Position Plate |
| 17 | 322602027/0 | Lens |
| 18 | 322055597/0 | Adjustment Casing |
| 19 | 112728904/0 | Screw |
| 20 | 322778475/0 | Bracket |
| 21 | 112815270/0 | Screw |
| 22 | 122450480/0 | Spring |
| 23 | 122517873/0 | Pin |
| 24 | 112523040/0 | Flat Washer - M4x18x1.6 |
| 25 | 112154510/0 | Self-locking Nut M6 |
| 26 | 381302905/1 | Rear Wheel Axle |
| 27 | 322038407/0 | Bushing |
| 28 | 181003119/0 | Drive Unit |
| 29 | 135064394/0 | Belt |
| 31 | 122570110/1 | Right Pinion |
| 32 | 122570120/1 | Left Pinion |
| 33 | 119216035/0 | Bearing |
| 34 | 122753000/0 | Pin |
| 35 | 322545147/0 | Plate |
| 36 | 112735654/0 | Screw |
| 37 | 322778491/0 | Plate |
| 38 | 112735664/0 | Screw |
| 39 | 112735654/0 | Screw |
| 40 | 112608600/0 | Seeger |
| 41 | 322602033/0 | Red Button |
| 42 | 112154330/0 | Nut |
| 43 | 118811482/0 | Pulley |
| Front Mask Pag.2 | ||
| # | Part Num. | Description |
| 1 | 322500113/0 | Comb |
| 2 | 112728697/0 | Screw - Self-tapping Torx PT K50x16 |
| 3 | 112728904/0 | Screw |
| 4 | 322055524/1 | Insert |
| 5 | 322226217/0 | Red Front Cover |
| 5 | 322226221/0 | Black Front Cover |
| 5 | 322226242/0 | Red Front Cover |
| 6 | 322393742/0 | Handle |
| 6 | 322393742/1 | Handle |
| 7 | 381004778/0 | Red Deck |
| 7 | 381004793/0 | Red Deck |
| 7 | 381004855/1 | Grey Deck |
| Handle Pag.3 | ||
| # | Part Num. | Description |
| 1 | 381005219/1 | Right Bracket |
| 2 | 381005221/1 | Left Bracket |
| 3 | 381005223/0 | Right Cover |
| 3 | 381005239/0 | Right Cover |
| 4 | 381005225/0 | Left Cover |
| 4 | 381005241/0 | Left Cover |
| 5 | 122517885/0 | Pin |
| 6 | 112735664/0 | Screw |
| 7 | 381005227/0 | Slider Guide |
| 7 | 381005243/0 | Outer Guide |
| 8 | 322246106/0 | Adjustment Slider |
| 9 | 381005245/0 | Inner Guide |
| 10 | 322551639/0 | Cable Fastening Plate ø25 |
| 10 | 322551684/0 | Cable Fastening Plate ø25 |
| 11 | 112727784/0 | Screw |
| 12 | 112727786/0 | Screw |
| 13 | 125430202/1 | Spring |
| 14 | 112727799/0 | Screw |
| 15 | 112154510/0 | Self-locking Nut M6 |
| 16 | 381007578/0 | Handle, Upper Part |
| 16 | 381007578/1 | Handle, Upper Part |
| 17 | 322806652/0 | Black Inner Support |
| 18 | 322806653/0 | Black Inner Support |
| 19 | 112728713/0 | Screw |
| 20 | 381030123/0 | Slider Control Cable |
| 21 | 381030118/0 | Drive Cable |
| 22 | 181030070/0 | Engine Brake Cable |
| 23 | 322394544/0 | Black Release Lever |
| 24 | 322722839/0 | Black Outer Shell |
| 25 | 322722838/0 | Black Inner Shell |
| 26 | 112728696/0 | Screw - Self-tapping Torx PT K40x12 |
| 27 | 112728705/0 | Screw |
| 28 | 112521330/0 | Flat Washer - M6x12x1.6 |
| 29 | 122430313/0 | Guide Spring |
| 30 | 181003437/0 | Black Engine Brake Lever |
| 31 | 181003438/1 | Black Drive Control Lever |
| 32 | 112735651/0 | Screw |
| 33 | 181005541/0 | Throttle Cable |
| 34 | 118390020/0 | Cable Fastener |
| 35 | 118390020/0 | Cable Fastener |
| 37 | 122430318/0 | Guide Spring |
| 38 | 112735660/0 | Screw |
| 39 | 9694-0001-00 | Washer |
| 40 | 122430323/0 | Spring |
| 41 | 122430324/0 | Guide Spring |
All technical product information in this catalog is based on information taken from official sources, including the manufacturer Mountfield's websites, which we consider reliable. Unfortunately, even official documents may contain errors or printing errors - we cannot confirm that all these data are accurate and truly represent the facts. Most manufacturers reserve the right to change product characteristics or complete descriptions without notice. It is strongly recommended to use the published information as basic information subject to review by the Mountfield brand. Please clarify important parameters with a sales assistant at the time of purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or reproduction (total or partial) without a reference to the source page is prohibited.
294563028/MC-2021
