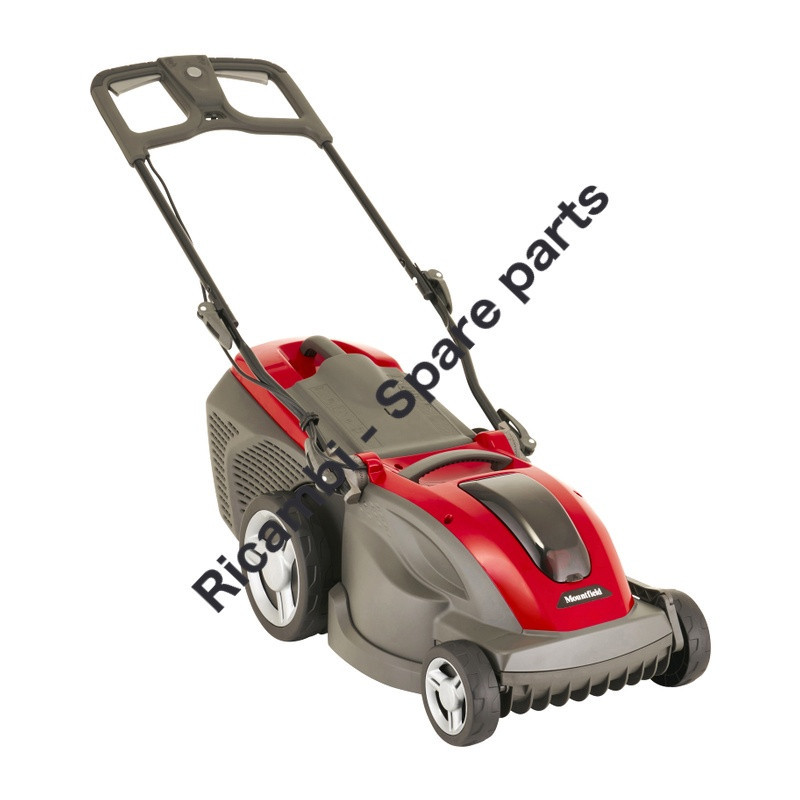

Mountfield Spare Parts for PRINCESS 42 Li Kit Lawnmower
€0.12
VAT included
Mountfield Spare Parts for Lawn Mower PRINCESS 42 Li Kit
We are Distributors of Original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service capable of advising you on purchasing the most suitable spare part to quickly resolve any maintenance and repair issue for your Lawn Mower PRINCESS 42 Li Kit/294426063/M21.
Mountfield Spare Parts for PRINCESS 42 Li Kit Lawnmower
€0.12
VAT included
Mountfield Spare Parts for Lawn Mower PRINCESS 42 Li Kit
We are Distributors of Original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service capable of advising you on purchasing the most suitable spare part to quickly resolve any maintenance and repair issue for your Lawn Mower PRINCESS 42 Li Kit/294426063/M21.
settings
80 Spare parts
description
6 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
80 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 3
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 4
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 5
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 6
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 278014000/21 Battery 48V - 4Ah Mountfield for lawn mower | €0.00 | Not available for order |
|
2
|
photo_cameraImage coming soon | 278020000/21 48V Fast Battery Charger - BS plug Mountfield for lawn mower | €0.00 | Not available for order |
|
2
|
photo_cameraImage coming soon | 278020200/21 48V Dual Charger - EU plug Mountfield for lawn mower | €0.00 | Not available for order |
|
2
|
photo_cameraImage coming soon | 278021000/21 48V Battery Charger - BS plug Mountfield for lawn mower | €0.00 | Not available for order |
|
2
|
photo_cameraImage coming soon | 278021200/21 48V Dual Charger - BS plug Mountfield for lawn mower | €0.00 | Not available for order |
|
2
|
photo_cameraImage coming soon | 278030000/21 48V Fast Battery Charger - EU plug Mountfield for lawn mower | €0.00 | Not available for order |
|
2
|
photo_cameraImage coming soon | 278031000/21 48V Fast Battery Charger - BS plug Mountfield for lawn mower | €0.00 | Not available for order |
Shipping and delivery information will be available shortly.
Mountfield Spare Parts for Lawnmower PRINCESS 42 Li Kit
We are Distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair problem for the Lawnmower PRINCESS 42 Li Kit/294426063/M21.
| Lawnmower PRINCESS 42 Li Kit/294426063/M21 | ||
|---|---|---|
| Chassis, Wheels and Height Adjustment Pag.1 | ||
| # | Part Num. | Description |
| 1 | 322066784/0 | STIGA Grey Deck |
| 2 | 322785450/1 | Wheel Support |
| 3 | 322686105/0 | Wheel |
| 4 | 322110637/0 | Grey Hub Cap |
| 5 | 112604903/0 | Washer |
| 6 | 122033427/0 | Rear Wheels Axle |
| 7 | 322545142/0 | Plate |
| 8 | 112728714/0 | Screw |
| 9 | 322785511/0 | Height Adjustment Lever |
| 10 | 322524354/0 | Pin |
| 11 | 122446195/0 | Spring |
| 12 | 322869690/0 | Height Adjustment Control Rod |
| 13 | 322785415/0 | Plate |
| 14 | 122033426/0 | Rear Wheels Axle |
| 15 | 322785438/0 | Wheel Support |
| 16 | 322686104/0 | Wheel |
| 17 | 322110685/0 | Grey Hub Cap |
| 18 | 322785449/0 | Wheel Support |
| Body Pag.2 | ||
| # | Part Num. | Description |
| 1 | 322226307/1 | Grey Front Cover |
| 2 | 322055696/0 | Grey Cover |
| 3 | 322110834/0 | Grey Left Side Cover |
| 4 | 322110833/0 | Grey Right Side Cover |
| 5 | 112728714/0 | Screw |
| 6 | 133320022/0 | Cable Tie |
| 7 | 118210030/0 | Safety Key Kit |
| 8 | 112728696/0 | Screw - Self-tapping Torx PT K40x12 |
| 9 | 322722863/0 | Battery Housing |
| 10 | 118551525/0 | Magnet |
| 11 | 1134-3262-01 | Spring |
| 12 | 322602041/0 | Battery Release Button |
| 13 | 112728696/0 | Screw - Self-tapping Torx PT K40x12 |
| 15 | 322393719/0 | Handle |
| 16 | 122450470/0 | Spring |
| 17 | 322524356/0 | Pin |
| 19 | 322600292/0 | Stone Guard |
| 20 | 322486406/0 | Grasscatcher, Lower Right Part |
| 21 | 322486405/0 | Grasscatcher, Lower Left Part |
| 22 | 322486330/0 | Grasscatcher, Upper Black Part |
| 23 | 322393718/0 | Handle |
| 25 | 322055650/0A | Battery Cover |
| 26 | 322140243/0 | Mulching Plug |
| 27 | 118806442/0 | Safety Key |
| Handle Pag.3 | ||
| # | Part Num. | Description |
| 1 | 322291070/0 | Upper Switch Half-Handle |
| 2 | 381600558/0 | Motor Switch - Battery |
| 3 | 322291071/0 | Lower Switch Half-Handle |
| 4 | 112728713/0 | Screw |
| 5 | 381007514/1 | Upper Handle Black |
| 5 | 381007551/1 | Upper Handle Grey |
| 6 | 122192000/1 | Clamp |
| 7 | 322680022/1 | Clamp |
| 8 | 122524352/0 | Pin |
| 9 | 322319550/0 | Grey Handle Fixing Lever |
| 10 | 122943016/0 | Screw |
| 11 | 322246102/0 | Joint |
| 12 | 122430210/0 | Spring |
| 13 | 322745055/0 | Right Joint |
| 14 | 112728714/0 | Screw |
| 15 | 322745056/0 | Left Joint |
| 16 | 122943019/0 | Bolt |
| 18 | 118566116/0 | End Cap |
| 19 | 381007513/0 | Lower Handle Black |
| 19 | 381007528/0 | Lower Handle Grey |
| 21 | 112521320/0 | Washer |
| Electric Motor/Blade Pag.4 | ||
| # | Part Num. | Description |
| 1 | 112793312/1 | Screw |
| 2 | 122671651/0 | Washer |
| 3 | 112508122/0 | Washer |
| 4 | 181004467/0 | Blade |
| 5 | 112728904/0 | Screw |
| 6 | 322207227/0 | Cable Clamp |
| 7 | 322393686/0 | Left Battery Motor Flange |
| 8 | 322393685/0 | Right Battery Motor Flange |
| 9 | 112728714/0 | Screw |
| 10 | 118563520/0 | Electric Motor |
| 11 | 118206014/0 | Electronic Board |
| Roller Pag.5 | ||
| # | Part Num. | Description |
| 1 | 122519824/0 | Pin |
| 2 | 322670021/0 | Roller - two halves |
| 3 | 112523080/0 | Washer |
| Battery Pag.6 | ||
| # | Part Num. | Description |
| 1 | 278014000/21 | Battery 48V - 4Ah |
| 2 | 278020000/21 | Battery Charger 48V - EU plug |
| 2 | 278020200/21 | Dual Charger 48V - EU plug |
| 2 | 278021000/21 | Battery Charger 48V - BS plug |
| 2 | 278021200/21 | Dual Charger 48V - BS plug |
| 2 | 278030000/21 | Fast Battery Charger 48V - EU plug |
| 2 | 278031000/21 | Fast Battery Charger 48V - BS plug |
All technical product information in this catalog is based on information taken from official sources, including the websites of the manufacturer Mountfield, which we consider reliable. Unfortunately, even official documents may contain errors or printing mistakes - we cannot confirm that all of these data are accurate and truly represent the facts. Most manufacturers reserve the right to modify product specifications or supplement descriptions without notice. It is strongly recommended to use the published information as basic information subject to review by the Mountfield brand. Please clarify important parameters with a sales assistant at the time of purchase. All contents included in this catalog are the intellectual property of www.bricoutensili.com. Any publication or reproduction (total or partial) without reference to the source page is prohibited.
294426063/M21-2021
