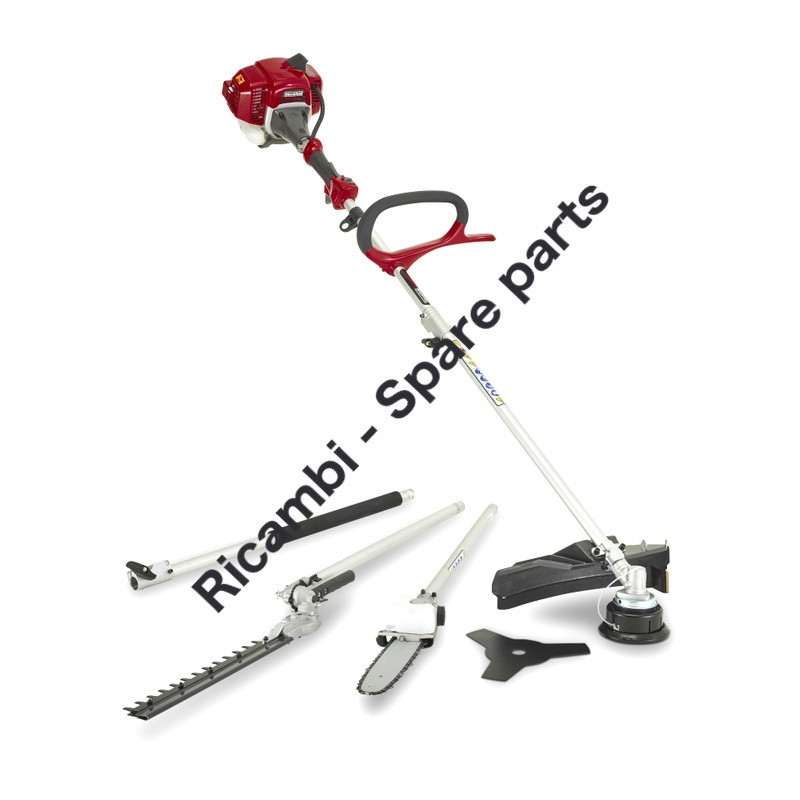

Mountfield Spare Parts for Grass Trimmers/Brushcutters MM2605 - 5 in 1
€0.12
VAT included
Mountfield Spare Parts for Trimmers/Brushcutters MM2605 - 5 in 1
We are Distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly resolve any maintenance and repair issue for your Trimmers/Brushcutters MM2605 - 5 in 1/287120153/M16.
Mountfield Spare Parts for Grass Trimmers/Brushcutters MM2605 - 5 in 1
€0.12
VAT included
Mountfield Spare Parts for Trimmers/Brushcutters MM2605 - 5 in 1
We are Distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly resolve any maintenance and repair issue for your Trimmers/Brushcutters MM2605 - 5 in 1/287120153/M16.
settings
141 Spare parts
description
6 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
141 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 3
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 4
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 5
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 6
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Shipping and delivery information will be available shortly.
Mountfield Spare Parts for Trimmers/Brushcutters MM2605 - 5 in 1
We are distributors of genuine MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair issue for your Trimmer/Brushcutter MM2605 - 5 in 1/287120153/M16.
| Trimmer/Brushcutter MM2605 - 5 in 1/287120153/M16 | ||
|---|---|---|
| Engine Pag.1 | ||
| # | Part Num. | Description |
| 1 | 118805051/0 | Screw |
| 2 | 118804045/0 | Washer |
| 3 | 118802113/0 | Clutch |
| 4 | 2312010 | Washer |
| 5 | 2135120 | Screw |
| 6 | 2135030 | Screw |
| 7 | 118803161/0 | Cover |
| 8 | 112293200/0 | Nut |
| 9 | 112583500/0 | Spring Washer - M8 |
| 10 | 6981128 | Washer |
| 11 | 118802073/0 | Flywheel Magneto |
| 12 | 2135050 | Screw |
| 14 | 118802078/0 | Crankcase, Clutch Side |
| 15 | 118803162/0 | Electronic Coil |
| 16 | 118801188/0 | Oil Seal |
| 17 | 119216035/0 | Bearing |
| 18 | 123072002/0 | Flywheel Key |
| 19 | 118802066/0 | Crankshaft |
| 20 | 118803164/0 | Needle Bearing |
| 21 | 118802084/0 | Piston Pin Retainer |
| 22 | 118802081/0 | Piston Pin |
| 23 | 118802076/0 | Piston |
| 24 | 118802077/0 | Piston Ring |
| 25 | 118803165/0 | Cylinder Gasket |
| 26 | 118802074/0 | Cylinder |
| 27 | 118803166/0 | Muffler Gasket |
| 28 | 118803167/0 | Muffler |
| 29 | 118803168/0 | Muffler Guard |
| 30 | 112521320/0 | Washer |
| 31 | 2122210 | Screw |
| 32 | 112727790/0 | Screw |
| 33 | 118804206/0 | Red Cylinder Cover Shroud |
| 34 | 118803169/0 | Air Filter Cover |
| 35 | 1126-1049-01 | Screw |
| 36 | 3210024 | Spark Plug |
| 37 | 118803170/0 | Gasket |
| 38 | 118806449/0 | Intake Manifold |
| 39 | 118803171/0 | Carburetor Gasket |
| 40 | 118803172/0 | Carburetor |
| 41 | 118803173/0 | Cover |
| 42 | 112581500/0 | Spring Washer |
| 43 | 2135250 | Screw |
| 44 | 118801526/0 | Air Filter |
| 45 | 118804207/0 | Red Filter Cover |
| 46 | 118803174/0 | Knob, Grey |
| 47 | 118803175/0 | Crankcase Gasket |
| 48 | 118802079/0 | Crankcase, Starter Side |
| 49 | 118802069/0 | Starter Cup |
| 50 | 118803176/0 | Gasket |
| 51 | 118804208/0 | Red Starter Assy |
| 52 | 112727810/0 | Screw |
| 53 | 6981149 | Screw |
| 54 | 118803189/0 | Tank Assy |
| 55 | 118803191/0 | Support |
| 56 | 118803163/0 | Spark Plug Cap |
| 57 | 2135180 | Screw |
| 58 | 2312150 | Washer |
| 59 | 118803179/0 | Cap |
| 60 | 118803180/0 | Spring |
| 61 | 118803181/0 | Starter Rope |
| 62 | 118803182/0 | Starter Pulley |
| 63 | 118803183/0 | Spring |
| 65 | 118803185/0 | Cable Guide |
| 66 | 118803186/0 | Starter Handle |
| 67 | 118803187/0 | Starter Plate Yellow |
| 68 | 112291000/0 | Nut |
| 69 | 118803190/0 | Fuel Hose |
| 70 | 322735152/0 | Fuel Tank Cap |
| 71 | 118805308/0 | Heat Insulating Label |
| Machine Body Pag.2 | ||
| # | Part Num. | Description |
| 1 | 118803136/0 | Drive Shaft Tube |
| 2 | 118802094/0 | Clutch Drum |
| 3 | 118803137/0 | Support |
| 4 | 118803138/0 | Support |
| 5 | 118803139/0 | Drive Shaft Joint |
| 6 | 322055257/0 | Transmission Support |
| 7 | 118803192/0 | Drive Shaft Tube Assy |
| 8 | 2135040 | Screw |
| 9 | 2132550 | Screw |
| 10 | 118803141/0 | Tube |
| 11 | 118803142/0 | Drive Shaft Joint |
| 12 | 2135150 | Screw |
| 13 | 118802099/0 | Joint Assy |
| 14 | 2135180 | Screw |
| 15 | 118803194/0 | Front Handle |
| 15 | 118804211/0 | Front Handle Red |
| 16 | 118801182/0 | Harness Support |
| 17 | 2135020 | Screw |
| 18 | 112154330/0 | Nut |
| 19 | 118803144/0 | Grey Handle Assy |
| 20 | 118803151/0 | Spring |
| 21 | 118803152/0 | Spring |
| 22 | 2123060 | Screw |
| 23 | 112727810/0 | Screw |
| 24 | 118803153/0 | Switch Part |
| 25 | 118803154/0 | Throttle Cable |
| 26 | 118803155/0 | Stop Wire |
| 27 | 118803145/0 | Switch |
| 28 | 118803146/0 | Bracket |
| 29 | 6981269 | Screw |
| 30 | 118803147/0 | Switch |
| 31 | 118803148/0 | Spring |
| 32 | 118803149/0 | Switch |
| 33 | 118803150/0 | Throttle Lever, Yellow |
| 34 | 118804189/0 | Threaded Insert |
| 55 | 112609200/0 | Circlip |
| 56 | 118804016/0 | Harness |
| Brushcutter Part Pag.3 | ||
| # | Part Num. | Description |
| 34 | 118803195/1 | Drive Shaft Tube Assy |
| 35 | 118803197/0 | Drive Shaft Assy |
| 36 | 118803198/0 | Safety Guard Assy |
| 37 | 118803199/0 | Safety Guard, Grey |
| 38 | 2123050 | Screw |
| 39 | 118803200/0 | Plate |
| 41 | 112727799/0 | Screw |
| 42 | 118803201/0 | Line Cutter Blade |
| 43 | 118803202/0 | Support |
| 44 | 118801184/0 | Gearcase Assy |
| 45 | 118803203/0 | Spacer |
| 46 | 118803204/0 | Upper Ring Nut |
| 47 | 118803205/0 | Lower Ring Nut |
| 48 | 118803206/0 | Dust Cover |
| 49 | 2452090 | Nut |
| 50 | 118801125/0 | 3-Tooth Blade |
| 51 | 118801124/0 | 2-Line Trimmer Head |
| 52 | 112523080/0 | Washer |
| Pole Pruner Pag.4 | ||
| # | Part Num. | Description |
| 1 | 118802887/0 | Drive Shaft Tube Assy |
| 2 | 118802884/0 | Pruner Attachment Assy |
| 3 | 112789000/0 | Screw |
| 4 | 112789020/0 | Screw |
| 5 | 118803197/0 | Drive Shaft Assy |
| 6 | 118802886/0 | Shaft Lock |
| 7 | 118801758/0 | Guide Bar 10"-3/8"-0.050" |
| 8 | 1519-1001-40 | Chain 10"-3/8"-0.050"-40E |
| 9 | 118805067/0 | Chain Cover |
| 10 | 118805292/0 | Oil Cap Assy |
| 11 | 118805768/0 | Bar Cover 10" |
| 12 | 112604899/0 | Crown Retainer |
| Hedge Trimmer Attachment Pag.5 | ||
| # | Part Num. | Description |
| 1 | 118802887/0 | Drive Shaft Tube Assy |
| 2 | 118802888/0 | Hedge Trimmer Head |
| 3 | 112789000/0 | Screw |
| 4 | 112789020/0 | Screw |
| 5 | 118803197/0 | Drive Shaft Assy |
| 6 | 118802886/0 | Shaft Lock |
| 7 | 118805733/0 | Blade Assy |
| 8 | 118805734/0 | Blade Guard |
| 9 | 112604899/0 | Crown Retainer |
| Transmission Extension Pag.6 | ||
| # | Part Num. | Description |
| 1 | 118804893/0 | Extension Tube Assy |
| 2 | 118804894/0 | Foam Sleeve |
| 3 | 118802099/0 | Joint Assy |
| 4 | 2135180 | Screw |
| 5 | 118804896/0 | Screw |
| 6 | 118804897/0 | Shaft Lock |
| 7 | 118802886/0 | Shaft Lock |
| 8 | 118804898/0 | Rigid Shaft |
| 9 | 118803142/0 | Drive Shaft Joint |
All technical product information in this catalog is based on information from official sources, including the manufacturer Mountfield's websites, which we consider reliable. Unfortunately, even official documents may contain errors or misprints - we are unable to confirm that all of this data is accurate and truly represents the facts. Most manufacturers reserve the right to change product characteristics or supplement descriptions without prior notice. It is strongly recommended to use the published information as basic information subject to review by the Mountfield brand. Please clarify important parameters with a sales assistant at the time of purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or reproduction (in whole or in part) without reference to the original page is prohibited.
287120153/M16-2020
