Mountfield Spare Parts for S 510 PD 4S Lawn Mower
€0.12
VAT included
Mountfield Spare Parts for Lawnmower S 510 PD 4S
We are distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for the Lawnmower S 510 PD 4S/299533243/MTF.
Mountfield Spare Parts for S 510 PD 4S Lawn Mower
€0.12
VAT included
Mountfield Spare Parts for Lawnmower S 510 PD 4S
We are distributors of original MOUNTFIELD spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for the Lawnmower S 510 PD 4S/299533243/MTF.
settings
198 Spare parts
description
12 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
198 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 381006719/0 Black Lower Handle Mountfield for lawn mower | €46.13 | Not available for order |
|
2
|
photo_cameraImage coming soon | 381005149/0 Right Bracket Mountfield for lawn mower | €15.14 | Not available for order |
|
3
|
photo_cameraImage coming soon | 381005151/0 Left Bracket Mountfield for lawn mower | €15.14 | Not available for order |
|
4
|
photo_cameraImage coming soon | 381103359/1 Quick Release Lever Mountfield for lawn mower | €5.04 | Not available for order |
|
5
|
photo_cameraImage coming soon | 322680016/0 Handle Fixing Washer Mountfield for lawn mower | €1.96 | Not available for order |
|
6
|
photo_cameraImage coming soon | 122131750/0 Nut Mountfield for lawn mower | €1.96 | Not available for order |
|
7
|
photo_cameraImage coming soon | 322399835/0 Black Knob Mountfield for lawn mower | €1.96 | Not available for order |
|
10
|
photo_cameraImage coming soon | 112760605/0 Screw Mountfield for lawn mower | €3.38 | |
|
11
|
photo_cameraImage coming soon | 125038002/1 Bushing Mountfield for lawn mower | €1.54 | Not available for order |
|
12
|
photo_cameraImage coming soon | 112155000/0 M8 Self-locking Nut Mountfield for lawn mower | €1.54 | |
|
13
|
photo_cameraImage coming soon | 322192156/0 Cable Clamp Mountfield for lawn mower | €1.96 | Not available for order |
|
14
|
photo_cameraImage coming soon | 381103360/0 Quick Release Lever Mountfield for lawn mower | €5.45 | Not available for order |
Page 3
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 4
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 322551685/0 Cable Fastening Plate ø22 Mountfield for lawn mower | €7.50 | Not available for order |
|
2
|
photo_cameraImage coming soon | 112727783/0 Screw Mountfield for lawn mower | €1.67 | |
|
3
|
photo_cameraImage coming soon | 112154510/0 M6 Self-locking Nut Mountfield for lawn mower | €1.54 |
Page 5
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 112608600/0 Circlip Mountfield for lawn mower | €1.54 | |
|
2
|
photo_cameraImage coming soon | 119216035/0 Bearing Mountfield for lawn mower | €3.50 | Not available for order |
|
3
|
photo_cameraImage coming soon | 122753000/0 Pin Mountfield for lawn mower | €1.54 | Not available for order |
|
4
|
photo_cameraImage coming soon | 181003096/3 Drive Unit Mountfield for lawn mower | €147.18 | Not available for order |
|
4
|
photo_cameraImage coming soon | 181003102/1 Drive Unit Mountfield for lawn mower | €154.20 | Not available for order |
|
5
|
photo_cameraImage coming soon | 122033285/0 Adjustment Rod Mountfield for lawn mower | €6.87 | Not available for order |
|
6
|
photo_cameraImage coming soon | 122601925/0 Pulley Mountfield for lawn mower | €65.88 | Not available for order |
|
6
|
photo_cameraImage coming soon | 122601932/0 Pulley Mountfield for lawn mower | €57.19 | Not available for order |
|
7
|
photo_cameraImage coming soon | 112645700/0 Spring Pin Mountfield for lawn mower | €1.54 | |
|
8
|
photo_cameraImage coming soon | 135064010/0 Belt Mountfield for lawn mower | €14.01 | |
|
9
|
photo_cameraImage coming soon | 322675113/0 Washer Mountfield for lawn mower | €1.96 | Not available for order |
|
10
|
photo_cameraImage coming soon | 112154510/0 M6 Self-locking Nut Mountfield for lawn mower | €1.54 | |
|
11
|
photo_cameraImage coming soon | 112791011/0 Screw Mountfield for lawn mower | €1.40 | |
|
12
|
photo_cameraImage coming soon | 322806625/1 Support Mountfield for lawn mower | €0.00 | Not available for order |
|
13
|
photo_cameraImage coming soon | 112292102/0 Nut Mountfield for lawn mower | €1.67 | |
|
14
|
photo_cameraImage coming soon | 112689500/0 Screw Mountfield for lawn mower | €1.54 | |
|
15
|
photo_cameraImage coming soon | 112523050/0 Washer Mountfield for lawn mower | €1.54 | |
|
16
|
photo_cameraImage coming soon | 122601915/0 Pulley Mountfield for lawn mower | €21.30 | Not available for order |
|
17
|
photo_cameraImage coming soon | 322806623/0 Support Mountfield for lawn mower | €4.20 | Not available for order |
|
18
|
photo_cameraImage coming soon | 122671656/0 Washer Mountfield for lawn mower | €7.28 | Not available for order |
|
19
|
photo_cameraImage coming soon | 112154510/0 M6 Self-locking Nut Mountfield for lawn mower | €1.54 | |
|
20
|
photo_cameraImage coming soon | 112674700/0 Screw Mountfield for lawn mower | €1.54 | |
|
21
|
photo_cameraImage coming soon | 112523050/0 Washer Mountfield for lawn mower | €1.54 | |
|
22
|
photo_cameraImage coming soon | 122601914/0 Pulley Mountfield for lawn mower | €21.46 | Not available for order |
|
23
|
photo_cameraImage coming soon | 112154510/0 M6 Self-locking Nut Mountfield for lawn mower | €1.54 | |
|
24
|
photo_cameraImage coming soon | 381007110/0 Gear Control Cable Mountfield for lawn mower | €49.04 | |
|
25
|
photo_cameraImage coming soon | 322399809/0 Knob Mountfield for lawn mower | €1.54 | Not available for order |
|
26
|
photo_cameraImage coming soon | 112728300/0 Screw Mountfield for lawn mower | €1.54 | |
|
27
|
photo_cameraImage coming soon | 112728702/0 Screw Mountfield for lawn mower | €1.54 |
Page 6
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 119216035/0 Bearing Mountfield for lawn mower | €3.50 | Not available for order |
|
2
|
photo_cameraImage coming soon | 381007416/0 Wheel Ø 200 Mountfield for lawn mower | €17.53 | Not available for order |
|
2
|
photo_cameraImage coming soon | 381007416/1 Wheel Ø 200 Mountfield for lawn mower | €17.53 | Not available for order |
|
2
|
photo_cameraImage coming soon | 381007416/2 Wheel Ø 200 Mountfield for lawn mower | €17.53 | Not available for order |
|
3
|
photo_cameraImage coming soon | 322110382/0 Grey Hubcap Mountfield for lawn mower | €3.92 | Not available for order |
|
4
|
photo_cameraImage coming soon | 322120114/0 Driving Ring Mountfield for lawn mower | €6.87 | |
|
5
|
photo_cameraImage coming soon | 112728706/0 Screw - Self-tapping Torx PT K40x16 Mountfield for lawn mower | €1.54 | |
|
6
|
photo_cameraImage coming soon | 112521350/0 Washer Mountfield for lawn mower | €1.54 | |
|
7
|
photo_cameraImage coming soon | 112155000/0 M8 Self-locking Nut Mountfield for lawn mower | €1.54 | |
|
7
|
photo_cameraImage coming soon | 112293203/0 Flanged Nut Mountfield for lawn mower | €1.16 |
Page 7
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 322291150/0 Rubber Insert Mountfield for lawn mower | €1.54 | Not available for order |
|
2
|
photo_cameraImage coming soon | 322060197/3 Belt Cover Mountfield for lawn mower | €10.65 | |
|
3
|
photo_cameraImage coming soon | 112728530/0 Screw Mountfield for lawn mower | €1.40 | |
|
3
|
photo_cameraImage coming soon | 112728531/0 Screw Mountfield for lawn mower | €1.40 | |
|
4
|
photo_cameraImage coming soon | 122140222/0 Mulching Deflector Mountfield for lawn mower | €15.21 |
Page 8
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
2
|
photo_cameraImage coming soon | 1111-9120-01 Hub With Pulley, Crankshaft Ø 22.2 Mountfield for lawn mower | €21.46 | |
|
2
|
photo_cameraImage coming soon | 122465607/4 Hub With Pulley, Crankshaft Ø 22.2 Mountfield for lawn mower | €9.25 | Not available for order |
|
3
|
photo_cameraImage coming soon | 181004381/1 Standard Blade Mountfield for lawn mower | €17.03 | |
|
4
|
photo_cameraImage coming soon | 122160400/0 Spring Washer Mountfield for lawn mower | €1.82 | Not available for order |
|
5
|
photo_cameraImage coming soon | 112523080/0 Washer Mountfield for lawn mower | €1.54 | |
|
6
|
photo_cameraImage coming soon | 112735698/0 Screw Mountfield for lawn mower | €1.82 | |
|
7
|
photo_cameraImage coming soon | 112139100/0 Woodruff Key Mountfield for lawn mower | €1.54 |
Page 9
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 381008081/2 Black Stone Guard Mountfield for lawn mower | €22.29 | Not available for order |
|
2
|
photo_cameraImage coming soon | 122450466/0 Left Spring Mountfield for lawn mower | €1.82 | Not available for order |
|
3
|
photo_cameraImage coming soon | 122517882/0 Pin Mountfield for lawn mower | €6.59 | Not available for order |
|
4
|
photo_cameraImage coming soon | 122450465/0 Right Spring Mountfield for lawn mower | €1.82 | Not available for order |
|
5
|
photo_cameraImage coming soon | 112604899/0 Crown Fastener Mountfield for lawn mower | €1.54 | |
|
6
|
photo_cameraImage coming soon | 381486013/0 Catcher, Upper Part Mountfield for lawn mower | €22.22 | Not available for order |
|
6
|
photo_cameraImage coming soon | 381486030/0 Catcher, Upper Part Mountfield for lawn mower | €22.58 | |
|
7
|
photo_cameraImage coming soon | 122608525/2 Lower Reinforcement Mountfield for lawn mower | €13.04 | Not available for order |
|
8
|
photo_cameraImage coming soon | 181002211/0 Fabric Catcher Mountfield for lawn mower | €53.28 | Not available for order |
|
8
|
photo_cameraImage coming soon | 181102332/0 Fabric Catcher Mountfield for lawn mower | €58.51 | Not available for order |
|
9
|
photo_cameraImage coming soon | 112728680/0 Screw Mountfield for lawn mower | €1.54 | |
|
10
|
photo_cameraImage coming soon | 112523050/0 Washer Mountfield for lawn mower | €1.54 |
Page 10
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 11
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 12
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 118551442/0 Complete Engine Mountfield for lawn mower | €276.66 | |
|
11
|
photo_cameraImage coming soon | 322055631/0 Grey Engine Cover Mountfield for lawn mower | €3.78 | |
|
12
|
photo_cameraImage coming soon | 322055632/0 Shroud, Yellow Mountfield for lawn mower | €6.72 | |
|
13
|
photo_cameraImage coming soon | 322055628/0 Grey Engine Cover Mountfield for lawn mower | €5.04 | |
|
201
|
photo_cameraImage coming soon | 1111-9234-01 Engine oil, SAE 30 - 0.6 L Mountfield for lawn mower | €0.00 | Not available for order |
|
201
|
photo_cameraImage coming soon | 1111-9237-01 Do not use for Italian Market Mountfield for lawn mower | €0.00 | Not available for order |
|
201
|
photo_cameraImage coming soon | 1111-9244-01 Engine oil, SAE 30 - 0.6 L Mountfield for lawn mower | €7.98 | |
|
202
|
photo_cameraImage coming soon | 1111-9235-01 Do not use for Italian Market Mountfield for lawn mower | €0.00 | Not available for order |
|
203
|
photo_cameraImage coming soon | 1111-9236-01 Engine oil, SAE 30 - 1.4 L Mountfield for lawn mower | €0.00 | Not available for order |
|
203
|
photo_cameraImage coming soon | 1111-9238-01 Do not use for Italian Market Mountfield for lawn mower | €0.00 | Not available for order |
|
203
|
photo_cameraImage coming soon | 1111-9245-01 Engine oil, SAE 30 - 1.4 L Mountfield for lawn mower | €15.96 |
Shipping and delivery information will be available shortly.

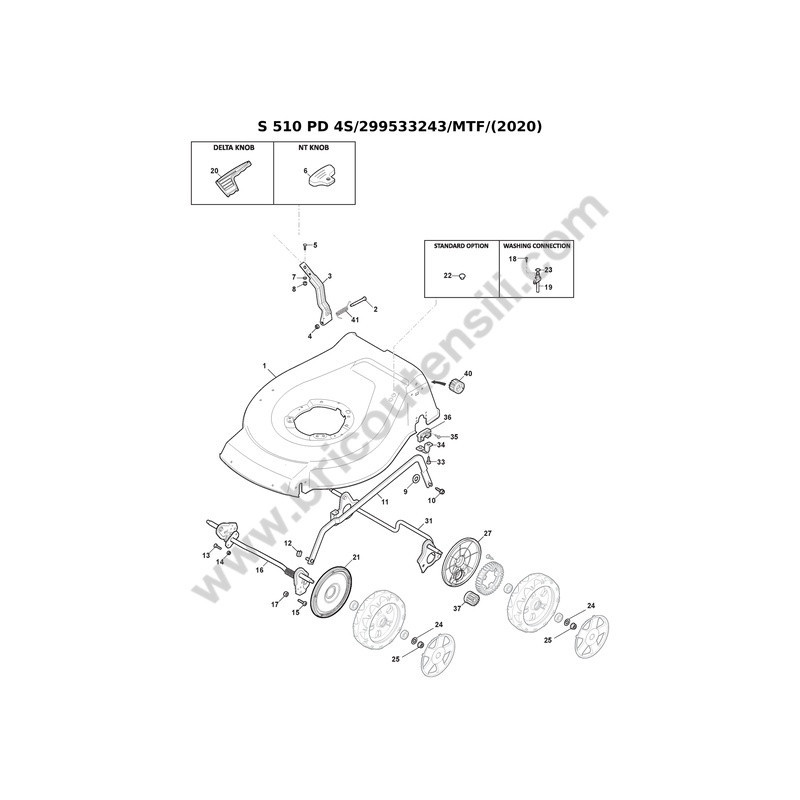

| Chassis And Height Adjustment Pag.1 | ||
|---|---|---|
| # | Part Num. | Description |
| 1 | 381003909/0 | Red Chassis |
| 1 | 381003915/0 | Yellow Chassis |
| 1 | 381004540/0 | Red Chassis |
| 1 | 381004590/0 | Yellow Chassis |
| 2 | 122534131/0 | Pin |
| 3 | 322322851/0 | Height Adjustment Lever |
| 3 | 322322857/0 | Height Adjustment Lever |
| 4 | 112154510/0 | M6 Self-locking Nut |
| 5 | 112788512/0 | Screw |
| 6 | 322394503/0 | Knob |
| 7 | 112521310/0 | Washer |
| 8 | 112150000/0 | Nut |
| 9 | 112369500/0 | Elastic Disc |
| 10 | 122943013/0 | Screw |
| 11 | 381002050/0 | Height Adjustment Control Rod |
| 12 | 112436050/0 | Plate |
| 13 | 112727803/0 | Screw |
| 14 | 112154510/0 | M6 Self-locking Nut |
| 15 | 112727801/0 | Screw |
| 16 | 381302923/0 | Front Wheel Axle |
| 17 | 112154510/0 | M6 Self-locking Nut |
| 18 | 112728450/0 | Screw |
| 19 | 322034002/0 | Washing Water Connection |
| 20 | 322394522/0 | Knob |
| 21 | 322600145/0 | Wheel Protection |
| 22 | 322820077/1 | Plug |
| 23 | 119035000/0 | O-Ring |
| 24 | 112521350/0 | Washer |
| 25 | 112155000/0 | M8 Self-locking Nut |
| 27 | 322600207/0 | Wheel Protection |
| 31 | 381302829/0 | Rear Wheel Axle |
| 33 | 112728697/0 | Screw - Self-tapping Torx PT K50x16 |
| 34 | 322545152/0 | Plate |
| 35 | 112728697/0 | Screw - Self-tapping Torx PT K50x16 |
| 36 | 322785304/1 | Support |
| 37 | 122570120/1 | Left Pinion |
| 40 | 122570110/1 | Right Pinion |
| 41 | 122446192/0 | Spring |
| Handle, Lower Part Pag.2 | ||
|---|---|---|
| # | Part Num. | Description |
| 1 | 381006719/0 | Black Lower Handle |
| 2 | 381005149/0 | Right Bracket |
| 3 | 381005151/0 | Left Bracket |
| 4 | 381103359/1 | Quick Release Lever |
| 5 | 322680016/0 | Handle Fixing Washer |
| 6 | 122131750/0 | Nut |
| 7 | 322399835/0 | Black Knob |
| 10 | 112760605/0 | Screw |
| 11 | 125038002/1 | Bushing |
| 12 | 112155000/0 | M8 Self-locking Nut |
| 13 | 322192156/0 | Cable Clamp |
| 14 | 381103360/0 | Quick Release Lever |
| Handle, Upper Part Pag.3 | ||
|---|---|---|
| # | Part Num. | Description |
| 1 | 381006838/0 | Black Upper Handle |
| 1 | 381007540/1 | Yellow Handle, Upper Part |
| 2 | 122430313/0 | Guide Spring |
| 3 | 112521330/0 | Flat Washer - M6x12x1.6 |
| 4 | 112154510/0 | M6 Self-locking Nut |
| 5 | 118390020/0 | Cable Fastener |
| 6 | 181030053/0 | Engine Brake Cable |
| 7 | 322545204/0 | Fulcrum |
| 8 | 122041966/0 | Bushing |
| 9 | 181003300/1 | Engine Brake Lever |
| 10 | 381030051/0 | Drive Control Cable |
| 10 | 381030092/1 | Drive Control Cable |
| 11 | 122041966/0 | Bushing |
| 12 | 181003301/0 | Drive Control Lever |
| 13 | 122291050/0 | Black Handle Grip |
| Fixed Speed Controls Pag.4 | ||
|---|---|---|
| # | Part Num. | Description |
| 1 | 322551685/0 | Cable Fixing Plate ø22 |
| 2 | 112727783/0 | Screw |
| 3 | 112154510/0 | M6 Self-locking Nut |
| Drive Unit Pag.5 | ||
|---|---|---|
| # | Part Num. | Description |
| 1 | 112608600/0 | Circlip |
| 2 | 119216035/0 | Bearing |
| 3 | 122753000/0 | Pin |
| 4 | 181003096/3 | Drive Unit |
| 4 | 181003102/1 | Drive Unit |
| 5 | 122033285/0 | Adjustment Rod |
| 6 | 122601925/0 | Pulley |
| 6 | 122601932/0 | Pulley |
| 7 | 112645700/0 | Spring Pin |
| 8 | 135064010/0 | Belt |
| 9 | 322675113/0 | Washer |
| 10 | 112154510/0 | M6 Self-locking Nut |
| 11 | 112791011/0 | Screw |
| 12 | 322806625/1 | Support |
| 13 | 112292102/0 | Nut |
| 14 | 112689500/0 | Screw |
| 15 | 112523050/0 | Washer |
| 16 | 122601915/0 | Pulley |
| 17 | 322806623/0 | Support |
| 18 | 122671656/0 | Washer |
| 19 | 112154510/0 | M6 Self-locking Nut |
| 20 | 112674700/0 | Screw |
| 21 | 112523050/0 | Washer |
| 22 | 122601914/0 | Pulley |
| 23 | 112154510/0 | M6 Self-locking Nut |
| 24 | 381007110/0 | Gear Control Cable |
| 25 | 322399809/0 | Knob |
| 26 | 112728300/0 | Screw |
| 27 | 112728702/0 | Screw |
| Wheels and Hub Caps Pag.6 | ||
|---|---|---|
| # | Part Num. | Description |
| 1 | 119216035/0 | Bearing |
| 2 | 381007416/0 | Wheel Ø 200 |
| 2 | 381007416/1 | Wheel Ø 200 |
| 2 | 381007416/2 | Wheel Ø 200 |
| 3 | 322110382/0 | Grey Hubcap |
| 4 | 322120114/0 | Drive Crown |
| 5 | 112728706/0 | Screw - Self-tapping Torx PT K40x16 |
| 6 | 112521350/0 | Washer |
| 7 | 112155000/0 | M8 Self-locking Nut |
| 7 | 112293203/0 | Flanged Nut |
| Belt Cover Pag.7 | ||
|---|---|---|
| # | Part Num. | Description |
| 1 | 322291150/0 | Rubber Insert |
| 2 | 322060197/3 | Belt Cover |
| 3 | 112728530/0 | Screw |
| 3 | 112728531/0 | Screw |
| 4 | 122140222/0 | Mulching Deflector |
| Blade Pag.8 | ||
|---|---|---|
| # | Part Num. | Description |
| 2 | 1111-9120-01 | Blade Hub (Ø 22.2) |
| 2 | 122465607/4 | Hub With Pulley, Motor Shaft Ø 22.2 |
| 3 | 181004381/1 | Standard Blade |
| 4 | 122160400/0 | Elastic Disc |
| 5 | 112523080/0 | Washer |
| 6 | 112735698/0 | Screw |
| 7 | 112139100/0 | Woodruff Key |
| Grass Catcher Pag.9 | ||
|---|---|---|
| # | Part Num. | Description |
| 1 | 381008081/2 | Black Stone Guard |
| 2 | 122450466/0 | Left Spring |
| 3 | 122517882/0 | Pin |
| 4 | 122450465/0 | Right Spring |
| 5 | 112604899/0 | Crown Fastener |
| 6 | 381486013/0 | Catcher, Upper Part |
| 6 | 381486030/0 | Catcher, Upper Part |
| 7 | 122608525/2 | Lower Reinforcement |
| 8 | 181002211/0 | Fabric Catcher |
| 8 | 181102332/0 | Fabric Catcher |
| 9 | 112728680/0 | Screw |
| 10 | 112523050/0 | Washer |
| Engine - Carburettor, Tank Pag.10 | ||
|---|---|---|
| # | Part Num. | Description |
| 2 | 112292102/0 | Nut |
| 3 | 118551468/0 | Starter Assy |
| 4 | 118551619/0 | Starter Handle |
| 5 | 118550779/0 | Starter Rope |
| 6 | 118551621/0 | Starter Spring |
| 7 | 118551620/0 | Starter Pulley |
| 8 | 118551626/0 | Spring |
| 9 | 118551622/0 | Starter Pawl |
| 10 | 118551625/0 | Spring |
| 11 | 118551623/0 | Cover |
| 13 | 118551624/0 | Pulley Pin |
| 14 | 118551788/0 | Air Conveyor |
| 15 | 118550907/0 | Pin |
| 16 | 118550906/0 | Pin |
| 17 | 112791500/0 | Screw - TE M6x25 |
| 18 | 118551474/0 | Electronic Coil |
| 20 | 1111-9206-01 | Spark Plug (Rc12Yc) |
| 21 | 112789000/0 | Screw |
| 22 | 118551456/0 | Choke Control |
| 23 | 118551459/0 | Rod |
| 24 | 118551352/0 | Retainer |
| 25 | 118551450/1 | Carburettor |
| 26 | 118550930/0 | Stud Bolt |
| 27 | 118550929/0 | Gasket |
| 28 | 118550928/0 | Heat Insulator |
| 29 | 118550927/0 | Gasket |
| 30 | 118551124/0 | Gasket |
| 31 | 118551462/0 | Air Cleaner Assy |
| 33 | 118550257/0 | Air Filter |
| 34 | 118551463/0 | Air Cleaner Cover |
| 35 | 112292102/0 | Nut |
| 36 | 118551480/0 | Fuel Pipe |
| 37 | 118550918/0 | Hose Clamp |
| 38 | 118550314/0 | Fuel Filter |
| 39 | 118551453/0 | Tank |
| 40 | 118551455/0 | Tank Cap |
| 41 | 112791400/0 | Screw - TE M6x20 |
| 42 | 118551479/0 | Breather Pipe |
| 43 | 118550933/0 | Throttle Control Lever |
| 46 | 118551458/0 | Spring |
| 49 | 118551457/0 | Throttle Rod |
| 50 | 118550898/0 | Muffler Gasket |
| 51 | 118551465/0 | Muffler |
| 52 | 118550930/0 | Stud Bolt |
| 53 | 118551466/0 | Muffler Guard |
| 54 | 118550806/0 | Nut |
| Engine - Piston, Crankshaft Pag.11 | ||
|---|---|---|
| # | Part Num. | Description |
| 1 | 118550336/0 | Nut |
| 2 | 118550905/0 | Flywheel Assy With Masses |
| 3 | 118551277/0 | Bolt |
| 4 | 112791500/0 | Screw - TE M6x25 |
| 5 | 118551486/0 | Flywheel Brake Assy |
| 6 | 118551522/0 | Spring |
| 7 | 118550300/0 | Oil Seal |
| 13 | 118551484/0 | Crankshaft Assy |
| 14 | 118550288/0 | Flywheel Key |
| 16 | 118551448/0 | Camshaft |
| 18 | 112789000/0 | Screw |
| 19 | 118551460/0 | Governor Assy |
| 22 | 118550935/0 | Oil Seal |
| 23 | 118550856/0 | Cotter Pin |
| 24 | 118550379/0 | Oil Seal |
| 27 | 112791500/0 | Screw - TE M6x25 |
| 28 | 118551276/0 | Bolt |
| 29 | 118550891/0 | Valve Cover |
| 30 | 118550892/0 | Gasket |
| 31 | 118550893/0 | Valve Rocker Arm Set |
| 32 | 118550894/0 | Plate |
| 33 | 118550895/0 | Retainer |
| 34 | 118550896/0 | Spring |
| 35 | 118550910/0 | Intake + Exhaust Valve Assy |
| 36 | 118551449/0 | Valve Lifter |
| 37 | 118551251/0 | Rod |
| 39 | 118551445/0 | Piston Ring Set |
| 40 | 118550915/0 | Piston Pin |
| 41 | 118550914/0 | Circlip |
| 42 | 118551446/0 | Connecting Rod Assy |
| 43 | 112791500/0 | Screw - TE M6x25 |
| 44 | 118551444/0 | Oil Dipstick Assy |
| Complete Engine, Engine Cover Pag.12 | ||
|---|---|---|
| # | Part Num. | Description |
| 1 | 118551442/0 | Complete Engine |
| 11 | 322055631/0 | Grey Cowling |
| 12 | 322055632/0 | Shroud, Yellow |
| 13 | 322055628/0 | Grey Cowling |
| 201 | 1111-9234-01 | Do not use for Italian Market |
| 201 | 1111-9237-01 | Do not use for Italian Market |
| 201 | 1111-9244-01 | Engine oil, SAE 30 - 0.6 L |
| 202 | 1111-9235-01 | Do not use for Italian Market |
| 203 | 1111-9236-01 | Do not use for Italian Market |
| 203 | 1111-9238-01 | Do not use for Italian Market |
| 203 | 1111-9245-01 | Engine oil, SAE 30 - 1.4 L |
299533243/MTF-2020
Data sheet
- Machine Type
- Lawn Mowers
- SHIPPING IN
- Usually Ships in 10/15 BUSINESS DAYS
- CHECK ITEM CODE OR S/N
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Specific References
Comments (0)
No customer reviews for the moment.
