TTI Industries

Milwaukee AG8-115 PROTECTOR Parts

SKU: Milwaukee AG8-115 PROTECTOR
€21.11
VAT included

Milwaukee AG8-115 PROTECTOR Angle Grinder Spare Parts

Fix Your Milwaukee AG8-115 PROTECTOR 115 mm. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Milwaukee AG8-115PROTECTOR
Milwaukee AG8-115 PROTECTOR Parts
  • Milwaukee AG8-115 PROTECTOR Parts
  • Milwaukee AG8-115 PROTECTOR Parts Drawing
TTI Industries

Milwaukee AG8-115 PROTECTOR Parts

SKU: Milwaukee AG8-115 PROTECTOR Condition: New
€21.11
VAT included

Milwaukee AG8-115 PROTECTOR Angle Grinder Spare Parts

Fix Your Milwaukee AG8-115 PROTECTOR 115 mm. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Milwaukee AG8-115PROTECTOR
settings 37 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

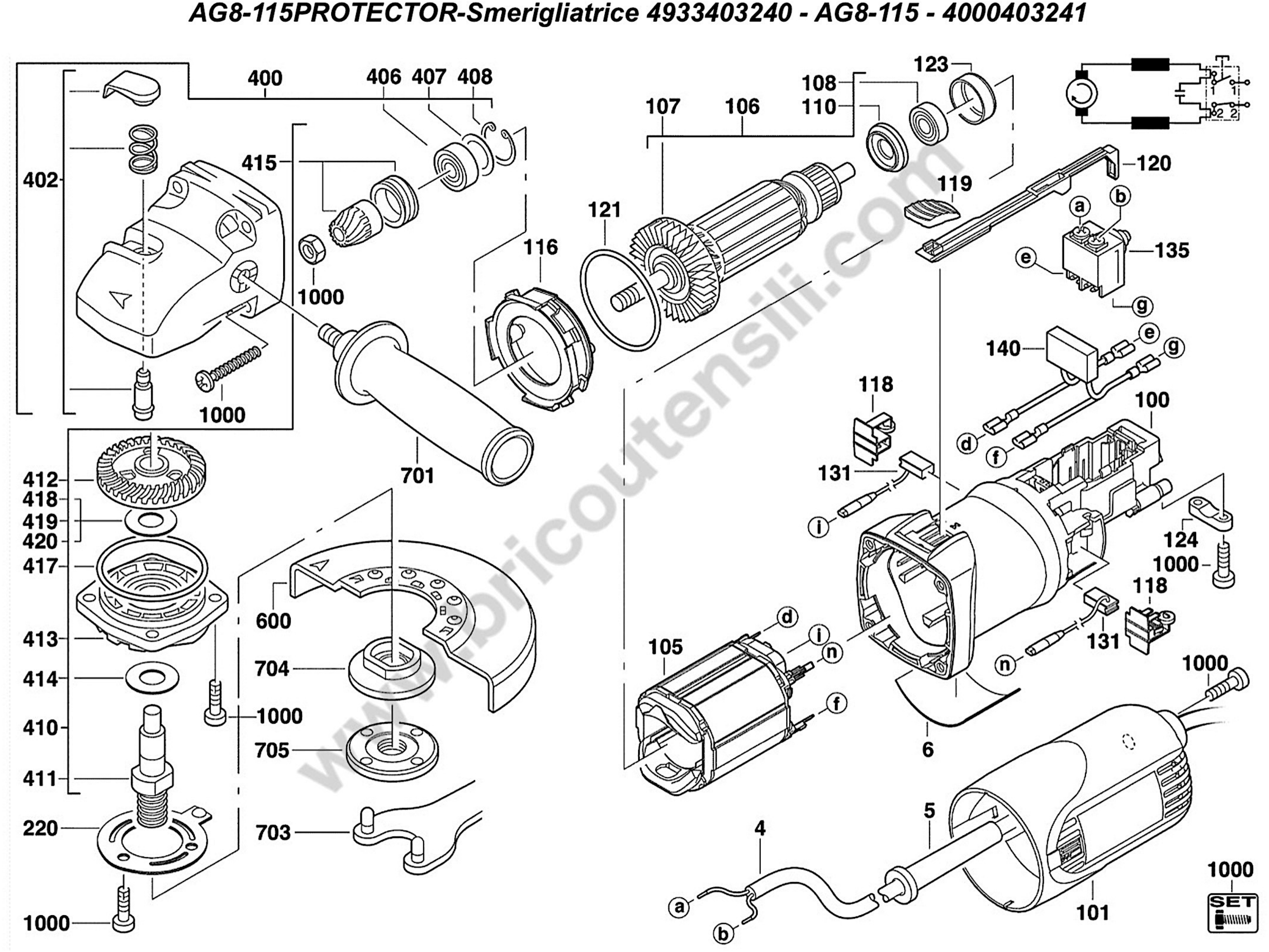

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 4931624121 CONNECTION CABLE €20.50
5
 photo_cameraImage coming soon 4931206687 CABLE ENTRY SLEEVE €4.86
6
 photo_cameraImage coming soon 4931403244 RATING PLATE €3.51
100
 photo_cameraImage coming soon 4931403004 MOTOR HOUSING €8.94
101
 photo_cameraImage coming soon 4931403011 HOUSING CAP €8.94
105
 photo_cameraImage coming soon 4931426475 ELECTRIC FIELD €28.65
106
 photo_cameraImage coming soon 4931426255 ARMATURE €44.98
107
 Milwaukee AG8-115QX Armature Fan 4931368347 Milwaukee AG8-115QX Armature Fan €5.30 Not available for order
108
 photo_cameraImage coming soon 4931902888 BALL BEARING €7.58
110
 photo_cameraImage coming soon 4931385658 INSULATING DISC €4.86
116
 photo_cameraImage coming soon 4931368332 AIR DEFLECTOR RING €4.86
119
 SLIDER 4931368501 SLIDER €5.31
120
 Milwaukee AG8-115QX Guide Piece 4931368333 Milwaukee AG8-115QX Guide Piece €5.31
121
 photo_cameraImage coming soon 4931623590 SEAL RING €4.86
123
 photo_cameraImage coming soon 4931368374 RUBBER SLEEVE €3.51
124
 photo_cameraImage coming soon 4931256500 CABLE COLLAR €5.30
131
 Milwaukee AG8-115QX Carbon Brush Set 4931392612 Milwaukee AG8-115QX Carbon Brush Set €12.73
135
 Milwaukee AG8-115QX Switch 4931391034 Milwaukee AG8-115QX Switch €13.00
140
 photo_cameraImage coming soon 4931391182 CAPACITOR €8.94
220
 photo_cameraImage coming soon 4931345965 SPRING WASHER €3.51
400
 photo_cameraImage coming soon 4931412069 GEAR BOX €44.98
402
 photo_cameraImage coming soon 4931358685 LOCK COMPLETE €9.62
406
 photo_cameraImage coming soon 4931624662 BALL BEARING €7.58
407
 photo_cameraImage coming soon 4931803914 SEALING WASHER 21,8X15,8X0,2 €3.51
408
 photo_cameraImage coming soon 4931613683 LOCKING RING D 472 22X1 €4.86
411
 photo_cameraImage coming soon 4931409808 SPINDLE €7.58
413
 photo_cameraImage coming soon 4931378310 BEARING END PLATE €8.94
414
 photo_cameraImage coming soon 4931623480 DISC €4.86
418
 photo_cameraImage coming soon 4931808473 DISC N874237 12,2X22X0,1 €4.86
419
 photo_cameraImage coming soon 4931925940 DISC N874237 12,2X22X0,2 €4.86
420
 photo_cameraImage coming soon 4931624256 DISC €4.86
600
 photo_cameraImage coming soon 4931407641 GUARD CAP €8.94
701
 photo_cameraImage coming soon 4932409546 HANDLE €12.07
703
 photo_cameraImage coming soon 4932367712 PIN SPANNER 115-230/WP/WSAP1 A/M €8.27
704
 Milwaukee AG8-115QX Clamping Flange 4932449324 Milwaukee AG8-115QX Clamping Flange €11.99
705
 photo_cameraImage coming soon 4932345628 FLANGE NUT M14 3MM P1 A/M €12.21
1000
 photo_cameraImage coming soon 4931358683 BOLT SET €11.66
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
701
 photo_cameraImage coming soon 4932409546 HANDLE €12.07
703
 photo_cameraImage coming soon 4932367712 PIN SPANNER 115-230/WP/WSAP1 A/M €8.27
704
 Milwaukee AG8-115QX Clamping Flange 4932449324 Milwaukee AG8-115QX Clamping Flange €11.99
705
 photo_cameraImage coming soon 4932345628 FLANGE NUT M14 3MM P1 A/M €12.21

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Milwaukee AG8-115 PROTECTOR Angle Grinder Spare Parts

Fix Your Milwaukee AG8-115 PROTECTOR 115 mm. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Milwaukee AG8-115PROTECTOR
AG8-115 ANGLE GRINDER IN2 Parts
4933403240 - AG8-115 - 4000403241

Pag.1
# Part Num Description
4 4931624121 CONNECTION CABLE
5 4931206687 CABLE ENTRY SLEEVE
6 4931403244 RATING PLATE
100 4931403004 MOTOR HOUSING
101 4931403011 HOUSING CAP
105 4931426475 ELECTRIC FIELD
106 4931426255 ARMATURE
107 4931368347 FAN - DISCONTINUED
108 4931902888 BALL BEARING
110 4931385658 INSULATING DISC
116 4931368332 AIR DEFLECTOR RING
119 4931368501 SLIDER
120 4931368333 GUIDE PIECE
121 4931623590 SEAL RING
123 4931368374 RUBBER SLEEVE
124 4931256500 CABLE COLLAR
131 4931392612 CARBON BRUSH SET
135 4931391034 SWITCH
140 4931391182 CAPACITOR
220 4931345965 SPRING WASHER
400 4931412069 GEAR BOX
402 4931358685 LOCK COMPLETE
406 4931624662 BALL BEARING
407 4931803914 SEALING WASHER 21,8X15,8X0,2
408 4931613683 LOCKING RING D 472 22X1
410 4931358682 DRIVE GEAR Item discontinued
411 4931409808 SPINDLE
412 4931385587 BEVEL GEAR PAIR Item discontinued
413 4931378310 BEARING END PLATE
414 4931623480 DISC
415 4931385587 BEVEL GEAR PAIR Item discontinued
418 4931808473 DISC N874237 12,2X22X0,1
419 4931925940 DISC N874237 12,2X22X0,2
420 4931624256 DISC
600 4931407641 GUARD CAP
1000 4931358683 BOLT SET
Accessories Pag.2
701 4932409546 HANDLE
703 4932367712 PIN SPANNER 115-230/WP/WSAP1 A/M
704 4932449324 CLAMPING FLANGE WS115-230 P1 A/M
705 4932345628 FLANGE NUT M14 3MM P1 A/M
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Milwaukee websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Milwaukee brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
