TTI Industries

Milwaukee AP12E Angle Polisher Parts

SKU: Milwaukee AP12E
€5.57
VAT included

Milwaukee ANGLE POLISHER AP 12 E Parts

Fix Your Milwaukee ANGLE POLISHER AP 12 E. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Milwaukee AP 12 E
Milwaukee AP12E Angle Polisher Parts
  • Milwaukee AP12E Angle Polisher Parts
  • Milwaukee AP12E Angle Polisher Parts Diagram
TTI Industries

Milwaukee AP12E Angle Polisher Parts

SKU: Milwaukee AP12E Condition: New
€5.57
VAT included

Milwaukee ANGLE POLISHER AP 12 E Parts

Fix Your Milwaukee ANGLE POLISHER AP 12 E. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Milwaukee AP 12 E
settings 38 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
38 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

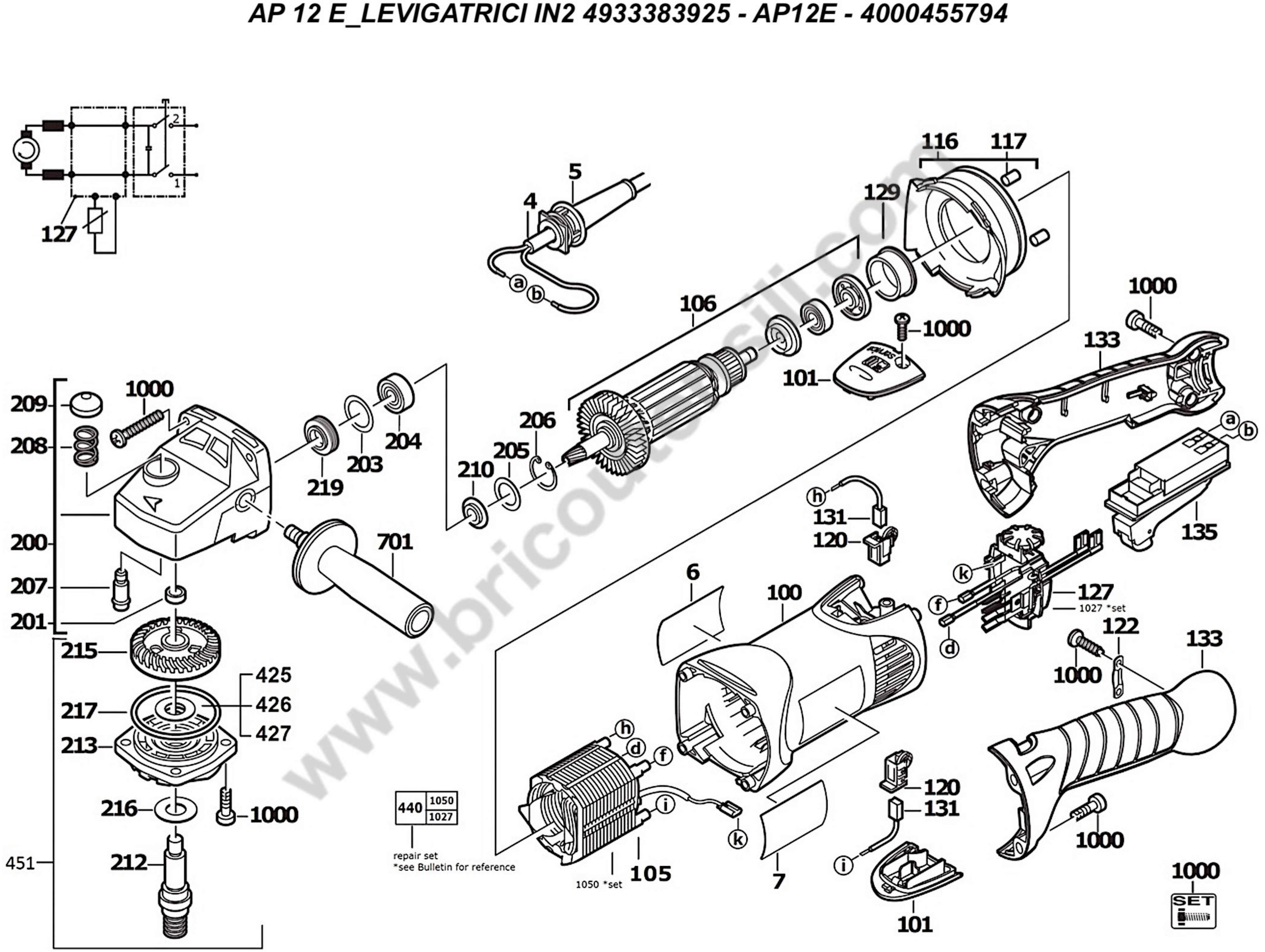

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 4931624510 CONNECTION CABLE €20.50
5
 photo_cameraImage coming soon 4931409552 PROTECTING COVER €5.15
7
 photo_cameraImage coming soon 4931378806 TYPE PLATE €6.41
100
 photo_cameraImage coming soon 4931378768 MOTOR HOUSING €10.30
101
 photo_cameraImage coming soon 4931378566 COVER €4.86
105
 photo_cameraImage coming soon 4931463366 ELECTRIC FIELD €62.24
116
 photo_cameraImage coming soon 4931378135 AIR DEFLECTOR RING €5.15
117
 photo_cameraImage coming soon 4931409768 HOLDING-DOWN DEVICE €6.60
120
 photo_cameraImage coming soon 4931382268 BRUSH HOLDER €5.30
122
 photo_cameraImage coming soon 4931256500 CABLE COLLAR €5.30
127
 Milwaukee AP12E Electronic Element 4931463361 Milwaukee AP12E Electronic Element €81.26
129
 photo_cameraImage coming soon 4931326953 BEARING SLEEVE €6.60
131
 Milwaukee AGS15-125C Carbon Brush Set 4931381391 Milwaukee AGS15-125C Carbon Brush Set €14.09
133
 photo_cameraImage coming soon 4931378765 HANDLE €10.99
135
 photo_cameraImage coming soon 4931378983 SWITCH €16.69
200
 photo_cameraImage coming soon 4931412273 GEAR BOX €31.37
201
 photo_cameraImage coming soon 4931912093 SLEEVE N874989 HKO 0810 €5.30
203
 photo_cameraImage coming soon 4931362085 WASHER €2.26
204
 photo_cameraImage coming soon 4931368037 GROOVED BALL BEAR. €7.31
205
 photo_cameraImage coming soon 4931622761 DISC €5.15
206
 photo_cameraImage coming soon 4931616614 LOCKING RING €5.30
207
 photo_cameraImage coming soon 4931326929 LOCKING BOLT €5.15
208
 photo_cameraImage coming soon 4931326942 PRESSURE SPRING €5.15
209
 photo_cameraImage coming soon 4931326930 PUSH-BUTTON €5.15
210
 photo_cameraImage coming soon 4931624287 WASHER €2.26
212
 photo_cameraImage coming soon 4931409808 SPINDLE €7.58
213
 photo_cameraImage coming soon 4931378310 BEARING END PLATE €8.94
215
 photo_cameraImage coming soon 4931455384 WHEEL €55.17
216
 photo_cameraImage coming soon 4931623480 DISC €4.86
0217
 photo_cameraImage coming soon 4931623590 SEAL RING €4.86
219
 photo_cameraImage coming soon 4931378280 GREASE RETAIN.DISC €5.00
425
 photo_cameraImage coming soon 4931808473 DISC N874237 12,2X22X0,1 €4.86
426
 photo_cameraImage coming soon 4931925940 DISC N874237 12,2X22X0,2 €4.86
427
 photo_cameraImage coming soon 4931624256 DISC €4.86
440
 photo_cameraImage coming soon 4931463376 REPAIR KIT €85.21
451
 photo_cameraImage coming soon 4931455853 GRINDING SPINDLE €78.96
701
 photo_cameraImage coming soon 4931369805 HOLDING GRIP €4.18
1000
 photo_cameraImage coming soon 4931378570 BOLT SET €15.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Milwaukee ANGLE POLISHER AP 12 E Parts

Fix Your Milwaukee ANGLE POLISHER AP 12 E. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Milwaukee AP 12 E

AP12E 230V ANGLE POLISHER IN2 Parts
4933383925 - AP12E - 4000455794
# Part Num Description
4 4931624510 CONNECTION CABLE
5 4931409552 PROTECTING COVER
6 4931476731 RATING PLATE
7 4931378806 TYPE PLATE
100 4931378768 MOTOR HOUSING
101 4931378566 COVER
105 4931463366 ELECTRIC FIELD
106 4931455385 ARMATURE
116 4931378135 AIR DEFLECTOR RING
117 4931409768 HOLDING-DOWN DEVICE
120 4931382268 BRUSH HOLDER
122 4931256500 CABLE COLLAR
127 4931463361 ELECTRONIC ELEMENT
129 4931326953 BEARING SLEEVE
131 4931381391 CARBON BRUSH SET
133 4931378765 HANDLE
135 4931378983 SWITCH
200 4931412273 GEAR BOX
201 4931912093 SLEEVE N874989 HKO 0810
203 4931362085 WASHER
204 4931368037 GROOVED BALL BEAR.
205 4931622761 DISC
206 4931616614 LOCKING RING
207 4931326929 LOCKING BOLT
208 4931326942 PRESSURE SPRING
209 4931326930 PUSH-BUTTON
210 4931624287 WASHER
212 4931409808 SPINDLE
213 4931378310 BEARING END PLATE
215 4931455384 WHEEL
216 4931623480 DISC
217 4931623590 SEAL RING
219 4931378280 GREASE RETAIN.DISC
425 4931808473 DISC N874237 12,2X22X0,1
426 4931925940 DISC N874237 12,2X22X0,2
427 4931624256 DISC
440 4931463376 REPAIR KIT
451 4931455853 GRINDING SPINDLE
701 4931369805 HOLDING GRIP
1000 4931378570 BOLT SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Milwaukee websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Milwaukee brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Milwaukee AP12E
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

Milwaukee AP12E Parts Diagram

Milwaukee AP12E Parts Diagram

Download (544.64KB)
