Milwaukee MXFDH2528H-602 Demolition Hammer Parts

SKU: Milwaukee MXFDH2528H-602
€3.82
VAT included

Milwaukee MXFDH2528H-602 Demolition Hammer Spare Parts

Fix Your Milwaukee MXFDH2528H-602 Demolition Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Milwaukee MXFDH2528H-602 Demolition Hammer
Milwaukee MXFDH2528H-602 Demolition Hammer Parts
  • Milwaukee MXFDH2528H-602 Demolition Hammer Parts
  • Milwaukee MXFDH2528H-602 Demolition Hammer Parts Diagram
TTI Industries

Milwaukee MXFDH2528H-602 Demolition Hammer Parts

SKU: Milwaukee MXFDH2528H-602 Condition: New
€3.82
VAT included

Milwaukee MXFDH2528H-602 Demolition Hammer Spare Parts

Fix Your Milwaukee MXFDH2528H-602 Demolition Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Milwaukee MXFDH2528H-602 Demolition Hammer
settings 92 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
92 spare parts

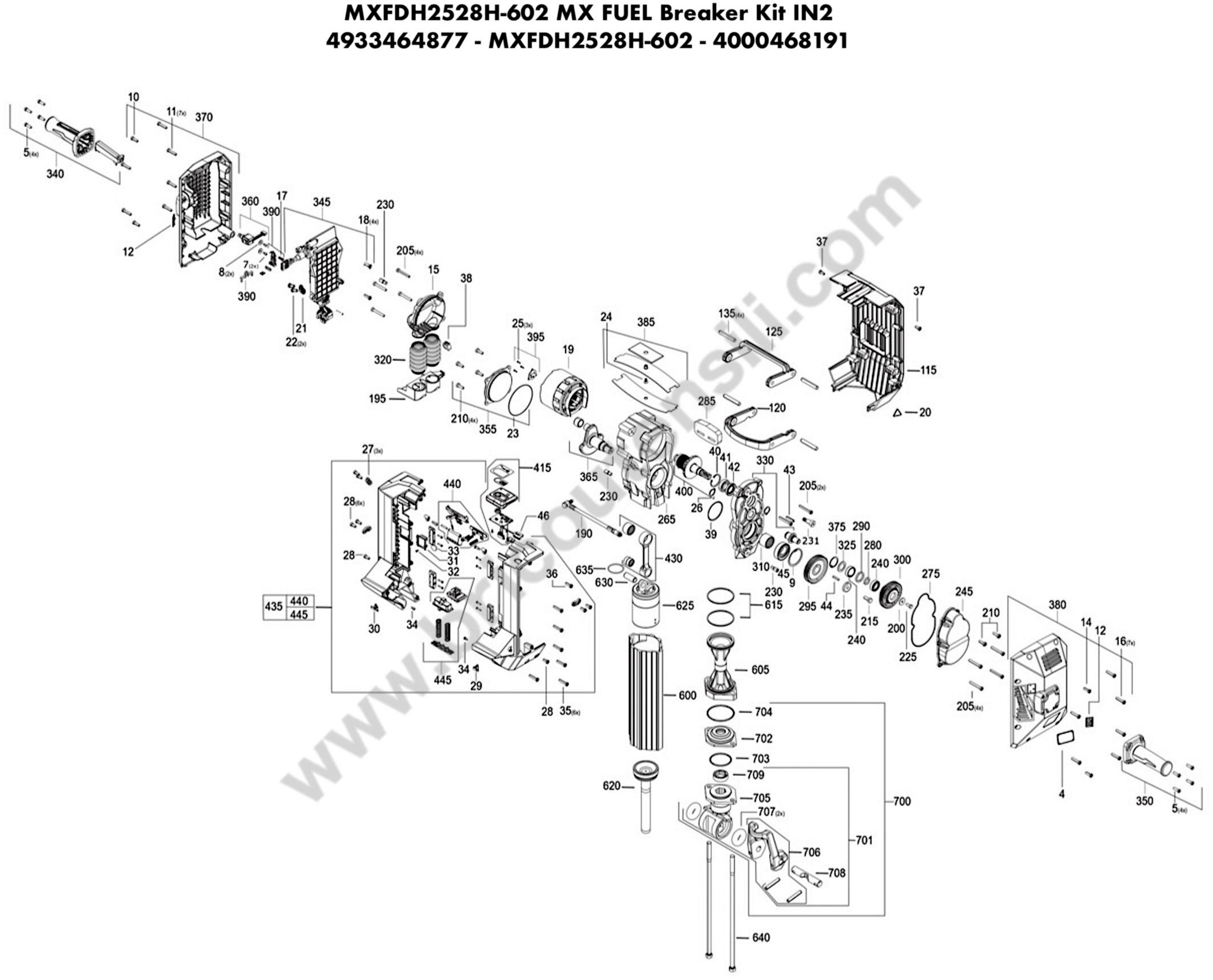

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
5
 photo_cameraImage coming soon 4931476090 SCREW €3.51
7
 photo_cameraImage coming soon 4931624491 SCREW €3.51
8
 photo_cameraImage coming soon 4931455939 WASHER €2.27
9
 photo_cameraImage coming soon 4931463643 RING €2.14
10
 photo_cameraImage coming soon 4931468352 SCREW €1.46
11
 photo_cameraImage coming soon 4931468355 SCREW €1.46
12
 photo_cameraImage coming soon 4931468286 MARKER €5.55
14
 photo_cameraImage coming soon 4931468352 SCREW €1.46
15
 photo_cameraImage coming soon 4931468209 BEARING END PLATE €12.34
16
 photo_cameraImage coming soon 4931468355 SCREW €1.46
17
 photo_cameraImage coming soon 4931624491 SCREW €3.51
18
 photo_cameraImage coming soon 4931468352 SCREW €1.46
19
 photo_cameraImage coming soon 4931476231 STATOR ASSEMBLY €138.79
20
 photo_cameraImage coming soon 4931463581 STICKER €2.14
22
 photo_cameraImage coming soon 4931468832 SCREW €1.46
23
 photo_cameraImage coming soon 4931463476 O-RING €4.18
24
 photo_cameraImage coming soon 4931463194 SCREW €2.14
26
 photo_cameraImage coming soon 4931463644 RING €2.14
28
 photo_cameraImage coming soon 4931468832 SCREW €1.46
29
 photo_cameraImage coming soon 4931468229 WORK LAMP €8.27
30
 photo_cameraImage coming soon 4931468230 WORK LAMP €8.27
31
 photo_cameraImage coming soon 4931468295 HOUSING FOR BATTERY €1.53
32
 photo_cameraImage coming soon 4931468296 SCREW €1.46
33
 photo_cameraImage coming soon 4931468297 BATTERY €4.18
34
 photo_cameraImage coming soon 4931624538 SCREW €2.27
35
 photo_cameraImage coming soon 4931468355 SCREW €1.46
36
 photo_cameraImage coming soon 4931468352 SCREW €1.46
37
 photo_cameraImage coming soon 4931468832 SCREW €1.46
38
 photo_cameraImage coming soon 4931468208 RUBBER SLEEVE €2.82
39
 photo_cameraImage coming soon 4931463651 O-RING €2.14
40
 photo_cameraImage coming soon 4931468207 RING OF CIRCUIT BREAKER €1.46
41
 photo_cameraImage coming soon 4931468211 BEARING €5.55
42
 photo_cameraImage coming soon 4931468834 SEAL RING €2.82
43
 photo_cameraImage coming soon 4931463425 PIN €1.46
44
 photo_cameraImage coming soon 4931463428 PARALLEL KEY €4.18
45
 photo_cameraImage coming soon 4931463654 GROOVED BALL BEAR. €19.82
46
 photo_cameraImage coming soon 4931468226 COVER €1.46
115
 photo_cameraImage coming soon 4931468221 HOUSING €104.39
120
 photo_cameraImage coming soon 4931476091 ROCKER BAR €13.71
125
 photo_cameraImage coming soon 4931468232 ROCKER BAR €13.71
135
 photo_cameraImage coming soon 4931463605 CYLINDER €3.51
190
 photo_cameraImage coming soon 4931468350 HOSE €65.37
195
 photo_cameraImage coming soon 4931468234 INTAKE MANIFOLD €6.90
200
 photo_cameraImage coming soon 4931463422 WASHER €2.14
205
 photo_cameraImage coming soon 4931463507 SCREW (10) €2.14
210
 photo_cameraImage coming soon 4931463506 SCREW €2.14
215
 photo_cameraImage coming soon 4931463424 SCREW €2.14
225
 photo_cameraImage coming soon 4931463427 SCREW €2.14
230
 photo_cameraImage coming soon 4931463546 SCREW €7.58
231
 photo_cameraImage coming soon 4931476230 SCREW €6.23
235
 photo_cameraImage coming soon 4931463477 WASHER €2.14
240
 photo_cameraImage coming soon 4931463435 GROOV. BALL BEARING €19.14
245
 photo_cameraImage coming soon 4931463562 COVER €39.53
265
 photo_cameraImage coming soon 4931468071 CRANKCASE €182.60
280
 photo_cameraImage coming soon 4931468058 SPACER €3.51
285
 photo_cameraImage coming soon 4931463552 STOP €17.78
290
 photo_cameraImage coming soon 4931468060 WASHER €3.51
295
 photo_cameraImage coming soon 4931468061 GEAR €51.77
300
 photo_cameraImage coming soon 4931468212 GEAR €100.72
310
 photo_cameraImage coming soon 4931463475 NEEDLE BUSH €25.94
320
 photo_cameraImage coming soon 4931468233 BELLOWS €9.62
325
 photo_cameraImage coming soon 4931463422 WASHER €2.14
330
 photo_cameraImage coming soon 4931468272 GEAR FLANCE €110.23
340
 photo_cameraImage coming soon 4931476059 RIGHT HANDLE HALF €57.21
345
 photo_cameraImage coming soon 4931476065 ELECTRONIC €586.13
350
 photo_cameraImage coming soon 4931476060 DEMIE POIGNEE GAUCHE €50.95
355
 photo_cameraImage coming soon 4931476066 COVER €15.68
360
 photo_cameraImage coming soon 4931476061 SWITCH €66.73
365
 photo_cameraImage coming soon 4931476067 CRANK ASSEMBLY €101.53
370
 photo_cameraImage coming soon 4931476062 CAP €140.01
375
 photo_cameraImage coming soon 4931463646 RING €2.14
380
 photo_cameraImage coming soon 4931476063 CAP €131.45
385
 photo_cameraImage coming soon 4931468833 PLATE SPRING €99.36
390
 photo_cameraImage coming soon 4931476233 CLAMP €15.81
395
 photo_cameraImage coming soon 4931476070 sensor €42.26
400
 photo_cameraImage coming soon 4931476072 ARMATURE €116.36
415
 photo_cameraImage coming soon 4931476075 ELECTRONIC €143.55
430
 photo_cameraImage coming soon 4931468255 Piston Pin €127.91
435
 photo_cameraImage coming soon 4931476078 BATTERY RAIL KIT €485.52
440
 photo_cameraImage coming soon 4931476079 INTERLOCK SLEEVE €84.41
445
 photo_cameraImage coming soon 4931476080 EJECTOR KIT €103.44
600
 photo_cameraImage coming soon 4931468068 CYLINDER €347.69
605
 photo_cameraImage coming soon 4931468076 BUSH €200.66
615
 photo_cameraImage coming soon 4931463545 O-RING €6.23
620
 photo_cameraImage coming soon 4931468069 STRIKER €130.63
625
 photo_cameraImage coming soon 4931468070 PISTON €283.60
630
 photo_cameraImage coming soon 4931468065 BOLT €6.90
635
 photo_cameraImage coming soon 4931463538 SPRING RING €2.14
640
 photo_cameraImage coming soon 4931463035 SCREW €33.01
700
 photo_cameraImage coming soon 4931468196 TOOL ACCEPTANCE €431.80
701
 photo_cameraImage coming soon 4931468251 TOOL ACCEPTANCE €386.26
702
 photo_cameraImage coming soon 4931463038 FLANGE €50.95
703
 photo_cameraImage coming soon 4931463009 RING €2.14
704
 photo_cameraImage coming soon 4931463010 RING €2.14
705
 photo_cameraImage coming soon 4931463037 TOOL ACCEPTANCE €184.34
706
 photo_cameraImage coming soon 4931476210 HOLDING BRACKET €129.28
707
 photo_cameraImage coming soon 4931463967 DAMPING RING €23.22
708
 photo_cameraImage coming soon 4931468216 LOCKING BOLT €15.06
709
 photo_cameraImage coming soon 4931463493 COLLAR €19.14
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1001
 photo_cameraImage coming soon 4931599230 CONNECTOR €1,559.39
1002
 photo_cameraImage coming soon 61600325 PULLER €1,407.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Milwaukee MXFDH2528H-602 Demolition Hammer Spare Parts

Fix Your Milwaukee MXFDH2528H-602 Demolition Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Milwaukee MXFDH2528H-602 Demolition Hammer

Milwaukee MXFDH2528H-602 MX FUEL Breaker Kit IN2 Parts Pag.1
4933464877 - MXFDH2528H-602 - 4000468191
# Part. Num. Description
5 4931476090 SCREW
7 4931624491 SCREW
8 4931455939 WASHER
9 4931463643 RING
10 4931468352 SCREW
11 4931468355 SCREW
12 4931468286 MARKER
14 4931468352 SCREW
15 4931468209 BEARING END PLATE
16 4931468355 SCREW
17 4931624491 SCREW
18 4931468352 SCREW
19 4931476231 STATOR
20 4931463581 STICKER
22 4931468832 SCREW
23 4931463476 O-RING
24 4931463194 SCREW
25 4931468261 SCREW
26 4931463644 RING
28 4931468832 SCREW
29 4931468229 WORK LAMP
30 4931468230 WORK LAMP
31 4931468295 HOUSING FOR BATTERY
32 4931468296 SCREW
33 4931468297 BATTERY
34 4931624538 SCREW
35 4931468355 SCREW
36 4931468352 SCREW
37 4931468832 SCREW
38 4931468208 RUBBER SLEEVE
39 4931463651 O-RING
40 4931468207 RETAINING RING
41 4931468211 BEARING
42 4931468834 SEAL RING
43 4931463425 PIN
44 4931463428 PARALLEL KEY
45 4931463654 GROOVED BALL BEAR.
46 4931468226 COVER
115 4931468221 HOUSING
120 4931476091 ROCKER BAR
125 4931468232 ROCKER BAR
135 4931463605 CYLINDER
190 4931468350 HOSE
195 4931468234 INTAKE MANIFOLD
200 4931463422 WASHER
205 4931463507 SCREW (10)
210 4931463506 SCREW
215 4931463424 SCREW
225 4931463427 SCREW
230 4931463546 SCREW
231 4931476230 SCREW
235 4931463477 WASHER
240 4931463435 GROOV. BALL BEARING
245 4931463562 COVER
265 4931468071 CRANKCASE
280 4931468058 SPACER
285 4931463552 STOP
290 4931468060 WASHER
295 4931468061 GEAR
300 4931468212 GEAR
310 4931463475 NEEDLE BUSH
320 4931468233 BELLOWS
325 4931463422 WASHER
330 4931468272 GEAR FLANCE
340 4931476059 RIGHT HANDLE HALF
345 4931476065 ELECTRONIC
350 4931476060 LEFT HANDLE HALF
355 4931476066 COVER
360 4931476061 SWITCH
365 4931476067 CRANK ASSEMBLY
370 4931476062 CAP
375 4931463646 RING
380 4931476063 CAP
385 4931468833 PLATE SPRING
390 4931476233 CLAMP
395 4931476070 sensor
400 4931476072 ARMATURE
415 4931476075 ELECTRONIC
430 4931468255 CONNECTING ROD
435 4931476078 BATTERY RAIL KIT
440 4931476079 INTERLOCK SLEAVE
445 4931476080 EJECTOR KIT
600 4931468068 CYLINDER
605 4931468076 BUSH
615 4931463545 O-RING
620 4931468069 STRIKER
625 4931468070 PISTON
630 4931468065 BOLT
635 4931463538 SPRING RING
640 4931463035 SCREW
700 4931468196 TOOL ACCEPTANCE
701 4931468251 TOOL ACCEPTANCE
702 4931463038 FLANGE
703 4931463009 RING
704 4931463010 RING
705 4931463037 TOOL ACCEPTANCE
706 4931476210 HOLDING BRACKET
707 4931463967 DAMPING RING
708 4931468216 LOCKING BOLT
709 4931463493 COLLAR
Accessories Pag.2
1001 4931599230 CONNECTOR
1002 61600325 PULLER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Milwaukee websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Milwaukee brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Milwaukee MXFDH2528H-602
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

Milwaukee MXFDH2528H-602 Diagram

Milwaukee MXFDH2528H-602 Diagram

Download (327.11KB)

You might also like

Milwaukee K500S Switch
TTI Industries SKU: 4931375458
Milwaukee K500S Switch
Milwaukee K500S Switch Milwaukee Genuine Part, Switch for Demolition Hammers Milwaukee - AEG Part for the following products: - 4933398220 4000398258 - K500S - K500S CHIPPING HAMMER IN2 - 4933405365 4000405366 - K950S -...
Last items in stock €19.55
Details
Milwaukee K500S Brush Holder
TTI Industries SKU: 4931381694
Milwaukee K500S Brush Holder
Milwaukee K500S Carbon Brush Holder Milwaukee Genuine Part, Carbon Brush Holder for Demolition Hammers Milwaukee - AEG Part for the following products: - 4933375720 4000417173 - K900S - K900S CHIPPING HAMMER IN2 -...
AVAILABLE €6.34
Details
Milwaukee K900S Piston Complete
TTI Industries SKU: 4931375380
Milwaukee K900S Piston Complete
Milwaukee K900S Piston Complete Milwaukee Genuine Part, Piston Complete for Combi Hammer K900S. Part for the following products: - 4933405365 4000405366 - K950S - K950S SDS-Max COMBI HAMMER IN2 - 4933449390 4000417173 - K900S...
Last items in stock €21.63
Details
Milwaukee K500S Ball Bearing 609LBT
TTI Industries SKU: 4931341741
Milwaukee K500S Ball Bearing 609LBT
Milwaukee K500S Ball Bearing 609LBT Milwaukee Genuine Part, Ball Bearing 609LBT for Demolition Hammers Milwaukee - AEG Part for the following products: - 4933375720 4000417173 - K900S - K900S CHIPPING HAMMER IN2 -...
Last items in stock €8.28
Details
Milwaukee K500S Ball Bearing 6002DL
TTI Industries SKU: 4931398189
Milwaukee K500S Ball Bearing 6002DL
Milwaukee K500S Ball Bearing 6002DL Milwaukee Genuine Part, Ball Bearing 6002DL for Demolition Hammers Milwaukee - AEG Part for the following products: - 4933375720 4000417173 - K900S - K900S CHIPPING HAMMER IN2 -...
AVAILABLE €9.02
Details
Milwaukee SDS-Max Pointed Flat Chisels - 4932343734
TTI Industries SKU: SDS-Max-Pointed-Flat
Milwaukee SDS-Max Pointed Flat Chisels
SDS-Max Pointed Flat Chisels MILWAUKEE® SDS-Max chisel bits offer powerful performance, penetrating concrete and making them the ideal choice for demolition work. The self-sharpening SDS-Max SLEDGE™ chisels are...
build View Spare Parts
Comments (0)
