Milwaukee DD3-152 Diamond Drill Spare Parts

Fix Your Milwaukee DD3-152 Dry-Wet Diamond Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Milwaukee Milwaukee DD3-152 Dry-Wet Diamond Drill
Milwaukee DD3-152 Diamond Drill Parts
  • Milwaukee DD3-152 Diamond Drill Parts
  • Milwaukee DD3-152 Diamond Drill Parts - Drawing
TTI Industries

Milwaukee DD3-152 Diamond Drill Parts

SKU: Milwaukee DD3-152 Condition: New
€287.94
VAT included

Milwaukee DD3-152 Diamond Drill Spare Parts

Fix Your Milwaukee DD3-152 Dry-Wet Diamond Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Milwaukee Milwaukee DD3-152 Dry-Wet Diamond Drill
settings 52 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
52 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

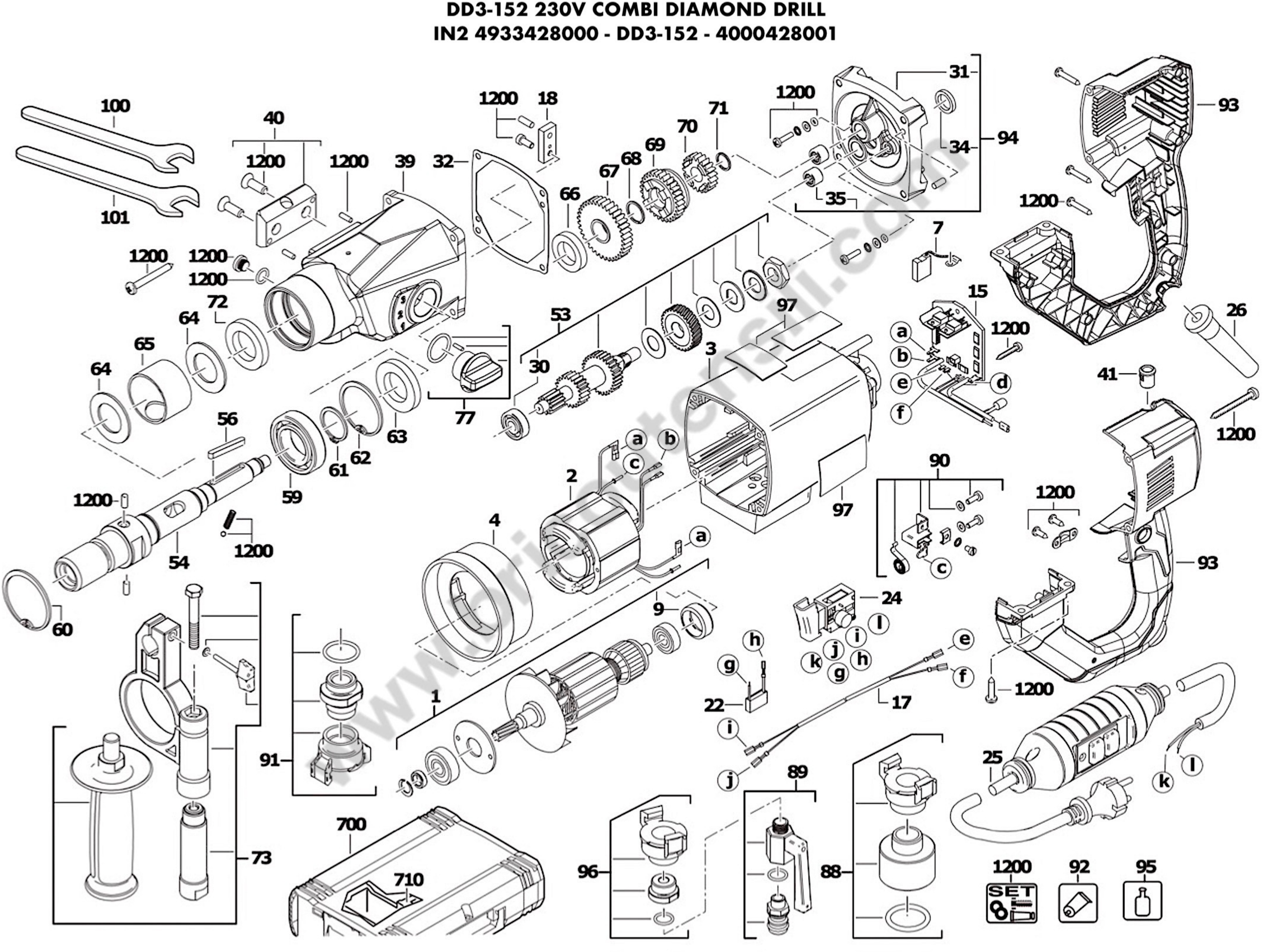

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Milwaukee Diamond Drill DD3-152 Armature 4931428015 Milwaukee Diamond Drill DD3-152 Armature €287.94
2
 photo_cameraImage coming soon 4931428016 ELECTRIC FIELD €112.19
3
 photo_cameraImage coming soon 4931428017 MOTOR HOUSING €38.66
7
 photo_cameraImage coming soon 4931428019 CARBON BRUSH SET €28.65
9
 photo_cameraImage coming soon 4931428036 BEARING COVER €7.96
15
 photo_cameraImage coming soon 4931428038 PRINTED CIRCUIT €170.72
17
 photo_cameraImage coming soon 4931428039 CABLE SET €7.96
18
 photo_cameraImage coming soon 4931428040 SWITCH LEVER €17.95
22
 photo_cameraImage coming soon 4931428041 INTERFERENCE SUPPR. €10.99
24
 photo_cameraImage coming soon 4931428042 SWITCH €44.37
25
 photo_cameraImage coming soon 4931428043 CONNECTION CABLE €185.70
26
 photo_cameraImage coming soon 4931428044 PROTECTING COVER €5.11
30
 photo_cameraImage coming soon 4931428045 GROOVED BALL BEAR. €10.10
32
 photo_cameraImage coming soon 4931428047 SEAL €5.81
34
 photo_cameraImage coming soon 4931428048 SEAL RING €10.10
35
 photo_cameraImage coming soon 4931428049 NEEDLE BUSH €9.39
39
 photo_cameraImage coming soon 4931428553 GEAR BOX HOUSING €117.90
40
 photo_cameraImage coming soon 4931428554 Supporting plate with 2 hex. sock. screw €53.81
41
 photo_cameraImage coming soon 4931428555 HOLDING DEVICE €5.11
53
 photo_cameraImage coming soon 4931428556 CLUTCH €253.55
54
 photo_cameraImage coming soon 4931428557 SPINDLE €142.87
56
 photo_cameraImage coming soon 4931428558 PARALLEL KEY €3.68
59
 photo_cameraImage coming soon 4931428559 GROOVED BALL BEAR. €41.51
60
 photo_cameraImage coming soon 4931428560 PROTECTION WASHER €3.68
61
 photo_cameraImage coming soon 4931428561 PROTECTION WASHER €2.25
62
 photo_cameraImage coming soon 4931428562 PROTECTION WASHER €2.25
63
 photo_cameraImage coming soon 4931428563 SEAL RING €20.81
64
 photo_cameraImage coming soon 4931428564 STRIPPER €10.82
65
 photo_cameraImage coming soon 4931428565 SPACER €15.10
66
 photo_cameraImage coming soon 4931428566 SEAL RING €15.10
67
 photo_cameraImage coming soon 4931428567 WHEEL €78.62
68
 photo_cameraImage coming soon 4931428568 SPRING RING €5.11
69
 photo_cameraImage coming soon 4931428569 JUMPER RING €94.32
70
 photo_cameraImage coming soon 4931428570 WHEEL €84.33
71
 photo_cameraImage coming soon 4931428571 SPRING RING €5.11
72
 photo_cameraImage coming soon 4931428572 SEAL RING €19.38
73
 photo_cameraImage coming soon 4931428573 HANDLE €85.76
77
 photo_cameraImage coming soon 4931428574 Overload switch actuation lever €41.51
88
 photo_cameraImage coming soon 4931428578 ADAPTOR €56.50
89
 photo_cameraImage coming soon 4931428579 VALVE €35.80
90
 photo_cameraImage coming soon 4931428580 BRUSH HOLDER PAIR €27.22
91
 photo_cameraImage coming soon 4931428581 CONNECTOR €35.80
92
 photo_cameraImage coming soon 4931428582 GREASE DEPOSIT €31.51
93
 photo_cameraImage coming soon 4931428583 HANDLE SHELLS €44.37
94
 photo_cameraImage coming soon 4931428584 GEAR ENDPLATE €109.33
95
 photo_cameraImage coming soon 4931428585 GEAR OIL 1L €97.19
96
 photo_cameraImage coming soon 4931428586 CONNECTION SLEEVE €22.23
100
 photo_cameraImage coming soon 4931428009 SPANNER €11.66
101
 photo_cameraImage coming soon 4931428010 SPANNER 41mm €19.14
700
 photo_cameraImage coming soon 4931402576 CARRYING CASE €103.53
710
 photo_cameraImage coming soon 4931428005 INSERT €130.63
1200
 photo_cameraImage coming soon 4931428587 BOLT SET €37.23

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Milwaukee DD3-152 Diamond Drill Spare Parts

Fix Your Milwaukee DD3-152 Dry-Wet Diamond Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Milwaukee DD3-152 Dry-Wet Diamond Drill
DD3-152 230V COMBI DIAMOND DRILL IN2 Spare Parts
4933428000 - DD3-152 - 4000428001
# Part Num. Description
1 4931428015 ARMATURE
2 4931428016 ELECTRIC FIELD
3 4931428017 MOTOR HOUSING
4 4931428018 AIR DEFLECTOR RING - Discontinued
7 4931428019 CARBON BRUSH SET
9 4931428036 BEARING COVER
15 4931428038 PRINTED CIRCUIT
17 4931428039 CABLE SET
18 4931428040 SWITCH LEVER
22 4931428041 INTERFERENCE SUPPR.
24 4931428042 SWITCH
25 4931428043 CONNECTION CABLE
26 4931428044 PROTECTING COVER
30 4931428045 GROOVED BALL BEAR.
31 4931428046 GEAR ENDPLATE Discontinued
32 4931428047 SEAL
34 4931428048 SEAL RING
35 4931428049 NEEDLE BUSH
39 4931428553 GEAR BOX HOUSING
40 4931428554 Supporting plate with 2 hex. sock. screw
41 4931428555 HOLDING DEVICE
53 4931428556 CLUTCH
54 4931428557 SPINDLE
56 4931428558 PARALLEL KEY
59 4931428559 GROOVED BALL BEAR.
60 4931428560 PROTECTION WASHER
61 4931428561 PROTECTION WASHER
62 4931428562 PROTECTION WASHER
63 4931428563 SEAL RING
64 4931428564 STRIPPER
65 4931428565 SPACER
66 4931428566 SEAL RING
67 4931428567 WHEEL
68 4931428568 SPRING RING
69 4931428569 JUMPER RING
70 4931428570 WHEEL
71 4931428571 SPRING RING
72 4931428572 SEAL RING
73 4931428573 HANDLE
77 4931428574 SWITCH LEVER
88 4931428578 ADAPTOR
89 4931428579 VALVE
90 4931428580 BRUSH HOLDER PAIR
91 4931428581 CONNECTOR
92 4931428582 GREASE DEPOSIT
93 4931428583 HANDLE SHELLS
94 4931428584 GEAR ENDPLATE
95 4931428585 GEAR OIL 1L
96 4931428586 CONNECTION SLEEVE
97 4931428588 STICKER Discontinued
100 4931428009 SPANNER
101 4931428010 SPANNER 41mm
700 4931402576 CARRYING CASE
710 4931428005 INSERT
1200 4931428587 BOLT SET
