TTI Industries

Milwaukee DD2-160XE Diamond Drill Parts

SKU: Milwaukee DD2-160XE
€2.33
VAT included

Milwaukee DD2-160XE Diamond Drill Spare Parts

Fix Your Milwaukee DD2-160XE Diamond Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Milwaukee DD2-160XE Diamond Drill
Milwaukee DD2-160XE Diamond Drill Parts
  • Milwaukee DD2-160XE Diamond Drill Parts
  • Milwaukee DD2-160XE Diamond Drill Parts - Drawing
TTI Industries

Milwaukee DD2-160XE Diamond Drill Parts

SKU: Milwaukee DD2-160XE Condition: New
€2.33
VAT included

Milwaukee DD2-160XE Diamond Drill Spare Parts

Fix Your Milwaukee DD2-160XE Diamond Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Milwaukee DD2-160XE Diamond Drill
settings 74 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
74 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

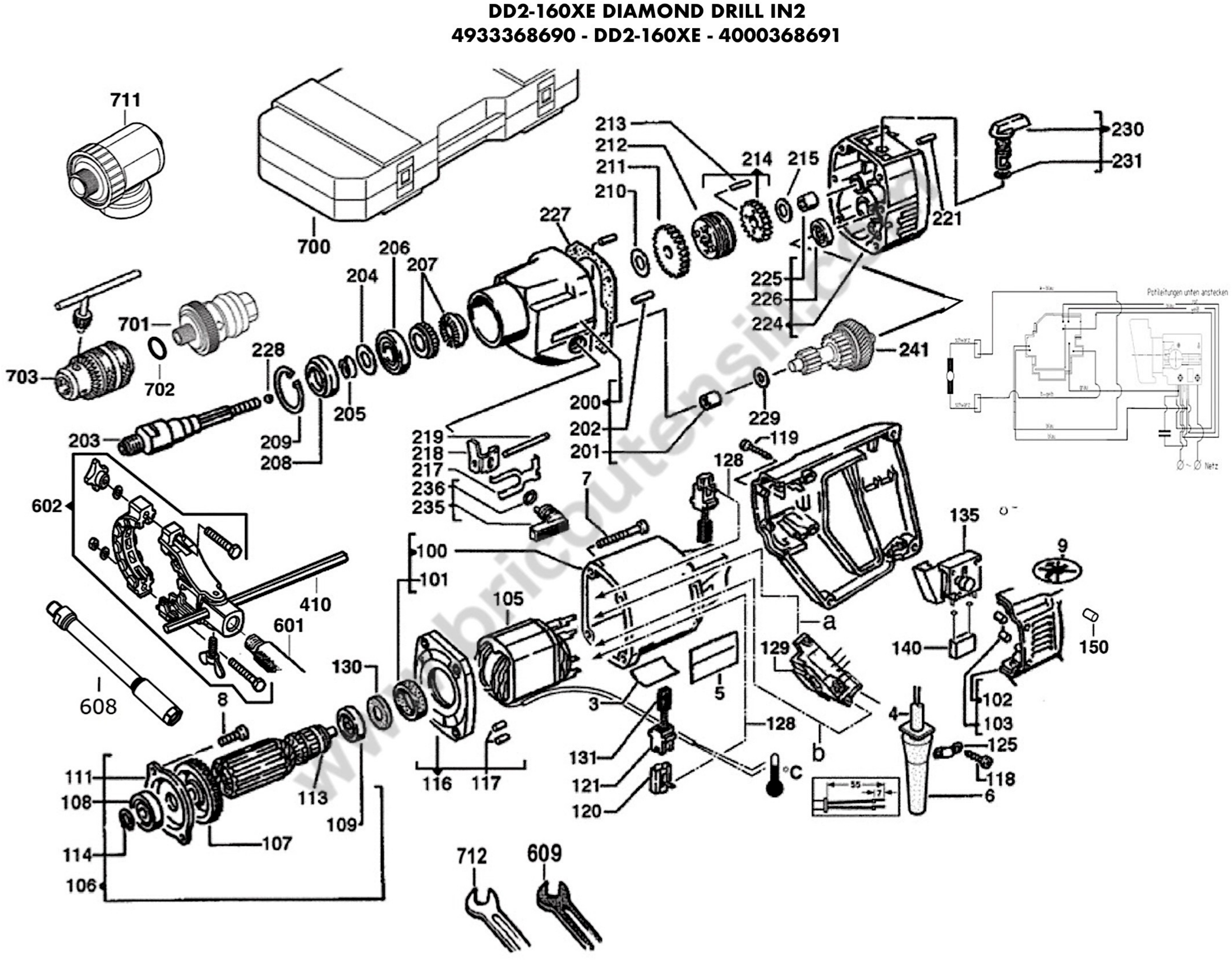

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 4931368692 RATING PLATE €2.27
4
 AEG KH5E Connection Cable 4931302112 AEG KH5E Connection Cable €18.46
5
 photo_cameraImage coming soon 4931380498 NAME PLATE €2.27
6
 photo_cameraImage coming soon 4931359575 CABLE ENTRY SLEEVE €5.15
7
 photo_cameraImage coming soon 4931614685 SCREW D 912 M 4X70 8G €2.27
8
 photo_cameraImage coming soon 4931612817 SCREW €2.27
9
 photo_cameraImage coming soon 4931321699 LABEL €2.27
100
 photo_cameraImage coming soon 4931359587 HOUSING €24.63
101
 photo_cameraImage coming soon 4931301483 RUBBER SLEEVE €2.27
102
 photo_cameraImage coming soon 4931359589 HANDLE €14.54
103
 photo_cameraImage coming soon 562578001 RUBBER STOP €5.41
105
 photo_cameraImage coming soon 4931442730 ELECTRIC FIELD €44.68
106
 photo_cameraImage coming soon 4931463719 ARMATURE €120.54
107
 photo_cameraImage coming soon 4931476088 FAN €98.63
108
 photo_cameraImage coming soon 4931368037 GROOVED BALL BEAR. €7.31
109
 Milwaukee DD2-160XE Bearing 627ZZ 4931901253 Milwaukee DD2-160XE Bearing 627ZZ €9.75
111
 photo_cameraImage coming soon 4931267463 BEARING COVER €4.43
113
 photo_cameraImage coming soon 4931271823 INSULATING DISC €5.15
114
 photo_cameraImage coming soon 4931605127 RING €4.43
116
 photo_cameraImage coming soon 4931337361 AIR DEFLECTOR RING €8.04
117
 photo_cameraImage coming soon 562578001 RUBBER STOP €5.41
118
 photo_cameraImage coming soon 4931624538 SCREW €2.27
119
 photo_cameraImage coming soon 4931618253 SCREW €3.51
120
 AEG DB1500-2XE Brush Holder 4931317546 AEG DB1500-2XE Brush Holder €5.30
121
 AEG DB1500-2XE Brush Holder Insulation 4931317544 AEG DB1500-2XE Brush Holder Insulation €5.30
125
 photo_cameraImage coming soon 4931256500 CABLE COLLAR €5.30
128
 photo_cameraImage coming soon 4931622342 CONNECTION CABLE €5.15
129
 Milwaukee DD2-160XE Printed Circuit Board 4931463248 Milwaukee DD2-160XE Printed Circuit Board €96.67
130
 photo_cameraImage coming soon 4931300215 FELT WASHER €2.27
131
 AEG DB1500-2XE Carbon Brush Set 4931392581 AEG DB1500-2XE Carbon Brush Set €19.84
135
 AEG DB1500-2XE Switch 4931385859 AEG DB1500-2XE Switch €20.46
140
 AEG DB1500-2XE Capacitor 4931385864 AEG DB1500-2XE Capacitor €8.28
150
 photo_cameraImage coming soon 4931409768 HOLDING-DOWN DEVICE €6.60
200
 photo_cameraImage coming soon 4931412489 GEAR BOX €30.39
201
 photo_cameraImage coming soon 4931219424 NEEDLE BEARING €4.55
202
 photo_cameraImage coming soon 4931615663 PIN €4.43
203
 photo_cameraImage coming soon 4931307984 DRILL SPINDLE €34.73
204
 photo_cameraImage coming soon 4931621809 DISC €5.15
205
 photo_cameraImage coming soon 4931267406 PRESSURE SPRING €5.15
206
 photo_cameraImage coming soon 4931891058 BALL BEARING €8.04
207
 photo_cameraImage coming soon 4931325240 PERCUSSION SLEEVE €4.43
208
 photo_cameraImage coming soon 4931267522 SEAL RING €6.60
209
 photo_cameraImage coming soon 4931890311 LOCKING RING €5.15
210
 photo_cameraImage coming soon 4931943605 DISC €5.15
211
 photo_cameraImage coming soon 4931368671 DRILL SPINDLE WHEEL €12.66
212
 photo_cameraImage coming soon 4931307130 SHIFT RING COMPL. €18.13
213
 photo_cameraImage coming soon 4931621732 PIN €5.15
214
 photo_cameraImage coming soon 4931369652 DRILL SPINDLE WHEEL €11.49
215
 photo_cameraImage coming soon 4931901226 DISC N874237 8,1X16X0,5 €5.15
217
 photo_cameraImage coming soon 4931307118 RETAINING SPRING €5.15
218
 photo_cameraImage coming soon 4931309010 SWITCH LEVER €4.43
219
 photo_cameraImage coming soon 4931621731 PIN €5.15
221
 photo_cameraImage coming soon 4931621650 PIN €6.60
224
 photo_cameraImage coming soon 4931412490 BEARING END PLATE €30.39
225
 photo_cameraImage coming soon 4931912093 SLEEVE N874989 HKO 0810 €5.30
226
 photo_cameraImage coming soon 4931624661 BALL BEARING €8.04
227
 photo_cameraImage coming soon 4931307995 GASKET €5.15
228
 photo_cameraImage coming soon 4931805437 BALL €2.33
229
 photo_cameraImage coming soon 4931919962 DISC N874237 8,3X16,5X1 €5.15
230
 photo_cameraImage coming soon 4931320109 SWITCH LEVER €23.91
231
 photo_cameraImage coming soon 4931943493 O-RING N874701 8X1 €2.27
235
 photo_cameraImage coming soon 4931310479 SWITCH LEVER €5.15
236
 photo_cameraImage coming soon 4931621782 O-RING N874701 14X1 €2.27
241
 photo_cameraImage coming soon 4931368673 REDUCTION GEAR €102.81
410
 photo_cameraImage coming soon 4931384434 DEPTH GAUGE €5.30
601
 photo_cameraImage coming soon 4931375516 HANDLE €49.29
602
 photo_cameraImage coming soon 4931407017 CLAMPING RING €28.95
609
 photo_cameraImage coming soon 4931236557 KEY €17.85
700
 photo_cameraImage coming soon 4931412492 CARRYING CASE €88.82
701
 photo_cameraImage coming soon 4932399174 FIXTEC ADAPTER FIXTEC M18/16 P1 MET €195.85
702
 photo_cameraImage coming soon 4931941117 O-RING €2.27
703
 photo_cameraImage coming soon 4932320014 Keyed Chuck 3Jaw C 3.0-16 M18x2.5-1pc €108.86
711
 photo_cameraImage coming soon 4932352172 FIXTEC CLR M18X2.5 / 1 1/4 P1M €560.26
712
 photo_cameraImage coming soon 4932345710 OPEN-ENDED SPANNER SW17/24 P1 A/M €25.93
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
*
 photo_cameraImage coming soon 4932221379 Chuck Key C S3T-1pc €11.65
701
 photo_cameraImage coming soon 4932399174 FIXTEC ADAPTER FIXTEC M18/16 P1 MET €195.85
703
 photo_cameraImage coming soon 4932320014 Keyed Chuck 3Jaw C 3.0-16 M18x2.5-1pc €108.86
711
 photo_cameraImage coming soon 4932352172 FIXTEC CLR M18X2.5 / 1 1/4 P1M €560.26
712
 photo_cameraImage coming soon 4932345710 OPEN-ENDED SPANNER SW17/24 P1 A/M €25.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Milwaukee DD2-160XE Diamond Drill Spare Parts

Fix Your Milwaukee DD2-160XE Diamond Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Milwaukee Milwaukee DD2-160XE DIAMOND DRILL
DD2-160XE DIAMOND DRILL IN2 Spare Parts
4933368690 - DD2-160XE - 4000368691 - Pag.1
# Part Num. Description
3 4931368692 RATING PLATE
4 4931302112 CONNECTION CABLE
5 4931380498 NAME PLATE
6 4931359575 CABLE ENTRY SLEEVE
7 4931614685 SCREW D 912 M 4X70 8G
8 4931612817 SCREW
9 4931321699 LABEL
100 4931359587 HOUSING
101 4931301483 RUBBER SLEEVE
102 4931359589 HANDLE
103 562578001 HOLDING-DOWN DEVICE
105 4931442730 ELECTRIC FIELD
106 4931463719 ARMATURE
107 4931476088 FAN
108 4931368037 GROOVED BALL BEAR.
109 4931901253 BALL BEARING
111 4931267463 BEARING COVER
113 4931271823 INSULATING DISC
114 4931605127 RING
116 4931337361 AIR DEFLECTOR RING
117 562578001 RUBBER STOP
118 4931624538 SCREW
119 4931618253 SCREW
120 4931317546 BRUSH HOLDER
121 4931317544 BRUSH HOLDER INSUL
125 4931256500 CABLE COLLAR
128 4931622342 CONNECTION CABLE
129 4931463248 PRINTED CIRC. BOARD
130 4931300215 FELT WASHER
131 4931392581 CARBON BRUSH SET
135 4931385859 SWITCH
140 4931385864 CAPACITOR
150 4931409768 HOLDING-DOWN DEVICE
200 4931412489 GEAR BOX
201 4931219424 NEEDLE BEARING
202 4931615663 PIN
203 4931307984 DRILL SPINDLE
204 4931621809 DISC
205 4931267406 PRESSURE SPRING
206 4931891058 BALL BEARING
207 4931325240 PERCUSSION SLEEVE
208 4931267522 SEAL RING
209 4931890311 LOCKING RING
210 4931943605 DISC
211 4931368671 DRILL SPINDLE WHEEL
212 4931307130 SHIFT RING COMPL.
213 4931621732 PIN
214 4931369652 DRILL SPINDLE WHEEL
215 4931901226 DISC N874237 8,1X16X0,5
217 4931307118 RETAINING SPRING
218 4931309010 SWITCH LEVER
219 4931621731 PIN
221 4931621650 PIN
224 4931412490 BEARING END PLATE
225 4931912093 SLEEVE N874989 HKO 0810
226 4931624661 BALL BEARING
227 4931307995 GASKET
228 4931805437 BALL
229 4931919962 DISC N874237 8,3X16,5X1
230 4931320109 SWITCH LEVER
231 4931943493 O-RING N874701 8X1
235 4931310479 SWITCH LEVER
236 4931621782 O-RING N874701 14X1
241 4931368673 REDUCTION GEAR
410 4931384434 DEPTH GAUGE
601 4931375516 HANDLE
602 4931407017 CLAMPING RING
608 1000000003 Not available for this version
609 4931236557 KEY
700 4931412492 CARRYING CASE
702 4931941117 O-RING
Accessori Pag.2
* 4932221379 Chuck Key C S3T-1pc
701 4932399174 FIXTEC ADAPTER FIXTEC M18/16 P1 MET
703 4932320014 Keyed Chuck 3Jaw C 3.0-16 M18x2.5-1pc
711 4932352172 FIXTEC CLR M18X2.5 / 1 1/4 P1M
712 4932345710 OPEN-ENDED SPANNER SW17/24 P1 A/M
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Milwaukee websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Milwaukee brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Milwaukee DD2-160XE
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

Milwaukee DD2-160XE Drawing

Milwaukee DD2-160XE Drawing

Download (557.5KB)

You might also like

AEG BS 18SBL2-202C 18V Brushless Drill Driver
TTI Industries SKU: AEG BS 18SBL2-202C
AEG BS 18SBL2-202C 18V Brushless Drill Driver
AEG BS 18SBL2-202C 18V SubCompact Brushless Drill Driver - Compact and powerful Sub Compact brushless motor technology delivers up to 65Nm of torque - Sub Compact design provides ultimate user productivty and ergonomics - Lightweight...
AVAILABLE €312.40
Details
AEG L1820S 18V 2,0 AH Battery
TTI Industries SKU: 4935472275
AEG L1820S 18V 2,0 AH Battery
AEG L1820S 18V 2,0 AH PROLITHIUM-ION™ Battery - Product variations: x1 - AEG 2,0Ah pack provides ultimate portability and power in a compact package - Compatible with all AEG PRO18V powertools - Light weight and compact design...
Usually Ships in: 7/10 Business Days Approx. €84.60
Details
AEG L1840S 18V 4,0 AH Battery
TTI Industries SKU: 4935478636
AEG L1840S 18V 4,0 AH Battery
AEG L1840S 18V 4,0 AH PROLITHIUM-ION™ Battery - Product variations: x1 - AEG 4,0Ah pack provides extended runtime and power in a compact package - Compatible with all AEG PRO18V powertools - Light weight and compact design...
Usually Ships in: 7/10 Business Days Approx. €152.87
Details
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries
TTI Industries SKU: 4935478945
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries
AEG SET LL1850SHD Battery Charger kit + 2 18V 5.0 Ah HD Batteries - Battery Charger kit + 2 18V 5.0 Ah HD Batteries - SET LL1850SHD - Product variations: x1 - New HD battery technology that allows you to reach a higher level of...
Usually Ships in: 7/10 Business Days Approx. €273.06
Details
Milwaukee DD2-160XE Bearing 627ZZ
TTI Industries SKU: 4931901253
Milwaukee DD2-160XE Bearing 627ZZ
Milwaukee DD2-160XE Ball Bearing 627ZZ Milwaukee Genuine Part, Ball Bearing 627ZZ for Power Tools Milwaukee - AEG. Part for the following products: - 4933368690 4000368691 - DD2-160XE - DD2-160XE DIAMOND DRILL IN2 -...
AVAILABLE €9.75
Details
AEG KH5E Connection Cable
TTI Industries SKU: 4931302112
AEG KH5E Connection Cable
AEG KH5E Connection Cable AEG Genuine Part, Connection Cable for Combi Hammer KH5E - DIAMOND DRILL DB1500-2XE. Part for the following products: - 4935407965 4000442183 - KH5E - KH5ES SDS-M COMBI HAMMER IN2 - 4935412475...
AVAILABLE €18.46
Details
AEG DB1500-2XE Switch
TTI Industries SKU: 4931385859
AEG DB1500-2XE Switch
AEG DB1500-2XE Switch AEG Genuine Part, Switch for Diamond Drill DB1500-2XE - DD2-160XE. Part for the following products: AEG -  4935412475 4000412476 - DB1500-2XE - DB1500-2XE DIAMOND DRILL IN2 Milwaukee - ...
Last items in stock €20.46
Details
AEG DB1500-2XE Carbon Brush Set
TTI Industries SKU: 4931392581
AEG DB1500-2XE Carbon Brush Set
AEG DB1500-2XE Carbon Brush Set AEG Genuine Part, Carbon Brush Set for Diamond Drill DB1500-2XE - DD2-160XE. Part for the following products: AEG -  4935412475 4000412476 - DB1500-2XE - DB1500-2XE DIAMOND DRILL...
AVAILABLE €19.84
Details
AEG DB1500-2XE Brush Holder Insulation
TTI Industries SKU: 4931317544
AEG DB1500-2XE Brush Holder Insulation
AEG DB1500-2XE Brush Holder Insulation AEG Genuine Part, Carbon Brush Holder Insulation for Diamond Drill DB1500-2XE - DD2-160XE. Part for the following products: AEG -  4935412475 4000412476 - DB1500-2XE - DB1500-2XE...
AVAILABLE €5.30
Details
AEG DB1500-2XE Brush Holder
TTI Industries SKU: 4931317546
AEG DB1500-2XE Brush Holder
AEG DB1500-2XE Brush Holder AEG Genuine Part, Carbon Brush Holder for Diamond Drill DB1500-2XE - DD2-160XE. Part for the following products: AEG -  4935412475 4000412476 - DB1500-2XE - DB1500-2XE DIAMOND DRILL IN2...
AVAILABLE €5.30
Details
AEG DB1500-2XE Capacitor
TTI Industries SKU: 4931385864
AEG DB1500-2XE Capacitor
AEG DB1500-2XE Capacitor AEG Genuine Part, Capacitor for Diamond Drill DB1500-2XE - DD2-160XE. Part for the following products: AEG -  4935412475 4000412476 - DB1500-2XE - DB1500-2XE DIAMOND DRILL IN2 Milwaukee...
AVAILABLE €8.28
Details
Milwaukee DD2-160XE Printed Circuit Board
TTI Industries SKU: 4931463248
Milwaukee DD2-160XE Printed Circuit Board
Milwaukee DD2-160XE Printed Circuit Board Milwaukee Genuine Part, Printed Circuit Board for Diamond Drill DD2-160XE - DB1500-2XE. Part for the following products: Milwaukee - 4933368690 4000368691 - DD2-160XE...
Usually Ships in: 7/10 Business Days Approx. €96.67
Details
Comments (0)
