Milwaukee PLH20 Rotary Hammer Spare Parts

Fix Your Milwaukee PLH20 Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

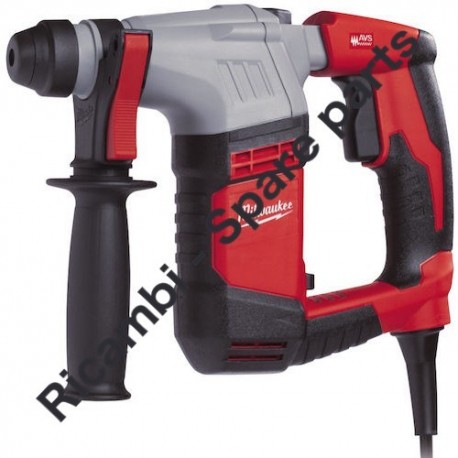

Milwaukee PLH20 Rotary Hammer
Milwaukee PLH20 Parts
  • Milwaukee PLH20 Parts
  • Milwaukee PLH20 Parts - Drawing
TTI Industries

Milwaukee PLH20 Parts

SKU: Milwaukee PLH20 Condition: New
€2.47
VAT included

Milwaukee PLH20 Rotary Hammer Spare Parts

Fix Your Milwaukee PLH20 Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Milwaukee PLH20 Rotary Hammer
settings 87 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
87 spare parts

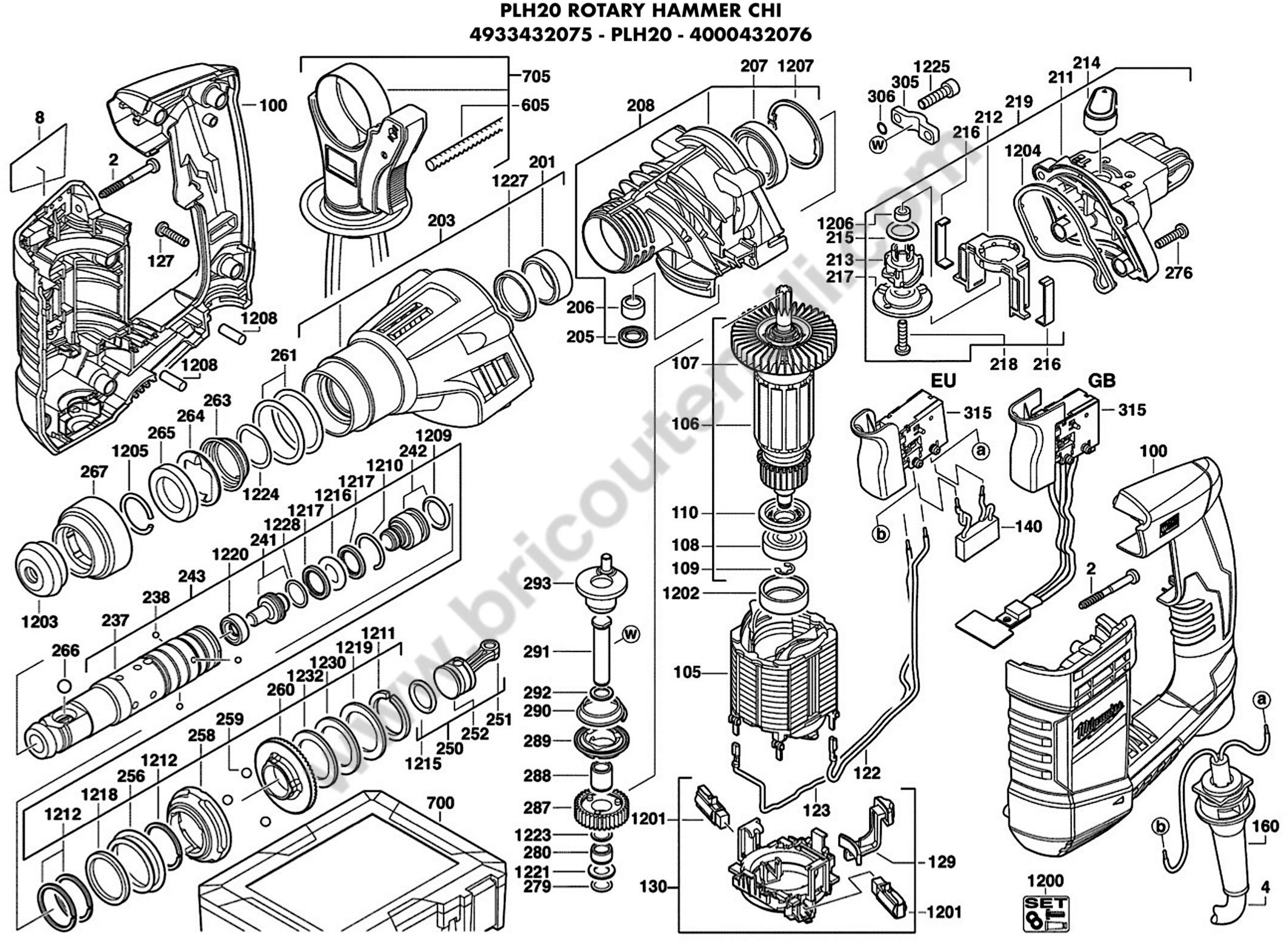

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 4931408155 SCREW €2.28
4
 photo_cameraImage coming soon 4931369617 CONNECTION CABLE €26.21
100
 photo_cameraImage coming soon 4931408075 HOUSING €21.14
106
 photo_cameraImage coming soon 4931442650 ARMATURE €63.19
107
 photo_cameraImage coming soon 4931408165 FAN €5.18
108
 photo_cameraImage coming soon 4931624662 BALL BEARING €7.58
109
 photo_cameraImage coming soon 4931621834 WASHER €2.33
110
 photo_cameraImage coming soon 4931387434 INSULATING DISC €4.46
122
 photo_cameraImage coming soon 4931624675 WIRE €4.50
123
 photo_cameraImage coming soon 4931624676 WIRE €4.50
127
 photo_cameraImage coming soon 4931624515 SCREW N874101-1 SHR H-K4X18 T15 €2.33
129
 photo_cameraImage coming soon 4931408069 LEVER €4.46
130
 photo_cameraImage coming soon 4931408083 SET COLLAR €16.78
140
 photo_cameraImage coming soon 4931311062 CAPACITOR €4.46
160
 photo_cameraImage coming soon 4931393422 PROTECTING COVER €5.15
201
 photo_cameraImage coming soon 4931624705 NEEDLE BUSH €6.63
203
 photo_cameraImage coming soon 4931408144 GEAR BOX INSULATION €16.78
205
 photo_cameraImage coming soon 4931624655 SEAL RING €5.18
206
 photo_cameraImage coming soon 4931219424 NEEDLE BEARING €4.55
207
 photo_cameraImage coming soon 4931408051 BALL BEARING €10.99
208
 photo_cameraImage coming soon 4931408078 GEAR BOX €46.51
211
 photo_cameraImage coming soon 4931408065 HOUSING COVER €7.35
212
 photo_cameraImage coming soon 4931408090 SWITCH LEVER €4.46
213
 photo_cameraImage coming soon 4931408093 PIVOT €4.46
214
 photo_cameraImage coming soon 4931408092 LEVER €4.46
215
 photo_cameraImage coming soon 4931624699 O-RING €2.28
216
 photo_cameraImage coming soon 4931408111 FASTENING BOW €4.46
217
 photo_cameraImage coming soon 4931408166 DISC €4.46
219
 photo_cameraImage coming soon 4931408087 GEAR BOX COVER €18.23
237
 photo_cameraImage coming soon 4931408019 SPINDLE SLEEVE €112.50
238
 photo_cameraImage coming soon 4931944281 BALL €2.28
241
 photo_cameraImage coming soon 4931408045 SNAP DIE €16.24
242
 photo_cameraImage coming soon 4931408046 PERCUSSION BODY €12.43
243
 photo_cameraImage coming soon 4931408019 SPINDLE SLEEVE €112.50
250
 photo_cameraImage coming soon 4931408047 PISTON COMPL. €15.33
251
 photo_cameraImage coming soon 4931408168 CONNECTING ROD €5.91
252
 photo_cameraImage coming soon 4931408167 PISTON €8.08
256
 photo_cameraImage coming soon 4931408011 SPRING €2.28
258
 photo_cameraImage coming soon 4931408113 CLUTCH DISC €7.35
259
 photo_cameraImage coming soon 4931805413 BALL €2.28
260
 photo_cameraImage coming soon 4931408025 WORM GEAR WHEEL €9.53
263
 photo_cameraImage coming soon 4931343128 PRESSURE SPRING €5.18
264
 photo_cameraImage coming soon 4931343127 SUPPORT PLATE €5.18
265
 photo_cameraImage coming soon 4931396449 HOLDING RING €6.63
266
 photo_cameraImage coming soon 4931911572 BALL €2.28
267
 photo_cameraImage coming soon 4931387436 SLEEVE €5.18
276
 photo_cameraImage coming soon 4931624679 SCREW €2.28
279
 photo_cameraImage coming soon 4931624712 O-RING €2.28
280
 photo_cameraImage coming soon 4931408082 NEEDLE CAGE €4.46
287
 photo_cameraImage coming soon 4931408140 GEAR €18.23
288
 photo_cameraImage coming soon 4931943531 NEEDLE CAGE N874989 K 8X11X13 €4.46
289
 photo_cameraImage coming soon 4931408032 JUMPER RING €4.46
290
 photo_cameraImage coming soon 4931408030 SPRING €2.28
291
 photo_cameraImage coming soon 4931408169 BEARING BOLT €10.99
292
 photo_cameraImage coming soon 4931408101 WASHER €2.28
293
 photo_cameraImage coming soon 4931408028 ECCENTRIC SHAFT €9.53
305
 photo_cameraImage coming soon 4931408145 CLAMPING PIECE €4.46
306
 photo_cameraImage coming soon 4931408173 WASHER 5,1x8,6x0,8 €2.28
315
 photo_cameraImage coming soon 4931408096 SWITCH BOARD €18.23
605
 photo_cameraImage coming soon 4931384434 DEPTH GAUGE €5.30
705
 photo_cameraImage coming soon 4931417907 HANDLE €20.40
1200
 photo_cameraImage coming soon 4931408159 MAINTENANCE SET €58.85
1201
 photo_cameraImage coming soon 4931387588 CARBON BRUSH SET €8.08
1202
 photo_cameraImage coming soon 4931254368 RUBBER SLEEVE €3.01
1203
 photo_cameraImage coming soon 4931343123 CAP €5.18
1204
 photo_cameraImage coming soon 4931408043 GASKET €5.18
1205
 photo_cameraImage coming soon 4931623220 SPRING RING €5.18
1206
 photo_cameraImage coming soon 4931408143 FELT €4.46
1207
 photo_cameraImage coming soon 4931624683 PROTECTION WASHER €3.01
1208
 photo_cameraImage coming soon 4931408164 HOLDING-DOWN DEVICE €4.46
1209
 photo_cameraImage coming soon 4931408022 RING €5.18
1210
 photo_cameraImage coming soon 4931408088 RING €4.46
1211
 photo_cameraImage coming soon 4931408156 RING €5.18
1212
 photo_cameraImage coming soon 4931624709 PROTECTION WASHER €2.28
1215
 photo_cameraImage coming soon 561994001 O-RING €3.38
1216
 photo_cameraImage coming soon 4931408020 CATCH DISC €4.46
1217
 photo_cameraImage coming soon 4931408018 CATCH DISC €4.46
1218
 photo_cameraImage coming soon 4931408162 BACKING FLANGE €4.46
1219
 photo_cameraImage coming soon 4931408176 SPACER €4.46
1220
 photo_cameraImage coming soon 4931408015 STOP WASHER €7.35
1221
 photo_cameraImage coming soon 4931408073 BEARING WASHER €2.28
1223
 photo_cameraImage coming soon 4931408129 DISC €4.46
1224
 photo_cameraImage coming soon 4931408142 BACKING FLANGE €4.46
1225
 photo_cameraImage coming soon 4931624717 SCREW M5x25 €2.28
1227
 photo_cameraImage coming soon 4931624704 SEAL RING €4.46
1228
 photo_cameraImage coming soon 4931408021 RING €4.46
1230
 photo_cameraImage coming soon 4931408153 SPACER €4.46
1232
 photo_cameraImage coming soon 4931408171 SPACER €4.46

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Milwaukee PLH20 Rotary Hammer Spare Parts

Fix Your Milwaukee PLH20 Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Milwaukee PLH20 Rotary Hammer
PLH20 ROTARY HAMMER CHI 4933432075 - PLH20 - 4000432076
# Part Num. Description
2 4931408155 SCREW
4 4931369617 CONNECTION CABLE
100 4931408075 HOUSING
105 4931426193 ELECTRIC FIELD - DISCONTINUED
106 4931442650 ARMATURE
107 4931408165 FAN
108 4931624662 BALL BEARING
109 4931621834 WASHER
110 4931387434 INSULATING DISC
122 4931624675 WIRE
123 4931624676 WIRE
127 4931624515 SCREW N874101-1 SHR H-K4X18 T15
129 4931408069 LEVER
130 4931408083 SET COLLAR
140 4931311062 CAPACITOR
160 4931393422 PROTECTING COVER
201 4931624705 NEEDLE BUSH
203 4931408144 GEAR BOX INSULATION
205 4931624655 SEAL RING
206 4931219424 NEEDLE BEARING
207 4931408051 BALL BEARING
208 4931408078 GEAR BOX
211 4931408065 HOUSING COVER
212 4931408090 SWITCH LEVER
213 4931408093 PIVOT
214 4931408092 LEVER
215 4931624699 O-RING
216 4931408111 FASTENING BOW
217 4931408166 DISC
219 4931408087 GEAR BOX COVER
237 4931408019 SPINDLE SLEEVE
238 4931944281 BALL
241 4931408045 SNAP DIE
242 4931408046 PERCUSSION BODY
243 4931408019 SPINDLE SLEEVE
250 4931408047 PISTON COMPL.
251 4931408168 CONNECTING ROD
252 4931408167 PISTON
256 4931408011 SPRING
258 4931408113 CLUTCH DISC
259 4931805413 BALL
260 4931408025 WORM GEAR WHEEL
261 4931624711 RING - DISCONTINUED
263 4931343128 PRESSURE SPRING
264 4931343127 SUPPORT PLATE
265 4931396449 HOLDING RING
266 4931911572 BALL
267 4931387436 SLEEVE
276 4931624679 SCREW
279 4931624712 O-RING
280 4931408082 NEEDLE CAGE
287 4931408140 GEAR
288 4931943531 NEEDLE CAGE N874989 K 8X11X13
289 4931408032 JUMPER RING
290 4931408030 SPRING
291 4931408169 BEARING BOLT
292 4931408101 WASHER
293 4931408028 ECCENTRIC SHAFT
305 4931408145 CLAMPING PIECE
306 4931408173 WASHER 5,1x8,6x0,8
315 4931408096 SWITCH BOARD
605 4931384434 DEPTH GAUGE
705 4931417907 HANDLE
1200 4931408159 MAINTENANCE SET
1201 4931387588 CARBON BRUSH SET
1202 4931254368 RUBBER SLEEVE
1203 4931343123 CAP
1204 4931408043 GASKET
1205 4931623220 SPRING RING
1206 4931408143 FELT
1207 4931624683 PROTECTION WASHER
1208 4931408164 HOLDING-DOWN DEVICE
1209 4931408022 RING
1210 4931408088 RING
1211 4931408156 RING
1212 4931624709 PROTECTION WASHER
1215 561994001 SEAL RING
1216 4931408020 CORE LIFTER RING
1217 4931408018 CATCH DISC
1218 4931408162 BACKING FLANGE
1219 4931408176 SPACER
1220 4931408015 STOP WASHER
1221 4931408073 BEARING WASHER
1223 4931408129 DISC
1224 4931408142 BACKING FLANGE
1225 4931624717 SCREW M5x25
1227 4931624704 SEAL RING
1228 4931408021 RING
1230 4931408153 SPACER
1232 4931408171 SPACER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Milwaukee websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Milwaukee brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Milwaukee PLH20
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

Milwaukee PLH20 Drawing

Milwaukee PLH20 Drawing

Download (837.25KB)

You might also like

AEG BS 18SBL2-202C 18V Brushless Drill Driver
TTI Industries SKU: AEG BS 18SBL2-202C
AEG BS 18SBL2-202C 18V Brushless Drill Driver
AEG BS 18SBL2-202C 18V SubCompact Brushless Drill Driver - Compact and powerful Sub Compact brushless motor technology delivers up to 65Nm of torque - Sub Compact design provides ultimate user productivty and ergonomics - Lightweight...
AVAILABLE €312.40
Details
AEG L1820S 18V 2,0 AH Battery
TTI Industries SKU: 4935472275
AEG L1820S 18V 2,0 AH Battery
AEG L1820S 18V 2,0 AH PROLITHIUM-ION™ Battery - Product variations: x1 - AEG 2,0Ah pack provides ultimate portability and power in a compact package - Compatible with all AEG PRO18V powertools - Light weight and compact design...
Usually Ships in: 7/10 Business Days Approx. €84.60
Details
AEG L1840S 18V 4,0 AH Battery
TTI Industries SKU: 4935478636
AEG L1840S 18V 4,0 AH Battery
AEG L1840S 18V 4,0 AH PROLITHIUM-ION™ Battery - Product variations: x1 - AEG 4,0Ah pack provides extended runtime and power in a compact package - Compatible with all AEG PRO18V powertools - Light weight and compact design...
Usually Ships in: 7/10 Business Days Approx. €152.87
Details
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries
TTI Industries SKU: 4935478945
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries
AEG SET LL1850SHD Battery Charger kit + 2 18V 5.0 Ah HD Batteries - Battery Charger kit + 2 18V 5.0 Ah HD Batteries - SET LL1850SHD - Product variations: x1 - New HD battery technology that allows you to reach a higher level of...
Usually Ships in: 7/10 Business Days Approx. €273.06
Details
Comments (0)
