TTI Industries

Milwaukee HDE13RQX Parts

SKU: Milwaukee HDE13RQX
€8.69
VAT included

Milwaukee HDE13RQX Drill Spare Parts

Fix Your Milwaukee HDE13RQX Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Milwaukee HDE13RQX Electric Drill
Milwaukee HDE13RQX Parts
  • Milwaukee HDE13RQX Parts
  • Milwaukee HDE13RQX Parts - Drawing
TTI Industries

Milwaukee HDE13RQX Parts

SKU: Milwaukee HDE13RQX Condition: New
€8.69
VAT included

Milwaukee HDE13RQX Drill Spare Parts

Fix Your Milwaukee HDE13RQX Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Milwaukee HDE13RQX Electric Drill
settings 39 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

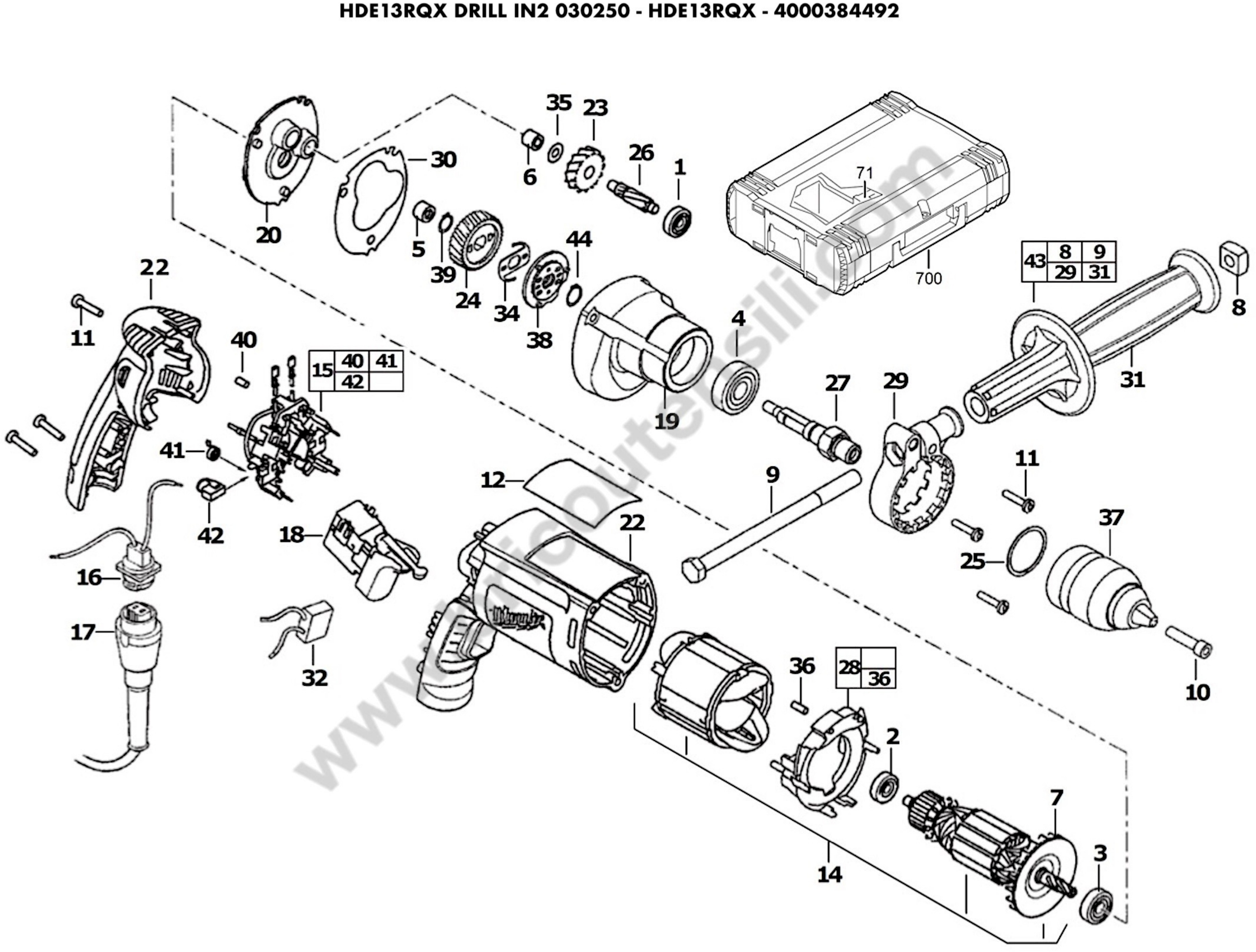

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 02040640 BALL BEARING €7.96
2
 photo_cameraImage coming soon 02040645 BALL BEARING €7.96
3
 photo_cameraImage coming soon 02040852 BALL BEARING €7.58
4
 photo_cameraImage coming soon 4931440556 GROOVED BALL BEAR. €5.55
5
 photo_cameraImage coming soon 02501611 NEEDLE BEARING €10.82
6
 photo_cameraImage coming soon 02502400 NEEDLE BEARING €4.39
7
 photo_cameraImage coming soon 22840845 FAN €13.67
8
 photo_cameraImage coming soon 06540325 SQUARE NUT €4.39
9
 photo_cameraImage coming soon 06752850 SCREW €5.11
10
 photo_cameraImage coming soon 06812925 SCREW €2.25
11
 photo_cameraImage coming soon 06827275 SCREW €2.25
14
 photo_cameraImage coming soon 4931440843 MOTOR ASSEMBLY  €84.41
15
 photo_cameraImage coming soon 22181220 BRUSH HOLDER COMPL. €44.37
16
 photo_cameraImage coming soon 22561015 CONNECTOR €10.99
17
 photo_cameraImage coming soon 4931624171 CONNECTION CABLE IN2 €40.90
19
 photo_cameraImage coming soon 28142390 GEAR CASE €17.95
20
 photo_cameraImage coming soon 28282320 BEARING END PLATE €12.24
22
 photo_cameraImage coming soon 4931441584 HOUSING SET ASSY €30.08
23
 photo_cameraImage coming soon 32400100 GEAR €10.99
25
 photo_cameraImage coming soon 34802300 RING €5.11
26
 photo_cameraImage coming soon 36660100 REDUCT. GEAR SHAFT €13.45
27
 photo_cameraImage coming soon 38505752 SPINDLE €21.32
28
 photo_cameraImage coming soon 42140450 SET €4.39
29
 photo_cameraImage coming soon 42680800 HANDLE €10.10
30
 photo_cameraImage coming soon 43440985 GASKET €2.14
31
 photo_cameraImage coming soon 43620845 HANDLE €5.11
32
 photo_cameraImage coming soon 22330550 CAPACITOR €6.90
34
 photo_cameraImage coming soon 40508525 PROTECTION WASHER €2.25
35
 photo_cameraImage coming soon 45887990 WASHER €2.25
36
 photo_cameraImage coming soon 45300030 MARKER €2.25
37
 photo_cameraImage coming soon 42660755 Keyless Chuck HDE 1.5-13 1/2x20-1pc €97.86
38
 photo_cameraImage coming soon 14290040 SPINDLE €17.95
39
 photo_cameraImage coming soon 34600810 LOCKING RING €5.11
40
 photo_cameraImage coming soon 45300035 STOPPER €4.39
41
 photo_cameraImage coming soon 23521610 SPRING €4.39
42
 photo_cameraImage coming soon 22181320 CARBON BRUSH €6.53
43
 photo_cameraImage coming soon 49150265 HANDLE €39.53
44
 photo_cameraImage coming soon 34600900 LOCKING RING €5.11
71
 photo_cameraImage coming soon 900001024 INSERT €17.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Milwaukee HDE13RQX Drill Spare Parts

Fix Your Milwaukee HDE13RQX Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Milwaukee HDE13RQX Electric Drill
Milwaukee HDE13RQX DRILL SPARE PARTS
IN2 030250 - HDE13RQX - 4000384492
# Part Num. Description
1 02040640 BALL BEARING
2 02040645 BALL BEARING
3 02040852 BALL BEARING
4 4931440556 GROOVED BALL BEAR.
5 02501611 NEEDLE BEARING
6 02502400 NEEDLE BEARING
7 22840845 FAN
8 06540325 SQUARE NUT
9 06752850 SCREW
10 06812925 SCREW
11 06827275 SCREW
12 12992673 TYPE PLATE Discontinued
14 4931440843 MOTOR ASSEMBLY
15 22181220 BRUSH HOLDER COMPL.
16 22561015 CONNECTOR
17 4931624171 CONNECTION CABLE IN2
18 23662135 SWITCH Discontinued
19 28142390 GEAR CASE
20 28282320 BEARING END PLATE
22 4931441584 HOUSING SET ASSY
23 32400100 GEAR
24 32750101 SPINDLE GEAR Discontinued
25 34802300 RING
26 36660100 REDUCT. GEAR SHAFT
27 38505752 SPINDLE
28 42140450 SET
29 42680800 HANDLE
30 43440985 GASKET
31 43620845 HANDLE
32 22330550 CAPACITOR
34 40508525 PROTECTION WASHER
35 45887990 WASHER
36 45300030 MARKER
37 42660755 Keyless Chuck HDE 1.5-13 1/2x20-1pc
38 14290040 SPINDLE
39 34600810 LOCKING RING
40 45300035 STOPPER
41 23521610 SPRING
42 22181320 CARBON BRUSH
43 49150265 HANDLE
44 34600900 LOCKING RING
71 900001024 INSERT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Milwaukee websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Milwaukee brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Milwaukee HDE13RQX
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

Milwaukee HDE13RQX Drawing

Milwaukee HDE13RQX Drawing

Download (413.53KB)
