TTI Industries

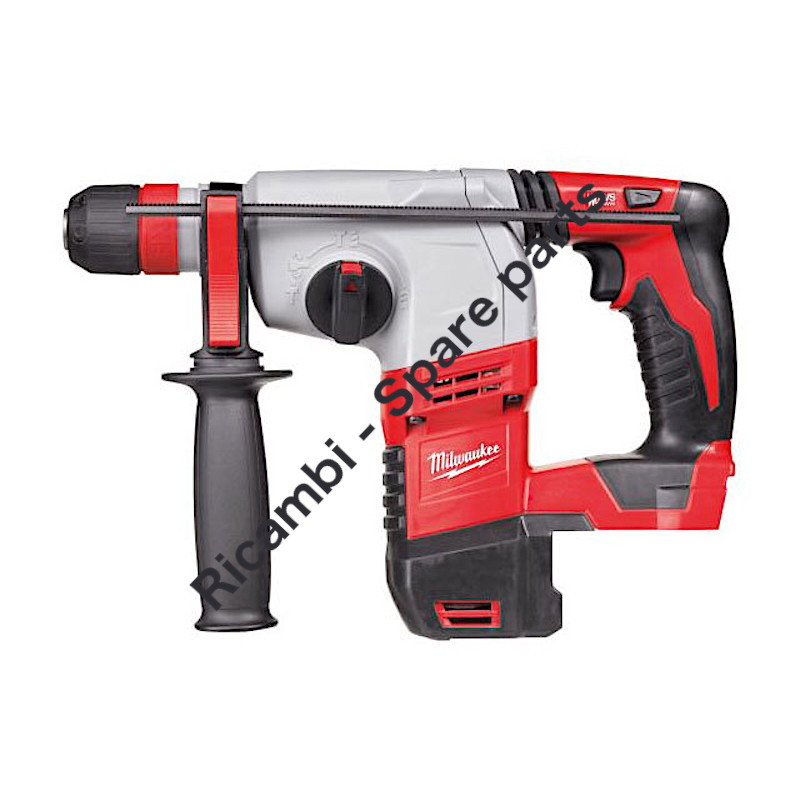

Milwaukee HD18HX-402C Rotary Hammer Parts

SKU: HD18HX-402C
€0.10
VAT included

Milwaukee HD18HX-402C Brushless Compact Hammer Drill Spare Parts

Fix Your Milwaukee HD18HX-402C - 4000428696Brushless Compact Hammer Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
HD18HX-402C

Milwaukee HD18HX-402C Rotary Hammer Parts
  • New
  • Out-of-Stock
  • Milwaukee HD18HX-402C Rotary Hammer Parts
  • Milwaukee HD18HX-402C Drawing
TTI Industries

Milwaukee HD18HX-402C Rotary Hammer Parts

SKU: HD18HX-402C Condition: New
€0.10
VAT included

Milwaukee HD18HX-402C Brushless Compact Hammer Drill Spare Parts

Fix Your Milwaukee HD18HX-402C - 4000428696Brushless Compact Hammer Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
HD18HX-402C

settings 49 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
Machine Type: Rotary Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
49 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 AEG KH24IXE Steel Ball 681486001 AEG KH24IXE Steel Ball €3.40
2
 photo_cameraImage coming soon 621198001 SPINDLE SLEEVE €37.39
3
 photo_cameraImage coming soon 692724001 STOP WASHER €8.16
4
 photo_cameraImage coming soon 692723001 SNAP DIE €19.72
5
 photo_cameraImage coming soon 4931454454 O-RING €3.40
6
 photo_cameraImage coming soon 562594001 O-RING €3.40
7
 photo_cameraImage coming soon 692722001 SLEEVE €9.52
8
 photo_cameraImage coming soon 562595001 O-RING €4.07
9
 photo_cameraImage coming soon 633518001 WASHER €3.60 Not available for order
10
 photo_cameraImage coming soon 4931454456 O-RING €3.40
11
 photo_cameraImage coming soon 672632001 CIRCLIPS FOR HOLE DIA 35 €4.76
12
 photo_cameraImage coming soon 633517001 WASHER €3.40
13
 photo_cameraImage coming soon 692735001 SPRING €3.40
14
 photo_cameraImage coming soon 611291001 REDUCTION GEAR €8.16
15
 photo_cameraImage coming soon 681235001 PIN €4.76
16
 photo_cameraImage coming soon 611405001 BALL €3.40
17
 photo_cameraImage coming soon 4931435089 CLUTCH €6.80
19
 photo_cameraImage coming soon 681480001 BEARING €8.16
20
 photo_cameraImage coming soon 692838001 BEARING €12.24
21
 photo_cameraImage coming soon 633516001 WASHER €3.60 Not available for order
22
 photo_cameraImage coming soon 633529001 CIRCLIPS FOR HOLE DIA 35 €4.76
23
 photo_cameraImage coming soon 692698001 PERCUSSION BODY €21.75
24
 AEG KH26E Cylinder 692717001 AEG KH26E Cylinder €19.03
25
 photo_cameraImage coming soon 4931436807 CYLINDER PIN €6.80
26
 photo_cameraImage coming soon 641710001 BRACKET €25.84
27
 photo_cameraImage coming soon 681383001 BALL BEARING €8.83
28
 photo_cameraImage coming soon 661504001 SCREW €3.40
29
 photo_cameraImage coming soon 201879001 BEARING END PLATE €7.48
30
 photo_cameraImage coming soon 661286001 LOCKING SCREW €3.40
31
 photo_cameraImage coming soon 591125001 GEAR BOX COVER €4.76
32
 photo_cameraImage coming soon 562680001 RUBBER SLEEVE €3.40
34
 CARBON BRUSH SET 4931511241 CARBON BRUSH SET €16.31
35
 photo_cameraImage coming soon 4931454082 ELECTRIC FIELD €82.94
36
 photo_cameraImage coming soon 591123001 LEVER €2.72
37
 photo_cameraImage coming soon 4931408243 PRESSURE SPRING €5.44
38
 photo_cameraImage coming soon 4931416290 INSERT €5.44
39
 photo_cameraImage coming soon 4931433316 SWITCH KIT €74.79
40
 photo_cameraImage coming soon 4931448985 PLATE €5.44
41
 photo_cameraImage coming soon 692732001 SPRING €3.40
42
 photo_cameraImage coming soon 201877001 PLATE €7.48
44
 photo_cameraImage coming soon 4931448984 SCHALTER €8.83
45
 photo_cameraImage coming soon 4931384434 DEPTH GAUGE €4.76
46
 photo_cameraImage coming soon 304389001 AUXILIARY HANDLE €14.96
48
 photo_cameraImage coming soon 201758001 SPINDLE €106.74
52
 photo_cameraImage coming soon 201876001 ADAPTER €30.60
53
 photo_cameraImage coming soon 522186001 SLEEVE €3.40
60
 photo_cameraImage coming soon 201895001 CLUTCH CHUCK ASS. €58.46
100
 photo_cameraImage coming soon 940488265 RATING PLATE €3.40
700
 photo_cameraImage coming soon 304112002 CARRYING CASE €58.46

Shipping and delivery information will be available shortly.

Milwaukee HD18HX-402C Brushless Compact Hammer Drill Spare Parts

Fix Your Milwaukee HD18HX-402C - 4000428696Brushless Compact Hammer Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
HD18HX-402C

Milwaukee HD18HX-402C - 4000428696
# Part Num. Description
1 681486001 BALL
2 621198001 SPINDLE SLEEVE
3 692724001 STOP WASHER
4 692723001 SNAP DIE
5 4931454454 O-RING
6 562594001 O-RING
7 692722001 SLEEVE
8 562595001 O-RING
9 633518001 WASHER Discontinued
10 4931454456 O-RING
11 672632001 CIRCLIP
12 633517001 WASHER
13 692735001 SPRING
14 611291001 REDUCTION GEAR
15 681235001 PIN
16 611405001 BALL
17 4931435089 CLUTCH DISC
18 672634002 CIRCLIP Discontinued
19 681480001 BEARING
20 692838001 BEARING
21 633516001 WASHER Discontinued
22 633529001 CIRCLIP
23 692698001 PERCUSSION BODY
24 692717001 CYLINDER
25 4931436807 CYLINDRICAL BOLT
26 641710001 BRACKET
27 681383001 BALL BEARING
28 661504001 SCREW
29 201879001 BEARING END PLATE
30 661286001 LOCKING SCREW
31 591125001 GEAR BOX COVER
32 562680001 RUBBER SLEEVE
33 201838001 HANDLE PIECE Discontinued
34 4931511241 CARBON BRUSH SET
35 4931454082 ELECTRIC FIELD
36 591123001 LEVER
37 4931408243 PRESSURE SPRING
38 4931416290 INSERT
39 4931433316 SWITCH KIT
40 4931448985 PLATE
41 692732001 SPRING
42 201877001 PLATE
43 340124001 GEAR BOX Discontinued
44 4931448984 SCHALTER
45 4931384434 DEPTH GAUGE
46 304389001 AUXILIARY HANDLE
47 201756001 GEAR BOX Discontinued
48 201758001 SPINDLE
49 4931446591 REDUCT. GEAR SHAFT Discontinued
50 4931446592 ARMATURE Discontinued
51 201881001 SWITCH Discontinued
52 201876001 ADAPTER
53 522186001 SLEEVE
60 201895001 CLUTCH CHUCK ASS.
100 940488265 RATING PLATE
700 304112002 CARRYING CASE
1200 4931433267 MAINTENANCE SET Discontinued
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Milwaukee websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Milwaukee brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
HD18HX-402C

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Rotary Hammer
CHECK AEG S/N
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

Milwaukee HD18HX-402C Drawing

Milwaukee HD18HX-402C Drawing

Download (805.95KB)
