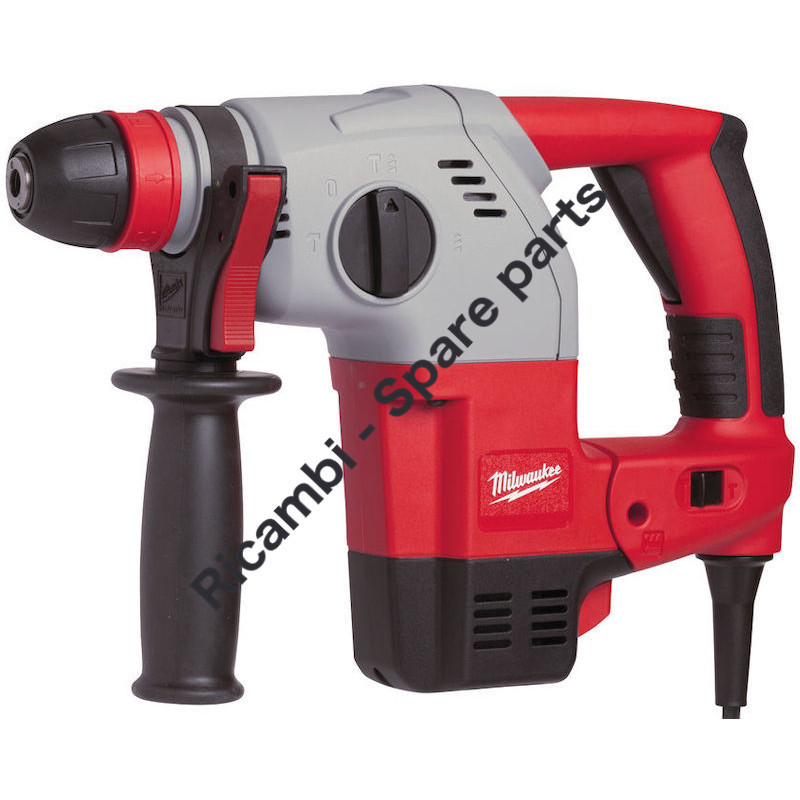

Milwaukee PLH26XE Rotary Hammer Spare Parts

Fix Your Milwaukee PLH26XE Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.Milwaukee PLH26XE Rotary Hammer

Milwaukee PLH26XE Parts
  • Out-of-Stock
  • Milwaukee PLH26XE Parts
  • Milwaukee PLH26XE Parts Diagram
TTI Industries

Milwaukee PLH26XE Parts

SKU: Milwaukee PLH26E Condition: New
€0.10
VAT included

Milwaukee PLH26XE Rotary Hammer Spare Parts

Fix Your Milwaukee PLH26XE Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.Milwaukee PLH26XE Rotary Hammer

settings 109 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
Machine Type: Rotary Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
109 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 AEG KH5E Connection Cable 4931302112 AEG KH5E Connection Cable €17.68
5
 photo_cameraImage coming soon 4931392174 PROTECTING COVER €4.76
100
 photo_cameraImage coming soon 4931392634 MOTOR HOUSING €19.30
103
 photo_cameraImage coming soon 4931384662 HOLDING-DOWN DEVICE €4.07
104
 photo_cameraImage coming soon 4931392636 AIR DEFLECTOR RING €2.14
105
 photo_cameraImage coming soon 4931442710 ELECTRIC FIELD €24.47
106
 photo_cameraImage coming soon 4931426365 ARMATURE €46.23
107
 photo_cameraImage coming soon 4931408165 FAN €4.76
108
 photo_cameraImage coming soon 4931902888 BALL BEARING €7.48
110
 photo_cameraImage coming soon 4931385658 INSULATING DISC €4.76
126
 photo_cameraImage coming soon 4931624516 SCREW €3.40
127
 photo_cameraImage coming soon 4931624515 SCREW N874101-1 SHR H-K4X18 T15 €3.40
138
 photo_cameraImage coming soon 4931392637 SET COLLAR €14.38
149
 photo_cameraImage coming soon 4931384663 ELECTRIC ELEMENT €57.11
150
 photo_cameraImage coming soon 4931392639 HANDLE COMPL. €19.71
151
 photo_cameraImage coming soon 4931426436 BEARING END PLATE €13.60
152
 photo_cameraImage coming soon 4931624278 BALL BEARING D 625 609 ZZ C3LDS €7.48
153
 photo_cameraImage coming soon 4931375884 PINION €8.83
160
 photo_cameraImage coming soon 4931400951 BEARING END PLATE €36.03
162
 photo_cameraImage coming soon 4931256500 CABLE COLLAR €4.76
201
 photo_cameraImage coming soon 4931933756 NEEDLE BEARING N874989 HK 0709 €4.07
202
 photo_cameraImage coming soon 4931400846 GEAR BOX €42.15
203
 photo_cameraImage coming soon 4931392716 GEAR BOX INSULATION €9.62
204
 photo_cameraImage coming soon 681383001 BALL BEARING €8.83
205
 photo_cameraImage coming soon 4931392717 GEAR COVER €4.86
208
 photo_cameraImage coming soon 4931392376 PERCUSSION BODY €10.20
209
 Milwaukee PLH26E Cylinder 4931409751 Milwaukee PLH26E Cylinder €14.27
213
 photo_cameraImage coming soon 4931384621 SWITCH HANDLE €13.60
214
 photo_cameraImage coming soon 4931624279 CYLINDER PIN €4.07
215
 photo_cameraImage coming soon 4931365058 SPRING €3.40
216
 photo_cameraImage coming soon 4931384617 SLIDING SWITCH €4.76
218
 Milwaukee PLH26E Wobble Drive 4931387623 Milwaukee PLH26E Wobble Drive €14.27
220
 photo_cameraImage coming soon 4931384667 GUIDE BOLT €4.07
221
 photo_cameraImage coming soon 4931384669 LATCH PLATE €3.40
222
 photo_cameraImage coming soon 4931384670 PRESSURE SPRING €4.07
223
 photo_cameraImage coming soon 4931909973 DISC N874237 5,1X11X0,8 €4.07
224
 photo_cameraImage coming soon 4931387381 CYLINDRICAL BOLT €4.76
225
 photo_cameraImage coming soon 4931365112 WASHER €3.40
230
 photo_cameraImage coming soon 4931407942 SPINDLE SLEEVE €106.74
231
 photo_cameraImage coming soon 4931392461 BEARING COVER €4.07
236
 photo_cameraImage coming soon 4931624257 WASHER €3.40
237
 photo_cameraImage coming soon 4931392455 ENDPLATE €5.44
241
 photo_cameraImage coming soon 4931392751 CLUTCH DISC €5.44
242
 photo_cameraImage coming soon 681235001 PIN €4.76
243
 photo_cameraImage coming soon 4931407761 SPINDLE GEAR €5.44
244
 photo_cameraImage coming soon 4931944281 BALL €3.40
246
 photo_cameraImage coming soon 4931365066 CUP SPRING €4.76
248
 photo_cameraImage coming soon 4931384607 STOP WASHER €5.44
253
 photo_cameraImage coming soon 4931384605 SNAP DIE €8.83
254
 photo_cameraImage coming soon 4931805437 BALL €3.40
255
 AEG PN3500X Pressure Spring 692737001 AEG PN3500X Pressure Spring €5.44
257
 photo_cameraImage coming soon 4931624257 WASHER €3.40
301
 photo_cameraImage coming soon 4931384632 GEAR BOX €59.15
302
 photo_cameraImage coming soon 4931621944 NEEDLE BEARING N874989 HK 3012 F €7.48
305
 photo_cameraImage coming soon 4931384618 LOCKING PLATE €4.18
306
 photo_cameraImage coming soon 4931384619 GUIDE BOLT €5.44
307
 photo_cameraImage coming soon 4931384631 PRESSURE SPRING €4.07
308
 photo_cameraImage coming soon 4931384690 GUIDE BOLT €17.68
330
 photo_cameraImage coming soon 4931384684 ADAPTER €40.80
331
 photo_cameraImage coming soon 4931409763 ADAPTER €11.55
333
 photo_cameraImage coming soon 4931622874 SPRING RING €4.76
334
 photo_cameraImage coming soon 4931384681 SET SLEEVE €4.07
335
 photo_cameraImage coming soon 4931321064 SPRING €4.76
336
 photo_cameraImage coming soon 4931911572 BALL €3.40
337
 photo_cameraImage coming soon 4931343034 JUMPER RING €4.07
338
 photo_cameraImage coming soon 4931343057 SPACER €4.76
339
 photo_cameraImage coming soon 4931805413 BALL €3.40
340
 photo_cameraImage coming soon 4931400853 REDUCT. GEAR SHAFT €64.59
341
 photo_cameraImage coming soon 4931417717 REDUCT. GEAR SHAFT €15.64
343
 photo_cameraImage coming soon 4931375873 SPROCKET €4.76
344
 photo_cameraImage coming soon 4931375874 INTERN.GEARED WHEEL €4.07
347
 Milwaukee PLH26E Coupling Sleeve 4931384691 Milwaukee PLH26E Coupling Sleeve €7.48
349
 Milwaukee PLH26E Distance Sleeve 4931384613 Milwaukee PLH26E Distance Sleeve €4.07
350
 photo_cameraImage coming soon 4931375883 BEVEL GEAR €12.92
352
 photo_cameraImage coming soon 4931409754 RING STOP €4.76
370
 photo_cameraImage coming soon 4931396400 HOLDING-DOWN DEVICE €4.76
444
 photo_cameraImage coming soon 4931407942 SPINDLE SLEEVE €106.74
602
 photo_cameraImage coming soon 4931302074 RING SPRING €3.40
604
 photo_cameraImage coming soon 4931392452 CHUCK ADAPTER €16.99
605
 photo_cameraImage coming soon 4931384434 DEPTH GAUGE €4.76
700
 photo_cameraImage coming soon 4931415335 CARRYING CASE €42.15
705
 photo_cameraImage coming soon 4931392747 HANDLE €28.55
707
 photo_cameraImage coming soon 4932376531 KEYLESS CHUK 1/2X20 1,5-13-1pz €73.55
1200
 photo_cameraImage coming soon 4931400965 SET DI MANUTENZIONE €80.26
1202
 photo_cameraImage coming soon 4931396532 RUBBER SLEEVE €3.40
1205
 photo_cameraImage coming soon 562595001 O-RING €4.07
1207
 photo_cameraImage coming soon 4931624259 SEAL RING D 3760 AS 22X35X7 €5.44
1208
 photo_cameraImage coming soon 4931624429 SEAL RING N874724 30X37X4 €4.76
1209
 photo_cameraImage coming soon 561994001 O-RING €4.09
1211
 Milwaukee PLH32XE Spring Ring 4931945764 Milwaukee PLH32XE Spring Ring €4.76
1212
 photo_cameraImage coming soon 4931624582 SCREW €4.07
1213
 photo_cameraImage coming soon 4931623912 SEAL RING €3.40
1214
 photo_cameraImage coming soon 4931624581 SCREW €3.40
1215
 photo_cameraImage coming soon 661504001 SCREW €3.40
1216
 photo_cameraImage coming soon 4931624353 SEAL RING N874701 25X2 €4.07
1217
 photo_cameraImage coming soon 4931387479 THRUST COLLAR €3.54
1219
 photo_cameraImage coming soon 4931624493 SEAL RING €10.88
1220
 photo_cameraImage coming soon 4931624583 SCREW €3.40
1221
 photo_cameraImage coming soon 4931623860 SPRING RING €3.40
1222
 photo_cameraImage coming soon 4931624260 SPRING RING €4.76
1226
 photo_cameraImage coming soon 4931365188 DAMPING RING €4.07
1228
 photo_cameraImage coming soon 4931623198 O-RING N874701 52X1,5 €3.40
1229
 photo_cameraImage coming soon 4931622084 SPRING RING €4.76
1230
 photo_cameraImage coming soon 4931409768 HOLDING-DOWN DEVICE €4.07
1231
 photo_cameraImage coming soon 4931624351 SEAL RING N874701 25X2 €3.40
1232
 photo_cameraImage coming soon 4931621743 SCREW D 912 M 5X12 SSI €4.07
1234
 photo_cameraImage coming soon 4931375508 FELT €4.07
1235
 photo_cameraImage coming soon 4931624381 O-RING N874701 25X2 €4.09
1236
 photo_cameraImage coming soon 4931307423 HOLDING-DOWN DEVICE €3.40
1238
 photo_cameraImage coming soon 4931624170 SEAL RING €4.76
1241
 photo_cameraImage coming soon 4931267225 SCREW €4.76

Shipping and delivery information will be available shortly.

Milwaukee PLH26XE Rotary Hammer Spare Parts

Fix Your Milwaukee PLH26XE Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Milwaukee PLH26XE Rotary Hammer

MILWAUKEE ROTARY HAMMER PLH26XE/ASK IN2
4933392642 - PLH26XE - 4000409543
# Part Num. Description
4 4931302112 CONNECTION CABLE
5 4931392174 PROTECTING COVER
8 4931409545 RATING PLATE Item discontinued
100 4931392634 MOTOR HOUSING Item discontinued
102 4931392446 MOTOR CAP Item discontinued
103 4931384662 HOLDING-DOWN DEVICE
104 4931392636 AIR DEFLECTOR RING Item discontinued
105 4931442710 ELECTRIC FIELD
106 4931426365 ARMATURE
107 4931408165 FAN
108 4931902888 BALL BEARING
110 4931385658 INSULATING DISC
126 4931624516 SCREW
127 4931624515 SCREW N874101-1 SHR H-K4X18 T15
135 4931384668 SWITCH Item discontinued
138 4931392637 SET COLLAR  Item discontinued
149 4931384663 ELECTRIC ELEMENT
150 4931392639 HANDLE COMPL. Item discontinued
151 4931426436 BEARING END PLATE
152 4931624278 BALL BEARING D 625 609 ZZ C3LDS
153 4931375884 PINION
156 4931392742 BEARING COVER Item discontinued
160 4931400951 BEARING END PLATE
162 4931256500 CABLE COLLAR
201 4931933756 NEEDLE BEARING N874989 HK 0709
202 4931400846 GEAR BOX
203 4931392716 GEAR BOX INSULATION Item discontinued
204 681383001 BALL BEARING
205 4931392717 GEAR COVER Item discontinued
208 4931392376 PERCUSSION BODY
209 4931409751 CYLINDER
213 4931384621 SWITCH HANDLE
214 4931624279 CYLINDER PIN
215 4931365058 SPRING
216 4931384617 SLIDING SWITCH
218 4931387623 WOBBLE DRIVE
220 4931384667 GUIDE BOLT
221 4931384669 LATCH PLATE
222 4931384670 PRESSURE SPRING
223 4931909973 DISC N874237 5,1X11X0,8
224 4931387381 CYLINDRICAL BOLT
225 4931365112 WASHER
230 4931407942 SPINDLE SLEEVE
231 4931392461 BEARING COVER
236 4931624257 WASHER
237 4931392455 ENDPLATE
239 4931384608 SLEEVE Item discontinued
241 4931392751 CLUTCH DISC
242 681235001 CYLINDRICAL BOLT
243 4931407761 SPINDLE GEAR
244 4931944281 BALL
246 4931365066 CUP SPRING
248 4931384607 STOP WASHER
253 4931384605 SNAP DIE
254 4931805437 BALL
255 692737001 PRESSURE SPRING
257 4931624257 WASHER
301 4931384632 GEAR BOX
302 4931621944 NEEDLE BEARING N874989 HK 3012 F
305 4931384618 LOCKING PLATE Item discontinued
306 4931384619 GUIDE BOLT
307 4931384631 SPRING
308 4931384690 GUIDE BOLT
330 4931384684 COUPLING
331 4931409763 COUPLING
333 4931622874 RING
334 4931384681 SLEEVE
335 4931321064 SPRING
336 4931911572 BALL
337 4931343034 CONNECTION RING
338 4931343057 SPACER RING
339 4931805413 BALL
340 4931400853 COUNTERSHAFT
341 4931417717 COUNTERSHAFT
343 4931375873 GEAR WHEEL
344 4931375874 GEAR WHEEL
347 4931384691 SLEEVE
349 4931384613 SLEEVE
350 4931375883 BEVEL PINION
352 4931409754 REST RING
370 4931396400 HOLDING-DOWN DEVICE
444 4931407942 SLEEVE
602 4931302074 SPRING
604 4931392452 CHUCK ADAPTER
605 4931384434 LIMITER
700 4931415335 TRANSPORT CASE
705 4931392747 ADDITIONAL HANDLE
707 4932376531 KEYLESS CHUK 1/2X20 1,5-13-1pz
1200 4931400965 SET DI MANUTENZIONE
1201 4931392459 CARBON BRUSH SET Item discontinued
1202 4931396532 RUBBER SLEEVE
1205 562595001 WASHER / GASKET
1206 4931384682 SLEEVE Item discontinued
1207 4931624259 WASHER / GASKET
1208 4931624429 WASHER / GASKET
1209 561994001 WASHER / GASKET
1210 4931375894 WASHER / GASKET Item discontinued
1211 4931945764 RING
1212 4931624582 SCREW
1213 4931623912 WASHER / GASKET
1214 4931624581 SCREW
1215 661504001 SCREW
1216 4931624353 WASHER / GASKET
1217 4931387479 THRUST RING
1218 4931387380 RING Item discontinued
1219 4931624493 WASHER / GASKET
1220 4931624583 SCREW
1221 4931623860 RING
1222 4931624260 RING
1226 4931365188 ATTENUATING RING
1228 4931623198 RING N874701 52X1,5
1229 4931622084 RING
1230 4931409768 HOLDING-DOWN DEVICE
1231 4931624351 WASHER / GASKET
1232 4931621743 SCREW D 912 M 5X12 SSI
1234 4931375508 FELT
1235 4931624381 RING
1236 4931307423 HOLDING-DOWN DEVICE
1237 4931386352 HOLDING-DOWN DEVICE Item discontinued
1238 4931624170 WASHER / GASKET
1241 4931267225 SCREW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Milwaukee websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Milwaukee brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Milwaukee PLH26E

Data sheet

Machine Type
Rotary Hammer
SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

Milwaukee PLH26EX Drawing

Milwaukee PLH26EX Drawing

Download (962.9KB)

You might also like

AEG BS 18SBL2-202C 18V Brushless Drill Driver
TTI Industries SKU: AEG BS 18SBL2-202C
AEG BS 18SBL2-202C 18V Brushless Drill Driver
AEG BS 18SBL2-202C 18V SubCompact Brushless Drill Driver - Compact and powerful Sub Compact brushless motor technology delivers up to 65Nm of torque - Sub Compact design provides ultimate user productivty and ergonomics - Lightweight...
AVAILABLE €312.40
Details
AEG L1820S 18V 2,0 AH Battery
TTI Industries SKU: 4935472275
AEG L1820S 18V 2,0 AH Battery
AEG L1820S 18V 2,0 AH PROLITHIUM-ION™ Battery - Product variations: x1 - AEG 2,0Ah pack provides ultimate portability and power in a compact package - Compatible with all AEG PRO18V powertools - Light weight and compact design...
Usually Ships in: 7/10 Business Days Approx. €84.60
Details
AEG L1840S 18V 4,0 AH Battery
TTI Industries SKU: 4935478636
AEG L1840S 18V 4,0 AH Battery
AEG L1840S 18V 4,0 AH PROLITHIUM-ION™ Battery - Product variations: x1 - AEG 4,0Ah pack provides extended runtime and power in a compact package - Compatible with all AEG PRO18V powertools - Light weight and compact design...
Usually Ships in: 7/10 Business Days Approx. €152.87
Details
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries
TTI Industries SKU: 4935478945
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries
AEG SET LL1850SHD Battery Charger kit + 2 18V 5.0 Ah HD Batteries - Battery Charger kit + 2 18V 5.0 Ah HD Batteries - SET LL1850SHD - Product variations: x1 - New HD battery technology that allows you to reach a higher level of...
Usually Ships in: 7/10 Business Days Approx. €273.06
Details
Milwaukee PLH26E Wobble Drive
TTI Industries SKU: 4931387623
Milwaukee PLH26E Wobble Drive
Milwaukee PLH26E Wobble Drive Milwaukee Genuine Part, Wobble Drive for Rotary Hammer PLH26E. Part for the following products: Milwaukee - 4933392626 4000409587 - PLH26E - ROTARY HAMMER PLH26E/K IN2 - Code : 4931387623
Usually Ships in: 7/10 Business Days Approx. €14.27
Details
Milwaukee PLH26E Distance Sleeve
TTI Industries SKU: 4931384613
Milwaukee PLH26E Distance Sleeve
Milwaukee PLH26E Distance Sleeve Milwaukee Genuine Part, Distance Sleeve for Rotary Hammer PLH26E. Part for the following products: Milwaukee - 4933392626 4000409587 - PLH26E - ROTARY HAMMER PLH26E/K IN2 - Code : 4931384613
AVAILABLE €4.07
Details
Milwaukee PLH26E Coupling Sleeve
TTI Industries SKU: 4931384691
Milwaukee PLH26E Coupling Sleeve
Milwaukee PLH26E Coupling Sleeve Milwaukee Genuine Part, Coupling Sleeve for Rotary Hammer PLH26E. Part for the following products: Milwaukee - 4933392626 4000409587 - PLH26E - ROTARY HAMMER PLH26E/K IN2 - Code :...
AVAILABLE €7.48
Details
Milwaukee PLH26E Cylinder
TTI Industries SKU: 4931409751
Milwaukee PLH26E Cylinder
Milwaukee PLH26E Cylinder Milwaukee Genuine Part, Cylinder for Rotary Hammer PLH26E. Part for the following products: Milwaukee - 4933392626 4000409587 - PLH26E - ROTARY HAMMER PLH26E/K IN2 - Code : 4931409751
AVAILABLE €14.27
Details
AEG KH5E Connection Cable
TTI Industries SKU: 4931302112
AEG KH5E Connection Cable
AEG KH5E Connection Cable AEG Genuine Part, Connection Cable for Combi Hammer KH5E - DIAMOND DRILL DB1500-2XE. Part for the following products: - 4935407965 4000442183 - KH5E - KH5ES SDS-M COMBI HAMMER IN2 - 4935412475...
AVAILABLE €17.68
Details
Milwaukee PLH32XE Spring Ring
TTI Industries SKU: 4931945764
Milwaukee PLH32XE Spring Ring
Milwaukee PLH32XE Spring Ring Milwaukee Genuine Part, Spring Ring for Combi Hammer Milwaukee PLH32XE - AEG PN3500X. Part for the following products: Milwaukee -  4933384300 4000432364 - PCE3 - PCE3...
AVAILABLE €4.76
Details
Comments (0)
No customer reviews for the moment.
