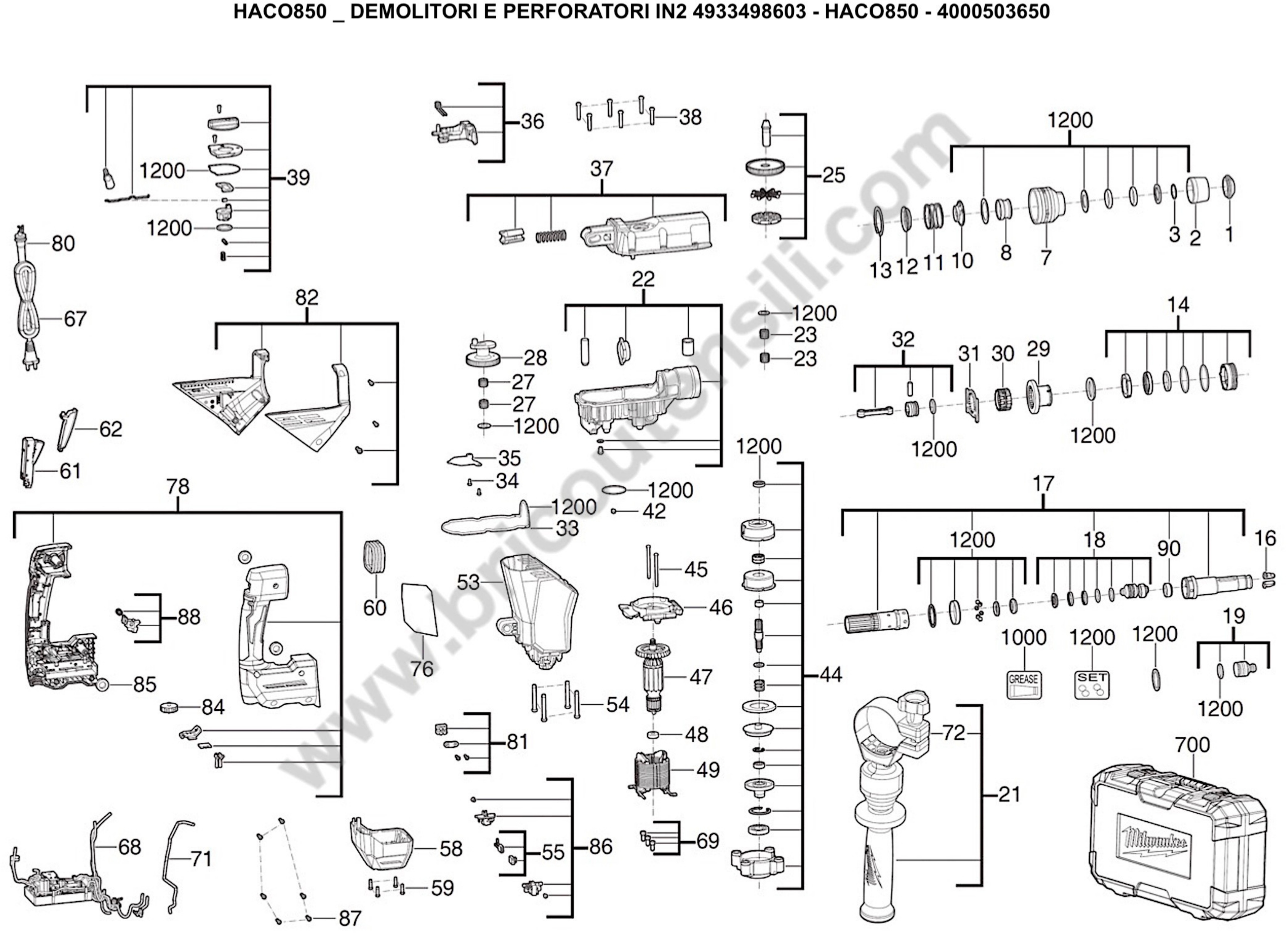

1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
65 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Milwaukee HACO850 Spare Parts
Fix Your Milwaukee HACO850 SDS-MAX Combination Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Drill Driver and their spare part.
| HACO850 50MM SDS-MAX COMBI.-HAMMER-IN2 | ||
| 4933498603 - HACO850 - 4000503650 | ||
| # | Part Num. | Description |
| 1 | 4931435353 | RUBBER CAP |
| 2 | 4931435133 | CAP |
| 3 | 4931435134 | HOLDING RING |
| 7 | 4931435138 | COLLAR |
| 8 | 4931435139 | INTERLOCK SLEAVE |
| 10 | 4931466761 | INTERLOCK ELEMENT |
| 11 | 4931435140 | SPRING |
| 12 | 633152001 | PLATE |
| 13 | 4931435141 | PROTECTION WASHER |
| 14 | 4931466634 | BEARING END PLATE |
| 16 | 4931435144 | CAM |
| 17 | 4931466635 | SPINDLE KIT |
| 18 | 4931466636 | SNAP DIE |
| 19 | 4931466637 | PERCUSSION BODY |
| 21 | 4931466638 | AUXILIARY HANDLE |
| 22 | 4931466832 | GEAR BOX |
| 23 | 4931466640 | NEEDLE BEARING |
| 25 | 4931466641 | SLIP CLUTCH |
| 27 | 4931435168 | NEEDLE BEARING |
| 28 | 4931466642 | CRANK WHEEL |
| 29 | 4931466643 | BEVEL GEAR |
| 30 | 4931466644 | SET COLLAR |
| 31 | 4931466645 | LOCKING PLATE |
| 32 | 4931506346 | PISTON AND CONROD ASSY |
| 33 | 4931495609 | GASKET |
| 34 | 4931506119 | SCREW |
| 35 | 4931466647 | LATCH PLATE |
| 36 | 4931466648 | ADJUSTING PIECE |
| 37 | 4931506748 | GEAR BOX ASSY |
| 38 | 4931435158 | SCREW |
| 39 | 4931466835 | SWITCH |
| 42 | 4931435162 | SCREW |
| 44 | 4931466836 | COUPLING SET |
| 45 | 4931466837 | SCREW |
| 46 | 4931506749 | FAN HOUSING |
| 47 | 4931506750 | ROTOR |
| 48 | 4931435170 | BALL BEARING |
| 49 | 4931472072 | ELECTRIC FIELD |
| 53 | 4931506751 | MOTOR HOUSING |
| 54 | 4931466654 | SCREW |
| 55 | 4931472073 | CARBON BRUSH |
| 58 | 4931466843 | END COVER CAP |
| 59 | 4931473265 | SCREW |
| 60 | 4931506752 | RUBBER BUFFER |
| 61 | 4931466860 | SWITCH |
| 62 | 4931466846 | SWITCH COVER |
| 67 | 4931466859 | POWER CORD |
| 68 | 4931506753 | ELECTRONIC |
| 69 | 4931506130 | CONNECTOR |
| 71 | 4931472075 | WIRE |
| 72 | 4931466657 | BAND |
| 76 | 4931506754 | RATING PLATE |
| 78 | 4931506755 | HOUSING |
| 80 | 44760210 | CABLE ENTRY SLEEVE |
| 81 | 4931466852 | GEAR COVER |
| 82 | 4931506756 | HOUSING |
| 84 | 4931466854 | SPEED GOVERNOR |
| 85 | 4931466855 | BUFFER |
| 86 | 4931466856 | BRUSH HOLDER |
| 87 | 4931466659 | SCREW |
| 88 | 4931466850 | LOCKING PIECE |
| 90 | 4931479423 | STOP WASHER |
| 700 | 4931506757 | CARRYING CASE |
| 1000 | 4931455865 | GREASE |
| 1200 | 4931466858 | MAINTENANCE SET |
