Annovi Reverberi S.p.A.

Michelin Pressure Washer MPX 25 EH Parts

SKU: Michelin MPX 25EH - 14652
€23.26
VAT included

Michelin Spare Parts for Pressure Washer MPX 25 EH

We have the original MICHELIN Parts for Pressure Waher Michelin MPX 25EH - 14652, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Waher Michelin MPX 25 EH. All Spares are original and can be supplied at Low and discounted prices.
Michelin Pressure Washer MPX 25 EH Parts
  • Michelin Pressure Washer MPX 25 EH Parts
  • Michelin Pressure Washer MPX 25 EH Parts Drawing
  • Michelin Pressure Washer MPX 25 EH Parts Drawing - 1
  • Michelin Pressure Washer MPX 25 EH Parts Drawing - 2
  • Michelin Pressure Washer MPX 25 EH Parts Drawing - 3
Annovi Reverberi S.p.A.

Michelin Pressure Washer MPX 25 EH Parts

SKU: Michelin MPX 25EH - 14652 Condition: New
€23.26
VAT included

Michelin Spare Parts for Pressure Washer MPX 25 EH

We have the original MICHELIN Parts for Pressure Waher Michelin MPX 25EH - 14652, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Pressure Waher Michelin MPX 25 EH. All Spares are original and can be supplied at Low and discounted prices.
settings 62 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
62 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

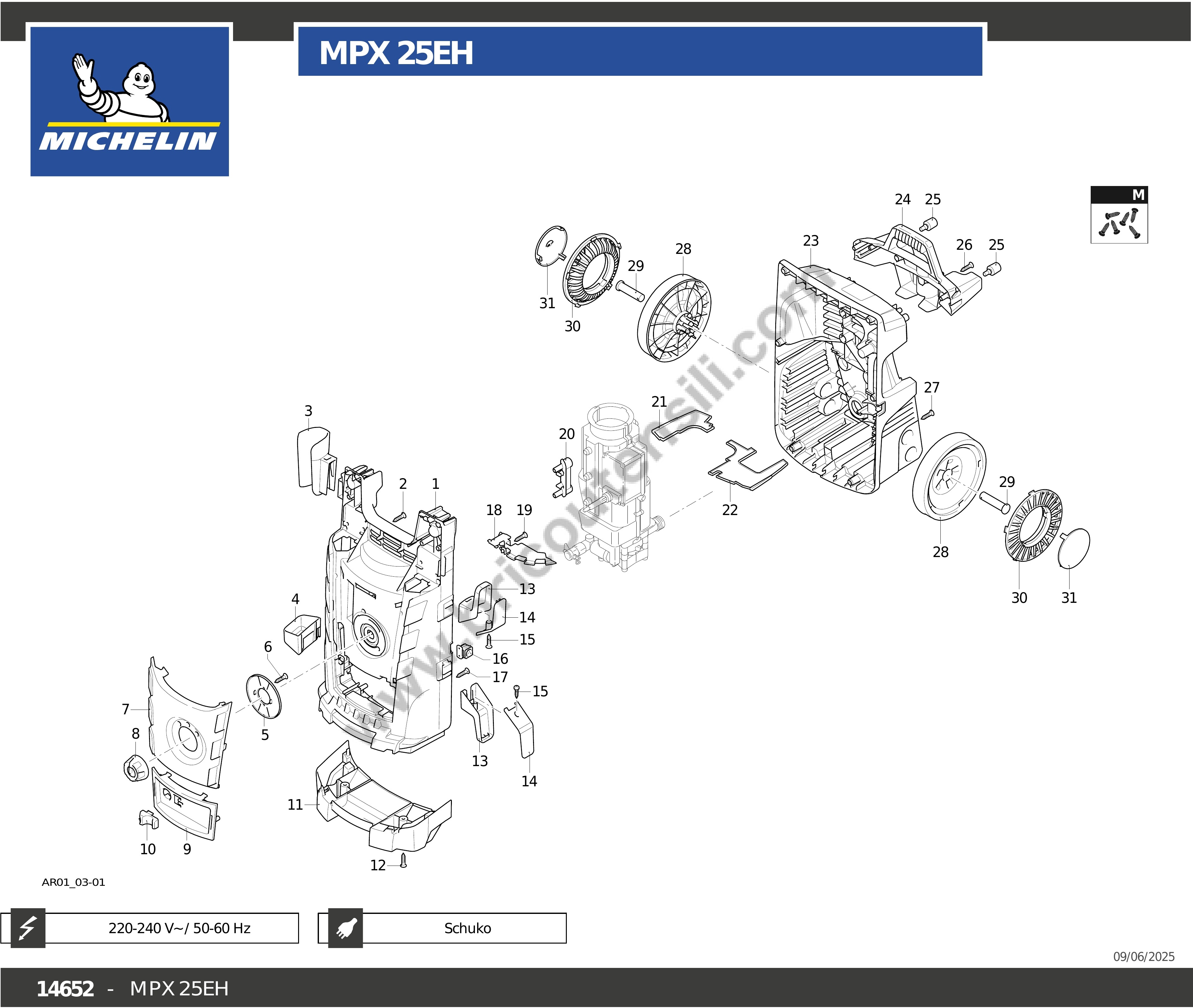

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
M
 photo_cameraImage coming soon 4381470 Screw Kit €4.35
1
 photo_cameraImage coming soon 4720040 Casing €26.22
2
 photo_cameraImage coming soon 50943 Screw €3.06
3
 photo_cameraImage coming soon 4720630 Accessories carrier €11.15
4
 photo_cameraImage coming soon 3085230 Accessories carrier €5.20
5
 photo_cameraImage coming soon 4720240 Plate €8.45
7
 photo_cameraImage coming soon 4720050 Guard €14.54
8
 photo_cameraImage coming soon 4720230 Knob €8.25
9
 photo_cameraImage coming soon 4720060 Guard €12.68
10
 photo_cameraImage coming soon 4380394 Push-button €5.69
12
 photo_cameraImage coming soon 50943 Screw €3.06
13
 photo_cameraImage coming soon 4720520 Accessories carrier €9.28
14
 photo_cameraImage coming soon 4720510 Guard €8.25
16
 photo_cameraImage coming soon 3080580 cable clamp €2.88
17
 photo_cameraImage coming soon 50943 Screw €3.06
18
 photo_cameraImage coming soon 4720190 Guard €1.38
19
 photo_cameraImage coming soon 50943 Screw €3.06
20
 photo_cameraImage coming soon 4720250 Locking €12.51
21
 photo_cameraImage coming soon 4380590 COVER €6.51
22
 photo_cameraImage coming soon 4380580 COVER €5.87
23
 photo_cameraImage coming soon 4380491 base €27.51
24
 photo_cameraImage coming soon 4380540 Accessories carrier €10.46
25
 photo_cameraImage coming soon 2180330 Rubber €4.96
26
 photo_cameraImage coming soon 50943 Screw €3.06
27
 photo_cameraImage coming soon 50943 Screw €3.06
28
 photo_cameraImage coming soon 4720760 Wheel €10.75
30
 photo_cameraImage coming soon 4720020 Guard €12.81
31
 photo_cameraImage coming soon 4720030 Plug €11.53
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

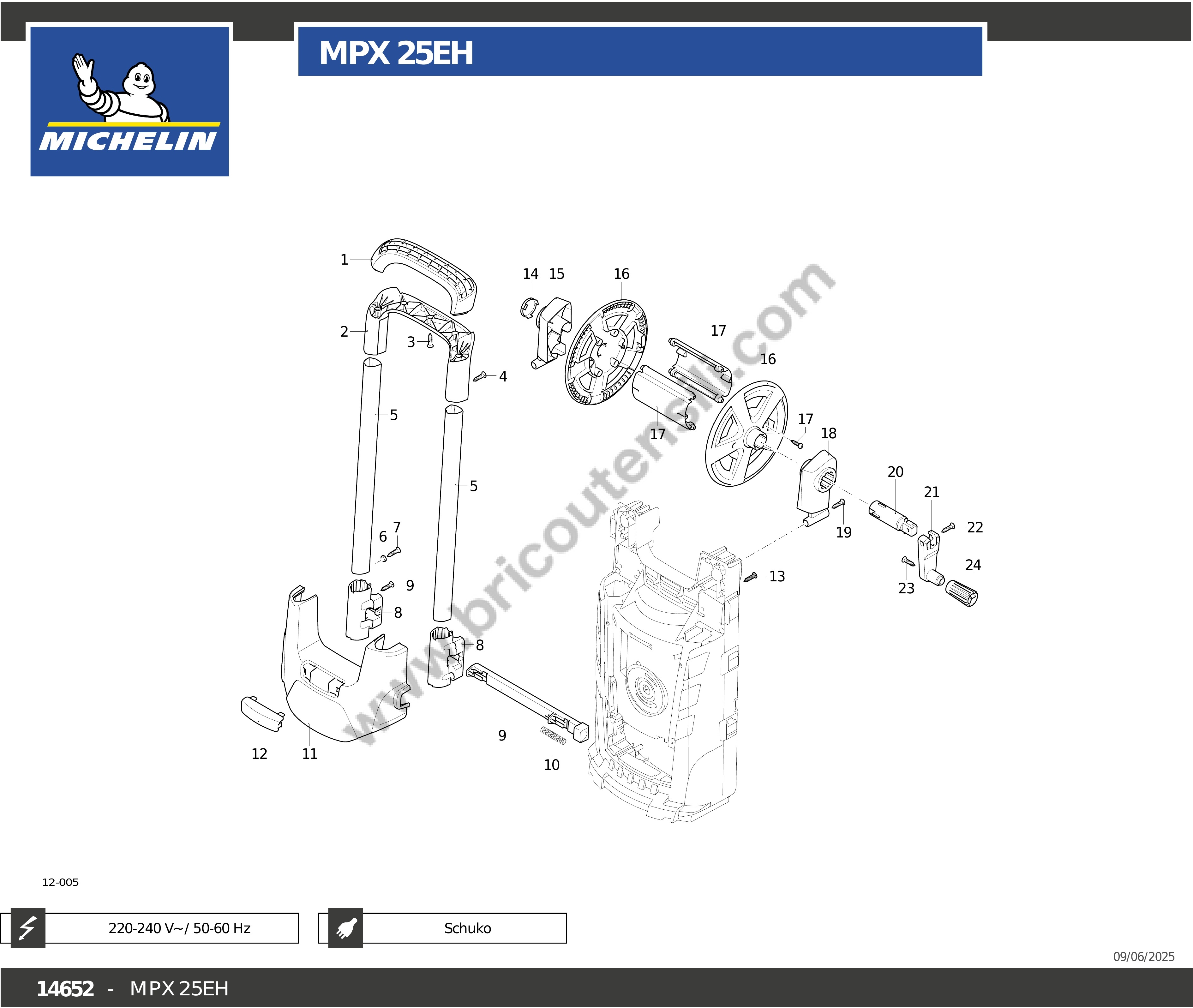

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4720090 Knob €8.31
2
 photo_cameraImage coming soon 4720080 Handle €9.41
3
 photo_cameraImage coming soon 50943 Screw €3.06
4
 photo_cameraImage coming soon 5460810 Screw €1.90
5
 photo_cameraImage coming soon 4720110 Pipe €21.08
6
 photo_cameraImage coming soon 4720780 Washer €15.90
7
 photo_cameraImage coming soon 5460810 Screw €1.90
8
 photo_cameraImage coming soon 4720120 Guide €19.80
9
 photo_cameraImage coming soon 50943 Screw €3.06
10
 photo_cameraImage coming soon 4720100 Hook €9.28
11
 photo_cameraImage coming soon 4821020 Spring €1.62
12
 photo_cameraImage coming soon 4720130 Guard €17.24
14
 photo_cameraImage coming soon 50943 Screw €3.06
15
 photo_cameraImage coming soon 4820410 Cover €2.26
16
 photo_cameraImage coming soon 4720160 Bracket €11.15
17
 photo_cameraImage coming soon 4101680 Plate €13.18
18
 photo_cameraImage coming soon 4102120 Support €7.99
19
 photo_cameraImage coming soon 50943 Screw €3.06
20
 photo_cameraImage coming soon 4720150 Bracket €11.15
21
 photo_cameraImage coming soon 4101660 Lever €4.84
22
 photo_cameraImage coming soon 4581980 Screw €3.28
24
 photo_cameraImage coming soon 4101672 Knob €7.48
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

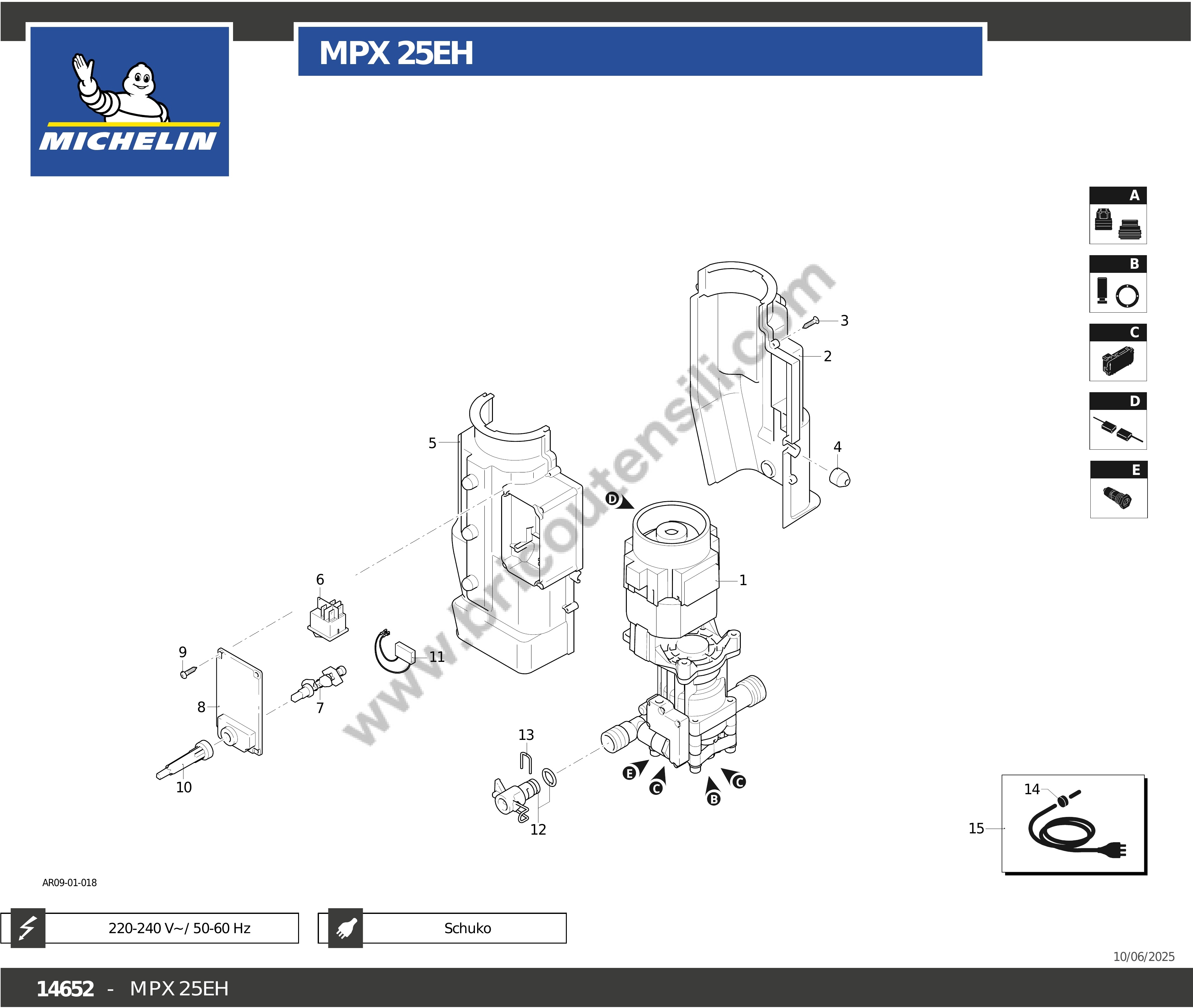

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
B
 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 3081270 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 €19.90
A
 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.50
1
 photo_cameraImage coming soon 4383820 Electric pump pre-assembly €134.85
2
 photo_cameraImage coming soon 4380170 Conveyor €13.13
5
 photo_cameraImage coming soon 4380160 Conveyor €17.29
6
 photo_cameraImage coming soon 3081450 Switch €13.09
7
 photo_cameraImage coming soon 3980160 Rod €5.27
8
 photo_cameraImage coming soon 3980130 Cover €6.22
10
 photo_cameraImage coming soon 4720140 Hub pin €17.24
12
 photo_cameraImage coming soon 4382480 CONNECTOR €16.52
13
 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B 3500090 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B €1.35
15
 Power Cord for Pressure Washer Black&Decker PW 1400 E 3082360 Power Cord for Pressure Washer Black&Decker PW 1400 E €21.06
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

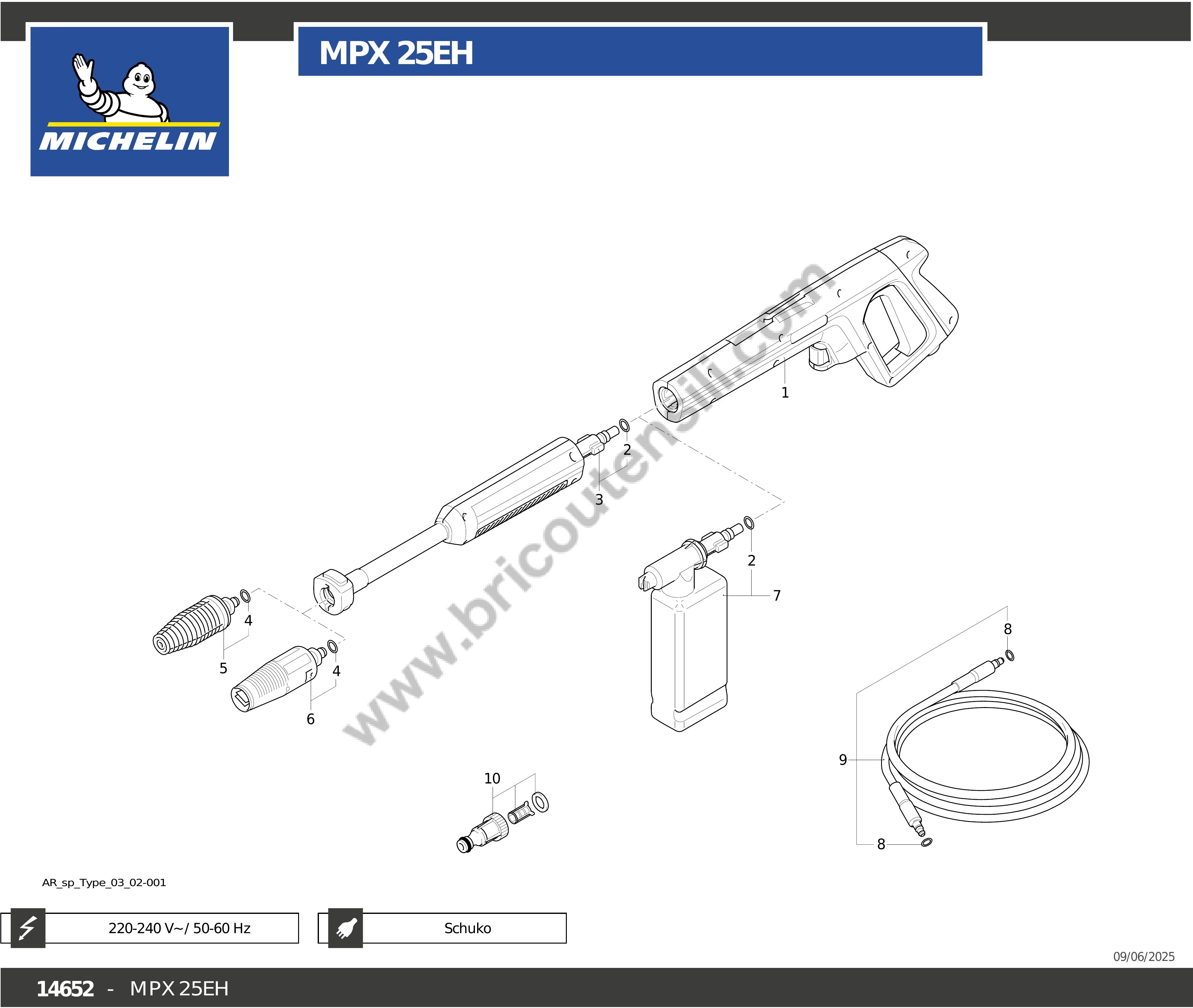

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4381483 Gun €22.00
2
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.53
3
 photo_cameraImage coming soon 4381493 Extension €21.08
4
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.53
5
 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S 4100800 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S €13.57
6
 Lance Head for Pressure Washer Stanley SXPW22E 4101550 Lance Head for Pressure Washer Stanley SXPW22E €10.50
7
 photo_cameraImage coming soon 4381500 Tank €9.46
8
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.53
9
 photo_cameraImage coming soon 4381750 High pressure hose €26.52
10
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Michelin Spare Parts for Pressure Washer MPX 25 EH

We have the original MICHELIN Parts for Pressure Waher Michelin MPX 25EH - 14652, the diagram and parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Michelin MPX 25EH - 14652
Michelin Pressure Cleaner MPX 25EH - 14652
Chassis Pag.1
# Part Num Description
1 4720040 Casing
2 50943 Screw
3 4720630 Accessory holder
4 3085230 Accessory holder
5 4720240 Disc
6 3085940 Screw
7 4720050 Protection Blue 7455C
8 4720230 Knob Yellow 107C
9 4720060 Protection Blue 7455C
10 4380394 Button Yellow 107C
11 4720210 Foot
12 50943 Screw
13 4720520 Accessory holder
14 4720510 Protection
15 5480500 Screw
16 3080580 Cable gland
17 50943 Screw
18 4720190 Protection
19 50943 Screw
20 4720250 Stop
21 4380590 Protection
22 4380580 Protection
23 4380491 Base
24 4380540 Accessory holder
25 2180330 Rubber
26 50943 Screw
27 50943 Screw
28 4720760 Wheel
29 4383970 Stop
30 4720020 Protection
31 4720030 Cap Blue 7455C
M 4381470 Screw kit
Hose Reel Pag.2
1 4720090 Knob Yellow 107C
2 4720080 Handle
3 50943 Screw
4 5460810 Screw
5 4720110 Tube
6 4720780 Washer
7 5460810 Screw
8 4720120 Guide
9 50943 Screw
10 4720100 Yellow hook 107C
11 4821020 Spring
12 4720130 Protection
13 4720260 Protection
14 50943 Screw
15 4820410 Cover
16 4720160 Bracket
17 4101680 Disc
18 4102120 Support
19 50943 Screw
20 4720150 Bracket
21 4101660 Lever
22 4581980 Screw
23 5460700 Screw
24 4101672 Knob Yellow 107C
Electric pump Pag.3
1 4383820 Electric pump pre-assembly
2 4380170 Conveyor
3 3085940 Screw
4 4720590 Shift
5 4380160 Conveyor
6 3081450 Switch
7 3980160 Rod
8 3980130 Cover
9 3085940 Screw
10 4720140 Pin
11 3086010 Capacitor kit
12 4382480 Connection
13 3500090 Fork
14 5480770 Inductance
15 3082360 Cable
A 3081290 Valve + seal kit
B 3081270 Piston + seal kit
C 4384420 TSS kit
D 4720810 Brush kit for motor
E 4384300 TSS valve kit
Accessories Pag.4
1 4381483 Gun
2 3083700 O-ring
3 4381493 Extension (Lance)
4 3083370 O-ring
5 4100800 Lance head
6 4101550 Head (Adjustable jet)
7 4381500 Foam
8 3083400 O-ring
9 4381750 High pressure tube
10 3082130 Water coupling kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi&Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi&Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
