Annovi Reverberi S.p.A.

Michelin Pressure Washer MPX140HL Parts

SKU: Michelin MPX 140HL - 24331
€26.22
VAT included

Michelin MPX 140HL Pressure Washer Spare Parts

Fix Your Pressure Washer MPX 140HL - 24331. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
Michelin Pressure Washer MPX140HL Parts
  • Online only
  • Michelin Pressure Washer MPX140HL Parts
  • Michelin Pressure Washer MPX140HL Parts Diagram
  • Michelin Pressure Washer MPX140HL Parts Diagram - 1
  • Michelin Pressure Washer MPX140HL Parts Diagram - 2
  • Michelin Pressure Washer MPX140HL Parts Diagram - 3
  • Michelin Pressure Washer MPX140HL Parts Diagram - 4
  • Michelin Pressure Washer MPX140HL Parts Diagram - 5
  • Michelin Pressure Washer MPX140HL Parts Diagram - 6
  • Michelin Pressure Washer MPX140HL Parts Diagram - 7
Annovi Reverberi S.p.A.

Michelin Pressure Washer MPX140HL Parts

SKU: Michelin MPX 140HL - 24331 Condition: New
€26.22
VAT included

Michelin MPX 140HL Pressure Washer Spare Parts

Fix Your Pressure Washer MPX 140HL - 24331. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 133 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
133 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

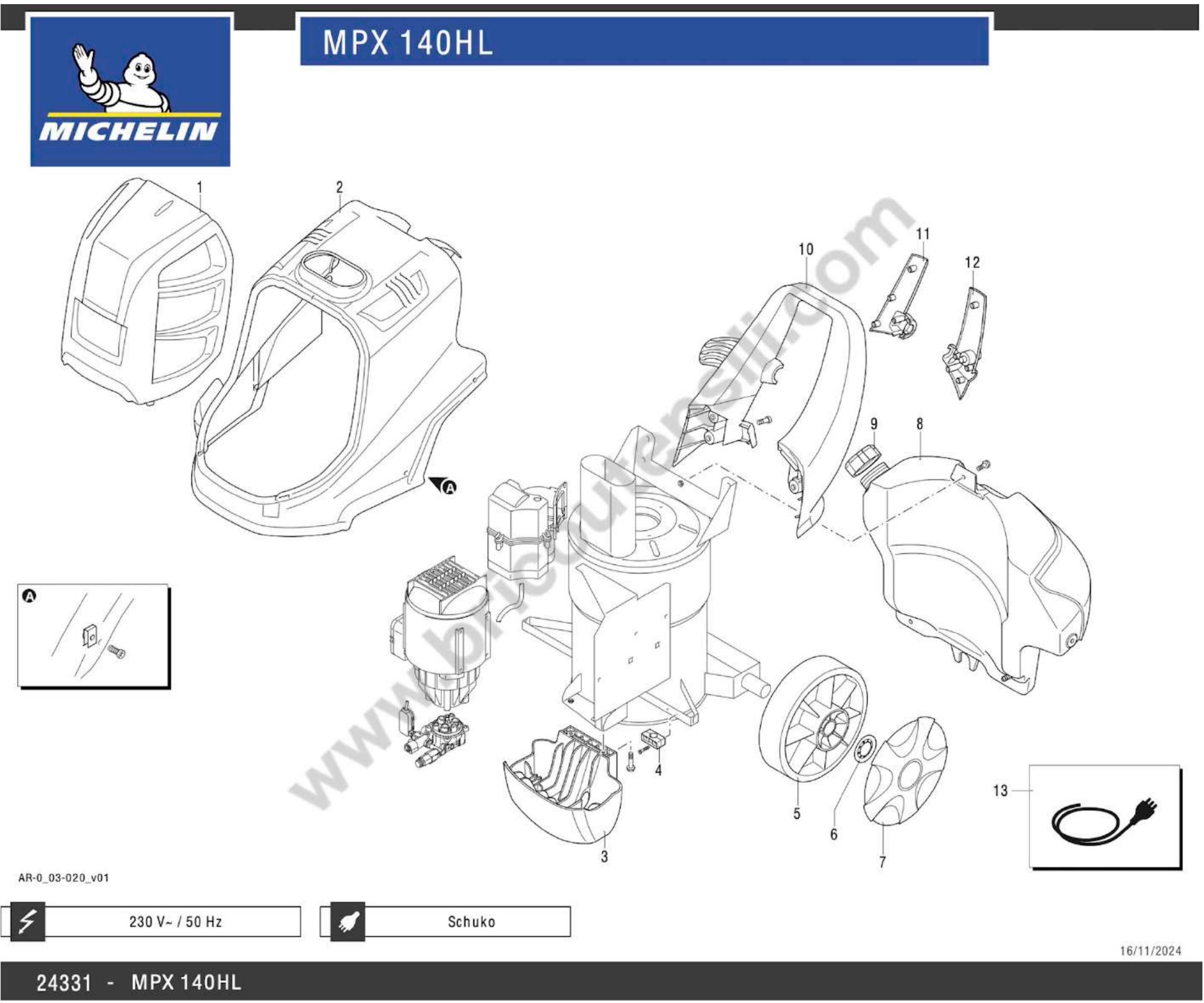

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3520090 Casing €25.46
2
 photo_cameraImage coming soon 3520080 Black casing €34.39
3
 photo_cameraImage coming soon 3520520 Foot €73.63
4
 photo_cameraImage coming soon 3520260 Fairlead €5.57
5
 photo_cameraImage coming soon 3520230 Wheel €55.88
6
 Washer D.25 Wheel Lock for Pressure Washer AR 2590 3520240 Washer D.25 Wheel Lock for Pressure Washer AR 2590 €14.68
7
 photo_cameraImage coming soon 3520252 Guard €13.65
8
 photo_cameraImage coming soon 3520170 Tank €135.73
9
 photo_cameraImage coming soon 3520180 Stopper €11.39
10
 photo_cameraImage coming soon 3520190 Handle €123.81
11
 photo_cameraImage coming soon 3520200 Support €20.15
12
 photo_cameraImage coming soon 3520210 Support €14.96
13
 photo_cameraImage coming soon 3520870 Cable €93.91
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

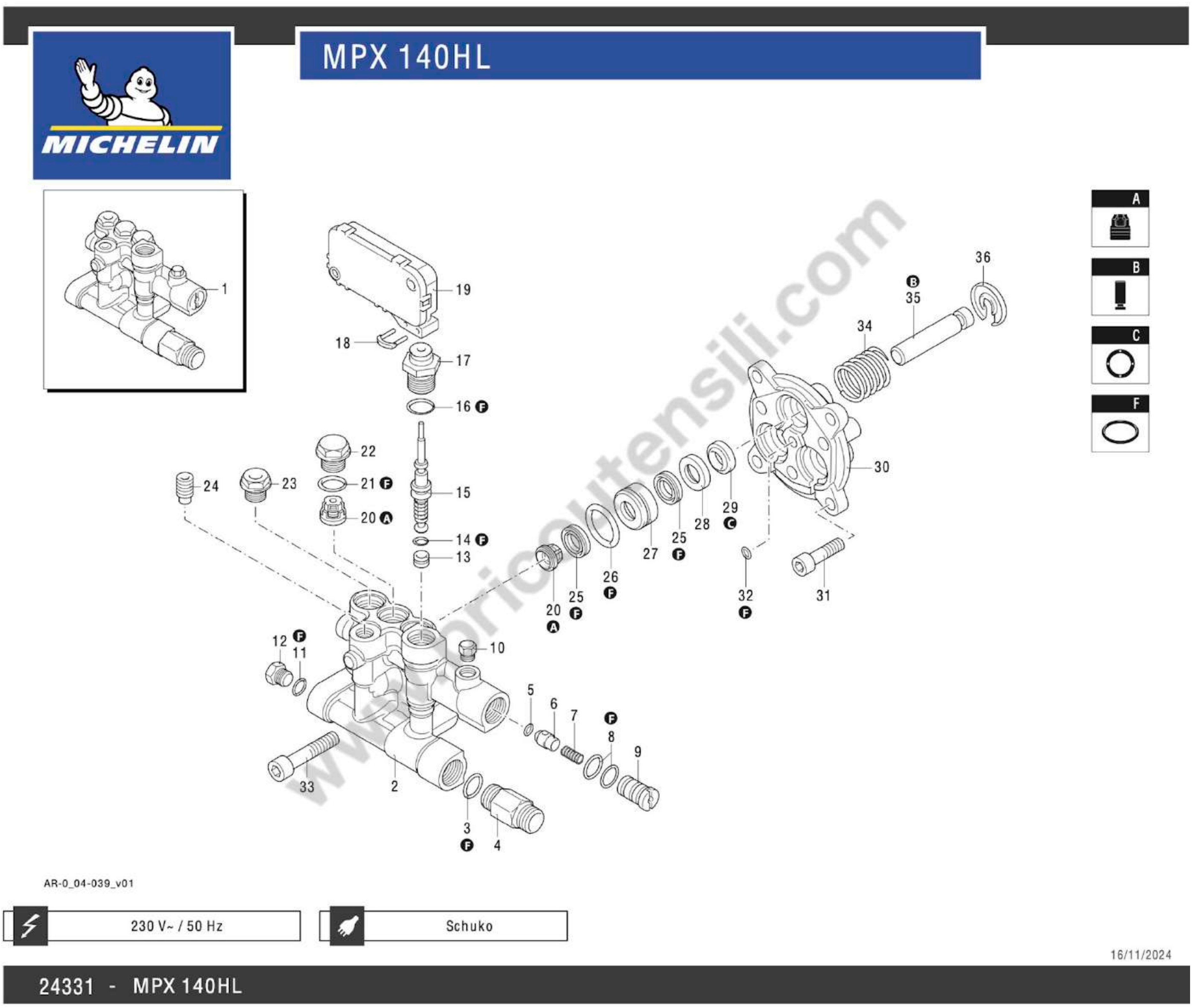

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A
 photo_cameraImage coming soon 2233 Valve Kit €10.83
B
 photo_cameraImage coming soon 2313 Piston Kit €10.55
C
 photo_cameraImage coming soon 42124 Oil Seals Kit €7.33
F
 photo_cameraImage coming soon 42438 Seal Kit €8.67
1
 photo_cameraImage coming soon 2909137 Pre-Assembly Head €253.04
2
 photo_cameraImage coming soon 2900430 head €145.99
3
 photo_cameraImage coming soon 740290 O-ring €2.67
4
 photo_cameraImage coming soon 2900100 Junction €20.05
5
 photo_cameraImage coming soon 1460430 O-ring €4.60
6
 AR Pressure Washer 585 Shutter 2901070 AR Pressure Washer 585 Shutter €3.84
7
 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
8
 photo_cameraImage coming soon 800560 O-ring €1.59
9
 photo_cameraImage coming soon 2901060 Injector €8.60
10
 photo_cameraImage coming soon 620301 Cork €2.46
11
 photo_cameraImage coming soon 1460430 O-ring €4.60
12
 photo_cameraImage coming soon 880581 stopper €7.73
13
 photo_cameraImage coming soon 2840150 Office €2.59
14
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
15
 photo_cameraImage coming soon 2909005 Pre-Assembly Spring €19.23
16
 photo_cameraImage coming soon 740290 O-ring €2.67
17
 Pre-assembled Head Brass Fitting for Pressure Washer AR 585 2900130 Pre-assembled Head Brass Fitting for Pressure Washer AR 585 €10.82
18
 photo_cameraImage coming soon 2022201 fork €3.36
19
 Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 2029753 Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 €32.93
20
 photo_cameraImage coming soon 2849051 Complete Valve €2.99
21
 photo_cameraImage coming soon 740290 O-ring €2.67
23
 ARSG HOT 1309 Plug 2900350 ARSG HOT 1309 Plug €12.36
24
 photo_cameraImage coming soon 2840470 Screw €2.79
25
 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 2200141 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 €2.41
26
 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 770590 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 €0.34
27
 photo_cameraImage coming soon 2840550 bushing €7.80
28
 photo_cameraImage coming soon 2840540 bushing €3.25
29
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
30
 photo_cameraImage coming soon 2900020 Piston Guide €17.05
31
 photo_cameraImage coming soon 2900500 Screw €2.26
33
 photo_cameraImage coming soon 800220 screw €2.26
34
 AR589 Spring 2901170 AR589 Spring €4.38
35
 photo_cameraImage coming soon 2840530 Piston €7.59
36
 AR589 Lock 2840050 AR589 Lock €2.18
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

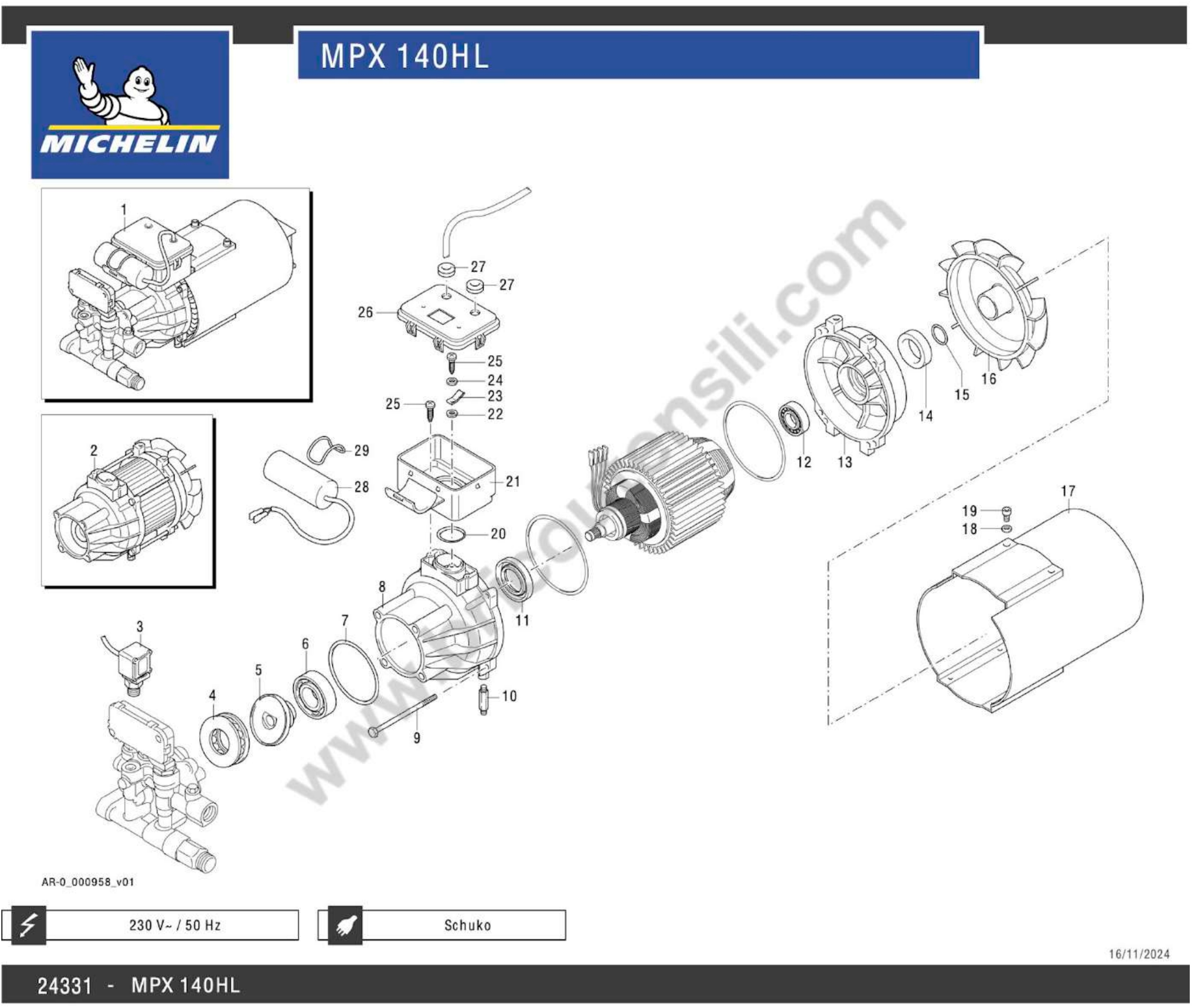

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 24230 Pre-Assembly Electric €697.72
2
 Motor 240V Ass'y for Pressure Washer AR BC 3590 44518 Motor 240V Ass'y for Pressure Washer AR BC 3590 €280.75
3
 AR2590 Pressure Switch 3520050 AR2590 Pressure Switch €33.68
4
 Thrust Bearing for Pressure Washer DeWalt DXPW001E 2900170 Thrust Bearing for Pressure Washer DeWalt DXPW001E €20.36
5
 photo_cameraImage coming soon 2900520 Disk €8.89
6
 Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
8
 photo_cameraImage coming soon 2900010 Body Pump €22.70
10
 photo_cameraImage coming soon 1462400 Stud bolt €5.85
11
 Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E 1460530 Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E €7.93
12
 photo_cameraImage coming soon 1460590 bearing €7.15
13
 photo_cameraImage coming soon 1460040 shield €23.19
14
 photo_cameraImage coming soon 1461200 oil seal €1.88
15
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
16
 photo_cameraImage coming soon 1460370 fan €6.01
17
 photo_cameraImage coming soon 1460340 conveyor €16.59
18
 photo_cameraImage coming soon 1680960 washer €1.51
19
 photo_cameraImage coming soon 1460460 screw €1.58
20
 photo_cameraImage coming soon 660170 O-ring €1.81
21
 photo_cameraImage coming soon 2320131 box €6.85
22
 photo_cameraImage coming soon 1262400 washer €1.73
25
 photo_cameraImage coming soon 2020570 screw €1.59
26
 photo_cameraImage coming soon 2320271 Cover €2.04
27
 photo_cameraImage coming soon 1462900 Cable Sleeve €2.19
28
 photo_cameraImage coming soon 1982590 Capacitor €19.88
29
 photo_cameraImage coming soon 2320640 O-Ring €1.93
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

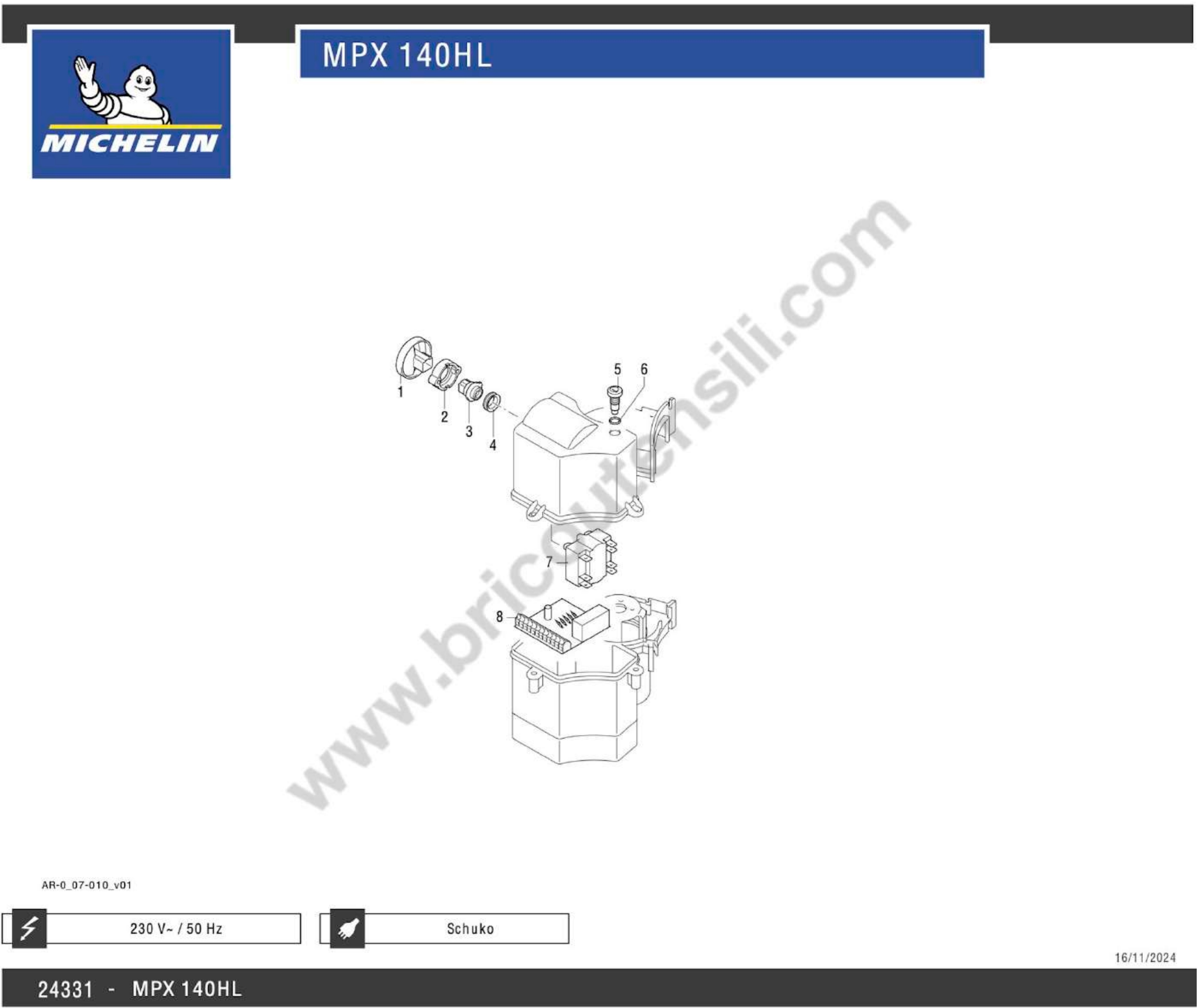

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3520270 Knob €15.32
2
 photo_cameraImage coming soon 3520280 Thickness €12.79
3
 photo_cameraImage coming soon 3520300 Element €12.79
4
 photo_cameraImage coming soon 3520290 O-Ring €11.39
5
 photo_cameraImage coming soon 3520350 Fuse Holder €21.66
6
 photo_cameraImage coming soon 3520340 O-Ring €19.13
7
 photo_cameraImage coming soon 3520850 Switch €72.37
8
 photo_cameraImage coming soon 3520840 Card €78.91
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

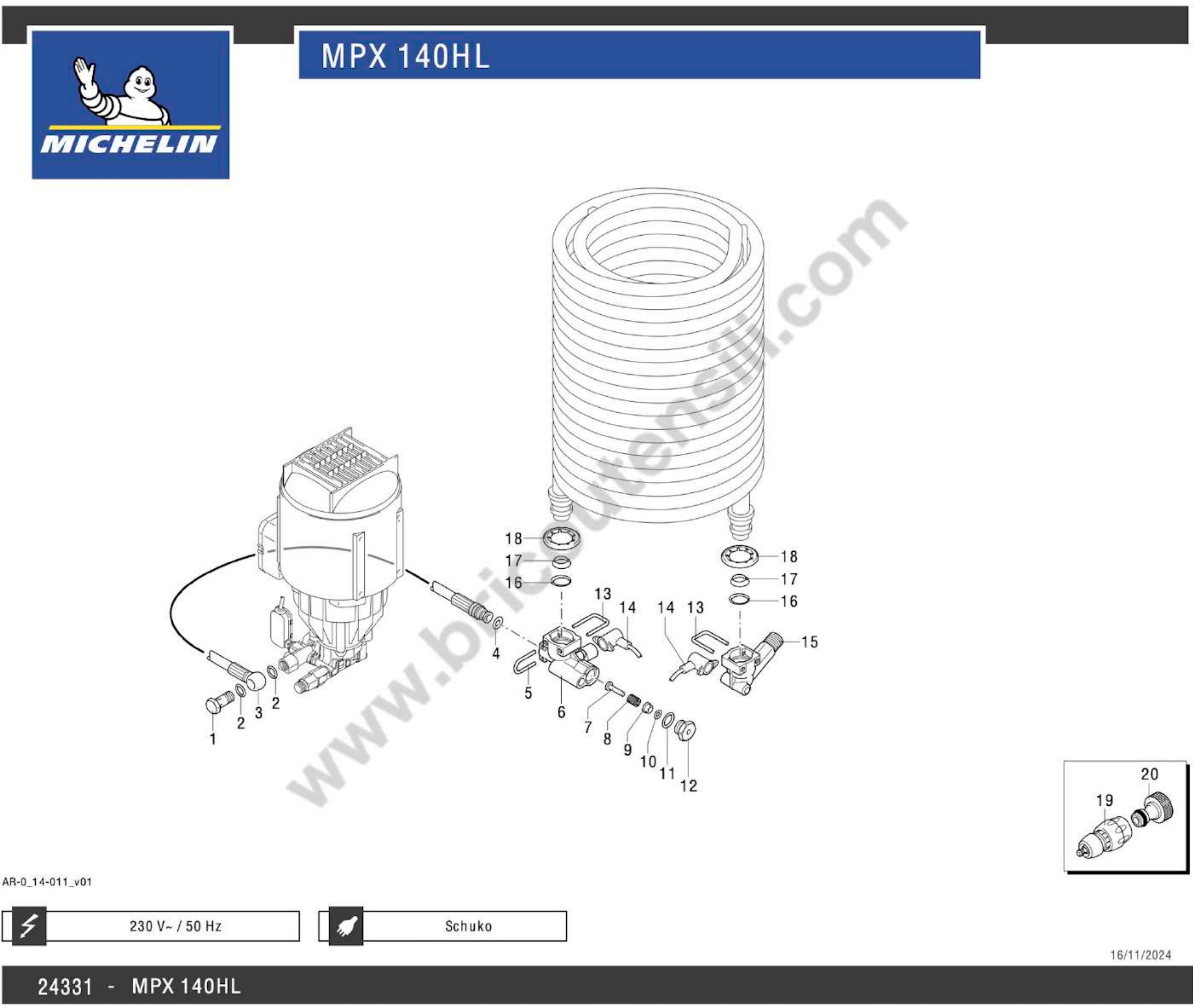

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3520570 Screw €16.59
2
 photo_cameraImage coming soon 3520580 Washer €9.81
3
 photo_cameraImage coming soon 3520400 Pipe €26.58
4
 photo_cameraImage coming soon 3520410 O-Ring €4.23
5
 photo_cameraImage coming soon 3520490 Fork €16.59
6
 Boiler Inlet Fitting for Pressure Washer AR BC 2590 3520420 Boiler Inlet Fitting for Pressure Washer AR BC 2590 €23.55
7
 photo_cameraImage coming soon 3520430 Piston €22.84
8
 photo_cameraImage coming soon 3520440 Spring €16.35
9
 photo_cameraImage coming soon 3520450 Bushing €16.59
10
 photo_cameraImage coming soon 3520460 O-Ring €4.23
11
 photo_cameraImage coming soon 3520470 O-Ring €10.29
12
 photo_cameraImage coming soon 3520480 Stopper €21.22
13
 photo_cameraImage coming soon 3520510 Fork €15.32
14
 Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590 3520930 Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590 €38.89
15
 Boiler Outlet Fitting for Pressure Washer AR BC 2590 3520530 Boiler Outlet Fitting for Pressure Washer AR BC 2590 €23.69
16
 photo_cameraImage coming soon 3520500 O-Ring €5.53
17
 photo_cameraImage coming soon 3520540 Ring €10.94
18
 Washer D.25 Wheel Lock for Pressure Washer AR 2590 3520240 Washer D.25 Wheel Lock for Pressure Washer AR 2590 €14.68
19
 photo_cameraImage coming soon 3520360 Fitting €20.39
20
 photo_cameraImage coming soon 3520370 Fitting €17.87
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

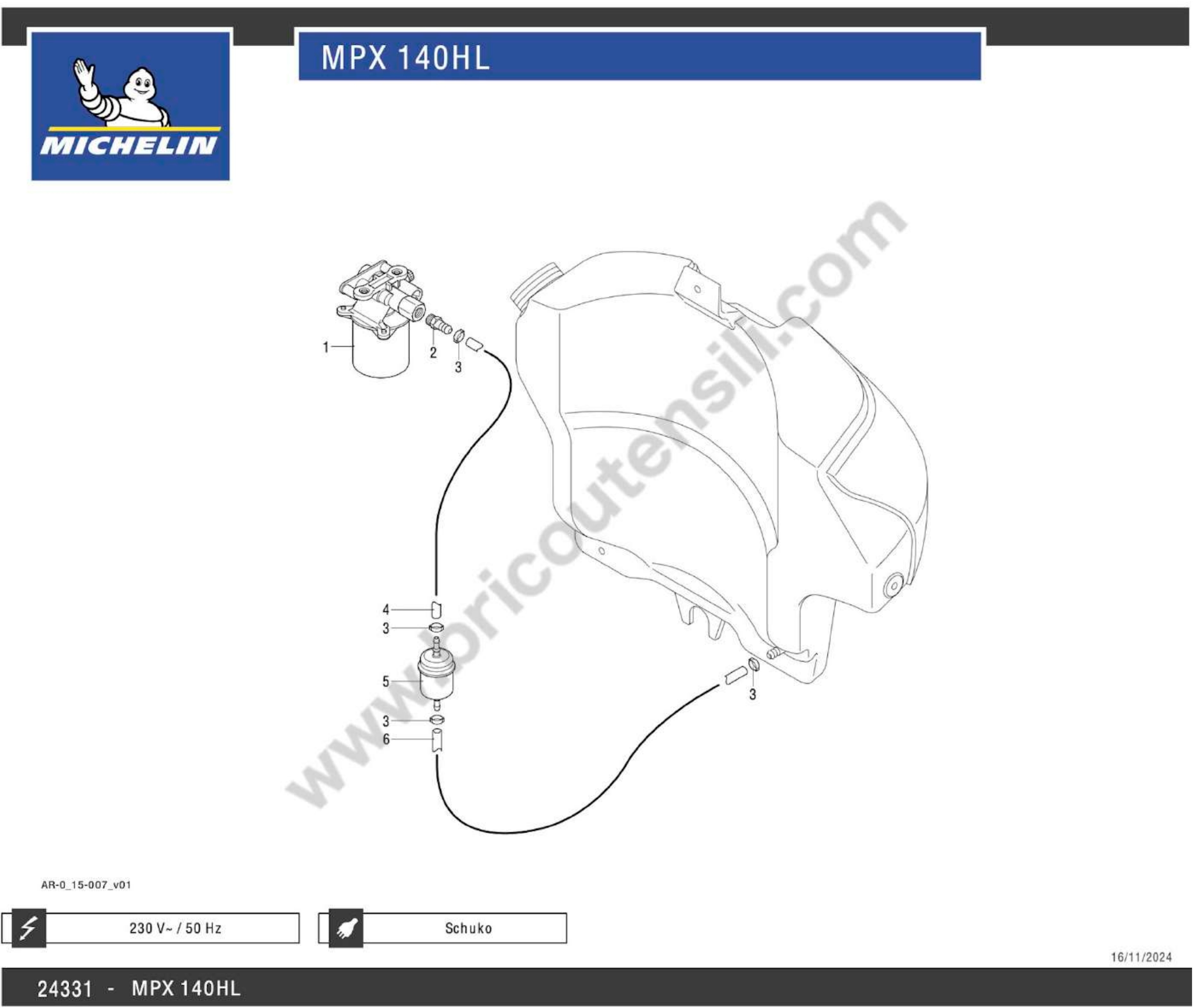

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Diesel Pump for Pressure Washer AR2590 3522760 Diesel Pump for Pressure Washer AR2590 €201.63
2
 photo_cameraImage coming soon 3520730 Hose €16.59
3
 photo_cameraImage coming soon 3520740 Band €7.53
4
 photo_cameraImage coming soon 3520750 Tube €10.66
5
 Diesel Pump Filter for Pressure Washer AR2590 3520760 Diesel Pump Filter for Pressure Washer AR2590 €27.32
6
 photo_cameraImage coming soon 3520750 Tube €10.66
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

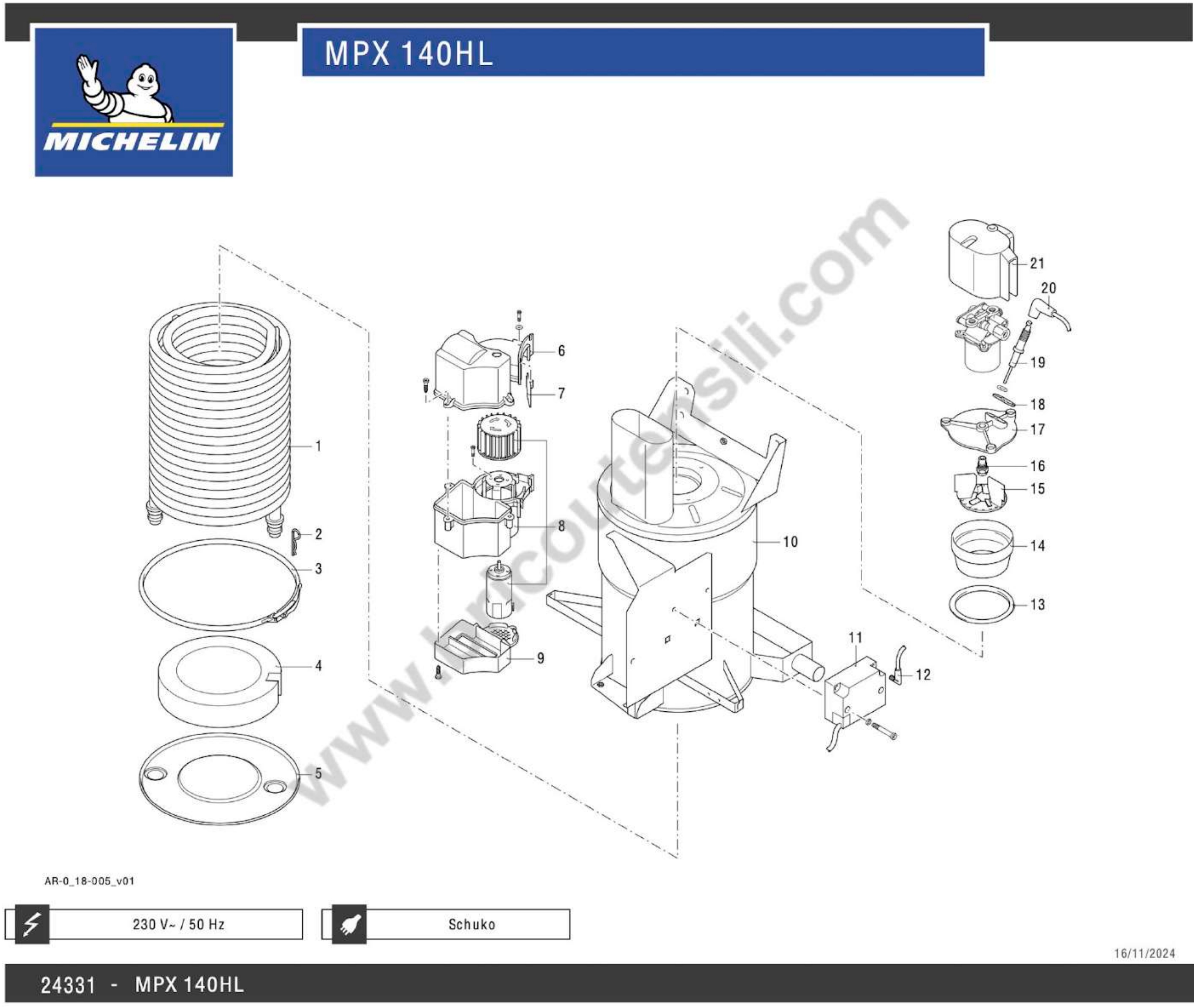

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3520630 Resistance €213.06
2
 photo_cameraImage coming soon 3520620 Plug €12.79
3
 photo_cameraImage coming soon 3520610 Band €17.87
4
 photo_cameraImage coming soon 3520600 Disk €44.48
5
 photo_cameraImage coming soon 3520590 Disk €38.15
6
 photo_cameraImage coming soon 3520330 Cover €21.66
7
 photo_cameraImage coming soon 3520790 Valve €16.59
8
 photo_cameraImage coming soon 3524390 Fan kit €129.52
9
 photo_cameraImage coming soon 3520310 Cover €17.87
10
 photo_cameraImage coming soon 3521300 Boiler €636.39
11
 photo_cameraImage coming soon 3520860 Transformer €180.10
12
 photo_cameraImage coming soon 3520770 Cable €58.23
13
 photo_cameraImage coming soon 3520650 Gasket €11.39
14
 photo_cameraImage coming soon 3520660 Element €106.59
15
 photo_cameraImage coming soon 3520670 Support €78.70
16
 photo_cameraImage coming soon 3520680 Nozzle €91.38
17
 photo_cameraImage coming soon 3520690 Flange €117.98
18
 photo_cameraImage coming soon 3520710 Plate €73.63
19
 photo_cameraImage coming soon 3520700 Electrode €44.48
20
 photo_cameraImage coming soon 3520770 Cable €58.23
21
 photo_cameraImage coming soon 3520820 Cover €21.76
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

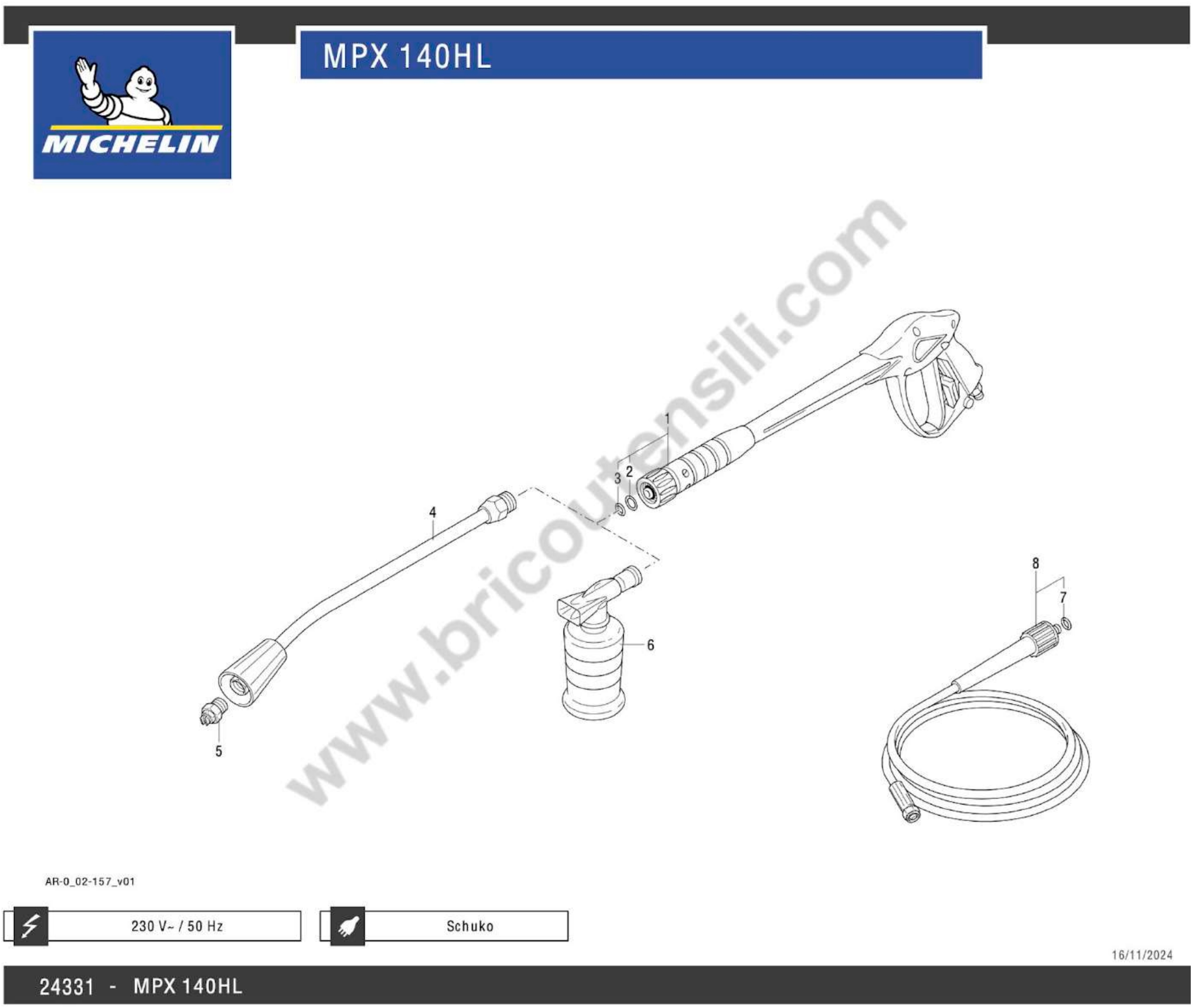

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Gun for Pressure Washers Annovi & Reverberi-AR Farmer's Division 41047 Gun for Pressure Washers Annovi & Reverberi-AR Farmer's Division €45.96
2
 photo_cameraImage coming soon 1080640 Ring €5.20
3
 photo_cameraImage coming soon 391000 O-Ring €4.73
4
 Lance for Pressure Washer Annovi & Reverberi AR-AR Farmer's Division 50690 Lance for Pressure Washer Annovi & Reverberi AR-AR Farmer's Division €18.18
5
 photo_cameraImage coming soon 3729 Nozzle €22.63
6
 photo_cameraImage coming soon 40320 Tank €23.29
7
 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
8
 photo_cameraImage coming soon 3164470 High pressure hose €104.82

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Michelin MPX 140HL Pressure Washer Spare Parts

Fix Your Pressure Washer MPX 140HL - 24331. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Michelin MPX 140HL - 24331

Michelin MPX 140HL Pressure Washer - 24331 Spare Parts
Casing Pag.1
# Part Num. Description
1 3520090 Casing
2 3520080 Casing
3 3520520 Base
4 3520260 Gland
5 3520230 Wheel
6 3520240 Washer
7 3520252 Guard
8 3520170 Tank
9 3520180 Plug
10 3520190 Handle
11 3520200 Support
12 3520210 Support
13 3520870 Cable
Pump Pag.2
1 2909137 Head assembly
2 2900430 Head
3 740290 O-ring
4 2900100 Fitting
5 1460430 O-ring
6 2901070 Shutter
7 1080091 Spring
8 800560 O-ring
9 2901060 Injector
10 620301 Plug
11 1460430 O-ring
12 880581 Plug
13 2840150 Seat
14 600180 O-ring
15 2909005 Spring assembly
16 740290 O-ring
17 2900130 Fitting
18 2022201 Fork
19 2029753 TSS box assembly
20 2849051 Complete valve
21 740290 O-ring
22 840130 Plug
23 2900350 Plug
24 2840470 Screw
25 2200141 Water seal
26 770590 O-ring
27 2840550 Bushing
28 2840540 Bushing
29 1683500 Oil seal
30 2900020 Piston guide
31 2900500 Screw
32 480560 O-ring
33 800220 Screw
34 2901170 Spring
35 2840530 Piston
36 2840050 Lock
A 2233 Valve kit
B 2313 Piston kit
C 42124 Oil seal kit
F 42438 Gasket kit
Motor Pag.3
1 24230 Electric pump assembly
2 44518 Motor
3 3520050 Pressure switch
4 2900170 Bearing
5 2900520 Wobble plate
6 1780490 Bearing
7 3040270 O-ring
8 2900010 Pump body
9 2320090 Screw
10 1462400 Stud bolt
11 1460530 Oil seal
12 1460590 Bearing
13 1460040 Shield
14 1461200 Oil seal
15 394280 O-ring
16 1460370 Fan
17 1460340 Conveyor
18 1680960 Washer
19 1460460 Screw
20 660170 O-ring
21 2320131 Box
22 1262400 Washer
23 3523500 Connector
24 1260490 Washer
25 2020570 Screw
26 2320271 Cover
27 1462900 Gland
28 1982590 Capacitor
29 2320640 O-ring
Electric Circuit Pag.4
1 3520270 Knob
2 3520280 Shim
3 3520300 Element
4 3520290 O-ring
5 3520350 Fuse holder
6 3520340 O-ring
7 3520850 Switch
8 3520840 Board
Water Circuit Pag.5
1 3520570 Screw
2 3520580 Washer
3 3520400 Pipe
4 3520410 O-ring
5 3520490 Fork
6 3520420 Fitting
7 3520430 Piston
8 3520440 Spring
9 3520450 Bushing
10 3520460 O-ring
11 3520470 O-ring
12 3520480 Plug
13 3520510 Fork
14 3520930 Thermostat
15 3520530 Fitting
16 3520500 O-ring
17 3520540 Ring
18 3520240 Washer
19 3520360 Fitting
20 3520370 Fitting
Fuel Circuit Pag.6
1 3522760 Pump
2 3520730 Hose tail
3 3520740 Clamp
4 3520750 Pipe
5 3520760 Filter
6 3520750 Pipe
Boiler Pag.7
1 3520630 Pipe coil
2 3520620 Pin
3 3520610 Clamp
4 3520600 Plate
5 3520590 Plate
6 3520330 Cover
7 3520790 Valve
8 3524390 Fan kit
9 3520310 Cover
10 3521300 Boiler
11 3520860 Transformer
12 3520770 Cable
13 3520650 Gasket
14 3520660 Element
15 3520670 Support
16 3520680 Nozzle
17 3520690 Flange
18 3520710 Plate
19 3520700 Electrode
20 3520770 Cable
21 3520820 Cover
Standard Accessories Pag.8
1 41047 Gun
2 1080640 Ring
3 391000 O-ring
4 50690 Lance
5 3729 Nozzle
6 40320 Tank
7 2000570 O-ring
8 3164470 High pressure hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi&Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi&Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Michelin MPX 140HL - 24331
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Michelin MPX140HL Diagram

Michelin MPX140HL Diagram

Download (546.28KB)

You might also like

Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590
Annovi Reverberi S.p.A. SKU: 2029753
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590
Pre-Assembly Box TSS for Pressure Washers A&R AR767-1003-3590 Genuine part Annovi & Reverberi, Pre-assembly box TSS for Pressure Washers Blue Clean AR767 - AR1003 - AR3590. - For the Following items : - AR Blue Clean Models 50...
AVAILABLE €32.93
Details
Boiler Burner Engine for Pressure Washers AR2590-3590-4590
Annovi Reverberi S.p.A. SKU: 3520810
Boiler Burner Motor for Pressure Washers AR2590-3590-4590
Boiler Burner Motor Kit for Pressure Washers AR2590-3590-4590 Genuine part Annovi Reverberi, Boiler Burner Motor + Fan Kit MP 43.5 230 V 50 Hz (# 8+9+10) for Pressure Washers Annovi & Reverberi AR 2590 - AR 3590 - AR 4590. Parts For...
Last items in stock €126.94
Details
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT
Annovi Reverberi S.p.A. SKU: 2000570
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT Original spare part Annovi & Reverberi, OR mm 10x2 Parker V1 1010 P5008 for Pressure Washers ARSG HOT 120-1106-1308-1309-1490N-1713-2015N-2021N-K-PRO 1508. Part for the...
AVAILABLE €1.78
Details
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
Annovi Reverberi S.p.A. SKU: 2200141
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353
O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 Genuine Parts for Annovi & Reverberi, O-Ring mm 12x20 for Pressure Washer AR BC 210 - 333 - 353 - Mirage - 120 TSS - HOT 120 - PW 1700 WB - MPX 140 HL. Part for...
on 7/10 Business Days Approx. €2.41
Details
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker
Annovi Reverberi S.p.A. SKU: 600180
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring mm 7,66x1,78 For the Following Products: - Black & Decker - PW 1700 WB - 12344 - Black & Decker - PW 1700 WB - 2007...
AVAILABLE €0.38
Details
O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935
Annovi Reverberi S.p.A. SKU: 770260
O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935
O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 Original part Annovi & Rverberi, O-Ring 23,52x1,78 mm, for models AR Serie 6 - 610-613-614-615 - Serie 7 - 757 - Serie 8 - 810-820-830 - Serie 9 - 935-945 Part for the...
AVAILABLE €0.39
Details
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG
Annovi Reverberi S.p.A. SKU: 1683500
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG Genuine Part for Annovi & Reverberi, Oil Seal mm 12x2x5/7" for Pressure Washers ARSG EVENT - EXTREME - MR CLEAN - NRG - PRO CLEAN...
AVAILABLE €2.54
Details
Diesel Pump for Pressure Washer AR2590
Annovi Reverberi S.p.A. SKU: 3522760
Diesel Pump for Pressure Washer AR2590
Diesel Pump for Pressure Washer AR2590 Genuine part Annovi & Reverberi, Diesel Pump VSC 63 A5H 220V 50/60HZ 0.5 GPH 15 BAR for Pressure Washers AR BC - AR 2590 - AR 3590 - AR 4590. Part For the Following...
Usually Ships in: 10/15 Business Days Approx. €201.63
Details
Diesel Pump Filter for Pressure Washer AR2590
Annovi Reverberi S.p.A. SKU: 3520760
Diesel Pump Filter for Pressure Washer AR2590
Diesel Pump Filter for Pressure Washer AR2590 Genuine part Annovi & Reverberi, Diesel Pump Filter for Pressure Washers AR BC - AR 2590 - AR 3590 - AR 4590. Part For the Following Products: -  Pressure Washer AR Blue Clean AR 2590...
on 10 Business Days Approx €27.32
Details
Boiler Inlet Fitting for Pressure Washer AR BC 2590
Annovi Reverberi S.p.A. SKU: 3520420
Boiler Inlet Fitting for Pressure Washer AR BC 2590
Boiler Inlet Fitting for Pressure Washer AR BC 2590 Genuine part Annovi & Reverberi, Boiler Inlet Fitting for Pressure Washers AR Blue Clean 2590 - 3590 - 4590. Parts For the Following Products: -  Idropulitrice AR Blue Clean...
Last items in stock €23.55
Details
Boiler Outlet Fitting for Pressure Washer AR BC 2590
Annovi Reverberi S.p.A. SKU: 3520530
Boiler Outlet Fitting for Pressure Washer AR BC 2590
Boiler Outlet Fitting for Pressure Washer AR BC 2590 Genuine part Annovi & Reverberi, Boiler Outlet Fitting for Pressure Washers AR Blue Clean 2590 - 3590 - 4590. Parts For the Following...
Last items in stock €23.69
Details
Washer D.25 Wheel Lock for Pressure Washer AR 2590
Annovi Reverberi S.p.A. SKU: 3520240
Washer D.25 Wheel Lock for Pressure Washer AR 2590
Washer D.25 Wheel Lock for Pressure Washer AR Blue Clean 2590 Genuine part Annovi Reverberi, Washer D.25 Wheel Lock for Pressure Washers AR Blue Clean 2590 - 3590 - 4590. Parts For the Following Products: -  Idropulitrice AR Blue...
on 7/10 Business Days Approx €14.68
Details
Motor 240V Ass'y for Pressure Washer AR BC 3590
Annovi Reverberi S.p.A. SKU: 44518
Motor 240V Ass'y for Pressure Washer AR BC 3590
Motor 240V Ass'y for Pressure Washer AR BC 3590 Genuine part Annovi Reverberi, Motor 240V Assembly for Pressure Washers Blu Clean 3590 - 3590 SPECIAL - ARSG HOT 1408 - PW 3550 HOT. - Part For the Following items: -  AR BC - Models 50...
on 10 Business Days Approx €280.75
Details
Motor 220-240 V 1,7 HP for Pressure Washer AR 4590
Annovi Reverberi S.p.A. SKU: 44534
Motor 220-240 V 1,7 HP for Pressure Washer AR 4590
Motor 220-240 V 1,7 HP for Pressure Washer AR 4590 Genuine part Annovi & Reverberi, Motor MP 4EM. 1,7 HP TSS 220-240 V 50 Hz S.134 2P for Pressure Washers Annovi  Reverberi AR 4590 - <michelin MPX 150 HL. Parts For the...
on 10 Business Days Approx. €268.93
Details
Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590
Annovi Reverberi S.p.A. SKU: 3520930
Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590
Thermostat for Pressure Washer AR Blue Clean PRO HOT 2590 Genuine part Annovi Reverberi, Thermostat for Pressure Washers AR Blue Clean PRO HOT - Serie 25 - 35 - 45. Part for the following products: -  Cleaning - AR Blue Clean - PRO...
Last items in stock €38.89
Details
TSS Retrofit kit for Pressure Washer AR 4590
Annovi Reverberi S.p.A. SKU: 42580
TSS Retrofit kit for Pressure Washer AR 4590
TSS Retrofit kit for Pressure Washer AR 4590 Genuine part Annovi & Reverberi, TSS Retrofit kit for Pressure Washers Annovi  Reverberi AR 4590 - Michelin MPX 150 HL. Parts For the Following Products: - ...
Last items in stock €24.00
Details
Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO
Annovi Reverberi S.p.A. SKU: 1080091
Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO
Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO - 1508 Genuine part Annovi Reverberi, Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO - 1508 - 1509. Part for the following products:...
Usually Ships in: 10 Business Days Approx. €2.34
Details
AR Blue Clean 4590 Pump Assembly
Annovi Reverberi S.p.A. SKU: 1349297
AR Blue Clean 4590 Pump Assembly
AR Blue Clean 4590 Pump Assembly Genuine part Annovi Reverberi, Pump Assembly for Pressure Washers AR Blue Clean Series 45 - 4590 - Michelin MPX 150HL. Parts For the Following Products: - Annovi Reverberi - PROFESSIONAL - Serie HOT -...
Last items in stock €317.09
Details
AR589 Spring
Annovi Reverberi S.p.A. SKU: 2901170
AR589 Spring
AR Spring for Pressure Washer AR589 Original Spare Part by Annovi Reverberi, Spring for pressure washers AR589 - DXPW002E - DXPW001E - SXFPW30IP-E. Part for the following items: - Annovi Reverberi 589 - 14989 - ARSG PRO CLEAN 150...
AVAILABLE €4.38
Details
AR589
Annovi Reverberi S.p.A. SKU: 2840050
AR589 Lock
AR Lock for Pressure Washer AR589 Original Spare Part by Annovi Reverberi, Lock for pressure washers AR589 - DXPW002E - DXPW001E - SXFPW30IP-E. Part for the following items: - Michelin MPX 200 THO - 25619 - Annovi Reverberi 589 -...
Last items in stock €2.18
Details
AR2590 Pressure Switch
Annovi Reverberi S.p.A. SKU: 3520050
AR2590 Pressure Switch
Pressure Switch for Pressure Washer AR2590 Genuine part Annovi Reverberi, Pressure Switch for Pressure Washers AR 2590 - ARSG HOT 1408. Part for the following products: - Annovi Reverberi 1408 - 26412 - AR Blue...
Last items in stock €33.68
Details
ARSG HOT 1309 Plug
Annovi Reverberi S.p.A. SKU: 2900350
ARSG HOT 1309 Plug
ARSG Plug for Pressure Washer HOT 1309 Original parts ANNOVI & REVERBERI, Plug for pressure washers ARSG HOT 1309 - HOT 1408 - MPX 140HL. Part for the following products: - Pressure Washer ARSG HOT 1309 - 23112 - Pressure...
build View Spare Parts
Comments (0)
