Michelin Spare Parts for Pressure Washer MPX 17 EHDS

SKU: Michelin MPX 17 EHDS - 14750
€11.27
VAT included

Michelin Spare Parts for Pressure Washer MPX 17 EHDS

We have the original Spares Michelin for Pressure Washer MPX 17 EHDS - 14750 (220-240 V - 50/60 Hz) Michelin Europa, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.
Michelin Spare Parts for Pressure Washer MPX 17 EHDS
  • Michelin Spare Parts for Pressure Washer MPX 17 EHDS
  • Michelin Spare Parts for Pressure Washer MPX 17 EHDS
  • Michelin Spare Parts for Pressure Washer MPX 17 EHDS
  • Michelin Spare Parts for Pressure Washer MPX 17 EHDS
Annovi Reverberi S.p.A.

Michelin Spare Parts for Pressure Washer MPX 17 EHDS

SKU: Michelin MPX 17 EHDS - 14750 Condition: New
€11.27
VAT included

Michelin Spare Parts for Pressure Washer MPX 17 EHDS

We have the original Spares Michelin for Pressure Washer MPX 17 EHDS - 14750 (220-240 V - 50/60 Hz) Michelin Europa, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.
settings 64 Spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
64 spare parts

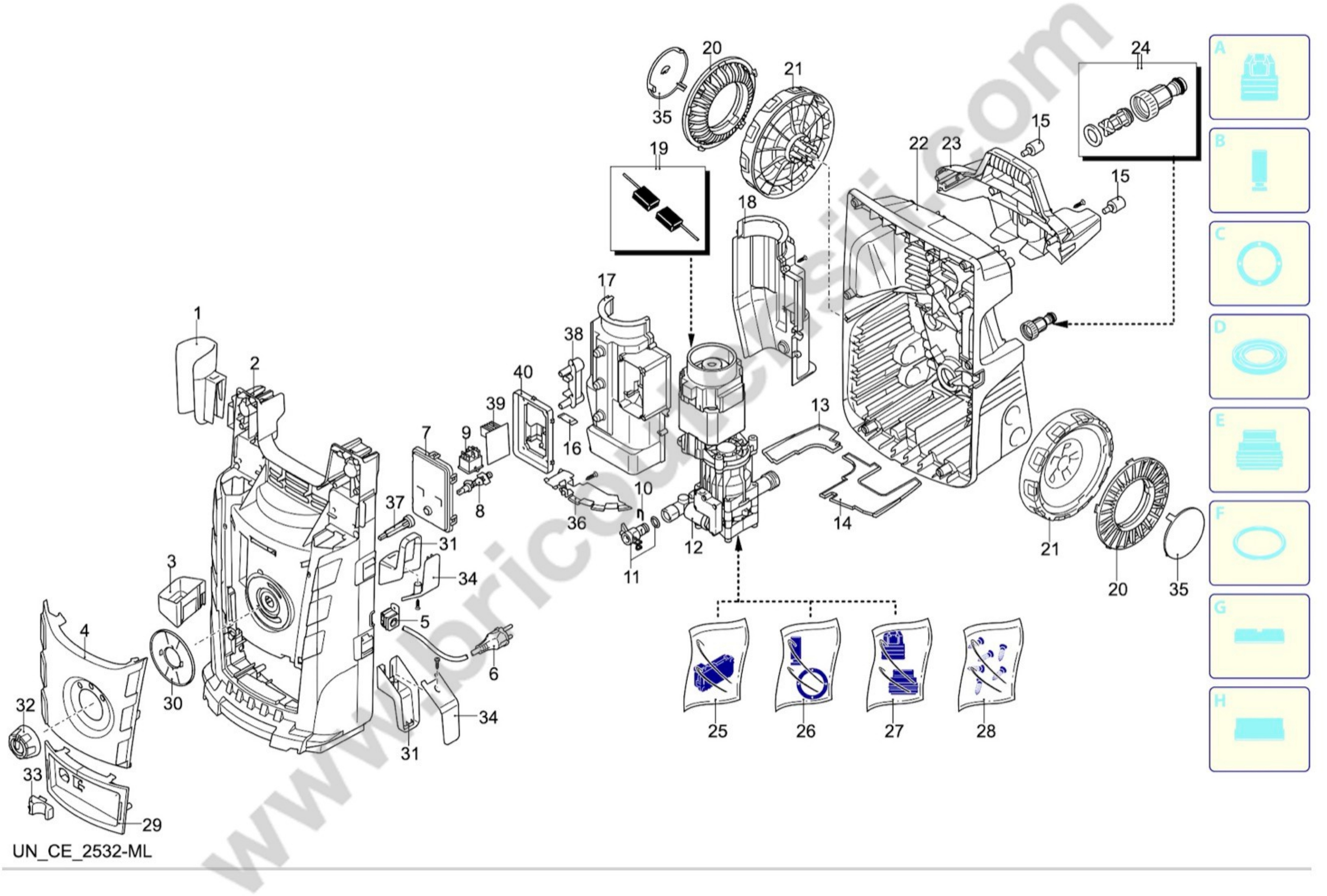

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4720630 Accessories carrier €11.15
2
 photo_cameraImage coming soon 4720040 Casing €26.22
3
 photo_cameraImage coming soon 3085230 Accessories carrier €5.20
4
 photo_cameraImage coming soon 4720050 Guard €14.54
5
 photo_cameraImage coming soon 3080580 cable clamp €1.37 Not available for order
6
 Power Cord for Pressure Washer Black&Decker PW 1400 E 3082360 Power Cord for Pressure Washer Black&Decker PW 1400 E €20.62
7
 photo_cameraImage coming soon 4720490 Cover €0.92
8
 photo_cameraImage coming soon 4720470 Rod €1.31
9
 photo_cameraImage coming soon 4720610 Switch €7.21
10
 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B 3500090 Fork Lock High Pressure Hose for B&D PW - BXPW - Michelin MPX 110 B €1.35
11
 photo_cameraImage coming soon 4382480 CONNECTOR €16.52
12
 photo_cameraImage coming soon 4381450 Electric pump assembly €110.21
13
 photo_cameraImage coming soon 4380590 COVER €2.12
14
 photo_cameraImage coming soon 4380580 COVER €1.44
15
 photo_cameraImage coming soon 2180330 Rubber €3.86
16
 photo_cameraImage coming soon 4720500 Spring €1.11
17
 photo_cameraImage coming soon 4380160 Conveyor €10.80
18
 photo_cameraImage coming soon 4380170 Conveyor €9.16
19
 Motor Carbon Brushes Set for Pressure Washers B&D PW 1700 SPL 3082600 Motor Carbon Brushes Set for Pressure Washers B&D PW 1700 SPL €8.95
20
 photo_cameraImage coming soon 4720020 Guard €12.81
21
 photo_cameraImage coming soon 4380610 WHEEL €14.98
22
 photo_cameraImage coming soon 4380960 BASE SA €37.21
23
 photo_cameraImage coming soon 4380990 CARRIER SA €15.75
24
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.94
25
 Kit TSS for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS 3081280 Kit TSS for Pressure Washers B&D BXPW-PW 1300 B-C-1400 K-PLUS €11.50
26
 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 3081270 Kit Pistons for Pressure Washers Annovi & Reverberi AR142-AR260-AR388 €17.80
27
 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 3081290 Kit Inlet-Outlet Valves for Pressure Washers Blue Clean AR142/490 €6.08
28
 photo_cameraImage coming soon 4381470 Screw Kit €4.23
29
 photo_cameraImage coming soon 4720060 Guard €12.68
30
 photo_cameraImage coming soon 4720240 Plate €8.45
31
 photo_cameraImage coming soon 4720520 Accessories carrier €9.28
32
 photo_cameraImage coming soon 4720230 Knob €8.25
33
 photo_cameraImage coming soon 4380394 Push-button €5.69
34
 photo_cameraImage coming soon 4720510 Guard €8.25
35
 photo_cameraImage coming soon 4720030 Plug €11.53
36
 photo_cameraImage coming soon 4720190 Guard €1.38
37
 photo_cameraImage coming soon 4720140 Hub pin €17.24
38
 photo_cameraImage coming soon 4720250 Locking €1.31
39
 photo_cameraImage coming soon 4720620 Board €25.99
40
 photo_cameraImage coming soon 4720480 Support €2.21

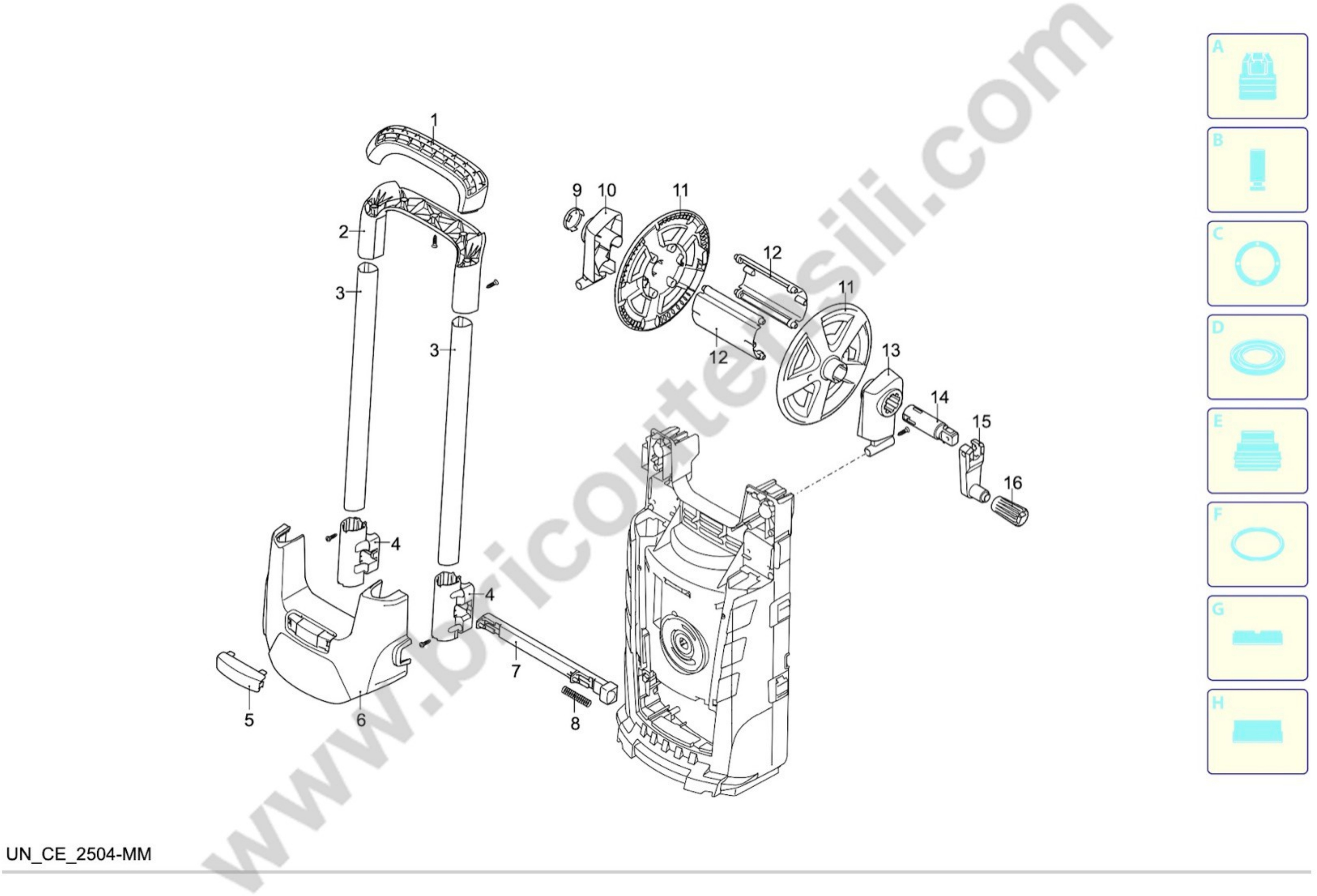

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4720090 Knob €8.31
2
 photo_cameraImage coming soon 4720080 Handle €9.41
3
 photo_cameraImage coming soon 4720110 Pipe €21.08
4
 photo_cameraImage coming soon 4720120 Guide €19.80
6
 photo_cameraImage coming soon 4720130 Guard €17.24
7
 photo_cameraImage coming soon 4720100 Hook €9.28
8
 photo_cameraImage coming soon 4821020 Spring €1.62
9
 photo_cameraImage coming soon 4820410 Cover €2.26
10
 photo_cameraImage coming soon 4720160 Bracket €11.15
11
 photo_cameraImage coming soon 4101680 Plate €13.18
12
 photo_cameraImage coming soon 4102120 Support €7.99
13
 photo_cameraImage coming soon 4720150 Bracket €11.15
14
 photo_cameraImage coming soon 4101750 Hub pin €3.71
15
 photo_cameraImage coming soon 4101660 Lever €4.84
16
 photo_cameraImage coming soon 4101672 Knob €7.48

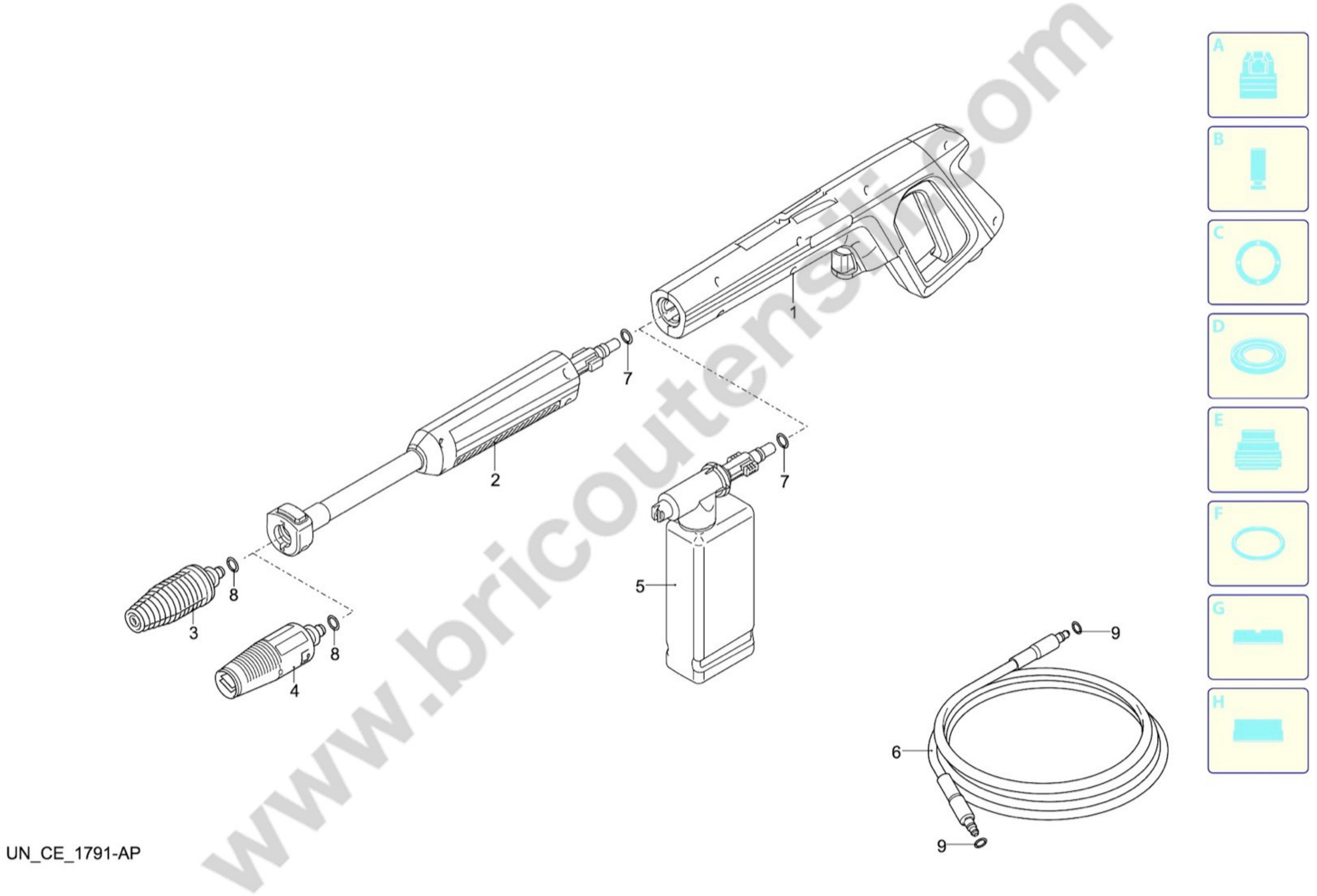

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4381483 Gun €22.00
2
 photo_cameraImage coming soon 4381493 Extension €21.08
3
 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S 4100800 Extension Turbo Head for Pressure Washers Black & Decker PW 1300-1400S €13.75
4
 photo_cameraImage coming soon 4381830 HEAD SA €14.22
5
 Tank 4381500 Tank €9.46
6
 photo_cameraImage coming soon 4383530 High pressure hose €29.43
7
 O-Ring for Pressure Washers Black & Decker 3083700 O-Ring for Pressure Washers Black & Decker €0.40
8
 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker 3083370 O-Ring mm 6x2 80 SHORE C for Pressure Washers Black & Decker €0.52
9
 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker 3083400 O-Ring mm 5.1x1.6 80 SHORE for Pressure Washers Black & Decker €0.40

Shipping and delivery information will be available shortly.

Michelin Spare Parts for Pressure Washer MPX 17 EHDS

We have the original Spares Michelin for Pressure Washer MPX 17 EHDS - 14750 (220-240 V - 50/60 Hz) Michelin Europa, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Michelin MPX 17 EHDS - 14750

MPX 17 EHDS - 14750 (220-240 V - 50/60 Hz) Michelin Europa
Cofano Pag.1
# Part Num. Description
1 4720630 Accessories carrier
2 4720040 Casing
3 3085230 Accessories carrier
4 4720050 Guard
5 3080580 Cable gland
6 3082360 Cable
7 4720490 Cover
8 4720470 Pin
9 4720610 Switch
10 3500090 Fork
11 4382480 Fitting
12 4381450 Electric pump assembly
13 4380590 Guard
14 4380580 Guard
15 2180330 Rubber foot
16 4720500 Spring
17 4380160 Conveyor
18 4380170 Conveyor
19 3082600 Brush kit for motor
20 4720020 Guard
21 4380610 Wheel
22 4380960 Base
23 4380990 Accessories carrier
24 3082130 Water coupling kit
25 3081280 TSS kit
26 3081270 Piston + seals kit
27 3081290 Valves + seals kit
28 4381470 Screw kit
29 4720060 Guard
30 4720240 Plate
31 4720520 Accessories carrier
32 4720230 Knob
33 4380394 Push-button
34 4720510 Guard
35 4720030 Plug
36 4720190 Guard
37 4720140 Hub pin
38 4720250 Lock
39 4720620 Board
40 4720480 Support
Avvolgitubo Pag.2
1 4720090 Knob
2 4720080 Handle
3 4720110 Pipe
4 4720120 Guide
5 4720260 Guard
6 4720130 Guard
7 4720100 Hook
8 4821020 Spring
9 4820410 Cover
10 4720160 Bracket
11 4101680 Plate
12 4102120 Support
13 4720150 Bracket
14 4101750 Hub pin
15 4101660 Lever
16 4101672 Knob
Accessori Standard Pag.3
1 4381483 Gun
2 4381493 Extension
3 4100800 Lance head
4 4381830 Lance head
5 4381500 Tank
6 4383530 High pressure hose
7 3083700 O-ring
8 3083370 O-ring
9 3083400 O-ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi&Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi&Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Michelin MPX 17 EHDS - 14750
12 Items

Data sheet

Machine Type
Pressure Washer
SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram Michelin MPX 17 EHDS

Diagram Michelin MPX 17 EHDS

Download (549.33KB)
