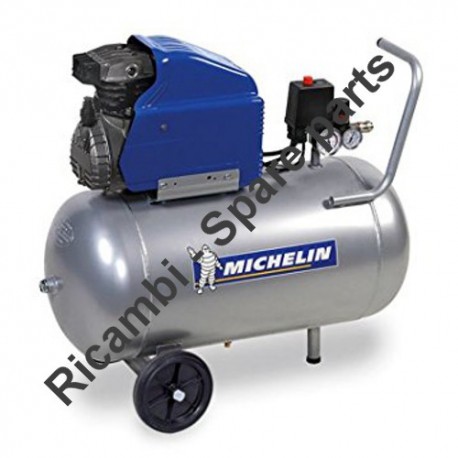

Michelin Spare Parts for Piston Air Compressor MB50 - GM 142

SKU: MB 50 GM142 - da 01/05/2009
€6.43
VAT included

Michelin Spare Parts for Piston Air Compressor MB50 - GM 142

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor MB50 - GM 142.

Michelin Spare Parts for Piston Air Compressor MB50 - GM 142
  • Michelin Spare Parts for Piston Air Compressor MB50 - GM 142
  • Michelin Spare Parts for Piston Air Compressor MB50 - GM 142

Michelin Spare Parts for Piston Air Compressor MB50 - GM 142

SKU: MB 50 GM142 - da 01/05/2009 Condition: New
€6.43
VAT included

Michelin Spare Parts for Piston Air Compressor MB50 - GM 142

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor MB50 - GM 142.

settings 25 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

25 spare parts

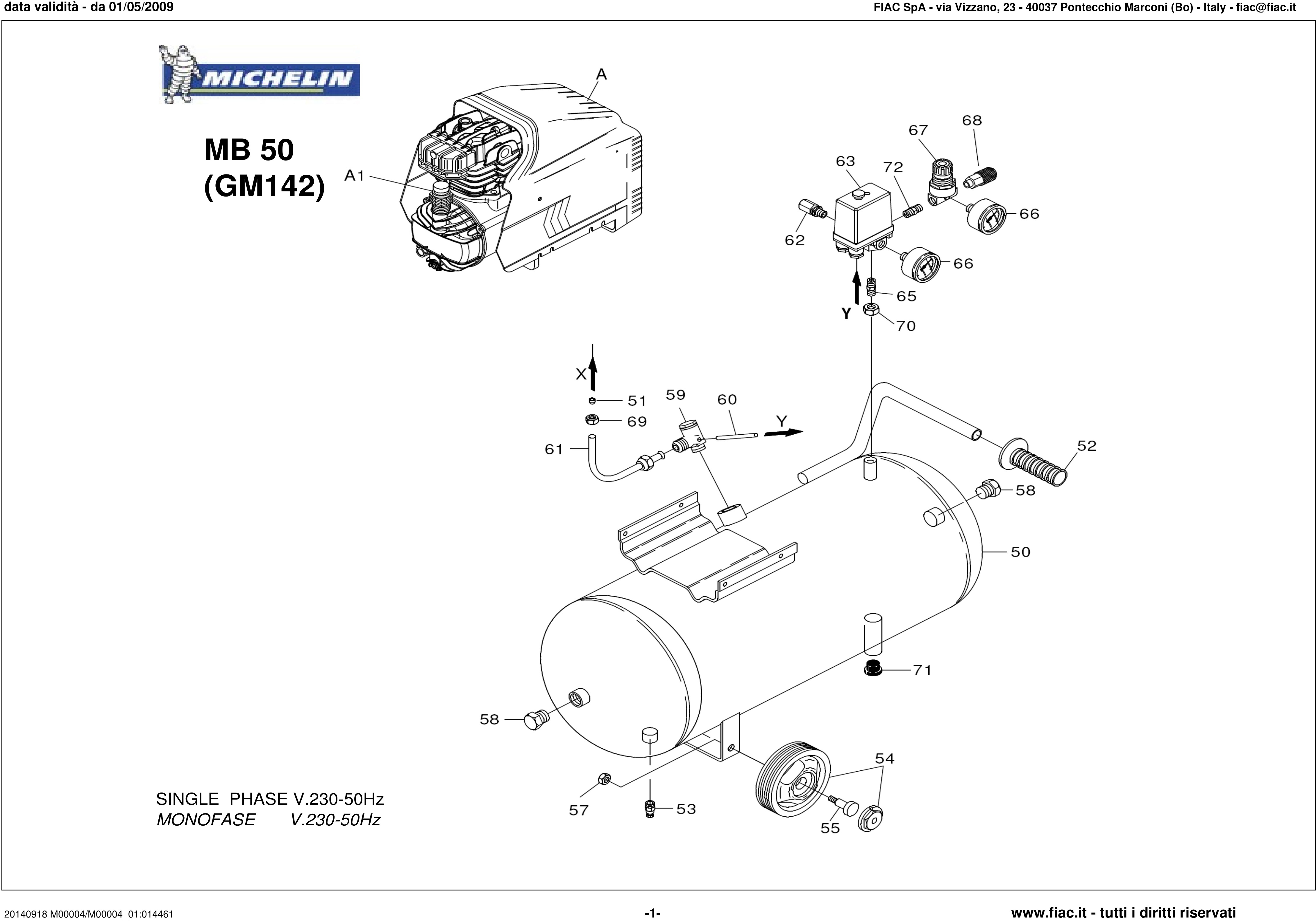

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
A1
Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP 7181150000 Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP €10.95
A
photo_cameraImage coming soon 9104890000 Pump Unit GM 142B V230 / 50 + CAREN.NERA €151.41
50
photo_cameraImage coming soon 9100010610 TANK 50LT. GM192-193-244 CE87 €185.86
51
Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €4.37
52
photo_cameraImage coming soon 7280070000 knob €7.05
53
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
54
Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
55
Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
57
photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
58
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
59
Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
60
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
61
Aluminium Pipe for Air Compressor FIAC COSMOS 255 S 9700000343 Aluminium Pipe for Air Compressor FIAC COSMOS 255 S €12.15
62
Safety Valve M1/4"-8,5 Bar for Air Compressors Fiac 7192430000 Safety Valve M1/4"-8,5 Bar for Air Compressors Fiac €11.70
63
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
65
photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
66
photo_cameraImage coming soon 7110450000 manometer €15.53
67
Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
68
photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
69
photo_cameraImage coming soon 7024140000 Nut 3/8 " €4.11
70
photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
71
Rubber Foot for Air Compressor FIAC Cosmos 50 7360040000 Rubber Foot for Air Compressor FIAC Cosmos 50 €4.34
72
photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87

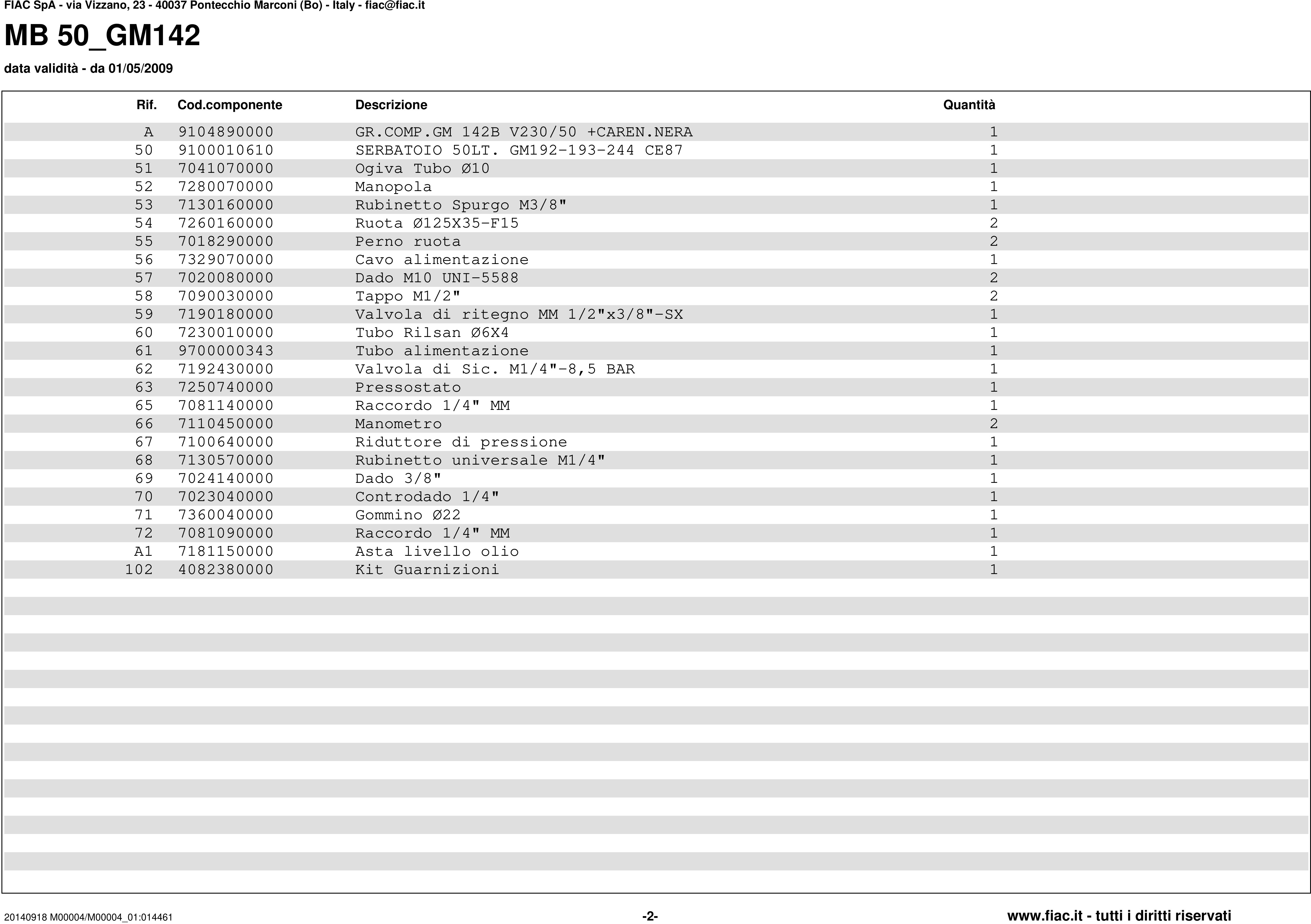

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
56
photo_cameraImage coming soon 7329070000 Power Cord €29.80
102
Gaskets Set for Pump Unit FIAC GM 142 - GM 145 4082380000 Gaskets Set for Pump Unit FIAC GM 142 - GM 145 €6.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Michelin Spare Parts for Piston Air Compressor MB50 - GM 142

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor MB50 - GM 142.

In the following table, look for the type of the Air Compressor and the respective parts of the code.
MB 50 GM142 - da 01/05/2009

MB 50_GM142 data validità - da 01/05/2009
# Part Num. Description
A GM142 Spare Parts
A 9104890000 GR.COMP.GM 142B V230 / 50 + CAREN.NERA
50 9100010610 TANK 50LT. GM192-193-244 CE87
51 7041070000 Ogiva tube Ø10
52 7280070000 knob
53 7130160000 Draining tap M3/8"
54 7260160000 Wheel Ø125X35-F15
55 7018290000 wheel axle
56 7329070000 power cable
57 7020080000 Nut M10 UNI-5588
58 7090030000 Cap M1/2"
59 7190180000 Check valve MM 1.2 "x3/8" -sx
60 7230010000 Rilsan tube Ø6X4
61 9700000343 tube feeding
62 7192430000 Valve Sic. M1/4"-8.5 BAR
63 7250740000 pressure
65 7081140000 Fitting 1/4" MM
66 7110450000 manometer
67 7100640000 Pressure reducer
68 7130570000 Tap Universal M1/4"
69 7024140000 Nut 3/8"
70 7023040000 Locknut 1/4"
71 7360040000 Rubber Ø22
72 7081090000 Fitting 1/4 "MM
A1 7181150000 Oil dipstick
102 4082380000 Gasket Kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
MB 50 GM142 - da 01/05/2009
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Michelin MB50-GM142

Diagram Michelin MB50-GM142

Download (302.56KB)
