FIAC spa

Michelin Spare Parts for Piston Air Compressor MCX 24

SKU: Michelin MCX24 - da 01/05/2009
€4.35
VAT included

Michelin Spare Parts for Piston Air Compressor MCX 24

We are Michelin original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor MCX 24.

Michelin Spare Parts for Piston Air Compressor MCX 24
  • Michelin Spare Parts for Piston Air Compressor MCX 24
  • Michelin Spare Parts for Piston Air Compressor MCX 24
FIAC spa

Michelin Spare Parts for Piston Air Compressor MCX 24

SKU: Michelin MCX24 - da 01/05/2009 Condition: New
€4.35
VAT included

Michelin Spare Parts for Piston Air Compressor MCX 24

We are Michelin original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor MCX 24.

settings 28 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
26 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

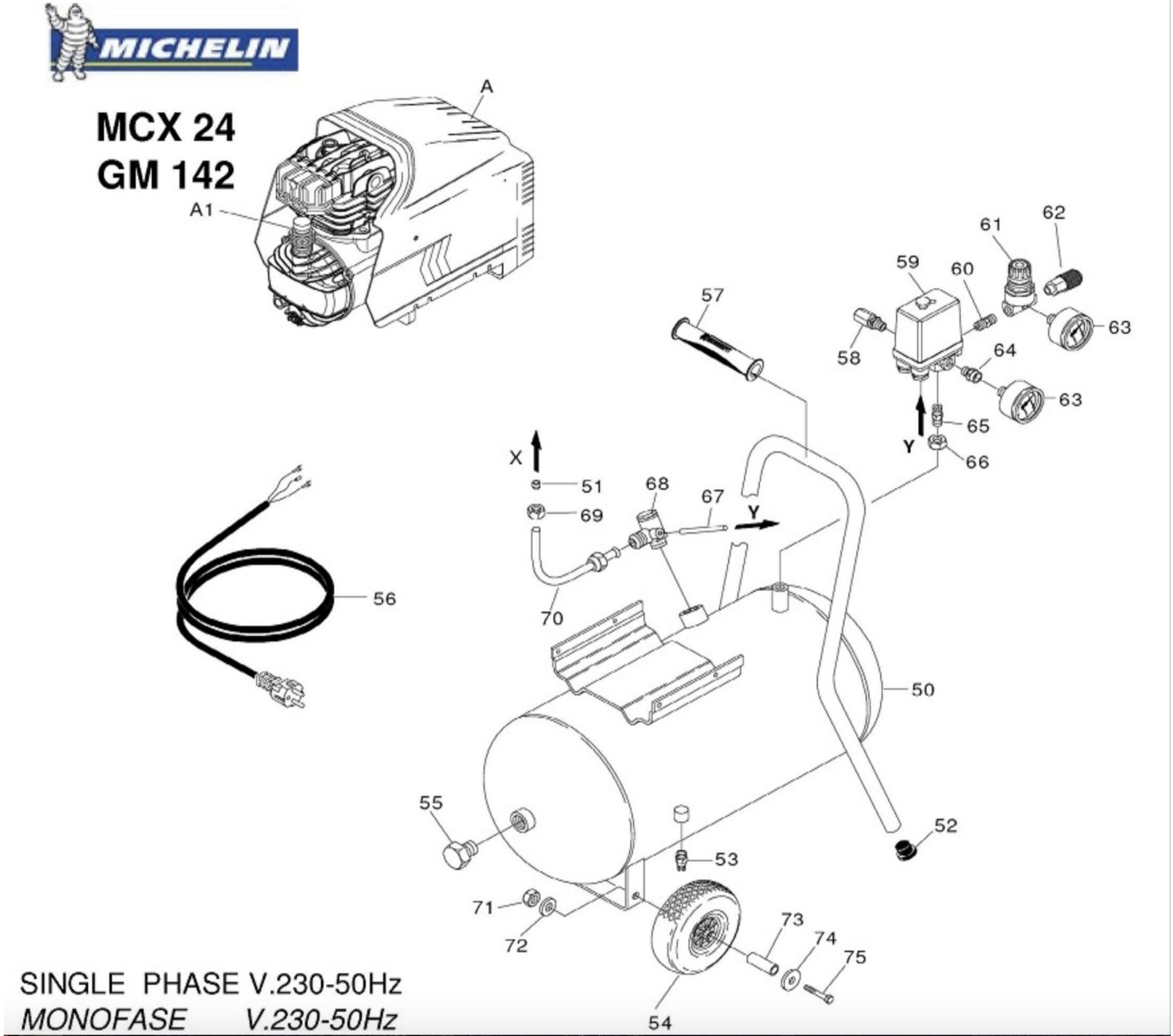

Esploso pagina 1
Pos. Item Price Buy
A1
 Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP 7181150000 Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP €10.95
A
 photo_cameraImage coming soon 9104890000 Pump Unit GM 142B V230 / 50 + CAREN.NERA €151.41
50
 photo_cameraImage coming soon 5159750008 24lt tank €367.37
51
 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €4.37
52
 photo_cameraImage coming soon 7360190000 Rubber Foot €4.32
53
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
54
 photo_cameraImage coming soon 7260410000 Wheel Ø210X65 F20 €24.64
55
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
56
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
57
 photo_cameraImage coming soon 7280190000 knob €7.22
58
 Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
59
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
60
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
61
 Pressure Regulator for Air Compressors Michelin MCX 24 - MCX 50 7100750000 Pressure Regulator for Air Compressors Michelin MCX 24 - MCX 50 €22.91
62
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
63
 photo_cameraImage coming soon 7110450000 manometer €15.53
64
 photo_cameraImage coming soon 7085180000 Fitting 1 / 4-1 / 8 MF €6.97
65
 photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
66
 photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
67
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
68
 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
69
 photo_cameraImage coming soon 7024140000 Nut 3/8 " €4.11
70
 photo_cameraImage coming soon 7230430000 Tube Feeding €14.33
72
 photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
73
 photo_cameraImage coming soon 7332030000 wheel axle €4.32
75
 photo_cameraImage coming soon 7011200000 Screw M12X100 UNI-5737 €5.77

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Michelin Spare Parts for Piston Air Compressor MCX 24

We are Michelin original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor MCX 24.

In the following table, look for the type of the air compressor and the respective parts of the code .
Michelin MCX 24 - da 01/05/2009

MCX 24 validity date - from 01/05/2009
# Part Num. Description
A 9104890000 GM 142B V230 / 50 + COVER BLACK
50 5159750008 24lt tank
51 7041070000 Spinner tube Ø10
52 7360190000 Rubber foot
53 7130160000 Drain tap M3/8"
54 7260410000 Wheel Ø210X65 F20
55 7090030000 Cap M1 / 2 "
56 7329070000 power cable
57 7280190000 knob
58 7192020000 Valve Sic. M1 / 4-8,5Bar
59 7250740000 pressure Switch
60 7081090000 Fitting 1/4 "MM
61 7100750000 Pressure reducer
62 7130570000 Tap universal M1 / 4 "
63 7110450000 manometer
64 7085180000 Fitting 1 / 4-1 / 8 MF
65 7081140000 Fitting 1/4 "MM
66 7023040000 Nut 1/4 "
67 7230010000 Tube Rilsan Ø6X4
68 7190180000 Check valve MM 1/2 "x3 / 8" -sX
69 7024140000 Nut 3/8 "
70 7230430000 tube feeding
71 7020100000 Nut M12 UNI-5588
72 7030140000 Washer Ø12 UNI-6592
73 7332030000 wheel axle
74 7030200000 Washer Ø12X36X2,5 UNI-6593
75 7011200000 Screw M12X100 UNI-5737
A1 7181150000 Dipstick
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Michelin MCX24 - da 01/05/2009
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Michelin MCX 24

Diagram Michelin MCX 24

Download (272.29KB)
