Michelin Spare Parts for Piston Air Compressor MCX 20

SKU: Michelin MCX 20
€10.00
VAT included

Michelin Spare Parts for Piston Air Compressor MCX 20

Distribution and Sale at attractive prices of MICHELIN Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Air Compressor MCX 20.
Michelin Spare Parts for Piston Air Compressor MCX 20
  • Michelin Spare Parts for Piston Air Compressor MCX 20
  • Michelin Spare Parts for Piston Air Compressor MCX 20

Michelin Spare Parts for Piston Air Compressor MCX 20

SKU: Michelin MCX 20 Condition: New
€10.00
VAT included

Michelin Spare Parts for Piston Air Compressor MCX 20

Distribution and Sale at attractive prices of MICHELIN Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Air Compressor MCX 20.
settings 37 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
  • 7422250000
  • 7083160000
  • 7085200000
  • 7422250030
  • 7090070000
  • 7422280000
  • 7130090000
  • 7152070000
  • 7190290000
  • 7230030000
  • 7261130000
  • 7012170000
  • 7326860000
  • 7327130000
  • 7012890000
  • 7360420000
  • 7082050000
  • 7084220000
  • 7422250010
  • 7088110000
  • 7422250040
  • 7500660000
  • 7100760000
  • 7130570000
  • 7152080000
  • 7192020000
  • 7239610000
  • 7300310000
  • 7012490000
  • 7327080000
  • 7327140000
  • 7018770000
  • 7364550000
  • 7083120000
  • 7084240000
  • 7422250020
  • 7090030000
  • 7422270000
  • 725074000
  • 7110240000
  • 7151780000
  • 7152090000
  • 7230010000
  • 7260290000
  • 5153850008
  • 7310710000
  • 7327120000
  • 7012570000
  • 7327160000
  • 7042010000
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

33 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
5
photo_cameraImage coming soon 7151780000 COVER INNER PLASTIC RAL9005 €6.39
7
photo_cameraImage coming soon 7300310000 SWITCH €7.62
8
Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
9
Pressure Regulator for Air Compressors Michelin MCX 6 - MCX 20 7100760000 Pressure Regulator for Air Compressors Michelin MCX 6 - MCX 20 €22.36
10
”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 7084240000 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 €12.09
11
photo_cameraImage coming soon 7088110000 FITTING 1/4 MF €12.83
12
photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
15
photo_cameraImage coming soon 7083120000 The Fitting 1/4-Pipe Ø8 €9.26
16
photo_cameraImage coming soon 7190290000 CHECK VALVE MM 1/4" €15.79
17
photo_cameraImage coming soon 7083160000 FITTING 1/4 FXD.8 €11.26
18
photo_cameraImage coming soon 7422250000 GROUP UMC V.230 / 50-60HZ €209.61
018A
photo_cameraImage coming soon 7422270000 GROUP UMC V.120/50-60HZ CSA €222.90
018B
photo_cameraImage coming soon 7422280000 GROUP UMC V.100/50-60HZ €390.12
19
Valve Plate Kit for Air Compressors B&D CP 6 - Michelin  MCX 6-MCX 20 7422250010 Valve Plate Kit for Air Compressors B&D CP 6 - Michelin MCX 6-MCX 20 €36.17
20
Belt for Air Compressor Yamato Oil-Less 6-1,5 7422250030 Belt for Air Compressor Yamato Oil-Less 6-1,5 €24.80
21
Conrod + Piston Kit for Air Compressor Black & Decker CP6 7422250040 Conrod + Piston Kit for Air Compressor Black & Decker CP6 €54.33
22
Cylinder for Air Compressor Black & Decker CP6 7422250020 Cylinder for Air Compressor Black & Decker CP6 €15.97
24
photo_cameraImage coming soon 7230030000 TUBE RILSAN Ø10X8 €8.96
26
Michelin MCX 20 Wheel D.175 F.15 7260290000 Michelin MCX 20 Wheel D.175 F.15 €13.70
29
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
30
photo_cameraImage coming soon 7085200000 Fitting 1 / 2-1 / 4 MM €6.03
31
FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
32
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
33
photo_cameraImage coming soon 7084220000 Fitting DIR.M1 / 4 "-6 QUICK €6.64
34
Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
35
photo_cameraImage coming soon 7082050000 Fitting "T" fourth FFM €12.10
36
photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
37
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
039B
photo_cameraImage coming soon 7327120000 POWER CABLE €13.53
039A
photo_cameraImage coming soon 7327130000 POWER CABLE €11.09
39
photo_cameraImage coming soon 7327160000 POWER CABLE €9.52
40
photo_cameraImage coming soon 7326860000 ELECTRICAL CABLE €1.34
42
photo_cameraImage coming soon 7012570000 Screw 5,5X25 UNI-6956 €1.38

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Michelin Spare Parts for Piston Air Compressor MCX 20

Distribution and Sale at attractive prices of MICHELIN Original Spare Parts

. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Air Compressor MCX 20.

In the following table, look for the type of the Air Compressor and the respective parts of the code.

Air Compressor MCX 20
1 7152070000 Motor Hull GRAY 7062-20LT.Vertical
2 7152080000 Hull Closing GREY 7062-20LT.Vertical
3 7152100000 SHIELD Blue Top Michelin-20LT.Vertical
4 7152090000 BLUE SHIELD LOWER MICHELIN-20LT.Vertical
5 7151780000 Hull Inner Plastic RAL9005
6 5153850008 Tank 20lt
7 7300310000 Switch
8 7110240000 Manometer Ø40-1 / 8 "
9 7100760000 Pressure Reducer
10 7084240000 The Connection M1 / ​​4 "- Ø6
11 7088110000 Fitting 1/4 MF
12 7130570000 Universal Tap M1 / ​​4 "
13 7360420000 Foot Rubber 20lt.Verticale
14 7364550000 Antivibration
15 7083120000 The Fitting 1/4-Pipe Ø8
16 7190290000 Check Valve MM 1/4 "
17 7083160000 Fitting 1 / 4FXD.8
18 7422250000 Group Umc V.230 / 50-60hz
19 7422250010 Kit Valve Plate
20 7422250030 Belt
21 7422250040 Kit Connecting Rod / Piston
22 7422250020 Cylinder
23 7239610000 Prol.Spia Oil Pipe Silent 400-500
24 7230030000 Rilsan Tube Ø10X8
25 7018770000 20lt.Vertic.D.15 Axle X 330
26 7260290000 Wheel Ø175 F.15
27 7042010000 Seeger TYPE ZA 15
28 7261130000 Wheel Cover
29 7090030000 Cap 1/2
30 7085200000 Fitting 1 / 2-1 / 4 MM
31 7130090000 Bleeding Tap M1 / ​​4 "
32 7230010000 Rilsan Tube Ø6X4
33 7084220000 Fitting DIR.M1 / 4 "-6 QUICK
34 7192020000 Safety Valve M1 / ​​4-8,5Bar
35 7082050000 Fitting "T" 1/4 FFM
36 7090070000 Cap M1 / ​​4 "
37 7250740000 Pressure Switch
38 7012890000 Screw Ø4,2X25
39 7327160000 Power Cable
40 7326860000 Electrical Cable
41 7310710000 Condenser MF.0,22 + CABLES 20LT.VERTIC
42 7012570000 Screw 5,5X25 UNI-6956
43 7012490000 Screw M6x40 UNI-7686
44 7012170000 Screw M5X8 UNI-8112
45 7327140000 Electrical Cable
46 7500660000 Rubber Cable F = 12 X-Mcx20 Cp.20
018A 7422270000 Group Umc V.120 / 50-60hz Csa
018B 7422280000 Group Umc V.100 / 50-60hz
039A 7327130000 Power Cable
039B 7327120000 Power Cable
039C 7327080000 Power Cable

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Michelin MCX 20
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

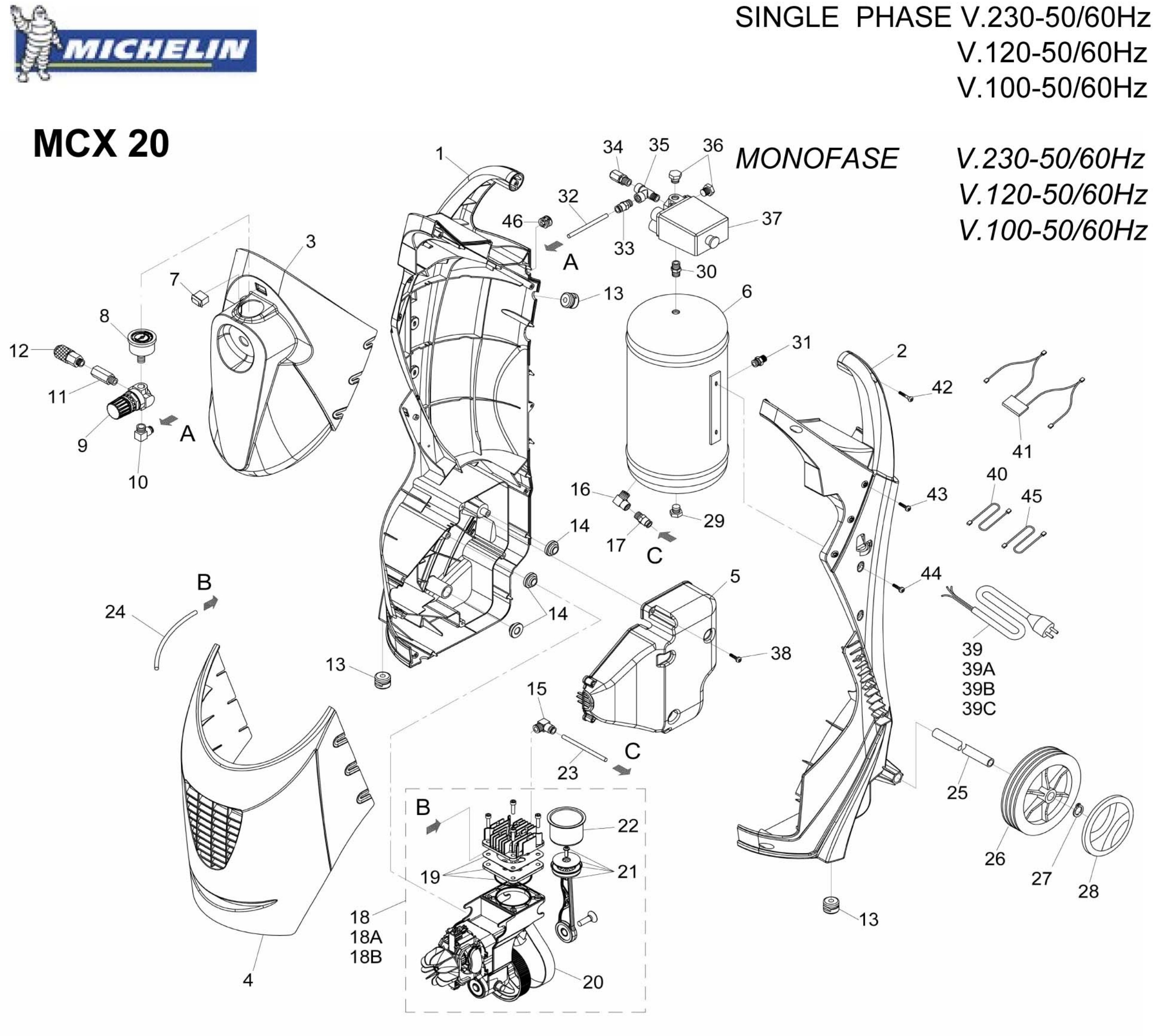

Diagram Michelin MCX 20

Diagram Michelin MCX 20

Download (321.49KB)
