Michelin Spare Parts for Piston Air Compressor VCX 100

SKU: Michelin VCX100-3
€251.20
VAT included

Michelin Spare Parts for Piston Air Compressor VCX 100

We are MICHELIN original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Piston Air Compressors VCX 100.
Michelin Spare Parts for Piston Air Compressor VCX 100
  • Michelin Spare Parts for Piston Air Compressor VCX 100
  • Michelin Spare Parts for Piston Air Compressor VCX 100

Michelin Spare Parts for Piston Air Compressor VCX 100

SKU: Michelin VCX100-3 Condition: New
€251.20
VAT included

Michelin Spare Parts for Piston Air Compressor VCX 100

We are MICHELIN original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Piston Air Compressors VCX 100.
settings 40 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

35 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
*
Michelin VCX100 Capacitor MF.55 7310860000 Michelin VCX100 Capacitor MF.55 €31.27
1
photo_cameraImage coming soon 5011970008 Bracket €243.89
2
photo_cameraImage coming soon 7370050000 V-belt A 43 €19.57
3
photo_cameraImage coming soon 7381390000 SINGLE PHASE MOTOR €298.77
4
photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
5
photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
6
Fiac Pulley D.90 F.19A 7408140000 Fiac Pulley D.90 F.19A €28.59
7
photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
8
photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
9
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
10
photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
11
photo_cameraImage coming soon 7011140000 Screw M10x20 UNI-5739 €1.25
12
Pressure Regulator 950/1/Universal-M 3/8''-0/12 Bar 7100550000 Pressure Regulator 950/1/Universal-M 3/8''-0/12 Bar €54.52
13
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
15
photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
16
photo_cameraImage coming soon 7240480000 Belt Guard RT 51 VB 50/350 €94.36
17
photo_cameraImage coming soon 7260110000 Wheel pivot Ø80X21 €27.49
18
photo_cameraImage coming soon 7011230000 Screw M12x80 UNI-5739 €1.72
20
photo_cameraImage coming soon 7330010000 wheel spacer €4.09
21
photo_cameraImage coming soon 7260060000 Wheel Ø175X45 F20 €18.53
22
photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
24
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
25
photo_cameraImage coming soon 7459410000 Belt Guard bracket €10.77
26
photo_cameraImage coming soon 7234140000 tube feeding €33.05
27
Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €29.61
28
FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
29
FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
30
FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
31
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
32
photo_cameraImage coming soon 7328690000 Cable Pressure Switch / Motor €28.67
33
photo_cameraImage coming soon 7329070000 Power Cord €29.80
34
photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
35
Michelin VCX100 Drain Valve 7196340000 Michelin VCX100 Drain Valve €15.71
36
photo_cameraImage coming soon 5154700008 tank 150lt €546.10
38
Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Michelin Spare Parts for Piston Air Compressor VCX 100

We are MICHELIN original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Piston Air Compressors VCX 100.

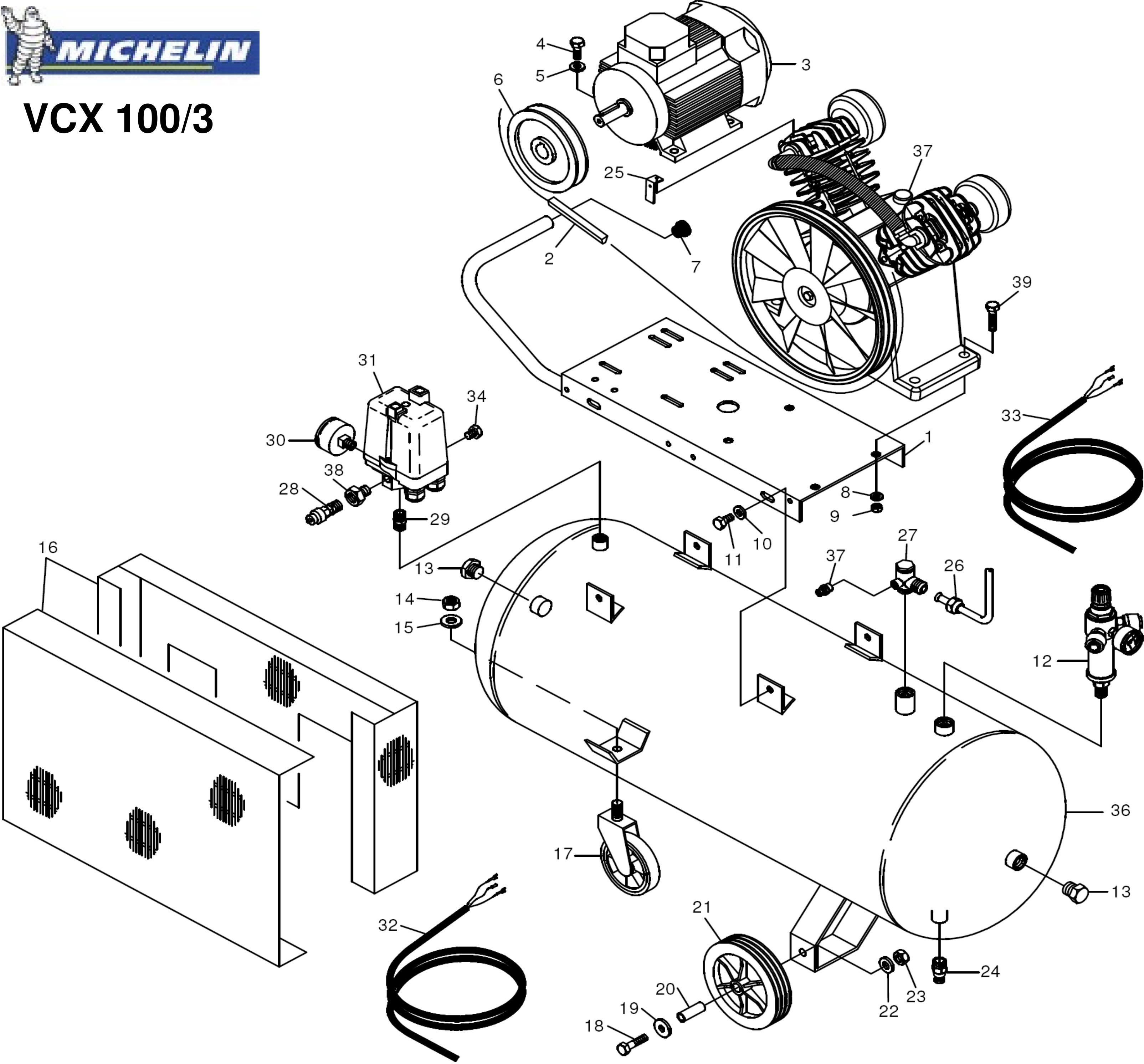

In the following table, look for the type of the air compressor and the respective parts of the code.
Michelin VCX 100-3

VCX 100-3 validity date - from 09/11/2007 to 03/11/2011
# Part Num. Description
1 5011970008 Bracket
2 7370050000 V-belt A 43
3 7381390000 SINGLE PHASE MOTOR
4 7011100000 Screw M8X25 UNI-5739
5 7030030000 Washer Ø8 UNI-6592
6 7408140000 Pulley op 90 F 19 A
7 7360020000 rubber Ø16
8 7030030000 Washer Ø8 UNI-6592
9 7020070000 Nut M8 UNI-5587
10 7030040000 Washer Ø10 UNI-6592
11 7011140000 Screw M10x20 UNI-5739
12 7100550000 Pressure reducer
13 7090030000 Cap M1 / 2 "
14 7020100000 Nut M12 UNI-5588
15 7030140000 Washer Ø12 UNI-6592
16 7240480000 Belt Guard RT 51 VB 50/350
17 7260110000 Wheel pivot Ø80X21
18 7011230000 Screw M12X80 UNI-5739
19 7030200000 Washer Ø12X36X2,5 UNI-6593
20 7330010000 wheel spacer
21 7260060000 Wheel Ø175X45 F20
22 7030140000 Washer Ø12 UNI-6592
23 7020100000 Nut M12 UNI-5588
24 7130160000 Drain Valve M3/8"
25 7459410000 Belt Guard bracket
26 7234140000 tube feeding
27 7190090000 Check valve MM 1/2 "-DX
28 7192090000 Safety Valve 3/8 "10,4BAR
29 7088060000 Fitting MM 3 / 8-1 / 4 CIL 3/8
30 7110060000 Pressure gauge
31 7250740000 pressure Switch
32 7328690000 Cable Pressure / Motor
33 7329070000 power cable
34 7090070000 Cap M1 / 4 "
35 7196340000 Drain valve M1/8
36 5154700008 tank 150lt
37 7422160000 Pump unit AB17
38 7023050000 Nut 3/8 "
39 7011110000 Screw M8x30 UNI-5739
* 7310860000 CAPACITOR MF.55 450V HP.3-CIMA--
