FIAC spa

Michelin MB200/360 400V Spare Parts

SKU: MB200/360 400V 1121480880
€372.81
VAT included

Michelin MB200/360 400V Spare Parts

Genuine Parts Michelin for piston Air Compressor MB200/360 400V 1121480880.

Michelin MB200/360 400V Spare Parts
  • Michelin MB200/360 400V Spare Parts
  • Michelin MB200/360 400V Spare Parts - Drawing
  • Michelin MB200/360 400V Spare Parts
FIAC spa

Michelin MB200/360 400V Spare Parts

SKU: MB200/360 400V 1121480880 Condition: New
€372.81
VAT included

Michelin MB200/360 400V Spare Parts

Genuine Parts Michelin for piston Air Compressor MB200/360 400V 1121480880.

settings 68 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
68 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

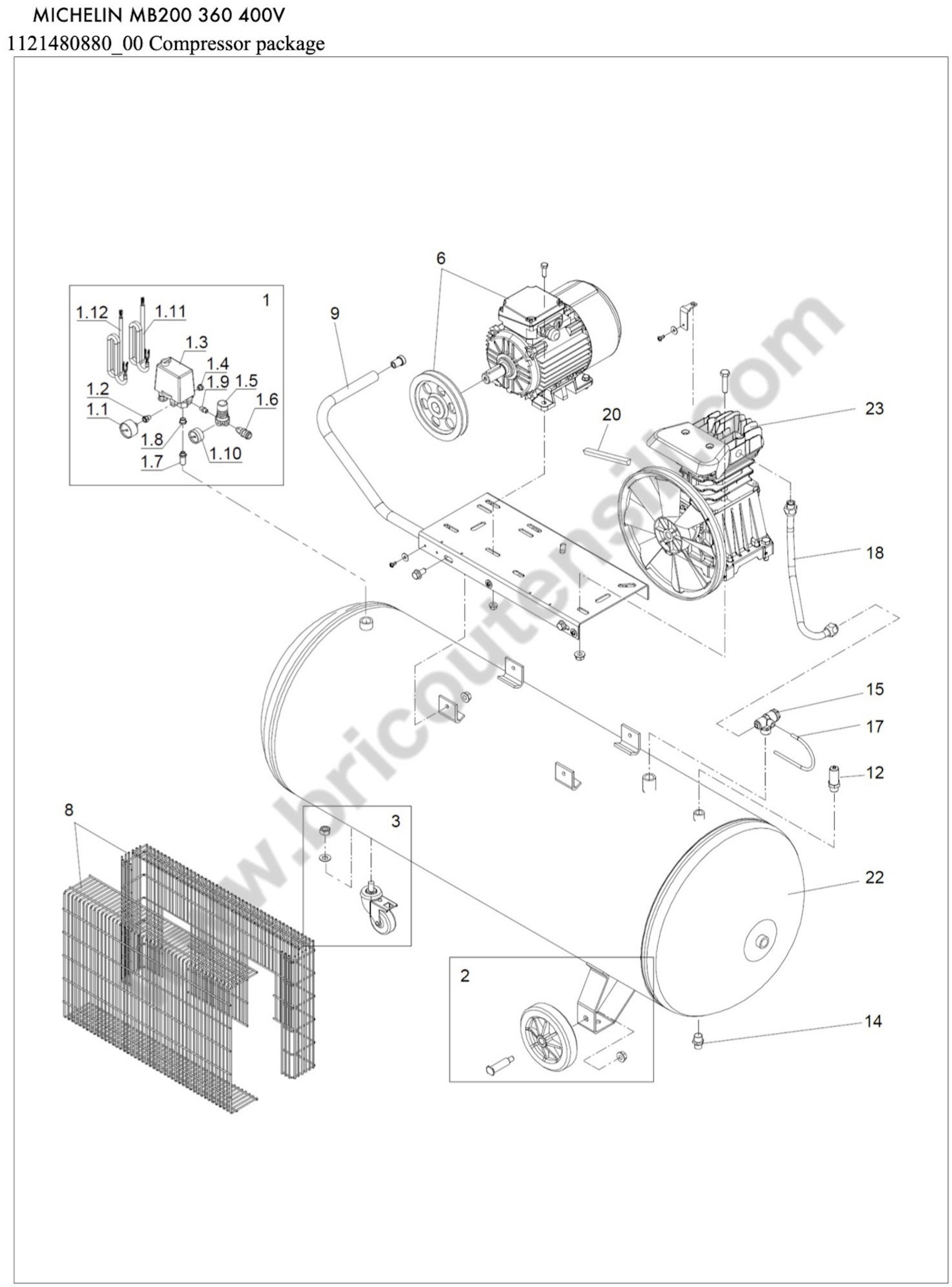

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4056690000 Press. Switch kit €372.81
1.9
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
1.8
 photo_cameraImage coming soon 7085190000 3/8 "-1/4" MF €15.97
1.2
 photo_cameraImage coming soon 7085230000 Fitting 1/4 "-1/4" MF €4.34
1.7
 FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
1.4
 photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
1.5
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
1.10
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
1.1
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
1.6
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
1.3
 photo_cameraImage coming soon 7250450000 PRESSURE SWITCH €104.77
1.11
 photo_cameraImage coming soon 7328020000 Alimentation cable €34.30
1.12
 photo_cameraImage coming soon 7328030000 Cable Pressure Switch / Motor €27.62
2
 Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo 4083010000 Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo €21.06
3
 photo_cameraImage coming soon 4083400000 KIT €16.73
6
 photo_cameraImage coming soon 4151130000 Motor with pulley €431.51
9
 photo_cameraImage coming soon 5011290008 BASE PLATE €98.21
12
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
14
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
15
 Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €29.61
17
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
18
 Air Supply Hose mm 14 for Pump Units FIAC AB150-200/360 + Cooler 7233711000 Air Supply Hose mm 14 for Pump Units FIAC AB150-200/360 + Cooler €25.69
20
 photo_cameraImage coming soon 7370060000 V-Belt A 46 €13.48
22
 photo_cameraImage coming soon 5152130008 TANK €734.21
23
 photo_cameraImage coming soon 1129740084 PUMP UNIT €267.49
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

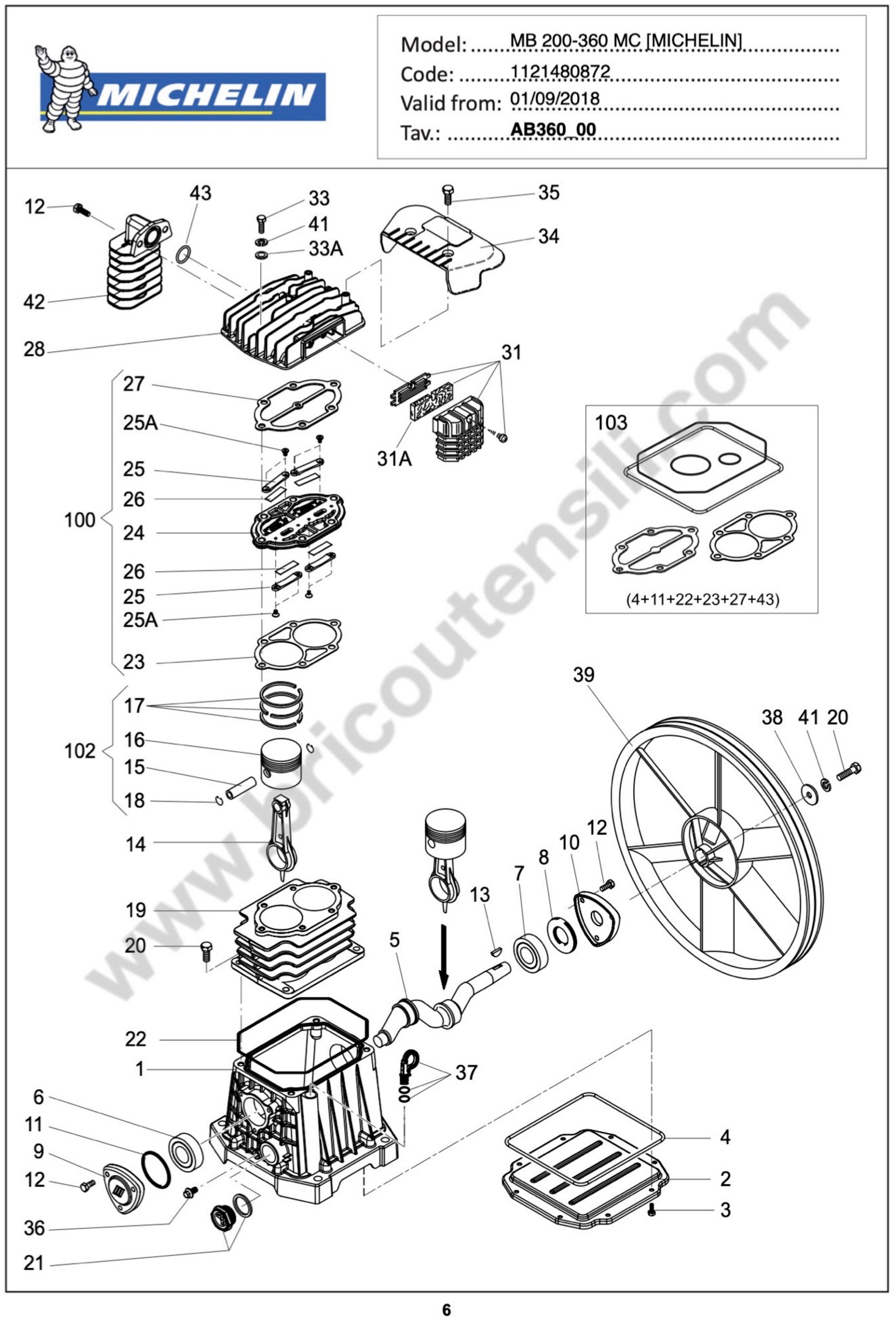

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 9700001075 Case €79.81
2
 FIAC AB268 Carter Cover 9700001076 FIAC AB268 Carter Cover €20.50
3
 photo_cameraImage coming soon 9700000531 Screw M5X18 UNI7687 €1.82
4
 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 9700001077 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 €4.34
5
 Crank Shaft for Pumping Units FIAC AB248-338-360 9100270140 Crank Shaft for Pumping Units FIAC AB248-338-360 €58.71 Not available for order
6
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €11.77
7
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
8
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
9
 Front Cover for Pumping Units FIAC AB248-268-338-360 9100270160 Front Cover for Pumping Units FIAC AB248-268-338-360 €12.15
10
 Rear Cover for Pumping Units FIAC AB248-268-338-360 9100270170 Rear Cover for Pumping Units FIAC AB248-268-338-360 €12.15
11
 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 9100280010 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 €4.34
12
 photo_cameraImage coming soon 7011420000 Screw M6X16 UNI-5739 €1.52
13
 FIAC AB268 Flywheel Key 9100280020 FIAC AB268 Flywheel Key €1.29
14
 Conrod for Pumping unit FIAC AB338-360 9100270010 Conrod for Pumping unit FIAC AB338-360 €29.72
15
 FIAC AB360 Piston Pin 9100270020 FIAC AB360 Piston Pin €4.47
16
 Piston for Pumping unit FIAC AB 360 9100270030 Piston for Pumping unit FIAC AB 360 €26.10
17
 Piston Rings for Pumping Unit FIAC AB 360-410-510-512 4080120000 Piston Rings for Pumping Unit FIAC AB 360-410-510-512 €30.99
18
 FIAC AB360 Piston Pin Seeger 9100270070 FIAC AB360 Piston Pin Seeger €1.47
19
 photo_cameraImage coming soon 9100270080 Cylinder €96.35
20
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €1.52
21
 FIAC Pump Unit AB268 Oil Sight Glass 9700000408 FIAC Pump Unit AB268 Oil Sight Glass €7.04
22
 Cylinder Carter Gasket for Air Compressors FIAC AB 248-338-360 9100270180 Cylinder Carter Gasket for Air Compressors FIAC AB 248-338-360 €9.50
23
 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 9100270190 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 €6.13
25
 photo_cameraImage coming soon 7198220000 VALVE €4.97
27
 Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 9100270210 Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 €7.12
28
 photo_cameraImage coming soon 9100270100 Top €43.81
31A
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
31
 photo_cameraImage coming soon 9700001902 INTAKE FILTER KIT €11.42
33
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
33A
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
34
 Air Conveyor for Pumping Units FIAC AB248-268-338-360 9100270220 Air Conveyor for Pumping Units FIAC AB248-268-338-360 €10.61
35
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
36
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
37
 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 9700000300 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 €6.11
38
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
39
 Flywheel for Pumping unit Fiac AB 248-338-360 9100270230 Flywheel for Pumping unit Fiac AB 248-338-360 €64.36
41
 photo_cameraImage coming soon 9700010087 WASHER €4.47
42
 photo_cameraImage coming soon 9700002651 Cooler €19.04
43
 O_ring 9100270280 O_ring €4.47
100
 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 9700003272 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 €56.90
102
 photo_cameraImage coming soon 9700002034 PISTON KIT €35.06
102A
 FIAC AB360 Conrod-Piston Kit 9700010170 FIAC AB360 Conrod-Piston Kit €31.73
103
 FIAC AB360 Gasket Kit 9700002932 FIAC AB360 Gasket Kit €21.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Michelin MB200/360 400V Spare Parts

Genuine Parts Michelin for piston Air Compressor MB200/360 400V 1121480880.

In the following table, look for the type of the air compressor and the respective parts of the code .
MB200/360 400V 1121480880

Michelin MB200/360 400V 1121480880 Spare Parts Pag.1
# Part Num. Description
1 4056690000 Pressure switch kit
1.1 7110300000 Pressure gauge
1.2 7085230000 Reducer fitting
1.3 7250450000 Pressure switch
1.4 7090070000 Plug
1.5 7100640000 Pressure reducer
1.6 7130570000 Universal Tap
1.7 7088060000 Spacing
1.8 7085190000 Fitting
1.9 7081090000 Fitting
1.10 7110240000 Pressure gauge
1.11 7328020000 Power cable
1.12 7328030000 Cable
2 4083010000 Wheels kit
3 4083400000 Pivot wheels kit
6 4151130000 Motor with pulley
8 4170300000 Belt guard kit
9 5011290008 Base plate+handle
12 7192090000 Safety valve
14 7130160000 Discharge tap
15 7190090000 Non return valve
17 7230010000 Unloader pipe aluminium
18 7233711000 Delivery pipe
20 7370060000 Belt
22 5152130008 Tank 200Lt
23 1129740084 Pump AB360
Pump Unit AB 360 Pag.2
1 9700001075 CRANKCASE
2 9700001076 CASING COVER
3 9700000531 SCREW
4 9700001077 O RING
5 9100270140 Crankshaft
6 7060180000 BEARING
7 7060200000 Ball Bearing 6204
8 9100270150 Oil seal 20x47x7
9 9100270160 COVER
10 9100270170 COVER
11 9100280010 O-ring 144
12 7011420000 SCREW
13 9100280020 FEATHER
14 9100270010 Connecting rod
15 9100270020 GUDGEON PIN
16 9100270030 Piston
17 4080120000 PISTON RING KIT
18 9100270070 RING
19 9100270080 CYLINDER
20 7012220000 SCREW
21 9700000408 OIL SIGHT GLASS
22 9100270180 O RING
23 9100270190 GASKET
24. VALVE PLATE
25 7198220000 VALVE
25A 7010790000 SCREW
26 7198210000 VALVE - DISCONTINUED
27 9100270210 GASKET
28 9100270100 HEAD
31 9700001902 INTAKE FILTER KIT
31A 7210010000 FILTER SPONGE ELEMENT
33 7010080000 SCREW
33A 7030030000 WASHER
34 9100270220 AIR CONVEYOR
35 7012090000 SCREW
36 7011460000 SCREW
37 9700000300 KIT
38 7030270000 WASHER
39 9100270230 FLYWHEEL
41 9700010087 WASHER
42 9700002651 COOLER
43 9100270280 O RING
100 9700003272 VALVE PLATE KIT
102 9700002034 PISTON KIT
102A 9700010170 CONROD PISTON KIT
103 9700002932 GASKET KIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
MB200/360 400V 1121480880
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Michelin MB200/360 400V Drawing

Michelin MB200/360 400V Drawing

Download (696.03KB)

You might also like

Pumping unit for air compressor Mod. AB 360 -10%
FIAC spa SKU: AB360 - 9101880000
Pumping unit for air compressor Mod. AB 360
Pumping unit for air compressor Mod. AB 360 Pump unit for air compressors Fiac 100/150/200 Liters lubricated single-stage belt drive. - System-head with large ciindro fins for heat dissipation - Ductile iron crankshaft carefully...
AVAILABLE €240.64 €267.38
Details
Piston for Pumping unit FIAC AB 360
SKU: 9100270030
Piston for Pumping unit FIAC AB 360
Piston for Pumping unit FIAC AB 360 Genuine replacement FIAC, Piston mm 59 for AB360 Entirely in aluminum, prepared with lubrication holes, grooves for series of piston rings. - Piston diameter : 59 mm - Pin hole diameter : 14.5 mm -...
AVAILABLE €26.10
Details
Cylinder Plate Gasket for Air Compressors FIAC AB248-360
FIAC spa SKU: 9100270190
Cylinder Plate Gasket for Air Compressors FIAC AB248-360
Cylinder Plate Gasket for Air Compressors FIAC AB248-360 Genuine part FIAC, Cylinder Plate Gasket for Pump Units FIAC AB248-360 Part for the following products: - Pump Units FIAC AB248 - Pump Units FIAC AB360 - Code: 9100270190
AVAILABLE €6.13
Details
Check Valve MM 1/2"-DX for Air Compressors
FIAC spa SKU: 7190090000
Check Valve MM 1/2"-DX for Air Compressors
Non Return Valve MM 1/2"-DX for Air Compressors Genuine part Fiac, Non Return Valve for air compressors, type Male-Male 1/2 '' Right, complete with nipple. Part for the following products: - Air Compressor AB 50/245 -335M - Air...
AVAILABLE €29.61
Details
Oil Seal for Pumping Units FIAC AB248-338-360
FIAC spa SKU: 9100270150
Oil Seal for Pumping Units FIAC AB248-338-360
Oil Seal for Pumping Units FIAC AB248-338-360 Genuine spare part FIAC, Oil Seal for Pump units FIAC AB248-360 Parts for the following products: - Pump unit AB 248-338 - Pump unit AB 360 - GM 145 validity date - from...
AVAILABLE €4.30
Details
Kit Piston for Pumping unit FIAC AB 360-410
FIAC spa SKU: 4291140000
Kit Piston for Pumping unit FIAC AB 360-410
Kit Piston for Pump unit FIAC AB 360-410 Genuine replacement FIAC, Kit of Piston Entirely in aluminum, with lubrication holes, Piston Rigs, Piston Pin, Circlip. - Piston diameter: 59 mm - Hole diameter pin: 15 mm - Code: 4291140000
AVAILABLE €41.27
Details
Flywheel for Pumping unit Fiac AB 248-338-360
FIAC spa SKU: 9100270230
Flywheel for Pumping unit Fiac AB 248-338-360
Flywheel for Pumping unit Fiac AB 248-338-360 Genuine Part FIAC, Flywheel Entirely in aluminum, with V groove for pumping units AB 248-338-360 . Part for the following products: - Pumping Unit AB 248-338 - Pumping Unit AB 360 -...
AVAILABLE €64.36
Details
Crank Shaft for Pumping Units FIAC AB248-338-360
FIAC spa SKU: 9100270140
Crank Shaft for Pumping Units FIAC AB248-338-360
Crank Shaft for Pumping Units FIAC AB248-338-360 Original part FIAC, Crank Shaft for pumping units FIAC AB248-338 - AB 360. Part for the following products: - Pump unit AB 248-338 - Pump unit AB 360 - Code: 9100270140
Out-of-Stock €58.71
Details
Set Intake Filter for Air Compressor Pump Unit AB 360
FIAC spa SKU: Kit Fitro Aria AB360
Set Intake Filter for Air Compressor Pump Unit AB 360
Set Intake Filter for Air Compressor Pump Unit Fiac AB 360 Genuine Parts FIAC, Set Intake Filter for Air Compressor Pump Unit AB 360, full supplied with 3 pieces, base, filter element,cover. Part for the following article: - Pumping...
AVAILABLE €15.99
Details
Air Filter Element for Pumping Units Fiac VX - VS - GM
FIAC spa SKU: 7210010000
Air Filter Element for Pumping Units Fiac VX - VS - GM
Air Filter Element for Pumping Units Fiac VX - VS - GM Genuine part FIAC, Air Filter Element, for pumping units VX 194-214 - 254-304 - 402-422 - VS 204-244 - 254-314 - GM 110 - 143-145 - 191-243 - 244-300. Parts...
AVAILABLE €4.37
Details
Conrod for Pumping unit FIAC AB338-360
FIAC spa SKU: 9100270010
Conrod for Pumping unit FIAC AB338-360
Conrod for Pumping unit FIAC AB338-360 Genuine part FIAC, Conrod Entirely in aluminum, For Pumping unit AB 338-360 prepared with lubrication holes. For Pumping unit AB 338-360 - Hole Diameter crankshaft: 35 mm - Piston pin hole...
AVAILABLE €29.72
Details
Oil Cap for Pump Units Fiac AB 248-338 AB 360
FIAC spa SKU: 9100280110
Oil Cap for Pump Units Fiac AB 248-338 AB 360
Oil Cap for Pump Units Fiac AB 248-338 AB 360 Original part FIAC, Oil Cap for Pump Units AB 248-338 AB 360 - Motor Compressor Fiac S10-360 - S50-360 - Agri 25/40 Part...
AVAILABLE €2.09
Details
Air Filter Cover for Pump Unit Fiac AB 360
FIAC spa SKU: 9100270240
Air Filter Cover for Pump Unit Fiac AB 360
Air Filter Cover for Pump Unit Fiac AB 360 Genuine Parts FIAC, Air Filter Cover for Air Compressor Pump Unit AB 360. Part for the following products: -  FIAC S10-360 - AB360 - HONDA -  FIAC S50-360 - AB360 - HONDA -  FIAC PUMP UNIT...
AVAILABLE €6.01
Details
Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo
FIAC spa SKU: 4083010000
Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo
Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo Original Part FIAC, Wheel Kit D.150 for FIAC Air Compressors - Michelin Air Compressors - AEG Part for the following products: -  Air Compressor AEG AB 200-360 MC...
on 7/10 Business Days Approx €21.06
Details
FIAC Pump Unit AB268 Oil Sight Glass
FIAC spa SKU: 9700000408
FIAC Pump Unit AB268 Oil Sight Glass
FIAC Pump Unit AB268 Oil Sight Glass Genuine Part FIAC, Oil Sight Glass for Pump Units AB268 - AB415. Ricambio per i seguenti prodotti: - Gruppo Pompante FIAC AB268 - 1129740083 - Gruppo Pompante  FIAC AB415 - 9700003004...
AVAILABLE €7.04
Details
FIAC AB360 Gasket Kit
FIAC spa SKU: 9700002932
FIAC AB360 Gasket Kit
FIAC Gasket Kit for Pump Unit AB360 Genuine replacement part FIAC, Gasket Kit for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC S360-22 1121440659...
AVAILABLE €21.53
Details
Fiac O-Ring 130 Viton
FIAC spa SKU: 9100270280
O_ring
Fiac O-Ring 130 Viton Genuine part FIAC, O-Ring 130 Viton (D22,22X2.62) COOLER for AIR COMPRESSORS PUMP UNITS FIAC - MICHELIN. Parts for the following article: - Fiac AB360 Spares -  Fiac AB415 - 9700003004 - ...
AVAILABLE €4.47
Details
FIAC AB360 Conrod-Piston Kit
FIAC spa SKU: 9700010170
FIAC AB360 Conrod-Piston Kit
FIAC AB360 Conrod & Piston Kit Genuine replacement part FIAC, Conrod & Piston Kit for air Pump Unit AB 360. Part for the following products: -  Engine Air Compressors S10-360 - AB360 - Honda -  Engine Air...
AVAILABLE €31.73
Details
FIAC AB268 Carter Cover
FIAC spa SKU: 9700001076
FIAC AB268 Carter Cover
FIAC AB268 Carter Cover Genuine replacement part FIAC, Bottom Carter Cover for Pump Units AB268 - AB248 - AB338. Part for the following products: -  Pumping Unit Fiac AB248 - AB338 -  Air Compressor Fiac Agri 25/40 - AB248...
Last items in stock €20.50
Details
FIAC AB360 Piston Pin
FIAC spa SKU: 9100270020
FIAC AB360 Piston Pin
FIAC Piston Pin for Pump Unit AB360 Genuine replacement part FIAC, Piston Pin for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC S360-22...
AVAILABLE €4.47
Details
FIAC AB360 Piston Pin Seeger
FIAC spa SKU: 9100270070
FIAC AB360 Piston Pin Seeger
FIAC Piston Pin Seeger for Pump Unit AB360 Genuine replacement part FIAC, Piston Pin Seeger for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC...
AVAILABLE €1.47
Details
Comments (0)
