FIAC spa

Michelin Parts for Air Compressor MB200-360 MC

SKU: MB200-360 MC 1121480872
€118.92
VAT included

Michelin Spare Parts for Piston Air Compressor MB200-360 MC

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components for Air Compressor MB 200-360 MC (MICHELIN) - 1121480872 01/09/2018.

Michelin Parts for Air Compressor MB200-360 MC

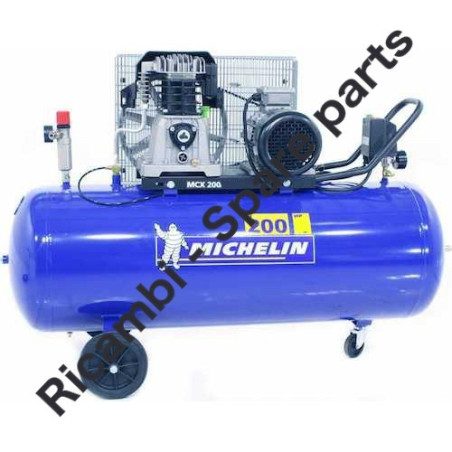

  • Michelin Parts for Air Compressor MB200-360 MC
  • Michelin Parts for Air Compressor MB200-360 MC - Drawing
  • Michelin Parts for Air Compressor MB200-360 MC - Drawing 1
FIAC spa

Michelin Parts for Air Compressor MB200-360 MC

SKU: MB200-360 MC 1121480872 Condition: New
€118.92
VAT included

Michelin Spare Parts for Piston Air Compressor MB200-360 MC

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components for Air Compressor MB 200-360 MC (MICHELIN) - 1121480872 01/09/2018.

settings 65 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4054720000 PRESS. SWITCH KIT €118.92
1.1
 Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42
1.2
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
1.3
 FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
1.4
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
1.5
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
1.6
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
1.7
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
1.8
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
1.9
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
1.10
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
2
 Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo 4083010000 Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo €21.06
3
 photo_cameraImage coming soon 4083400000 KIT €16.73
9
 photo_cameraImage coming soon 5011290008 BASE PLATE €98.21
12
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
14
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
15
 Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €29.61
17
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
18
 Air Supply Hose mm 14 for Pump Units FIAC AB150-200/360 + Cooler 7233711000 Air Supply Hose mm 14 for Pump Units FIAC AB150-200/360 + Cooler €25.69
20
 photo_cameraImage coming soon 7370060000 V-Belt A 46 €13.48
22
 photo_cameraImage coming soon 5152130008 TANK €734.21
23
 photo_cameraImage coming soon 1129740084 PUMP UNIT €267.49
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 9700001075 Case €79.81
2
 FIAC AB268 Carter Cover 9700001076 FIAC AB268 Carter Cover €20.50
3
 photo_cameraImage coming soon 9700000531 Screw M5X18 UNI7687 €1.82
4
 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 9700001077 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 €4.34
5
 Crank Shaft for Pumping Units FIAC AB248-338-360 9100270140 Crank Shaft for Pumping Units FIAC AB248-338-360 €58.71 Not available for order
6
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €11.77
7
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
8
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
9
 Front Cover for Pumping Units FIAC AB248-268-338-360 9100270160 Front Cover for Pumping Units FIAC AB248-268-338-360 €12.15
10
 Rear Cover for Pumping Units FIAC AB248-268-338-360 9100270170 Rear Cover for Pumping Units FIAC AB248-268-338-360 €12.15
11
 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 9100280010 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 €4.34
12
 photo_cameraImage coming soon 7011420000 Screw M6X16 UNI-5739 €1.52
13
 FIAC AB268 Flywheel Key 9100280020 FIAC AB268 Flywheel Key €1.29
14
 Conrod for Pumping unit FIAC AB338-360 9100270010 Conrod for Pumping unit FIAC AB338-360 €29.72
15
 FIAC AB360 Piston Pin 9100270020 FIAC AB360 Piston Pin €4.47
16
 Piston for Pumping unit FIAC AB 360 9100270030 Piston for Pumping unit FIAC AB 360 €26.10
17
 Piston Rings for Pumping Unit FIAC AB 360-410-510-512 4080120000 Piston Rings for Pumping Unit FIAC AB 360-410-510-512 €30.99
18
 FIAC AB360 Piston Pin Seeger 9100270070 FIAC AB360 Piston Pin Seeger €1.47
19
 photo_cameraImage coming soon 9100270080 Cylinder €96.35
20
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €1.52
21
 FIAC Pump Unit AB268 Oil Sight Glass 9700000408 FIAC Pump Unit AB268 Oil Sight Glass €7.04
22
 Cylinder Carter Gasket for Air Compressors FIAC AB 248-338-360 9100270180 Cylinder Carter Gasket for Air Compressors FIAC AB 248-338-360 €9.50
23
 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 9100270190 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 €6.13
25
 photo_cameraImage coming soon 7198220000 VALVE €4.97 Not available for order
27
 Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 9100270210 Cylinder Head Plate Gasket for Air Compressors FIAC AB248-360 €7.12
28
 photo_cameraImage coming soon 9100270100 Top €43.81
31A
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
31
 photo_cameraImage coming soon 9700001902 INTAKE FILTER KIT €11.42
33
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
33A
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
34
 Air Conveyor for Pumping Units FIAC AB248-268-338-360 9100270220 Air Conveyor for Pumping Units FIAC AB248-268-338-360 €10.61
35
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
36
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
37
 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 9700000300 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 €6.11
38
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
39
 Flywheel for Pumping unit Fiac AB 248-338-360 9100270230 Flywheel for Pumping unit Fiac AB 248-338-360 €64.36
41
 photo_cameraImage coming soon 9700010087 WASHER €4.47
42
 photo_cameraImage coming soon 9700002651 Cooler €19.04
43
 O_ring 9100270280 O_ring €4.47
100
 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 9700003272 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 €56.90
102
 photo_cameraImage coming soon 9700002034 PISTON KIT €35.06
102A
 FIAC AB360 Conrod-Piston Kit 9700010170 FIAC AB360 Conrod-Piston Kit €31.73
103
 FIAC AB360 Gasket Kit 9700002932 FIAC AB360 Gasket Kit €21.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Michelin Spare Parts for Piston Air Compressor MB200-360 MC

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components for Air Compressor MB 200-360 MC (MICHELIN) - 1121480872 01/09/2018.

In the following table, look for the type of the air compressor and the respective parts of the code.
Air Compressor MB 200-360 MC (MICHELIN) - 1121480872 01/09/2018

MB 200-360 MC (MICHELIN) - 1121480872 01/09/2018 Pag.1
# Part NUm. Description
1 4054720000 PRESS. SWITCH KIT
1.1 7023050000 LOCK NUT
1.2 7081090000 FITTING
1.3 7088060000 FITTING
1.4 7090090000 PLUG
1.5 7100640000 PRESSURE REDUCER
1.6 7110240000 PRESSURE GAUGE
1.7 7110300000 PRESSURE GAUGE
1.8 7130570000 TAP
1.9 7250740000 PRESSURE SWITCH
1.10 7329070000 POWER CABLE
2 4083010000 WHEEL KIT
3 4083400000 PIVOTING WHEEL KIT
6 1124150100 MOTOR/PULLEY KIT
8 1120003087 BELT GUARD KIT
9 5011290008 BASE PLATE
12 7192090000 RELIEF VALVE
14 7130160000 DISCHARGE TAP
15 7190090000 CHECK VALVE
17 7230010000 RILSAN TUBE
18 7233711000 INFEED HOSE
20 7370060000 BELT
22 5152130008 TANK
23 1129740084 PUMP unit AB360
Pump Unit AB 360 Pag.2
1 9700001075 CRANKCASE
2 9700001076 CASING COVER
3 9700000531 SCREW
4 9700001077 O RING
5 9100270140 Crankshaft
6 7060180000 BEARING
7 7060200000 Ball Bearing 6204
8 9100270150 Oil seal 20x47x7
9 9100270160 COVER
10 9100270170 COVER
11 9100280010 O-ring 144
12 7011420000 SCREW
13 9100280020 FEATHER
14 9100270010 Connecting rod
15 9100270020 GUDGEON PIN
16 9100270030 Piston
17 4080120000 PISTON RING KIT
18 9100270070 RING
19 9100270080 CYLINDER
20 7012220000 SCREW
21 9700000408 OIL SIGHT GLASS
22 9100270180 O RING
23 9100270190 GASKET
24. VALVE PLATE
25 7198220000 VALVE
25A 7010790000 SCREW
26 7198210000 VALVE - DISCONTINUED
27 9100270210 GASKET
28 9100270100 HEAD
31 9700001902 INTAKE FILTER KIT
31A 7210010000 FILTER SPONGE ELEMENT
33 7010080000 SCREW
33A 7030030000 WASHER
34 9100270220 AIR CONVEYOR
35 7012090000 SCREW
36 7011460000 SCREW
37 9700000300 KIT OIL VENT CAP
38 7030270000 WASHER
39 9100270230 FLYWHEEL
41 9700010087 WASHER
42 9700002651 COOLER
43 9100270280 O RING
100 9700003272 VALVE PLATE KIT
102 9700002034 PISTON KIT
102A 9700010170 CONROD PISTON KIT
103 9700002932 GASKET KIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
MB200-360 MC 1121480872
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing MB200-360 MC

Drawing MB200-360 MC

Download (785KB)

You might also like

Pressure Regulator for Air Compressor 25/50 lt
FIAC spa SKU: 7100640000
Pressure Regulator for Air Compressor 25/50 lt
Pressure Regulator for Air Compressor 25/50 lt Genuine part FIAC, Pressure regulator for air compressors single phase, 25/50 liters. - Pressure connection: 1/4'' - Gauge: 1/8'' - Fittings Air connection : 1/4'' - Adjustable...
on 7/10 Business Days Approx €25.40
Details
Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP
FIAC spa SKU: 7181150000
Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP
Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP Original part FIAC, oil dipstick with plug oil for pump units : GM142 - GM143 - GM201, Air Compressors Michelin MB50 _GM142 - MB50_GM143 - MCX24 - MCX50 - Black&Decker...
Last items in stock €10.95
Details
Check Valve F-M 3/4"-3/4'' for Air Compressors -20% Sale
FIAC spa SKU: 6005453434
Check Valve F-M 3/4"-3/4'' for Air Compressors
Check Valve F-M 3/4"-3/4'' for Air Compressors Check valve for air compressors, Model Female-Male 3/4''-3/4'' FVR545, complete with nipple. Technical data: - Thread tank: Feale 3/4'' - Hose connection head: Male 3/4'' - Pressure...
AVAILABLE €23.29 €29.12
Details
Aluminium Pipe for Air Compressor FIAC COSMOS 255 S
FIAC spa SKU: 9700000343
Aluminium Pipe for Air Compressor FIAC COSMOS 255 S
Aluminium Pipe for Air Compressor FIAC COSMOS 255 S Genuine part FIAC, Aluminium Pipe for Air Compressors FIAC COSMOS 255 S - MICHELIN MB 50 GM142 - BLACK & DECKER CP 5050. Parts for the following products: - Air Compressor FIAC...
AVAILABLE €12.15
Details
Aluminium Pipe for Air Compressor FIAC COSMOS 225 S
FIAC spa SKU: 9700000342
Aluminium Pipe for Air Compressor FIAC COSMOS 225 S
Aluminium Pipe for Air Compressor FIAC COSMOS 225 S Genuine part FIAC, Aluminium Pipe for Air Compressors FIAC COSMOS 225 S - MICHELIN MB 24 GM142 - BLACK & DECKER CP 2525. Parts for the following products: - Air Compressor FIAC...
AVAILABLE €12.15
Details
V-Belt for Compressor Fiac AB100/248 - 338M
FIAC spa SKU: 7370740000
V-Belt for Compressor Fiac AB100/248 - 338M
 V-Belt for Compressor Fiac AB100/248 - 338M Original Part FIAC, V-Belt A45 13x1143Li for Air Compressors AB100/248 - 338M - AB150/200-248 -338M - Motocompressore Agri 25/40 - AB248 -...
on 10/15 Business Days Approx €8.19
Details
Pulley DP.100 1-A F19 for Air Compressor FIAC AB100/248
FIAC spa SKU: 7408690000
Pulley DP.100 1-A F19 for Air Compressor FIAC AB100/248
Pulley DP.100 1-A F19 for Air Compressor FIAC AB100/248 Original replacement part FIAC, Pulley DP.100 1-A F19 for Air Compressors AB100 - AB150/200-248 - Michelin MB24 - MB100 Part for the following products: -  Air Compressor FIAC...
on 7/10 Business Days Approx €33.32
Details
Rubber Foot for Air Compressor FIAC Cosmos 50
FIAC spa SKU: 7360040000
Rubber Foot for Air Compressor FIAC Cosmos 50
Rubber Foot for Air Compressor FIAC Cosmos 50 Original replacement part FIAC, Rubber Foot for Air Compressors Cosmos 50 - Apollo 100. Part for the following products: - Air Compressor Cosmos 50 -  Air Compressor FIAC AB100/248 -338M...
AVAILABLE €4.34
Details
Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo
FIAC spa SKU: 4083010000
Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo
Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo Original Part FIAC, Wheel Kit D.150 for FIAC Air Compressors - Michelin Air Compressors - AEG Part for the following products: -  Air Compressor AEG AB 200-360 MC...
on 7/10 Business Days Approx €21.06
Details
FIAC Pump Unit AB268 Oil Sight Glass
FIAC spa SKU: 9700000408
FIAC Pump Unit AB268 Oil Sight Glass
FIAC Pump Unit AB268 Oil Sight Glass Genuine Part FIAC, Oil Sight Glass for Pump Units AB268 - AB415. Ricambio per i seguenti prodotti: - Gruppo Pompante FIAC AB268 - 1129740083 - Gruppo Pompante  FIAC AB415 - 9700003004...
AVAILABLE €7.04
Details
FIAC AB360 Gasket Kit
FIAC spa SKU: 9700002932
FIAC AB360 Gasket Kit
FIAC Gasket Kit for Pump Unit AB360 Genuine replacement part FIAC, Gasket Kit for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC S360-22 1121440659...
Last items in stock €21.53
Details
Fiac O-Ring 130 Viton
FIAC spa SKU: 9100270280
O_ring
Fiac O-Ring 130 Viton Genuine part FIAC, O-Ring 130 Viton (D22,22X2.62) COOLER for AIR COMPRESSORS PUMP UNITS FIAC - MICHELIN. Parts for the following article: - Fiac AB360 Spares -  Fiac AB415 - 9700003004 - ...
AVAILABLE €4.47
Details
FIAC AB360 Conrod-Piston Kit
FIAC spa SKU: 9700010170
FIAC AB360 Conrod-Piston Kit
FIAC AB360 Conrod & Piston Kit Genuine replacement part FIAC, Conrod & Piston Kit for air Pump Unit AB 360. Part for the following products: -  Engine Air Compressors S10-360 - AB360 - Honda -  Engine Air...
Last items in stock €31.73
Details
FIAC AB268 Carter Cover
FIAC spa SKU: 9700001076
FIAC AB268 Carter Cover
FIAC AB268 Carter Cover Genuine replacement part FIAC, Bottom Carter Cover for Pump Units AB268 - AB248 - AB338. Part for the following products: -  Pumping Unit Fiac AB248 - AB338 -  Air Compressor Fiac Agri 25/40 - AB248...
Last items in stock €20.50
Details
FIAC AB360 Piston Pin
FIAC spa SKU: 9100270020
FIAC AB360 Piston Pin
FIAC Piston Pin for Pump Unit AB360 Genuine replacement part FIAC, Piston Pin for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC S360-22...
AVAILABLE €4.47
Details
FIAC AB360 Piston Pin Seeger
FIAC spa SKU: 9100270070
FIAC AB360 Piston Pin Seeger
FIAC Piston Pin Seeger for Pump Unit AB360 Genuine replacement part FIAC, Piston Pin Seeger for air Pump Unit AB360. Part for the following products: -  Pump Unit FIAC AB 360 - Engine Air Compressor FIAC...
AVAILABLE €1.47
Details
Comments (0)
