Michelin Spare Parts for Piston Air Compressor MCV 172

SKU: MCV 172
€190.54
VAT included

Michelin Spare Parts for Piston Air Compressor MCV 172

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components of the MCV 172.
Michelin Spare Parts for Piston Air Compressor MCV 172
  • Michelin Spare Parts for Piston Air Compressor MCV 172
  • Michelin Spare Parts for Piston Air Compressor MCV 172

Michelin Spare Parts for Piston Air Compressor MCV 172

SKU: MCV 172 Condition: New
€190.54
VAT included

Michelin Spare Parts for Piston Air Compressor MCV 172

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components of the MCV 172.
settings 31 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

26 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
3
Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
4
photo_cameraImage coming soon 7080240000 L F1 / 8 "-6 RAPID0 connector €15.66
5
photo_cameraImage coming soon 7196970000 Distributor €15.99
6
photo_cameraImage coming soon 9100640010 Base €23.28
8
photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
9
Non Return Valve for Air Compressors MM 1/2"x3/8"-DX 7190080000 Non Return Valve for Air Compressors MM 1/2"x3/8"-DX €25.59
10
photo_cameraImage coming soon 7235740000 Infeed hose €23.28
11
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
12
photo_cameraImage coming soon 7250640000 PRESSURE SWITCH €30.24
13
photo_cameraImage coming soon 7085180000 Fitting 1 / 4-1 / 8 MF €6.97
14
photo_cameraImage coming soon 7083120000 The Fitting 1/4-Pipe Ø8 €9.26
15
”L” joint for RILSAN hose (M) D.6 for Air Compressor Michelin MCX 6 7080140000 ”L” joint for RILSAN hose (M) D.6 for Air Compressor Michelin MCX 6 €9.07
16
photo_cameraImage coming soon 7080890000 Joint €13.84
17
photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
18
Michelin MCV 172 Safety Valve 7192270000 Michelin MCV 172 Safety Valve €10.21
21
FIAC Rubber Foot D.40X15 F.7 7360140000 FIAC Rubber Foot D.40X15 F.7 €5.17
22
photo_cameraImage coming soon 7021010000 Nut M6-7473 UNI €1.52
23
photo_cameraImage coming soon 7130280000 Discharge tap M1/4" €3.69
24
photo_cameraImage coming soon 7328620000 Alimentation Cable €21.16
25
photo_cameraImage coming soon 5167620008 Instrumental panel €28.56
26
photo_cameraImage coming soon 5159380008 Tank €154.91
27
photo_cameraImage coming soon 7080970000 Fitting "L" M1 / ​​4 "-8 QUICK €16.10
28
photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
29
photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
40
photo_cameraImage coming soon 9101410000 Unit pump GM 172 V.120/60HZ €199.91

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Michelin Spare Parts for Piston Air Compressor MCV 172

Fix Your Air Compressor MCV 172. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the type of the air compressor and the respective parts of the code .

Air Compressor MCV 172
# Part Num. Description
1 1120011043 Pressure gauge
2 7130570000 Universal Tap M1/4"
3 7100640000 Pressure reducer
4 7080240000 Joint "L" F1/8"-6 RAPID0
5 7196970000 Distributor
6 9100640010 Base
7 7030020000 Washer Ø6 UNI-6592
8 7011040000 Screw
9 7190080000 Non return valve MM 1/2"x3/8"-DX
10 7235740000 Infeed hose
11 7230010000 Rilsan hose Ø6X4
12 7250640000 Pressure switch
13 7085180000 Joint 1/4-1/8 MF
14 7083120000 Joint L 1/4-tubo Ø8
15 7080140000 Joint 1/8 M ATT TUBO D6
16 7080890000 Joint
17 7081140000 Joint 1/4" MM
18 7192270000 Safety valve
19 7090010000 Plug M1/8"
20 7030190000 Washer
21 7360140000 Rubber Foot
22 7021010000 Nut M6 UNI-7473
23 7130280000 Discharge tap M1/4"
24 7328620000 Infeed cable
25 5167620008 Instrumental panel
26 5159380008 Tank
27 7080970000 Joint "L" M1/4"-8 RAPIDO
28 7012090000 Screw M5X12 UNI-8112
29 7023040000 Locking nut
30 7021030000 Nut M8 UNI-7473
40 9101410000 Unit pump GM 172 V.120/60HZ
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
MCV 172
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

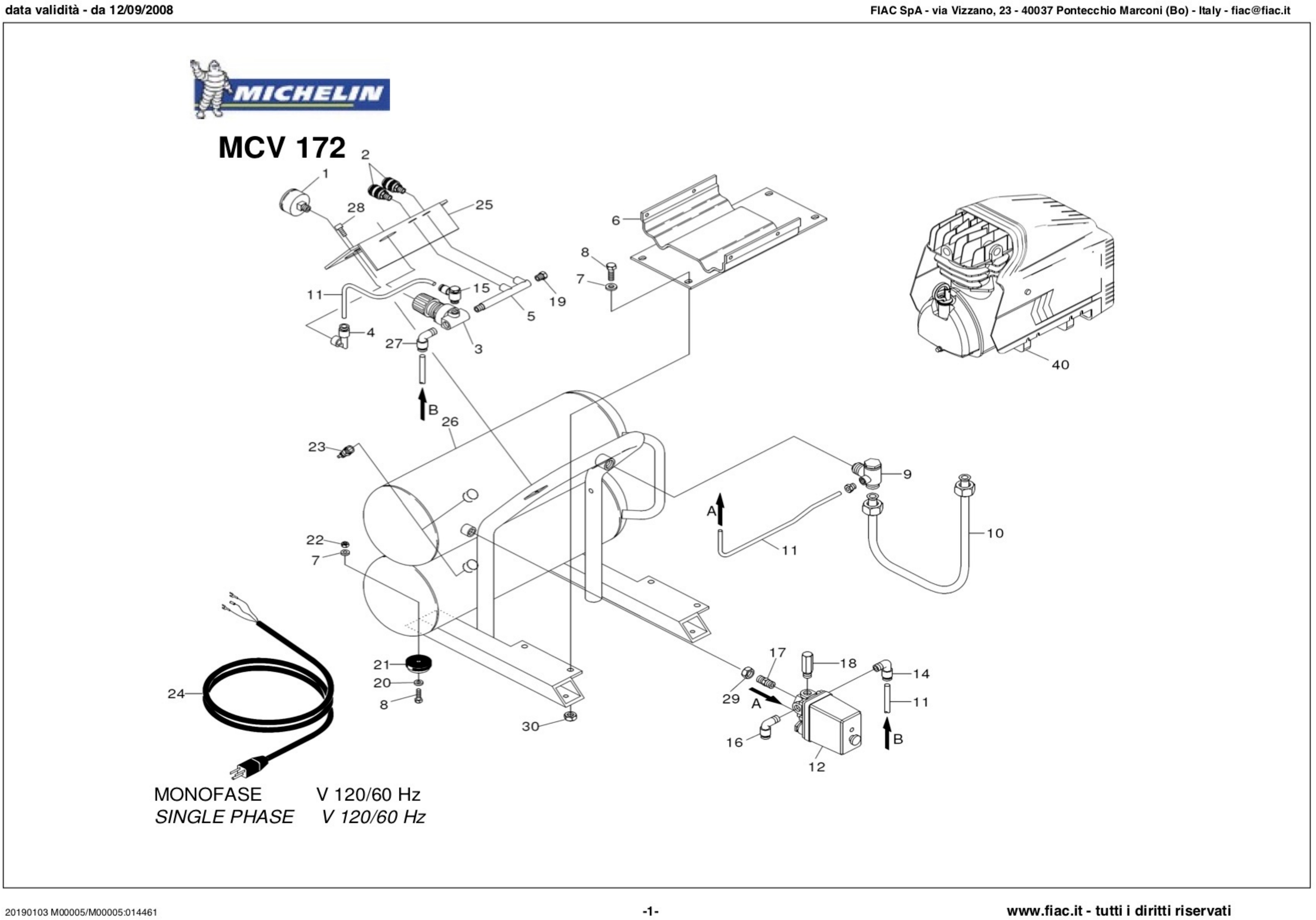

Diagram Michelin MCV 172

Diagram Michelin MCV 172

Download (215.76KB)
