Michelin Spare Parts for Piston Air Compressor MB 50 - GM 143

SKU: MB 50 GM143 - da 23/09/2009
€63.38
VAT included

Michelin Spare Parts for Piston Air Compressor MB 50 - GM 143

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components of the MB 50 - GM143.

Michelin Spare Parts for Piston Air Compressor MB 50 - GM143
  • Michelin Spare Parts for Piston Air Compressor MB 50 - GM143
  • Michelin Spare Parts for Piston Air Compressor MB 50 - GM143

Michelin Spare Parts for Piston Air Compressor MB 50 - GM 143

SKU: MB 50 GM143 - da 23/09/2009 Condition: New
€63.38
VAT included

Michelin Spare Parts for Piston Air Compressor MB 50 - GM 143

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components of the MB 50 - GM143.

settings 26 spare parts

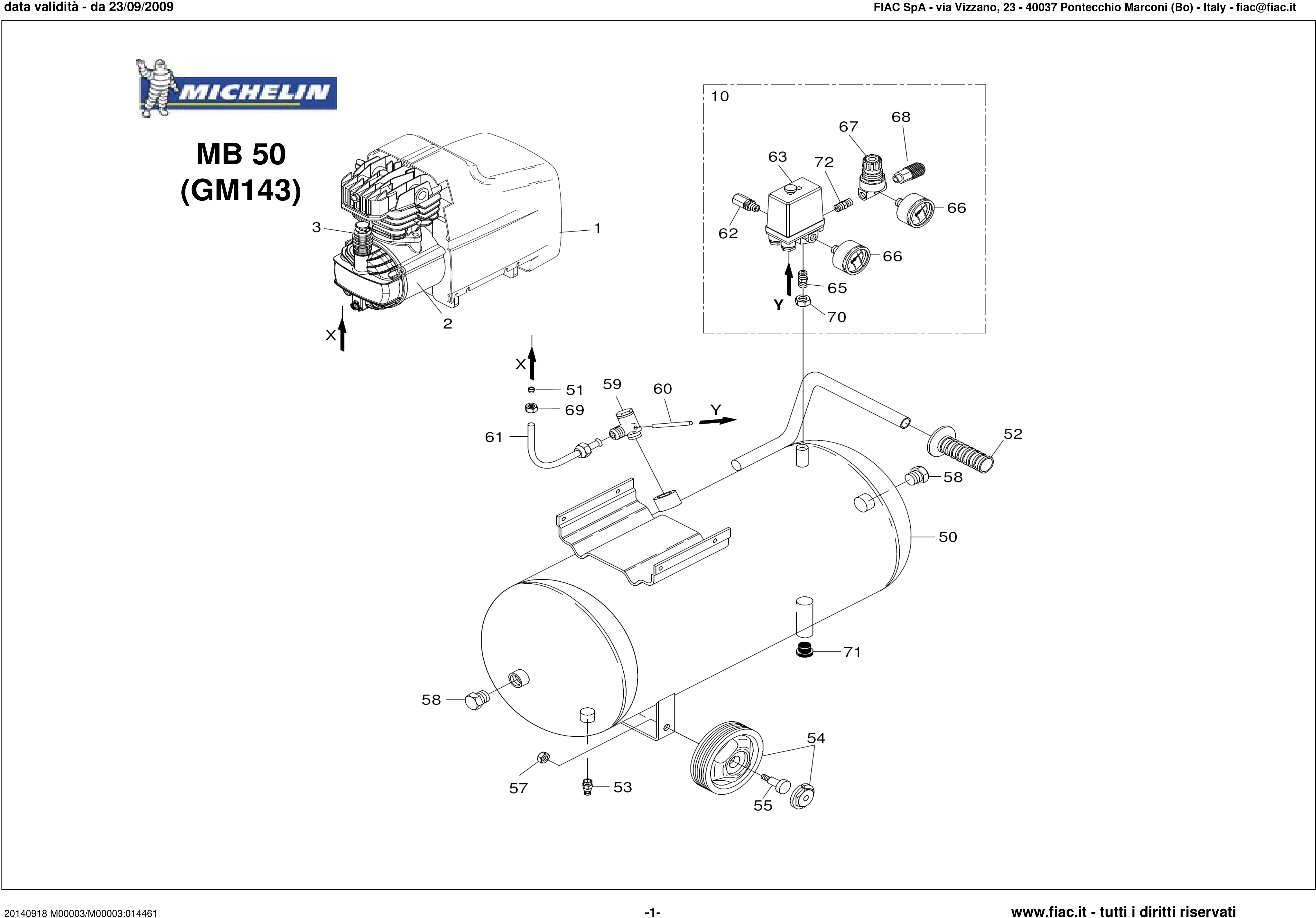

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

23 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
3016120000
photo_cameraImage coming soon 3016120000 pumping unit €123.49
4056380000
photo_cameraImage coming soon 4056380000 pressure Kit €53.62
7018290000
Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
7023050000
Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42
7024140000
photo_cameraImage coming soon 7024140000 Nut 3/8 " €4.11
7041070000
Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €4.37
7081090000
photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
7088060000
FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
7090030000
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
7100640000
Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
7110450000
photo_cameraImage coming soon 7110450000 manometer €15.53
7130160000
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
7130570000
photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
7181150000
Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP 7181150000 Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP €10.95
7190080000
Non Return Valve for Air Compressors MM 1/2"x3/8"-DX 7190080000 Non Return Valve for Air Compressors MM 1/2"x3/8"-DX €25.59
7192020000
Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
7230010000
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
7236670000
photo_cameraImage coming soon 7236670000 tube feeding €9.33
7250740000
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
7260160000
Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
7280070000
photo_cameraImage coming soon 7280070000 knob €7.05
7329070000
photo_cameraImage coming soon 7329070000 Power Cord €29.80
7360040000
Rubber Foot for Air Compressor FIAC Cosmos 50 7360040000 Rubber Foot for Air Compressor FIAC Cosmos 50 €4.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Michelin Spare Parts for Piston Air Compressor MB 50 - GM 143

Genuine Parts Michelin for piston Air Compressors and spare parts for the repair or replacement of components of the MB 50 - GM143

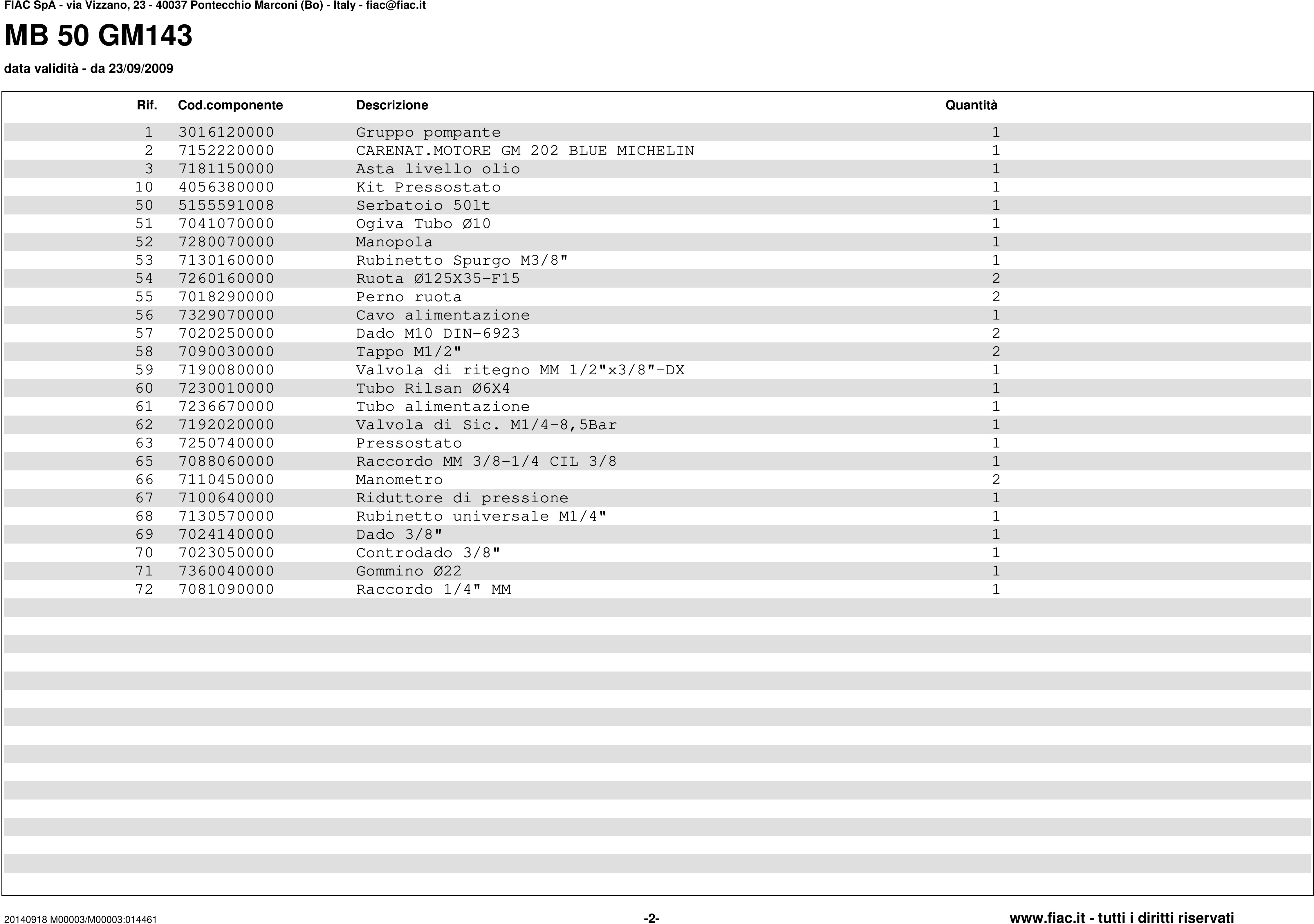

In the following table, look for the type of the air compressor and the respective parts of the code.

MB 50 GM143 data validità - da 23/09/2009
Rif. Cod. Descrizione
1 3016120000 pumping unit
2 7152220000 CARENAT.MOTORE GM 202 BLUE MICHELIN
3 7181150000 Oil dipstick
10 4056380000 pressure Kit
50 5155591008 50lt tank
51 7041070000 Ogiva tube Ø10
52 7280070000 knob
53 7130160000 Draining tap M3/8"
54 7260160000 Wheel Ø125X35-F15
55 7018290000 wheel axle
56 7329070000 power cable
57 7020250000 Nut M10 DIN-6923
58 7090030000 Cap M1/2"
59 7190080000 Check valve MM 1.2"x3/8" -DX
60 7230010000 Rilsan tube Ø6X4
61 7236670000 tube feeding
62 7192020000 Valve Sic. M1/4-8,5Bar
63 7250740000 pressure
65 7088060000 Fitting MM 3/8-1 / 4 CYL 8.3
66 7110450000 manometer
67 7100640000 Pressure reducer
68 7130570000 Tap Universal M1/4"
69 7024140000 Nut 3/8"
70 7023050000 Locknut 3/8"
71 7360040000 Rubber Ø22
72 7081090000 Fitting 1/4" MM
