Metabo

Metabo Spare Parts for Band Saw BAS 317 Precision DNB

SKU: BAS 317 Prec. DNB 0090317100 10
€1.82
VAT included

Metabo Spare Parts for Band Saw BAS 317 Precision DNB

Metabo original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Band Saw BAS 317 Precision DNB/0090317100 10.

Fix Your Band Saw BAS 317 Precision DNB. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Guarantee.
Metabo Spare Parts for Band Saw BAS 317 Precision DNB
  • Metabo Spare Parts for Band Saw BAS 317 Precision DNB
  • Metabo Spare Parts for Band Saw BAS 317 Precision DNB
  • Metabo Spare Parts for Band Saw BAS 317 Precision DNB
  • Metabo Spare Parts for Band Saw BAS 317 Precision DNB
  • Metabo Spare Parts for Band Saw BAS 317 Precision DNB
Metabo

Metabo Spare Parts for Band Saw BAS 317 Precision DNB

SKU: BAS 317 Prec. DNB 0090317100 10 Condition: New
€1.82
VAT included

Metabo Spare Parts for Band Saw BAS 317 Precision DNB

Metabo original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Band Saw BAS 317 Precision DNB/0090317100 10.

Fix Your Band Saw BAS 317 Precision DNB. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Guarantee.
settings 44 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB 14118011 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB €1.91
2
 Rubber Ring for Pulley Wood Band Saw Metabo BAS 317 Precision DNB 34410193 Rubber Ring for Pulley Wood Band Saw Metabo BAS 317 Precision DNB €9.81
4
 photo_cameraImage coming soon 7100047254 BEARING 6000 ZZ €9.63
7
 photo_cameraImage coming soon 14111032 ALLEN SCREW €1.77
8
 photo_cameraImage coming soon 14113101 Hexagonal nut €1.68
11
 photo_cameraImage coming soon 7005135529 KNOB HELIX BAS €1.82
12
 photo_cameraImage coming soon 7001047374 SCREW €4.08
13
 photo_cameraImage coming soon 1009719845 DOOR CLOSING €4.08
14
 photo_cameraImage coming soon 1009719888 PROTECTION BLADE €6.39
15
 Bolt and Gear for Wood Band Saw Metabo BAS 317 Precision DNB 1388681035 Bolt and Gear for Wood Band Saw Metabo BAS 317 Precision DNB €5.88
16
 Hand Knob for Wood Band Saw Metabo BAS 317 Precision DNB 1381681013 Hand Knob for Wood Band Saw Metabo BAS 317 Precision DNB €5.88
18
 photo_cameraImage coming soon 1485051518 PULLEY SHAFT €35.27
19
 photo_cameraImage coming soon 1482666317 PIN €7.41
20
 photo_cameraImage coming soon 14115005 Washer €1.68
21
 photo_cameraImage coming soon 7000074122 KNOB €3.30
23
 photo_cameraImage coming soon 1485400172 BOLT SLIDING €35.27
24
 photo_cameraImage coming soon 7100086764 BALL BEARING 6001 ZZ €9.63
26
 photo_cameraImage coming soon 14118006 RETAINING RING €1.68
27
 photo_cameraImage coming soon 6442084643 BUSH €4.94
28
 photo_cameraImage coming soon 9132081414 CARBON BRUSH €9.91
31
 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB 14118011 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB €1.91
33
 Blade Guide Assembly for Wood Band Saw Metabo BAS 317 Precision DNB 1009719861 Blade Guide Assembly for Wood Band Saw Metabo BAS 317 Precision DNB €46.35
34
 photo_cameraImage coming soon 1380421352 PULLEY LOWER BAS €146.60
35
 Belt for Band Saw Metabo BAS 317 Precision DNB 7233190017 Belt for Band Saw Metabo BAS 317 Precision DNB €21.46
42
 Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB 1009719829 Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB €12.01
43
 Band Guide Bearing for Wood Band Saw Metabo BAS 317 Precision DNB 1009719837 Band Guide Bearing for Wood Band Saw Metabo BAS 317 Precision DNB €33.13
44
 photo_cameraImage coming soon 1009719896 GUIDE €45.12
45
 photo_cameraImage coming soon 14111333 HEXAGON HEAD SCREW €1.77
46
 photo_cameraImage coming soon 6209110995 NUT M8 €1.73
47
 photo_cameraImage coming soon 6150421509 SCREW €4.62
50
 photo_cameraImage coming soon 1380421212 TABLE TOP BAS315 / 316 €442.85
51
 Table Trunnion for Band Saw Metabo BAS 317 Precision WNB 1009719942 Table Trunnion for Band Saw Metabo BAS 317 Precision WNB €83.57
52
 photo_cameraImage coming soon 1009719918 CLAMP €3.30
60
 photo_cameraImage coming soon 1381666324 BOX HARVESTING CHIP €41.07
61
 photo_cameraImage coming soon 1009719969 UPPER DOOR FOR BAS 317 €47.12
62
 photo_cameraImage coming soon 6241133255 HANDWHEEL €5.44
63
 photo_cameraImage coming soon 1009719772 SET ADJUSTMENT TRACTION €11.36
64
 photo_cameraImage coming soon 1009719764 QUICK RELEASE BLADE €12.81
65
 photo_cameraImage coming soon 1009719756 SHAFT WITH HANDLE €7.85
66
 photo_cameraImage coming soon 1009719926 BEAT PARALLEL €49.06
68
 photo_cameraImage coming soon 1009003793 PHASE MOTOR BAS 316 €395.72
69
 photo_cameraImage coming soon 7240419429 PULLEY BAS 316/317 €47.12
70
 photo_cameraImage coming soon 14115041 Serrated lock washer €1.77
72
 Metabo BAS 317 Precision DNB Roller Guide 1009719799 Metabo BAS 317 Precision DNB Roller Guide €42.30 Not available for order
75
 photo_cameraImage coming soon 1382705951 FAN COVER €11.36
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

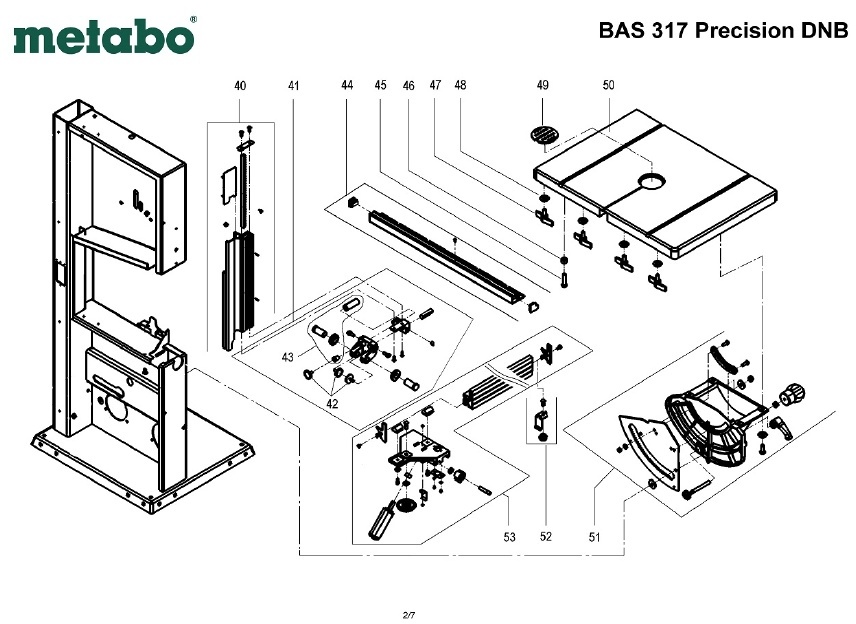

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
42
 Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB 1009719829 Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB €12.01
43
 Band Guide Bearing for Wood Band Saw Metabo BAS 317 Precision DNB 1009719837 Band Guide Bearing for Wood Band Saw Metabo BAS 317 Precision DNB €33.13
44
 photo_cameraImage coming soon 1009719896 GUIDE €45.12
45
 photo_cameraImage coming soon 14111333 HEXAGON HEAD SCREW €1.77
46
 photo_cameraImage coming soon 6209110995 NUT M8 €1.73
47
 photo_cameraImage coming soon 6150421509 SCREW €4.62
50
 photo_cameraImage coming soon 1380421212 TABLE TOP BAS315 / 316 €442.85
51
 Table Trunnion for Band Saw Metabo BAS 317 Precision WNB 1009719942 Table Trunnion for Band Saw Metabo BAS 317 Precision WNB €83.57
52
 photo_cameraImage coming soon 1009719918 CLAMP €3.30
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

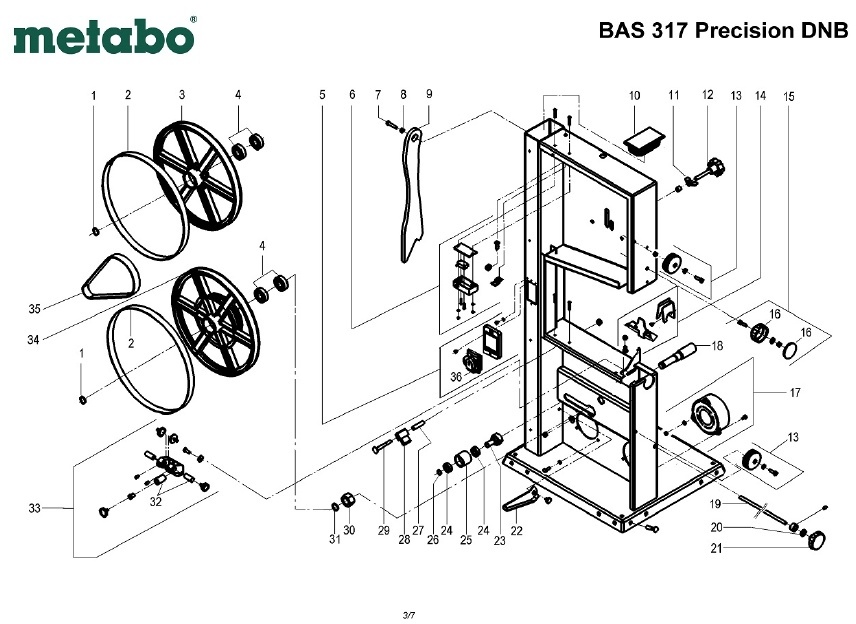

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB 14118011 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB €1.91
2
 Rubber Ring for Pulley Wood Band Saw Metabo BAS 317 Precision DNB 34410193 Rubber Ring for Pulley Wood Band Saw Metabo BAS 317 Precision DNB €9.81
4
 photo_cameraImage coming soon 7100047254 BEARING 6000 ZZ €9.63
7
 photo_cameraImage coming soon 14111032 ALLEN SCREW €1.77
8
 photo_cameraImage coming soon 14113101 Hexagonal nut €1.68
11
 photo_cameraImage coming soon 7005135529 KNOB HELIX BAS €1.82
12
 photo_cameraImage coming soon 7001047374 SCREW €4.08
13
 photo_cameraImage coming soon 1009719845 DOOR CLOSING €4.08
14
 photo_cameraImage coming soon 1009719888 PROTECTION BLADE €6.39
15
 Bolt and Gear for Wood Band Saw Metabo BAS 317 Precision DNB 1388681035 Bolt and Gear for Wood Band Saw Metabo BAS 317 Precision DNB €5.88
16
 Hand Knob for Wood Band Saw Metabo BAS 317 Precision DNB 1381681013 Hand Knob for Wood Band Saw Metabo BAS 317 Precision DNB €5.88
18
 photo_cameraImage coming soon 1485051518 PULLEY SHAFT €35.27
19
 photo_cameraImage coming soon 1482666317 PIN €7.41
20
 photo_cameraImage coming soon 14115005 Washer €1.68
21
 photo_cameraImage coming soon 7000074122 KNOB €3.30
23
 photo_cameraImage coming soon 1485400172 BOLT SLIDING €35.27
24
 photo_cameraImage coming soon 7100086764 BALL BEARING 6001 ZZ €9.63
26
 photo_cameraImage coming soon 14118006 RETAINING RING €1.68
27
 photo_cameraImage coming soon 6442084643 BUSH €4.94
28
 photo_cameraImage coming soon 9132081414 CARBON BRUSH €9.91
33
 Blade Guide Assembly for Wood Band Saw Metabo BAS 317 Precision DNB 1009719861 Blade Guide Assembly for Wood Band Saw Metabo BAS 317 Precision DNB €46.35
34
 photo_cameraImage coming soon 1380421352 PULLEY LOWER BAS €146.60
35
 Belt for Band Saw Metabo BAS 317 Precision DNB 7233190017 Belt for Band Saw Metabo BAS 317 Precision DNB €21.46
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

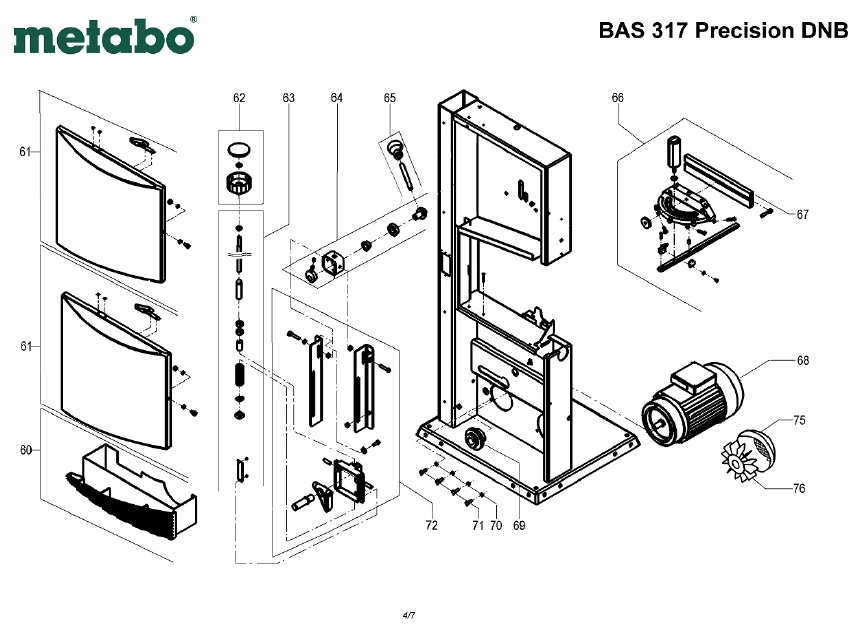

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
60
 photo_cameraImage coming soon 1381666324 BOX HARVESTING CHIP €41.07
61
 photo_cameraImage coming soon 1009719969 UPPER DOOR FOR BAS 317 €47.12
62
 photo_cameraImage coming soon 6241133255 HANDWHEEL €5.44
63
 photo_cameraImage coming soon 1009719772 SET ADJUSTMENT TRACTION €11.36
64
 photo_cameraImage coming soon 1009719764 QUICK RELEASE BLADE €12.81
65
 photo_cameraImage coming soon 1009719756 SHAFT WITH HANDLE €7.85
66
 photo_cameraImage coming soon 1009719926 BEAT PARALLEL €49.06
68
 photo_cameraImage coming soon 1009003793 PHASE MOTOR BAS 316 €395.72
69
 photo_cameraImage coming soon 7240419429 PULLEY BAS 316/317 €47.12
70
 photo_cameraImage coming soon 14115041 Serrated lock washer €1.77
72
 Metabo BAS 317 Precision DNB Roller Guide 1009719799 Metabo BAS 317 Precision DNB Roller Guide €42.30 Not available for order
75
 photo_cameraImage coming soon 1382705951 FAN COVER €11.36

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Band Saw BAS 317 Precision DNB

Fix Your Band Saw BAS 317 Precision DNB/0090317100 10. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Band Saw and the respective parts of the code.
BAS 317 Prec. DNB 0090317100 10

Band Saw BAS 317 Precision DNB/0090317100 10
# Part Num. Description
1 14118011 SAFETY RING
2 34410193 RUBBER RING 310X2,5X20
4 7100047254 BEARING 6000 ZZ
7 14111032 ALLEN SCREW
8 14113101 HEX NUT EX ... 14113011
11 7005135529 KNOB HELIX BAS
12 7001047374 SCREW
13 1009719845 DOOR CLOSING
14 1009719888 PROTECTION BLADE
15 1388681035 PIN
16 1381681013 KNOB
18 1485051518 PULLEY SHAFT
19 1482666317 PIN
20 14115005 WASHER
21 7000074122 KNOB
23 1485400172 BOLT SLIDING
24 7100086764 BALL BEARING 6001 ZZ
26 14118006 SAFE RING
27 6442084643 BUSH
28 9132081414 CARBON BRUSH
31 14118011 SAFETY RING
33 1009719861 BLADE GUIDE BAS 317
34 1380421352 PULLEY LOWER BAS
35 7233190017 BELT 4 PJ 610
40 1009719802 BLADE PROTECTION TAPE
42 1009719829 BLADE GUIDE
43 1009719837 BLADE GUIDE BEARING
44 1009719896 GUIDE
45 14111333 HEXAGON HEAD SCREW
46 6209110995 NUT M8
47 6150421509 SCREW
48 6305002486 WASHER
50 1380421212 TABLE TOP BAS315 / 316
51 1009719942 TABLE TRUNNION
52 1009719918 CLAMP
60 1381666324 BOX HARVESTING CHIP
61 1009719969 UPPER DOOR FOR BAS 317
62 6241133255 HANDWHEEL
63 1009719772 SET ADJUSTMENT TRACTION
64 1009719764 QUICK RELEASE BLADE
65 1009719756 SHAFT WITH HANDLE
66 1009719926 BEAT PARALLEL
67 1009719934 BEAT PROFILE included in 1009719926
68 1009003793 PHASE MOTOR BAS 316
69 7240419429 PULLEY BAS 316/317
70 14115041 WASHER FINNED
72 1009719799 ROLLER GUIDE
75 1382705951 FAN COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BAS 317 Prec. DNB 0090317100 10
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo BAS 317

Diagram Metabo BAS 317

Download (832.31KB)

You might also like

Belt for Band Saw Metabo BAS 317 Precision DNB
Metabo SKU: 7233190017
Belt for Band Saw Metabo BAS 317 Precision DNB
Belt for Band Saw Metabo BAS 317 Precision DNB Genuine Spare Parts Metabo, Belt 4 PJ 610 for Band Saw Metabo BAS 317 Precision DNB. Parts for the following products: -  Band Saw Metabo BAS 317 Precision DNB - 0090317100...
on 7/10 Business Days Approx €21.46
Details
Band Saw Metabo BAS 317 DNB
Metabo SKU: 009.031.7100
Band Saw Metabo BAS 317 DNB
Band Saw Metabo BAS 317 DNB Features: - High precision and stability for professional use - Two cutting speeds for various applications and materials - Quick-clamping lever for changing the blade, and to transform the machine into a...
Last items in stock €704.62
Details
Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB
Metabo SKU: 1009719829
Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB
Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB Genuine Spare Part Metabo, Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB - WNB - BAS 505 Precision DNB - WNB.  Parts for the following...
on 7/10 Business Days Approx. €12.01
Details
Retaining Ring for Band Saw Metabo BAS 317 Precision DNB
Metabo SKU: 14118011
Retaining Ring for Band Saw Metabo BAS 317 Precision DNB
Retaining Ring for Band Saw Metabo BAS 317 Precision DNB Genuine Spare Parts Metabo, Retaining Ring 15.70 for Band Saw Metabo BAS 317 Precision DNB. Parts for the following products: -  Band Saw Metabo BAS 317 Precision DNB -  Band...
on 7/10 Business Days Approx €1.91
Details
Metabo BAS 317 Precision DNB Roller Guide
Metabo SKU: 1009719799
Metabo BAS 317 Precision DNB Roller Guide
Metabo BAS 317 Precision DNB Roller Guide Metabo Original replacement part, Roller Guide for Band Saws BAS 317 Precision DNB - BAS 317 Precision WNB. Part for the following products: - Band Saw BAS 317 Precision DNB -...
Out-of-Stock €42.30
Details
Comments (0)
