Metabo Spare Parts for Sander for Walls and Ceilings LSV 5-225

SKU: Metabo LSV 5-225 - 00103000
€1.58
VAT included

Metabo Spare Parts for Sander for Walls and Ceilings  LSV 5-225

Metabo genuine spare parts for to fix Wall and Ceilings Sander LSV 5-225/00103000.

Wall and Ceilings Sander LSV 5-225
Metabo Spare Parts for Sander for Walls and Ceilings  LSV 5-225
  • Metabo Spare Parts for Sander for Walls and Ceilings  LSV 5-225

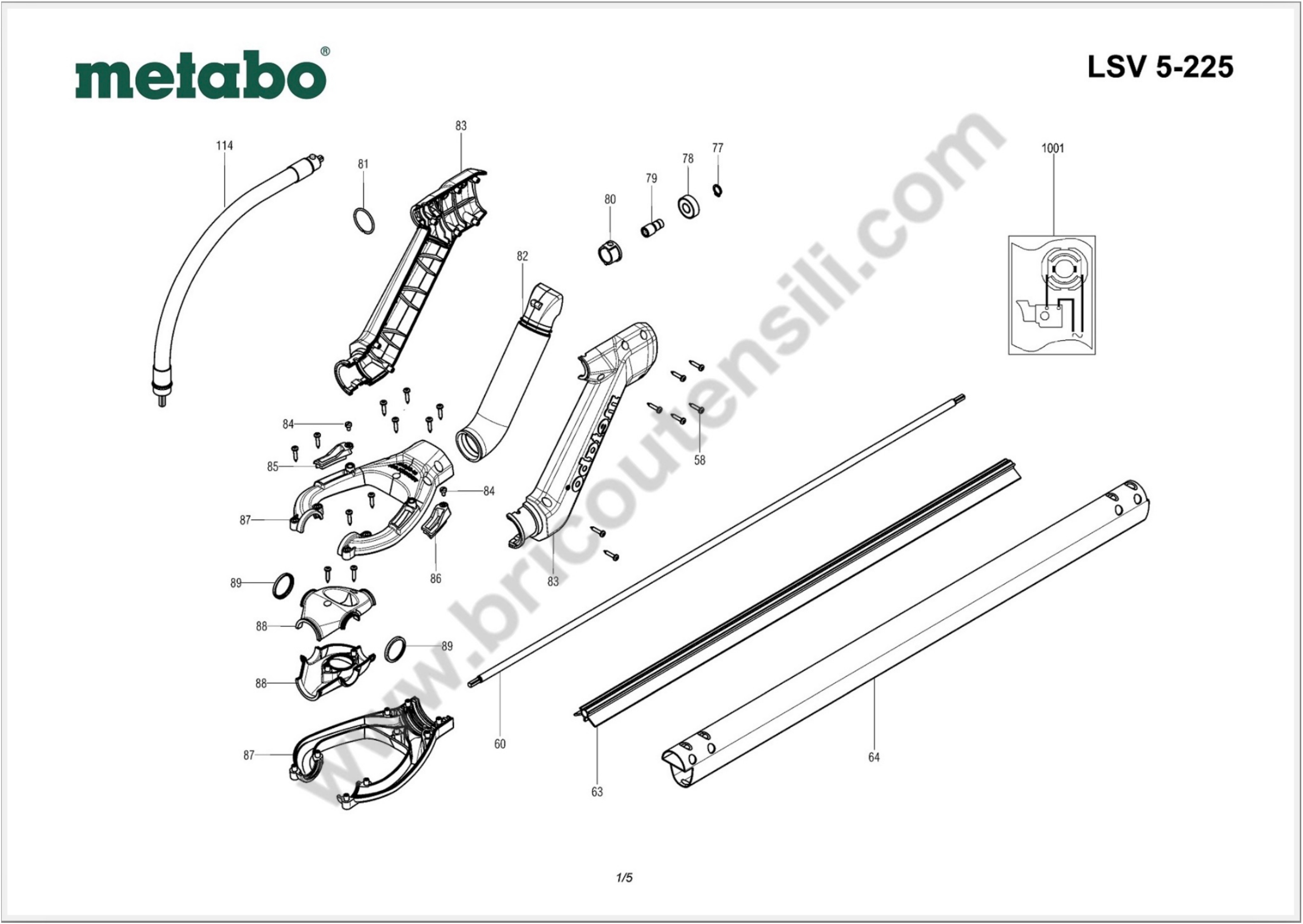

  • Metabo Spare Parts for Sander for Walls and Ceilings  LSV 5-225 - Drawing

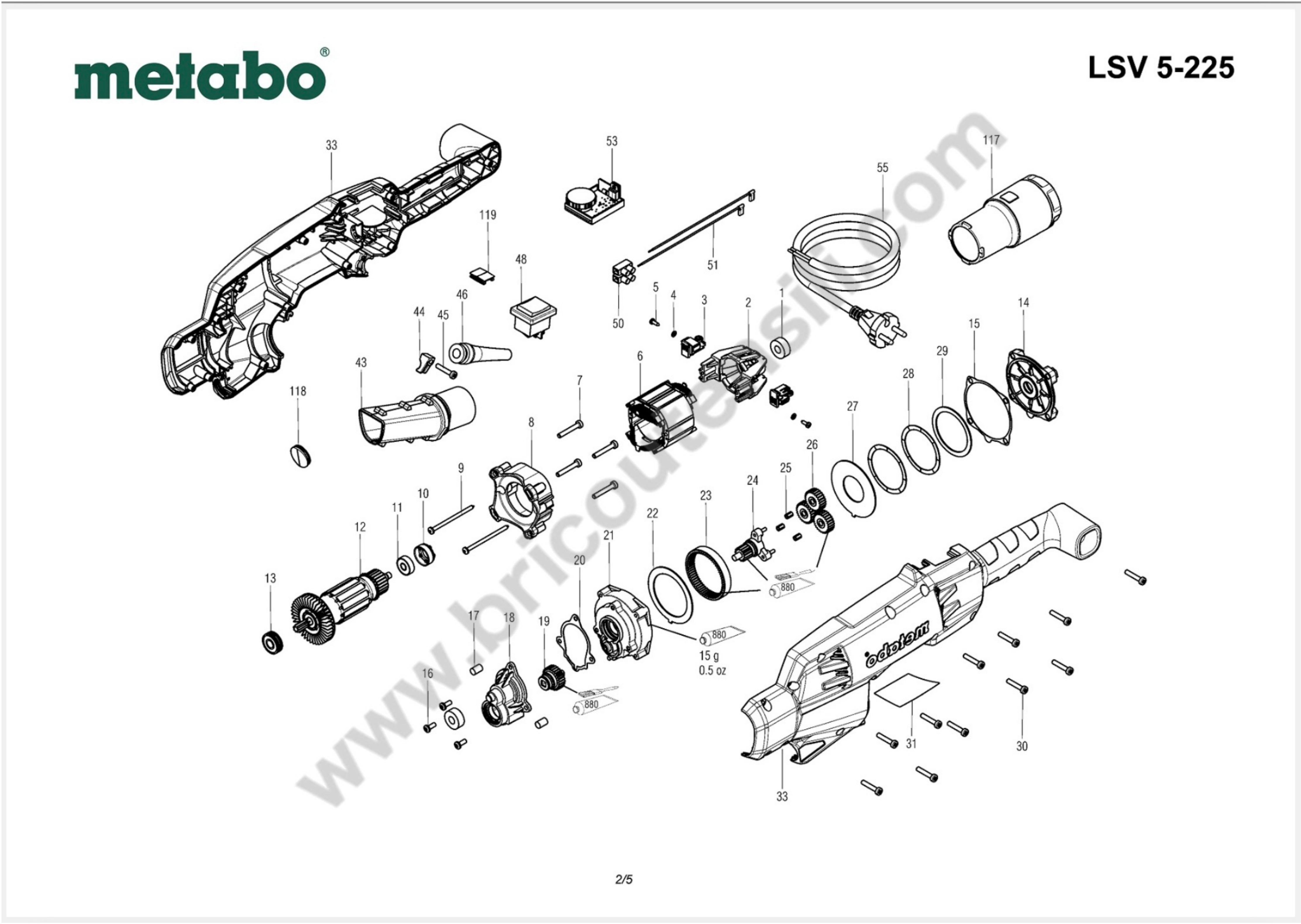

  • Metabo Spare Parts for Sander for Walls and Ceilings  LSV 5-225 - Drawing - 1

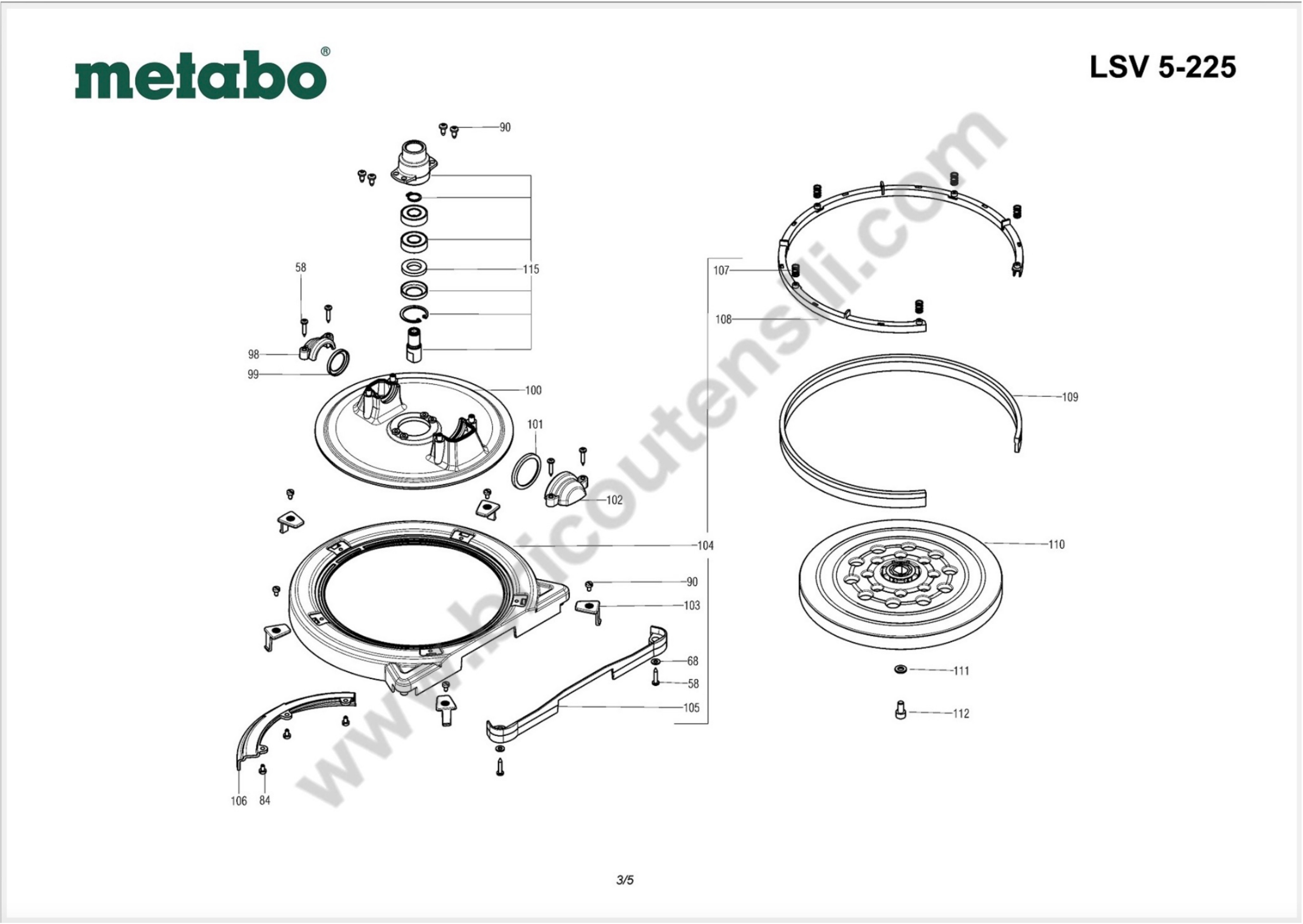

  • Metabo Spare Parts for Sander for Walls and Ceilings  LSV 5-225 - Drawing - 2

Metabo Spare Parts for Sander for Walls and Ceilings LSV 5-225

SKU: Metabo LSV 5-225 - 00103000 Condition: New
€1.58
VAT included

Metabo Spare Parts for Sander for Walls and Ceilings  LSV 5-225

Metabo genuine spare parts for to fix Wall and Ceilings Sander LSV 5-225/00103000.

Wall and Ceilings Sander LSV 5-225
settings 74 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

74 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 34410176 Damping ring €1.50
2
photo_cameraImage coming soon 34343777 Brush holder module €3.08
3
photo_cameraImage coming soon 31604690 Carbon brush set cut-off €12.13
4
photo_cameraImage coming soon 14115595 Washer €1.50
5
photo_cameraImage coming soon 14111990 Self-tapp. fill. h. screw €1.65
6
photo_cameraImage coming soon 31101232 Field coil w.field coil,230V €43.25
7
photo_cameraImage coming soon 14112410 Fillister head screw €1.50
8
photo_cameraImage coming soon 34343778 Motor flange €3.08
9
photo_cameraImage coming soon 14111826 Self-tap. fill. h. screw €1.81
10
photo_cameraImage coming soon 34409787 Rubber bushing €1.76
11
photo_cameraImage coming soon 14311475 Ball bearing, 6X 19X 6 €10.30
12
photo_cameraImage coming soon 31001159 Armature compl.,230V €43.25
13
photo_cameraImage coming soon 14311506 Ball bearing, 8X 22X 7 €6.03
14
photo_cameraImage coming soon 31520293 Flange €21.39
15
photo_cameraImage coming soon 33901214 Gear gasket €2.29
16
photo_cameraImage coming soon 14111054 Fillister head screw €1.65
17
photo_cameraImage coming soon 34409142 Rubber plug €1.53
18
photo_cameraImage coming soon 31606307 Gear-box cover cpl. €43.25
19
photo_cameraImage coming soon 31606308 Intermediate shaft, cpl. €24.54
20
photo_cameraImage coming soon 33901213 Gear gasket €3.08
21
photo_cameraImage coming soon 31606309 Intermediate flange cpl. €36.55
23
photo_cameraImage coming soon 34000437 Internal gear €6.03
24
photo_cameraImage coming soon 31606310 Planet carrier cpl. €13.91
25
photo_cameraImage coming soon 14311545 Needle roller and cage €4.65
26
photo_cameraImage coming soon 34000438 Planet wheel €3.86
30
Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
31
photo_cameraImage coming soon 33806529 Rating plate 00103000 LSV 5-225 €1.50
43
photo_cameraImage coming soon 34343768 Extraction channel €5.44
44
photo_cameraImage coming soon 34336249 Cable clip €2.02
45
photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.98
46
photo_cameraImage coming soon 34410114 Cable sleeve €2.55
48
Switch ON/OFF for Wall Sander Metabo LSV 5-225 34341083 Switch ON/OFF for Wall Sander Metabo LSV 5-225 €17.10
50
photo_cameraImage coming soon 34305014 Terminal rail €1.74
51
photo_cameraImage coming soon 34453049 Strand compl. €1.50
53
photo_cameraImage coming soon 34308513 Electronic unit,230V 55/60Hz €55.06
55
photo_cameraImage coming soon 34449318 Cable with plug €23.87
58
photo_cameraImage coming soon 14111318 Self-tap. fill. h. screw €1.57
60
photo_cameraImage coming soon 31606200 Hollow shaft compl. €68.84
63
photo_cameraImage coming soon 34410166 plastiv insert €4.65
64
photo_cameraImage coming soon 34111289 Retaining tube €49.15
68
photo_cameraImage coming soon 14115011 Washer €1.59
77
photo_cameraImage coming soon 14118004 Retaining ring €1.80
78
photo_cameraImage coming soon 14311112 Ball bearing, 10x26x8 €18.43
79
photo_cameraImage coming soon 34160482 Intermediate shaft €18.43
80
photo_cameraImage coming soon 34107177 Retainer bushing €2.29
81
photo_cameraImage coming soon 14115636 Circlip €1.81
82
photo_cameraImage coming soon 31606203 Extraction hose compl. €7.41
83
photo_cameraImage coming soon 34343779 Holder compl. €15.28
84
photo_cameraImage coming soon 14111105 Cap screw €1.50
85
photo_cameraImage coming soon 34343860 Cover €1.50
86
photo_cameraImage coming soon 34343861 Cover €1.50
87
photo_cameraImage coming soon 34343776 Fork compl. €21.39
88
photo_cameraImage coming soon 34343782 Swivel flange compl. €6.03
89
photo_cameraImage coming soon 34100629 Sliding bushing €1.50
90
photo_cameraImage coming soon 14111613 Self-tap. fill. h. screw €1.80
98
photo_cameraImage coming soon 34343771 bearing clamp €1.50
99
photo_cameraImage coming soon 34100628 Sliding bushing €1.50
100
photo_cameraImage coming soon 34343783 Wheel guard €15.28
101
photo_cameraImage coming soon 34100627 Sliding bushing €1.50
102
photo_cameraImage coming soon 34343772 Covering hood €1.70
103
photo_cameraImage coming soon 34343773 Angle bracket €1.50
104
photo_cameraImage coming soon 31606312 Adjusting ring cpl. €76.72
105
photo_cameraImage coming soon 34343769 Edge protection €3.86
106
photo_cameraImage coming soon 34410174 Sealing lip €3.86
108
photo_cameraImage coming soon 34343828 Brush holder €4.65
110
Metabo LSV 5-225 Round Complete 31606201 Metabo LSV 5-225 Round Complete €89.74
111
photo_cameraImage coming soon 14115194 Washer €1.75
112
photo_cameraImage coming soon 14111384 Cap screw €1.82
114
photo_cameraImage coming soon 34500017 Flexible shaft €169.27
115
Metabo LSV 5-225 Gear Cover 31606311 Metabo LSV 5-225 Gear Cover €58.40
117
photo_cameraImage coming soon 31606239 connecting sleeve €18.43
118
photo_cameraImage coming soon 34343839 Plug €1.50
119
photo_cameraImage coming soon 34343840 Plug €1.50
880
photo_cameraImage coming soon 34413093 Grease 50Gr 1,8oz €34.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Sander for Walls and Ceilings LSV 5-225

Metabo genuine spare parts for to fix Wall and Ceilings Sander LSV 5-225/00103000.

In the following table, look for the model of the Sander and the respective parts of the code.
Metabo LSV 5-225 - 00103000

Sander for Walls and Ceilings LSV 5-225/00103000
# Part Num. Description
1 34410176 Damping ring
2 34343777 Brush holder module
3 31604690 Carbon brush set cut-off
4 14115595 Washer
5 14111990 Self-tapp. fill. h. screw
6 31101232 Field coil w.field coil,230V
7 14112410 Fillister head screw
8 34343778 Motor flange
9 14111826 Self-tap. fill. h. screw
10 34409787 Rubber bushing
11 14311475 Ball bearing, 6X 19X 6
12 31001159 Armature compl.,230V
13 14311506 Ball bearing, 8X 22X 7
14 31520293 Flange
15 33901214 Gear gasket
16 14111054 Fillister head screw
17 34409142 Rubber plug
18 31606307 Gear-box cover cpl.
19 31606308 Intermediate shaft, cpl.
20 33901213 Gear gasket
21 31606309 Intermediate flange cpl.
23 34000437 Internal gear
24 31606310 Planet carrier cpl.
25 14311545 Needle roller and cage
26 34000438 Planet wheel
30 14111602 Self-tap fill h screw
31 33806529 Rating plate 00103000 LSV 5-225
43 34343768 Extraction channel
44 34336249 Cable clip
45 14111706 Self-tap. fill. h. screw
46 34410114 Cable sleeve
48 34341083 On-off switch
50 34305014 Terminal rail
51 34453049 Strand compl.
53 34308513 Electronic unit,230V 55/60Hz
55 34449318 Cable with plug
58 14111318 Self-tap. fill. h. screw
60 31606200 Hollow shaft compl.
63 34410166 plastiv insert
64 34111289 Retaining tube
68 14115011 Washer
77 14118004 Retaining ring
78 14311112 Ball bearing, 10x26x8
79 34160482 Intermediate shaft
80 34107177 Retainer bushing
81 14115636 Circlip
82 31606203 Extraction hose compl.
83 34343779 Holder compl.
84 14111105 Cap screw
85 34343860 Cover
86 34343861 Cover
87 34343776 Fork compl.
88 34343782 Swivel flange compl.
89 34100629 Sliding bushing
90 14111613 Self-tap. fill. h. screw
98 34343771 bearing clamp
99 34100628 Sliding bushing
100 34343783 Wheel guard
101 34100627 Sliding bushing
102 34343772 Covering hood
103 34343773 Angle bracket
104 31606312 Adjusting ring cpl.
105 34343769 Edge protection
106 34410174 Sealing lip
108 34343828 Brush holder
110 31606201 round compl.
111 14115194 Washer
112 14111384 Cap screw
114 34500017 Flexible shaft
115 31606311 Gear Cover
117 31606239 connecting sleeve
118 34343839 Plug
119 34343840 Plug
880 34413093 Grease 50Gr 1,8oz
