Metabo

Metabo Spare Parts for Polisher PE 12-175

SKU: Metabo PE 12-175 - 02175000
€1.58
VAT included

Metabo Spare Parts for Polisher PE 12-175

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Polisher PE 12-175 - 02175000.

Polisher PE 12-175 - 02175000
Metabo Spare Parts for Polisher PE 12-175
  • Metabo Spare Parts for Polisher PE 12-175
  • Metabo Spare Parts for Polisher PE 12-175
Metabo

Metabo Spare Parts for Polisher PE 12-175

SKU: Metabo PE 12-175 - 02175000 Condition: New
€1.58
VAT included

Metabo Spare Parts for Polisher PE 12-175

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Polisher PE 12-175 - 02175000.

Polisher PE 12-175 - 02175000
settings 52 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
52 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

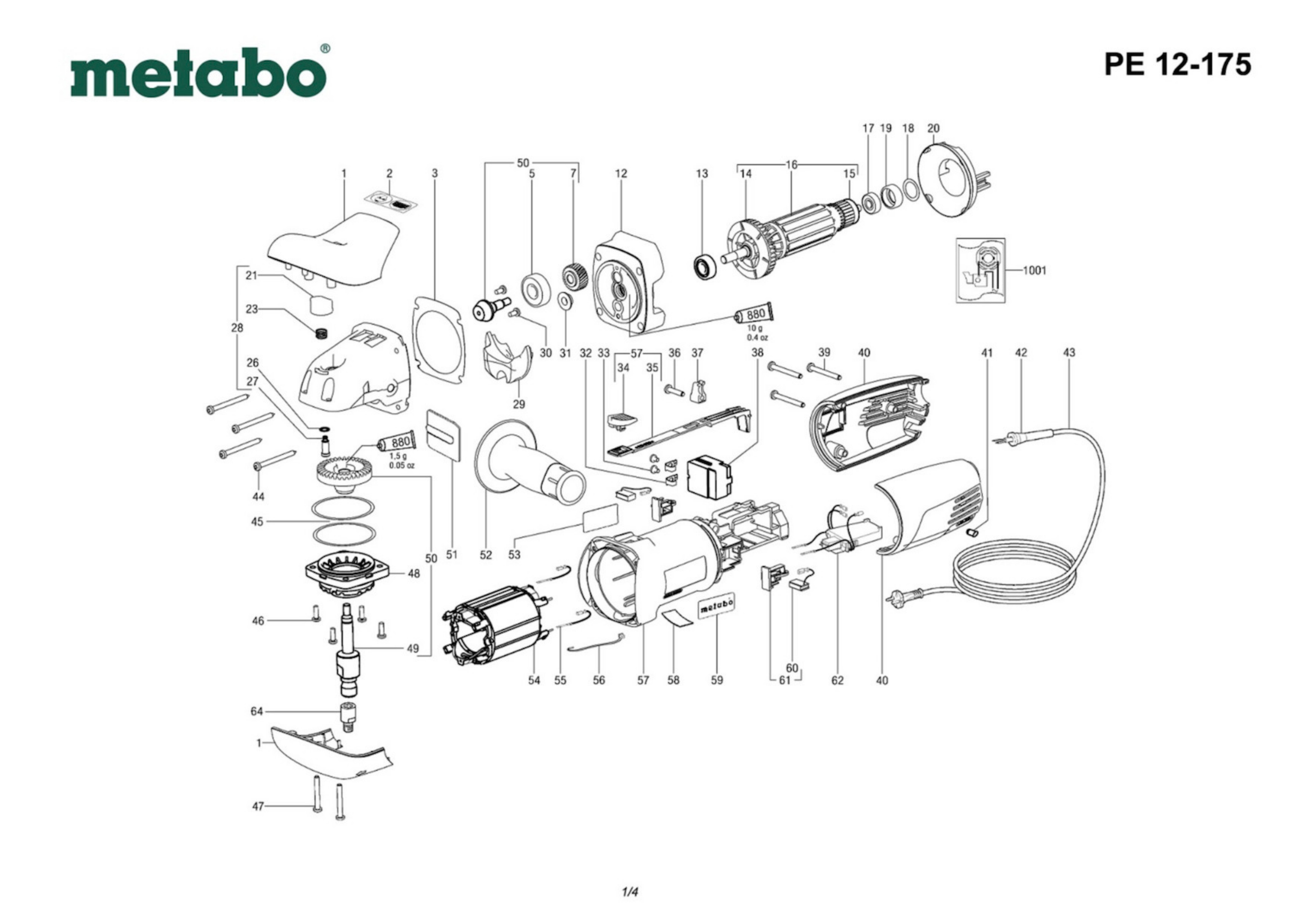

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 34339016 Cover €7.20
3
 photo_cameraImage coming soon 31605343 Sealing set €10.53
5
 photo_cameraImage coming soon 14311565 Ball bearing, 10x30x9 €2.99
7
 photo_cameraImage coming soon 34001244 spurwheel €14.84
12
 photo_cameraImage coming soon 31603748 Gear flange cpl. €105.08
13
 photo_cameraImage coming soon 14311506 Ball bearing, 8X 22X 7 €6.03
14
 Fan with Dust Protection for Angle Grinder Metabo W 7-115 31603121 Fan with Dust Protection for Angle Grinder Metabo W 7-115 €13.14
15
 photo_cameraImage coming soon 34339112 Tacho disc €3.75
16
 photo_cameraImage coming soon 31000863 Armature 230 V €118.46
17
 photo_cameraImage coming soon 14311490 Ball bearing, 6X 19X 6 €6.19
18
 photo_cameraImage coming soon 14115334 Washer €6.12
19
 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm 34409526 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm €2.08
20
 photo_cameraImage coming soon 33915089 Baffle €1.70
21
 photo_cameraImage coming soon 34339014 Push button black €1.86
23
 photo_cameraImage coming soon 34200155 Pressure spring €1.59
26
 photo_cameraImage coming soon 33900652 Sealing washer €1.59
27
 photo_cameraImage coming soon 34151379 Bolt €3.85
28
 photo_cameraImage coming soon 31603747 Gear housing cpl. €97.43
29
 photo_cameraImage coming soon 34339090 Insert €1.46
30
 photo_cameraImage coming soon 14111957 Fill. head screw(DIN 7985) €1.61
31
 photo_cameraImage coming soon 34337812 Sealing ring €5.86
32
 photo_cameraImage coming soon 33908031 Flat plug €1.46
33
 photo_cameraImage coming soon 14111578 Fillister head screw €1.52
34
 photo_cameraImage coming soon 34339418 Switch slide €1.65
35
 photo_cameraImage coming soon 34339188 Switch rod €1.52
36
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
37
 photo_cameraImage coming soon 34336249 Cable clip €2.02
38
 photo_cameraImage coming soon 34340674 Switch €26.18
39
 photo_cameraImage coming soon 14111699 Self-tap. fill. h. screw €1.98
40
 photo_cameraImage coming soon 34337571 2 part motor cap €5.86
41
 photo_cameraImage coming soon 34307728 Light transmission €1.46
42
 photo_cameraImage coming soon 34410097 Cable sleeve €1.79
43
 photo_cameraImage coming soon 34449318 Cable with plug €23.87
44
 photo_cameraImage coming soon 34170147 Self-tap. fill. h. screw €1.46
45
 photo_cameraImage coming soon 33906016 Compensating Washer €1.82
46
 photo_cameraImage coming soon 14111986 Fillister head screw €1.79
47
 photo_cameraImage coming soon 14111698 Self-tap. fill. h. screw €1.76
48
 photo_cameraImage coming soon 34337721 Flange complete €12.08
49
 photo_cameraImage coming soon 34160385 Spindle shaft €26.70
50
 photo_cameraImage coming soon 31603750 Intermediate flange M14 cpl. €149.05
51
 photo_cameraImage coming soon 33903954 Hand guard €8.92
52
 photo_cameraImage coming soon 31400054 Handle cpl. €12.25
53
 photo_cameraImage coming soon 33804509 Rating plate €1.46
54
 photo_cameraImage coming soon 31100989 Field coil 230 V El €74.49
55
 photo_cameraImage coming soon 34449396 Cable strand €1.79
56
 photo_cameraImage coming soon 34307749 Temperature sensor €10.45
57
 Burnishing Machine SE 12-115 Motor Housing 31605220 Burnishing Machine SE 12-115 Motor Housing €22.68
59
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
60
 Carbon Brushes for Angle Grinder Metabo W 7-115 31603551 Carbon Brushes for Angle Grinder Metabo W 7-115 €19.80
61
 photo_cameraImage coming soon 31603548 Brush holder cpl. €12.08
62
 Speed Governor for Polisher Metabo PE 12-175 34307923 Speed Governor for Polisher Metabo PE 12-175 €78.07
880
 photo_cameraImage coming soon 34413084 Special grease 100Gr 3,6oz €14.81

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Polisher PE 12-175

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Polisher PE 12-175 - 02175000.

In the following table, look for the model of the Polisher and the respective parts of the code.
Metabo PE 12-175 - 02175000

Polisher PE 12-175/02175000
# Part Num. Description
1 34339016 Cover
2 33811724 Label to read instructions
3 31605343 Sealing set
5 14311565 Ball bearing, 10x30x9
7 34001244 spurwheel
12 31603748 Gear flange cpl.
13 14311506 Ball bearing, 8X 22X 7
14 31603121 Fan w. prot. Grid
15 34339112 Tacho disc
16 31000863 Armature 230 V
17 14311490 Ball bearing, 6X 19X 6
18 14115334 Washer
19 34409526 Rubber bushing
20 33915089 Baffle
21 34339014 Push button black
23 34200155 Pressure spring
26 33900652 Sealing washer
27 34151379 Bolt
28 31603747 Gear housing cpl.
29 34339090 Insert
30 14111957 Fill. head screw(DIN 7985)
31 34337812 Sealing ring
32 33908031 Flat plug
33 14111578 Fillister head screw
34 34339418 Switch slide
35 34339188 Switch rod
36 14111602 Self-tap fill h screw
37 34336249 Cable clip
38 34340674 Switch
39 14111699 Self-tap. fill. h. screw
40 34337571 2 part motor cap
41 34307728 Light transmission
42 34410097 Cable sleeve
43 34449318 Cable with plug
44 34170147 Self-tap. fill. h. screw
45 33906016 Compensating Washer
46 14111986 Fillister head screw
47 14111698 Self-tap. fill. h. screw
48 34337721 Flange complete
49 34160385 Spindle shaft
50 31603750 Intermediate flange M14 cpl.
51 33903954 Hand guard
52 31400054 Handle cpl.
53 33804509 Rating plate
54 31100989 Field coil 230 V El
55 34449396 Cable strand
56 34307749 Temperature sensor
57 31605220 Motor housing
59 33812216 M-Label,08 52x22
60 31603551 Carbon brush
61 31603548 Brush holder cpl.
62 34307923 Electronic unit
880 34413084 Special grease 100Gr 3,6oz
