Metabo Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Circular Saw KS 54 - 00540000.

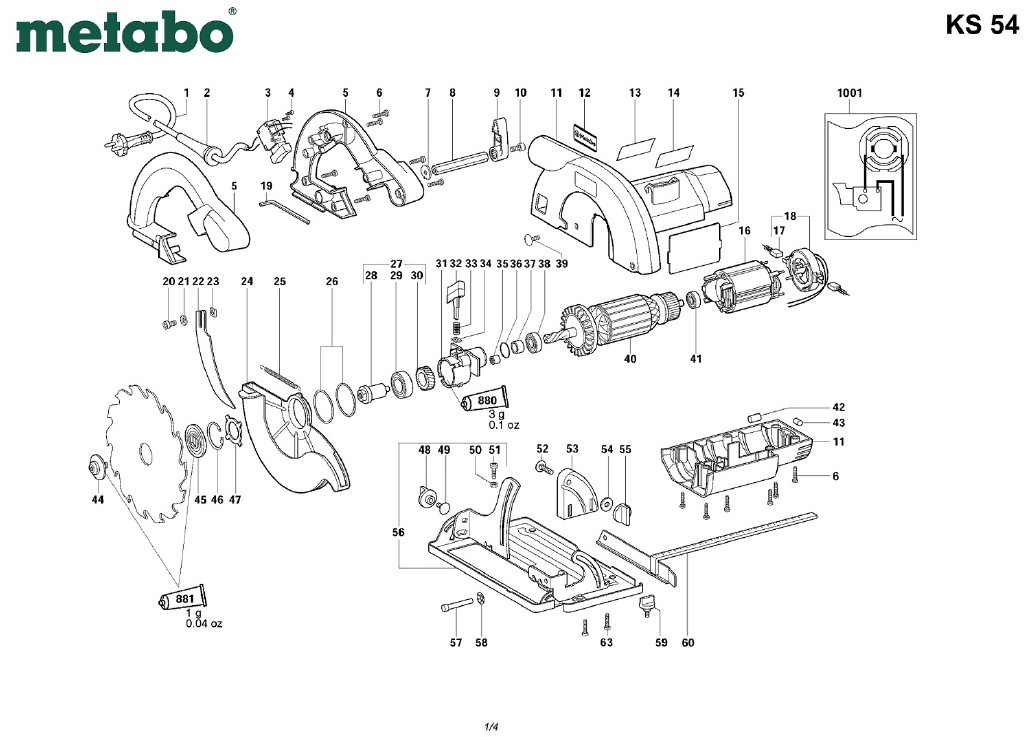

In the following table, look for the model of the Circular Saw and the respective parts of the code.![]()
| Circular Saw KS 54/00540000 | ||
| # | Part Num. | Description |
| 1 | 34449842 | Cable with plug |
| 2 | 34410097 | Cable sleeve |
| 3 | 34340736 | Switch |
| 4 | 14111697 | Fillister head screw |
| 5 | 34337765 | Handle with cover |
| 6 | 14111602 | Self-tap fill h screw |
| 7 | 33900435 | Washer |
| 8 | 34105696 | Spacing element |
| 9 | 34337764 | Clamping lever |
| 10 | 14111384 | Cap screw |
| 11 | 34337762 | Housing with cover |
| 12 | 33812216 | M-Label,08 52x22 |
| 13 | 33804336 | Rating plate |
| 14 | 39999999 | Part not needed |
| 15 | 33913175 | Insert |
| 16 | 31101018 | Field coil,230V |
| 17 | 31603455 | Brush set 230V/120V |
| 18 | 31603291 | Brush holder module 230 V |
| 19 | 34416152 | Cranked wrench key |
| 20 | 14111384 | Cap screw |
| 21 | 14115013 | Washer |
| 22 | 33913142 | Riving knife |
| 23 | 14113137 | Square nut |
| 24 | 33913141 | Wheel guard cpl. |
| 25 | 34202182 | Tension spring |
| 26 | 14115407 | Washer |
| 27 | 31603454 | Saw spindle cpl. |
| 28 | 34105697 | Saw axle |
| 29 | 14311402 | Ball bearing, 15x35x11 |
| 30 | 34105699 | Spur gear |
| 31 | 31510411 | Gear box housing |
| 32 | 31603482 | Spindle lock |
| 33 | 34200107 | Pressure spring |
| 34 | 34407060 | Felt |
| 35 | 14311118 | Needle bushing |
| 36 | 14319257 | O-ring |
| 37 | 34337604 | Sealing ring |
| 38 | 14311498 | Ball bearing, 8x22x7 |
| 39 | 14111153 | Truss head screw |
| 40 | 31000838 | Armature cpl. 230 V |
| 41 | 14311475 | Ball bearing, 6X 19X 6 |
| 42 | 34409255 | Rubber stopper |
| 43 | 34409142 | Rubber plug |
| 44 | 31603480 | Screw compl. |
| 45 | 33913143 | Flange |
| 46 | 14118039 | Retaining ring |
| 47 | 33912278 | Retraining sheet |
| 48 | 34111189 | Thumb-nut |
| 49 | 14112018 | Truss head screw |
| 50 | 14113009 | Hexagonal nut |
| 51 | 14111678 | Fillister head screw |
| 52 | 14111155 | Truss head screw |
| 53 | 34337767 | Console |
| 54 | 14115194 | Washer |
| 55 | 34111187 | Thumb-nut |
| 56 | 31603453 | Guide plate cpl. |
| 57 | 14116334 | Flat-head rivet |
| 58 | 14118093 | Circlip |
| 59 | 34111192 | Thumbscrew |
| 60 | 33105065 | Parallel guide |
| 63 | 14111680 | Self-tap. fill. h. screw |
| 880 | 34413097 | Grease 50Gr 1,8oz |
| 881 | 34413056 | Grease SF 011 50Gr 1,8oz |
