Metabo Spare Parts for Planer HO E 0983

SKU: Metabo HO E 0983 - 00983000
€1.79
VAT included

Metabo Spare Parts for Planer HO E 0983

Metabo Genuine spare parts or replacement parts for to Fix Planer HO E 0983/00983000.

Planer HO E 0983/00983000
Metabo Spare Parts for Planer HO E 0983
  • Metabo Spare Parts for Planer HO E 0983
  • Metabo Spare Parts for Planer HO E 0983

Metabo Spare Parts for Planer HO E 0983

SKU: Metabo HO E 0983 - 00983000 Condition: New
€1.79
VAT included

Metabo Spare Parts for Planer HO E 0983

Metabo Genuine spare parts or replacement parts for to Fix Planer HO E 0983/00983000.

Planer HO E 0983/00983000
settings 74 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

60 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 14319275 O-ring €1.58
3
Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
5
photo_cameraImage coming soon 34325358 Interference suppr. cond. €8.50
6
Switch for Planer Metabo HO E 0983 34340578 Switch for Planer Metabo HO E 0983 €13.43
7
photo_cameraImage coming soon 14111697 Fillister head screw €1.87
8
Ball Bearing 10x26x8 for Planer Metabo HO 0882 14311215 Ball Bearing 10x26x8 for Planer Metabo HO 0882 €17.02
9
photo_cameraImage coming soon 34170164 Selv-tapping screw €1.50
10
Tungsten Carbide Blades Pressure Strip for Planer Metabo HO 0882 14111490 Tungsten Carbide Blades Pressure Strip for Planer Metabo HO 0882 €1.79
11
Solid Tungsten Carbide Blades for Planer Metabo 0882 63028200 Solid Tungsten Carbide Blades for Planer Metabo 0882 €21.46
12
Pressure Strip Grub Screw for Planer Metabo 0882 14111648 Pressure Strip Grub Screw for Planer Metabo 0882 €1.68
13
Tungsten Carbide Blades Pressure Strip for Planer Metabo HO 0882 31600918 Tungsten Carbide Blades Pressure Strip for Planer Metabo HO 0882 €28.09 Not available for order
14
photo_cameraImage coming soon 31601530 Cutter block €114.14
15
photo_cameraImage coming soon 14311378 Needle sleeve €9.18
16
Handle Upper Part for Planer Metabo HO 0882 34111132 Handle Upper Part for Planer Metabo HO 0882 €6.70
18
photo_cameraImage coming soon 33105029 Depth stop €3.86
19
photo_cameraImage coming soon 14115194 Washer €1.75
20
photo_cameraImage coming soon 34111082 Thumbscrew €3.08
23
photo_cameraImage coming soon 34200205 Spring clip €1.58
24
photo_cameraImage coming soon 31602349 Cover cpl. €28.16
25
photo_cameraImage coming soon 34111165 Thumbscrew €1.85
26
photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
27
photo_cameraImage coming soon 31541360 Angle €9.18
28
photo_cameraImage coming soon 33105061 Parallel guide cpl. €70.95
31
photo_cameraImage coming soon 14118169 Circlip €1.58
34
Hexagon Head Screw for Planer Metabo HO 0882 14112108 Hexagon Head Screw for Planer Metabo HO 0882 €1.66
35
photo_cameraImage coming soon 31541031 Cam disc €2.29
36
Handle Lower Part for Planer Metabo HO 0882 34111179 Handle Lower Part for Planer Metabo HO 0882 €9.51
37
photo_cameraImage coming soon 34205018 Spring €1.50
39
photo_cameraImage coming soon 34307386 Electronic unit 230 V €50.92
43
photo_cameraImage coming soon 14113137 Square nut €1.47
45
photo_cameraImage coming soon 34336753 Gear-box cover €22.70
46
Belt Drive for Planer Metabo HO E 0983 34426018 Belt Drive for Planer Metabo HO E 0983 €30.89 Not available for order
47
photo_cameraImage coming soon 14113101 Hexagonal nut €1.68
48
photo_cameraImage coming soon 31541355 Belt pulley €12.87
49
photo_cameraImage coming soon 14113162 Plain hexagon nut €1.50
50
photo_cameraImage coming soon 31541354 Belt pulley €9.95
51
photo_cameraImage coming soon 34205057 Contact bridge €1.70
52
photo_cameraImage coming soon 34200133 Pressure spring €1.50
53
photo_cameraImage coming soon 34335911 Strap €3.08
54
photo_cameraImage coming soon 14311340 Ball bearing, 8x22x7 €11.17
55
photo_cameraImage coming soon 31603024 Fan with disc €5.58
56
photo_cameraImage coming soon 31000679 Armature cpl. 230 V €156.52
57
photo_cameraImage coming soon 14311566 Ball bearing, 6x19x6 €2.48
58
photo_cameraImage coming soon 14319162 O-ring €1.70
60
photo_cameraImage coming soon 34409222 Rubber plug €1.60
61
photo_cameraImage coming soon 31100907 Field coil assembly w.field coil,230V €50.92
62
photo_cameraImage coming soon 34200125 Pressure spring €1.70
65
photo_cameraImage coming soon 33912635 Threaded sheet €2.12
66
photo_cameraImage coming soon 14111943 Self-tapp. counters. screw €1.40
67
photo_cameraImage coming soon 34336249 Cable clip €2.02
68
photo_cameraImage coming soon 34416154 Hexagonal key €1.74
72
photo_cameraImage coming soon 31602348 Brush holder cpl. €19.79
73
photo_cameraImage coming soon 34409318 Cable sleeve €2.85
74
photo_cameraImage coming soon 34449318 Cable with plug €23.87
76
photo_cameraImage coming soon 14319006 O-ring €1.62
77
photo_cameraImage coming soon 34111163 Thumbscrew €1.78
78
photo_cameraImage coming soon 34111164 Thumbscrew €1.58
79
photo_cameraImage coming soon 14115340 Washer €1.76
80
photo_cameraImage coming soon 14115272 Washer €1.58
81
Metabo BE 75-16 Carbon Brush Set 31603373 Metabo BE 75-16 Carbon Brush Set €18.32

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Planer HO E 0983

Metabo Genuine spare parts or replacement parts for to repair Planer HO E 0983/00983000.

In the following table, look for the model of the Planer and the respective parts of the code.
Metabo HO E 0983 - 00983000

Planer HO E 0983/00983000
# Part Num. Description
1 34336755 Nozzle
2 14319275 O-ring
3 14111602 Self-tap fill h screw
4 34336752 Handle cover
5 34325358 Interference suppr. cond.
6 34340578 Switch
7 14111697 Fillister head screw
8 14311215 Ball bearing, 10x26x8
9 34170164 Selv-tapping screw
10 14111490 Grub screw
11 63028200 2 Planer blades
12 14111648 Grub screw
13 31600918 Pressure strip cpl.
14 31601530 Cutter block
15 14311378 Needle sleeve
16 34111132 Handle upper part
17 33802736 Rating plate
18 33105029 Depth stop
19 14115194 Washer
20 34111082 Thumbscrew
21 14115475 Point ring
22 33912636 Covering flap
23 34200205 Spring clip
24 31602349 Cover cpl.
25 34111165 Thumbscrew
26 14113010 Hexagonal nut
27 31541360 Angle
28 33105061 Parallel guide cpl.
31 14118169 Circlip
33 31602318 Housing with tables
34 14112108 Hexagon head screw
35 31541031 Cam disc
36 34111179 Handle bottom part
37 34205018 Spring
38 33912637 Scale
39 34307386 Electronic unit 230 V
40 33900556 Bearing plate
41 14111227 Countersunk screw
42 34151434 Spindle
43 14113137 Square nut
44 33811243 Metabo label
45 34336753 Gear-box cover
46 34426018 Toothed belt
47 14113101 Hexagonal nut
48 31541355 Belt pulley
49 14113162 Plain hexagon nut
50 31541354 Belt pulley
51 34205057 Contact bridge
52 34200133 Pressure spring
53 34335911 Strap
54 14311340 Ball bearing, 8x22x7
55 31603024 Fan with disc
56 31000679 Armature cpl. 230 V
57 14311566 Ball bearing, 6x19x6
58 14319162 O-ring
59 34336756 Baffle
60 34409222 Rubber plug
61 31100907 Field coil assembly w.field coil,230V
62 34200125 Pressure spring
63 34409392 Sealing plate
64 34409393 Sealing strip
65 33912635 Threaded sheet
66 14111943 Self-tapp. counters. screw
67 34336249 Cable clip
68 34416154 Hexagonal key
72 31602348 Brush holder cpl.
73 34409318 Cable sleeve
74 34449318 Cable with plug
76 14319006 O-ring
77 34111163 Thumbscrew
78 34111164 Thumbscrew
79 14115340 Washer
80 14115272 Washer
81 31603373 Carbon Brush Set with holder
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo HO E 0983 - 00983000
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

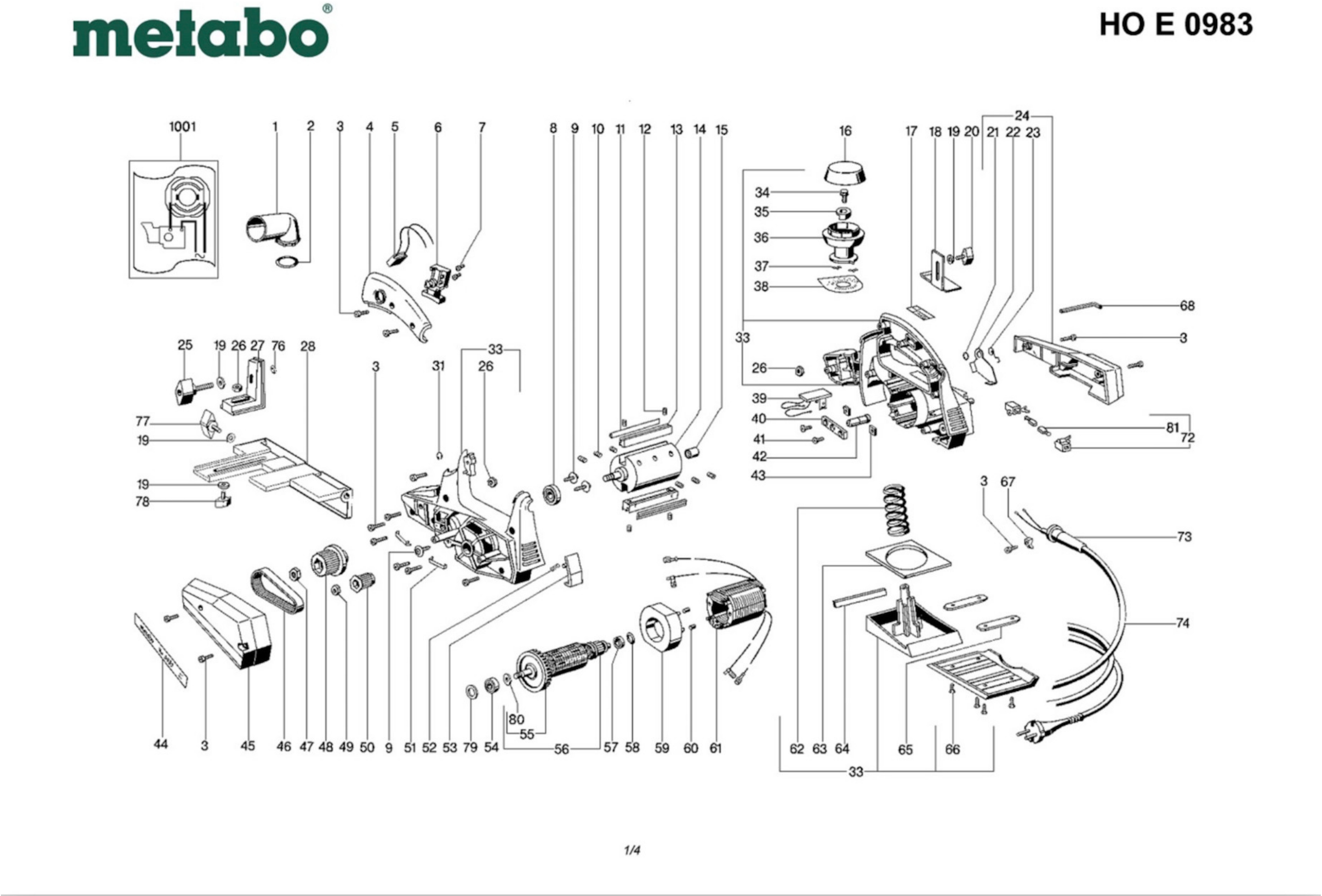

Diagram Metabo HO E 0983

Diagram Metabo HO E 0983

Download (258.39KB)
